GPS NAVIGATION SYSTEM
DNX9140
MONITOR WITH DVD RECEIVER
DDX814
DDX8034BT
INSTRUCTION MANUAL
Kenwood Corporation
~db
Digital Surround
PRO LOGIC II I
~ H5'Radio®
READY -!JREADY
rnDOLBY
DIGITAL I
IOl Madefor
@J iPod
tx? I, :,;';~ (C!
I 0 Bluetooth@
SRSCe)
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain
the best
performance from your
new GPS Navigation System/DVD Receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and
in the space provided below. Refer to the model and serial numbers
whenever you call upon your Kenwood dealer for information or service
on the product.
Model DNX9140/DDX814/DDX8034BT
Serial number _
US Residents Only
©864-4378-00100 (KW/RW)

How to read this manual
Before
Use
Notes
,,'"
..
4
6
7
(Initial Setup 97 )
Functions
of the buttons on thefront
panel
10
Picture in Picture Function 11
Screen Switching Function 11
Getting Started 12
How to Display the Navigation Screen 12
How to Select the Source 12
How to Set aMedium / a Device 13
Basic Operation 14
How to Display the Source Control Screen 14
How to Display Top Menu Screen 15
Operation on the Playback Screen of Visual
Sources 16
How to Display the Easy Control Screen 17
Watching DVD/Video CD
Playback Screen
Easy Control Screen
Source Control
Screen
DVD-VIDEO Disc Menu
DVD-VR Menu Control
Video
CD Zoom Control
Music DiscI Audio File Listening &
Video Filel Picture File Watching 22
Source Control Screen 22
List Select 23
USB device select 24
Link search (Audio file in USB) 25
Playback Screen (Video file, Picture file) 25
Easy Control Screen (Video file, Picture file) 26
Picture Control 26
Movie Menu Control 26
iPod Control 27
Playback Screen 27
Easy Control Screen 27
Source Control Screen 28
iPod List
28
Link search (Music file) 29
2DNX9140/DDX814/DDX8034BT
Radio Listening 30
Source Control Screen 30
Preset Select 31
Auto Memory 31
Manual Memory 32
Radio Text (North American sales area only) 32
Set Station Name 33
Traffic Information
(North American
sales area only) 33
Search by Program Type
(North American
sales area only) 34
TVWatching (DDX8034BT only) 35
Function During TV Screen 35
Easy Control Screen 35
Source Control Screen 36
Auto Memory 37
Manual Memory 37
Preset Select 38
Set Station Name 38
SIRIUS/XM Control
(North American
sales area only) 39
Source Control Screen 39
Channel Search 40
Channel Memory 40
Direct Channel
Search 41
HD Radio Control
(North American
sales area only) 42
Source Control Screen 42
Auto Memory 43
Manual Memory 43
Receive mode 44
Direct
Search 44
iTunes Tagging
(HD Radio Tagging) 45
Bluetooth Audio Control 46
Before Use 46
Source Control
Screen 46

66
66
67
67
68
68
69
69
70
71
71
72
73
74
75
75
77
77
78
78
79
80
80
82
83
84
84
85
86
86
87
87
88
89
90
Setup Menu
How to Display SETUP Menu Screen
DivX Setup
Software Information
User Interface
Language Setting
Touch
Panel Adjustment
Clock Setup
Security Setup
Monitor Angle Control
EXT SW Setup
Setup
Memory
Entering Background
Panel Color Coordinate
Screen Adjustment
Registering Bluetooth Unit
Registering Bluetooth Unit
PIN Code
Bluetooth Unit Connection
AV Input Setup
AV Interface Setup
Navigation Setup
DSP Bypass Control
Speaker Setup
Car Type (DTA) Setup
Channel Level
DVD Setup
DVD Language Setup
DVD Parental Level Setup
Disc Setup
USB Setup
iPod Setup
SIRIUS Parental Code Setup
SIRIUS Parental Lock Setup
SIRIUS Parental Lock Channel Select
TV Setup
Hands Free Unit Control 51
Before Use 51
Downloading the Phonebook 51
Receiving a Call 51
During a Call 51
Call Waiting 52
Making a Call 52
Calling by Phonebook 53
Calling by Entering aPhone Number 53
Making a Call Using Call Records 54
Calling by Voice Recognition
(DDX8141 DDX8034BT)
54
Controlling Tone-based Services 55
Setting Up the Hands-Free Phone 55
Voice Registration (DDX8141 DDX8034BT) 56
Key Word Voice Registration
((DDX8141 DDX8034BT))
Phone Number Preset
SMS (Short Message Service)
Voice Control (DNX9140 only) 47
Voice Control 47
Other Functions 48
Character Entry 48
External Device Power Supply Control 48
Muting Audio Volume upon Reception of
Phone Call 49
Screen Control 50
Screen Control 50
. .
Audio Control
Audio Control Menu
Audio Control
Equalizer Control
Graphic Equalizer Setup
Zone Control
SRS WOW Control
Surround Control
Position
61
61
61
62
62
63
63
64
65
Remote Controller
,Initial Setup
Status bar Indicator items
DVD Language Codes
Help? Troubleshooting
Help? Error
Specifications
.
91
97
98
99
100
101
103
English 3

Source Control Screen
[AM] ').,/!(; ,e'; t.) liv' /\\.: :',1. /i
[t ....... 1, [...... 1] lu"'\ .. , () ',!.;';;"',
S\vitches to the ~)ou(ce cont.rol screen to use
various functions.
DDisplay the Source Control Screen
Q
Ooeration on the Source Control screen
•••••••••••••••••••••••••••••••
•
•
•
•
•
•
•
" ,Ieeti~g a;~c .. eenitern<:;:::: .' ')~~':... "·· ~
Select' and choOse an item on thesCreen~:{,:'t 'J :
Select th~ item by touching tbebuttphontfle,j :
een<:;i1t>,;,,;!:~0;:';\;.)i)!;:;i:/·> ,., "">,, ; .. , ~ .' .... ~ • tJ!rM ·')~·.~t(r",'~~·I~) ~,~(. I·;' te" t:t~ ;t:·······
!~1!
A
The displays and panels shown in this manual
are examples used to provide clear explanations
of
the operations.
For this reason, they may be different from the
actual displays or panels used, or some display
patterns may be different.
Multi Function
~ ,. Ridgeview Road 9999
- - ----
"t Press,
~'~~;the;buft6'
••• • •••
-f~ ~ ~ ~-'PTY vn::1?~~
,. Ridgllview Road ~ 99999 99~
.......................... . ... ,
[CRSCj ""fLEMili' LWL \'Ie ,"":', r"'h"_'" n"
or C:>H. >'j
[SEEK] ':'_',"c"" t,,(' '/'(:'- \(,(.
;!l\.~.~(.'dc;'.,>\f-J;t::.t 'd ·r:-< if):', :',("1
The above operation example with the Il1drk
differs from the actual operation.
a. ,·~r)L:;;..'
•
• •••••••••••
•• •: Next page... :
•••••••••••••••••••••••• • •••••••••••
•• ".\". i.t~ I.i- ...... ~let~.(~ .l.i, ,'. ~:~r ... •••• •••
• • ••• ~ Display ... ·' :..Se:.;tt:..iRg.;L _
'I : "AUTO 1" Tunes in a station with good reception .i
j • _au_to_m_a_tic_al-'.Iy_. _
J : "AUT02" Tunes in stations in memory one after another
<il : "MANU" Switches to the next frequency manually.
~~ .
: J,~~~ ~iI j
fIB·················· ~-~ .
• :Continues to the rl~xt
;Ends here.:,,'
ntirlue to~~~;ne~t p~g.;:; ;, ... .;);:~:. e ••
The instruction-continues to the next page,:: -
Make sure to flip the page for the rest ofthe
truction. "C'. ..'
4') DNX9140/DDX814/DDX8034BT

Function I~on >. . "
Ic'ons ~epresenting ~vailabl~ functio'hs
showltbelow.
Jiiv.)~~g:Fu ~stf0'1 }~f DVD-VIDEOplayb
.~..v.~: Funttipnof DVD-VR playbac~
'UIdeo,l:D,: Funetibn;ofVideo CD' playbac~
BJP,..: Fu'netionof ctnco-DA} 'playback~
JrI~F,ile: FunctiOn of,Audio File playback. '"
'_~(j,: Fuh~tion of MPEG file playba,ck:"'
.IIQivx~: Fy~cti()n ofDivX file playback.·
i.I~I!E!i,:Flil'\~tion;()f JPEG fil~ playbiid,,;
~~¥: fMr~~i~!,f9f Ois(.(OyD •.
~.JLS§~:r .etioi'rof USBdevic~.
M1W; ,.' .. ,>.recep;ti~
us: ..... i ·~IRllJSsouf
," nofXM~ou.;~~
t ••• ~
02
Specialirl~tryc.t~o!1Si supplementary;,; >.' ..,
explanations; limitations, and reference pages
are desqibed> .
Cit· •.......... ,,"" .
G~neralJ'recautionsand r;efer~[lce pag~sare
sho\oYn on the item,." .. ..
{2T
ess2 seconds or mOre . . .
Press the buqon,denoted by ~ fmlf6r.2~
seconds ormore. .' .
Indicates
to 'press and hold downthe'button
until operation starts Qr the screen changes..
The leftexample indicates to pressthe button
2, se<;onds: . "
English 5

To prevent injury or fire, take the following
precautions:
o To prevent ashort circuit, never put or leave any
metallic objects (such
as coins or metal tools) inside
the unit.
oDo not watch or fix your eyes on the unit's display
when you
are driving for any extended period.
How to reset your unit
If the unit or the connected unit fails to operate
properly,
press the Reset button.The unit returns to
factory settings when the
Reset button is pressed.
Remove the
USB device before pressing the Reset
button. Pressing the Reset button with the USB
device installed can damage the data contained in
the USB device. For how to remove the USB device,
see <How to Set aMedium / a Device> (page 13).
oWhen the unit is turned on after pressing the Reset
button, the Initial SETUP screen is displayed. (page
97)
rb \l ATT ... VOLUME. AUD KENWOO
I=~~~~~
Reset button
Cleaning the Unit
If the faceplate or this unit is stained, wipe it with a
dry soft cloth such
as asilicon cloth.
If the faceplate
is stained badly, wipe the stain off
with acloth moistened with neutral cleaner, then
wipe it again with aclean soft dry cloth.
~
Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with ahard cloth
or using avolatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
disc player
of the unit. Called lens fogging, this
condensation on the lens
mer)!, not allow discs to play.
In such asituation, remove the disc and wait for the
condensation to evaporate. If the unit still does not
operate normally after awhile, consult your Kenwood
dealer.
6DNX9140/DDX814/DDX8034BT
Handling discs
Do not touch the recording surface of the disc.
oDo not stick tape etc. on the disc, or use adisc with
tape stuck on it.
oDo not use disc type accessories.
oClean from the center of the disc and move
outward.
oWhen removing discs from this unit, pull them out
horizontally.
If the disc center hole or outside rim
has burrs,
use the disc only after removing the burrs with a
ballpoint pen etc.
Discs that cannot be used
Discs that are not round cannot be used.
o Discs with coloring on the recording surface or
discs that
are dirty cannot be used.
o This unit can only play the CDs with rllio~ rllio~ rllio§]l
•• "- i!iiil!!iI I.e:.:!
This unit may not correctly play discs which do not
have the mark.
o You cannot playa disc that has not been finalized.
(For the finalization process refer to your writing
software, and your recorder instruction manual.)
If you try
to load a3-inch-disc with its adapter into
the unit, the adapter
might separate from the disc
and damage the unit.
Other notes
oIfyou experience problems during installation,
consult your Kenwood dealer.
oWhen you purchase optional accessories, check
with your Kenwood dealer to make
sure that they
work
with your model and in your area.
oCharacters that conform to ISO 8859-1 can be
displayed.
oThe RDS or RBDS feature won't work where the
service
is not supported by any broadcasting
station.
This product includes anon-replaceable
lamp that contains trace amounts
of
mercury. Please recycle in accordance
with your local state regulations. Do
not dispose of in trash. For disposal or
recycling information, please contact
your local authorities.

•When buying DRM enabled contents, check the
Registration Code in the <DivX Setup> (page
67).
Registration Code changes each time afile with the
displayed
Re~Jistration Code is played to protect against
copying.
An online manual about audio files is put on the
site, www.kenwood.com/audiofilel. On this online
manual, detailed information and notes
which are
not written in this manual are provided. Make sure
to read through the online manual as well.
AboutVideo files
•Acceptable video files
MPEG 1, MPEG2, DivX
•Extensions
mpg, mpeg, m1v, m2v, divx, div, avi
•Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-c1ass
USB device, iPod with KCA-iP301V
Acceptable discs, disc formats,
USB device file system,
file and folder names and playing order
are the same
as those for audio files. See <About Audio files>.
If music of normal CD and other playback systems are
recorded in the same disc, only the playback system
recorded at the first setout
is played.
•Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-class
USB device, iPod with KCA-iP30lV
•Playable disc file
format
ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
•Playable
USB device file system
FAT16, FAT32
Although the audio files are complied with the standards
listed above, the play maybe impossible depending on
the types or conditions
of media or device.
•Playing order
of the Audio file
In the example of folder/file tree shown below, the
files are played in the order from
CD to @.
o CD (OJ) CJ: Folder
;'CD J> :Audio file
OJ
L-Q]
f-;'0
OJ L;'@
t=;'@
OJ ;,®
t1@
About Audio files
•Playable Audio file
AAC -LC (.m4a), MP3 (.mp3), WMA (.wma), Linear
PCM (WAV) (.wav)
~
~
Remark
Only CD layer can be
played.
x
x
Only music CD session can
___ ,:-be,,--,p=la'!-'ye=d'-c' -0------,-
f:::. Sound quality of normal
___ -'-'CD=m'-'-u=s'-'-ic _
CCCD
HDCD
CD-TEXT 18-cm (3 inch)
__ -=--=-=-,...,-- __ . discs supported.
CD-ROM ° MP3/WMA/AAC/WAVI
CD-R -0- JPEG/DivX playback.
___ ",.---,-,--,---- __ . --- Multisession supported
CD-RW ° Packet write not supported.
DTS-CD -0-
Video CD (VCD) °
Super video CD x
Photo CD x
CD-EXTRA f:::.
Others Dualdisc
=~=-_.
Super audio CD
o :Playback is possible.
I:::,. :Playback is partly possible.
x: Playback is impossible.
bA
~
Use of "DuaIDisc"
When playing a"DualDisc" on this unit, the surface
of the disc that is not played may be scratched
while the disc
is inserted or ejected. Since the music
CD surface does
not conform to the CD standard,
playback may be impossible.
(A "DualDisc" is adisc with one surface containing
DVD standard signals and
the other surface
containing music
CD signals.)
Disc ' Standard Support
~--."....,.---- --- --------"
DVD DVD Video °
DVD Audio x
__ -=:D,:'-'VD'::--V-'-:'-R'-----_. _O-=----_ Not compatible with CPRM.
DVD-R ° MP3/WMA/AAC/WAVI
------. --- JPEG/MPEG/DivX Playback
D\fD-RW ° Multi-border/Multisessionl
---=-D--'-'VDc-+-=-R--' -0-- (Playback depends on
authoring conditions)
DVD+RW --0- Compatible with 8-cm (3
inch) discs
---
DVD-R DL (Dual layer) °
DVD+R DL (Double layer) --0- Only video format
D\/D-RAM x
CD Music CD °
Nextpage.
English 7

Notes
About USB device
•In this manual, the word "USB device" is used for
flash memories and digital audio players
which
TV tuner that can be connected to this unit
(DDX8034BT only)
•KT(-V300N
HD Radio that can be connected to this
unit
•KTC-HR300 •KTC-HR200
When you
connect an HD Radio, Tuner features of
the unit are disabled and changed to HD Radio tuner
features.
Navigation units that can be connected to
this unit (DDX8141 DDX8034BT only)
•KNA-G510*/G431* •KNA-DV4100
•KNA-DV3100 •KNA-DV2100
*Update
the navigation software to the latest
version.
For how to update the software, refer to the
instruction manual
of the navigation unit.
About Satellite Radio tuner
rhis unit supports Satellite Radio tuners which are
released by
SIRIUS and XM.
Optional accessories below are necessary for
connection.
SIRIUS tuner: Conversion cable CA-SR20V
XM tuner: XM interface Box KCA-XM100V
Refer
to the instruction manual of Satellite radio
tuner.
have
USB terminals.
•When the
USB device is connected to this unit.
it can be charged up provided that this unit is
powered.
•Install
the USB device in the place where it will not
prevent you from driving your vehicle properly.
•
You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this unit.
The files can be erased
depending on the operating
conditions of the USB device.
We shall have no compensation for any damage
arising
out of erasure of the stored data.
•No
USB device comes with this unit. You need to
p,Jrchase acommercially available USt3 device.
•When
connecting the USB device, usage of the
CA-U 1 EX (option) is recommended.
Normal playback
is not guaranteed when acable
other than the USB compatible cable is used.
Connecting acable whose total
length is longer
than 5 m can result in abnormal playback.
•
iPhone 3G
D
-iPhone3G
8GB 16GB
o
· iPod nann (2nd generation)
• iPod nann (4th generation)
• iPod classic
• iPod touch (2nd generation)
DiPhone
o4GB 8GB 16GB
iPod/iPhone that can be connected to this
unit
Made for
•
iPod nann (1st generation)
• iPod nann (3rd generation)
• iPod with video
· iPod touch (1st generation)
Works with
• iPhone
•Update iPod/iPhone software to the latest version.
•
You can control an iPod/iPhone from this unit by
connecting an iPod/iPhone (commercial product)
with Dock connector using an optional accessory
iPod
connection cable (KCA-iP30lV). The word
"iPod" appearing in this manual indicates the iPodl
iPhone connected with the KCA-iP301 V(optional
accessory).
•
By connecting your iPod/iPhone to this unit with
an optional accessory iPod connection cable (KCA-
iP30lV), you can supply power to your iPod/iPhone
as well as charge it while playing music. However,
the power of this unit must be on.
About Picture files
•Acceptable picture files
JPEG
•Extensions
jpg,jpeg
•Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-class
USB device
Acceptable discs, disc formats,
USB device file system,
file and folder names and playing order are
the same
as those for audio files. See <About Audio files>.
~
~
•Ifyou start playback after connecting the iPod, the
music that has been played by the iPod is played
Fi rst.
In this case, "RESUMING" is displayed without
displaying afolder name, etc. Changing the browse
item will display acorrect title, etc.
•When
the iPod is connected to this unit,
"KENWOOD" or
",{" is displayed on the iPod to
indicate that you cannot operate the iPod.
S" DNX9140/DDX814/DDX8034BT

Region codes in the world
The DVD players are given aregion code according to the country or area it is marketed, as shown in the
following map.
o
.'
DVD disc marks
Indicates the type of screen for the image. The left mark
1
16
"91 LB I indicates that a wide image picture (16:9) is displayed
" on a standard TV set screen (4:3) with a black band at
both the top and bottom of the screen (letter box).
Discs with limited period of use
Do not leave discs with alimited period of use in this
unit. If you load
an already expired disc, you may not
be able to remove it from this unit.
Operation regulatory marks
With this DVD, some functions of this unit such as the
play function may be restricted depending on the
location where the
DVD is playing. In this case, the
following marks will appear on the screen.
For more
information, refer to the disc manual.
Prohibition Mark
{9
If a DVD disc has scenes shot from multiple angles, you
can select a favorite angle.
Indicates the number of subtitled languages recorded.
Up to 32 languages can be recorded.
Indicates the number of audio languages recorded. Up
to 8 languages can be recorded in a movie. You can
select a favorite language.
Indicates a region number. The discs with this mark can
be played with any DVD player.
Symbol Description
....;..--:._-----------
~
0))
Gill
ffiJ
Englishl~ 9

For DDX814/
DDX8034BT
~
\/
~1~;A;
KENWOOD
·~-Lr;~
------ -
-----
•
,
on Reset butt
(page 6)
SI indicator (page 70)
I:m: Press formore than 1second
Remote control
sensor
oAttenuation of the volume On/Off.
I.'.Itm Keep the tag data 'of the currentlyJistening music of
HD Radio. -00
QVolume adjustment.
GDisplays Graphic Equalizer screen.*l -CijJ
I.'.Itm Rear view displayOn/Off.*2
Displays
the navigation screen.
When the navigation screen has already been displayed, it switches
to the currently selected source screen.
I.'.Itm Picture in Picture function On/Off. -cu:J
.1?A~~~l~tA...flJJ!~a!lil.~flir~~~~~~tifrik
Displays the Top Menu screen. -00
oTurns the power On.
Displays
the Source Select screen. -Cill
II!mTurns the power Off.
10 DNX9140/DDX814/DDX8034BT
*1 The display may not switch to
Audio Control Menu
screen in some
<:6nditions.
*2The function ofthe [AUD] button
can be changed to the display off
function.
See <User Interface> (page
68).

G
Functions of the buttons on the front panel
Hands Free control On/Off.
1m •While watching the playback screen of avisual
source
Displays the Easy Control screen. -cu:J
•While watching the navigation screen
Displays
the Screen Control screen. -~
•While watching the screen other than the above
Screen Switching
function On/Off. -Clll
lJPJafi)JfB~7[Ai~afi)~BQ3~"'B:;r«(N~Vlt-Jlt)f)"jij;+:j+'!' •..
~"!l"i-""~_._"-".",,,,,,'~~ __ .... ;a;:~.,:'..r_4#_'~M':':"I~;"_~~_1r~~~~~~~*~~~1!i ;~~~,tiS' ... >~ •• L: .... :~-~
Hands Free control On/Off.
1m. While watching the playbaclfscreen ota visual
source
or the navigation screen
Displays
the Easy Controlbuttons;"'W!J
oOpens the panel and ejects the disc.
Closes
the panel.
'f1iJ1I!}J~lE4fl"~_~~~~~~;;i!ll:~':';;f."~_~~~~~~~~~~~~~~~~;;~l%iS:;~j;:£~:r::::;:>'
Picture in Picture Function
Two screens, the navigation screen and source screen, are displayed. When Picture in Picture
function
is on, touching the source screen switches between the R-CAM image and source image.
Screen Switching Function
Switching between the navigation screen and the source control screen with one touch operation.
DVO VIDEO illlp ., hdP 5 1 03& 25
til ~
<lIIIIII $
,. Ridgeview Road 99999.99
English 11

Getting Started
Press the [~] button for.morethan 1second
to opert the front panel.. .
Inserting the SO card
Hold the SO card with the label side up
and the notched section on the right, and
insert
it into the sloful1til it clicks.
Removing the SO card
Push the SO card until it clicks and then
remove your
finger from the card.The card
pop~up so that you can pull it out with
youdlngers;
Press the [~] button to dose the front panel.
" •• The playback starts automatically after setting the media
Or the device.
• SO card (ONX9140 only)
This
SO card slot is used to upgrade the
Navigation System.
For
how to upgrade the Navigation System,
refer
to the instruction manual of the
navigation system.
To disconnect the iPod, stop the playback
by touching the [~II] button on the source
control screen, and
then disconnect the iPod.
See <Source Control Screen> (page 28).
Press the [~] button to open/close the front
panel.
If adisc is already inserted, it is ejected by,
pressing the [~l button.
• USB device
.iPod
How to Set a Medium Ia Device
To disconnect the USB device, touch the [~]
button on the source control screen, and
then disconnectthe
USB device. See <Source
Control Screen> (page
22).
English 13

How to Display the Source Control Screen
On the Source Control screen you can find all the
control buttons for the selected source.
Source Control Screen
'(.;;j. '. •
..... '1, ..
• For how to use each button, see the operation pag~s
of each source.
How to display the Source Control screen
While watching the navigation screen
The Source Control Screen appears.
~
• The screen will return to the navigation screen by
touching the same part ofthe Source Control screen,
14 DNX9140/DDX814/DDX8034BT
The Source Control Screen appears.
• ~J!~gjJilJ1JJ}J1J1.U.I.fl3;4BT
VIlhilew~tching t~e Easy (bhtrol Screen
Ilt~_~
-..,..-..,..------al--.J
iImI
The Source Control Screen appears.

Basic Operation
The buttons listed below are common for
many screens.
[MENU} Displays.Top Menu scret;n.
[.1 Opens the function bar. The buttons shown
bel0\f.i appear.
[.1 Displays the currentlyselected source
screen~
[.1 Displays Al.ldiO Control Menu screen,
(page 61)
[~l Displays SETUP Menu screen. (page
66)
[IITSW] Displays the EXT SW (External
Switch) Control screen. (page 48)
.1 Closes the function bar.
Buttons on the Top Menu screen
[NAV"'~] Switches to the navigation screen.
[SRC~] Switches to the source control screen
ofthe selected source.
[TEll} Switches to the Hands Free Main
screen.
[NAV SETUP] Displays Navigation SETUP screen.
(Instruction manual ofthe Navigation part)
(DNX9140 only)
[SRC SETUP] Displays SETUP Menu screen. (page
66)
[TEL SETUP] Displays Hands Free SETUP screen.
(page 55) .
[-'1 Displays Audio Control M~nu screen. (page
61)
[lllll Displays Source Select screen.
[lIT SWl Displays the EXT SW (External Switch)
Controlscreen~ (page 48)
[81 Changes the screen skin each time It
pressed,<.
The Top Menu Screen appears.
• For DDX814/ DDX8034BT
Pressing the [TOP] button on the front panel also
displays
the Top Menu Screen.
'i"
.,... ,.,.,.,
-: ...
How to display the Top Menu screen

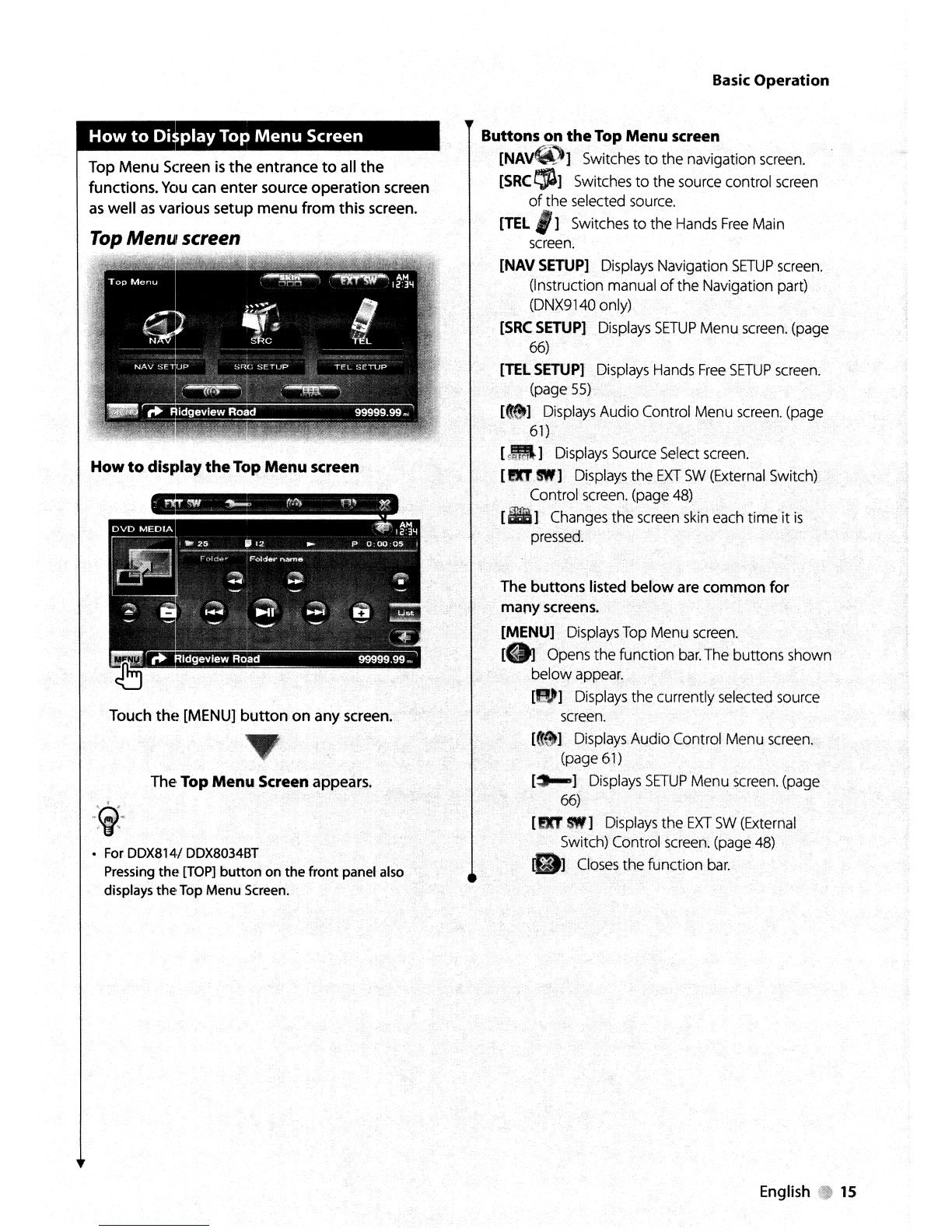

How to Display Top Menu Screen
Top Menu Screen is the entrance to all the
functions. You can enter source operation screen
as well as various setup menu from this screen.
Top Menu screen
English 15

Basic Operation
Operation on the Playback Screen of
Visual Sources
While watching visual sources, basic operation is
possible by touching the screen.
The screen has 4
function areas.The function of
each area is different depending on the sources.
(Some areas are unavailable
for some sources.)
Playback screen of a visual source
Basic operation of each area
[] Reverse searc;:h.
[1] Displays Menu control screen (DVD-VIDEO,
DVD-VR source), Picture control buttons
(sources with picture files), or Zoom control
buttons
(Video CD).
Switches TV band.
rn Forward search.
[!] Displays source information screen.*
• For the function of each touching area, see the pages
ofeach source.
* Source information screen
~
~
•The information display is cleared automatically after
approximately 5seconds.
16 DNX9140/DDX814/DDX8034BT
How todisplay the playback screen
ll!.~~~
~
The Source Select screen appears.
Touch
the icon of the source.
The Playback
screen ofa visual source appears.

Basic Operation
How to Display the Easy Control Screen
Basic operation buttons of the selected source
can be displayed on the playback screen of
visual sources so that you can control the source
without switching the screen.
Easy Control Screen
Buttons on the Easy Control Screen
[...} Changes the function as follows by touching,
the [...]button.
[SCRNl Displays Screen Control screen
50).
[TEL} Switches to the Hands Free Main
screen (page 52).
[EXT SWI Switches to the EXT $W Control
screen (page 48).
[~], [~}, [_I, [ ..... 11]
Buttons for source control. The buttons are
different depending on the source. See the
operation
pages of each sOl,JrCe.
While watching the visuahource
The Easy control screen appears.
~
~
• Easy Control screen is hidden when you touch the central
part
of the monitor.
English 17

Set the remote controller mode switch to "DVD" mode before starting operation, see <Remote Controller mode switch>
(page
91).
Playback Screen
Basic functions are available even when the
playback screen is displayed.
DDisplay the Playback Screen
See <Operation on the Playback Screen of Visual
Sources> (page
16).
DOperation on the Playback Screen
OJ, rn .~ Searches for achapter.
~v8: Searches for achapter.
. ~m Selects ascene (when PBC is
On) or atrack (when PBC is Off).
rn ~QlQ Displays the Menu Cantrall Screen
(page
20).
• ~1lR Displays the Menu Control Screen
(page
21) .
. Cileo.m Displays the Zoom Control Screen
(page
21).
[!] Displays Source Information Screen.
~
• The information display is cleared automatically after
approximately 5seconds.
18 DNX9140/DDX814/DDX8034BT
Easy Control Screen
Displays the basic operation buttons on the
screen.
DDisplay the Easy Control Screen
See <How to Display the Easy Control buttons>
(page 17).
DOperation on the Easy Control Screen
OJ, rn Switches to the Playback Screen.
rn Displays the Source Control Screen.
[I .... ], [~l Searches for a chapter/ scene/
track.
[_] Stops playing.
['-11] Plays or pauses.
Source Control Screen
Switches to the source control screen to use
various playback functions.
DDisplay the Source Control Screen
See <How to Display the Source Control
Screen> (page
14).
DOperation on the Source Control Screen

GVideoCO
[~II] Plays or pauses.
[_] Stops playing.
When touched twice, the disc
is played from
its beginning
when you play it the next time.
[~] Ejects adisc.
[~], [~] Fast Forwards or Fast Backwards.
[~],[~]
JMiM.~ Searches for achapter.
~~ Searches for achapter.
~mt Selects ascene (when PBC is On) or a
track (when
PBC is Off).
[-.1], [I~] ~Q.EQ,.~ Slow Forwards or
Backwards.
[i§i] Switches to the playback screen.
[II Information display
Title display.
"Title" Title Number Display
"(hap" Chapter Number Display
"Scene" ScenelTrack Number Display
"~" Play Mode Display
"T"I "("I "R"I "P" Play Time Display
Use the [TIME] to change play time
display.
[-] When -appears, the text display is
scrolled by touching it.
Multi Function
• .. RIdgeview Roa_d__ 999
[X] Closes the multi function bar.
~D\lD-VlDEO
[REP] Switches the Repeat Play operations in
the following sequence.
Title Repeat, Chapter Repeat, Repeat
Off
[TIME] Switches the play time display in the
following sequence.
Chapter
("C"), Title CT'), remaining titles ("R")
illOVD-VR
[REP] Switches the Repeat Play operations in
the following sequence.
Title Repeat, Repeat
Off
[TIME] Switches the play time display in the
following sequence.
Title ("1"), remaining titles
("R")
[PLST] Switches between the original mode
and Play list mode.
~YideoCO
[REP] Switches the Repeat Play operations in
the following sequence.
Track Repeat, Repeat
Off (Available when the
PBC is off)
[TIME] Switches the play time display in the
following sequence.
Track ("P"), remaining discs ("R") (Effective only
when the PBC function is off)
[PB(] Turns the PBC On or Off. (only when VCD
Ver 2.0 is in use)
English 19

Watching DVD/Video CD
DVD-VIDEO Disc Menu
Selects an option from the DVD-VIDEO Disc
Menu.
DDisplay the Playback Screen
See <Operation on the Playback Screen of Visual
Sources> (page 16).
BDisplay the Menu Control 1screen
DOperation on the Menu Control 1screen
[Menu]
Calls the Menu.
[Next] Displays the Menu Control 2screen.
[~], [~], ["'], [ .... ]Selects amenu option.
[Enter] Enters your menu selection.
[Return] Returns to the previous menu screen.
[Top] Displays the Top Menu.
[Highlight] Highlight Control.
[Exit] Exits the Menu Cantrall screen.
aOperation on the Highlight Control
Highlight control lets you control DVD Menu
by touching the menu
button directly on the
screen.
20 DNX9140/DDX814/DDX8034BT
~
~
• To cancel Highlight Control, press the ITEL] button for
more than 1second.
•The Highlight Control is cleared automatically after
approximately 10 seconds.
II Operation on the Menu Control 2screen
[Previous] Displays the Menu
Cantrall screen.
[Angle] Switches the picture angle.
[SUB] Switches the subtitle language.
[Audio] Switches the voice language.
[Zoom] Displays the Zoom Control screen.
[Exit] Exits the Menu Control 2screen.
II Operation on the Zoom Control screen
[Zoom] Changes the zoom ratio at 4levels
(2
times, 3times, 4times, or off) each time you
touch.
