Kenwood TK-5210 User manual

TK-5210/5310
VHF/UHF FM & Project 25 Digital Portable adios
•Transceiver Password1
•Date & 12/24 Hour Time Clock1
•Windows®Programming & Tuning3
•Windows®Firmware Uploading3
•Self-Programming & Tuning1
•Cloning1
•Easy Option Port
•
Weather-Sealed Accessory Connector
•MIL-STD-810 C/D/E/F
•IP54/55 Water & Dust Protection
•Immersion (IP66/67) Option
•Intrinsically Safe Option
SCAN TYPES (FM & P25)
•Single Zone/Multi-Zone Scan
•Scan Lists
•Conventional Scan
•Limited Talk Group Scan4
•Priority Monitor Scan4
•Dual Priority Scan
FM
•T / D T
•Operator Selectable Tone
•Two-Tone Decode / Encode
•DTMF Encode / Decode / Stun
•Special Alert Tone Patterns5
•Encryption / ANI Board Control
•Companded Audio
FleetSync® (FM)
•FleetSync®or FleetSync®II
•PTT ID Digital ANI
•Caller ID Display
•Status Messaging
•Emergency & Stun Statuses
•Selective & Group Call
•Text Messaging
MDC-12006
•PTT ID Digital ANI
•Caller ID Display
•Emergency Status
•Radio Check
•Radio Inhibit
P25 DIGITAL
•P25 Digital Conventional
•P25 Digital Trunking Option
•IMBETM VOCODER
•Talk Group ID Lists
•Individual ID Lists
•Caller ID Display
•Remote Monitor / Remote Check
•Radio Inhibit
•Encryption Key Delete
•Encryption Key Zeroize (SCM required)
•Encryption Key Retention (SCM required)
•DES Encryption Options
•AES / DES Encryption Options7
•KPG-93 KVL Key Loader Interface Cable8
Three models available:
Basic Unit: No LCD, No front Keys
16-Character LCD, 4 Menu-driven F Keys
16-Character LCD, 4 Menu-driven F Keys, 12-Key DTMF/ F Keypad
(Not actual size)
GENERAL FEATURES
•5 Watt (136-174 MHz)
•4 Watt (450-520, 380-470 MHz)
•50 Zones / 512 Channels (K-K6)
•16 Zones / 64 Channels (K7)
•Personality Lists
•Backlit Dot Matrix LCD1
•16 Character Alphanumeric Aliases1
•3-Digit Sub-Display1
•Function / Status LCD Icons1
•RSSI Indicator
•Transmit / Busy / Call Alert / Warn LED
•On/Off Volume Knob
•16-Position Selector Knob
•2-Position PF Lever Switch
•3-Position PF Concentric Switch
•4 Front Menu-Driven PF Keys1
•3 Side PF Keys
•Orange Emergency / AUX Key
•12-Key DTMF / PF Keypad2
•Enhanced Kenwood Audio
•Voice Annunciation
•VOX Ready
•Emergency Features
•Tactical Group1
•Battery Level Indicator1

ADS#16109 Printed in USA
JQA-QMA1205
Model TK-5210 TK-5310
GENE AL
odels (Type 1)
Basic odel TK-5210K TK-5310K
4-key w/LCD odel TK-5210K2/K7 TK-5310K2
Full key w/LCD odel TK-5210K3 TK-5310K3
odels (Type 2)
Basic odel TK-5310K4
4-key w/LCD odel TK-5310K5/K7
Full key w/LCD odel TK-5310K6
Frequency Range
Type 1 136-174 Hz 450-520 Hz
Type 2 380-470 Hz
ax. Channels per Radio 512 / 64 (K7 model)
Zones 50 / 16 (K7 model)
ax. Channels per Zone 250 / 64 (K7 model)
Channel Spacing
Analog 12.5 / 15 / 20 / 25 / 30 kHz 12.5 / 25 KHz
Digital 12.5 kHz 12.5 kHz
Operating Voltage 7.5 VDC ± 20 %
Battery Life 5-5-90 (10-10-80) duty cycle
KNB-32N, 7.5 VDC, 2500 mAh 12 hours (8 hours)
KNB-41NC, 7.5V DC, 2500mAh 12 hours (8 hours)
KBP-6, AA Alkaline x6 Batteries (@ 1W) 8 hours (5 hours)
Operating Temperature Range -22˚ F to +140˚ F (-30° C to +60° C)
Frequency Stability (-22˚ F to +140˚ F) ± 2.0 ppm
Antenna Impedance 50 Ω
Dimensions (W x H x D) (projections not included)
with KNB-32N 2.28 x 6.10 x 1.80 in. (58 x 155 x 45.7 mm.)
with KNB-41NC 2.28 x 6.10 x 1.84 in. (58 x 155 x 46.7 mm.)
with KBP-6 2.36 x 6.10 x 1.84 in. (60 x 155 x 46.7 mm.)
Weight (Radio only)
Basic odel 11.11 oz. (315 g)
4-key w/LCD odel 11.64 oz. (330 g)
Full key w/LCD odel 11.64 oz. (330 g)
Model TK-5210 TK-5310
GENE AL
Weight with antenna & Belt Clip (4-Key w/LCD model)
with KNB-32N 23.28 oz. (660 g)
with KNB-41NC 24.00 oz. (680 g)
FCC ID Type 1 ALH35733110 ALH39913110
Type 2 ALH39913120
IC Certification Type 1 282D-35733110
Type 2 282D-39913120
ECEIVE
Sensitivity
Digital (5 % BER) 0.25 µV
Digital (1 % BER) 0.40 µV
Analog 12 dB SINAD 0.25 µV
Selectivity
Digital -60 dB
Analog @ 25/30 kHz -78 dB -75 dB (25 KHz)
Analog @ 12.5 kHz -67 dB
Intermodulation Distortion
Digital -75 dB
Analog @ 25/30 kHz -75 dB -75 dB (25 KHz)
Analog @ 12.5 kHz -68 dB
Spurious & Image
Digital -80 dB -75 dB
Analog -80 dB -75 dB
Audio Distortion
Digital Less than 1.5 %
Analog Less than 2 %
Audio Output 500 mW / 8 Ω
T ANSMITTE
RF Power Output 5 W / 1 W 4 W / 1 W
Spurious & Harmonics 70 dB
F Hum & Noise
Analog @ 25 kHz 50 dB 48 dB
Analog @ 12.5 kHz 45 dB 42 dB
Audio Distortion Less than 2 %
odulation 16K0F3E, 11K0F3E, 8K10F1E, 8K10F1D

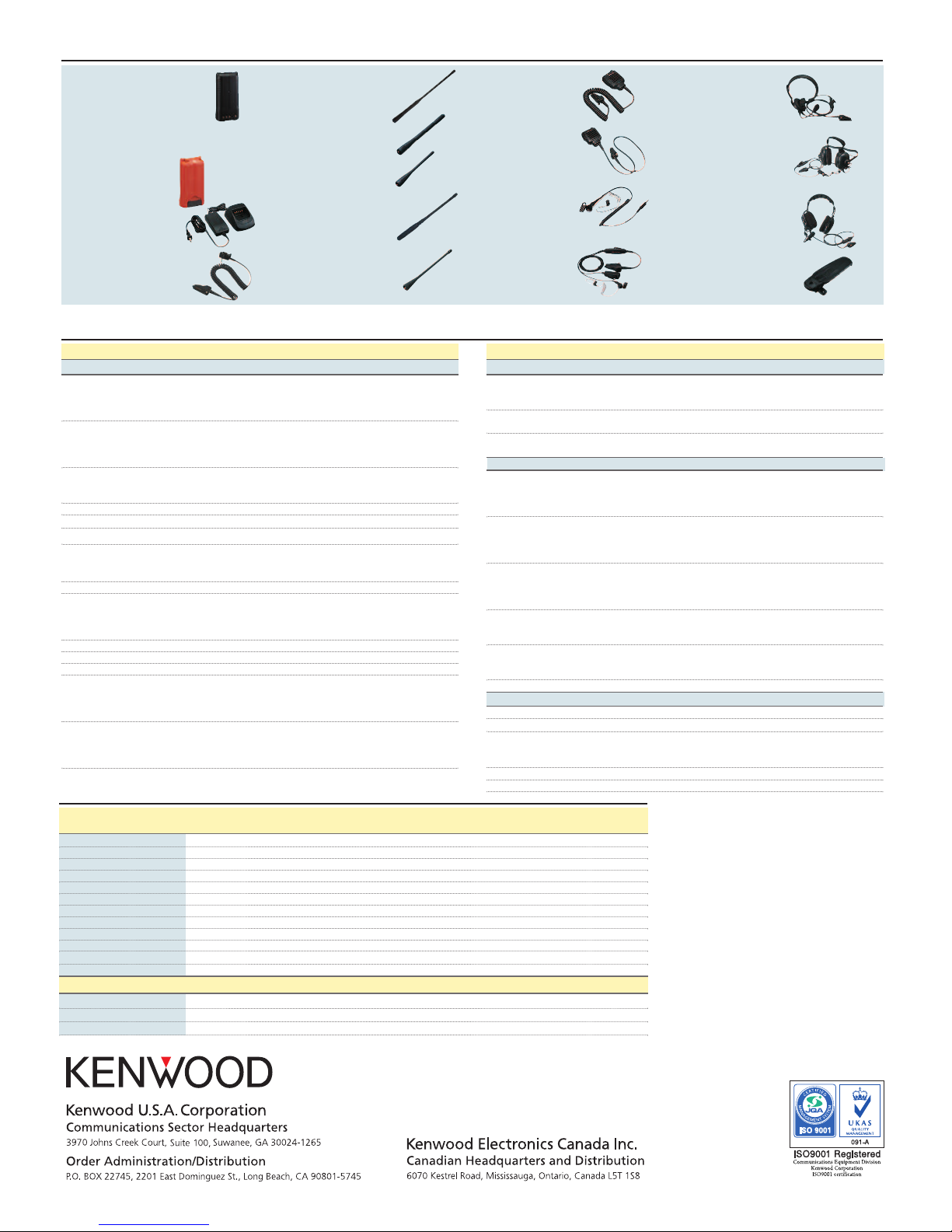

■KNB-32N
Ni-MH echargeable
Battery Pack (2500 mAh)
■KNB-41NC
Ni-MH Battery Pack
Intrinsically Safe (2500 mAh)
■KBP-6
Battery Case
■KSC-32
Tri-chemistry
apid Charger
■KPG-93
Keyloader Interface
Cable
■K A-25
VHF High Gain Antenna
■K A-26
VHF Helical Antenna
■K A-27
UHF Whip Antenna
■K A-28
VHF Broad Band Antenna
(140-170 MHz)
■K A-29
UHF Broad Band Antenna
(380-430 MHz)
■KMC-25
Speaker Microphone
■KMC-26
Speaker Microphone
with Antenna Connector
■KEP-1
Heavy Duty Earphone
■KHS-11
2-Wire Palm Mic
with Earphone
■KHS-14
Lightweight Single
Muff Headset
■KHS-15-BH
Heavy Duty
Behind-the-Head Headset
■KHS-15-OH
Heavy Duty
Over-the-Head Headset
■KBH-11
Belt Clip (2.5")
Standard MIL 810C MIL 810D MIL 810E MIL 810F
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II
Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II
Solar adiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I
ain 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III
Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4
Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III
Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I
Shock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV
Immersion(option) 512.1/Procedure I 512.2/Procedure I 512.3/Procedure I 512.4/Procedure I
International Protection Standard
Dust & Water Protection IP54/55
Dust & Water Jet Intrusion IP66*
Immersion IP67*
*I 66/67 Optional ackage
All accessories and options may not be available in all markets.
Contact an authorized Kenwood dealer for details and complete list of all accessories and options.
Kenwood reserves the right to change specifications without
prior notice or obligation.
FleetSync®is a registered trademark of Kenwood
Corporation.
Windows®is a registered trademark of Microsoft Corporation
in the United States and other countries.
IMBETM is a trademark of Digital Voice Systems Inc.
The 25 Logo is used under license and is a registered
trademark of the roject 25 Technology Interest Group.
Analog measurements made per TIA/EIA 603
Digital measurements made per TIA/EIA 102CAAA
Options
Specifications
Applicable MIL-STD & IP
footnotes from front:
1
LCD models only.
2
LCD, keypad model only .
3
K G-95D Software: Windows®98/NT/2000/Me/X compatible.
4
25 Trunking Option required.
5
Operates for 2-Tone, DTMF, FleetSync®selective calling in
FM mode only.
6
Either MDC-1200 or FleetSync®can be activated per radio.
7
K7 model is not compatible with AES / DES encryption options.
8
K G-93 adapts the Motorola®‚ KVL3000/3000 lus Key Loader to
the TK-5210/5310.
