Kenwood HM-332 User manual

MICRO HI-FI COMPONENT SYSTEM
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-4726-08 (EN)
HM-332
TEXT
DIGITAL AUDIO
COMPACT

2
Preparation section
Before applying power
Caution : Read this page carefully to ensure safe operation.
AC
110 -
120V ‘
AC
220 -
240V ‘
For the United Kingdom
Units are designed for operation as follows.
U.S.A. and Canada ...................................................... AC 120 V only
Australia ....................................................................... AC 240 V only
Europe and U.K. ........................................................... AC 230 V only
China and Russia ........................................................ AC 220 V only
*Other countries ....................AC 110-120 / 220-240 V switchable
Factory fitted moulded mains plug
1. The mains plug contains a fuse. For replacement, use only
a 13-Amp ASTA-approved (BS1362) fuse.
2. The fuse cover must be refitted when replacing the fuse in
the moulded plug.
3. Do not cut off the mains plug from this equipment. If the
plug fitted is not suitable for the power points in your home
or the cable is too short to reach a power point, then obtain
an appropriate safety approved extension lead or adapter,
or consult your dealer.
If nonetheless the mains plug is cut off, remove the fuse
and dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the mains sup-
ply.
IMPORTANT : The wires in the mains lead are coloured in
accordance with the following code:
Blue : Neutral
Brown : Live
Do not connect those leads to the earth terminal of a three-
pin plug.
*AC voltage selection
The AC voltage selector switch on the rear panel is set to the
voltage that prevails in the area to which the unit is shipped.
Before connecting the power cord to your AC outlet, make
sure that the setting position of this switch matches your line
voltage. If not, it must be set to your voltage in accordance
with the following direction.
AC voltage selector switch
Move switch lever to match your line volt-
age with a small screwdriver or other
pointed tool.
Note:
Our warranty does not cover damage caused by excessive
line voltage due to improper setting of the AC voltage selec-
tor switch.
The marking is located on the rear panel and says that the
component uses laser beams that have been classified as
Class 1. It means that the unit is utilizing laser beams that are
of a weaker class. There is no danger of hazardous radiation
outside the unit.
CLASS 1
LASER PRODUCT
The marking of products using lasers
(Except for some areas)
Safety precautions
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI-
ANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERALTRIANGLE,
IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS
VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNI-
TUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVIC-
ING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.
CAUTION

Preparation section
3
Caution : Read this page carefully to ensure safe operation.
Before applying power
Contents
Preparation section Application section
Basic section
Knowledge section
Before applying power ............................... 2
Safety precautions ........................................................... 2
Special features ................................................................ 5
Accessories ....................................................................... 5
System connection........................................... 6
Connection of the system accessories .......................... 6
Connection of other accessories
(Commercially available parts) ...................................... 8
Controls and indicators ................................... 9

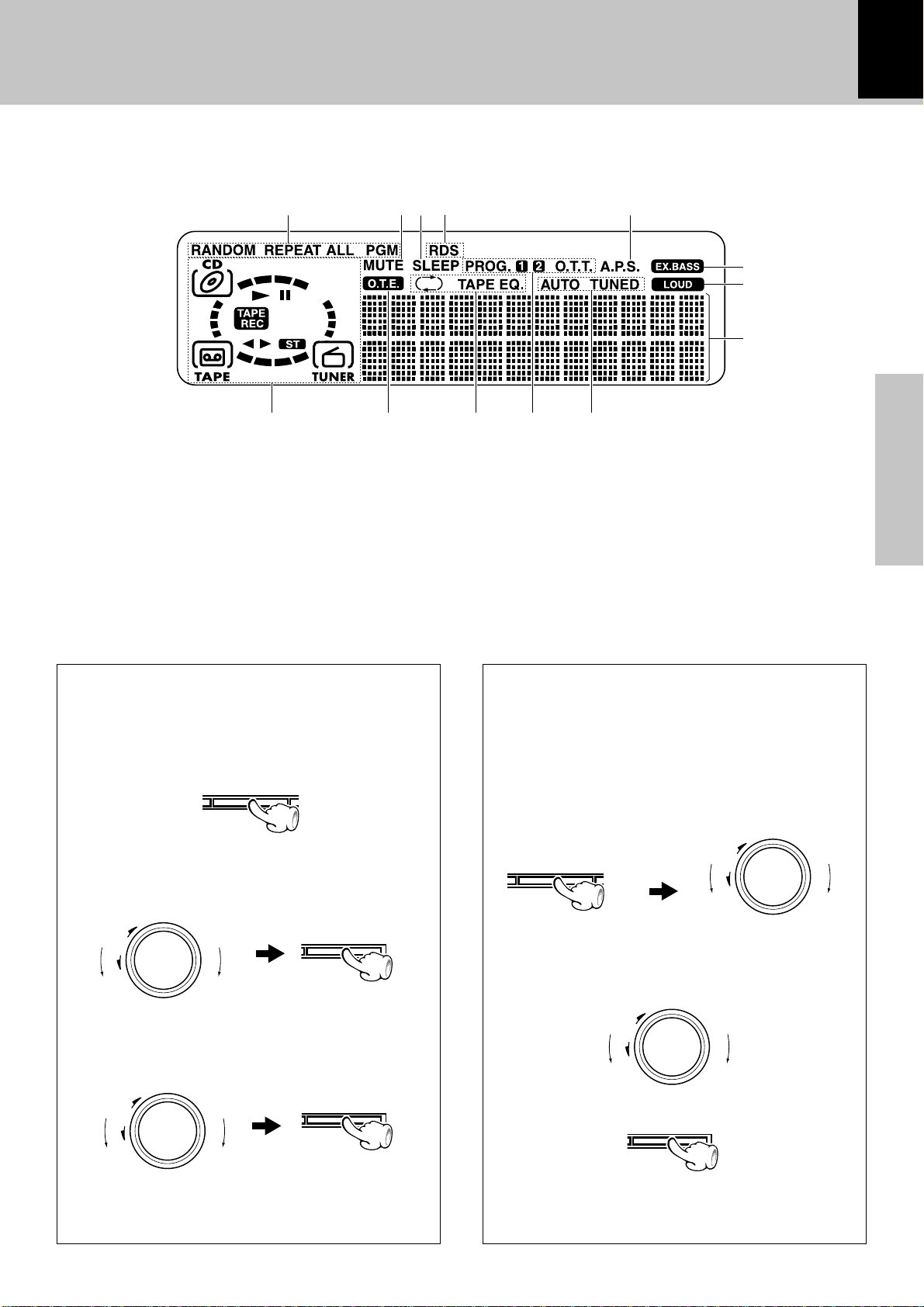

Display ................................................................................ 9

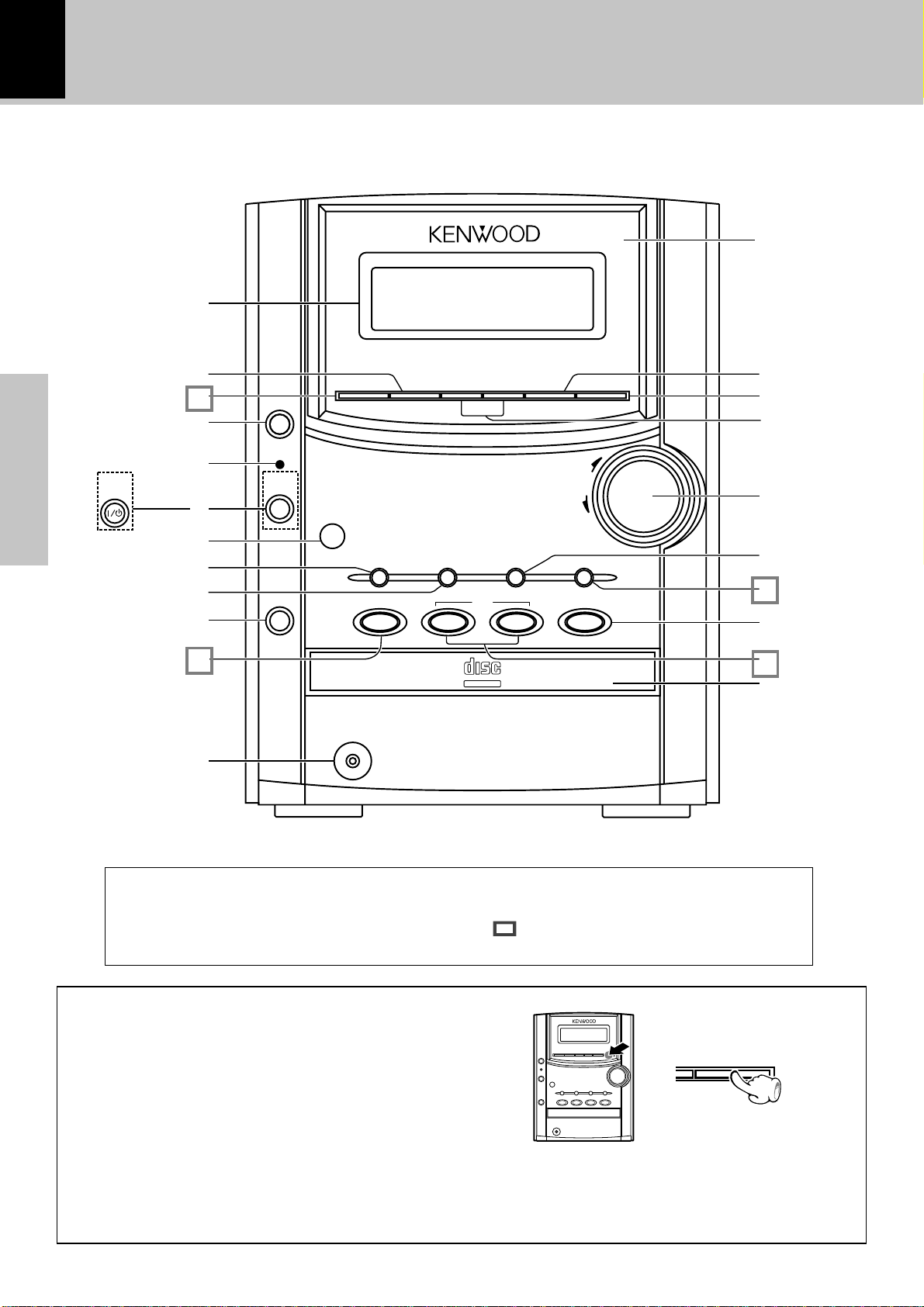

Main unit........................................................................... 10

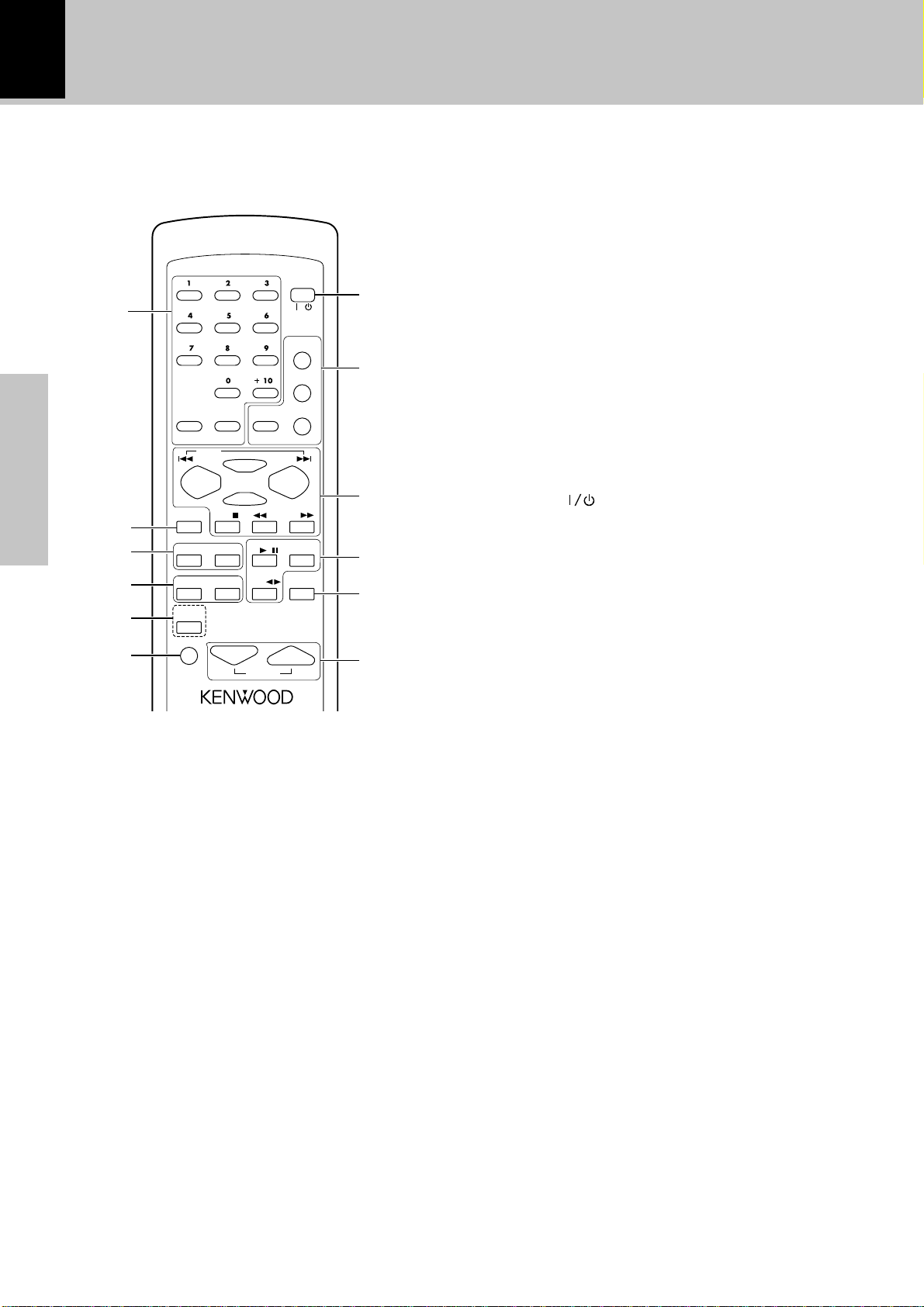

Operation of remote control unit ................. 12
Important Items............................................... 43
Maintenance .................................................................... 43
Reference ......................................................................... 43
In case of difficulty ........................................ 45
Specifications ............................................ 47
Various CD playback features...................... 26
Listening in the desired sequence
(program playback)................................................... 26
Repeated playback ......................................................... 27
Listening to an unexpected title sequence
(random playback) .................................................... 28
R.D.S. (Radio Data System)
(Except for some areas) ............................ 29
Searching for a desired program type
(PTY search) ............................................................... 30
Convenient recording methods..................... 33
Selection of the recording type.................................... 33
One-touch edit recording (CD
= TAPE) ....................... 34
Program recording (CD
= TAPE) ................................... 35
Tone adjustment ............................................. 36
Tone adjustment .............................................................. 36
Balance adjustment
(Adjust for the desired left / right balance.) .............. 36
Listening to an AUX input source ................. 37
Listening to an AUX input source .................................37
Adjusting the AUX input level .......................................37
Clock adjustment............................................ 38
Timer operation............................................... 39
Setting the O.T.T. timer ................................................... 39
Setting an everyday timer program ............................. 40
Sleep timer (SLEEP) ........................................................ 42

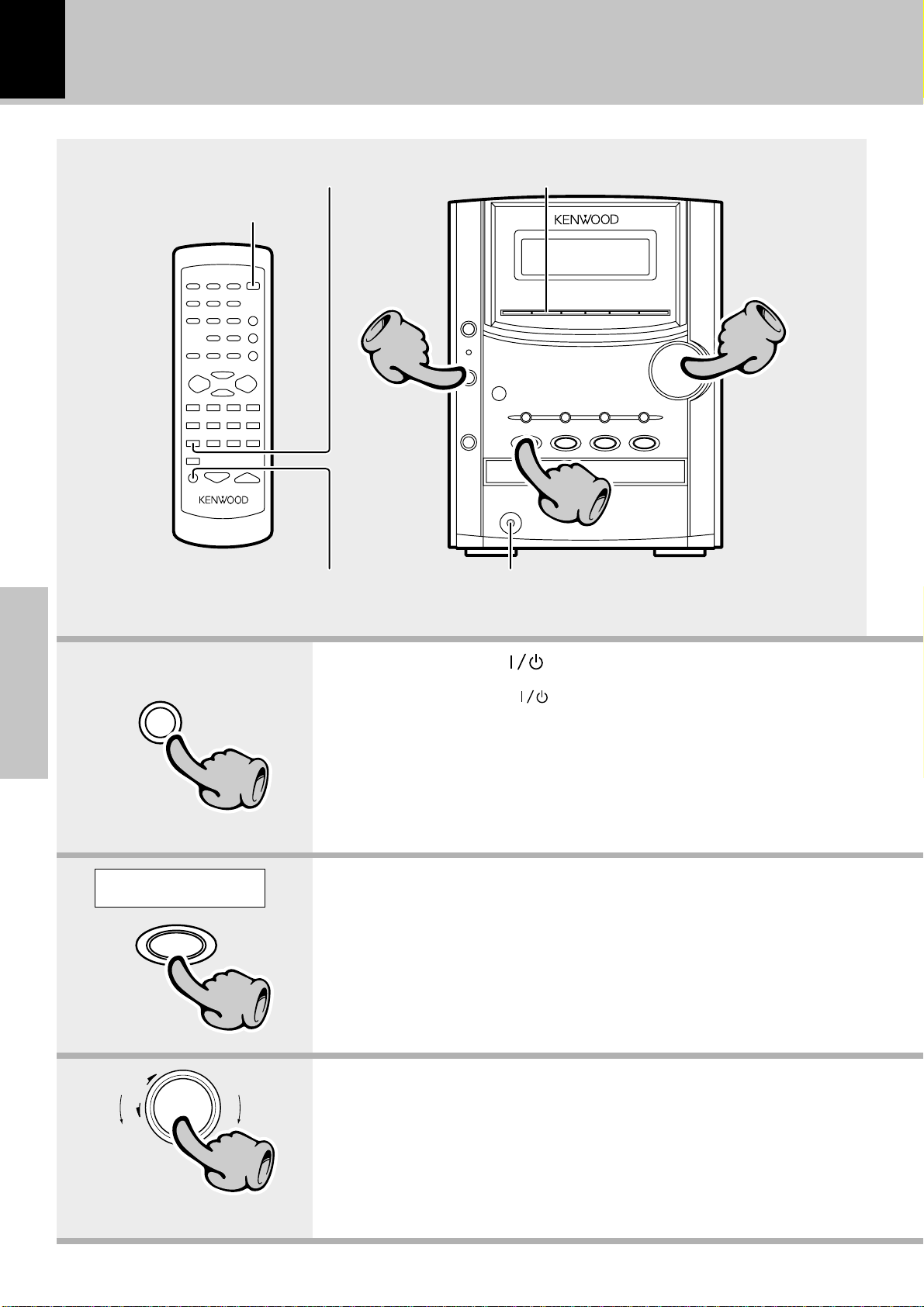

Basic use method........................................... 14
Playback of CD................................................ 16
Playback of tape.............................................. 18
Receiving broadcast station ......................... 20
Collective presetting of stations (auto preset).......... 22
Channel space setting ................................................... 22

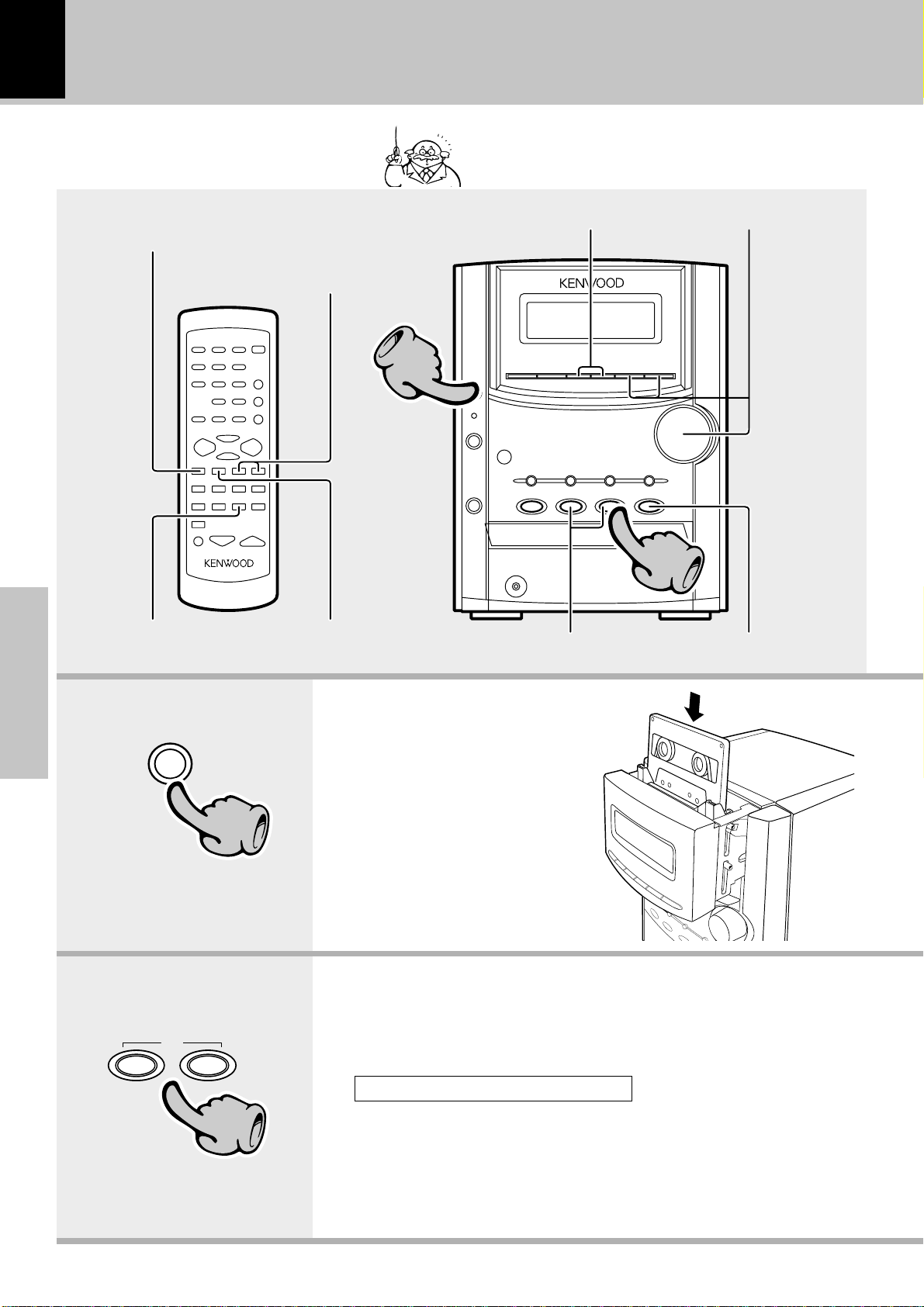

Recording on tape .......................................... 24

4
Preparation section
Before applying power

Preparation section
5

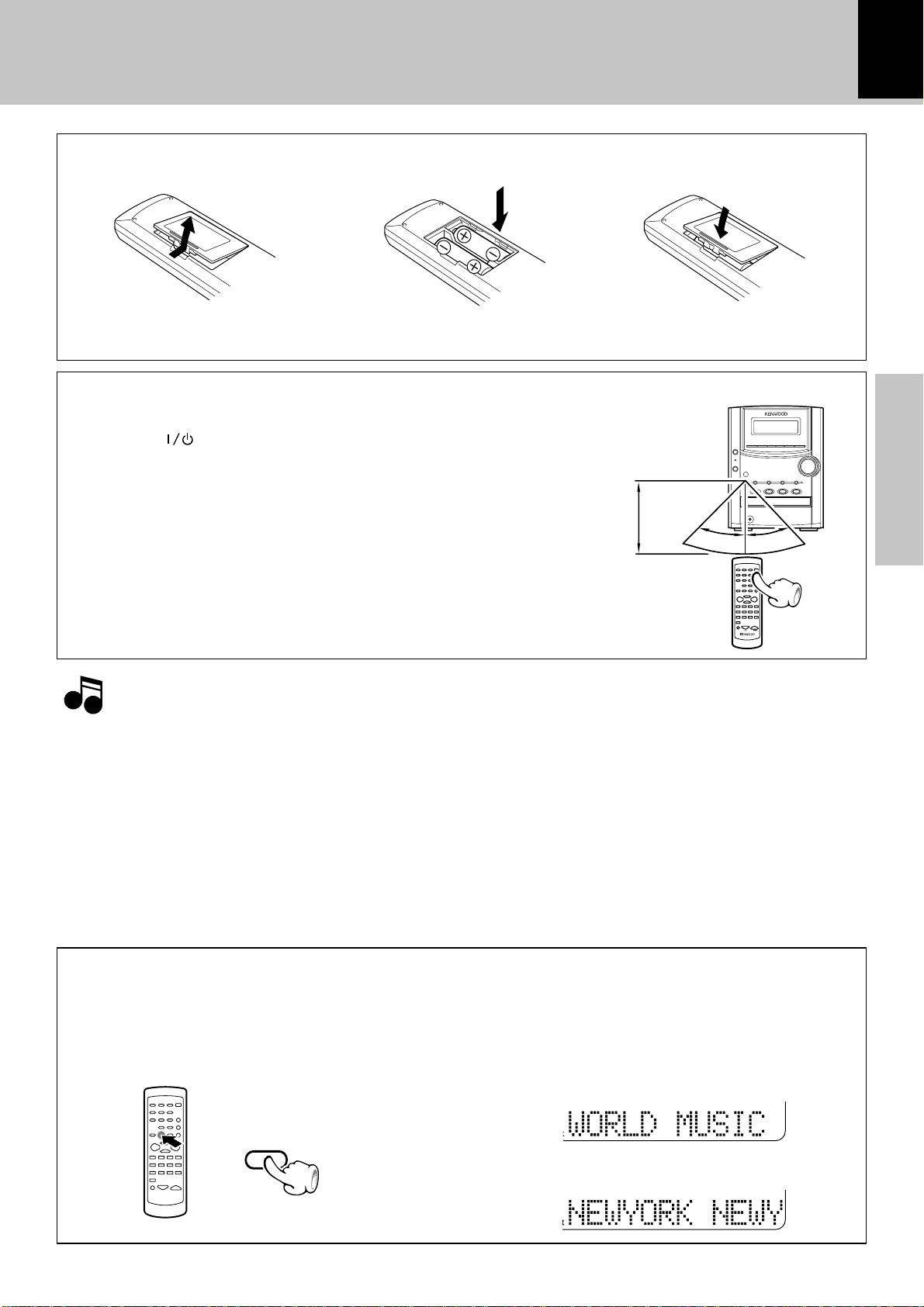

CD text information display
When discs conforming to CD-TEXT are played with this unit, the text information recorded on the CD (disc
name or titles) is displayed automatically. #
Some CDs conforming to CD-TEXT may not display text information.
Up to 1000 letters may be displayed. If the CD exceeds 1000 letters, "TEXT MEMORY FULL" will be displayed.

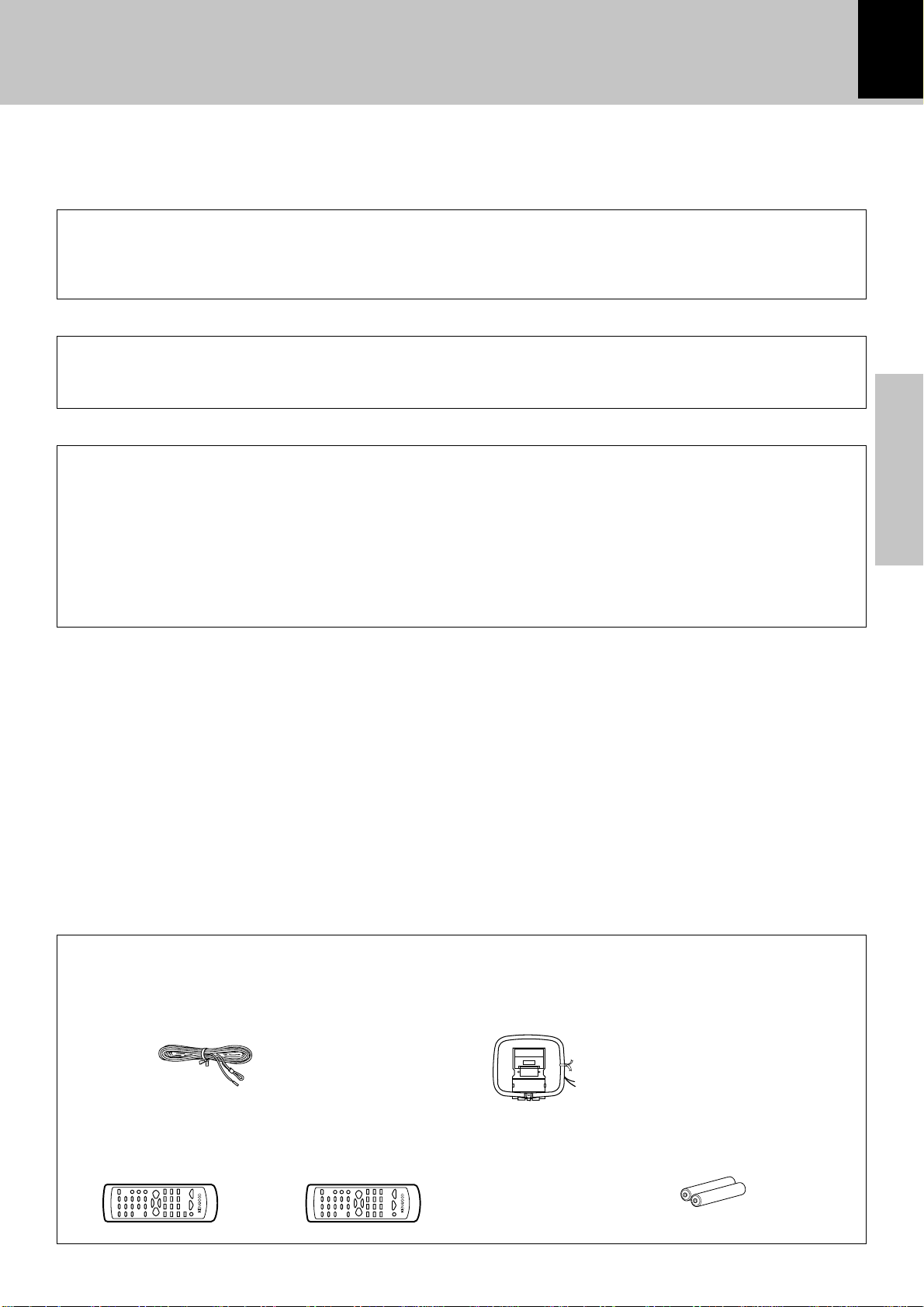

Special features
Convenient recording features
Versatile recording features are provided, allowing the user to select desired one for each purpose.
÷One-touch recording: Pressing a single key starts recording of all tracks or a single track in a CD. ›
÷Program recording : Your favorite tracks can be recorded in any desired order. fi
Convenient timer features
Before applying power
In addition to the 2-program timer, the timer also provides the following convenient features.
÷AI timer : When timer playback starts, the volume level increases gradually until a certain level is reached.
q
÷O.T.T. : Timer playback which occurs only once and only for an hour can be programmed by simply
setting the start time. ·
÷Sleep timer : Power of the unit can be switched off automatically after the set time has elapsed. Designed
for example for falling asleep while listening to music in the night time, etc. w
O.T.T. .......(Operate easy-To-use Timer)
Unpacking
Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately.
If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company
receiving the unit) can file a claim against the carrier for shipping damage.
We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future.
Accessories
Please confirm that the following accessories are present.
FM indoor antenna (1) AM loop antenna (1)
Remote control unit (1) Batteries (R6/AA) (2)
Europe and U.K Other countries

6
Preparation section
System connection
Malfunction of microcomputer
If operation is not possible or erroneous dis-
play appears even though all connections have
been made properly, reset the microcomputer
referring to “In case of difficulty”. t

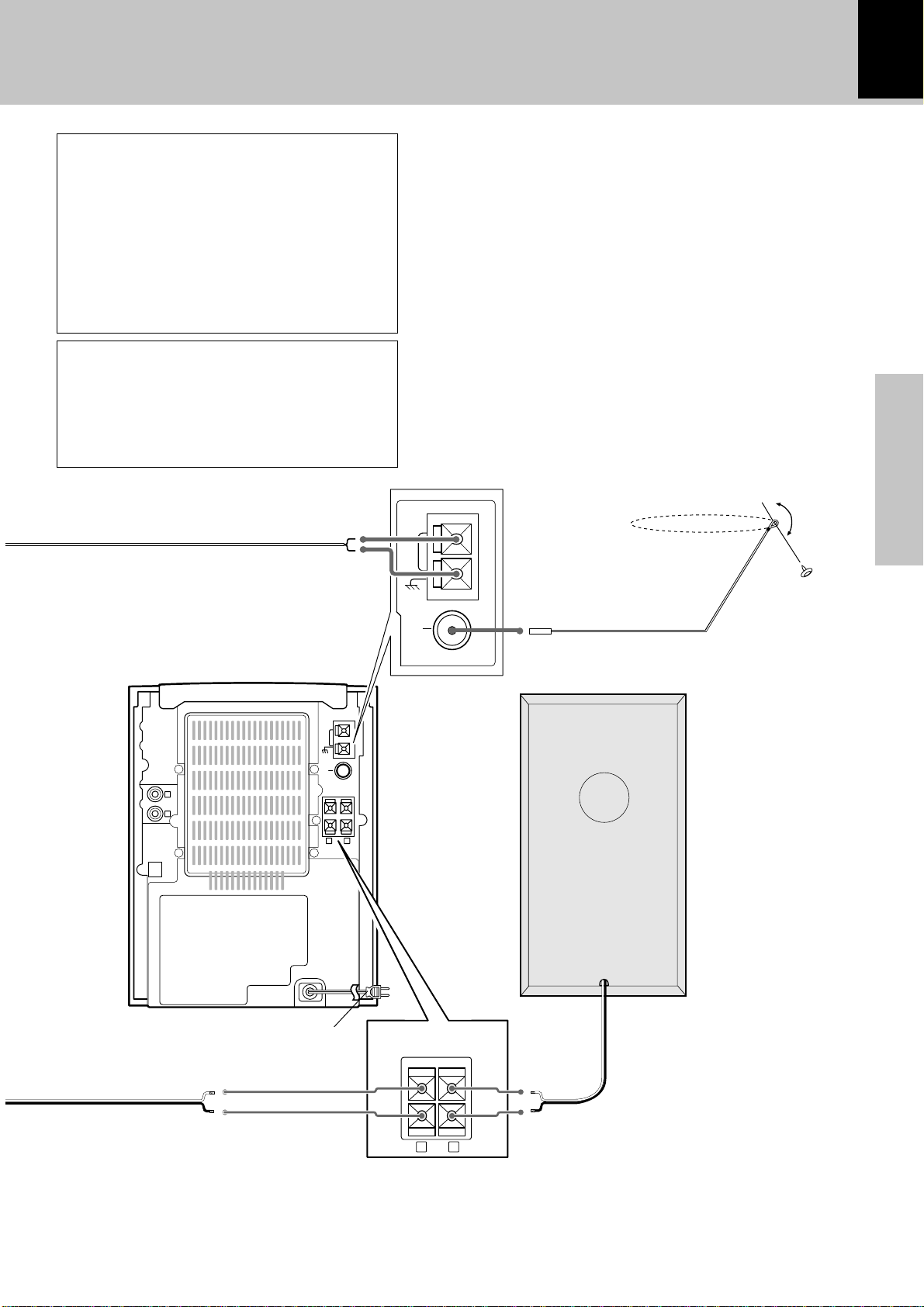

Connection of the system accessories
This figure shows the method of connection be-
tween the main unit and provided accessories.
12 3
AM loop antenna
The supplied antenna is for indoor use. Place it as far as pos-
siblefrom the mainsystem, TV set,speakercords and power
cord, and set it to a direction which provides the best recep-
tion.
Speaker (Right)
Main Unit
CAUTION
Note on Connection
Connect the components as shown in the dia-
gram.
Only plug the power cord into a power outlet
once connections are completed.
12 3 4
1.Never short-circuit the “+” and “-” speaker cords.
2.If the “+” and “-” polarity are inverted, the sound will be unnatural
with unclear positioning of musical instruments, etc.
3.Be sure to insert all connection cords securely. If their connections
are imperfect, the sound may not be produced or noise may
interfere.
4.Before plugging or unplugging a connection cord, be sure to unplug
the power cord from the wall AC outlet. If connection cords are
plugged or unplugged with the power cord left plugged in, malfunc-
tion or damage may result.
Notes
Notes
AM loop antenna

Preparation section
7
L
R
AUX
IN
SPEAKERS(6–16Ω)
GND
AM
ANTENNA
FM
75Ω
+
-
LR
OPTICAL
OUT
+
-
FM
75Ω
GND
AM
SPEAKERS(6–16Ω)
LR
ANTENNA
System connection
FM indoor antenna
The accessory antenna is for temporary indoor use only.
For stable signal reception we recommend using an out-
door antenna. Remove the indoor antenna if you connect
one outdoors.
1Connect the antenna to the antenna terminal.
2Locate the position providing good reception
condition.
3Fix the antenna.
Speaker (Left)
Speaker cord
POWER cord
Connect correctly + to + and - to -.
TO WALL AC
OUTLET
FM indoor
antenna
CAUTION
Be sure to adhere followings. Or proper venti-
lation will be blocked causing damage or fire
hazard.
÷Do not place any objects impairing heat ra-
diation onto the top of unit.
÷Leave a space around the unit (from the larg-
est outside dimension including projection)
equal or greater than, shown below.
Top panel : 50 cm Back panel : 10 cm
CAUTION
Be sure to adhere followings. Or proper venti-
lation will be blocked causing damage or fire
hazard.
÷Do not place any objects impairing heat ra-
diation onto the top of unit.

8
Preparation section
L
R
AUX
IN
SPEAKERS(6–16Ω)
GND
AM
ANTENNA
FM
75Ω
+
-
LR
DIGITAL OUT
OPTICAL
DIGITAL OUT
OPTICAL
AUX
IN
L
R
System connection
Connection of other accessories
(Commercially available parts)
FM outdoor antenna
Lead the 75Ωcoaxial cable con-
nected to the FM outdoor an-
tenna into the room and connect
it to the FM 75Ωterminal. Please
remove the indoor antenna after
an outdoor antenna has been in-
stalled.
Antenna adaptor
(optional)
Audio cord
POWER cord
TO WALL AC OUTLET
Audio output
VCR, Analog turntable with
built-inRIAAequalizer (optional
P-110), etc.
CAUTION
Note on Connection
Connect the components as shown in the diagram.
Only plug the power cord into a power outlet once
connections are completed.
1.In case an associated system component is connected, also read the instruction manual of the component.
2.Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be produced
or noise may interfere.
3.Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may
result.
Notes
Notes
MD recorder or DAT etc.
DIGITAL OUT jack (OPTICAL)
cap
Optical fiber cable
If necessary, remove the cap and plug the
optical fiber cable (optical)
TheDIGITAL OUT jack (OPTICAL) outputs
the CD signal.
The CD signal can be recorded in digital
format by connecting a recorder to the
DIGITAL IN jack (OPTICAL).

Preparation section
9
Controls and indicators
Display
(The displays given in this manual are approximations only.
They may differ from what actually appears on the display.)
123 4 5
67
#
890
!
@
1Indication related to CD
2MUTE indicator
3SLEEP indicator
4RDS indicatior (except for some areas)
5Auto Power Save indicator
6Selected selector indicator
7O.T.E. (ONE TOUCH EDIT) indicator
Appears during one-touch recording.
8Reverse mode and TAPE equalizer (TAPE EQ.) indi-
cators
9Timer-related indicators
0Tuner-related indicators
!EX.BASS indicator
@LOUD (Loudness) indicator
#Character information display section
Shows character information including the input selection,
volume level and disc/track title. Frequency indication, time
indication, track No., program No., etc.
AUTO POWER SAVE function
When the unit is ON and the unit is left for 30 min-
utes with CD and TAPE not operating, the unit is
switched off automatically by this function. This is
convenient when you forgot to switch off the unit.
This function can be activated or deactivated by the
following operation.
menu
down
volume/
multi control
up
down
volume/
multi control
up
menu
down
volume/
multi control
up
down
volume/
multi control
up
set/demo
set/demo
set/demo
1Select “A.P.S. SET?”.
2Select.
(Press the set/demo key while the “?” mark is
blinking.)
3Set it.
Display panel control
Controlling the BACK LIGHT
The brightness of the main unit display can be ad-
justed.
1Turn power ON and press the menu key.
2Rotate the volume/multi control knob to
select "BACK LIGHT?" and press the set/
demo key.
3Rotate the volume/multi control knob to
select the desired light brightness ("High" or
"Low") and press the set/demo key.
÷WhentheSLEEPtimer has been set, the light is "LOW"
regardless of the BACK LIGHT setting.
÷When the TUNER or AUX input is selected, APS
operates only when the volume is set to zero or when
MUTE is on.

10
Preparation section
down
POWER
standby
/
timer
TAPE
CD
0
0
AUTO REVERSE CASSETTE DECK
HM - 332
phones
CD
6 2
TAPE
3
STOP
volume/
multi control
7
TAPE EQ. o.t.e. TAPE rec TUNER/band
up
AUX sound 4¢menu set/demo
TEXT
DIGITAL AUDIODIGITAL AUDIO
COMPACTCOMPACT
standby
/
timer
Main unit
Controls and indicators
About the one-touch operation function
This unit incorporates the one-touch operation function for the user's convenience.
With this function, pressing any key enclosed in while the unit is in standby mode
immediately start playback (or reception).
1
2
3
4
5
6
7
0
!
#
$
%
^
&
*
)
¡
™
8
9
@
(
DEMO OFF (To cancel demonstration):
Press the set/demo key when DEMO is ON.
DEMO ON (To execute demonstration):
After turning power ON, press and hold the
set/demo key (for more than 2 seconds).
In regard to demonstration
This unit is equipped with a demonstration func-
tion (only display). The demonstration consists of
sequential change of display and indicators show-
ing the operations, but the audio itself does not
change. The demonstration function can be can-
celled as follows.
÷This operates automatically when a power failure has
occurred or the plug of the power cable has been
pulled while the power was ON.
set/demo

Preparation section
11
Controls and indicators
*
1Display
2sound key %
Used for switching the EX.BASS play and LOUDNESS play.
3AUX key ‡
Press to listen to the input source connected to AUX (analog
external).
4TAPE 0key *
Press to open or close the cassette holder.
5Standby / timer indicator
Light in standby mode of power.
Red : Normal standby mode
Amber : Timer standby
Extinguished : Power ON mode
6POWER( ) key (For U.S.A. and Canada) $
(POWER) key (For other countries) $
7Remote sensor #
8TAPE EQ. key (
Press to switch the tape equalizer on.
9o.t.e key
These keys are used for recording of a CD onto tapewith a
one-touch operation.
Press either key during CD playback to record the currently
played track onto tape. Press in stop mode to record the entire
CD onto tape. ›fi
0CD 0 key ^
Press to open or close the CD tray.
!CD 6key ^
Press to select the CD input and start CD playback.
Press during CD playback to let it pause temporarily.
@phones jack %
Headphones with a stereo mini plug (optional) can be con-
nected.
#Cassette holder
Press the TAPE 0key to open or close.
$menu key
Press to switch the function of the volume/multi control
knob.
This key is also used when setting the time of the day.°
%set/demo key
Press to set or enter an item selected with the volume/multi
control knob. (fl
Used for demonstration ON/OFF. 0
^Skip/search (4/ ¢) keys
During CD operation : &
Press to skip tracks in the forward or backward direction.
During TAPE operation : (
Press to search in the forward or backward direction.
During TUNER operation : )
Used to select a preset station.
&volume/multi control knob !
Normally this is used for volume adjustment.
*TAPE rec key ∞
Press to start recording. Pressing the key during recording
stops it after leaving a non-recorded space (blank) of about 4
seconds.
(TUNER/band key )
The received broadcasting band is switched.
Press to select the TUNER input.
)7STOP key
Press in power standby mode to display the clock.
¡TAPE `key *
Press to select the TAPE input and play a tape.
™CD tray
Press the CD 0key to open or close.
Turning the knob switches the display contents.
TAPE RVS. ? (
AUTO PRESET (or A.MEMORY ? ) ™
(Only when the TUNER input is selected)
AUX INPUT ? ‡
(Only when the AUX input is selected)
BALANCE ? fl
BACK LIGHT ? 9
A.P.S. SET ? 9
TIMER SET ? ·
÷The function of the control knob returns to the normal
mode when it has not been operated for 20 seconds.
* About the volume/multi control knob
After selecting the function of this knob with the
menu key, select the desired control item by turn-
ing the volume/multi control knob.
To set or enter the setting of the selected item,
press the set/demo key.
menu
set/demo
down
volume/
multi control
up

12
Preparation section
The keys on the remote control unit with the same names as on the main unit have the same function as the
keys on the main unit.
Infrared ray system
Model : RC-F0100E (For Europe and U.K.)
: RC-F0100 (For other countries)
1Numeric keys &¡§
These are used to select CD tracks and as preset call keys for the
tuner.
TIME key &
Press to switch the time information displayed during CD
playback.
DISPLAY key #
Used for scroll display of the text informations of CD-TEXT
compatible disc.
2TAPE EQ. key (
Press to switch the tape equalizer on.
3SLEEP key w
This is used to set the sleep timer.
TIMER key w
Used to select the timer.
4SOUND key %
Used for switching the EX.BASS play and LOUDNESS play.
TONE key fl
This is used to adjust the tone.
5RDS-related keys (Only some areas)
PTY key º
Used at the time of program type detection.
6MUTE key %
This is used to suppress the sound temporarily.
7POWER ( ) key $
The system is switched ON and STANDBY.
8Keys related to CD
REPEAT key ¶
This is used for repeated playback.
RANDOM key •
Playback of the CD tracks in random order.
PGM/AUTO/MONO key §
This is used to program the track sequence.
During TUNER operation: ¡
Used to switch the tuning mode between “AUTO” (auto
tuning, stereo reception) and MONO (manual tuning, monau-
ral reception).
CLEAR key
The programmed track sequence is cleared. §
9Basic operation keys
4P.CALL¢keys
During CD operation: &•
Press to skip tracks in the forward or backward direction.
During TUNER operation: ¡
Used to select a preset station.
RDS operation (Only some areas) º
1TUNING¡keys
During CD or TAPE operation: &
Press to search in the forward or backward direction.
During TUNER operation: )
Press to select a radio station.
SET key ™
Press to set or enter an item selected with the “VOLUME/
multi control”.
ENTER key ¡
It is used to enter the preset station memory in the tuner.
7STOP key
0TAPE 23 key
CD 6key
TUNER/BAND key
!TAPE O.T.E. key ›
These keys are used for recording of a CD onto tapewith a
one-touch operation.
Press either key during CD playback to record the currently
played track onto tape. Press in stop mode to record the entire
CD onto tape.
@VOLUME control keys
Press to control the volume. $
Press to control the tone. fl
SET
ENTER
CLEAR
REPEAT
RANDOM
PGM
CD /
TAPE
TUNER
/BAND
SOUND
MUTE
RC F0100E
SLEEP TIMER
TONE
DISPLAY
TIME
TAPE O.T.E.
PTY
P.CALL
TUNING
TAPE EQ. STOP
AUTO / MONO
POWER
/
VOLUME
1
2
3
4
5
6
7
8
9
0
!
@
Operation of remote control unit

Preparation section
13
30˚ 30˚
RC-F0100E
Loading batteries
3Close the cover.1Remove the cover. 2Insert batteries.
÷Insert two R6 (“AA”-size) batteries following the
polarity indications.
Operation
÷When pressing more than one remote control keys
successively, press the keys securely by leaving an
interval of 1 second or more between keys.
After plugging the power cord of this unit, press
the POWER ( ) key of the remote control unit
to turn the system ON. When the system is
turned ON, press the key of the function to be
operated.
1.The provided batteries are intended for use in operation checking, and their service life may be short.
2.When the remote controllable distance becomes short, replace both of the batteries with new ones.
3.If direct sunlight or the light of a high- frequency fluorescent lamp (inverter type, etc.) is incident to the remote
sensor, malfunction may occur. In such a case, change the installation position to avoid malfunction.
Notes
Notes
Operating range
(approx.)
Remote sensor
6 m
Operation of remote control unit
DISPLAY
In regard to the DISPLAY key
When a title recorded in a CD-TEXT disc is too
long to be displayed in the dot display, press
this key to scroll the display and view the char-
acters which has not be displayed.
Pressing the key during stop scrolls the disc title.
Pressing the key during playback scrolls the track
title.

Basic section
14
33
22
11
POWER
11
down
volume/
multi control
up
33
Basic use method
Muting the sound temporarily
Bass and treble compensation Bass and treble compensation
Listening through headphones
1. Set the POWER ( )key to ON.
When the POWER ( ) key is pressed while the unit is ON
switches it OFF. The standby/timer indicator lights red or amber.
÷Pressing the CD 6, AUX, TAPE23or TUNER/band key also turns power
on and starts playback (reception) of the corresponding input. (One-touch
operation)
÷When the CD or TAPE input is selected while the corresponding disc or tape
has been loaded, it immediately starts to play.
2. Selecting the desired output.
÷Pressing the CD 6, AUX, TAPE23 or TUNER/band key selects the
corresponding input.
3. Volume adjustment.
÷The display shows a reference value.
The volume
decreases
The volume
increases
Example:
To select the CD input
CD
6
22
CD ^
TAPE *
TUNER (Broadcasts) )
AUX (External input) ‡
"Adjusting the AUX input level"‡
The system is switched ON and
STANDBY.

15
Basic section
MUTE
phones
sound
C
01 0:00
D
V
01 0:12
OLUME 02
Listening through headphones
Insert the headphone plug into the “phones”
jack.
÷Headphones with a stereo mini plug can be con-
nected.
÷The sounds from all speakers are cut off.
Muting the sound temporarily (Remote control unit only)
÷Press again to resume the original volume.
÷This is also cancelled when the volume is changed.
Bass and treble compensation
Each press switches the modes as follows.
1“EX.BASS” lights.
The lowest and highest frequencies are en-
hanced regardless of the current volume
level.
2“LOUD” (Loudness) lights.
The lowest and highest frequencies are en-
hancedaccordingto thecurrentvolume level.
(Effective during low-volume listening.)
3Both indicators off.
Canceled.
÷Adjusting the tone while the “LOUD” or “EX.BASS”
indicator is lit turns it off and cancels the sound
enhancement mode. fl
Standby mode
While the standby/timer indicator of the unit is lit
in red or amber, a small amount of current flows to
back up the memory.This condition is called standby
mode.
When CD has been selected.
Volume display
Basic use method

Basic section
16
CD
6
22
11
22
Playback of CD
Playback from
desired track
When a disc is placed into the CD player in advance,
the unit will be switched on automatically by press-
ing the CD 6key, and playback will start.
Skipping tracks
To fast forward and backward
Start playback/
To pause playback
Start playback/
To pause playback
To stop playback
To stop playback
Skipping tracks
1. Load a disc.
1Press the CD0key.
2Place a disc.
3Press the CD0key.
The label side must
be on top.
2. Start playback.
0
CD
11
In regard to CD-TEXT
When discs conforming to CD-TEXT are played with this unit, the text information recorded on the CD (disc
name or titles) is displayed automatically. #
Some CDs conforming to CD-TEXT may not display text information.
Up to 1000 letters may be displayed. If the CD exceeds 1000 letters, "TEXT MEMORY FULL" will be displayed.

17
Basic section
4¢
TUNING
STOP
7
CD
6
0
CD
C
01 0:12
DKENWOOD
Playback of CD
Skipping tracks
÷The track in the direction of the key pressed is
skipped, and the selected track will be played from the
beginning.
÷When the 4key is pressed once during playback, the
track being played will be played from the beginning.
÷Operation also is possible with the keys 4and ¢
of the remote control unit.
Playback from desired track (Remote control unit only)
Press the numeric keys as shown below....
To select track No. 23 :003
To select track No. 40 :0000)
Select the desired track No.
÷Each press pauses and plays the CD alternately.
To pause playback
To stop playback
To fast forward and backward
(Remote control unit only)
÷Playback starts from the position where the key is
released.
Backward
search
Forward
search
÷Do not touch the played side of disc.
÷Be sure to place a disc horizontally. Placing it with an
inclination will result in malfunction.
÷Titles are displayed for discs conforming to CD-TEXT.
÷After a few seconds, play starts from track No.1.
Time display on CD player
(Remote control unit only)
Each press of the TIME key changes the dis-
played contents.
÷Only time information 1and 2can be displayed
during single-track repeated playback or random play-
back.
(Remaining time of track being
played)
(Elapsed time of entire disc)
(Elapsed time of track being
played)
(Remaining time on entire disc)
11:23
2-2:37
323:45T
4-36:15T
Eject the CD
÷The CD tray opens.
Displayed when a disc is loaded.
To skip backward To skip forward

Basic section
18
11
22
TAPE
0
11
Playback of tape
If you load a tape in the cassette deck in advance while
the power is off. pressing theTAPE23 key turns power
on automatically and starts the tape playback.
To stop playback
Selection of TAPE EQ.
Selection of reverse modeTo wind tape at high speed
Start playback
To wind tape at high
speed
To stop playback
1. Load a cassette tape.
1Press the TAPE0key.
2Insert a tape.
3Press the TAPE0key.
Start playback
2. Start playback.
Press the TAPE 23 key of the desired direction.
Indicates the tape transport direction during playback or recording by
lighting of 2or 3. This direction is the direction stored in memory when
the tape was last stopped.
Transport direction indicators
TAPE
23
22

19
Basic section
TAPE EQ.
TAPE EQ.
STOP
7
T
0000
APE STOPRWE
T
0152
APE PLAYRWE
menu
down
volume/
multi control
up
down
volume/
multi control
up
set/demo
set/demo

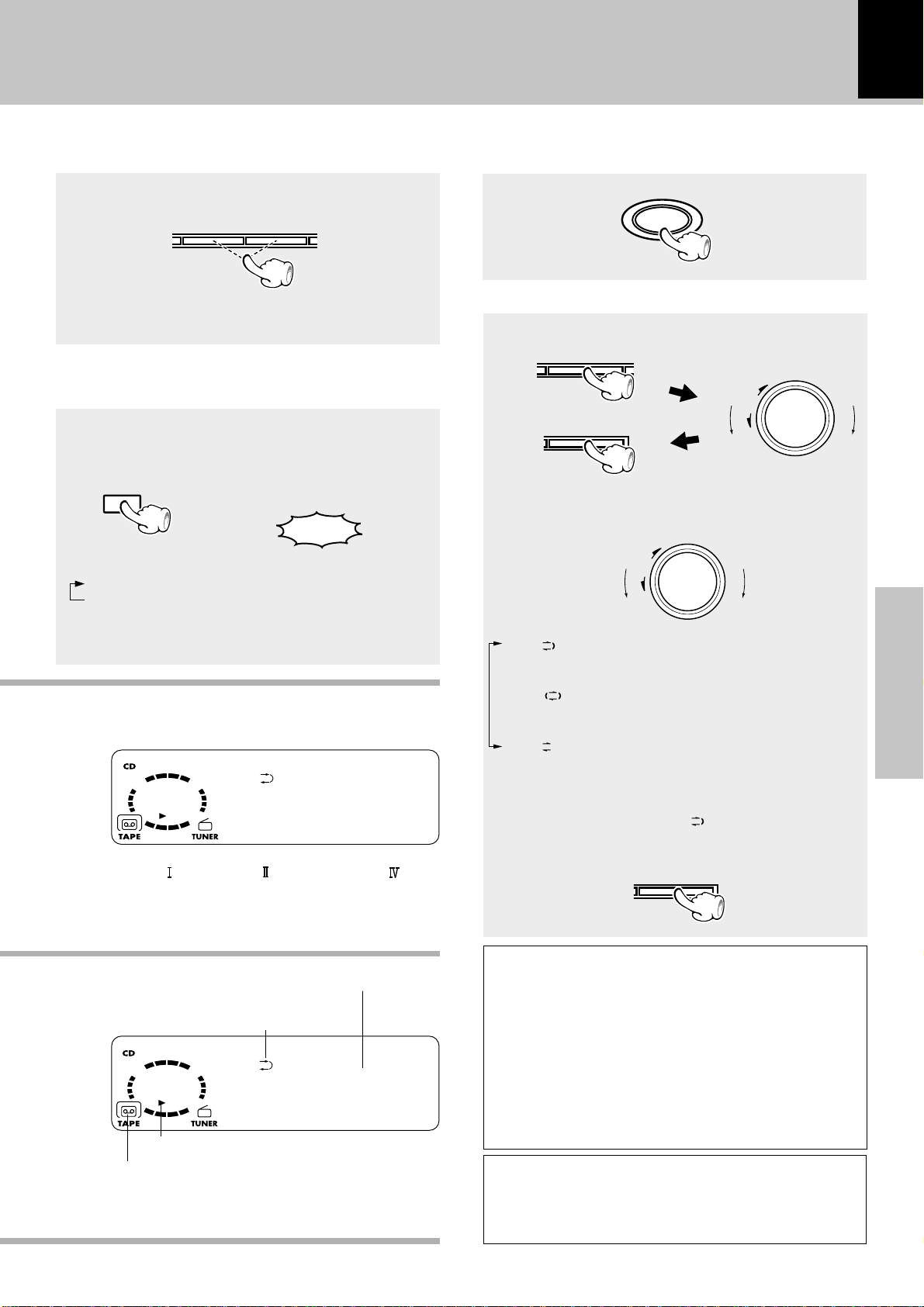

Playback of tape
To wind tape at high speed
÷Press the 7STOP key to stop fast winding.
To fast wind in
direction |To fast wind in direction \
Selection of TAPE equalizer (TAPE EQ.)
(Remote control unit only)
When playing a tape prerecorded with Noise Reduc-
tion system (such as the DOLBY NR) ON, be sure to
set the "TAPE EQ." ON for playback.
Each press switches the modes as follows.
1“TAPE EQ.” ON TAPE equalizer is used.
2“TAPE EQ.” OFF TAPEequalizerisnotused.
Lit when “TAPE EQ.” is ON
÷Select the "TAPE EQ." ON mode according to the
recording condition of the tape.
÷Normal (TYPE ), high (TYPE ), or metal (TYPE ) tape
selection is set automatically.
÷Remove tape slack before loading.
To stop playback
Selection of reverse mode
(Main unit only)
Reverse mode indication
Displayed when the deck is loaded with a tape.
1Select “TAPE RVS. ?”.
2Select.
3Set it.
A tip for use of the tape counter
The tape counter is set to “0000” when a cassette tape is
loaded. By writing down the counter reading in case you
want to interrupt recording (playback) in the middle of
the tape, the memo will be helpful as a reference for lo-
cating the same position when continuing the recording
(playback) the next time. The tape counter figure decre-
ments during recording or playback of the back side (while
the 2tape transport indicator is lit). To set the tape
counter to “0000”, open the cassette holder once. Then
the counter will be reset.
1“” : (REVERSE)
Both sides are played back (recorded), and then the
tape stops.
2“”:(ENDLESS)
Both sides are played back endlessly.
(The tape stops after recording onto both sides.)
3“”: (ONE-WAY)
Only one side is played back (recorded), and then
the tape stops.
(Press the set/demo key while the “?” mark
is blinking.)
(The initial setting is " " (REVERSE).
4¢
Tape counter
Do not use a cassette with more than 90-minute re-
cording time, for the tape used with such a cassette
is very thin and tends to cause troubles such as en-
tanglement around the pinch roller or cutting of
tape.
Transport direction indicators

Basic section
20
TUNER/band
11
4¢
33
Receiving broadcast station
Up to 40 radio stations can be preset in memory. When the “TUNER/band” key is pressed,
the unit will automatically be switched on
and reception status will be reached.
Collective presetting of stations
Preset call
Auto/manual station switching
One-by-one presetting
1. Press the tuner/band key.
Preset a radio station in memory.
1FM
2AM
2. Presetaradiostationinmemory(autopresetorautomemory).
÷If radio stations have already been stored with auto preset or manual preset,
select a station using the 4P.CALL¢key. Each press of the same key
switches the preset stations in sequence.
When ¢is pressed: 1=2=3 ... 38=39=40=1...
When 4is pressed: 40=39=38 ... 3=2=1=40...
Auto tuning : The next broadcasting station will be received
automatically each time this key is pressed.
Manual tuning : Press the 1TUNING¡key repeatedly until a
station is received. Or hold either key and release
it when the frequency of the desired station is
received.
3. Tuning (Preset Call)
÷Once stations are stored by auto preset, the present procedure is not
required from the next time, unless you move of house or re-execute
presetting of all tunable stations.
Follow the procedure in "Collective presetting of stations (auto
preset)" to preset automatically the tunable radio stations in your
area. ™
When no stations have been memorized
11
3
TUNING
÷To select a preset station from the remote, use the 4P.CALL¢key or
numeric keys.
