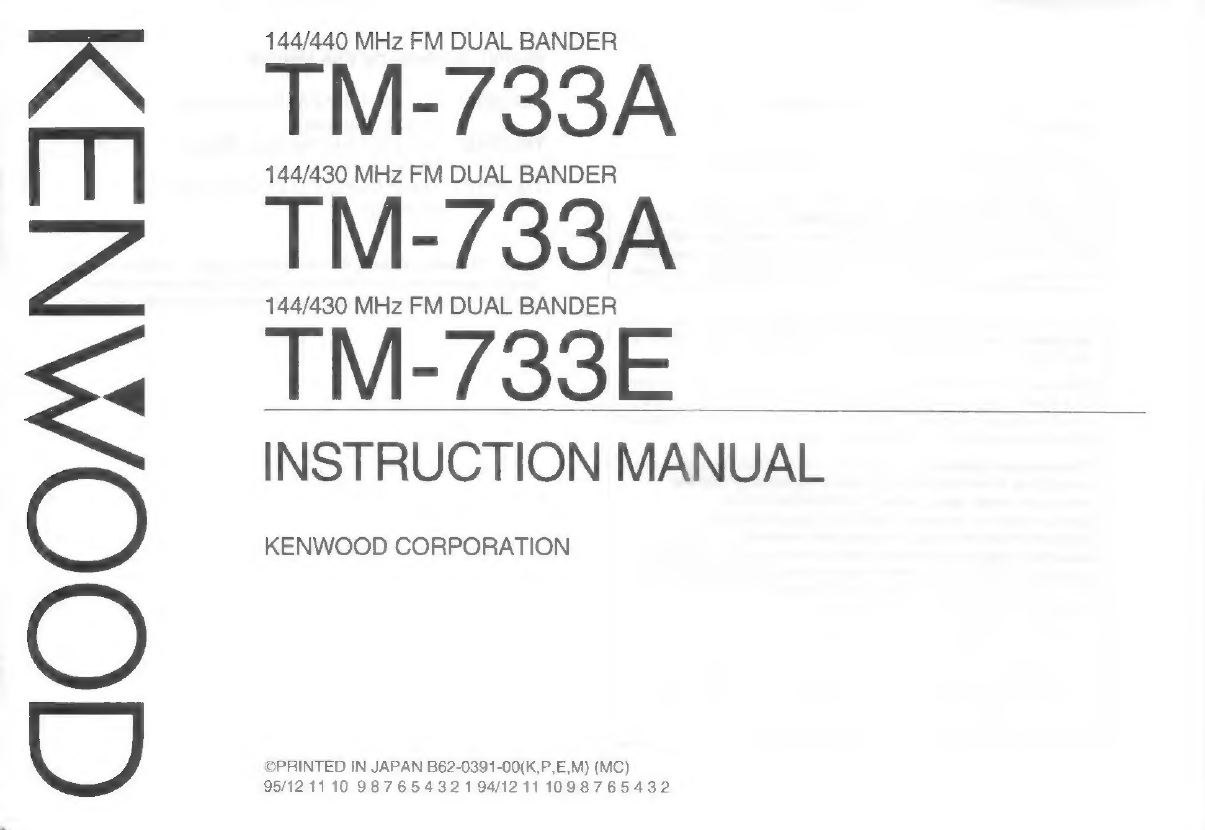

Kenwood TM-733A User manual

GOOMNS>)|
144/440 MHz FM DUAL BANDER
TM-733A
144/430 MHz FM DUAL BANDER
TM-733A
144/430 MHz FM DUAL BANDER
TM-733E
INSTRUCTION MANUAL
KENWOOD CORPORATION
©PRINTED IN JAPAN B62-0391-00(K,P,E,M) (MC)
95/12 1110 987654321 94/1211 1098765432

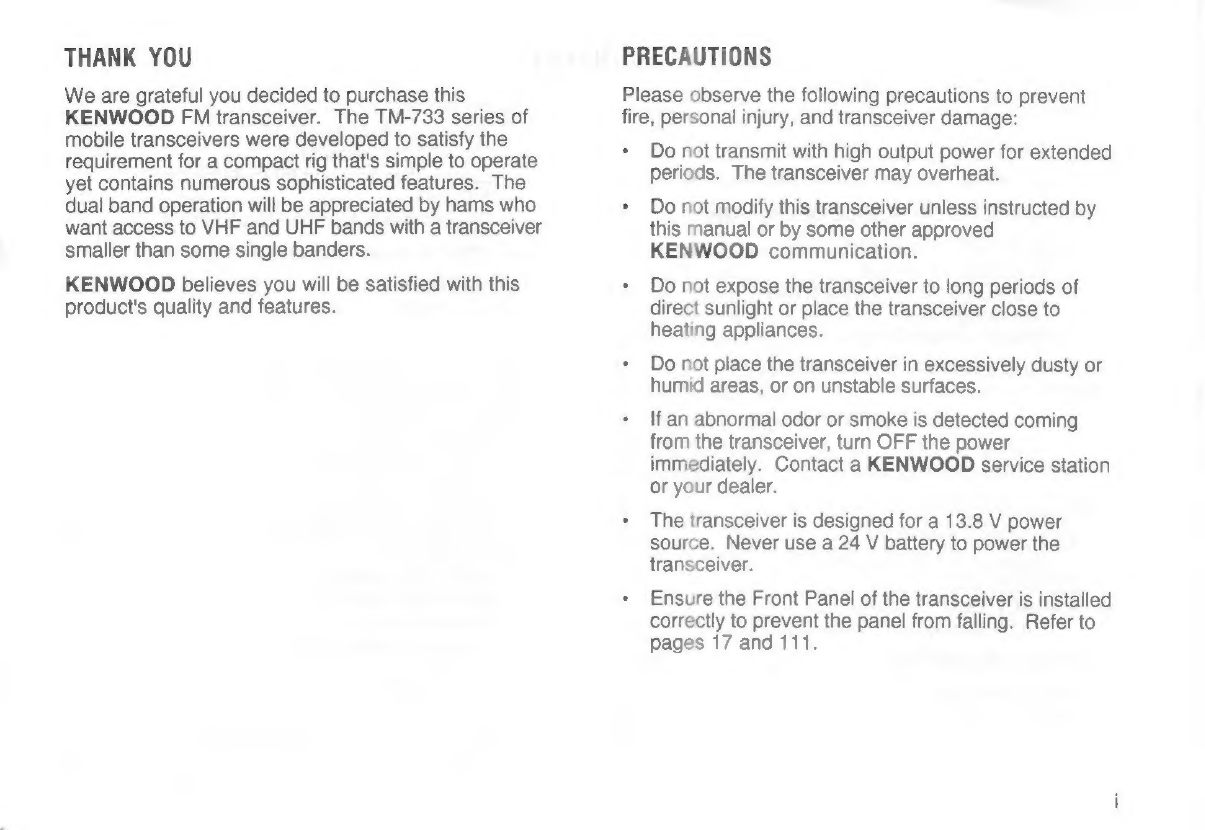

THANK YOU
We are grateful you decided to purchase this
KENWOOD FM transceiver. The TM-733 series of
mobile transceivers were developed to satisfy the
requirement for a compact rig that's simple to operate
yet contains numerous sophisticated features. The
dual band operation will be appreciated by hams who
want access to VHF and UHF bands with a transceiver
smaller than some single banders.
KENWOOD believes you will be satisfied with this
product's quality and features.
PRECAUTIONS
Please observe the following precautions to prevent
fire, personal injury, and transceiver damage:
+ Do not transmit with high output power for extended
periods. The transceiver may overheat.
+ Do not modify this transceiver unless instructed by
this manual or by some other approved
KENWOOD communication.
+ Do not expose the transceiver to long periods of
direct sunlight or place the transceiver close to
heating appliances.
+ Do not place the transceiver in excessively dusty or
humid areas, or on unstable surfaces.
+ If an abnormal odor or smoke is detected coming
from the transceiver, turn OFF the power
immediately. Contacta KENWOOD service station
or your dealer.
+ The transceiver is designed for a 13.8 V power
source. Never use a 24 V battery to power the
transceiver.
+ Ensure the Front Panel of the transceiver is installed
correctly to prevent the panel from falling. Refer to
pages 17 and 111.

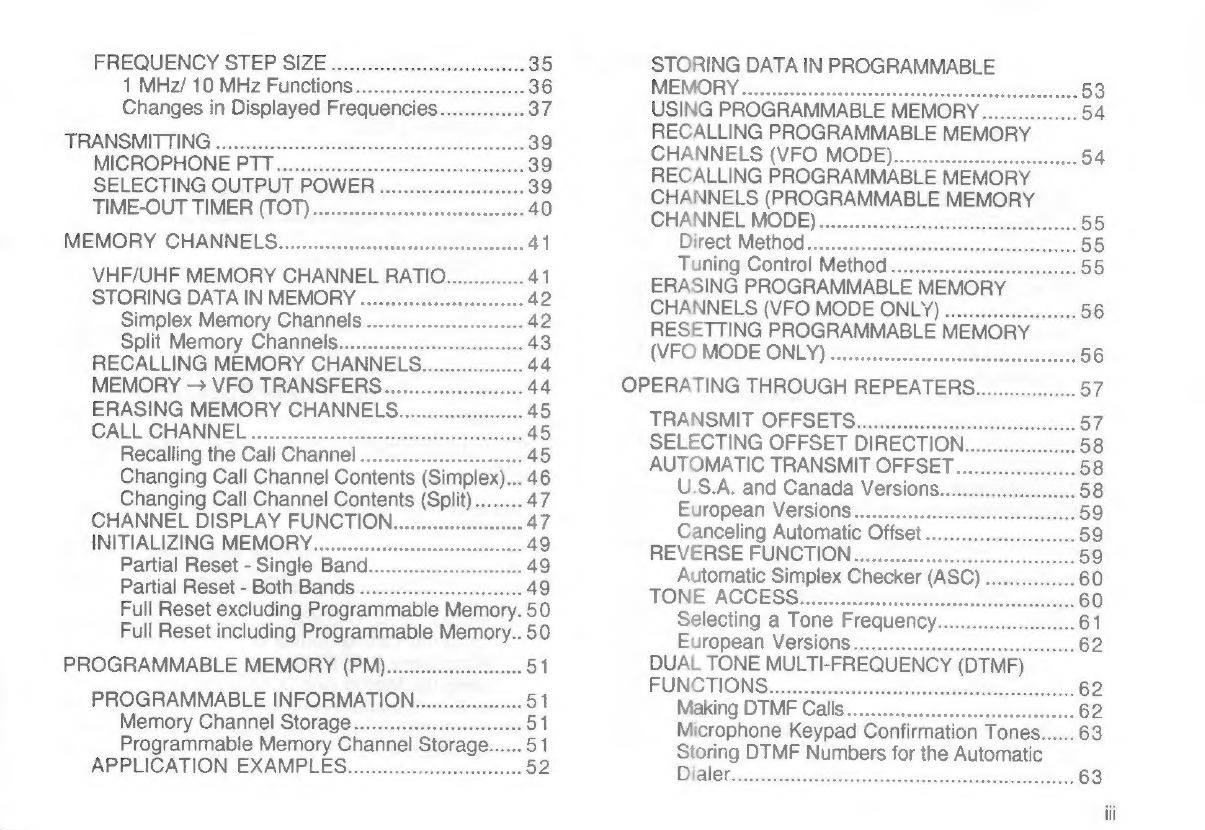

CONTENTS
PREPARATION FOR MOBILE OPERATION............ 3
MOBILE INSTALLATION
Installation Example.........

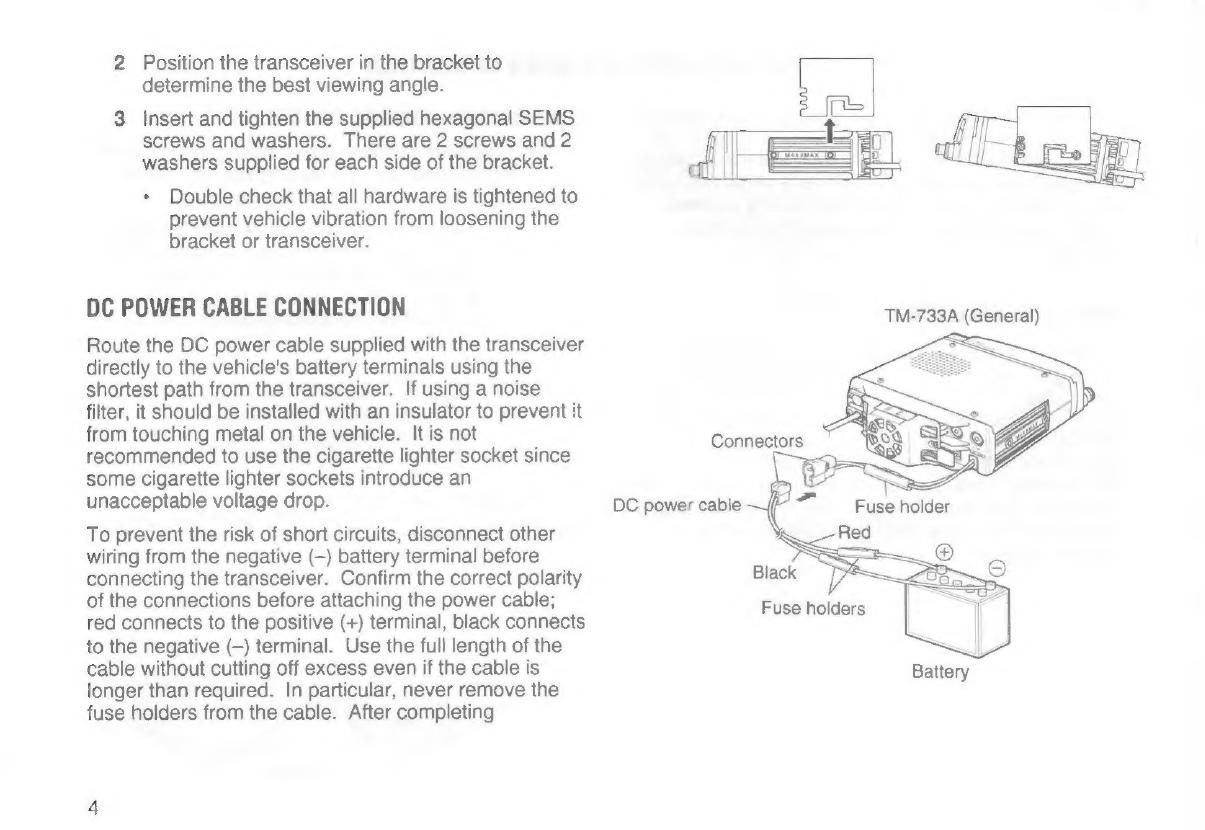

DC POWER CABLE CONNECTION.
Replacing Fuses..................
ANTENNA CONNECTION
PREPARATION FOR FIXED STATION
OPERATION sciirsssscutccrescercssvscvouvcraocenssavvscutsevasons 7
DC POWER SUPPLY CONNECTION
Replacing Fuses.................
ANTENNA CONNECTION
ACCESSORY CONNECTIONS .........:cc:csceeseesseeeeees 9

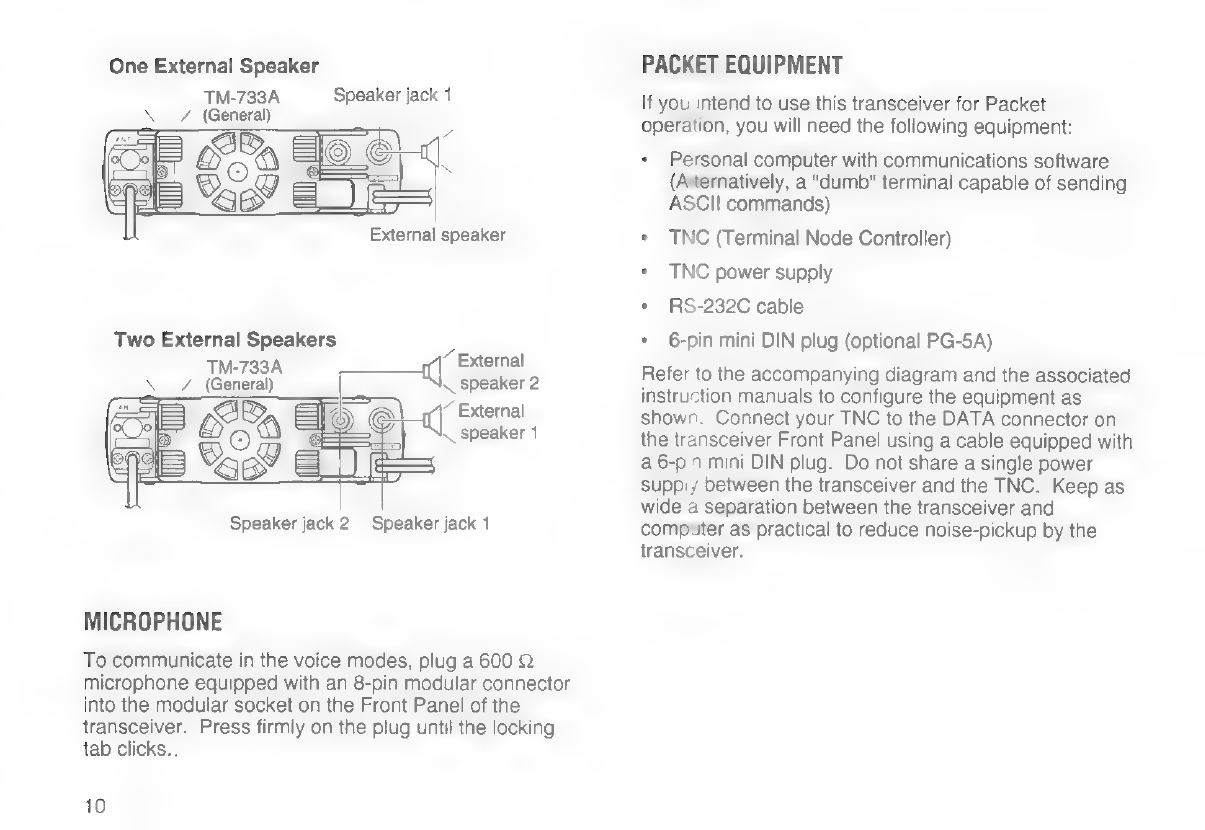

EXTERNAL SPEAKERS
Receive Audio Switching. -
MICROPHONE ...............200 -10
PACKET EQUIPMENT...
DATA Connector Pinout..
GETTING ACQUAINTED...........c::ccesceesseseeeeeeseeeeees 12
FRONT PANEL
REAR PANEL...
MICROPHONE..
DISPLAY
BUTTON FUNCTION DISPLAY...
Basic State Display Labels ..
Labels After Pressing [F]
Labels After Pressing [F] for More than
1 Second

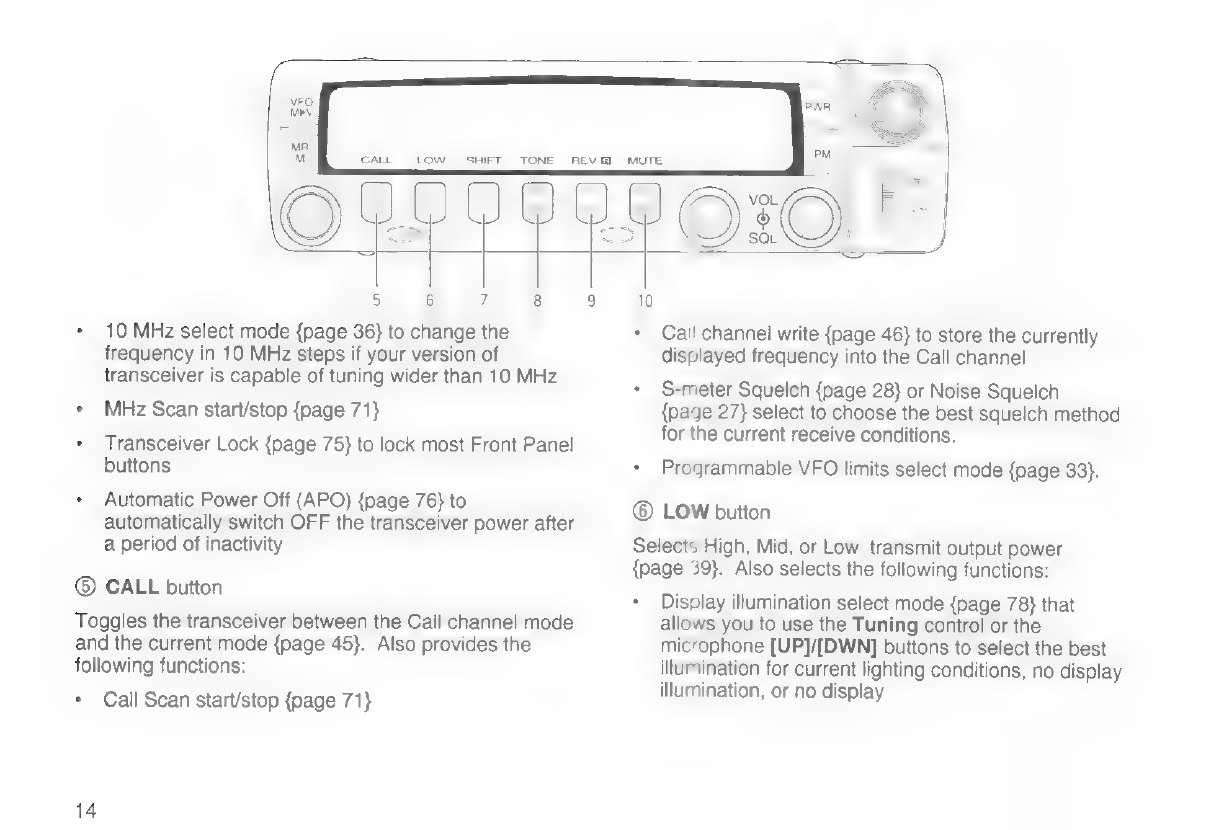

FRONT PANEL
REAR PANEL
RECEIVING
SWITCHING POWER ON/OFF. 26
VOLUME ADJUST........ 26
SQUELCH ADJUST..
Noise Squelch......
Automatic Squelch
S-Meter Squelch..
Squelch Hang Time....
RD Output Squelch Control 29
BAND SELECT............000 29
VHF/VHF Operation. 30
UHF/UHF Operation. 30
Transmit Band Lock....
Blanking a Band Display.
VEOIMO DE. o. wcsas sodeeeticacsascas
SELECTING FREQUENCIES ..
Tuning (Control ssccascnsecesercce
Microphone [UP]/[DWN] Buttons ..
Programmable VFO.....c.ccwssssseessvaas .
AM/FM MODE (SOME VERSIONS ONLY)......... 34

FREQUENCY STEP SIZE
1 MHz/ 10 MHz Functions
Changes in Displayed Freque
TIME-OUT TIMER (TOT)... “
MEMORY CHANNELG...........0::00000 41
VHF/UHF MEMORY CHANNEL RATIO a
STORING DATA IN MEMORY ........... 2
Simplex Memory Channels . '
Split Memory Channels............
RECALLING MEMORY CHANNELS.
MEMORY — VFO TRANSFERS...
ERASING MEMORY CHANNELS..
GALLIGHANNEL .vecocsscessevcsesssecs
Recalling the Call Channel..... PS
Changing Call Channel Contents (Simplex)... 46
Changing Call Channel Contents (Split fies sans 47
CHANNEL DISPLAY FUNCTION.......... 47
INITIALIZING MEMORY.......... *
Partial Reset - Single Band
Partial Reset - Both Bands
Full Reset excluding Programmable Memory. 50
Full Reset including Programmable Memory.. 50
PROGRAMMABLE MEMORY (PM)............seeseeeeee 51
STORING DATA IN PROGRAMMABLE
MEMORY.
ttt
6
ea
ho
na
8
oad
be
anoles
53
USING
PROGRAMMABLE
MEMORY.................
54
RECALLING
PROGRAMMABLE
MEMORY
CHANNELS
(VFO
MODE)..........ccccscsseseseeeseseese
54
RECALLING PROGRAMMABLE MEMORY
CHANNELS (PROGRAMMABLE MEMORY
CHANNEL MODE)..........
Direct Method........
Tuning Control Meth
ERASING PROGRAMMABLE MEMORY
CHANNELS (VFO MODE ONLY) ....-sssesssessseeeeee 56
RESETTING PROGRAMMABLE MEMORY
(VFO'MODE-ONILY)
Seite
titi
csecddcede
ceed
56
OPERATING
THROUGH
REPEATERS.
.essssssssssssses
57
TRANSMIT OFFSETS
SELECTING OFFSET DIRECTION..
AUTOMATIC TRANSMIT OFFSET...
U.S.A. and Canada Versions..
European Versions.............
Canceling Automatic Offset ..
REVERSE FUNCTION.................
Automatic Simplex Checker (ASC) .
TOME ACCESS i icicis.slcesinsdctathaonsess
Selecting a Tone Frequency
European Versions
DUAL TONE MULTI-FREQUENCY (DTMF)
FUNCTIONS.
Making DTMF Calls ‘
Microphone Keypad Ci ion Tones......63
Storing DTMF Numbers for the Automatic

Confirming Stored DTMF Numbers..............- 64
Transmitting Stored DTMF Numbers
(Automatic Dialer)
Autopatch (U.S.A. and Canada Versio
Time-Operated Scan.....
Carrier-Operated Scan.....
SELECTING SCAN RESUME METHOD.
MEMORY SCAN .........::c:cseseesseesseeeees -68
Locking-Out Memory Channels..
BANDISGAIN 32. .cccisadets twatescccosedseed
PROGRAMMABLE BAND SCAN..
Setting Scan Limits ..............c08
Confirming the Programmable Limits .
Using Programmable Band Scan...
MHz SCAN
CALL/VFO SCAN...
CALL/MEMORY SCAN ............
PROGRAMMABLE MEMORY SCAN
AUXILIARY FUNCTIONS
AUTOMATIC BAND CHANGE (A.B.C.)
ADVANCED INTERCEPT POINT aed
Microphone Lock.
PUNO 5 cnc sennspusmvianiesecer tories
AUTOMATIC POWER OFF (APO)
BEEP EUNGTION 225 sctare<soceesaases
Frequency Readout by Beeps
DISPLAY DIMMER
Auto Dimmer Change
DISPLAY DEMONSTRATION MOD
(SHOW-OFF MODE)
REMOTE CONTROL........
ACTIVATING REMOTE CONTROL MODE
REMOTE CONTROL FUNCTIONG....... +81
ADDITIONAL REMOTE FUNCTIONS . 82
Configuring the PF Keys........ 82
Monitor Function...... 83
Enter Function............... 83
REMOTE FUNCTIONS USING TH-7 .. 83
KEYPAD DIRECT ENTRY........
Frequency Entry
Memory Channel or Tone/CTCSS Number
Entry
CONTINUOUS TONE CODED SQUELCH SYSTEM
(CTCSS) ,
SELECTING CTCSS FREQUENCIES
UGING CTCSS) asses sissssevenisatdzccces
Automatic Tone Frequency ID..
DUAL TONE SQUELCH SYSTEM (DTSS)....
STORING DISS CODES... ccc iscisssscstscessessveee 89
Using the Tuning Control or
Microphone [UP]/[DWN].............c:ccceseeseeees 89
Using the Microphone DTMF Keypad
(U.S.A./Canada Versions).. 90
ACTIVATING DTSG......... x
DTSS AND REPEATERS...

OVERVIEW
PAGE CODE MEMORY...
STORING PAGE CODES
Using the Tuning Control or
Microphone [UP]/[DWN]...........:2:ceecereeseees 93
Using the Microphone DTMF Keypad
(U.S.A./Canada Versions)
Receiving a Call with your Station Code ..
Receiving a Call with a Group Code....
PAGE CODE AND REPEATERS...
LOCKING-OUT CODES..........
AUTO PAGE CANCEL..
OPEN PAGE............
TONE ALERT sscsciscctsecorsagsees
ACTIVATING TONE ALERT...
CHANGING THE ALARM TONE...
PAGKET OPERATION. ..nnicnsnnesnannsisennssenedsverarniae
1200/9600 bps OPERATION. ..........::seeseeees
MAINTENANCE
GENERAL INFORMATION ..
OPTIONAL ACCESSORIES ....
INSTALLING OPTIONS .esccscesssiensessccncecnncernnenevones 110
OPENING THE TRANSCEIVER CASE............. 110
INSTALLING THE TSU-8 CTCSS UNIT............ 110
REMOVING THE DATA CONNECTOR
COVER. sinssshencixspivanestteosavasseuns eh divennwsauiitciaicsn 111
DETACHABLE FRONT PANEL KITS
(DFK-3B, DFK-4B, DFK-7B) .. ee LAS
Installation .......... cesses +112
Installation Examples.
SPECIFICATIONS

FEATURES
Introduces Programmable Memory channels that
store much more information than regular memory
channels to preserve an entire operating
environment for quick recall.
Labels for multi-function buttons change resulting in
a more user-friendly transceiver.
Front Panel detaches easily from the Main Unit via a
single slide switch for simple remote mounting.
Full transceive capability on one frequency pair
while simultaneously monitoring another receive
frequency on the other band. Simultaneous receive
configurations include VHF/UHF, VHF/VHF, and
UHF/UHF.
Automatic Simplex Checker (ASC) function that
advises when direct simplex communication can be
used instead of a repeater.
Dedicated Front Panel DATA connector for 1200 bps
or 9600 bps Packet operation.
Advanced Intercept Point (AIP) function for fighting
intermodulation problems.
ACCESSORIES
Accessory
Microphone
U.S.A./Canada,General!
Europe, General!
Part Number
T91-0517-XX
T91-0516-XX
Quantity
Microphone hanger
U.S.A./Canada
J20-0319-XX
Microphone hanger screw
U.S.A./Canada
N46-3010-XX
DC power cable
E30-2111-XX
Transceiver fuse, 15 A
F51-0017-XX
Mounting bracket
J29-0436-XX
Mounting bracket screws
Self-tapping screw
Washer
Hexagon screw
NO9-0335-XX
N15-1050-XX
NO9-2177-XX
Wrench
W01-0414-XX
Warranty card
U.S.A./Canada,Europe?
Instruction manual
1 Excluding some General and European versions.
B62-0391-XX
2 Excluding some European versions.

CONVENTIONS FOLLOWED IN THIS MANUAL
The writing conventions described below have been
followed to simplify instructions and avoid unnecessary
repetition. This format is less confusing for the reader.
Reviewing the following information now will reduce
your learning period. That means less time will be
spent reading this manual; more time will be available
for operating.
Note:
¢@ Basic procedures are numbered sequentially to guide you step-
by-step. Additional information pertaining to a step, but not
essential to complete the procedure, is provided in bulleted form
following many steps for further guidance.
¢ Most procedures require that you enter a final key stroke that acts
as a terminator for the procedure. You can, if you prefer, wait for
approximately 10 seconds rather than enter this final key entry.
Instruction What to do
Press
[KEY].
Press and release KEY.
Press
[KEY 1]+[KEY2].
Press and hold KEY1 down,
then press KEY2.
Press
[KEY1], [KEY2].
Press KEY1 momentarily,
release KEY1, then press
KEY2.
Press
[KEY]+ POWER ON.
With transceiver power OFF,
press and hold KEY, then turn
ON the transceiver power by
pressing [PWR].
Press
[KEY1]+[KEY2]+
POWER ON.
With the transceiver power
OFF, press and hold both
KEY1 and KEY2 down, then
turn ON the transceiver power}
by pressing [PWR].
Press
[F] (1 s).
Press and hold the Function
key until the "F" indicator on
the Display begins blinking.
Press
[KEY] (1s).
Press and hold KEY until the
function begins.
Press
[F], [KEY] (1s).
Press [F] momentarily,
release [F], then press and
hold KEY for 1 second or
longer.

PREPARATION FOR MOBILE OPERATION
When operating mobile, do not attempt to configure
your transceiver while driving because it is simply too
dangerous. Stop the car first, then make the necessary
changes. Also, be aware of local laws pertaining to the
use of headphones/headsets while driving on public
roads. If in doubt, do not wear headphones while
mobiling.
MOBILE INSTALLATION
Install the transceiver in a safe, convenient position
inside your vehicle that minimizes danger to your
passengers and yourself while the vehicle is in motion.
For example, consider installing the transceiver under
the dash in front of the passenger seat so that knees or
legs will not strike the radio during sudden braking of
your vehicle. Try to pick a well-ventilated location that
is shielded from direct sunlight. Leave sufficient space
behind the Rear Panel for the transceiver fan to
exhaust warm air.
gw Installation Example
1 Install the mounting bracket using the supplied
flat washers and self-tapping screws. There are
4 washers and 4 screws supplied.
The bracket can be mounted with the bracket
opening for the transceiver facing down for
underdash mounting, or with tne opening
facing up. Study the accompanying diagram
to determine the best installation method for
your situation.
Flat
washer
_
|
Ay
|
Self-tapping screw
Se | yy | °O- SEMS screw

2 Position the transceiver in the bracket to
determine the best viewing angle.
3 Insert and tighten the supplied hexagonal SEMS
screws and washers. There are 2 screws and 2
washers supplied for each side of the bracket.
* Double check that all hardware is tightened to
prevent vehicle vibration from loosening the
bracket or transceiver.
DC POWER CABLE CONNECTION
Route the DC power cable supplied with the transceiver
directly to the vehicle's battery terminals using the
shortest path from the transceiver. If using a noise
filter, it should be installed with an insulator to prevent it
from touching metal on the vehicle. It is not
recommended to use the cigarette lighter socket since
some cigarette lighter sockets introduce an
unacceptable voltage drop.
To prevent the risk of short circuits, disconnect other
wiring from the negative (—) battery terminal before
connecting the transceiver. Confirm the correct polarity
of the connections before attaching the power cable;
red connects to the positive (+) terminal, black connects
to the negative (-) terminal. Use the full length of the
cable without cutting off excess even if the cable is
longer than required. In particular, never remove the
fuse holders from the cable. After completing
Battery

transceiver connections to the battery, then reconnect
any wiring removed from the negative terminal.
If the power cable must be routed through a hole in the
vehicle chassis or body, for example in the firewall at
the front of the passenger compartment, use a rubber
grommet to protect the cable from abrasion. The entire
length of the cable must be dressed so it is isolated
from heat and moisture. After the cable is in place,
wind heat-resistant tape around the fuse holder to
protect it from moisture. Tie down the full run of cable.
Dismantle the fuse holder to pass
the cable through the firewall.
The vehicle battery must have a nominal rating of 12 V.
Never connect the transceiver to a 24 V battery. Be
sure to use a 12 V vehicle battery that has sufficient
current capacity. If the current to the transceiver is
insufficient, the Display may darken during
transmission, or transmit output power may drop
excessively.
Only after completing the installation, connect the
transceiver's power supply connector to the DC power
cable. Press the connectors firmly together until the
locking tab clicks.
m@ Replacing Fuses
If the fuse blows, determine the cause then correct
the problem. After the problem is resolved, then
replace the fuse. If newly installed fuses continue to
blow, disconnect the power cable and contact your
dealer or the nearest Service Center for assistance.
Fuse Location
TM-733
Supplied Accessory
Cable
Fuse Current Rating
CAUTION: Only use fuses of the specified type and rating.
Note: If you use the transceiver for a long period when the
vehicle battery is not fully charged, or when the engine is OFF,
the battery may become discharged, and will not have sufficient
reserves to start the vehicle. Avoid using the transceiver under
these conditions.

ANTENNA CONNECTION
Before operating mobile, you must first install an
efficient, well-tuned antenna. The success of your
mobile installation will depend largely on the type of
antenna and its correct installation. The transceiver
can give excellent results if the antenna system and its
installation is given careful attention.
=iowe
TM-733A =©@ ©
(General) a
ANT connector Feed line connector
TM-733A
(U.S.A./ Canada)
144 MHz
To antenna
440 MHz
ANT connector Feed line connector
Your
choice
of
antenna
should
have
a
50
Q
impedance
to
match
the
transceiver
input
impedance.
Use
low-
loss
coaxial
feed
line
that
also
has
a
characteristic
impedance
of
50
2.
Coupling
the
antenna
to
the
transceiver
via
feed
lines
having
an
impedance
other
than
50
Q
reduces
the
efficiency
of
the
antenna
system
and
can
cause
interference
to
nearby
broadcast
television
receivers,
radio
receivers,
and
other
electronic
equipment.
CAUTION:
Transmitting
without
first
connecting
an
antenna
or
other
matched
load
may
damage
the
transceiver.
Always
connect
the
antenna
to the
transceiver
before
transmitting.

PREPARATION FOR FIXED STATION OPERATION
The following diagram illustrates how to make
connections to the rear panel of the transceiver.
Connect all cables securely so they will not come loose
if pulled.
TM-733A (General)
Aap
Ly
re \
| Fuse holder
Fuse holders
Black— —Red
O®
Regulated DC power supply
® AC outlet
DC POWER SUPPLY CONNECTION
In order to use this transceiver for fixed station
operation, you will need a separate 13.8 V DC power
supply that must be purchased separately. DO NOT
directly connect the transceiver to an AC outlet! Use
the supplied DC power cable to connect the transceiver
to a regulated power supply. Do not substitute a cable
with smaller gauge wires. The recommended current
capacity of your power supply is 12 A.
First connect the DC power cable to the regulated DC
power supply and check that polarities are correct
(Red: positive, Black: negative). Then connect the
transceiver's DC power connector to the connector on
the DC power cable. Press the connectors firmly
together until the locking tab clicks.

Note:
For your transceiver to fully exhibit its performance capabilities,
the following optional power supply is recommended:
PS-33 (20.5 A, 25% duty cycle).
¢ Before connecting the DC power supply to the transceiver, be
sure to switch the transceiver and the DC power supply off.
¢@ Donot plug the DC power supply into an AC outlet until you make
all connections.
m@ Replacing Fuses
If the fuse blows, determine the cause then correct
the problem. After the problem is resolved, only
then replace the fuse. If newly installed fuses
continue to blow, disconnect the power plug and
contact your dealer or the nearest Service Center for
assistance.
Fuse Location
TM-733
Fuse Current Rating
Supplied Accessory
Cable
CAUTION: Only use fuses of the specified type and rating.
ANTENNA CONNECTION
The type of the antenna system, consisting of the
antenna, ground, and feed line, will greatly affect the
successful
performance
of
the
transceiver.
Use
a
properly adjusted 50 Q antenna of good quality
designed
for
operation
at
your
operating
frequency
to
let your transceiver perform at its best.
Install
low-loss
50
Q
coaxial
cable
and
a
first
quality
connector
for
the
connection
to
the
transceiver.
For
longer
feed
line
runs,
especially
for
operation
at
UHF
frequencies,
you
might
consider
investing
in
"hardline"
transmission
line.
Hardline
is
available
in
larger
diameters
and
has
much
lower
loss
than
coaxial
cable.
The
lower
loss
can
make
a
significant
difference
for
those
interested
in
weak
signal
operation.
In
all
cases,
match
the
impedance
of
the
feed
line
and
antenna
so
that
the
SWR
is
minimum.
Generally,
an
SWR
measurement
of
1.5:1
or
less
is
considered
satisfactory.
All
connections
must
be
clean
and
tight.
Coupling
the
antenna
to
the
transceiver
via
feed
line
having
an
impedance
other
than
50
Q
reduces
the
efficiency
of
the
antenna
system.
It
also
can
cause
interference
to
nearby
broadcast
television
receivers,
radio
receivers,
and
other
electronic
equipment.
CAUTION:
@
All
fixed
stations
should
be
equipped
with
a
lightning
arrester
to
reduce
the
risk
of fire,
electric
shock,
and
transceiver
damage.
=
Transmitting
without
first
connecting
an
antenna
or
other
matched
load
may
damage
the
transceiver.
Always
connect
the
antenna
to the
transceiver
before
transmitting.

ACCESSORY CONNECTIONS
EXTERNAL SPEAKERS When using 1 external speaker connected to
speaker jack 1:
If you plan to use external speakers, choose speakers
with an impedance of 8 Q. The external speaker jacks Conti z =
accept 3.5 mm diameter mono (2-conductor) plugs.
Recommended speakers include the SP-50B and VHF Band VHF Band
SP-41, (Internal Speaker) (External Speaker)
‘ j Itchi UHF Band UHF Band
m Recolve Audio Switching (External Speaker) (Internal Speaker)
A variety of speaker configurations are possible by
using either 1 or 2 external speakers. The Audio
Switch function allows you to select the exact
configuration that you like best.
Press [F] (1 s), [CONT SEL] to toggle between
Configuration 1 or Configuration 2 as described in
the charts.
When using 2 external speakers:
Configuration 1 Configuration 2
VHF Band VHF Band
(External Speaker 1) (External Speaker 2)
* Connecting 1 external speaker to speaker jack 2 °
will provide audio from both the VHF and UHF UHF Band UHF Band
bands through your external speaker. (External Speaker 2) (External Speaker 1)

One External Speaker
TM-733A Speaker jack 1
/ (General)
External speaker
Two External Speakers
2
TM-733A External
/ (General) speaker 2
\ " External
I. speaker 1
Speaker jack 2 Speaker jack 1
MICROPHONE
To communicate in the voice modes, plug a 600 Q
microphone equipped with an 8-pin modular connector
into the modular socket on the Front Panel of the
transceiver. Press firmly on the plug until the locking
tab clicks..
10
PACKET EQUIPMENT
If you intend to use this transceiver for Packet
operation, you will need the following equipment:
+ Personal computer with communications software
(Alternatively, a "dumb" terminal capable of sending
ASCII commands)
+ TNC (Terminal Node Controller)
+ TNC power supply
+ RS-232C cable
* 6-pin mini DIN plug (optional PG-5A)
Refer to the accompanying diagram and the associated
instruction manuals to configure the equipment as
shown. Connect your TNC to the DATA connector on
the transceiver Front Panel using a cable equipped with
a 6-pin mini DIN plug. Do not share a single power
supply between the transceiver and the TNC. Keep as
wide a separation between the transceiver and
computer as practical to reduce noise-pickup by the
transceiver.

m DATA Connector Pinout
Pin
Number
Function
Packet data input
+ Transmit data from TNC to
transceiver
Ground for PKD
Packet standby
+ TNC can use this pin to
inhibit the transceiver
microphone input while
transmitting packet signals.
Detects 9600 bps data.
(500 mVp-p/10 kQ)
Detects 1200 bps data.
(300 MVp-p/10 kQ)
Note: See
Sane control output
Inhibits TNC data transmit
while transceiver squelch is
open.
Prevents interference to voice
communications on the same
frequency. Also prevents
retries.
Output level
Open squelch: +5 V (High)
Closed squelch: 0 V (Low)
"REMOVING THE DATA CONNECTOR COVER"
{page 111} to access the DATA connector on the Front Panel.
Personal computer/dumb terminal
TNC power supply RS-232C cable
DATA connector

GETTING ACQUAINTED
The following sections describe basic functions of the Front Panel controls and buttons, Rear panel jacks and
connectors,
microphone
buttons
and
Display
indicators.
For
full
explanations
of
functions
mentioned,
refer
to
the
appropriate sections elsewhere in the manual.
FRONT PANEL
The labels for some of the Front Panel buttons appear on the Display instead of on the panel or buttons. The
displayed button labels change depending on which mode the transceiver is in. This "GETTING ACQUAINTED"
section refers to the buttons that do not have labels on the Front Panel by the labels that appear on the Display
immediately after switching ON the transceiver. Refer to "REMOVING THE DATA CONNECTOR COVER" {page 111}
to access the DATA connector.
CALL LOW SHIFT TONE REV
12

@® VFO button
Selects the VFO mode {page 32}. The Tuning control
changes the transceiver frequency in this mode. Also
provides the following functions:
+ Band Scan start/stop {page 69} to scan the entire
VFO range
Programmable Scan limits select mode {page 70} to
program the limits for Programmable Scan
+ Scan resume select (either Time-operated or
Carrier-operated) {page 67} to choose under which
condition Scan will continue scanning
+ Memory channel or Call channel transfer to the VFO
{page 44}
* Partial Reset {page 49}
@® MR button
Selects the Memory Recall mode {page 44}. The
Tuning control changes the memory channel in this
mode. Also provides the following functions:
+ Memory Scan start/stop {page 68}
+ Memory channel write {page 42} to store data in
memory channels
+ Memory channel erase {page 45} to remove data
from memory channels
* Memory channel lock-out {page 68} to prevent
Memory Scan from stopping on a particular channel
+ Full Reset {page 50}
® Tuning control
Selects transmit/receive frequencies while in VFO
mode and memory channels while in Memory Recall
mode {page 44}. Also provides the following functions:
+ Programmable Scan limits select {page 70} to
choose the boundaries of this type of Scan
+ Scan direction select {page 69} to choose if Scan
progresses upward or downward in frequency
+ Subaudible Tone frequency select {page 61} to
choose the correct Tone for repeater access
+ DTSS/Page code and Page memory select
{pages 89, 93}
+ Settings select for those functions that have several
choices
The microphone [UP]/[DWN] buttons also provide the
same functions as the Tuning control.
@® Mhz button
Selects the MHz mode. This mode allows you to use
the Tuning control or the microphone [UP]/[DWN]
buttons to change the transceiver frequency in 1 MHz
steps {page 36}. Also provides the following functions:
13

SHIFT TONE REVEI MUTE
* 10 MHz select mode {page 36} to change the
frequency in 10 MHz steps if your version of
transceiver is capable of tuning wider than 10 MHz
+ MHz Scan start/stop {page 71}
* Transceiver Lock {page 75} to lock most Front Panel
buttons
+ Automatic Power Off (APO) {page 76} to
automatically switch OFF the transceiver power after
a period of inactivity
© CALL button
Toggles the transceiver between the Call channel mode
and the current mode {page 45}. Also provides the
following functions:
+ Call Scan start/stop {page 71}
+ Call channel write {page 46} to store the currently
displayed frequency into the Call channel
S-meter Squelch {page 28} or Noise Squelch
{page 27} select to choose the best squelch method
for the current receive conditions.
Programmable VFO limits select mode {page 33}.
© LOW button
Selects High, Mid, or Low transmit output power
{page 39}. Also selects the following functions:
+
Display
illumination
select
mode
{page
78}
that
allows
you
to
use
the
Tuning
control
or
the
microphone
[UP]/[DWN]
buttons
to
select
the
best
illumination
for
current
lighting
conditions,
no
display
illumination,
or
no
display
