Kenyon SilKEN B70071 User manual

Part # 145355
Revised: August 16, 2017
www.CookWithKenyon.com
SilKEN®GRILL - TOUCH CONTROL
OWNERS MANUAL

Contents
IMPORTANT SAFETY INSTRUCTIONS
Product Specications
Before Using the Grill
Quick Start Tips
Stuffed French Toast
Operation
Touch Control
Calibration
Turning on the Grill
Heat Settings
Turning Off the Grill
Automatic Shut-Off
Preheat and Auto Shut-Off Time
Temperature Guide
Power Cord

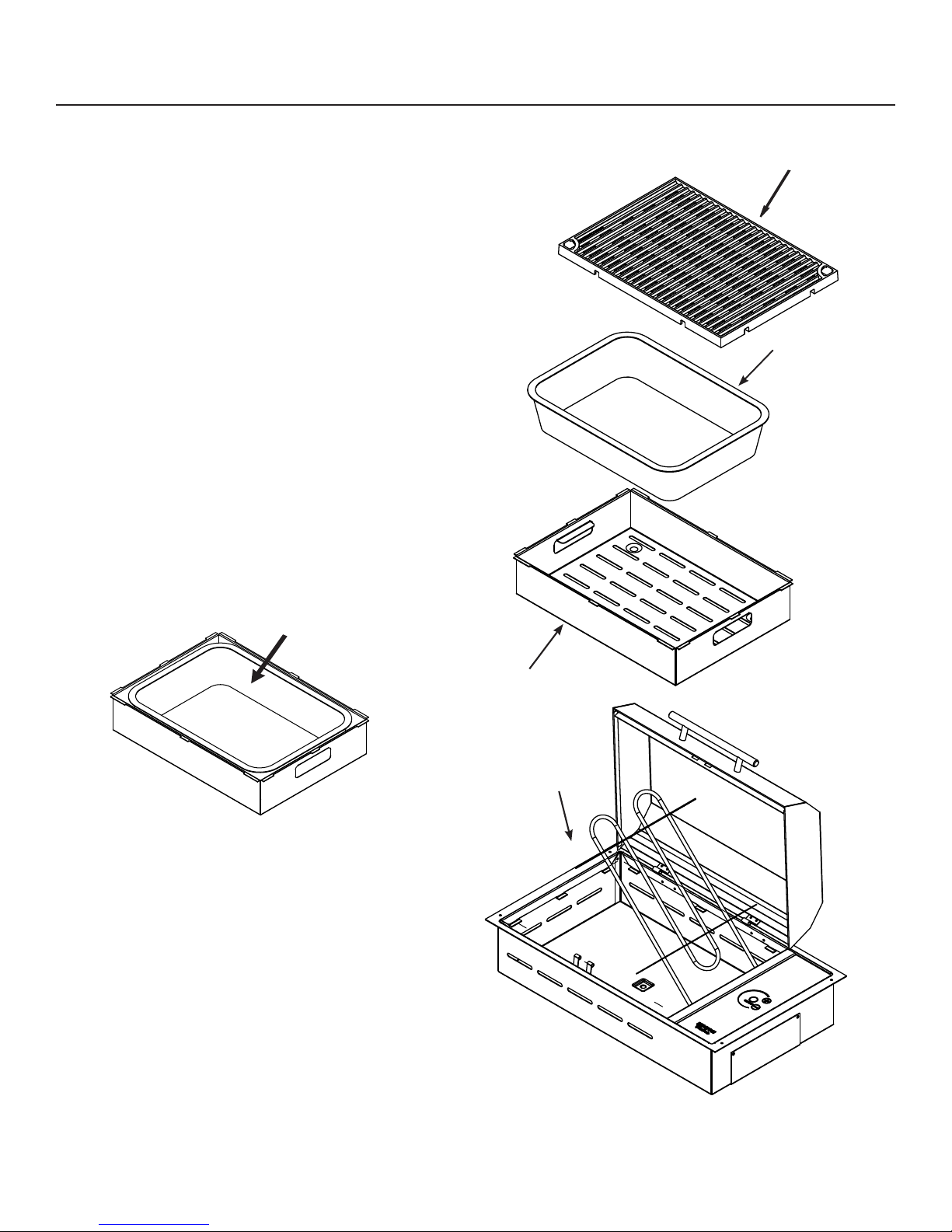

Grill Parts
Lid
Lid Removal
Installation
Unpacking the Grill
Check Electrical Supply Requirements
Countertop Preparation
Drain Connection
Outlet Location
Final Preparations Prior to Use
Warranty
3
5
6
7
9
9
9
9
10
10
10
10
11
12
13
13
14
14
15
16
17
17
18
Please read & save
these instructions
Thank you for choosing Kenyon,
the world’s leading manufacturer
of specialty cooking appliances.
By following the instructions in
this owners manual, your grill will
provide you with many years of
reliable service.
To ensure our ability to continue
serving you, please use this page
to record important product
information.
For quick reference
please keep a
record here:
Purchase date
Model number
Serial number
Name plate location
NAME PLATE
LABEL LOCATION

Read this section BEFORE operating the grill.
The following information applies to all
KENYON Grills.
IMPORTANT SAFETY INSTRUCTIONS
THIS GRILL, LIKE ALL APPLIANCES, HAS THE POTENTIAL TO
CREATE SAFETY PROBLEMS THROUGH CARELESS AND
IMPROPER USE. PLEASE OBSERVE ALL OF THE
FOLLOWING SAFETY PRECAUTIONS.
Read ALL instructions prior to using
product.
CAUTION
Do not touch hot surfaces. Use handles or
knobs.
To protect against electrical shock,
do not immerse cord or plugs in water or other
liquid.
Close supervision is necessary when any
appliances are used near children.
Unplug from outlet when not in use and
before cleaning. Allow to cool before putting
on or taking off parts.
Do not operate appliance with a damaged
power cord or plug. If the appliance
malfunctions, discontinue use and contact the
nearest authorized appliance dealer or the
factory examination, repair or adjustment.
The use of accessory attachments not
supplied by the manufacturer of the
appliance may cause injuries.
When used as a portable grill, store indoors
when not in use. Suitable shelter must be
provided to prevent direct exposure to rain.
Covers available.
Do not let cord hang over edge of table or
counter, or touch hot surfaces.
Do not place on or near a hot gas or electric
burner, or in a heated oven.
Extreme caution must be used when mov-
ing an appliance containing hot oil or other hot
liquids.
Always attach plug to appliance rst, then
plug cord into the wall outlet. To disconnect,
turn any control to “off”, then remove plug from
wall outlet.
Do not use appliance for other than
intended use.
Always place a minimum of one (1) cup of
water in disposable drip tray prior to grilling.
Never leave children alone - children should
not be left unattended around the grill at any
time.
Allow the grill to cool before taking off
cooking grates, disposable drip trays or lids.
Fuel, such as charcoal briquettes, are not to
be used with this appliance.
3

IMPORTANT SAFETY INSTRUCTIONS
Do not replace or attempt to repair any part
of the grill, unless otherwise noted in this
manual. All other service is to be performed
by a factory authorized technician.
Ensure grill is installed per instructions
and properly grounded by a qualied
electrician.
Do not use water to extinguish a grease
re, use dry chemical re extinguisher.
Do not store ammable materials near
the grill.
Do not wear loose tting or hanging apparel
when using the grill.
The appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction.
DO NOT DISCARD THESE INSTRUCTIONS, KEEP
THEM WITH THE KENYON GRILL FOR FUTURE REFERENCE.
4
THE ABOVE INSERT IS LOCATED UNDERNEATH
YOUR GRILL LID. PLEASE READ INSERT AND
REMOVE PRIOR TO GRILL USE.
REMOVE & READ PRIOR TO GRILLING
www.CookWithKenyon.com | 860.664.4906 |
Thank you for purchasing the World’s Finest All Seasons® Electric Grill! There are a few simple
steps you can take to ensure your good decision will lead to years of World-Class Grilling:
Q U I C K S T A R T T I P S
to purchase recipe books, cooking utensils,
griddles, grill covers, and more!
VISIT OUR WEBSITE
Scan with
smartphone
1.
2.
3.
4.
5.
6.
7.
8.
Remove grate(s) and drip tray(s), clean both.
Insert the drip tray(s) into the bottom of grill. Make sure the burner brackets are not
resting on the drip tray(s).
Always fill the drip tray(s) with 16 oz. of liquid. Water will work, but why not try beer or
wine to add flavor to your favorite food. Then re-install cooking grate.
Depending on model, either hardwire your Kenyon All Seasons® Grill or plug it directly into
an outlet, do not use extension cords.
Preheat grill for 5 to 9 minutes on high (8 bars). Adjust heat setting for type of food,
for example:
Close lid and cook. Enjoy the best grilled food you have ever tasted!
Once your grilling session is complete, grab a wet paper towel and wipe down your grate.
Once cool, place in the dishwasher along with the dirty dishes so that it’s ready for its
next tour of duty!
While the grate is in the wash, don’t forget to clean out the drip tray contents.
You don’t want your previous juices to flavor your next meal.
-Vegetables 3-4 bars
-Pork and fish 4-5 bars
-Burgers 6-7 bars
-Steak 7-8 bars
WARNING!
Charcoal or similar combustible fuels must be not be used with this appliance.

Product Specications
5
SilKEN®Grill
Built-in Models
- Model B70070 (120V)
- Model B70071 (240V)
WIDTH DEPTH HEIGHT
21” 12” 5”
(9 1/2” with lid)
533.4mm 304.8mm 127mm
(241.3mm with lid)
PRODUCT DIMENSIONS
WIDTH DEPTH RADIUS
19 3/4” 11 5/8” 1/4”
501.6mm 295.2mm 6.4mm
CUTOUT DIMENSIONS
VOLTAGE AMPS OUTPUT IN WATTS
120V AC 11 1300
240V AC 6 1300
BURNER DATA
WIDTH DEPTH HEIGHT
21” 12” 5 1/2”
(10” with lid)
533.4mm 304.8mm 139.7mm
(254mm with lid)
PRODUCT DIMENSIONS
Portable Models
- Model B70072 (120V)
- Model B70073 (240V) VOLTAGE AMPS OUTPUT IN WATTS
120V AC 11 1300
240V AC 6 1300
BURNER DATA
12"
21"
4"
8 ½"
11 ⅝"
19 ¾"
21"
4 ½"
16 ⅛"
24"
12"
12 ½"
10"
4 ½"

Before Using the Grill
Remove the cooking
grate and drip tray
from the grill. Wash the
grate with warm soapy
water using a non-abrasive
cloth. USE ONLY HIGH
TEMP PLASTIC UTENSILS
WHEN GRILLING. Visit
our web site to purchase a
set of high quality stainless
steel/high temp plastic grill
utensils, www.cookwithkenyon.com.
Make sure the drip tray is inserted all the
way into the bottom of grill and electric
element brackets are resting on the element
support bracket.
Cover the bottom of the drip tray with a
liquid. Water
is ne. PLEASE
DO NOT USE
A FLAMMABLE
LIQUID! Doing so
would ruin your
cookout. Using
apple juice if you
are grilling pork
adds a nice avor
to the meat. A can
of lime soda is
wonderful if you are grilling sh. Try any kind of
liquid that you enjoy drinking. Just remember
always add liquid to the drip trays prior to
grilling.
To keep your grill smoke free, always clean
the grilling surfaces after each
use. Simply wash with warm soapy
water using a non-abrasive cloth or
place in your dishwasher. Empty the
drip tray and wipe with a damp paper
towel. The drip tray can be used multiple times
before needing to be replaced.
Place your cooking grate or optional
griddle (part #B96000) onto the element
with drip tray installed. Use the griddle for foods
such as eggs, pancakes or my favorite - stuffed
french toast!
Preheat grill for 5 to 9 minutes on high (8
bars illuminated). Adjust heat setting for
type of food.
• Steak and hamburgers 8 bars
• Chicken, pork and sh 6 bars
• Vegetables 5 bars
Close the lid and cook. Enjoy the best
grilled food you have ever tasted!
Clean up. This is easy to do as you will
soon learn. After the grill has cooled to
the touch, take a few pieces of paper towel and
place on the grilling surface. Pour about one
ounce of water on the towel and then using your
high temperature nylon tongs, swab the paper
toweling back and forth to loosen up the residue
from your grilling. Throw the paper towel away
and wipe the grates off with a dry paper towel.
Once the grate has cooled sufciently,
remove the grate and place in your
dishwasher for a thorough cleaning.
With the grate removed, lift up the electric
element and remove the drip tray. Empty
the contents of the drip tray in an appropriate
place, please don’t pour it on your neighbors
lawn. Wipe the tray out with a dry paper towel
and reuse the tray. The tray can last for many
uses.
After you have used your grill many times,
you may want to wash the lid. It can be
placed in your dishwasher and run on the pots
& pans cycle. This will restore your grill to its
original pristine look.
To clean the grill, rst be sure the cooking
surface has cooled enough to handle. Then
remove the grate, lift up the electric element until
it locks in the up position, then the drip tray.
1
2
3
4
5
6
7
8
9
10
11
12
6

Before Using the Grill
Wipe the stainless steel
surfaces with a damp cloth
to remove any residue from
previous grilling sessions.
Your Kenyon grill came with
a sample bottle of stainless
steel cleaner. Use this cleaner
once a month to keep your grill
looking like new.
The touch control area is ceramic glass
which is sealed from the effects of rain,
snow and ice. To clean the glass, use a glass
cleaner and soft towel. If stains appear, use a
ceramic glass cleaner which can be found in
your local grocery store.
13
14
15
7
Stuffed French Toast
16 slices Thin Sliced Bread
1 lb. Cream Cheese (softened)
½ cup Peach Preserves (or your favorite)
4 T. Butter
French Toast Batter:
5 Large eggs thoroughly beaten
1 cup Milk
1 T. Cinnamon, ground
½ t. Allspice, ground
½ t. Coriander, ground
2 oz. Water (Dark Rum, Optional)
In a large bowl place the eggs and beat with a wire whisk. Add the milk and beat again until
incorporated. In a separate smaller bowl pour water or Rum (if you prefer) and add dry ingredients, mix
thoroughly. Once the dry ingredients have been mixed, add to the egg and milk mixture and beat again
until mixed. By doing this you avoid the clumps that come with making batter.
Method of Preparation:
This will require the use of your griddle. Preheat your ‘All Seasons Grill’ on medium high heat (6 bars)
for approximately ten minutes.
Once the cream cheese has softened mix with the peach preserves. Divide equally onto eight slices
of bread and spread evenly. Place the remaining eight slices on top to make a sandwich. When your
griddle has been preheated, add two tablespoons of butter and move around to coat the griddle.
Reserve the rest of the butter for the remaining pieces of French Toast. Take the sandwich and dip into
the mixture and ip it over to coat both sides of your bread.
Quickly do this to three more “sandwiches”. You will now have four pieces of stuffed French Toast on
your griddle.
Be careful not to burn. Flip the sandwiches over and continue cooking until both sides are browned
nicely.
At this point you either serve with some nicely warmed maple syrup and butter, or you can keep warm
in a low oven until you nish the remaining pieces of French Toast.

8
Operation
DO NOT USE WATER ON GREASE FIRES
Smother re or ame or use dry chemical or
foam-type extinguisher.
USE ONLY DRY POT HOLDERS
Moist or damp pot holders on hot surfaces
may result in burns from steam. Do not let pot
holder touch the grate or element of the grill.
Do not use a towel or other bulky cloth in place
of a pot holder.
DO NOT COOK ON BROKEN GRILL GRATE
OR GRIDDLE
If the grate should break, grease and oils
may come into direct contact with the electric
element and create a risk of electric shock or
re. Contact an authorized service center or
KENYON Customer Care immediately at
[phone].
CLEAN GRILL WITH CAUTION
If a wet sponge or cloth is used to wipe spills
on a hot cooking surface, be careful to avoid
steam burns. Some cleaners produce noxious
fumes if applied to a hot surface. Read the
cleaner label for details prior to using.
DO NOT TOUCH HEATING ELEMENT
OR GRATE
The heating element and grate will be hot for
some time after cooking. These components
should be allowed to cool and then be handled
with care and caution while cleaning, as they
may be hot enough to cause severe burns.
CLEAN GRILL AFTER EACH USE
This appliance is equipped with removable,
disposable drip trays. The drip trays MUST be
removed and cleaned after each and EVERY
use. Do not allow grease to accumulate
between cooking. The drip trays and bafe
tray MUST be used when cooking on the
grill. Excessive grease may spill over into the
interior of the grill, voiding your warranty and
posing a re hazard.
NEVER LEAVE GRILL UNATTENDED AT
HIGH HEAT SETTINGS
High heat setting may cause heavy smoking
and ignite grease.
DO NOT CLEAN UNIT WITH PRESSURIZED
WATER
Never clean the grill with any form of
pressurized water or other types of cleaners.
Doing so will void the warranty and may pose
a serious risk of electric shock. Always clean
the grill with a cloth and a stainless steel or
glass surface cleaner.
STORAGE
Suitable shelter must be provided to prevent
direct exposure to rain.
TO PREVENT SMOKE
To prevent the contents of the drip trays from
smoking, place 1 cup of water (or enough to
cover the bottom of the pan) in the drip trays
before cooking.
DO NOT USE POTS OR OTHER
BAKEWARE ON THE GRILL
KEEP THESE INSTRUCTIONS WITH THE GRILL
FOR FUTURE REFERENCE

9
Operation
Touch Control Calibration
Upon application of electrical power to the grill,
the controller will run a self-calibration process.
The controller will then sound an audible
conrmation tone and the display will briey
illuminate. The grill is now ready to be used.
Power On Indicator
This display indicates whether the grill is ON or
OFF.
Power Level Display
Digital display indicates heat output of grill. The
indicator lamps follow the sweep of the screened
graphic. There are eight possible heat levels.
(+) Power Sensor
Touching this sensor will increase the heat
output of the grill in increments of one.
(-) Power Sensor
Touching this sensor will decrease the heat
output of the grill in increments of one.
Power Level Graphic
Depicts the level of heat output by the element.
The line sweeps from thin to thick, indicating low
to high power.
Master Power Sensor
This is the main power control for the grill.
Touching this with the grill OFF will activate the
controller and turn the grill ON. Touching this
sensor with the grill ON will shut the grill OFF.
Turning On the Grill
Place and hold a nger over the circular area
marked ON/OFF (Master Power Sensor) on
the control panel for 2 seconds. An audible
beep will be heard again and the Power On
Indicator will illuminate.
POWER LEVEL
DISPLAY
MASTER
POWER SENSOR
POWER LEVEL
GRAPHIC
POWER ON
INDICATOR
(-) POWER
SENSOR
(+) POWER
SENSOR
Your Kenyon Grill has 8 different heat settings,
1 through 8, selected using the (-) and (+)
sensors. The heat setting is displayed as shown
on page 10.
Touching the + rst will incrementally set the
heat level from settings 1 thru 8 with a beep
corresponding number of lights illuminated.
Heat Settings
POWER ON
INDICATOR
MASTER
POWER SENSOR

10
Operation
Turning Off the Grill
To turn off the grill, simply touch and hold the
Master Power Sensor for two seconds. The
controller will de-energize and shut off the
heating element.
IN AN EMERGENCY THE 120V GRILL CAN BE
TURNED OFF BY PRESSING THE “TEST”
BUTTON ON THE GFCI. REFER PAGE 11.
Automatic Shut-Off
The electronic control of your KENYON grill
has been programmed with safety in mind and
features an automatic shut-off. The grill is
programmed to shut down after predetermined
time after being energized (reference the preheat
and automatic shut-off table). The control will
also shut off if it reaches a preset temperature
limit. If this occurs, allow the grill to cool down
for 20-30 minutes.
Preheat and Automatic
Shut-Off Time
The grill will preheat at full power for the
specied time and heat settings listed in the
table below. In the number 8 setting there is no
preheat as the grill is at full power all ready. This
preheat function brings the grate/griddle to the
desired grilling temperature quicker thus allowing
you to begin grilling quicker.
SETTING
PREHEAT
TIME (min)
AUTOMATIC
SHUT-OFF (min)
1 1 90
2 3 90
3 5 90
4 5 60
5 7 60
6 7 60
7 7 60
8 8 60
Temperature Guide
The following is meant to be a guideline.
Factors such as wind, and outside temperatures,
food temperature when placed on grill can affect
cooking times. The grill is designed and
engineered for optimal cooking performance
with the lid down or closed.
SETTING FOOD TYPES
1Fried eggs on griddle
2Pancakes - French toast on griddle
3Vegetables
4Vegetables - Fish
5Fish - Chicken
6Chicken - Hamburgers
7Hamburgers - Steaks
8Steaks
The heating element cycles at different time
intervals to vary the heat level. As the setting
is increased, the heating element will remain
on for a longer period, increasing the cooking
temperature of the grill.
Heat Boost
Touching the - rst will activate the heat boost
mode and will set heat level to the highest
setting. The setting will start at 8 and
incrementally decrease to heat level 1.
To change the heat level
Place a nger on + or - graphic of desired
element to change heat level incrementally up
or down.
POWER LEVEL
DISPLAY (HEAT
SETTING 8
SELECTED)

11
Operation
Power Cord
Ground Fault Circuit Interrupter (GFCI)
The GFCI is a safety device designed to protect
the user from any electrical shock hazard.
Indicator Light
The indicator light will stay illuminated when
electrical power is applied and indicates that the
GFCI is working properly.
Test/Emergency Off Button
Pressing this button will test the GFCI. The
indicator light will go out and electrical power will
not be supplied to the grill. The GFCI should be
tested monthly.
Reset Button
Pressing this button will reset the GFCI to
its normal function. The indicator lamp will
illuminate and electrical power will be supplied to
the grill. If the indicator lamp does not illuminate,
the GFCI has detected a malfunction. Unplug
the GFCI from the receptacle and do not use the
grill.
Grounded 3-Prong Plug
CAUTION - To ensure continued protection
against risk of electric shock, the GFCI must be
plugged into a properly grounded
receptacle.
DO NOT USE AN EXTENSION CORD
RESET
BUTTON
GROUNDED 3-PRONG PLUG
INDICATOR
LIGHT
TEST
BUTTON
IMPORTANT!
240V MODELS
GROUND FAULT CIRCUIT
The supply voltage circuit (240V) should
be equipped with a ground fault circuit
interrupter. Check local codes
for compliance.
THIS PERTAINS TO 120V
MODELS ONLY
Ground Fault
Circuit Interrupter
GFCI

12
Grill Parts
Heating Element
The heating element is designed to pivot as
shown to remove/replace the bafe tray and drip
tray. It will stay in the up position. To put down
apply slight downward pressure.
Bafe Tray
The bafe tray supports the drip tray, heating
element and grate and must always be used
when operating the grill.
Drip Tray
The disposable drip tray collects all the fat and
juices created during the cooking process. The
drip tray must be emptied after each use. When
replacing the drip tray, position the drip tray so
that it is completely contained inside the bafe
tray and ensure that the side of the rim of the
drip tray does not protrude outside of the bafe
tray. Refer to image below.
To prevent the contents of the drip tray
from smoking, place 1 cup of water (or
enough to cover the bottom of the pan)
in the drip tray before cooking. The
replacement for the disposable drip tray is
Kenyon part #B96001.
Grate
The grate must be cleaned after every use.
The grate has a nonstick coating for ease of
cleaning. Wash the grate after each use in warm
soapy water.
Operation
GRATE
BAFFLE
TRAY
DRIP TRAY
HEATING
ELEMENT
DRIP TRAY MUST BE CONTAINED
INSIDE OF BAFFLE TRAY AS SHOWN

13
Operation
Lid
The SilKEN®Grill incorporates a high
temperature silicone lid. Through the use of
silicone, the lid can collapse accordion-style to
a height of two inches. The insulation quality
of high temperature silicone allows for very fast
and even heat while the lid helps to prevent
accidental burns.
There are two handles on the lid, one on the
top and one on the front edge with vents on
three sides. Use the front handle when the lid is
hinged. The top handle is used to collapse and
expand the lid into the desired height.
QUICK RELEASE
PIN
Lid Removal
The lid is removable for cleaning. To remove the
lid, slide the quick release pin out of the hinge.
With the quick release pin removed, grasp the
lid, lifting on the left side to clear the hinge and
slide it to the left until clear of the hinge pin on
the right. Once the lid is removed, it can be
washed in warm, soapy water.
WARNING!
Grill must cool completely before
collapsing the silicone lid.

14
Installation
Unpacking the Grill
1Carefully unpack the grill from its
shipping container. If possible, retain the
original shipping carton and protective
packaging in the event the unit ever has to
be returned for service.
Verify and identify the package contents.
The following items should be included in the
carton. If any components are missing or
damaged, call KENYON immediately.
2This product must be installed in accordance
with national, state and local electric codes.
The following table provides the correct voltage,
amperage and frequency that must be supplied
to the grill.
Check the Electrical Supply
Requirements
KENYON
PART NUMBER
MAX CONNECTED
LOAD
POWER SUPPLY
INPUT
PLUG
TYPE
B70070
B70072
1300 Watts 120V AC 11A 60Hz 3 Prong Grounded
Cord with GFCI
B70071
B70073
1300 Watts 240V AC 6A 60Hz 3 Wire Cord
No Plug
PARTS INCLUDED
SilKEN®
Grill
(1) Stainless
steel cleaner
3 feet of drain hose
with brass tting
(4) Mounting
screws
WARNING!
If the electrical supply does not meet the product specications, consult with a
licensed electrician before proceeding with installation!
Do not remove the GFCI device from the supplied power cord under any circumstances.
ELECTRICAL SUPPLY REQUIREMENTS

15
Installation
Countertop Preparation
3Your SilKEN®Grill is supplied with a factory
installed polished stainless steel ange that
accepts four oval head wood screws for
mounting. The trim ange of the grill is designed
to hold the unit rmly in place in the countertop.
If desired, you may seal the edge of the
countertop beneath the trim ange. Use a soft
bedding compound that will prevent damage
if later removal for service is necessary. We
recommend a nonadhesive type of sealant,
such as plumber’s putty, maximum
compressed thickness of 1/16”.. Should you
need to remove the unit from the countertop
after installation simply take a piece of shing
line and run back and forth under the trim ange
to break the caulk bond.
D- 30 inches minimum clearance between the
top of the cooking surface and the bottom of an
unprotected wood or metal cabinet or 24 inch
minimum clearance when the bottom of the
wood or metal cabinet is protected by not less
than 1/4-inch-thick ame retardant millboard
covered with not less than No. 28 MSG
sheet steel, 0.015-inch-think stainless steel,
0.024-inch-thick aluminum or 0.020-inch-thick-
copper.
E- 1-inch minimum from backsplash of
countertop to edge of grill(refer to page 5 for
overall grill dimensions). 1-1/2 inches minimum
from front of counter to grill.
It is important to plan ahead for installation of
the grill, keeping the following dimensions in
mind.
A- 13 inches maximum depth of overhead
cabinets
B- 36 inches is minimum height of
countertop above oor
C - The minimum at countertop surface that the
grill will rest upon must be equal to or greater
than the overall grill dimensions (refer to page 5
for overall grill dimensions).
FOR INSTALLATIONS IN CANADA:
“Do Not Install Closer Than 1/2 Inch
(12mm) From Any Adjacent Surface”, and
NE PAS INSTALLER A’MDINS DE 12MM
DETOUTE SURFACE ADJACENTE.
WARNING!
Allow a 2 inch (2”) minimum clearance
between the bottom of the grill and
combustible surface located below, ie:
the upper edge of a drawer installed
below the grill (see diagram on
page 16). Failure to provide proper
clearances and ventilation may result
in a re hazard.
PLEASE READ THIS SECTION PRIOR TO
MAKING CUTOUT FOR THE GRILL.

16
Installation
WARNING!
To eliminate the risk of burns by
reaching over heated surface units,
cabinet storage space located above
surface units should be avoided. If
cabinet storage is to be provided, the
risk can be reduced by installing a
range hood that projects horizontally
a minimum of 5” beyond the bottom of
the cabinets.
Before making the countertop cutout, check for
clearance. Check to see if the grill will clear
the front and side walls of the base cabinet. It
is also important to provide enough ventilation.
Adequate ventilation of the space below the
countertop must be provided to ensure proper
operation of the grill. Heat transferred from
the grill bottom pan during operation will over-
heat an improperly ventilated area.
2 INCH (51mm) MINIMUM
When making countertop cutout, radius the
corner to help prevent cracking of the countertop
material. A 1/4 inch radius is typical, but follow
the countertop manufacturer’s instructions
regarding the minimum radius and any
reinforcements required to prevent damage to
the countertop over time.
If your countertop is made of solid surface
material you will need to check with the
manufacturer for specic recommendations for
cooktop & grill installation instructions. Most
solid surface countertop manufacturers require
additional corner supports to prevent damage
to the countertop. Use the included screws to
secure the grill to the countertop. Be careful not
to over-tighten the screws. Use an acrylic caulk
to seal the ange to the countertop.
Drain fitting for 5/8” ID hose
If your countertop is made of stone you will
need to use an acrylic latex to mount the grill
in place. Put a large bead of caulk around the
cutout opening and place the grill in place. Wipe
away any excess caulk, use water to remove
the excess caulk. Allow the caulk to dry for a
minimum of 24 hours without any moisture being
allowed to come in contact with the caulk. Do
not use the screws that came with your grill. The
caulk will hold the grill securely. Do not use a
caulk which contains silicone as this will stain the
stone.
Drain Connection
4For your convenience, the grill is equipped
with a 1/2” NPT brass pipe tting and 90º
brass elbow which you can attach the 5/8” ID
exible hose that came with your grill. The
portable version of the grill comes with a brass
pipe plug installed in the drain tting. If you are
using your grill as a portable unit, save the hose
and 90º brass tting for possible installation in
the future.

Outlet Location
5Be sure the electrical outlet intended for the
grill is in an easily accessible location. This
allows the user to easily plug and unplug
the grill. This is necessary to ensure safe
cleaning and storage of the grill.
17
6Remove the protective plastic lm from the
lid, trim ange and glass panel. Clean the grill
before you use it for the rst time. A thorough
cleaning with a stainless steel or glass cleaner
will remove any traces of plastic lm adhesives
and manufacturing oils.
Wash the nonstick coated grates in warm
soapy water before using the grill.
Final Preparations Prior
to Use
Installation
Suggested
Outlet
Locations

18
Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in
materials and workmanship subject to the conditions and limitations below.
Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced
by the Company.
This warranty covers certain products built by the Company and is subject to the following conditions and
limitations:
1. The Company’s liability shall be limited to repair or replacement (choice of remedy at Company’s
option) of goods or parts as may be defective in materials or workmanship. This liability is limited to
three years from the date of original installation or 42 months from invoice date, whichever comes rst;
this warranty covers parts and labor at approved Company rates, $75 per hour.
2. Determination of suitability of the product for the use contemplated by the buyer is the sole
responsibility of the Buyer and the Company shall have no responsibility in connection with such
suitability.
3. The Company shall not be liable for any damage resulting from:
• failures due to use of the product in applications for which they are not intended;
• failures due to corrosion, wear and tear, abuse or improper installation or maintenance.
4. The Company shall be responsible for ground shipping charges to the location of the appliance (home)
within the Continental United States and Canada. Any duties, express or special shipping charges are
at the expense of the Buyer.
5. All labor allowed by the Company under this warranty must be performed by an Authorized Kenyon
International Service Center, unless otherwise specied in writing by the Company.
6. This warranty does not cover the cost of repair or replacement due to damage of any glass surface,
cooking grates or cooking griddles.
THERE ARE NO OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE OR ANY
OTHER KIND, EXPRESSED OR IMPLIED AND NONE SHALL BE IMPLIED BY LAW. The duration of any
such warranties that are nevertheless implied by law for the benet of a consumer, shall be limited to a period
of three years from original purchase by the user. Some countries do not allow limitations on how long an
implied warranty lasts, so this limitation may not apply to you.
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING
FROM THE BREACH OF THIS WARRANTY, WHETHER EXPRESSED, IMPLIED OR STATUTORY. Some
countries or states do not allow exclusion or limitation of consequential or incidental damages so this limitation
or exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL
RIGHTS THAT MAY VARY FROM COUNTRY TO COUNTRY AND STATE TO STATE.
Kenyon International, Inc.
P.O. Box 925 • 8 Heritage Park Road • Clinton, CT 06413 USA
Phone [phone] FAX: [phone]
Warranty
