Kerkyra Hanse 400e User manual

YACHT MANUAL

Kerkyra Hanse 400e Yacht Manual
INDEX
Overview / Background
Specifications
Sailplan
Deckplan
Floorplan
Storage and Equipment Locations
Plumbing, Bilge, Water Tank and Through-Hulls
Personal Floatation Devices
Tethers, Harnesses, Strobes & Jacklines
Flares & Fire Extinguishers
Man-Overboard Equipment
VHF Distress Calling
Battery Management
12 volt Switch Panel
AC Shore Power
Engine & Fuel
Instruments
Navigation Station
Autopilot
VHF Radios
Sails & Winches
Anchors & Windlass
Docking
First Aid Kit
Miscellaneous Equipment
Tender
Outboard Motor
Tools & Spares
Entertainment & Pastimes
Appendix A – Chart Inventory

Kerkyra Hanse 400e Yacht Manual
Overview / Background
Design:
The Hanse 400e is designed by Judel / Vrolijk & Co., a company founded in 1978 by
Fietje Judel and Rolf E. Vrolijk. Known for a series of successful international racing
designs including the past two America’s Cup wins, JVC also has a strong track
record for production racing and cruising designs for Hanse, Dehler, Najad, Grand
Soleil and Baltic Yachts.
Key Specifications:
• Length Overall: 39’3”
• Draft: 6’6”
• Mast Height above waterline: approx. 65’
• Hull Speed: 8.0 knots
Builder:
Hanse Yachts GmbH & Co. KG was founded in 1993 and located in Griefswald
Germany, a heartland for boatbuilding since 1361. Hanse has accumulated a long list
of awards for innovation, performance and cruising in the production boat community.
Hanse’s current line of yachts ranges from a 31.5 to a 63-foot
model.
The 400e:
The 400e incorporates Hanse’s new crossover concept for
easy-sailing, high-performing, comfortable cruising yachts.
The 400e was launched in the fall of 2005 and won the 2006
“European Yacht of the Year Award” in the 10-12m class,
overtaking competing nominees from Dufour, Grand-Soleil,
Hallberg-Rassy and X-Yachts. This competition is judged by
journalists from 10 leading European yacht magazines and
awarded at the Dusseldorf boat show each January. Kerkyra
is hull #57 of the 400e model.
Construction:
Epoxy GRP hull construction offers many advantages
over polyester laminates, which result in a lighter, stiffer,
more durable boat. Compared to polyester, epoxy resin
has a higher tensile strength, superior adhesive
properties, lower shrinkage and more resistance to water
penetration and osmosis.
Name:
Kerkyra is named after a mythical Greek water nymph,
daughter of the river-god Aesopos. The sea-god
Poseidon fell in love with Kerkyra and took her away to
the island of Corfu, which is still known as Kerkyra to the
Greeks.
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual
Specifications
LOA: 11.96m / 39’ 3”
LWL: 10.6m / 35’ 5”
Hull Length: 11.99m / 39’ 4”
Beam: 4.04m / 13’ 3”
Draft: 1.98m / 6’ 6”
Displacement: Approx 7.9 t / 17,417 lb.
Ballast: Approx 2915 kg / 6,426 lb.
Engine: 29,5 kW / 40 HP
3 cylinder naturally aspirated diesel
Prop Walk: Stern to starboard in reverse
Fresh Water: Approx. 300 litres / 80 gal
Fuel Tank: Approx. 140 litres / 37 gal
Holding Tank: Approx. 30 litres / 8 gal (x2)
Mast length above WL: Approx. 19.52 m / 64’
Total Sail Area: Approx. 105.60 sq. m / 1137 sq. ft.
Main Sail: Approx. 52.2 sq. m / 562 sq. ft.
Self Tacking Jib: Approx. 36.20 sq. m / 390 sq. ft.
140% Genoa: Approx. 53.40 sq. m / 575 sq. ft.
Cruising Spinnaker: Approx. 120.00 sq. m / 1292 sq. ft.
Rig: I 16.50 m / 54’2”
J 4.62 m / 15’2”
P 16.20 m / 53’2”
E 5.57 m / 18’3”
Design: Judel / Vrolijk & Co.
Interior: Hanse Yachts GmbH & Co. KG
CE Certificate: A (Ocean)
SA/D Ratio (jib): 22.5 “racer”
SA/D Ratio (genoa): 25.7 “high performance racer”
D/L Ratio: 195 “light displacement racer”
AVS: 121 degrees
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual

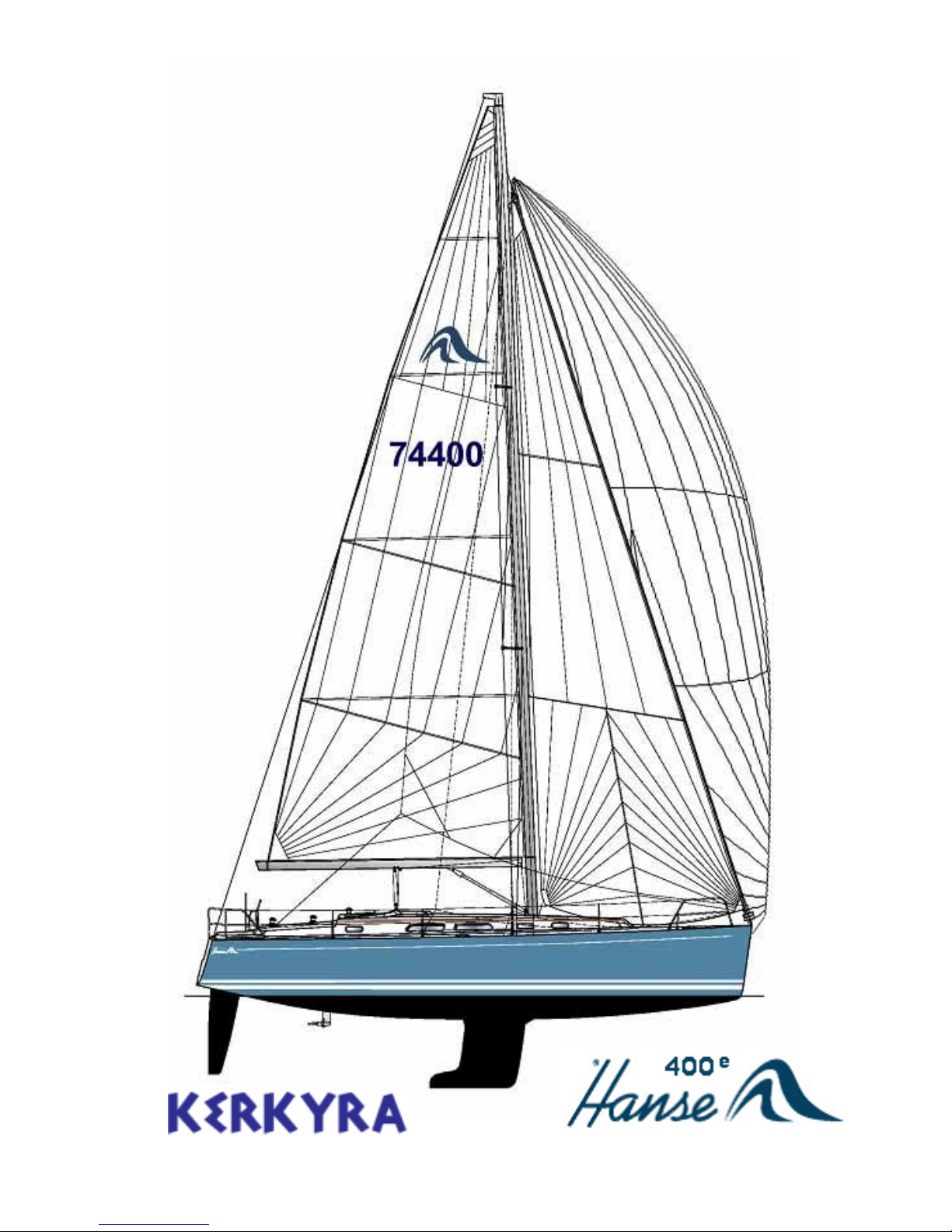

Sailplan
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual

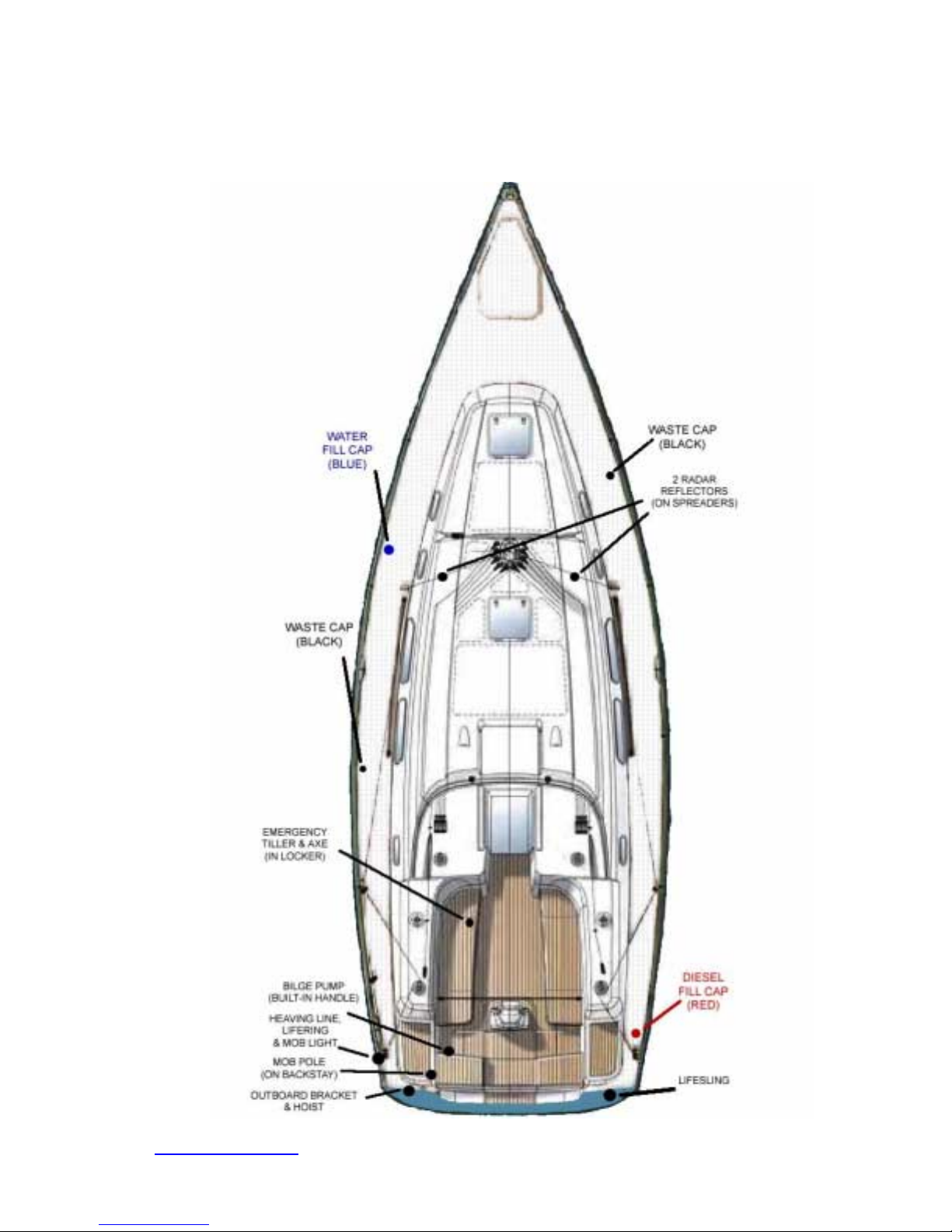

Deckplan
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual
Floorplan
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual

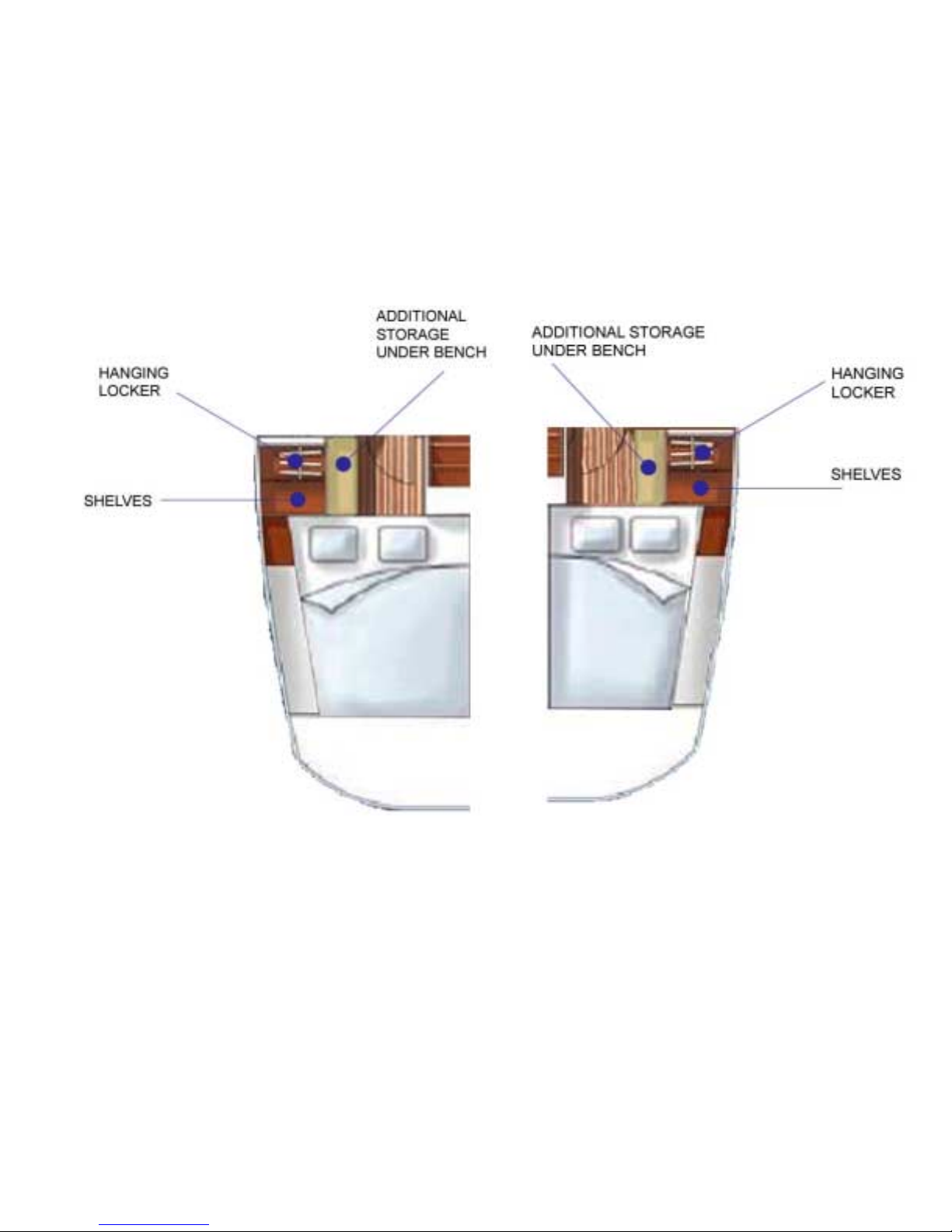

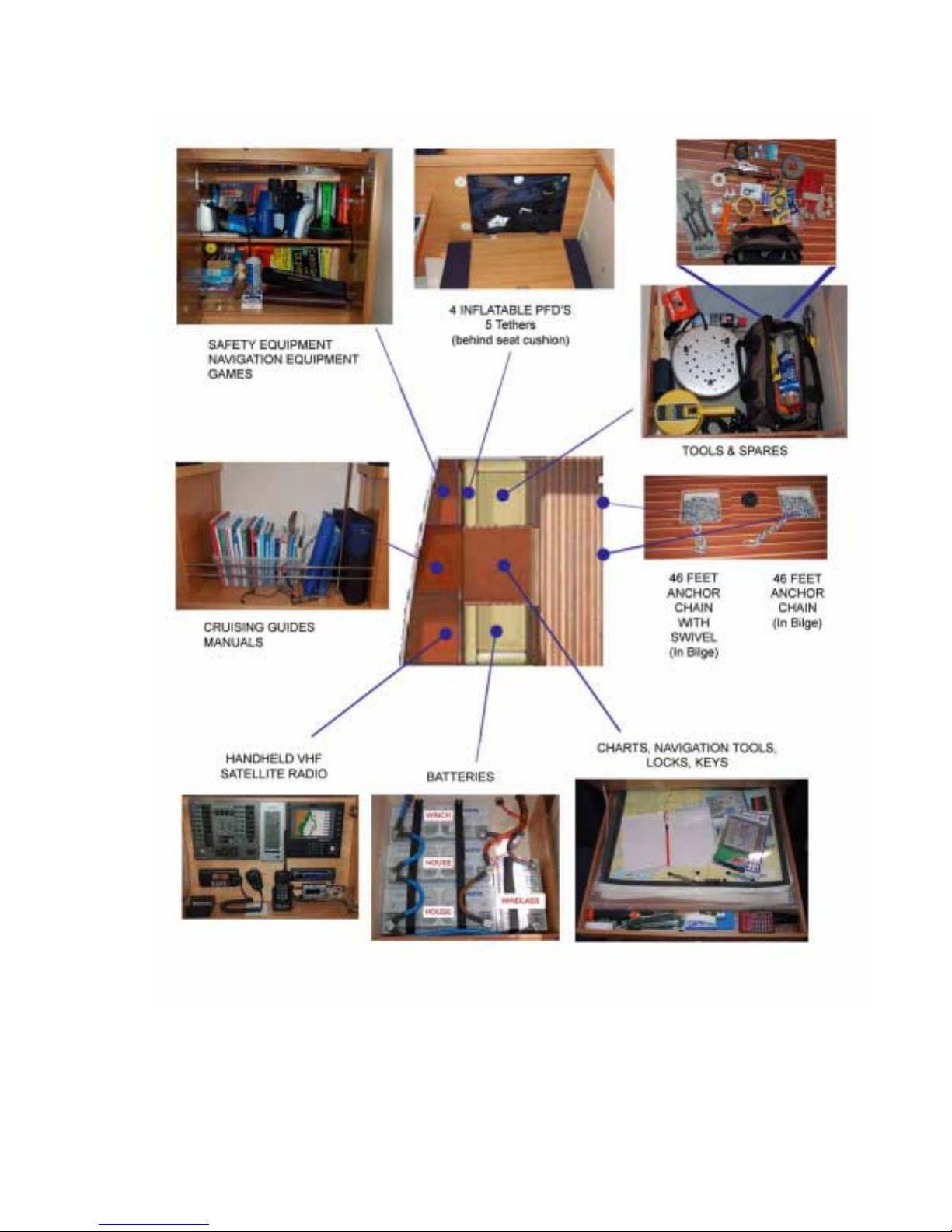

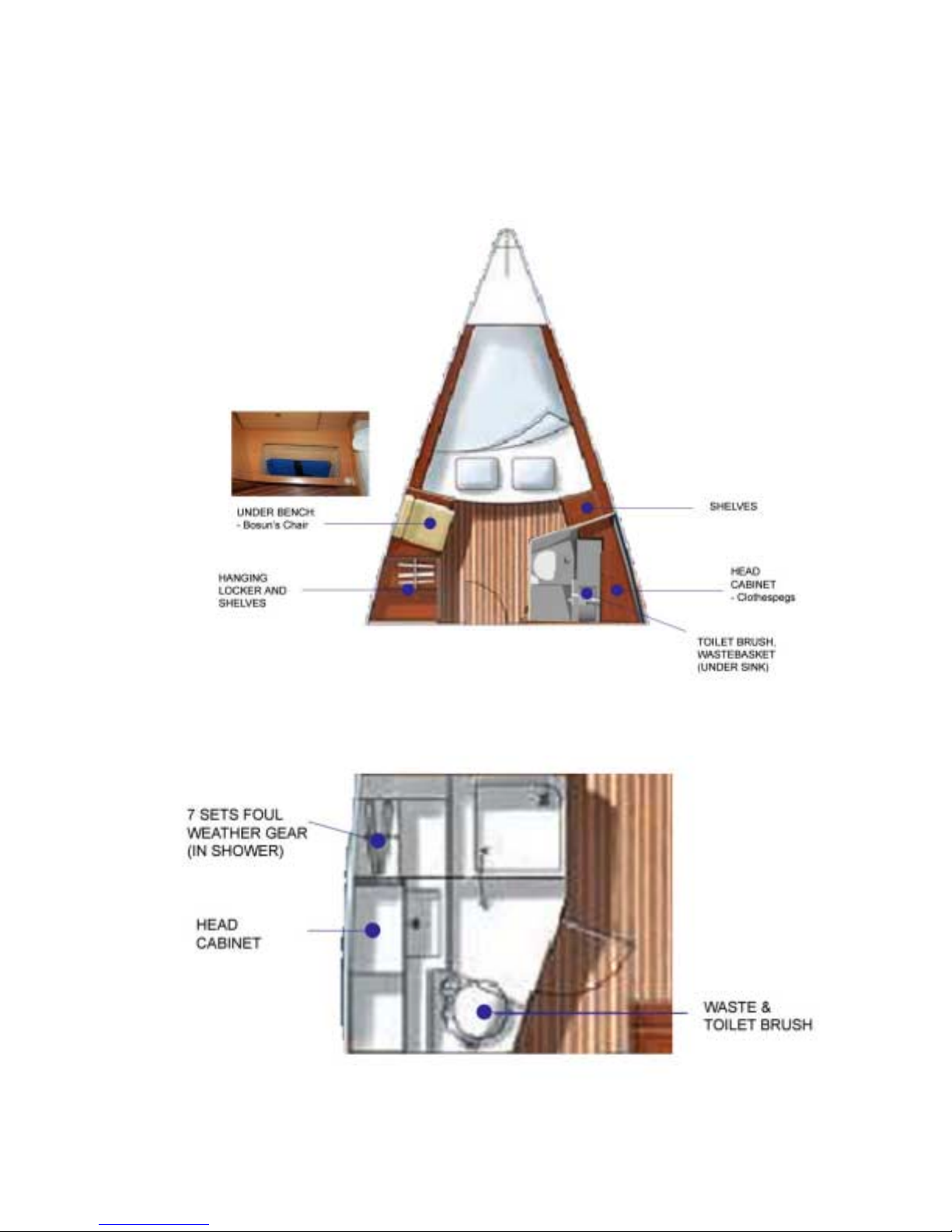

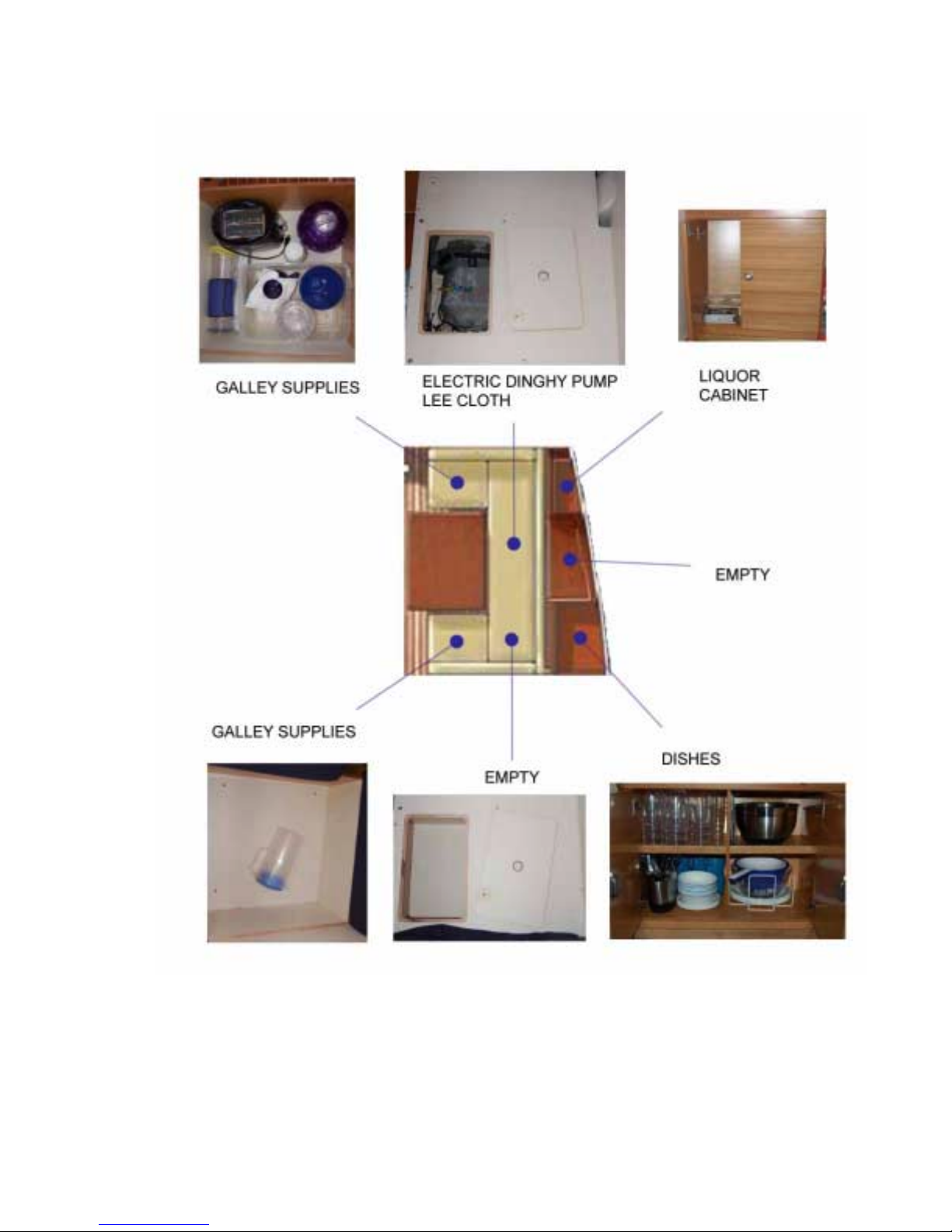

Storage and Equipment Locations

Kerkyra Hanse 400e Yacht Manual

Kerkyra Hanse 400e Yacht Manual

Kerkyra Hanse 400e Yacht Manual

Kerkyra Hanse 400e Yacht Manual

Kerkyra Hanse 400e Yacht Manual
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual
Plumbing, Bilge, Water Tanks and Through-Hulls
• Holding tanks are gravity-drained
• Shower sump pump switch located next to shower bench
• Always put plug in sink drain when operating shower drain
• Water tank level indicated on left hand gauge when either battery gauge
switch is activated
• Fuel tank level is indicated on left hand gauge when fuel gauge switch is
activated
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual
Personal Floatation Devices
Kerkyra is equipped with:
• 4 inflatable adult PFD’s with
harnesses*
o Whistles and waterproof
lights attached
The inflatable PFD can be
inflated by 3 possible
methods:
o Automatic inflation when
the PFD is immersed in
water
o Manual inflation by
pulling the inflation cord
o Oral inflation using the
oral inflation tube
* NOTE: A charge of about
$30 will apply for a
replacement recharge kit if the PFD has been inflated
• 3 standard adult PFD’s
o One Small/Medium
o Two Large/Extra-Large
o Whistles attached
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual
Tethers, Harnesses, Strobes & Jacklines
Kerkyra is equipped with:
• 2 lifejacket strobe lights
o Visible to 2 miles
o Waterproof
o 2 lithium AA batteries in each.
o In cabinet by chart table
• 6 waterproof lights
o 4 attached inside inflatable vests
o 2 spares in cabinet
o 2 lithium AA batteries in each.
• 7 safety tethers
• 4 harnesses (built into the inflatable PFD’s)
• Jacklines__________________________________________
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual
Flares and Fire Extinguishers
Kerkyra is equipped with:
• 1 Flare Kit
• In cabinet next to nav station
• 6 flares included with kit
• 6 additional flares in cabinet
• 2 Class 10BC fire extinguishers in cabin
• One located under companionway
step
• One located on bulkhead behind mast
compression post
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual
Man Overboard Pole, Lifesling, Heaving Line & Boarding Ladder
! MOB Pole is mounted on the backstay and connected to strobe and drogue
! Life ring is mounted on the rail
! Lifesling is mounted on the rail
! Heaving line is mounted on the rail
! Boarding ladder is stored in cockpit locker. Push buttons on either side of the
left ladder rail to disengage ladder from mounting socket.
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual

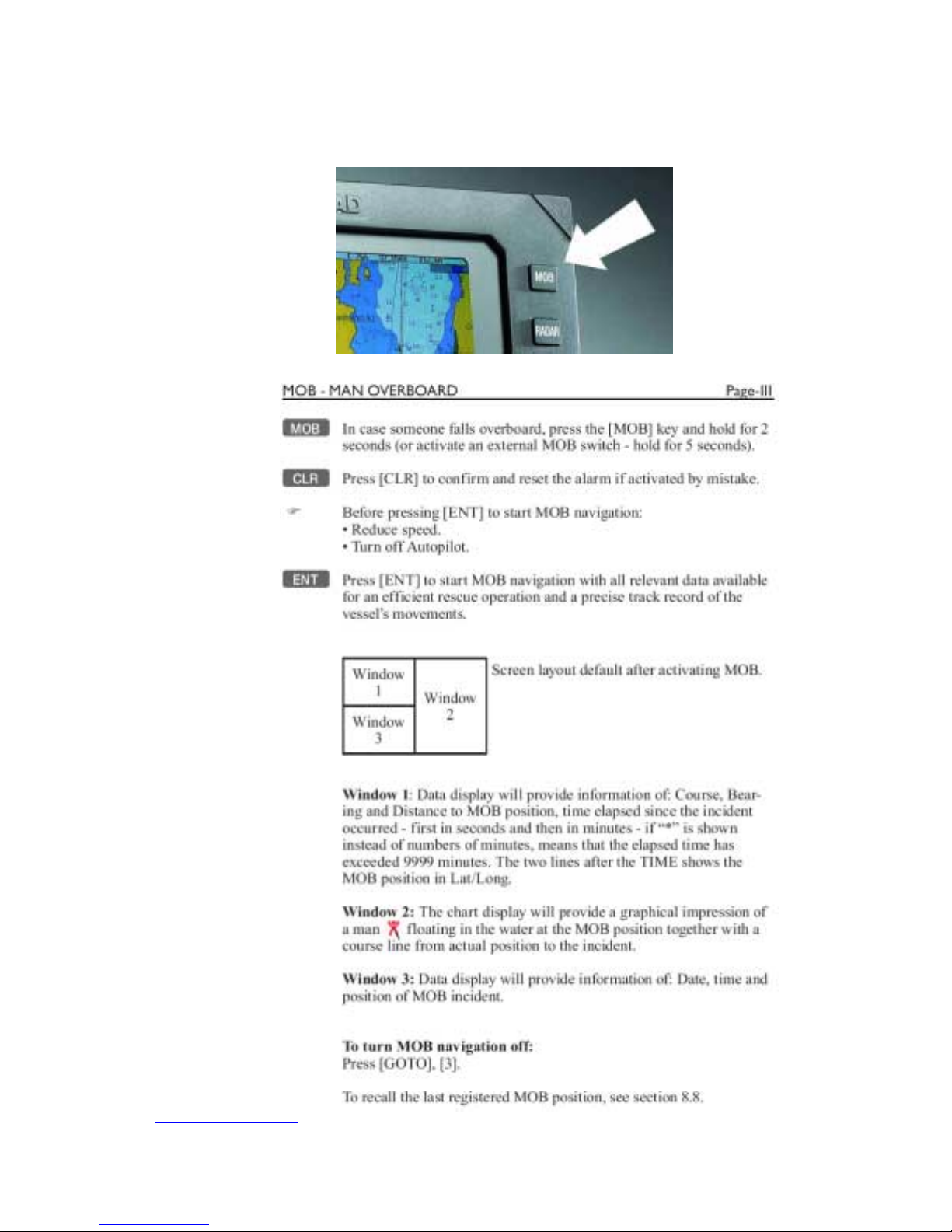

Chartplotter Man Overboard (MOB) button
BACK TO INDEX

Kerkyra Hanse 400e Yacht Manual

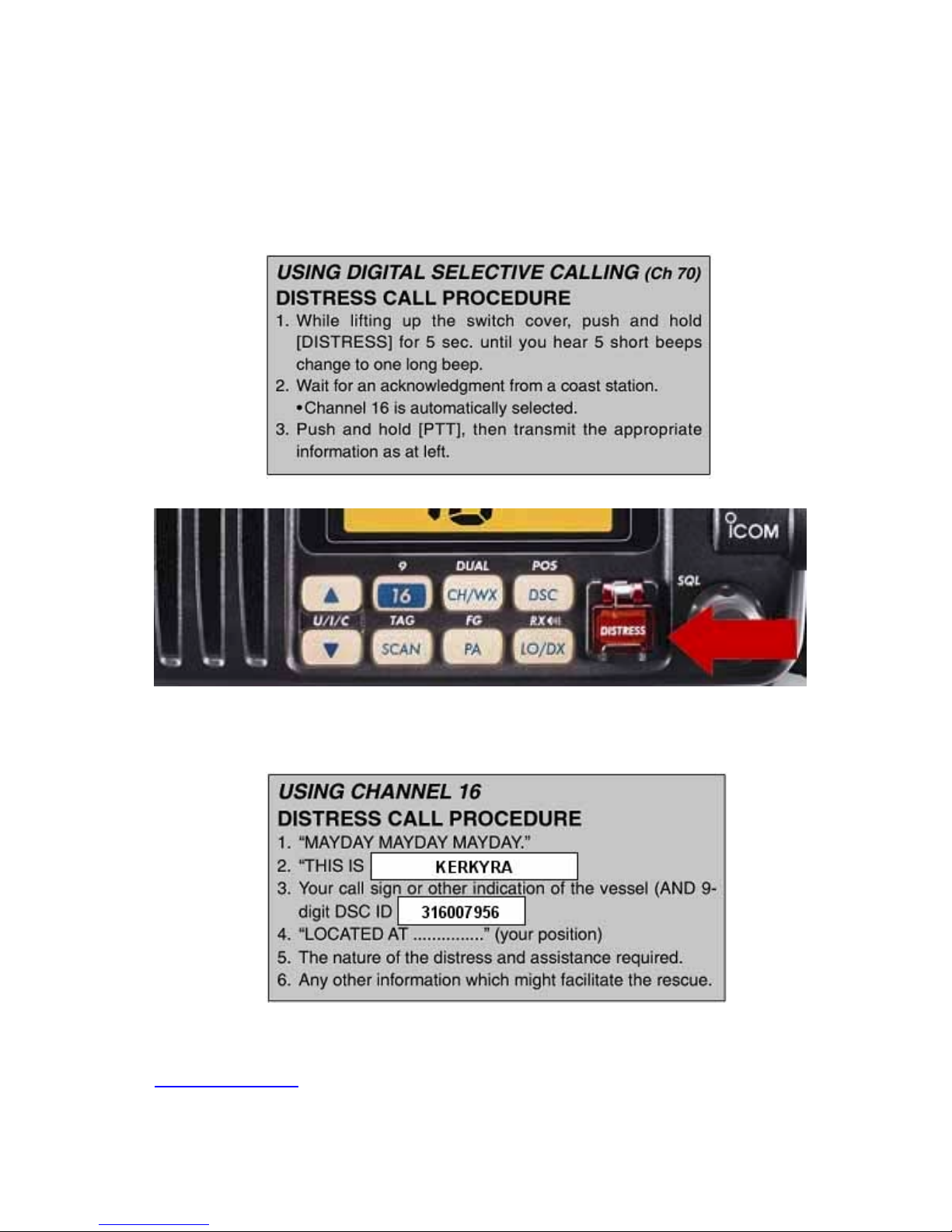

VHF Distress Calling
The installed VHF radio is capable of sending a DSC distress call on channel 70,
which will include the station ID and GPS location. A section of the VHF radio
manual outlining the DSC distress calling procedure is reproduced below*.
[SeeBelow]
* Note that it is a criminal offence to send false distress signals.
A DSC distress signal should be followed with a voice distress signal on channel
16 so that any other vessels in the area that are not equipped with DSC will also
receive the call. A section of the VHF radio manual outlining the standard distress
call procedure is reproduced below*
* Note that it is a criminal offence to send false distress signals.
BACK TO INDEX
