Information about the operating instructions
This manual enables the safe and efficient handling of the machine.
The instructions are part of the machine and must be kept accessible to the
personnel in the immediate vicinity of the machine at all times.
The personnel must read and understand this manual carefully before beginning
any work. The basic prerequisite for safe working is compliance with all specified
safety instructions and instructions in this manual.
Risk of accident and property damage if used improperly!
As self-propelled implements and attachments can cause serious accidents or
hazards if used improperly, a briefing of competent and authorized persons is
mandatory when commissioning the Kersten implement for the first time. The best
way to familiarize yourself with its basic functions and its handling is to choose a
free and level terrain for your first trip.
• For further information and difficulties of any kind please contact the
dealer, importer or directly to the manufacturer.
• Pass on all safety instructions to other users!
In addition, the local health and safety regulations and general safety
regulations apply to the area of application of the machine.
Co-Applicable Documents
In addition to these instructions, the following documents and the safety
instructions listed there must be observed:
• Operating instructions of the component parts
• Operating instructions of the carrier vehicle
Customer service of the manufacturer
For technical information please contact the customer service of the machine
manufacturer:
Manufacturer address
Kersten Arealmaschinen GmbH
Empeler Straße 95
46459 Rees
Deutschland
service phone
+ 49 2851 9234-10
Fax + 49 2851 9234-44
E-Mail [e-mail]
Internet http://www.kersten-maschinen.de
For inquiries please have the following information ready:
• Machine / device type
• Order number of the machine
• In case of problems: exact description or exact error messages

ENG
2017-10-23
4/ 53
1 Pictures 6
2 Preface 13
2.1 Overview.......................................................................................................................................... 13
3 Security 14
3.1 Symbols in this manual..................................................................................................................... 14
3.2 Pictograms........................................................................................................................................ 16
3.3 Intended use ..................................................................................................................................... 18
3.4 Occupational and Hazardous Areas................................................................................................. 19
3.5 Safety during the work process ........................................................................................................ 20
3.6 Safety devices .................................................................................................................................. 22
3.7 Safety labeling .................................................................................................................................. 22
3.8 Residual hazards .............................................................................................................................. 23
3.9 Environmental Protection ................................................................................................................. 26
3.10 Safety instructions for maintenance / troubleshooting ............................................................... 27
3.11 Safety instructions for disassembly and disposal ...................................................................... 30
4 Function Description 31
4.1 Hydraulics ......................................................................................................................................... 31
5 Transport, packaging and storage 32
5.1 Safety................................................................................................................................................ 32
5.2 Transport inspection ......................................................................................................................... 32
5.3 Packaging ......................................................................................................................................... 33
5.4 Transport of the machine.................................................................................................................. 33
6 Assembly / installation, installation, commissioning 35
6.1 Safety................................................................................................................................................ 35
6.2 Mechanical coupling / uncoupling..................................................................................................... 35
6.3 Connecting / disconnecting hydraulic hoses .................................................................................... 35
7 Operation 37
7.1 Adjusting the brush plate .................................................................................................................. 37
7.2 Swinging the weed brush ................................................................................................................. 37
7.3 Adjustment of the brush plate........................................................................................................... 38
7.4 Adjusting the splash guard ............................................................................................................... 38
7.5 Adjusting the brush plate .................................................................................................................. 39
8 Maintenance 41
8.1 Safety................................................................................................................................................ 41
8.2 Parts ................................................................................................................................................. 41
8.3 Maintenance ..................................................................................................................................... 42
8.3.1 Daily test..................................................................................................................................... 42
8.3.2 Maintenance after 50 operating hours / longer downtime.......................................................... 43
8.3.3 Changing brush elements .......................................................................................................... 44
8.3.4 Changing the brush plate ........................................................................................................... 45
8.3.5 Check safety features................................................................................................................. 46
8.4 Measures after maintenance ............................................................................................................ 46

ENG
2017-10-23
5/ 53
9 Disassembly, Disposal 47
9.1 Safety ............................................................................................................................................... 47
9.2 Disassembly ..................................................................................................................................... 47
9.3 Disposal............................................................................................................................................ 47
10 Technical Date 49
10.1 Declaration of Conformity................................................................................................................. 50

2017-10-23
6/ 53
Weedbrush UB 6080 MH
Pictures
ENG
1 Pictures
Fig. 1: Overall overview
Fig. 2: Gedanger zone UB6080M

2017-10-23
7/ 53
Weedbrush UB 6080 MH
Pictures
ENG
Fig. 3: Work area of the brush plate
Fig. 5: Adjustment of the splash guard

2017-10-23
8/ 53
Weedbrush UB 6080 MH
Pictures
ENG
Fig. 6: Swap the brushes
Fig. 7: Exchange complete brush plate

2017-10-23
9/ 53
Weedbrush UB 6080 MH
Pictures
ENG

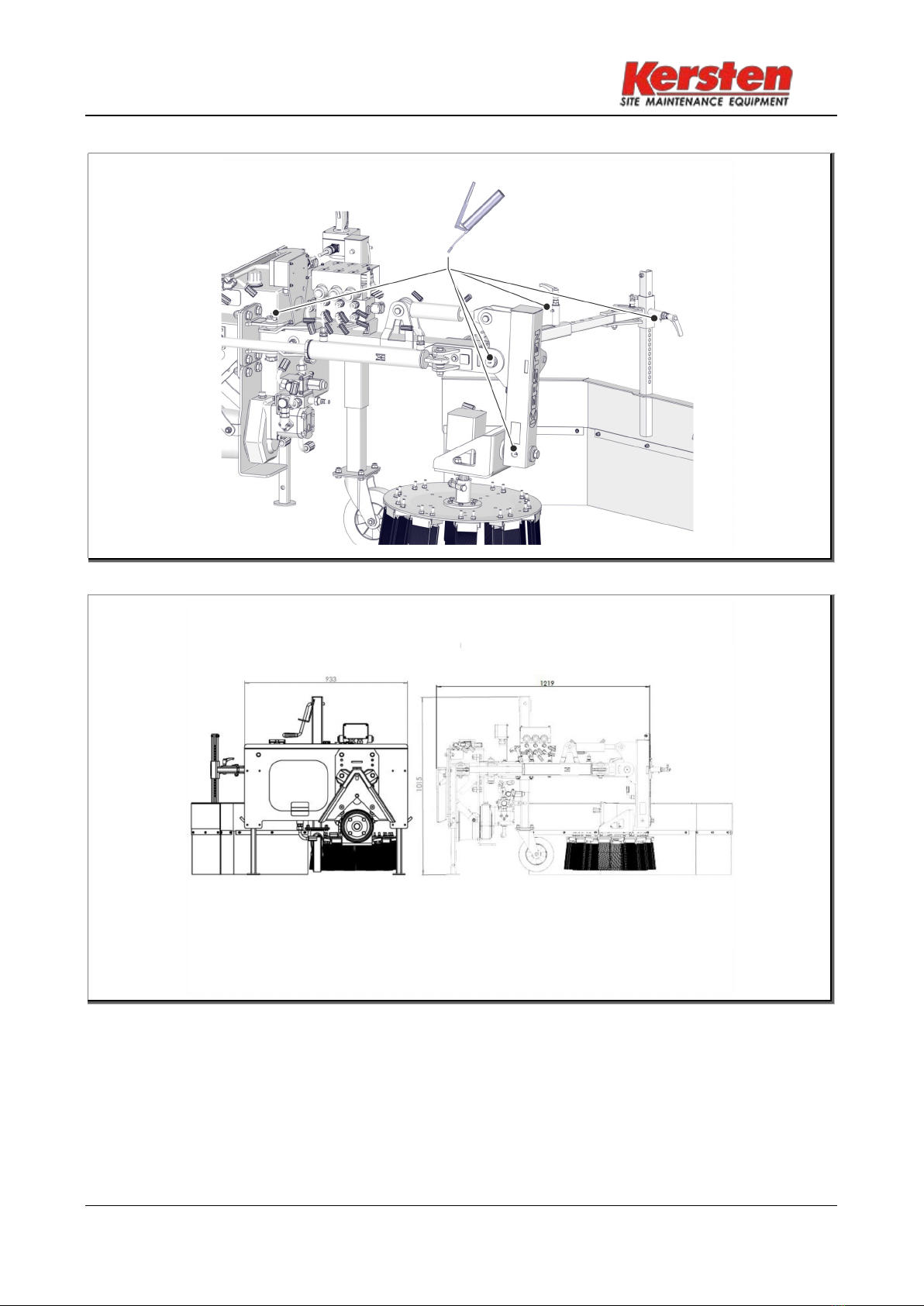

Fig. 8: Lubrication
Fig. 9: Layout UB6080M

2017-10-23
10 / 53
Weedbrush UB 6080 MH
Pictures
ENG

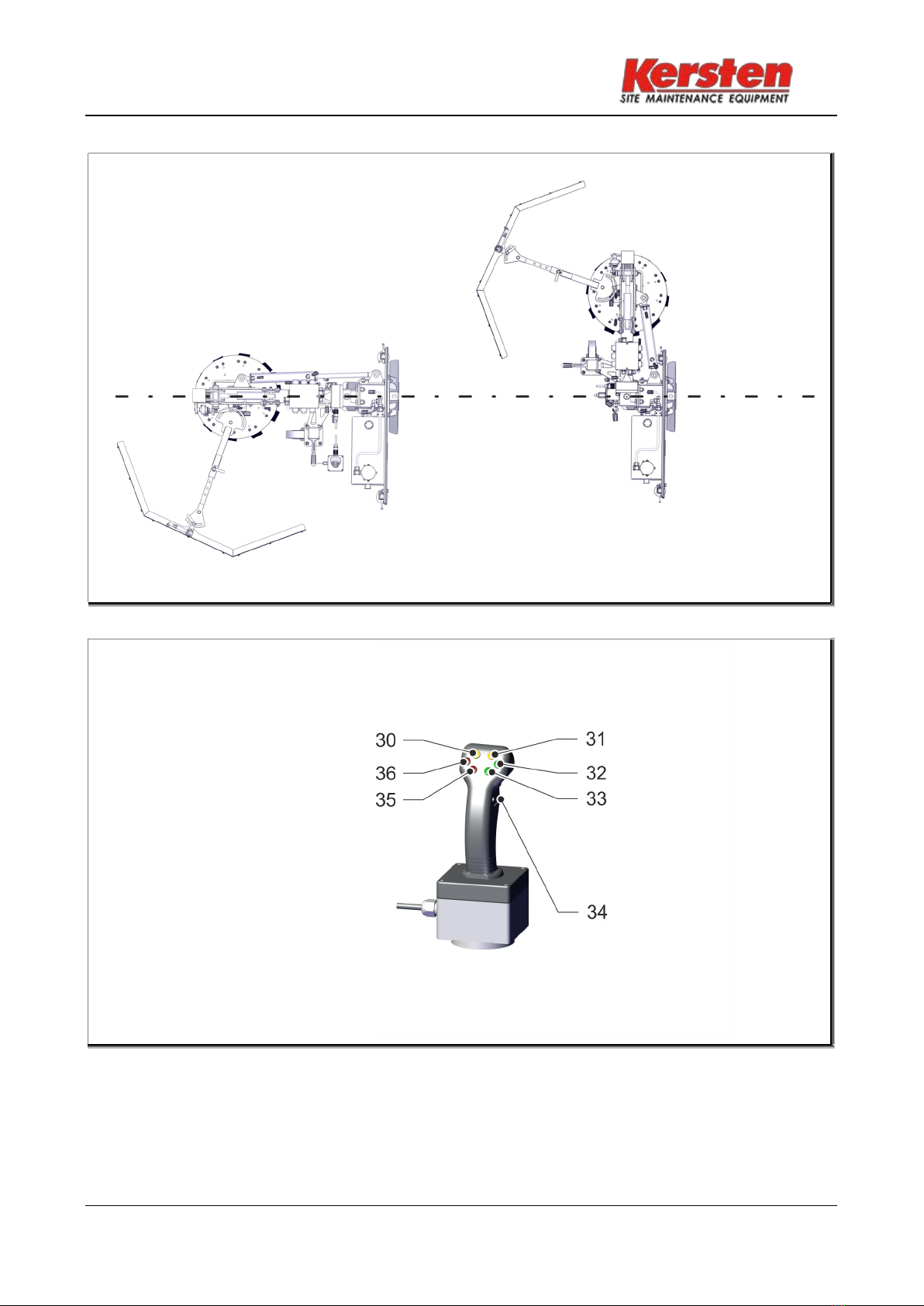

Fig.10: Deflection to the right
Fig. 11: Joystick

2017-10-23
11 / 53
Weedbrush UB 6080 MH
Pictures
ENG

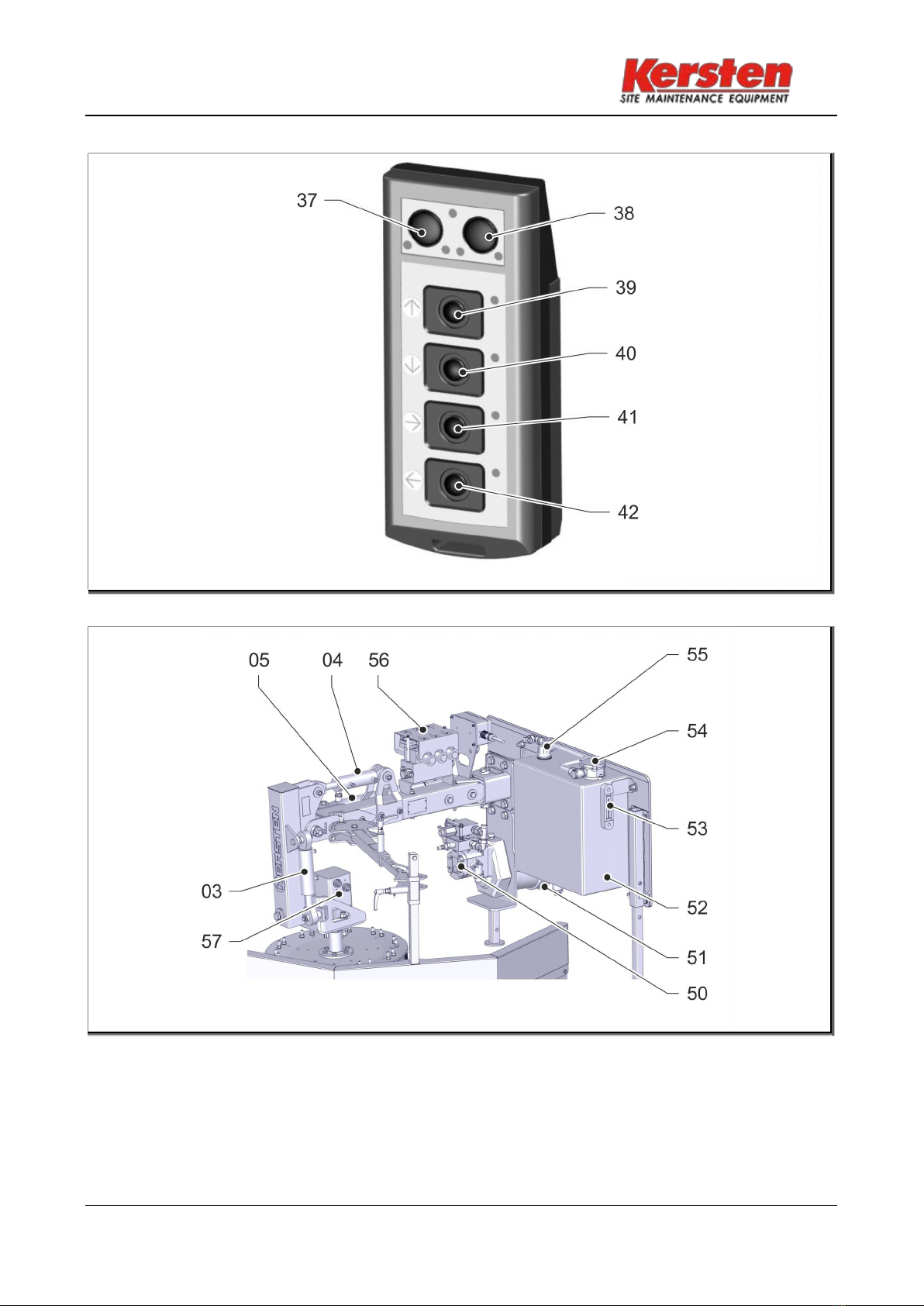

Fig.12: Remote Control
Fig. 13: Hydraulic view 1

2017-10-23
12 / 53
Weedbrush UB 6080 MH
Pictures
ENG

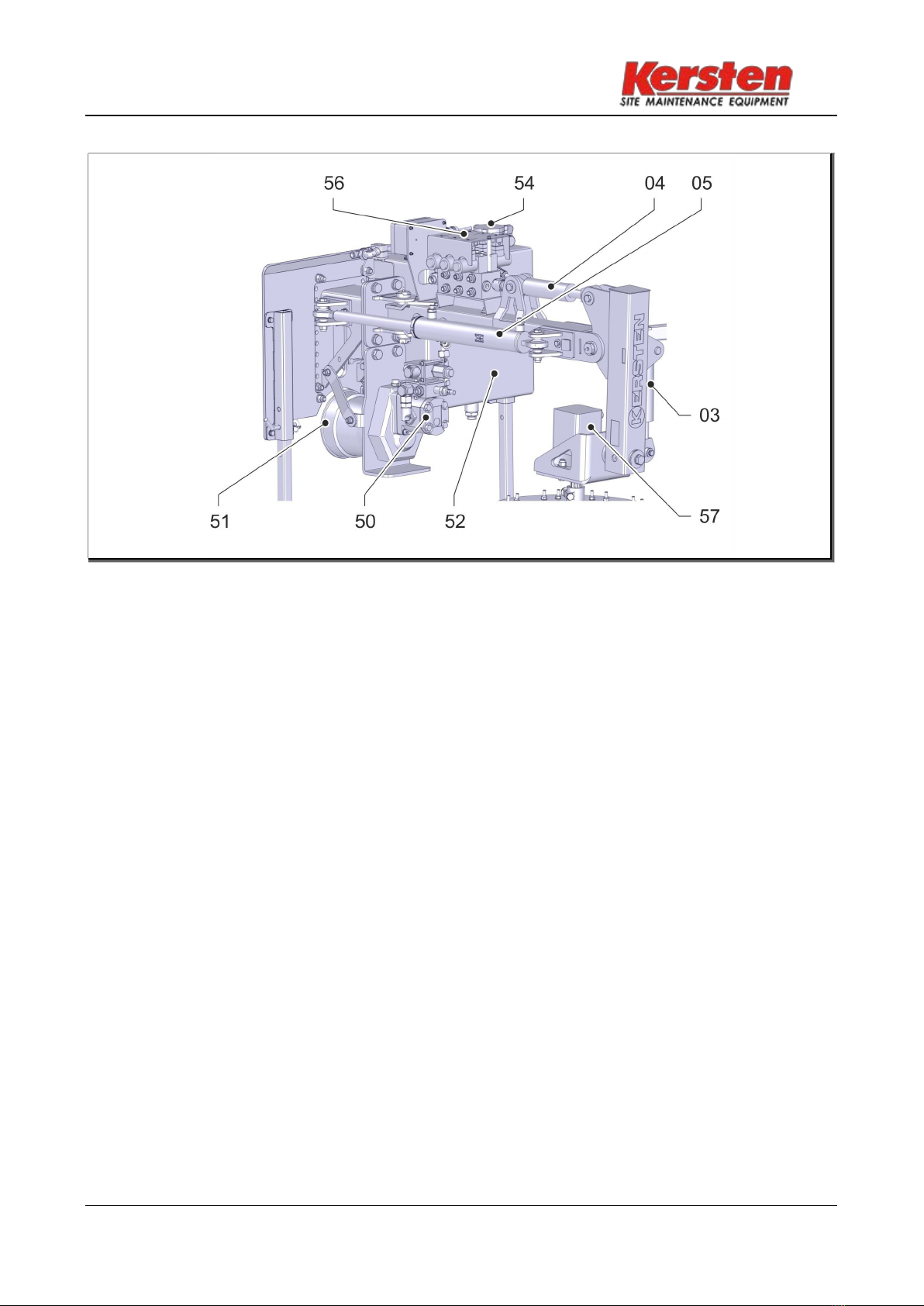

Fig. 14: Hydraulic view 2

2017-10-23
13 / 53
Weedbrush UB 6080 MH
Foreword
ENG
2 Foreword
Dear Customer,
Thank you for choosing a quality product from Kersten.
This product has been manufactured according to the latest manufacturing
techniques and comprehensive quality assurance measures, because only when
you are satisfied with your device, our goal is reached.
Before using this machine or implement for the first time, please read this manual
thoroughly and thoroughly.
If you do not understand any of the information contained in this safety data sheet
or the product-specific installation or operating instructions, please contact your
sales representative or the machine manufacturer directly.
Keep this manual handy. If necessary, you can read important information and
instructions.
Have fun with your Kersten - device wishes you
Dipl.- Ing. (FH) Robert Bosch
Managing Director
2.1 Overview
Figure 1 (See Chapter 1 Figures on page 6) shows the basic structure of the weed
brush.
The weed brush consists of a steel construction with an angle gear on which the
brush plate (02) is mounted. The brush plate (02) can be equipped with a tufting
(07) or with wire rope pegs. By the rotation of the brush plate (02) and the
propulsion of the carrier vehicle, the weeds are removed from the joints and
collected by a side mounted splash guard frame with signal band (01) and rubber
spray tabs (08).

2017-10-23
14 / 53
Weedbrush UB 6080 MH
Security
ENG
3 Security
3.1 Symbols in this manual
Safety instructions
The following occupational safety symbols stand for all safety instructions that indicate
a danger to the life and limb of persons and are marked by a pictogram, a signal word
and a signal color.
The documentation explains the hazardous situations at the relevant locations.
Follow these instructions!
Observe the locally valid safety and accident prevention regulations!
DANGER
Type and source of danger
Dieses Symbol warnt vor einer unmittelbaren Gefahr für das Leben und die
This symbol warns of an imminent danger to the life and health of persons.
Failure to comply with these instructions will result in serious health effects,
including life-threatening injuries and extensive damage to property.
• Action that must be avoided so that the danger does not occur
WARNING
Type and source of danger
This symbol warns of an imminent danger to the life and health of persons, as
well as environmental and material damage.
Failure to comply with these instructions can result in serious health effects
including life-threatening injuries or extensive environ
mental and material damage.
• Action that must be avoided so that the danger does not occur
ATTENTION
Type and source of danger
This symbol warns of an imminent danger to the health of persons as well as
environmental and material damage.
Failure to comply with these instructions may result in moderate or slight
health effects or even injury or result in extensive environmental and material
damage.
• Action that must be avoided so that the danger does not occur

2017-10-23
15 / 53
Weedbrush UB 6080 MH
Security
ENG
NOTE
Type and source of machine or plant damage
This symbol warns of a dangerous situation and serves to identify a note on
the handling of the machine or system.
Failure to follow these instructions may result in extensive property damage
• Action that must be avoided so that the machine or system damage
does not occur
Tips and recommendations
This symbol highlights useful tips and recommendations, as well as information
for efficient and trouble-free operation.
Further markings
To highlight instructions, results, listings, references, and other elements, this
guide uses the following labels:
Identification Explanation
1., 2., 3. ...
Step-by-step instructions

Results of action steps
•
Listings without a specified order
[Taster]
Operating elements (eg buttons, switches), display
elements (eg signal lights)
"Display"
Screen elements (eg buttons, assignment of
function keys)

2017-10-23
16 / 53
Weedbrush UB 6080 MH
Security
ENG

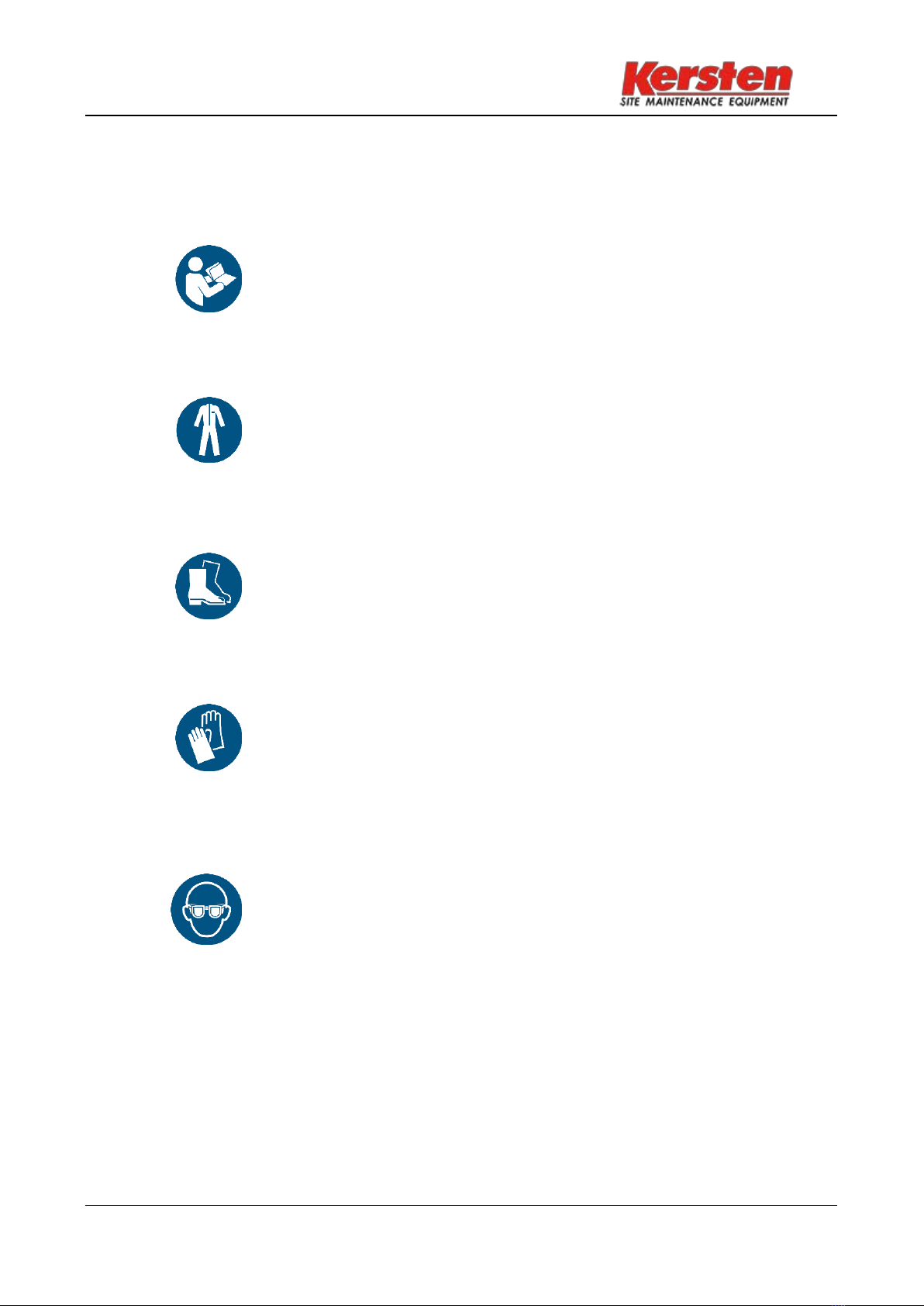

3.2 Pictograms
Follow instructions
Do not use the marked machine until the instructions have been read.
Wear protective clothing
This label indicates that protective clothing must be worn in the area
concerned.
Protective clothing is tight-fitting workwear with low tear resistance,
tight sleeves and no protruding parts.
Wear safety shoes
This sign indicates safety shoes must be worn in the area concerned.
Safety shoes protect the feet from bruising, falling parts and slipping on slippery
surfaces
Tragen wearing safety gloves
This label indicates that protective gloves must be worn in the area concerned.
Protective gloves are used to protect hands from friction, abrasions, punctures,
cuts or deeper injuries, as well as from contact with hot surfaces.
Wearing safety gloves
This label indicates that protective goggles must be worn in the area in
question.
The safety glasses are used to protect the eyes from flying parts and liquid
splashes.

2017-10-23
17 / 53
Weedbrush UB 6080 MH
Security
ENG

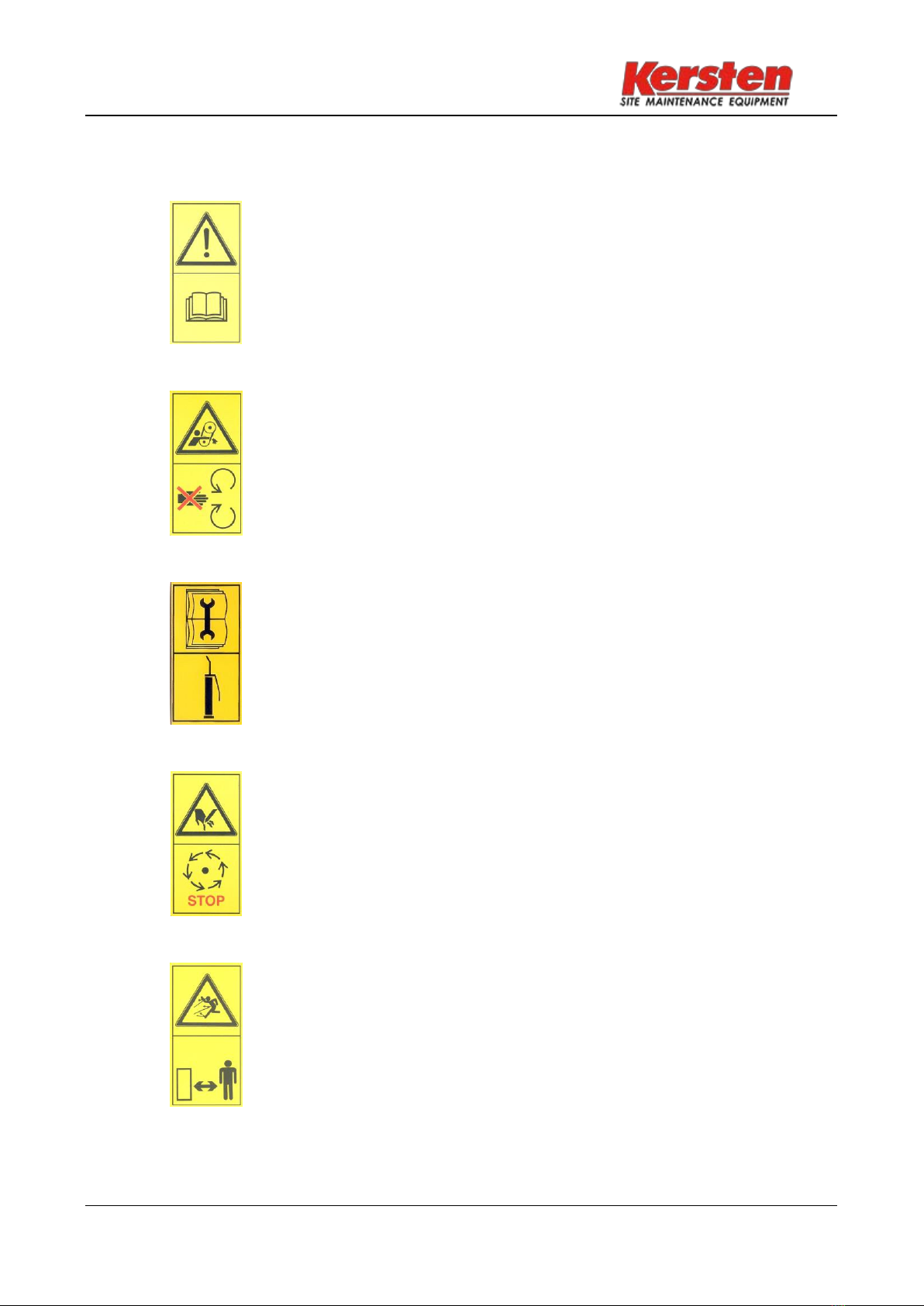

Operating instructions and safety instructions
Before commissioning read and observe the operating instructions and
safety instructions.
Never open or remove protective devices while the engine is running.
Follow the instructions in the technical manual. Smudge!
Touch machine parts only when they have come to a complete stop
Danger from passing parts while the engine is running.
Keep safety distance!

2017-10-23
18 / 53
Weedbrush UB 6080 MH
Security
ENG
3.3 Intended use
WARNING
Danger of injury / risk of environmental damage due to improper use of the
machine!
Incorrect use of the machine can result in injury, as well as the risk of
damage to the environment and property (on the machine or system)!
• The machine must only be used for the usual or common use in
plant care for weed removal on flat surfaces.
• The weed brush is designed to be used with a front lift carrier
machine.
• Any further use is considered improper use. The manufacturer is not liable
for damage resulting from this, the risk being solely borne by the operator.
• Proper use includes compliance with the operating, maintenance and
service conditions prescribed by the manufacturer.
• The attachment may only be used, maintained and repaired by
persons who are familiar with it and have been informed of the
dangers.
• The relevant accident prevention regulations as well as the other
generally recognized safety and occupational health rules must
be observed.
• Unauthorized modifications to the machine lead to the exclusion
of liability of the manufacturer for the resulting damage.

2017-10-23
19 / 53
Weedbrush UB 6080 MH
Security
ENG
3.4 Occupational and Hazardous Areas
The plan view of the machine shown in Figure 2 (See Chapter 1 Illustrations on
page 6) shows the work area, the safety area and the danger area.
The scope of delivery essentially consists of the shown and listed machine. It is
the weed brush UB6080M.
• RED Danger area
• YELLOW safety area (radius of 5 meters around the brush plate (02))
• GREEN Workspace
WARNING
Danger of injury / risk of environmental damage from working /
staying in the danger area!
Working / stopping in the danger zone poses a risk of injury, as well as the risk
of damage to the environment and property (on the machine or system)!
• The user is responsible towards third parties in the danger and safety
area of the machine!
• Staying in the danger and safety area of the machine is prohibited! Refer
all persons from the danger and security area. The security area has a
radius of 5 m around the brush plate.
• When approaching people to the danger and safety area, the machine
must be switched off.
• The operator must make sure that there are no persons or property
in the ejection area (safety area)
• Check both the danger area and the safety area before switching on
the implement and starting it up. Especially on children and animals
is important. Make sure you have enough sight!
• Park the implement in hard-to-see areas and make sure that no one
is in the area of danger and safety.
• Before starting work, remove foreign objects from the surface to be
worked. Pay attention to other foreign objects during work and eliminate
them in good time.
• When working in enclosed areas, the safety distance to the border must
be maintained so as not to damage the machine or brushes
• When working in the immediate vicinity of public roads and paths, these
should not be approached longitudinally, but preferably as far as
possible, thereby minimizing the risk of injury to third parties due to
flying objects.
• When working on public roads and squares or in the immediate vicinity,
warning and danger signs should be set up to attract the attention of third
parties.

2017-10-23
20 / 53
Weedbrush UB 6080 MH
Security
ENG
3.5 Safety during the work process
Before starting work
WARNING
Risk of injury / risk of environmental damage due to non-compliance with
the safety measures!
Non-compliance with the safety measures can result in injury, as well as the
risk of damage to the environment and property (on the machine or the carrier
vehicle)!
• Before starting work, you must familiarize yourself with all the
equipment and actuators and their function; it must be ensured that all
safety equipment is properly installed and in the protective position. It's
too late during the work assignment!
• Check the machine for operational safety before each use!
• Before each use, check that the drive shaft is firmly seated on the drive
stub on the carrier vehicle and on the implement.
• The hydraulic connections and hoses must be checked for leaks and
replaced if necessary.
• Never operate the machine with defective or missing protective devices.
