Keston K260 User guide

Fan Powered High Efficiency
Commercial Condensing Gas Boiler
Installation And Servicing Instructions
Keston 260
Keston 340
PI No : 87AU111 GB/IE
These instructions must be left either
with the user or next to the site gas
meter.
34 West Common Road
Hayes, Bromley, Kent BR2 7BX
Tel. [phone] Fax. [phone]
e-mail: [email protected] http: //www.keston.co.uk
WD53/0/1999 The Keston 260 & 340 Condensing Boilers
0087

CONTENTS
Section Description
1 GENERAL INSTRUCTION
1.1 Description
1.2 Boiler Schematic
1.3 Related Documents
1.4 Performance Data
2 BOILER LOCATION
2.1 Dimensions & Minimum Clearances
2.2 Service Connections
2.3 Position
2.4 Electrical
2.5 Gas Supply
2.6 Water Systems
2.7 Flue System
2.8 Air Supply
2.9 Compartment Installation
2.10 Condensate Drainage
2.11 Under Floor Heating/Weather Compensation
3 INSTALLATION OF THE BOILER
3.1 Wall Mounting Bracket
3.2 Mounting The Boiler
3.3 Floor Standing Frame - Optional
3.4 Assembly Practice
3.5 Installing Flue And Air Pipes
3.6 Condensate Drainage
3.7 Water System
3.8 Gas Supply
3.9 Electrical Supply
3.10 Exchanging A Boiler
4 COMMISSIONING OF THE BOILER
4.1 Initial Flushing
4.2 Gas Supply
4.3 Electrical Installation
4.4 Initial Firing
4.5 Hot Flushing
4.6 Checking The Gas Pressure
WD53/0/1999 The Keston 260 & 340 Condensing Boilers
Page : i

4.7 Combustion Fine Tuning
4.8 Handing Over To The User
5 FAULT FINDING
5.1 Electrical Control Sequence
5.2 Fault Finding Flow Chart
5.3 Continuity Checking
5.4 Module Functional Flow Wiring Diagram
5.5 Full Electrical Wiring Diagram
5.6 Full Illustrated Wiring Diagram
5.7 Exploded Assembly Diagrams
6 SERVICING
6.1 Pre Service Checks
6.2 Recommended Routine Service
7 REPLACEMENT OF PARTS
7.0 General
7.1 Precautions
7.2 Access
7.3 Replacement Procedure
7.4 Electrical Components
7.5 Gas Orifice
7.6 Spark Ignition/Flame Detection Electrode
7.7 Burner Head & Burner
7.8 Heat Exchanger
7.9 Condensate Trap
7.10 Pressure Gauge
7.11 Sight Glass
7.12 HT Ignition Lead
7.13 Air Orifice
8 SPARE PARTS LISTINGS
WD53/0/1999 The Keston 260 & 340 Condensing Boilers
Page : ii

1. GENERAL INSTRUCTION
1.1 DESCRIPTION
The Keston 260 and 340 Condensing Boilers are unique in their concept and design. They
comprise two boiler modules with individual gas valve, fans, burners and heat exchanger
assemblies. The two modules are fully independent in operation and are automatically
sequenced to provide optimum load matching. In addition, firing sequence is regularly
rotated to ensure even usage levels. While the application for which the boilers were
designed is the same as those which other boilers are used, the Keston boiler has the
added advantage of very high efficiency, and small diameter plastic flue which can be
extended to 20 metres horizontally or vertically. The Keston 260 and Keston 340 are
designed to be wall hung. However, floor standing installation can be accommodated by
using the optional floor standing frame.
The Keston module uses a high power combustion blower to deliver a pre-mix of gas and
air to a downward firing burner in a high efficiency, single pass heat exchanger. The flue
system is room sealed and fan powered. The ignition is direct spark and fully automatic.
The boiler housing is not waterproof and should be installed in a position where it will
always be dry. Consideration should also be given to the noise levels generated by the
combustion fan when in operation. Small air intake points are incorporated within the
appliance cabinet to ensure that the interior of the cabinet is maintained under a slight
negative pressure. This is a safety feature to reduce the possibility of products leakage
out of the cabinet into the installation space..
The boiler is suitable for connection to open vented or, preferably, sealed systems. The
system must be pumped central heating or pumped central heating with combined indirect
sanitary hot water. Gravity circuits must not be used.
Forming part of each boiler module is the heat exchanger which is made from a highly
corrosion resistant stainless steel, formed into tightly wound coil. The hot combustion
gases from the central down firing burner pass through this coil imparting heat into the
system water. Integral module shunt pumps within the appliance cabinet ensure each
module receives correct water flow when firing. The Keston boiler is not a high water
content boiler and does not contain the metal mass, or water volume, of a cast iron or
steel boiler. This boiler is of low mass and low water content and therefore responds
faster when there is a call for heat.
1.2 BOILER SCHEMATIC
Air is drawn into the boiler through a 100mm composite plastic pipe. Each module air flow
is proved by a differential pressure across the air control orifice. Gas is mixed with
combustion air at the inlet to the fan. The gas flow is regulated by an orifice located in the
housing downstream of the gas valve. The gas and air are thoroughly mixed in the blower
and fed into the burner located at the top end of the heat exchanger module. The gas and
air mixture is ignited by a direct spark ignition control system and burns with a blue flame
just off the surface of the burner. As the hot products of combustion pass downwards,
they are cooled by exchanging heat with the circulating water which enters the heat
exchanger coil at the bottom of the heat exchanger.
When the return water temperature is below 55
o
C, part of the water vapour in the
combustion products will condense inside the heat exchanger, thus increasing the boiler
efficiency further by releasing the latent heat of condensation. This condensate falls to the
bottom of the heat exchanger where it is separated from the flue gases and exits from the
boiler through the condensate drain. Any condensate formed in the flue runs back down
the flueway and is drained at the base of the flue connection to the heat exchanger or
drain points within the flue.
WD53/0/1999 Chapter 1 : General Instruction The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 1

Fig. 1.2 - Boiler Layout
The condensate is very slightly acidic with a pH level of around 5 (about the same acidity
as vinegar) and should be piped in a plastic pipe. It is not harmful to the waste disposal
system and may be disposed of as normal waste water.
The flue gases are piped in a 100mm composite plastic pipe to the outside. The
temperature of the flue gases are usually around 5
o
C above the temperature of the return
water. The flue pipe should be terminated outside the building from where they cannot
re-enter the building or any other adjacent building.
The heating level may be controlled by room thermostats, hot water calorifier thermostats,
programmer time clocks and energy management systems.
1.3 RELATED DOCUMENTS
The Keston Condensing Boiler must be installed in accordance with the current issue of
the Gas Safety (Installation and Use) Regulations (as amended after 1996), current IEE
Wiring Regulations, Building Regulations,Building Standards (Scotland) Consolidation,
and the Bye Laws of the local Water Undertaking.
In addition, due account must be taken to the following Codes Of Practice:
BS 6891 : Gas Supplies
BS 6644 : Installation of gas fired hot water boilers of rated input
between 60kW and 2MW
BS 6880 : Central Heating by LPHW
BS 7593 : Treatment of Water in Hot Water Central Heating
Systems.
WD53/0/1999 Chapter 1 : General Instruction The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 2

CP342.2 : Centralised HW Supply
IM/2 : Purging procedure for non-domestic gas installations
IM/16 : Guidance for installation of gas pipework boosters and
compressors for customers premises
IM/22 : Installation guide for high efficiency (condensing) boilers
(Industrial and commercial appliances)
BS 7593 : Treatment of Water in Hot Water Central Heating
Systems
For Timber Framed Buildings please refer to The Institute of Gas Engineers
document IGE/UP/7:1998.
1.4 PERFORMANCE DATA
WD53/0/1999 Chapter 1 : General Instruction The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 3
KESTON 260 KESTON 340
Max. Input (Gross CV) kW/(Btu/h) 84.6/(288,650) 110/(375,300)
Max. Output To Water (80/60C Flow/Return) kW/(Btu/h) 76.1/(259,650) 99.0/(337,800)
Max. Output To Water (60/40C Flow/Return) kW/(Btu/h) 79.5/(271,250) 104.0/(354,800)
Max. Output To Water (50/30C Flow/Return) kW/(Btu/h) 82.9/(282,850) 107.8/(367,800)
Burner Setting Pressure - Hot (Factory Preset) mbar/(in w.g) 9.8/(3.9) 13.0/(5.2)
Gas Consumption After 10 mins l/s / (Ft
3
/hr) 2.19/(278) 2.84/(362)
(CV of Gas - 38.7 MJ/m
3
) / (1038 Btu/Ft
3
)
Max. Operating Flow Temp.
o
C 82.00 82.00
Max. Head (Open Systems) m / (ft) 30.50 / (100) 30.50 / (100)
Max. Press. (Sealed System) Bar 2.70 2.70
Min. Head (Open Systems) m 3.0 3.0
Inlet Gas Pressure mbar/(in w.g) 20.0 / (8.0) 20.0 / (8.0)
Gas Orifice Size mm 3.75 4.75
Recommended Temperature Differential
o
C 10 to 15 10 to 15
Required Water Flow Rate l/s 1.6 2.0
Electrical Supply 230V 50Hz 230V 50Hz
Power Consumption (Max) W 1200 1200
Cabinet Height mm 1262 1262
Cabinet Width mm 1082 1082
Cabinet Depth mm 354 354
Weight - Full kg / (lbs) 165/(363) 165/(363)
Weight - Empty kg / (lbs) 150/(330) 150/(330)
Flow and Return Connection Rp 2" F Rp 2" F
Gas Connection Rp 1.25" F Rp 1.25" F
Flue Pipe Size (nominal bore) mm / (in) 100 / (4) 100 / (4)
Air Intake Pipe Size (nominal bore) mm / (in) 100 / (4) 100 / (4)
Max. Air Intake Length m 20.0 20.0
Max. Flue Outlet Length m 39.0 39.0
Max. Total Flue Outlet and Air Intake Length m 40.0 40.0
Type of Gas G20 Natural Gas Only
Flue & Air Intake Pipe Material Keston Composite Pipe Only
Optimum Flue Gas CO2 Level % 8.4 8.4
Destination Countries GB/IE GB/IE

2. BOILER LOCATION
2.1 DIMENSIONS AND MINIMUM
CLEARANCES
The boiler must be installed in minimum
clearances shown to allow subsequent
servicing, and safe operation.
2.2 SERVICE CONNECTIONS
Gas, water, air and flue pipe,
condensation, and electrical
connections are as shown. Gas : 1.25
inch BSP female. Flow/Return 2 inch
BSP female.
2.3 POSITION
The Keston is not suitable for external
installation. The boiler may be installed
in any room or internal space, although
particular attention is drawn to the
requirements of the current IEE Wiring
Regulations and, in Scotland, the
electrical provisions of the
Building Regulations applicable in
Scotland, with respect to the
installation of the boiler in a room
or internal space containing a
bath or shower.
Compartment installation is
permitted - such compartments
must be constructed in
accordance with BS 6798.
The wall on which the boiler is
mounted must be of suitable load
bearing capacity and must be
non-combustible.
Important : It is not
recommended to install the boiler
on a studded wall or similar - it is
possible that the vibration from
the fan would be amplified and
transmitted to other parts of the
property.
The Keston can be located
virtually anywhere desired
provided that all regulations are
complied with. Because of the
boiler's compact size and venting
flexibility, the installation is not
limited to a boiler room setting.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 4
All dimensions in mm. 127
540
127 Figure2.1.1
MinimumClearances
1
1
Figure 2.1.2

Before locating the boiler near a living space consider whether the sounds generated by
the boiler will be objectionable. The boiler may be located within a cupboard enclosure to
reduce noise levels if located within a living space.
2.4 ELECTRICAL
2.4.1 Electrical Connections
The boiler must be connected to 230V ~ 50Hz supply/controls as follows:
Mains Connection (rated at 10A)
Terminal 1 - LIVE
Terminal 2 - NEUTRAL
Terminal 3 - EARTH
On/Off User Control Link (volt free external control)
Terminal 17
Terminal 18
Remote Lockout Signal (230V)
Terminal 19 - Module 1
Terminal 20 - Module 2
NB: External monitoring controls must be configured to ignore
signal unless present for more than 5 seconds.
Main System Pump (optional) [pump on when boiler enabled]
Terminal 4 - Live
Terminal 6 - Neutral
Terminal 7 - Earth
Wiring external to the boiler must be in accordance with current I.E.E wiring
regulations and local regulations.
The method of connection to the mains electricity supply must facilitate complete
electrical isolation of the boiler complying with the requirements of BS 1363.
There must be only one common method of isolation for the boiler and its control
system.The appliance must be connected to the 10A supply via a fused
double-pole switch having at least 3mm (1/8 inch) contact separation in both
poles, serving only the boiler and the system controls.
2.5 GAS SUPPLY
A gas meter should be connected to the service pipe by the local gas supplier or their
contractor. An existing meter should be checked preferably by the gas region to ensure
that the meter is adequate to deal with the rate of gas supply required. Installation pipes
should be fitted in accordance with BS 6891. Gas consumption is given in Section 1.4.
The boilers are for use with NATURAL GAS (G20) ONLY.
Minimum/Maximum Natural Gas Pressure:
Natural gas pressure before the gas valve must be maintained at between 17.5 mbar (7 in
WG) and 22.5 mbar (9 in WG) while both modules are running.
Gas pressures above or below this level will lead to problems associated with the gas
valve's internal pressure regulator.
Supply pipes to the boiler must not be sized less than the boiler inlet connection
(1.25 in). Due consideration must be given to the supply pressure to other gas
appliances in the premises. Reduction in dynamic gas supply pressure will result in
ignition failures. Ensure gas supply pipe work is adequately sized for the length of
run from the meter to the boiler.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 5

2.6 WATER SYSTEMS
All piping must be installed in accordance with all applicable local and Water Supply
Bylaws for forced hot water heating systems.
Consideration must be given to pipe capabilities and pressure drop through the piping.
Water treatment must be carried out to BS 7593 : Treatment of Water in Hot Water
Central Heating Systems.
Pump isolating valves must be positioned as close to the pump as possible.
a The Keston 260 and 340 are suitable for use on open, vented water systems with
combined feed and vent of 32mm nominal diameter.
b It is preferable for use on sealed water systems, provided the appropriate
components required (see Section 2.7.2 Sealed Systems) are included in the
system.
c Any system must be thoroughly flushed clean of grease, dirt and debris, prior to
connection with the boiler. A strainer should be installed in the system return line
to collect any solder, or other debris, from the installation.
d All water systems must be constructed to comply with requirements of the Local
Water Authority.
e Jointing should be either with capillary, threaded or compression fittings. Pipes
should have a gradient to ensure air is passed easily to vent points and water
flows readily to drain points.
f Draining taps must be located in accessible positions which permit the draining of
the boiler and hot water storage vessel. Draining taps should be at least 22 mm in
nominal size and be in accordance with BS 2879.
AIR VENT POINTS
g These must be fitted at all high points where air will naturally collect and must be
sited to allow complete draining of the system.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 6
Pump
Minimum
9ftHeight
Expansion
Pipe
Expansion
Tank
32mm
Minimum
Boiler
Keston
dia.
Low loss
header
System flow(s)
System return(s)
Figure 2.6.1
Open Vented System
3 Way
Valve
Drain DOC
IV
Strainer
IV IV
IV IV

2.6.1 Open Vented Systems
A typical system is shown in Figure 2.6.1 which includes a combined feed and
vent. Note the valve between the boiler flow and the open vent is a three way
blowdown type valve. Note that the minimum static head required is 3m at the top
of the system pipework. If the cold feed/vent is not brought to the low loss header
as shown, then the pressure loss across the heat exchanger may have to be
taken into account when estimating the static pressure. Cold feed/vent size must
comply with BS6644.
Although suitable for open vented systems with combined feed and vent
arrangements, the Keston is a low water content boiler. As such, any air
entrainment within the system water will produce boiler “kettling”. It is therefore
recommended, if in any doubt, to consider the use of sealed systems where
possible.
2.6.2 Sealed Systems
Sealed systems must be designed in accordance with BS 6644 and BS 7074 Pt1.
A typical sealed system is shown in Figure 2.6.2. It must include :
(i) A safety valve fitted on the flow, adjacent to the boiler. It must be non
adjustable and preset to 3 bar. A drain pipe must be attached, at least as
big as the valve connection, and routed to drain in any area not
hazardous nor where it may be subject to freezing.
(ii) An expansion vessel complying with BS 4814 and sized on the basis of
the total system volume and initial charge pressure. The vessel must be
positioned as shown in figure 2.6.2.
(iii) A filling point, in accordance with local water authority requirements.
(iv) A method of system make-up (automatic or manual), in accordance with
local water authority requirements.
(v) The installation must be designed to work with flow temperatures of up to
110
o
C.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 7
Pump
Boiler
Keston
Low loss
header
System flow(s)
System return(s)
Figure 2.6.2
Sealed System
DOC
IV
Strainer
IV IV
IV IV
AV
Expansion
Vessel
IV
Safety Valve
Fill Point

All components of the system including the heat exchanger of any calorifiers used
must be suitable for a working pressure of 3 bar and a temperature of 110
o
C.
Care should be taken in making all connections that the risk of leakage is
minimised.
2.6.3 Hot Water System (if applicable)
The hot water storage vessel must be of the indirect type). DIRECT CYLINDERS
MUST NOT BE USED. Further guidance is provided in BS 1394.
2.6.4 Balance Headers - Multiple Boiler Installations
Boiler water flows are critical to the operation of the boiler. If flow cannot be
maintained through the system pipework to meet the minimums required by the
boiler the boiler will “kettle” or even produce steam which can damage the heat
exchanger and invalidate the heat exchanger warranty. The implementation of a
balance header, as shown in the above schematics, is recommended to ensure
adequate water circulation is maintained through the boiler by the integral boiler
shunt pumps, irrespective of system conditions.
The size of the balance header is dependant on the number of boilers serving the
header. A guide to sizing is given below:
Total Boiler Output Header Diameter
up to 100kW 3”
up to 200kW 4”
up to 300kW 4.5”
up to 400kW 5”
When assembling a balance header the following design considerations must be
observed:
a) Each boiler must have its own flow and return connection to the balance
header pipe. Common flow and return connections with other boilers will
cause reverse circulation effects to occur.
b) The minimum distance between the system flow and return connections
is 600mm
c) A drain off point should be fitted to the base of the header, along with
cleaning access, for sludge removal.
d) The top of the header should be vented.
2.6.5 Air Elimination
In the initial charge of water to the boiler system and in all subsequent additions
of water to the system some air will be dissolved in the water. As the water is
heated the air is driven out of the solution and will collect in high spots in the
system. These air bubbles can interfere with pumping and heat transfer and
must be eliminated.
Installation of air bleed valves at the high spot(s) in the system will allow for air
elimination when filling the system and will allow re-venting in a day or so after all
air has been driven out of solution.
2.6.6 Strainers
Debris in the heating system can cause noise if it enters the heat exchanger.
Fitting of a Y-strainer on the system return(s) will trap any debris left in the
system. The boiler guarantee does not cover heat exchanger failure due to debris
abrasion within the system.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 8

2.6.7 Pump Selection
The Keston 260 and Keston 340 boilers are supplied complete with integral boiler
shunt pumps. However, these pumps are sized purely to provide adequate flow
rate through the boiler at the pressure drop caused by the boiler itself. No
allowance has be provided in the shunt pump size for system resistance.
A system pump(s) should therefore be selected sized to provide the required
system flow rate at the pressure drop created by the system index circuit.
2.7 FLUE SYSTEM
2.7.1 Design
Individual air supply and flue outlet
pipes are used. The material used
for flue outlet &/or air inlet must be
Keston Composite pipe of an
internal diameter not less than
100mm. Suitable pipe and fittings
can be obtained by Keston Boilers
Ltd via its appointed distributors.
Both flue outlet terminal and air
inlet terminal are supplied and are
illustrated in Figure 2.7.1.
Although the flue outlet and air
inlet terminals are identical great
care must be taken to ensure that
the air intake terminal is positioned
facing downwards or in such a way
as to ensure rain cannot enter the
air intake pipework. Boiler damage due to water entry through the air intake
pipework is not covered under the appliance warranty.
2.7.2 Minimum & Maximum Lengths
The flue outlet and air inlet pipes must have lengths of at least 1m each.
The maximum lengths of both air inlet pipe and flue outlet pipe, when no bends
are used, are as detailed below.
Minimum Flue Length : 0.5m
Minimum Air Intake Length : 0.5m
Maximum Air Inlet Length : 20.0 m
Maximum Flue Outlet Length : 39.0 m
Maximum Combined Air Inlet : 40.0 m
and Flue Outlet Length
However, each bend used has an equivalent length that must be deducted from
the maximum straight length stated above. Knuckle bends must not be used.
A 92.5
o
sweep elbow is equivalent to 1.0m straight length.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 9

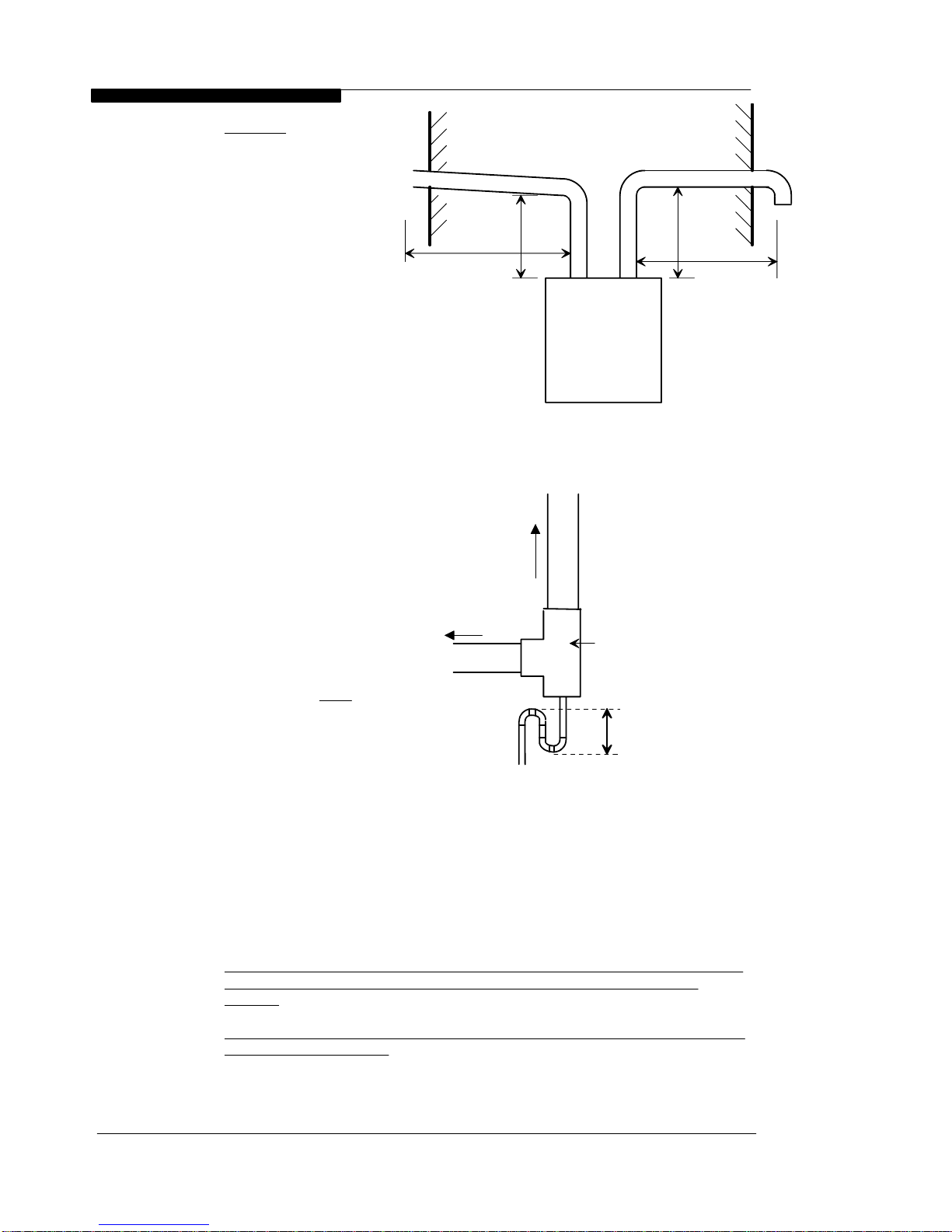

Figure 2.7.1
Terminal Design

Example:
Air inlet uses two
one 92.5
o
sweep
elbows. Hence,
maximum length
permissible (ie a+b
in figure 2.8.2) =
20.0m - 1.0m - 1.0m
= 18.0m
Flue outlet uses one
92.5
o
sweep elbow.
Hence, maximum
length permissible
(ie c+d in figure 7 =
40.0m - 1.0 m - total
air inlet length =
39.0m - total air inlet
length.
2.7.3 Slope
'Horizontal' flue outlet pipework
MUST slope at least 2.5
degrees (45 mm per metre
run) downwards towards the
boiler. Pipework can be
vertical. Only swept elbows
can be used.
Air inlet pipework can be truly
horizontal or vertical, or sloping
in a downward direction
towards the boiler but in this
case rain, etc, must be
prevented from entering the
pipe. There must be no
troughs in any of the
pipework, whether it be air
inlet or flue outlet.
Due the low temperature of the flue gases further condensate will form within the
flue system. Drain points, with suitable traps, must therefore be incorporated
within the flue system at the base of vertical flue sections in excess of 4m. These
additional condensate drains must be run to discharge as detailed in section 2.10.
Such drain points can be formed using standard Keston Composite flue fittings.
Refer to the example in Figure 2.7.3.
2.7.4 Terminations
Air inlet terminals must be facing downwards and positioned to ensure only fresh
air is drawn into the boiler. The air terminal must be located outside of the
building.
Drawing of combustion air directly from a ventilated boiler room will invalidate the
heat exchanger warranty.
The air inlet terminal must face downwards to prevent entry of rain into the air
intake pipework.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 10
6inmin.
TeeFitting
To Boiler
To Terminal
Figure 2.7.3:
Flue Condensate Drain
Point Example
FLUE AIR
cd
a
Figure2.7.2 : Flue& AirMaximumLengthExample
Keston
b

The flue outlet terminal is designed to face outwards but can, if desired, be
adapted to face in any direction BUT must not be directed in the region of the air
inlet. Where the air and flue terminals are located in close proximity the flue
terminal should be located above the level of the air inlet terminal.
The two terminals are subject to the requirements of BS 5440 Pt 1 for clearances
from features of the building although some can be decreased to the values
indicated.
If either the air inlet or the flue outlet terminate at a height of less than 2m (6ft)
above ground level the termination must be protected by a suitable guard.
Suitable terminal guards can be obtained from Tower Flue Components Ltd or its
distributors.
The Keston Condensing Boiler, as with any condensing boiler, will generate
a condensate “plume” from the flue terminal in all weather conditions.
Consideration must therefore be given to the effect of this “plume” when
selecting a location for the flue terminal.
It is advisable for horizontal flue terminals to place a 45
o
elbow at the end of the
flue to direct the condensate plume up and away from the property.
300300L Horizontally from terminal on same wall. 1,5001,500K Vertically from terminal on same wall. 1001,200J From opening in a car port. 1,2001,200I From terminal facing a terminal. 100600H From surface facing a terminal 100300G Above ground or balcony or roof. 50600F From internal or external corner. 5075E From vertical drain or soil pipes. 50200D Below balconies or car port roof. 50300C Below eaves. 7575B Below gutters, soil pipes, drain pipes.
50500A Below or beside openable window, air brick,
etc.
Air
Inlet
Flue
Terminal
Dimensions (mm)
Table 2.7.4 Minimum Flue Terminations & Air Inlet Dimensions
2.7.5 Clearances From Wall
Flue outlet and air inlet terminations must be at least 60 mm and 95 mm
respectively from the wall face.
2.7.6 Distance Between Flue Outlet & Air Inlet
There is no maximum - the terminations can be on opposite sides of the dwelling
if desired.
A minimum clearance of at least 500 mm must be left between the terminations.
2.7.7 General Installations
All parts of the system must be constructed in accordance with BS 5440 Part 1,
except where specifically mentioned in these instructions.
All pipe work must be adequately supported.
All joints other than push-on or plastic compression connectors must be made
and sealed with solvent cement suitable for Keston Composite pipes.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 11

External wall faces and any internal faces of cavity walls must be made good.
2.8 AIR SUPPLY
The Keston is a room sealed appliance and therefore does not require purpose provided
ventilation to the boiler room for combustion air.
2.9 COMPARTMENT INSTALLATION
The casing temperatures of the Keston 260 and Keston 340 are very low. Due to this fact,
no compartment ventilation is required for cooling purposes.
2.10 CONDENSATE DRAINAGE
Being a condensing boiler, the Keston is fitted with a condensate trap at the base of the
heat exchanger and flue assembly, with facility to connect to a drain point underneath the
appliance.
Use only plastic piping and do not reduce below 28mm internal diameter within the
dwelling. Condensate should preferably be drained into the sanitary waste system or,
alternatively, the rainwater system of the property.
Termination of the pipe must be either at a branch or stack internal to the building, or
externally at an open gully. Alternatively, discharge into a purpose madecondensate
soakaway can be considered. Existing or purpose built drains must use suitable corrosion
resistant material as condensate is mildly acidic.
A minimum slope downwards towards the drain of 1 in 20 is essential. Freezing of the
termination and pipework must be prevented. Any drainage pipes outside the property
must be at least 32 mm inside diameter.
2.11 UNDER FLOOR HEATING/WEATHER COMPENSATION
Both underfloor heating and weather compensating control demand reduced system
operating temperatures for some of all of the time the system is operating. Traditionally
this is achieved by used of mixing valves to reduce flow temperature by blending return
water.
The Keston Condensing Boiler provides increased operating efficiencies at low return
system temperature. Therefore, in the event the Keston boiler is serving only underfloor
heating or only weather compensated circuits at any time the boiler flow temperature
should be achieved by limiting the boiler temperature and dispensing with the use of a
mixing valve.
The low operating temperatures of this type of system lead to very good operating
efficiencies. In fact, under floor heating can produce in excess of 95% operating efficiency
from a Keston condensing boiler.
WD53/0/1999 Chapter 2 - Boiler Connections The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 12

3. INSTALLATION OF THE BOILER
Read Chapter 2 - Boiler Location and decide upon the position of the boiler.
Installation of the boiler is straightforward but consideration must be given to access to allow flue
and air pipes to be pushed through walls and ceilings. The order in which the components are
installed will depend upon particular site conditions, but in general it will be easiest and most
accurate to install the boiler and then build up the flue outlet and air inlet pipes to the terminal - this
is the sequence described.
3.1 WALL MOUNTING BRACKET
a Place the bracket on the wall
horizontally with the pre-drilled
holes at the bottom.
b Drill through the centre hole of
the bracket, plug the hole and
fix in position.
c Using a spirit level make sure
the bracket is completely level
and mark the position of the
other screw holes.
d Remove the bracket and drill
the holes in the positions
marked. Plug these holes.
e Screw the bracket to the wall
using screws of an appropriate
size for the wall type (No. 12 x 2
inch wood screws normally
suffice).
3.2 MOUNTING THE BOILER
a Using the detachable side lift
handles supplied or via winch, lift and locate the upper rear lip on the boiler to the
boiler wall bracket.
b Move the boiler sideways to centralise the boiler on the bracket.
3.3 FLOOR STANDING FRAME - OPTIONAL
If the optional floor standing frame is selected the frame should first be assemble and
secured firmly to the plant room floor. Suitable assembly instructions are included with the
floor standing frame pack.
Lift the boiler and lower into position onto the frame.
3.4 ASSEMBLY PRACTICE
Remove all plastic debris and burrs when installing air intake piping. Plastic filings caused
by cutting Keston Composite plastic pipe must not be allowed to be drawn into the
combustion air blower. Prevent dust entering the air intake when cutting on building sites.
Blower failure which is determined to be caused by plastic filings or other debris will not be
covered by guarantee.
3.5 INSTALLING FLUE AND AIR PIPES
Remember the flue pipe must slope downwards back towards the boiler and this is best
achieved using 92.5
o
bends.
WD53/0/1999 Chapter 3 : Installation The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 13
Alldimensionsinmm.
Figure 3.1 Wall Mounting Fixing Locations
453
346
553

a From the two connections on the boiler, mark the positions of the two holes for
the flue and air pipes on the wall(s) or ceiling. To allow access to drill the holes it
may be necessary to temporarily remove the boiler. If the boiler stays put then it is
imperative that the front doors are closed and the two plastic pipes capped off
whilst drilling. Under no circumstances must debris from the wall or cut pipes be
allowed to enter the appliance or the plastic pipework.
b Drill the two holes in the wall/ceiling, preferably using a core drill.
c Always thoroughlydeburr all pipes and, most important, remove shavings from
within the pipe.
d. Assemble the pipework from the boiler connections to the exit from the first
wall/ceiling (remount the boiler if removed). When pushing pipe through walls,
ensure grit and dust is not allowed to enter the pipe.
ENSURE PIPES ARE FULLY ENGAGED INTO SOCKETS.
Connect the condensate drainage system and fill the condensate trap by pouring
water down the boiler flue spigot ( See Section 3.6 Condensate Drainage).
Make the final connection of flue and air pipe to the boiler using push on
plastic couplings. Ensure that the connectors are set vertically otherwise
leakage of condensate may occur which will corrode the casing. Do not use
adhesive on the 'push on' end of connecting couplings.
e. Using the same methods drill any further holes (always covering existing
pipework), cut and assemble the pipework.
f. From outside, complete the two terminations - See Section 2.7 Flue System and
make good all holes.
g. Support any pipes whose route could be displaced either of its own accord or by
accident. Any horizontal run over 1m or vertical runs of any length must always be
supported. Brackets should be placed at intervals of approximately 1m.
h. Check all connections for security.
3.6 CONDENSATE DRAINAGE
Connect the condensate drainage system to the boiler. It is advisable to use a detachable
fitting at connection to the boiler to enable easy removal for servicing.
Fill the condensate trap by pouring water into the boiler flue spigot until water is seen to
flow freely from the condensate drainage system. Make the final connection of flue pipe to
the boiler.
Details are provided in Chapter 2 - Section 2.10 Condensate Drainage
Connection : 22 mm plastic pipe.
3.7 WATER SYSTEM
Connect the flow and return pipework to the boiler. Details of system requirements are
given in Chapter 2 - Section 2.6 Water Systems.
Connections : 2" BSP F.
3.8 GAS SUPPLY
Connect the gas supply to the appliance. Details of gas supply requirements are given in
Chapter 2 - Section 2.5 Gas Supply. Supply of adequate gas pressure (with the boiler
running) is critical to ensure reliable operation of the boiler.
Connections : 1.25 inch BSP F.
WD53/0/1999 Chapter 3 : Installation The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 14

3.9 ELECTRICAL SUPPLY
The entry point(s) for the electrical supply cable(s) is in the base of the appliance (see
Section 2.2 Service Connections fig. 2.1.2) via two cord grip bushes. Feed the cable(s)
through its bush and route inside the cabinet to the connection strip located to the front
bottom right of the cabinet.
1. The electrical supply must be as specified in Chapter 2 - Section 2.4 Electrical
Supply.
WARNING : THIS APPLIANCE MUST BE EARTHED.
2. All external controls and wiring must be suitable for mains voltage. Supply wiring
should be in PVC insulated cable not less than 1.0mm
2
to BS 6500 Table 16
(material code H05VV-F). Pump wiring from the boiler pump connection should
be in 3 core PVC insulated cable not less than 0.5mm
2
to BS6500 Table 16
(material code H05VV-F).
3. The permanent live supply connection may be via a 10 amp fused double pole
switch, serving only the boiler. (Refer to Chapter 2 - Section 2.4 Electrical Supply).
4. Securely tighten the terminal screws and route the cable through the re-openable
cable clips. Ensure all cables are secured and that the cord grip bush is tightened
to securely grip the main cable at entry to the cabinet.
The supply cable(s) must be connected to the main terminals as follows:-
Terminal 2 N - Blue wire (Neutral) for 10A permanent supply
Terminal 1 L - Brown wire (Live) 10A permanent supply
Terminal 3 E - Yellow/Green Wire (Earth)
Terminal 17 & 18 - On/Off User controls volt free control link
The pump cable, if used, must be connected to the pump terminals as follows:-
Terminal 6 N - Pump neutral wire (blue)
Terminal 4 L - Pump live wire (brown)
Terminal 7 E - Pump earth (yellow/green)
NB: The system circulating pump should not have a locked rotor current rating
exceeding 2A if powered via Terminal 4 of the boiler main terminal block.
Ensure connection is made such that if the cable slips in its anchorage the current
carrying conductors become taut before the earthing conductor.
3.10 EXCHANGING A BOILER
Before removing an existing boiler add Fernox Supafloc , or equivalent cleaning agent, in
accordance with the manufacturers instructions. Open all radiator valves and fire the
boiler. When the system is fully heated, shut off the gas supply and drain down the central
heating system.
Important
The Keston condensing boiler contains components which could be damaged or blocked
by grease, dirt or solder etc. It is essential that sludge or scale is removed from an existing
system.
The guarantee provided with the Keston does not cover damage caused by system debris
or sludge.
Connect the new boiler as instructed in this manual and fit in accordance with Sections
3.1 to 3.8
For sealed systems, fill to a pressure of about 2.7 bar. Check the complete system for
water soundness. If leaks need to be rectified using flux or solder the system must be
flushed cold again before proceeding.
WD53/0/1999 Chapter 3 : Installation The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 15

Reduce the pressure to the Initial System Design Pressure for sealed systems, if
applicable. Vent the system.
Gas Supply
The complete gas installation up to the boiler service cock must be checked for
soundness. BS 6891.
Electrical Installation
Carry out preliminary electrical safety checks, i.e. Earth continuity, Polarity, Resistance to
Earth, Short Circuit using a suitable test meter.
Initial Firing
The gas pressure setting is factory adjusted to within the required range and
should not normally need re-adjustment. If the reading is incorrect then check such
factors as soundness of the air and flue pipe joints, pressure sensible joints and the gas
inlet pressure (20 mbar required). If all joints are sound and the gas inlet pressure is
satisfactory set the gas pressure. Full details of this procedure are given in Section 4.6
Checking The Gas Pressure. This will ensure that combustion is good enough to allow
combustion fine tuning to take place.
Combustion Fine Tuning
It is advisable on all installations that the combustion quality is checked by measuring the
carbon dioxide (CO
2
), or oxygen (O
2
), level. This procedure is detailed in Section 4.7
Combustion Fine Tuning. Badly tuned combustion will lead to reduce the life of the boiler
and invalidate the warranty.
WD53/0/1999 Chapter 3 : Installation The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 16

4. COMMISSIONING OF THE BOILER
Important:
This condensing boiler contains components which could be damaged or blocked by grease, dirt,
solder etc., from the water system. The following commissioning procedures must be followed
precisely.
4.1 INITIAL FLUSHING
All waterways within theKeston are either copper, bronze or high alloy stainless steel. As
a result standard water treatment chemicals for conventional central heating boilers are
suitable. In any event reference must be made to BS 7593 : Treatment Of Water In Hot
Water Central Heating Systems.
a. Disconnect the boiler from the system at the flow and return connections and
temporarily link the flow and return pipes on the system.
b. Flush the entire system until clean water is discharged, free from dirt, flux, solder
etc. The use of a flushing chemical is recommended, e.g. Fernox Supafloc.
Sludge and scale must be removed from an existing system. Boiler failure due to
system debris or sludge shall invalidate the guarantee.
c. Connect the system to the boiler and fill in accordance with Section 2.6 - Water
Systems. At this stage, for sealed systems, fill to a pressure of about 2.7 bar.
d. Check the complete system for water soundness. If leaks need to be rectified
using flux and solder, the system must be flushed cold again before proceeding.
e. Reduce the pressure to the Initial System Design Pressure for sealed systems, if
applicable. Vent the system
4.2 GAS SUPPLY
The complete gas installation up to the boiler service cock must be checked for
soundness. BS 6891.
4.3 ELECTRICAL INSTALLATION
Carry out preliminary electrical safety checks, i.e. Earth continuity, Polarity, Resistance to
Earth, Short Circuit using a suitable test meter.
4.4 INITIAL FIRING
Important
Checking the gas pressure to the pre-mix burners requires a special procedure, outlined
below, which must be carried out.
a. Purge the gas supply in accordance with BS 6891 & IM/2.
b. Vent the water system.
Important:
The Keston heat exchanger module consists of a single coil which can trap an air
pocket. Great care must be taken to ensure that water flow has been established
through the heat exchanger and thus ensuring no air pockets remain in the heat
exchanger and pipe work. Firing the boiler while an air pocket exists in the heat
exchanger could damage it.
c. Turn both the integral gas service cocks to ON.
d. Turn on the electrical supply, setting any external controls to call for heat.
e. Set the main boiler On/Off switch to “ON” and adjust the set point temperature to
a value above actual flow temperature. (adjustment is made by holding in the
press button located below the control knob and adjusting the control knob until
the required set point temperature is displayed. Releasing the press button will
cause the control knob to be ineffective and the display to register actual flow
temperature).
WD53/0/1999 Chapter 4 : Commissioning The Keston 260 & 340 Condensing Boilers
Installation & Servicing Instructions Page : 17
