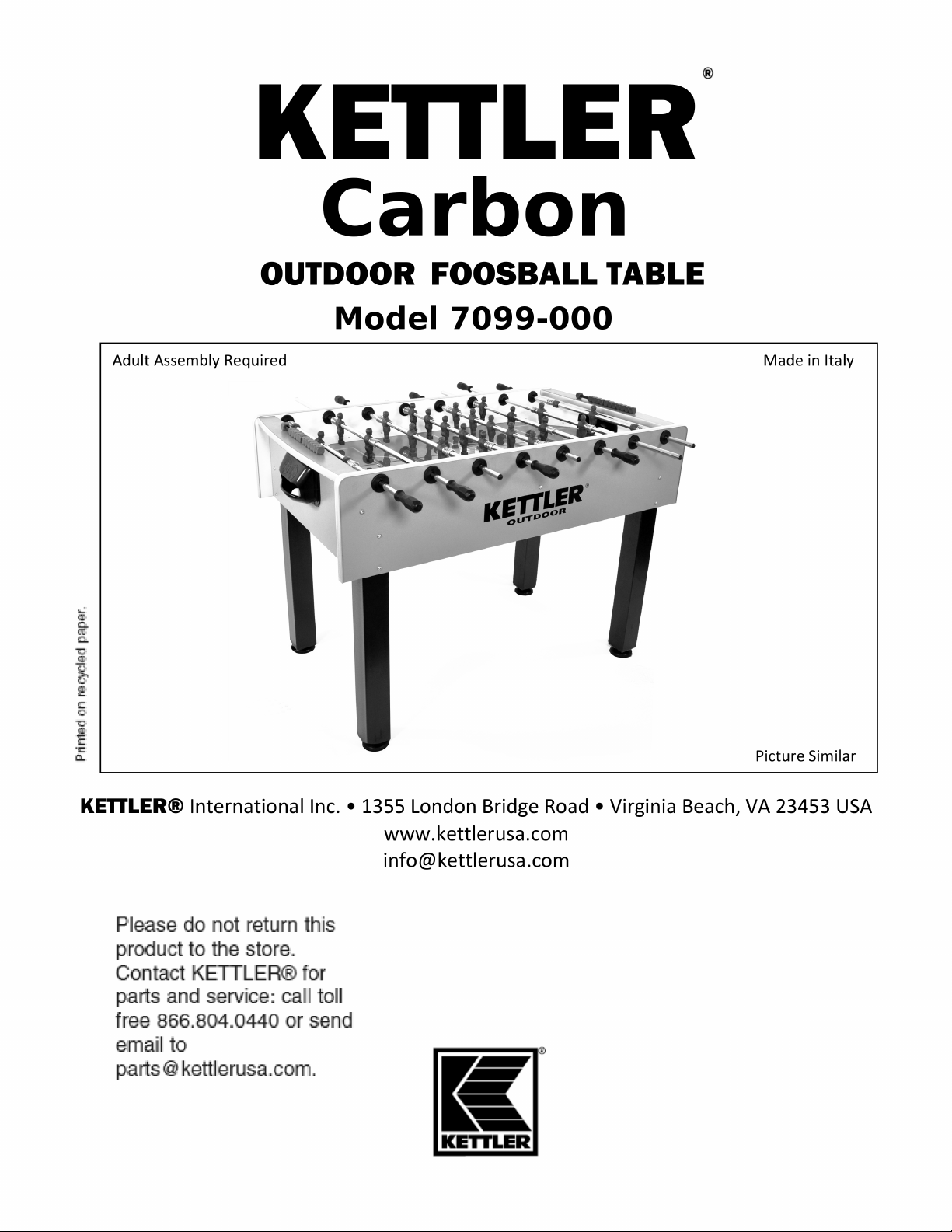

Kettler Carbon 7099-000 User manual
All KETTLER® products are designed in accordance with the latest safety regulations and undergo a constant
process of quality control during manufacturing. The knowledge gained in this process is used to constantly improve
and develop our products. In order to offer our customers the very best in product quality, we reserve the right to
make technical changes at any time. In spite of this, should you have any cause for complaint, please contact
KETTLER®.
Before assembling or using the foosball table, please read the following instructions carefully. They contain
important information for use and maintenance of the equipment as well as for your personal safety. Keep
these instructions in a safe place for maintenance purposes or for ordering spare parts.
•
The foosball table should be used only for its
intended purpose, i.e. for playing with suitable
balls.
•All other uses are prohibited and may be
dangerous. The manufacturer cannot be held
liable for damage or injury caused be improper
use of the table.
•Damaged or worn components may endanger
your safety or shorten the lifespan of the foosball
table. Replace worn or damaged components
immediately and remove the table from use until
this has been done. Use only spare parts
manufactured by KETTLER®.
•The foosball table complies with all safety
regulations. Incorrect repairs, alterations to the
design (removal of original parts, addition of
other components etc.) may endanger the safety
of the user.
•Instruct other persons (in particular children)
using the table in its correct use, and draw their
attention to any potential source of danger,
especially when setting up or dismantling the
table.
•Caution: During assembly, keep all items out of
children’s reach (choking hazard-contains small
parts).
•Regularly check all screws, bolts etc. to ensure
they are in good condition.
•Warning: This is a heavy product. Do not
attempt to move or maneuver without
adequate help and safety measures. May result
in injury. Children should not move table.
•
Do not use the foosball table until it has been
fully and correctly assembled and checked.
•Set the table up on a level surface.
•When not playing or storing the table, always
use the included protective cover.
•Do not use corrosive or abrasive materials to
clean the equipment. Ensure that such
materials are not allowed to pollute the
environment. In most cases a damp cloth is
sufficient.
•
Waste disposal: KETTLER® products are
recyclable. At the end of its useful life, please
dispose of correctly and safely complying with
your local facilities and guidelines.
•Once the table is assembled it may not fit
through your doorways. For this reason you
should assemble the table where you intend to
use the table. Should you wish to move the
table some disassembly may be required.
1
Before Assembly (continued)
Genel Assembly Instructions
Package Contents
Number lncluded-1 Number Included- 4 Number lncluded-1
Number lncluded-5
Number lncluded-8 Number
lncluded-2
2
8
A
lle
n
Bolts
Assembly Pictures Similar
Step 1
4 required
4 required 1 required 16 required
Place legs into cabinet
corner with the
screwholes facing
inward.
Lightly screw in all
four bolts in to each
leg by hand.
Next use an Allen
Wrench to tighten all
bolts. Caution: Do not
over-tighten bolts.
4
Step 1 (continued)
Pictures Similar
Step 2
Setting the table upright
IMPORTANT: Have two
people complete Step 2.
Screw in floor
levelers into all
four legs.
Turn the table onto its feet to
prepare for the next assembly
step.
Warning: This is a heavy product.
Do not attempt to move or
maneuver without adequate help
and safety measures. May result in
injury.
5
Step 3
Rod Assembly
Color 1 Counter
Color 2 Counter
t
Rod bushing assemblyRod bushing assembly
Insert the 2 part inner
bushing in the open
cabinet hole around the
pole as shown
Insert the 2 part end
cap in the open cabinet
hole around the pole as
shown. Set into cabinet
hole.
From
From the outside, connect the
inner bushing and the end
cap by screwing them
together. Pull screw tight.
Assembly
Step 5
Rod Handle Assembly
I8 required
REPEAT THE STEP 6 A-8 FOR EACH ROD
8
Assembly
Required Parts
Goal Assembly
10
FOOSBALL TABLE COVER
Log onto www.kettlerusa.com/warranty and register your
KETTLER®Cavalier Foosball Table Warranty online!
www.facebook.com/kettlerusa
twitter.com/kettler_usa
www.youtube.com/kettlerusa
KETTLER®International Inc.,
1355 London Bridge Road, Virginia Beach, VA 23453 USA
www.kettlerusa.com • E-mail: info@kettlerusa.com
For parts/service: call 866-804-0440 or e-mail parts@kettlerusa.com
Docu 07.03.18
©2018KETTLER®All rights reserved. No part ofthis manual may be
reproduced, stored in a retrieval system, or transmitted in any form, or
by any means, such as electronic, mechanical, photocopying or
otherwise, without the prior written permission of KETTLER®.
