Assembly Instructions
Kewaunee 4-Leg Table
page 4 Kewaunee 4-Leg Table — Assembly Instructions 05/20 page 1
Kewaunee 4-Leg Table — Assembly Instructions 05/20
Do not attempt to assemble this product if you do not understand these instructions or you have
any doubts about the safety of the installation. Please call a qualified technician. Check carefully
for missing, damaged, or defective parts. Improper installation may cause damage or serious
injury. Do not use this product for any purpose that is not explicitly specified in this manual and do
not exceed weight capacity. The manufacturer and distributor cannot be liable for damage or injury
caused my improper mounting, incorrect assembly or inappropriate use.
WARNING
!
1200 lbs
544.3 kg
DO NOT EXCEED WEIGHT CAPACITY
Failure to do so may result in serious injury

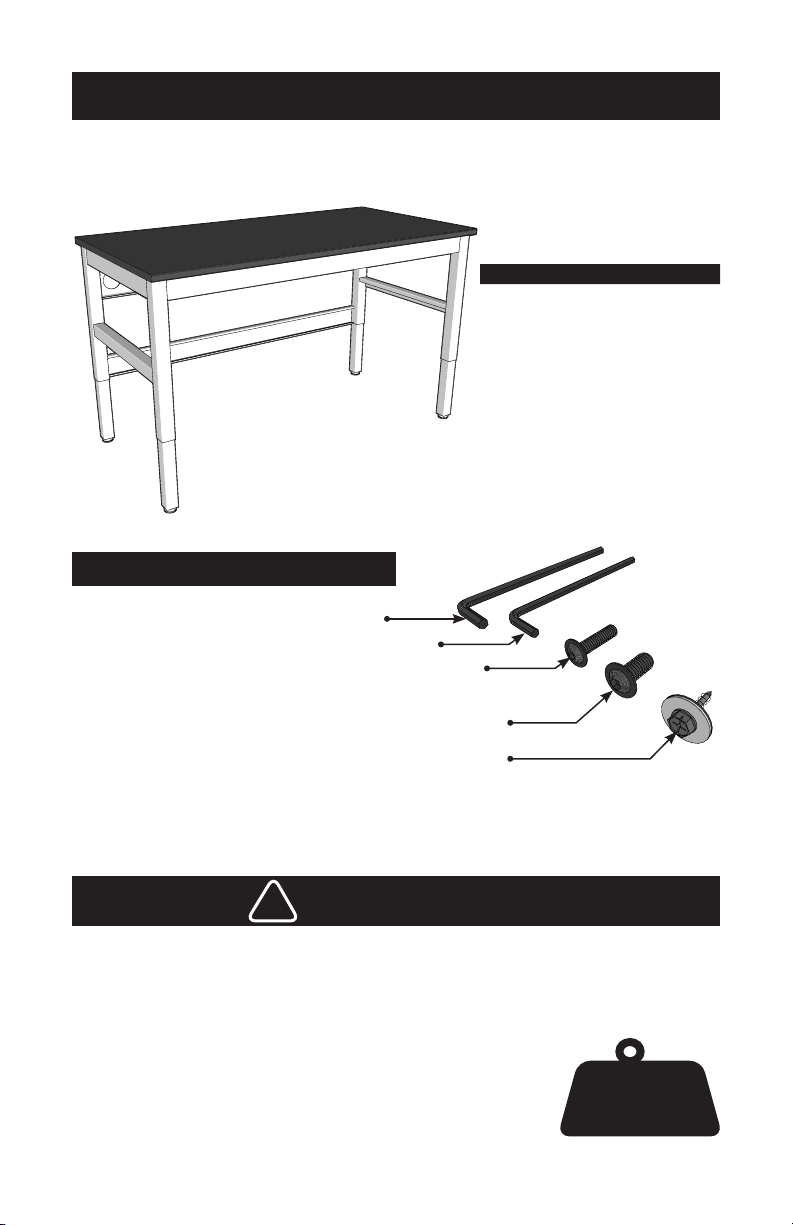

Included Tools & Hardware
Shipped Loose
Installed on Assembly
3/16" Allen Wrench Hex Key (1)
5/32" Allen Wrench Hex Key (1)
1/4"-20 x 1" Flanged Button Head Socket Cap Screw (12)
5/16"-18 x 5/8" Flanged Button Head Socket Cap Screw (8)
(installed on Leg Assemblies - (2) each leg)
Hex Head Screw with Neoprene Bonded Washer (11)
(fastens rails to work top)
(1/4”x 3/4” for Epoxy Top) – (1/4" x 1/2” for Phenolic Top)
1. Before assembling table, bore
through the 3/8" pilot holes in
the back of work top using a
3/8" diameter masonry bit.
(Total of 4 holes)
2. After table is assembled, fasten
Shelving Uprights to top of table using
(4) 1/4"-20 x 1-1/2" Hex Head Bolts with
washers as shown in Table Shelving
Assembly Instructions.
1. Remove Glides from bottom of each
leg by turning counter-clockwise.
(total of 4)
2. Replace with Casters by turning the
caster stems clock-wise. Make sure
casters are fully tightened. (total of 4)
Shelving Assembly Installation
Caster Option Installation
SCAN QR CODE for
INSTRUCTION VIDEOS
Installation Manual Part No. 930089
Epoxy Top Phenolic Top
DCLT10R2436 DCLT10T2436
DCLT10R2448 DCLT10T2448
DCLT10R2460 DCLT10T2460
DCLT10R2472 DCLT10T2472
DCLT10R3036 DCLT10T3036
DCLT10R3048 DCLT10T3048
DCLT10R3060 DCLT10T3060
DCLT10R3072 DCLT10T3072
DCLT10R3636 DCLT10T3636
DCLT10R3648 DCLT10T3648
DCLT10R3660 DCLT10T3660
DCLT10R3672 DCLT10T3672

page 2 Kewaunee 4-Leg Table — Assembly Instructions 05/20 page 3
Kewaunee 4-Leg Table — Assembly Instructions 05/20
Parts Identification
!WARNING: Before beginning assembly, read the entire instuction proceedure.
NOTE: If installing shelf assembly on top of table, follow instructions on page 4 before
beginning assembly of table.
Step 3 Attach Stabilizing Spreader Rail & Adjust Leg Height
Step 2 Attach Modesty Panel
Right Hand
Leg Assembly
Left Hand
Leg Assembly
Modesty Panel
Stabilizing Spreader Rail
Front Apron Rail
(attached to work top)
Rear Apron Rail
(attached to work top)
Cabinet Hanging Rail
(attached to work top)
Work Top
Assembly Instructions
Step 1 Attach Legs
Assembly Instructions (continued)
1a. Attach Leg Assemblies to Front & Rear Apron
Rails using 1/4"-20 x 1" Flanged Cap Screws
Flange Nuts
Flanged Cap Screws
5/16"-18
Flanged
Cap
Screws
3a. Remove 5/16”-18 x 5/8” Flanged Cap Screws from
Rear Adjustable Leg Inserts. (Two per leg)
3b. Adjust Leg Inserts to desired
length and reinstall 5/16”-18
x 5/8” Flanged Cap Screws
through holes in Stabilizing
Spreader Rail. (4 total)
3c. Repeat process with
Front Adjustable Leg
Inserts, omitting the
Stabilizing Spreader Rail.
(make sure all Cap Screws
are securely tightened)
Front Adjustable
Leg Inserts
Rear Adjustable
Leg Inserts
Stabilizing
Spreader Rail 5/16"-18
Flanged
Cap
Screws
2a. Loosely install a 1/4"-20 x 1" Flanged Cap Screw
in Flange Nut closest to Rear Apron Rail on
each Leg Assembly
2b. Slide notch in Modesty Panel over Cap Screw
2c. Install second 1/4"-20 x 1” Flanged Cap Screw
in each Leg Assembly and tighten both Cap
Screws
Flange
Nuts
Flanged
Cap Screws
Modesty Panel
Notch

page 2 Kewaunee 4-Leg Table — Assembly Instructions 05/20 page 3
Kewaunee 4-Leg Table — Assembly Instructions 05/20
Parts Identification
!WARNING: Before beginning assembly, read the entire instuction proceedure.
NOTE: If installing shelf assembly on top of table, follow instructions on page 4 before
beginning assembly of table.
Step 3 Attach Stabilizing Spreader Rail & Adjust Leg Height
Step 2 Attach Modesty Panel
Right Hand
Leg Assembly
Left Hand
Leg Assembly
Modesty Panel
Stabilizing Spreader Rail
Front Apron Rail
(attached to work top)
Rear Apron Rail
(attached to work top)
Cabinet Hanging Rail
(attached to work top)
Work Top
Assembly Instructions
Step 1 Attach Legs
Assembly Instructions (continued)
1a. Attach Leg Assemblies to Front & Rear Apron
Rails using 1/4"-20 x 1" Flanged Cap Screws
Flange Nuts
Flanged Cap Screws
5/16"-18
Flanged
Cap
Screws
3a. Remove 5/16”-18 x 5/8” Flanged Cap Screws from
Rear Adjustable Leg Inserts. (Two per leg)
3b. Adjust Leg Inserts to desired
length and reinstall 5/16”-18
x 5/8” Flanged Cap Screws
through holes in Stabilizing
Spreader Rail. (4 total)
3c. Repeat process with
Front Adjustable Leg
Inserts, omitting the
Stabilizing Spreader Rail.
(make sure all Cap Screws
are securely tightened)
Front Adjustable
Leg Inserts
Rear Adjustable
Leg Inserts
Stabilizing
Spreader Rail 5/16"-18
Flanged
Cap
Screws
2a. Loosely install a 1/4"-20 x 1" Flanged Cap Screw
in Flange Nut closest to Rear Apron Rail on
each Leg Assembly
2b. Slide notch in Modesty Panel over Cap Screw
2c. Install second 1/4"-20 x 1” Flanged Cap Screw
in each Leg Assembly and tighten both Cap
Screws
Flange
Nuts
Flanged
Cap Screws
Modesty Panel
Notch
