KD-VACTX
Video/Audio VGA/Component
Smart Balun™with Control &
CAT5/6/7 TRANSMITTER
NEW
4Transmit VGA/RGB signal up to 1,000 feet over standard unshielded, CAT5/6/7 Cable
4Transmit Bi-Directional RS232 or IR signals up to 1,000 feet over standard unshielded CAT5/6/7
Cable by utilizing Key Digital’s exclusive technology Adaptive Smart Data Link
™
4Transmit Left/Right analog and PCM/Toslink digital audio or Composite Video signals up to 1,000
feet over standard unshielded, CAT5/6/7 Cable
4Compatible with CAT5, CAT5e, CAT6 and CAT7 cables; optimized for UTP cables
4Automatically perform measurement of CAT5/6/7 link frequency response and performs adaptive
video response equalization for maximum video quality performance by utilizing Key Digital’s
exclusive technology Auto Video Equalizer
™
4Can handle all standard video and audio formats, stereo formats, digital SPDIF and compressed
Digital audio coaxial formats
4Shielded RJ45 connectors input/output support 100 ohms for best picture quality
4Incorporates 6 Key Digital
®
Exclusive Technologies
Key Benefits General Info
Regulation: CE, RoHS, WEEE
Power: 100VAC to 240VAC,
50Hz and 60 Hz
Mounting Bracket (included)
Remote Control: No
Enclosure: Black Metal
Product Dimensions:
2.75” x 2.75” x 1.5”
Shipping Carton Dimensions:
5” x 5” x 3”
Product Weight: 0.5 lb
Shipping Weight: 1 lb
›
›
›
›
›
›
›
›
›
Key Digital
®
Exclusive Technologies
DirecTV
Control System

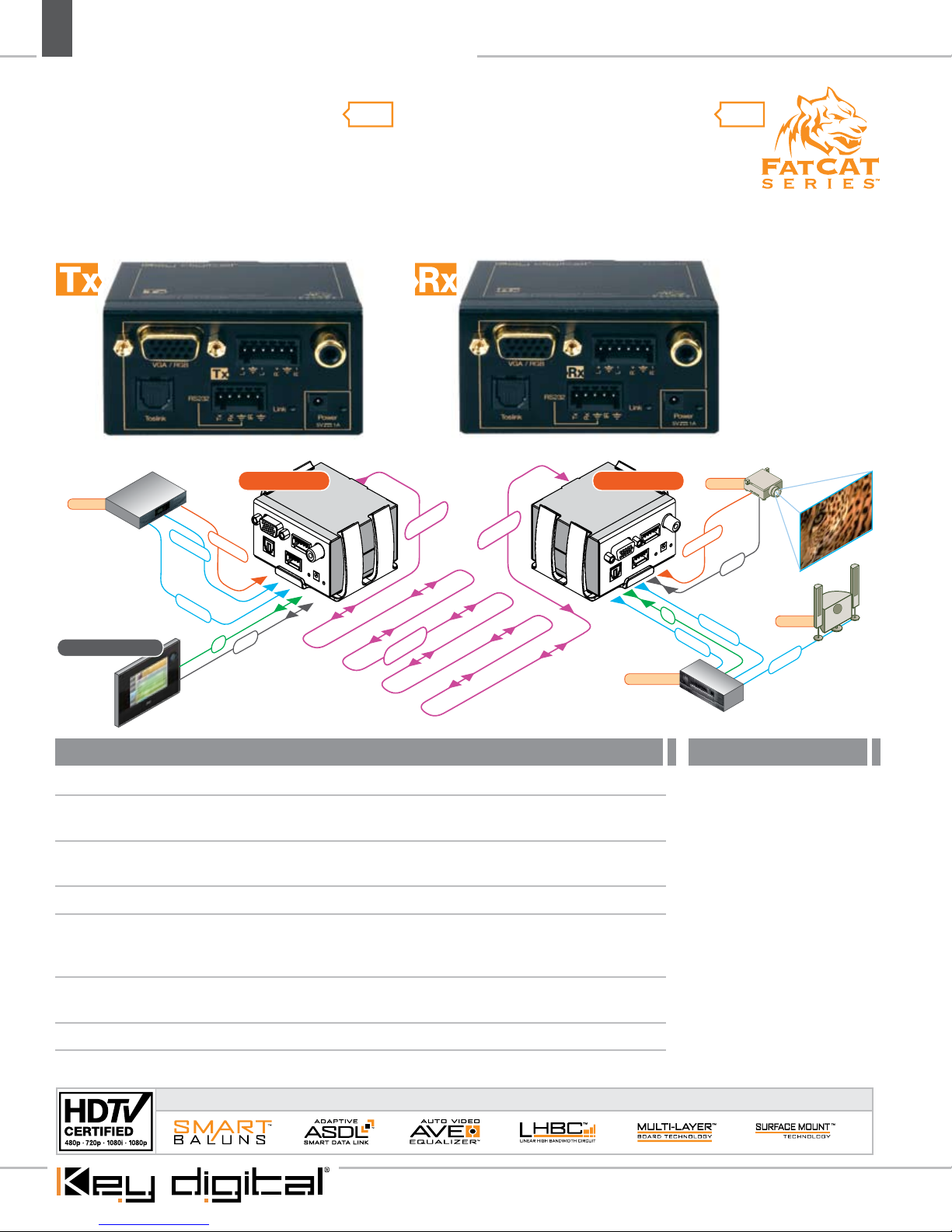

KD-VACRXKD-VACTX
CAT5/6/7
CAT5/6/7
CAT5/6/7
IR
RS232
IR
Up to 1,000’ CAT5/6/7 cable
Bi-directional IR / RS232
RS232
A/V Receiver
Speakers
Projector
Component*
PCM Audio
Analog Audio
PCM Audio
AnalogAudio
Audio Out
Component*
KD-VACRX
Video/Audio VGA/Component
Smart Balun™with Control &
CAT5/6/7 RECEIVER
NEW
*All Component sources can be substituted with RGBHV
CAT5 Video/Audio Balun Devices
