Axiom Back
IMPORTANT CONSUMER INFORMATION
NOTE: This manual contains instructions for use with the Ki Mobility Back products. This
information must be provided to the consumer of this product. Do not remove this manual
before delivery to the consumer of this product.
Supplier: This manual must be given to the consumer of this product.
Consumer: Read the entire owner’s manual prior to using this product and keep on-hand for future
reference.
NOTE: Check all parts for shipping damage. In case of damage, DO NOT use. Contact the
supplier or Ki Mobility for further instructions.

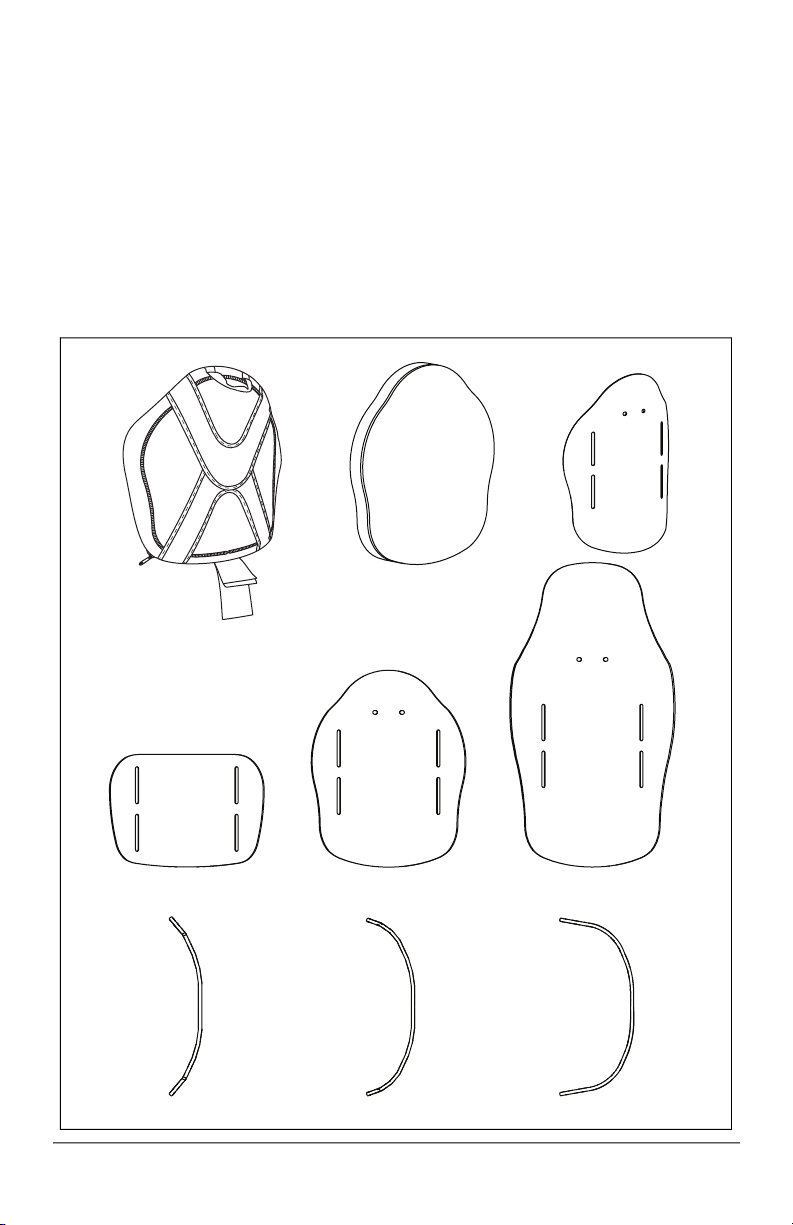

Axiom Back Features

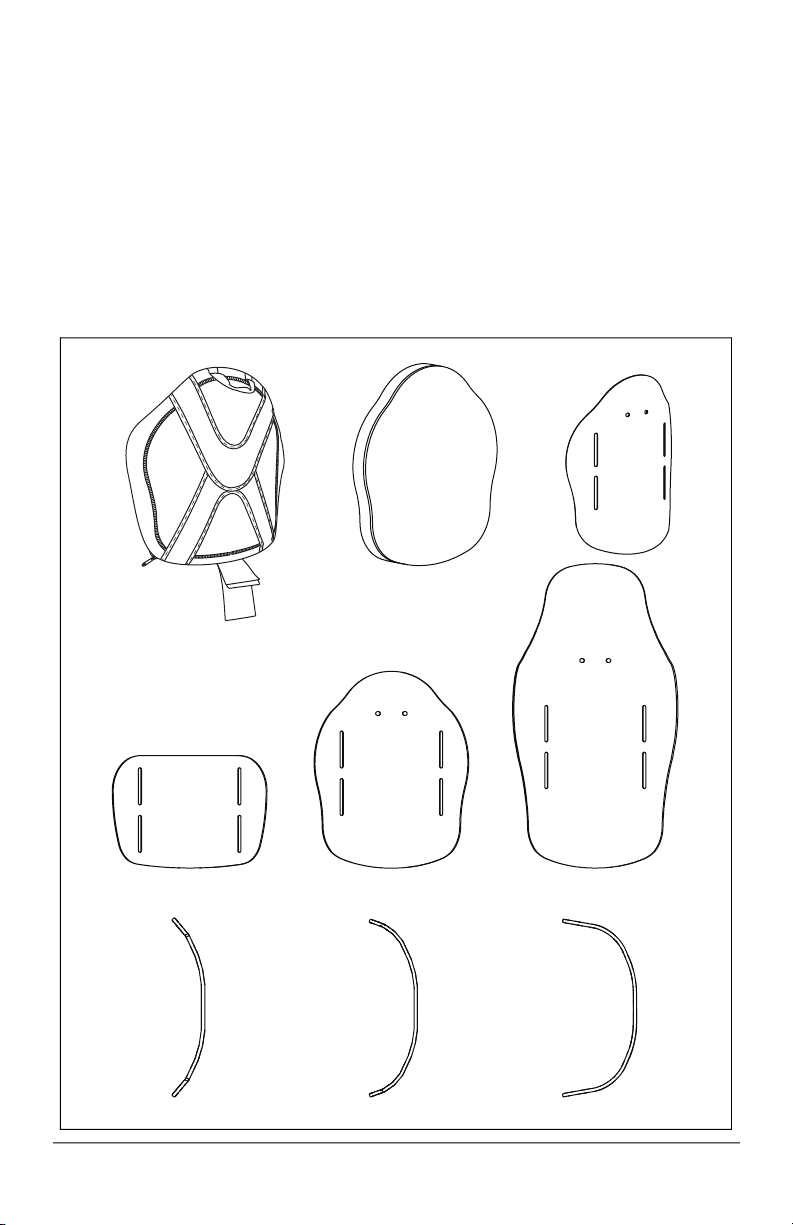

Cover Foam Base Shell
Low Mid Tall
Posterior Posterior Lateral / Lateral Deep Lateral
Fig. 1

3
A. Selecting the Proper Seating Product
Ki Mobility recommends that you consult with a licensed clinician (i.e. Physician or therapist) trained
in wheelchair seating and positioning before selecting any seating and positioning product. This will
help ensure you receive the right product for your specific needs. Axiom Seating and Positioning
products should only be installed by an authorized Ki Mobility supplier.
B. Become Familiar with this Manual
Before using this Axiom Back, you and each person who may assist you, should read this entire
owner’s manual and follow all instructions. Review the Warnings often, until they are second nature
to you.
C. Warnings
The word "WARNING" refers to a hazard or unsafe practice that may cause severe injury or death to
you or to other persons.
D. Check Your Skin Daily
Axiom Seating and Positioning products are designed to improve pressure distribution and increase
sitting tolerance. Whether the Axiom Back provided will meet your individual needs cannot be
assured in advance. The integrity of your skin can be affected by many aspects of your daily life and
medical condition, including the use of this product. Be sure to follow any skin care regimens
established by your clinician.
1. Users of this product should make sure their skin is inspected daily for changes. If you see
changes, discontinue the use of this product immediately and consult with your clinician. A key
clinical indicator of tissue breakdown is skin redness. If your skin develops redness, discontinue
the use of this product immediately and consult your clinician.
WARNING: Failure to properly select an Axiom Back that fits your wheelchair can affect your
skin integrity which can result in serious injury or death.
WARNING: Failure to perform proper skin inspection or continuing to use an Axiom Back after
skin changes are present can affect your skin integrity, resulting in serious injury or death.
E. General Warnings
WARNING: Do not use or install this Axiom Back without first reading and understanding this
manual. Please contact your authorized Ki Mobility supplier or your clinician if you are unable to
understand the Warnings and Instructions. Failure to do so could result in serious injury or death.
WARNING: The installation of an Axiom Back on a wheelchair could affect the center of gravity
of the wheelchair. Changes in your center of gravity may affect your stability in your wheelchair,
resulting in tipping over or falling from your wheelchair which may result in serious injury. Always
review the instructions for use of your wheelchair to see if changes to the wheelchair may be
needed to provide sufficient stability after adding an Axiom Back.
WARNING: The integrity of your skin can be affected by many aspects of your daily life and
medical condition, including the use of this product. Be sure to follow any skin care regimens
established by your clinician. Consumers of this product should make sure their skin is
inspected routinely for changes as directed by their clinician. Failure to do so could result in
serious injury or death.

4
F. Protecting Your Axiom Back
Avoid prolonged exposure to adverse environmental conditions. This may include excessive
exposure to sunlight and temperatures, either hot or cold. This can result in the degradation of the
performance of your Axiom Back.
WARNING: Failure to protect your Axiom Back may lead to changes that can affect your skin
integrity, resulting in serious injury or death.
Although your Axiom Back has been manufactured in accordance with its labeled flammability
standards, you should avoid exposing your cushion to open flames or extreme heat sources such as
a burning cigarette. This may cause your cushion to ignite or emit harmful gases.
WARNING: Failure to protect your Axiom Back from extreme heat may cause your Axiom Back
to ignite or emit harmful gases, resulting in serious injury or death.
G. Cover Orientation
Your Axiom Back was designed to be seated in a specific orientation and it must be placed properly
in your wheelchair with the cover oriented correctly with the foam base. It is labeled to indicate the
proper orientation. See Fig. 2.
WARNING: Failure to properly orient the Axiom Back cushion and cover can affect your skin
integrity, resulting in serious injury or death.

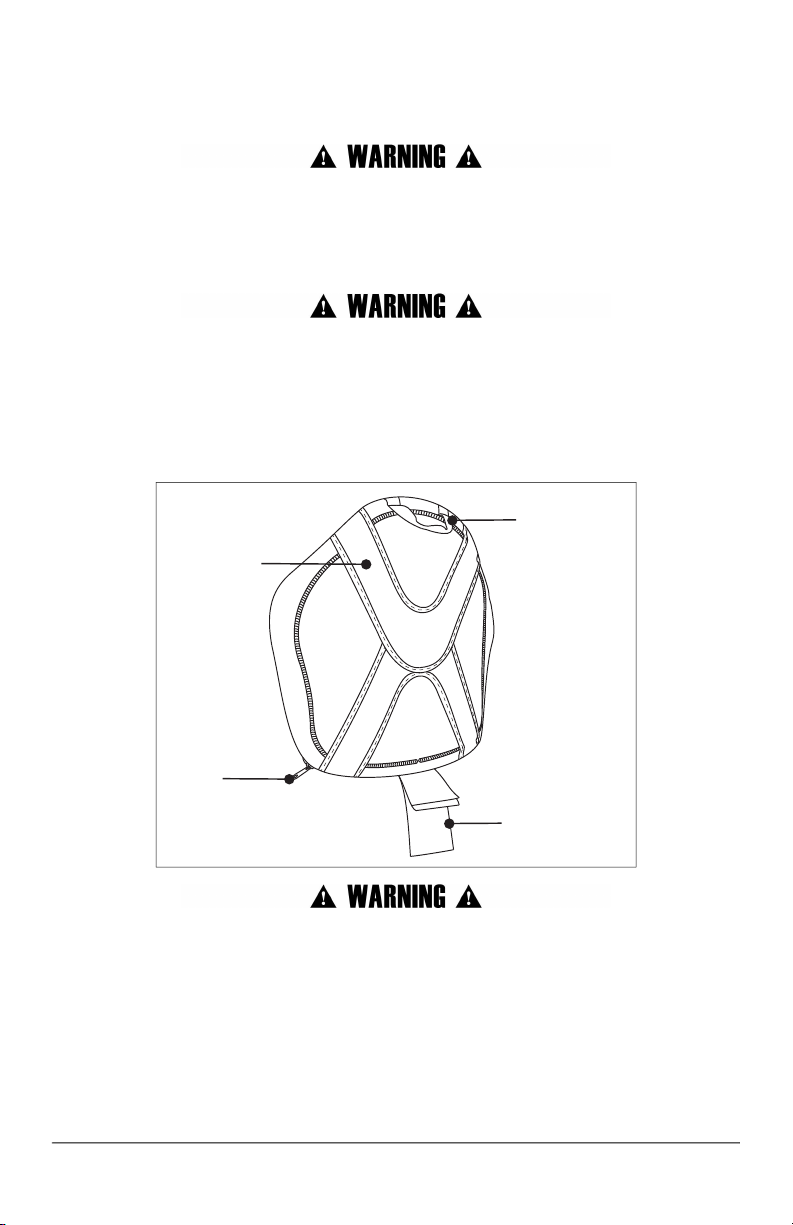

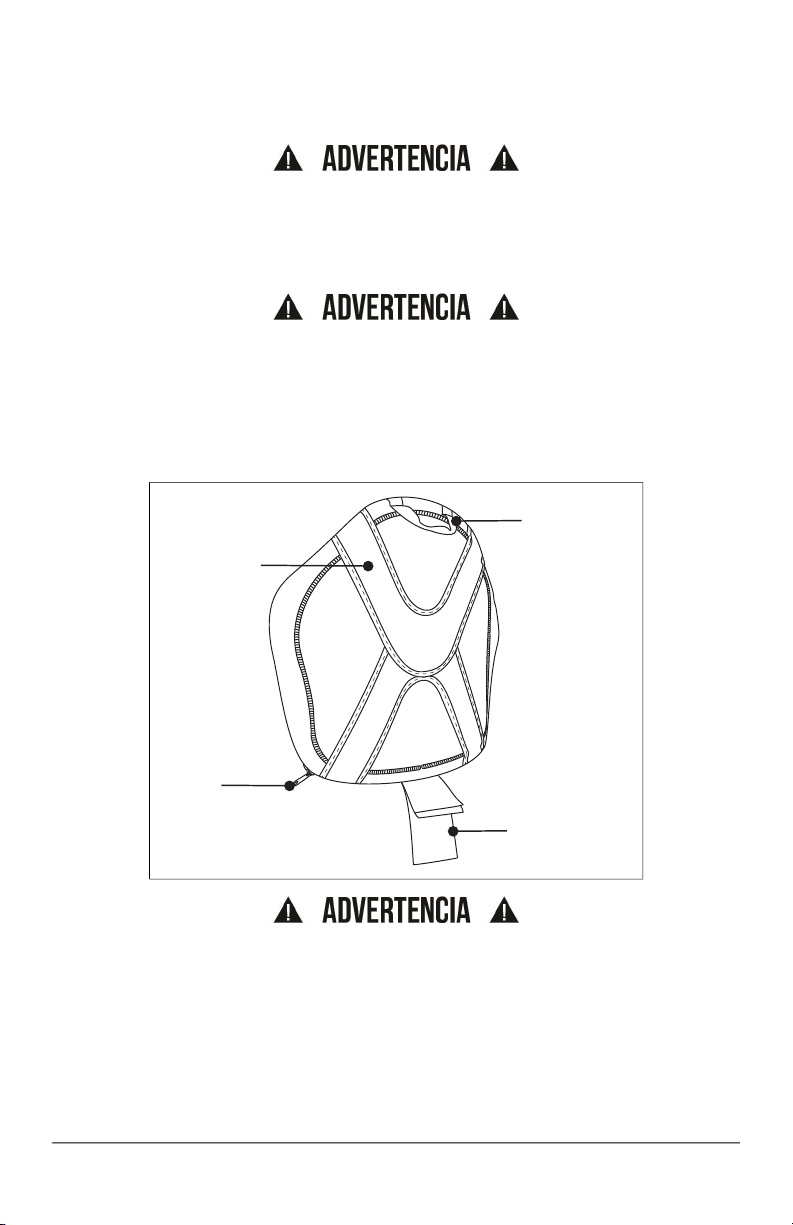

Upper cover
strap overlaps
the lower
cover strap.
Handle strap
is located on
top of cover.
Tags are
located on the
bottom of the
cover.
Zipper is
on the
bottom of
the cover.
Fig. 2

5
Set-Up, Adjustment and Care
A. Fitting Your Axiom Back and Wheelchair
WARNING: The user of this equipment is responsible for making sure that it has been set up
and adjusted by an Authorized Ki Mobility Supplier under the advice of a healthcare
professional. The Axiom Back and hardware may require periodic safety and function checks.
Adjustments should be performed by your Authorized Ki Mobility Supplier. Always use parts
and/or accessories that have been recommended or approved by Ki Mobility.

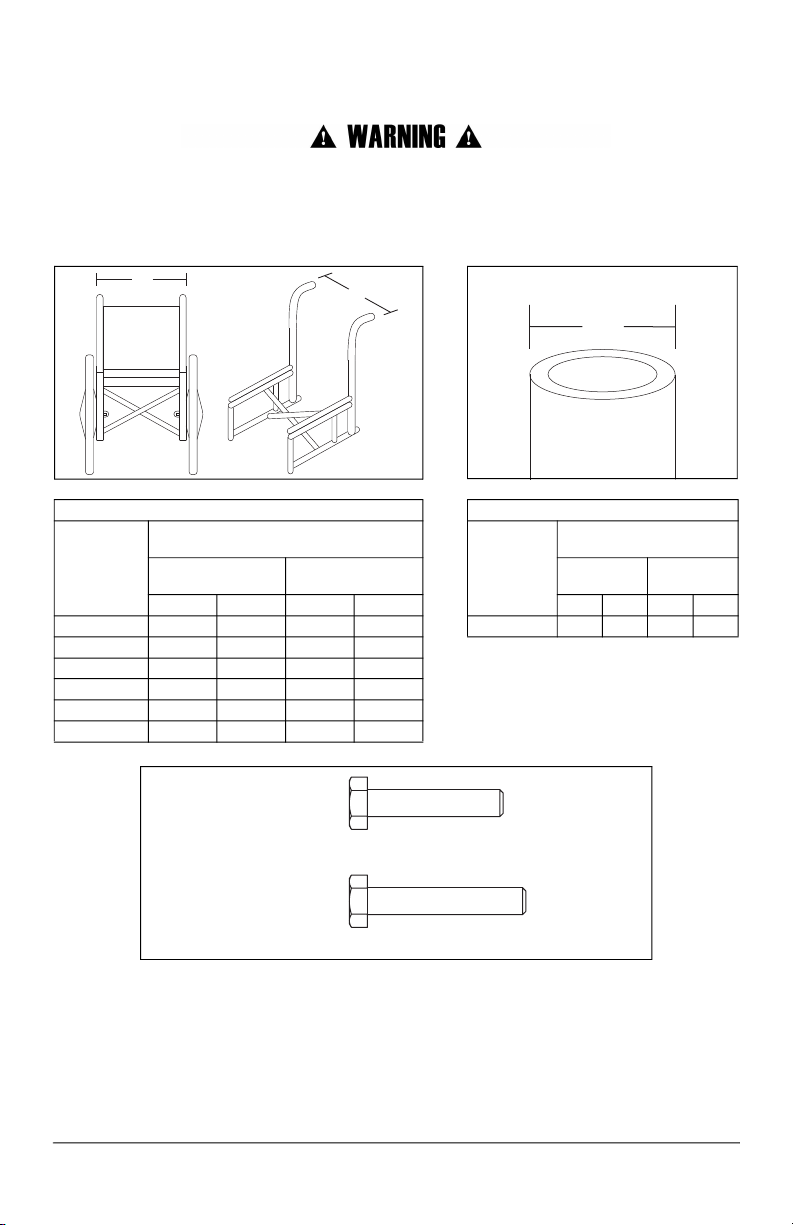

TABLE 1 TABLE 2
Axiom Back
Width
(all
contours)
Width of back canes from outside to
outside of the tubes (A) Axiom
Back
Width
(all contours)
Cane Diameter (B)
Minimum Width Maximum Width
Minimum
Width
Maximum
Width
Inch Cm Inch Cm Inch Cm Inch Cm
12" 12 30.5 14 35.6 12" - 26" 3/4 1.9 1 1/8 2.85
14" 14 35.6 16 40.6
16" 16 40.6 18 45.7
18" 18 45.7 20 50.8
20" 20 50.8 22 55.9
22" 22 55.9 24 61.0
B
A
A
35mm (Used for 1” and 1-1/8” back canes)
30mm (Used for 3/4” and 7/8” back canes)
NOTE: Backrest
cane clamp bolts
come in two
different sizes.

6
General Setup
NOTE: If ordered with installation on chair, skip to Step 4.

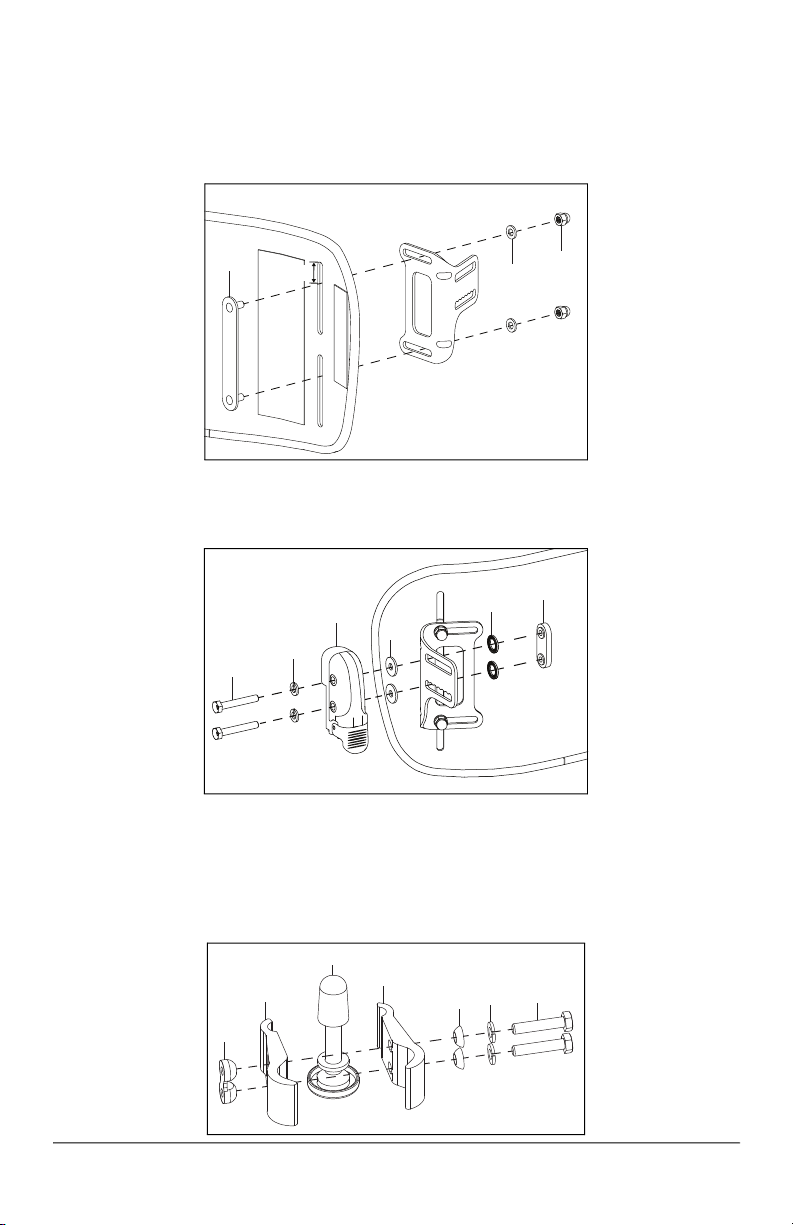

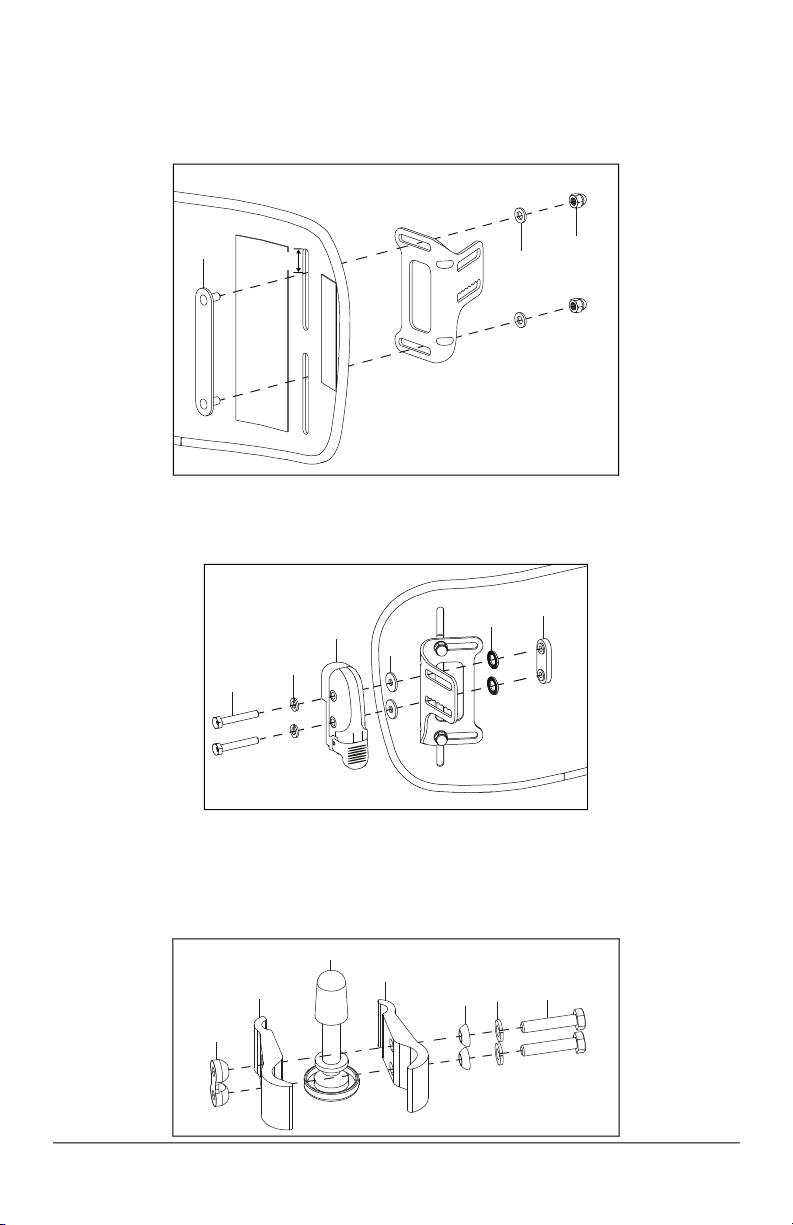

1. Remove backrest shell from cover. Install backrest bracket to shell with stud plate (Fig. 3:A), two
washers (Fig. 3:B) and two dome nuts (Fig. 3:C). Install so stud plate studs are 1” from the top of
each bracket slot. Loosely tighten hardware. Repeat on opposite side.
2. Install housing (Fig. 4:C) to bracket with two bolts (Fig. 4:A), two lock washers (Fig. 4:B), two
washers (Fig. 4:D), two spring discs (E) and a nut plate (Fig. 4:F). Loosely tighten hardware and
repeat on opposite side.
3. Install backrest mount clamp (Fig. 5:B) to mount plate (Fig. 5:C) using two lock washers (Fig.
5:E), two spherical washers (Fig. 5:D) and a dual nut (Fig. 5:A). Bolts should thread inwards from
the outside of the chair. Choose bolts, from the two sizes provided, that adequately thread
through dual nut without coming up short or sticking out excessively. Loosely tighten hardware.
Repeat with second set of backrest mount clamps.
A
B
C
1”
Fig. 3
CEF
B
A
D
Fig. 4
A
B
B
C
DEF
Fig. 5

7

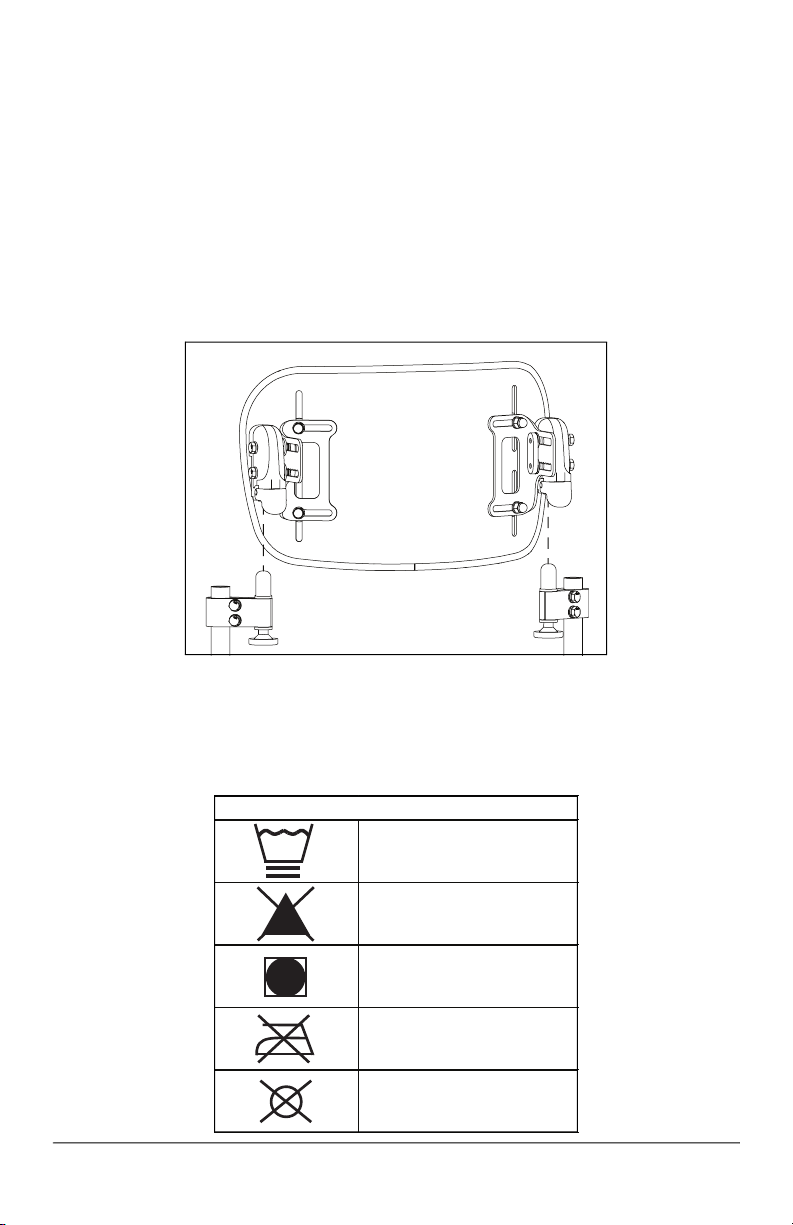

4. Install the backrest assembly onto the backrest mounts. See Fig. 6.
5. Visualize the user seated on the chair with a cushion and where the clamps will mount on the
backreset canes. Ensure there will be no interference with the backrest canes. The bottom edge
of backrest will typically fall between an 1" to 2" above the top of the cushion. Loosen the mount
clamps and install onto backrest canes. See Fig. 7.
6. Adjust backrest so it appears centered between the two back canes and both clamps are set at
the same height on both sides. Using a tape measure is recommended to ensure both sides are
set up equally.
7. Tighten all hardware enough so pieces are secured during travel or until user specific
adjustments are made later. Overtightening the back post clamp hardware may cause damage
to backrest canes.
8. Reinstall backrest cover. Remove and reinstall backrest multiple times to ensure alignment is
correct and all pieces are secured in place.
Fig. 6
1” - 2”
No interference at
clamp locations
No interference at
clamp locations
Fig. 7

8
Custom Adjustments
1. Adjust the height of the backrest, if needed, by loosening the two nuts (Fig.8:A) on the backrest
bracket. Slide shell up or down to achieve desired height and retighten hardware. Ensure both
sides are set the same.
2. The angle and the depth of the backrest are adjusted, if needed, at the same time. Loosen the
two bolts (Fig. 9:A) on the bracket and adjust the angle and depth of the backrest in one
movement. Retighten hardware once desired configuration is achieved.
3. Tighten all hardware to 110 in-lbs except the acorn nuts which are tightened to 80 in-lbs.
Overtightening the back post clamp hardware may cause damage to backrest canes.
4. With no user in chair, remove and reinstall backrest multiple times to ensure alignment is correct
and all pieces are secured in place.
WARNING: Failure to properly orient the Axiom Back and cover can affect your skin integrity
which can result in serious injury or death.
WARNING: Failure to properly select the Axiom Back and cover that can be retained in the
wheelchair can cause you to fall from your wheelchair, resulting in serious injury or death.
A
A
Fig. 8
A
Fig. 9

9
B. Pushing or Lifting
WARNING: Do not use the Axiom Back to lift or push the wheelchair.
1. Do not use the Axiom Back handle to lift the weight of the wheelchair. It is intended only for
Axiom Back removal.
2. Pushing or pulling is considered improper use of the Axiom Back and may cause the Axiom
Back to unexpectedly detach from the wheelchair. Failure to heed these warnings can cause
damage to your chair, or cause a fall, tip-over or loss of control may occur and cause severe
injury to the user or others.
C. Axiom Back Transit Safety
The Axiom Back has been tested according to the dynamic test requirements of ANSI/RESNA WC-
4:2012, Section 20: Wheelchair seating systems for use in motor vehicles or ISO 16840-4:2009
Wheelchair seating - Part 4: Seating systems for use in motor vehicles. A complete system of
wheelchair frame, seating, wheelchair tie-down and occupant restraint systems and a properly
equipped motor vehicle, that have all complied with the standards mentioned in this section, should
be in place before using an Axiom Back in a wheelchair that is used as a seat in a motor vehicle.
WARNING: Failure to follow all instructions for installation, use and maintenance within this
manual as well as the transit instructions listed below, could result in serious injury or death
when using the Axiom Back in a wheelchair that is used as a seat in a motor vehicle.
1. If possible and feasible, the rider should transfer to the Original Equipment Manufacturer vehicle
seat and use the vehicle restraints.
2. The distance between the top of the user’s shoulder and the top of the Axiom Back should not
exceed 5.5" (14 cm).
3. The wheelchair must be labeled as appropriate for use as a seat in a motor vehicle, dynamically
tested to the performance requirements of ISO Standard 7176-19 and installed, used and
maintained according to the manufacturer’s instructions.
4. If the original wheelchair seat was replaced, the new seat must be approved for wheelchair
transit, installed and used as indicated in the manufacturer’s instructions.
5. When using your wheelchair as a seat in a motor vehicle the rider must be in a forward-facing
position.
6. The rider must use a Wheelchair Tie-down and Occupant Restraint System that complies with
ANSI-RESNA WC-4:2012, Section 18: Wheelchair tie-down and occupant restraint systems for
use in motor vehicles or ISO 10542-1:2012 Technical systems and aids for disabled or
handicapped persons -- Wheelchair tie-down and occupant-restraint systems -- Part 1:
Requirements and test methods for all systems and installed, used and maintained according to
the manufacturer’s instructions.
7. Use of lap belts, chest straps, shoulder harnesses, any other positioning strap system or
positioning accessory should not be used, or relied on as an occupant restraint, unless it is
marked as such by the manufacturer in accordance with ANSI-RESNA WC-4:2012, Section 18
or ISO 10542-1:2012, Part 1.
8. Use of headrests, lateral supports or other positioning accessories should not be relied on as an
occupant restraint, unless it is marked as such by the manufacturer in accordance with RESNA
WC-4:2012, Section 18 or ISO 10542-1:2012, Part 1 or ANSI/RESNA WC-4:2012, Section 20:
Wheelchair seating systems for use in motor vehicles or ISO 16840-4:2009 Wheelchair seating -
-Part 4: Seating systems for use in motor vehicles.

10
9. Aftermarket accessories such as trays, oxygen tank holders, oxygen tanks, IV poles, backpacks,
pouches and other items should be removed and secured separately in the motor vehicle. In the
event of an accident, these items can become dangerous projectiles which may result in serious
injury or death for you or other occupants of the motor vehicle.
10. This product is intended for use by adults ranging in weight from 79 to 300 lbs (36 to 136 kg).
11. If the Axiom Back has been involved in an accident, you should not continue to use it, as it may
have suffered fatigue that may not be visible.
D. Maintenance
Regular cleaning and maintenance may help extend the life of your Axiom Back. You should inspect
your Axiom Back monthly. During cleaning, component inspection is recommended.
1. Check Cover for Tears and Excessive Wear
a. Remove cover and check for abnormalities (inside and out).
b. Check the foam for breakdown or degradation.
2. Check the hardware for any looseness, signs of stripping, degradation or deformities.
WARNING: If you find any abnormalities, such as the foam breaking down or damage to the
hardware or fasteners, discontinue the use of this product immediately and consult with your
Authorized Ki Mobility Supplier. Failure to do so can affect your skin integrity, resulting in serious
injury or death.
WARNING: The owner of this equipment is responsible for making sure that it has been set up
and adjusted by an Authorized Ki Mobility Supplier under the direction of a healthcare
professional. It may require periodic safety and function checks or certain in-use adjustments
that can be performed by the user, caregiver or Authorized Ki Mobility Supplier.
1. Fasteners: Ki Mobility recommends that all fasteners be inspected for proper function, such as
loose bolts or broken components every six months. Loose fasteners should be retightened
according to the installation instructions.
2. Replacing Components: Contact your Authorized Ki Mobility Supplier immediately to replace any
components. Discontinue use of the system after identifying loose or broken components.

11
E. Cleaning
1. Axiom Back Cover
a. Remove the cover from Axiom Back by detaching the Velcro®. Unzip the zipper on the
bottom of the cover.
b. Slightly roll and remove the foam to turn the cover inside out.
c. Zip the cover closed to avoid snagging.
d. Machine wash in warm water (40°C).
e. Drip and tumble dry on No Heat.
NOTE: Do not dry clean covers or use industrial washers or dryer to clean covers. Do not steam
autoclave. Do not bleach. Laundry care symbol definitions are shown in Fig. 11.
2. Axiom Back Assembly
a. Remove the whole back assembly to make cleaning easier. See Fig. 10.
b. The Axiom Back Shell should be wiped clean with soap and water on a regular basis to
prevent buildup of dirt and grime.
3. Positioning Components
a. Positioning components can be wiped clean with soap and water.
b. DO NOT immerse positioning components underwater.
Fig. 10
40
Do Not Dry Clean
Care & Use Instrucons
Machine Wash, Hot
Do Not Bleach
Tumble Dry, Normal, No Heat
Do Not Iron
Fig. 11

12
F. Reassembling Your Axiom Back After Cleaning
1. After Cleaning
a. Reinstall foam and cover. Slightly roll the foam when installing cover.
2. Back Assembly Reinstallation
a. To reattach the Axiom Back and hardware receivers, line up the pins to the receivers.
b. Push the Axiom Back into place on the receivers.
b. If properly inserted, the pins will "click" into a locked position.
WARNING: If you are uncertain that you have heard the locking "click", pull up on the Axiom
Back using the handle to test and ensure it has been securely locked. If you fail to heed this
warning, damage to your equipment, a fall, or loss of control may occur and cause severe injury
to the rider or others.
Fig. 12

13
KI MOBILITY LIMITED WARRANTY
A. For 24 Months
Ki Mobility warrants the Axiom Back to be free from defects in materials and workmanship for a
period of 24 months. This limited warranty applies to:
1. Axiom Back shell and foam
For a period of 24 months (2 years) from the date of purchase, provided normal use, should a defect
in materials or workmanship occur, Ki Mobility will, at its option, repair or replace it without charge.
This warranty does not apply to punctures, tears, or burns.
B. For 6 Months
Ki Mobility warrants the cushion to be free from defects in materials and workmanship for a period of
6 months. This limited warranty applies to:
1. Removable covers
For a period of 6 months from the date of purchase, provided normal use, should a defect in
materials or workmanship occur, Ki Mobility will, at its option, repair or replace it without charge. This
warranty does not apply to punctures, tears or burns.
C. Limitations
1. We do not warrant:
a. Damage from neglect, accident, misuse, or from improper installation or repair.
b. Products modified without Ki Mobility’s express written consent.
c. Damage from exceeding the weight limit.
2. This warranty is VOID if the original Axiom Back tag is removed or altered.
3. This warranty applies in the USA only. Check with your supplier to find out if international
warranties apply.
4. This warranty is not transferable and only applies to the first consumer purchase of this product
through an authorized Ki Mobility supplier.
D. What We Will Do
Our sole liability is to repair or replace covered parts. This is the exclusive remedy for consequential
damages.
E. What You Must Do
1. Obtain from us, while this warranty is in effect, prior approval for return or repair of covered parts.
2. Claims and repairs should be processed through the nearest authorized supplier. Except for
express warranties made herein, all other warranties, including implied warranties of
merchantability and warranties of fitness for a particular purpose are excluded.
F. Notice to Consumer
1. If allowed by law, this warranty is in place of any other warranty (written or oral, express or
implied, including a warranty of merchantability, or fitness for a particular purpose).
2. This warranty gives you certain legal rights. You may also have other rights that vary from state to
state.

15
Espaldar Axiom
INFORMACIÓN IMPORTANTE PARA EL USUARIO
NOTA: Este manual contiene instrucciones para el uso de productos Dorsales Ki Mobility. Esta
información debe ser entregada al usuario de este producto. No retire este manual antes de
enviar este producto al usuario.
Proveedor: Este manual debe ser entregado al usuario de este producto.
Usuario: Lea este manual en su totalidad antes de utilizar este producto y consérvelo a mano para
futuras referencias.
NOTA: Revise todas las partes por daños durante el envío. En caso de existir daños, NO
UTILICE el producto. Contacte al proveedor o a Ki Mobility por instrucciones.
Características del Espaldar Axiom
Funda Base de Gomaespuma Armazón
Bajo Medio Alto
Posterior Posterior Lateral / Lateral Lateral Profundo
Fig. 1

16
A. Seleccione el Producto de Sedestación Apropiado
Ki Mobility le recomienda consultar con un profesional clínico (médico o terapeuta) entrenado en
sedestación en sillas de ruedas y posicionamiento, antes de seleccionar cualquier asiento o
producto de posicionamento. Esto ayudará a que usted reciba el producto correcto para sus
necesidades específicas. Los productos de Sedestación y Posicionamento Axiom deberían ser
instalados solamente por un proveedor autorizado de Ki Mobility.
B. Conozca este Manual
Antes de utilizar el Espaldar Axiom, usted y toda persona que lo asista debería leer este manual en
su totalidad y seguir todas las instrucciones. Revise las Advertencias a menudo, hasta que se
familiarice con ellas.
C. Advertencias
La palabra "ADVERTENCIA" indica un peligro o práctica insegura que podría causar lesiones
severas a usted u otras personas.
D. Revise su Piel a Diario
Los productos de Sedestación y Posicionamento Axiom están diseñados para mejorar la
distribución de la presión y aumentar la tolerancia a la sedestación. Sin embargo, no es posible
asegurar de antemano que el Espaldar Axiom cubra sus necesidades individuales. Su integridad y la
de su piel pueden verse afectadas por diversos aspectos de su vida diaria y condición médica,
incluyendo el uso de este producto. Asegúrese de seguir todo régimen para el cuidado de la piel
indicado por su médico clínico.
1. Los usuarios de este producto hacen revisar su piel a diario. Si ve cambios, discontinue el uso
de este producto inmediatamente y consulte con su médico. Un indicador clave de lesión de la
piel es la coloración rojiza. Si su piel se torna rojiza, discontinue el uso de este producto
inmediatamente y consulte a su médico.
ADVERTENCIA: El no seleccionar el Espaldar Axiom que se ajuste a su silla de ruedas puede
afectar la integridad de su piel, resultando en lesiones severas o muerte.
ADVERTENCIA: El no realizar una inspección apropiada de la piel o continuar utilizando un
Espaldar Axiom luego de verificar la presencia de cambios, puede afectar la integridad de su
piel, resultando en daños severos o muerte.
E. Advertencias Generales
ADVERTENCIA: No utilice o instale este Espaldar Axiom sin antes leer y entender este manual.
Por favor contacte a su proveedor autorizado de Ki Mobility o médico si no puede entender las
Advertencias e Instrucciones. El no hacer esto podría causar lesiones severas o muerte.
ADVERTENCIA: La instalación de un Espaldar Axiom en una silla de ruedas podría afectar su
centro de gravedad afectando su estabilidad, lo que podría resultar en lesiones severas.
Siempre revise las instrucciones de uso de su silla para verificar los cambios necesarios para
proveer suficiente estabilidad, luego de agregar un Espaldar Axiom.
ADVERTENCIA: La integridad de su piel puede ser afectada por varios aspectos de su vida
diaria o condición médica, incluyendo el uso de este producto. Siga todas las indicaciones de
su médico. Haga revisar su piel a diario para verificar cambios. El no hacerlo podría resultar en
lesiones severas o muerte.

17
F. Proteger su Espaldar Axiom
Evite exposición prolongada a condiciones ambientales adversas. Esto incluye exposición a los
rayos solares y temperaturas altas o bajas, que podrían resultar en la degradación del desempeño
de su Espaldar Axiom.
ADVERTENCIA: El no proteger su Espaldar Axiom podría ocasionar cambios que pueden
afectar la integridad de su piel, resultando en lesiones severas o muerte.
Si bien su Espaldar Axiom ha sido fabricado de acuerdo con los estándares de inflamabilidad
indicados en su etiqueta, evite exponerlo a las llamas o fuentes de calor excesivo, como cigarrillos.
Esto podría incendiar su cojín o emitir gases dañinos.
ADVERTENCIA: El no proteger su Espaldar Axiom del calor extreme podría hacer que se
incendie o emita gases dañinos, resultando en lesiones severas o muerte.
G. Orientación de la Funda
Su Espaldar Axiom fue diseñado para ser colocado con una orientación específica y debe ser
colocado apropiadamente en su silla de ruedas, con su funda orientada correctamente sobre la
base de foam, lo cual está indicado en su etiqueta. Ver Fig. 2.
ADVERTENCIA: El no orientar correctamente el cojín y funa del Espaldar Axiom, puede afectar
la integridad de su piel, resultando en lesiones severas o muerte.
Correa
superior
superpuesta
a la inferior.
Correa de
mano en el
extremo
superior de la
funda.
Pestañas en
extremo
inferior de la
funda
Cierre en
extremo
inferior de
la funa.
Fig. 2

18
Seteo, Ajustes y Cuidados
A. Ajustar su Espaldar Axiom y Silla de Ruedas
ADVERTENCIA: El usuario de este equipo es responsable de asegurar que ha sido seteado y
ajustado por un Agente Autorizado, en base a indicaciones de un profesional clínico. El Espaldar
Axiom y el hardware pueden requerir verificaciones periódicas de seguridad y funcionamiento.
Los ajustes deberían ser realizados por un Agente Autorizado. Siempre utilice partes y/o
accesorios recomendados o aprobados por Ki Mobility.
TABLA 1 TABLA 2
Ancho de
Espaldar
Axiom
(todos los
contours)
Ancho de tubos posteriores, medido
desde parte externa a parte externa de
los tubos (A)
Ancho de
Espaldar
Axiom
(todos los
contours)
Diámetro de Tubo (B)
Ancho Mínimo Ancho Máximo
Ancho
Mínimo
Ancho
Máximo
Pda. Cm Pda. Cm Pda. Cm Pda. Cm
12" 12 30.5 14 35.6 12" - 26" 3/4 1.9 1 1/8 2.85
14" 14 35.6 16 40.6
16" 16 40.6 18 45.7
18" 18 45.7 20 50.8
20" 20 50.8 22 55.9
22" 22 55.9 24 61.0
B
A
A
35mm (Utilizado para tubos posteriores de 1” y 1-1/8”)
30mm (Utilizado para tubos posteriores de 3/4” y 7/8”)
NOTA: Dos sets
de ajustadores
para las abraza-
deras de montaje
del espaldar.

19
Seteo General
NOTA: Si la orden incluye instalación en la silla, saltear el Paso 4.
1. Retire el armazón del espaldar de su fonda. Instale el soporte del espaldar a la carcasa con el
tornillo (Fig. 3:A), dos arandelas (Fig. 3:B) y dos tuercas domo (Fig. 3:C). Instale para que los
tornillos queden a 1" del extremo superior de cada ranura del soporte. Ajuste levemente el
hardware. Repita en el lateral opuesto.
2. Instale la carcasa (Fig. 4:C) al espaldar con dos tornillos (Fig. 4:A), dos arandelas de bloqueo,
dos arandelas (Fig. 4:D), dos discos de resortes (Fig. 4:E) y una tuerca (Fig. 4:F). Ajuste el
hardware levemente y repita en el lateral opuesto.
3. Instale las abrazaderas de montaje del espaldar (Fig. 5:B) a la placa de montaje (Fig. 5:C)
utilizando dos arandelas de bloqueo (Fig. 5:E), dos arandelas esféricas (Fig. 5:D) y una tuerca
dual (Fig. 5:A). Los tornillos deberían insertarse desde el exterior de la silla. Escoja los tornillos,
entre las dos medidas provistas, que pasen adecuadamente a través de la tuerca dual sin
quedar demasiado cortos o demasiado largos. Ajuste el hardware levemente. Repita con el
segundo set de abrazaderas de montaje del espaldar.
A
B
C
1”
Fig. 3
CEF
B
A
D
Fig. 4
A
B
B
C
DEF
Fig. 5
