KIAM Sherwood H60 User manual

Kiam
Power Products
Kiam Sherwood H60
Petrol Hedge Trimmer
Instructions Manual
Read instructions manual before use!
Equipmart Ltd
Kiam House
Birchill Road
Knowsley Ind. Park North
Merseyside
L33 7TD
United Kingdom
T: 0044 151 548 5500
F: 0044 151 548 5599
© Equipmart Ltd
www.kiamproducts.co.uk

SAFETY FIRST
WARNINGS IN THE MANUAL
WARNING
IMPORTANT
NOTE
1
Contents
Instructions will contain warnings within this manual, they will be marked with a symbol concern-
ing critical points which must be taken into consideration to prevent any possible serious bodily
injury. You are requested to read all such instructions carefully and follow them without fail.
This mark indicates instructions which must be followed in order to prevent accidents that could lead to serious
bodily injury or death.
This mark indicates instructions which must be followed to prevent any mechanical failures, breakdowns and/or
damage.
This mark indicates hints or directions that are useful in the use of this machine.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Parts location ............................................................................
Specifications ...........................................................................
Warning labels on the machine ................................................
Symbols on the machine ..........................................................
For safe operation .....................................................................
Fuel ...........................................................................................
Operation ..................................................................................
Maintenance .............................................................................
Storage .....................................................................................
Disposal ....................................................................................
Troubleshooting guide ..............................................................
Spare parts ...............................................................................
Warranty ...................................................................................
2
2
3
3
4
7
8
10
12
12
13
13
14

Dry weight............................................................................................................ 4.7 kg
Spark plug ............................................................................................... LD BM6A
Model .............................................................................................................1E32F
Blade length (from the tip of Gear Case).......................................................... 600 mm
Model ...................................................................................................................... H60
19. Locking lever
1. Parts location
1. Front handle
2. Rear handle
3. Stop switch
4. Throttle trigger
5. Safety lock
6. Blades
7. Blade guard
Type ................................................................................................ Double-action type
Engine
Displacement ........................................................................................... 22.5 cm3
Carburetor .................................................................................... Diaphragm type
Ignition system ..................................................... I.C.controlled flywheel magneto
Fuel ................................................................................... Mixture (Petrol 40 : Oil 1)
Fuel tank capacity ................................................................................................. 0.6 L
Starter ...................................................................................................... Recoil starter
Clutch .................................................................................................. Centrifugal type
Specifications are subject to change without notice.
2. Specification
8. Gear case
9. Starter knob
10. Fuel tank
11. Fuel cap
12. Choke lever
13. Air cleaner cover
14. Spark plug cap
15. Blade cover
16. Operator’s manual
17. Socket
18. Allen key
19
2

G
B
3. Warning labels on the machine
If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
Never modify your machine.
We won’t warrant the machine if you use the
remodeled hedge trimmer or if you don’t ob-
serve
the proper usage written in the manual.
(1)Read owner's manual before operat-
ing this machine.
(2)Wear head, eye and ear protection.
(3)Handling this machine improperly
could result in accidents causing se-
rious injury or death. Read this
manual carefully and practice using
the hedge-trimmer until you are fully
acquainted with all operations and
have learned to use it correctly.
(4)This is extremely sharp and can eas-
ily cause cuts.

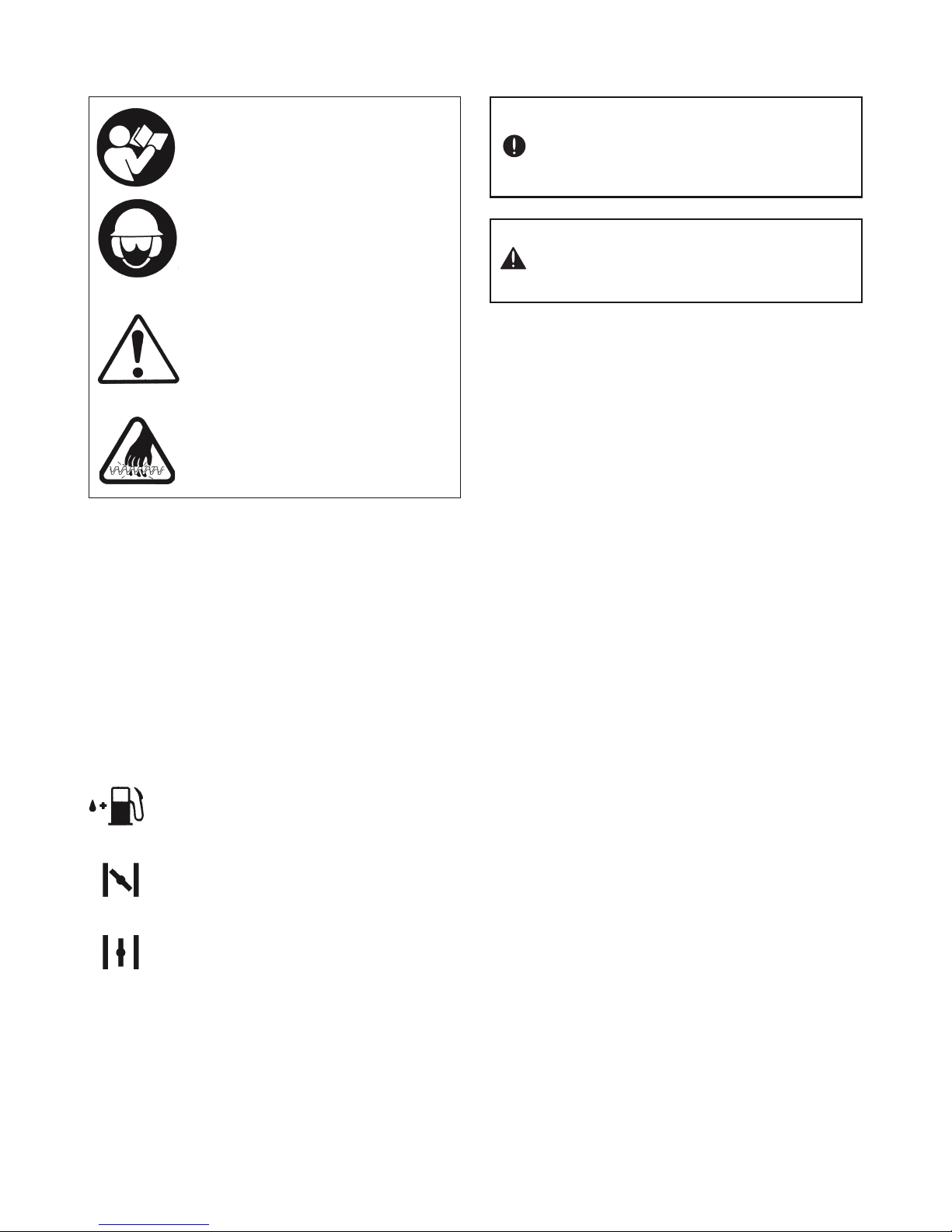

4. Symbols on the machine
For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications,
please be careful not to make a mistake.
The opening to refuel the “PETROL MIX”
Position: FUEL TANK CAP
The position to close the choke
Position: AIR FILTER COVER
The position to open the choke
Position: AIR FILTER COVER
3

gases contain dangerous carbon
monoxide.
2. Never use the product,
a. when the ground is slippery
or when you can’t maintain a
steady posture.
b. At night, at times of heavy fog,
or at any other times when
your field of vision might be
limited and it would be diffi-
cult to gain a clear view of the
working area.
c. During rain, during storms at
times of strong or gale-force
winds, or at any other times
when weather conditions
might make it unsafe to use
the product.
WORKING PLAN
1. You should never use the prod-
uct when under the influence of
alcohol, when suffering from ex-
haustion or lack of sleep, when
suffering from drowsiness as a re-
sult of having taken cold medicine
or at any other time when a pos-
sibility exists that your judgment
might be impaired or that you
might not be able to operate the
product properly and in a safe
manner.
2. When planning your work sched-
ule, allow plenty of time to rest.
Limit the amount of time over
which the product is to be used
continuously to somewhere
around 30 ~ 40 minutes per ses-
sion, and take 10 ~ 20 minutes of
rest between work sessions. Also
try to keep the total amount of
work performed in a single day
under 2 hours or less.
WARNING
1. If you don’t observe the working
time, or working manner (See
“USING THE PRODUCT”), Re-
petitive Stress Injury (RSI) could
occur.
If you feel discomfort, redness and
swelling of your fingers or any
other part of your body, see a doc-
tor before getting worse.
2. To avoid noise complaints, in gen-
eral, operate product between
8 a.m. and 5 p.m. on weekdays
and 9 a.m. to 5 p.m. on weekends.
1. THIS MACHINE CAN CAUSE
SERIOUS INJURIES. Read this
manual carefully until you com-
pletely understand and follow all
safety and operating instruc-
tions. Also, know how to stop the
machine quickly in an emer-
gency.
2. Keep this manual handy so that
you may refer to it later when-
ever any questions arise. Also
note, if you have any questions
which cannot be answered
herein, contact the dealer from
whom you purchased the prod-
uct.
3. Always be sure to include this
manual when selling, lending, or
otherwise transferring the own-
ership of this product.
4. Never allow children or anyone
unable to fully understand the
directions given in the manual
to use the machine.

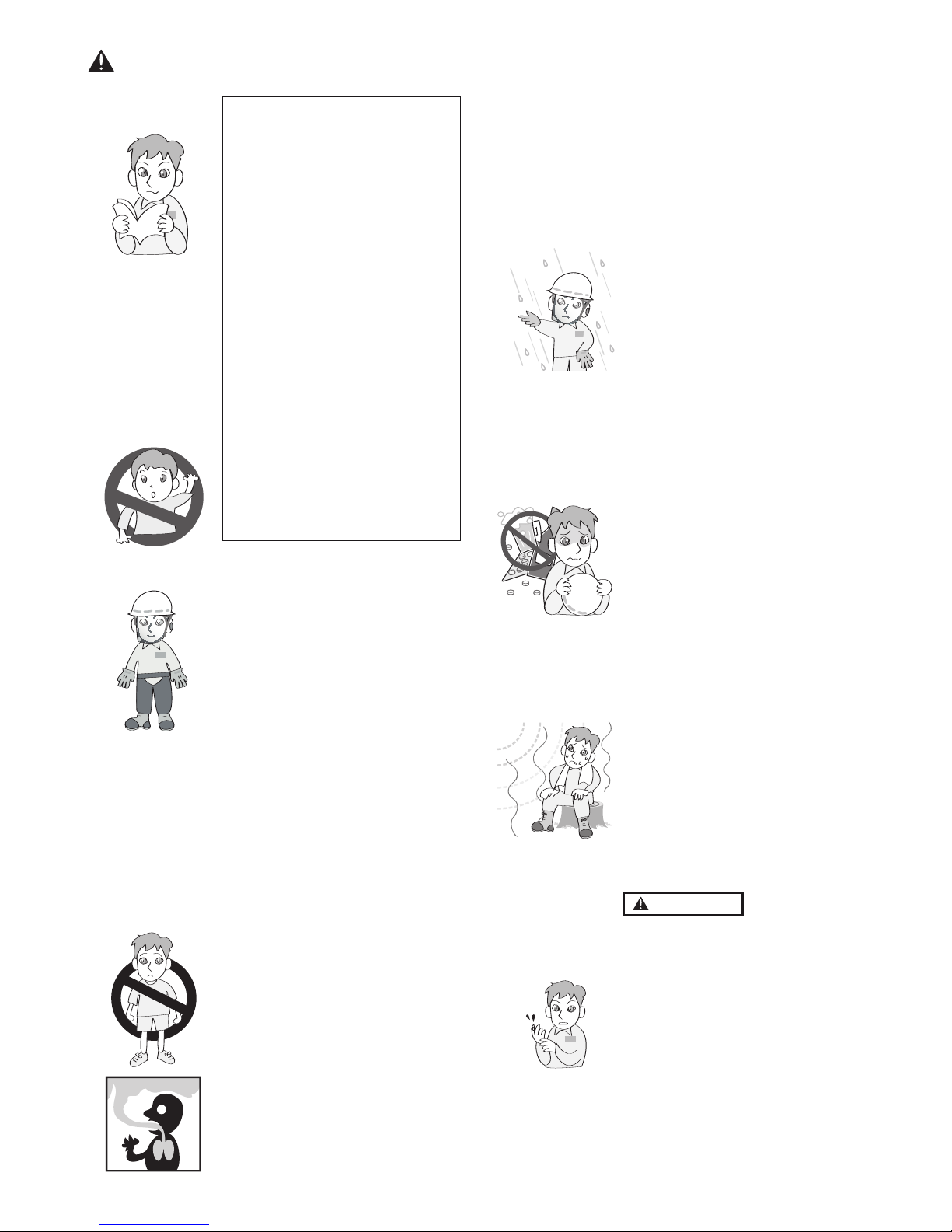

WORKING CONDITION
1. When using the product, you
should wear proper clothing and
(1) Helmet
(2) Ear protectors
(3) Protection goggles or face
protector
(4) Thick work gloves
(5) Non-slip-sole work boots
2. And you should carry with you.
(1) Attached tools
(2) Properly reserved fuel
(3) Spare blade
(4)Things to notify your working
area (rope, warning signs)
(5) Whistle (for collaboration or
emergency)
(6) Hatchet or saw (for removal of
obstacles)
(7) First-aid kit
3. Do not wear loose clothing, jew-
elry, short trousers, sandals, or go
barefoot. Do not wear anything
which might be caught by a mov-
ing part of the unit. Secure hair
so it is above shoulder length.
WORKING CIRCUMSTANCE
1. Never start the engine inside a
closed room or building. Exhaust
5. For safe operation
4
