Kiepe Elektrik JMNC User manual

Device Identification No.: 93.045 365.001/.002/.003
OPERATING INSTRUCTIONS
Electronic Rotational Speed Monitoring Device
Type JMNC

2
JMNC Operating Instructions
CE-Sign and Conformity
The device meets the requirements of the valid Europe-
an and national regulations.
Conformity has been proved and the corresponding dec-
larations and documents are deposited at the manufac-
turer.

3
JMNC Operating Instructions
Table of Contents
Table of Contents
1 For your own Safety........................................................................................6
1.1 Intended Application...................................................................................................................6
1.2 Symbols......................................................................................................................................6
2 Transport, Packing, Storage, and Disposal..................................................7
2.1 Transport and Packing ...............................................................................................................7
2.2 Storage.......................................................................................................................................7
2.3 Disposal......................................................................................................................................7
3 Design and Function.......................................................................................8
3.1 Design ........................................................................................................................................8
3.2 Function Principle of the JMNC................................................................................................10
3.2.1 General.....................................................................................................................................10
3.2.2 Run-up Bridging .......................................................................................................................10
3.2.3 Underspeed Monitoring/Switching Function (with run-up bridging)..........................................11
3.2.4 Overspeed Monitoring (without Run-up Bridging) ....................................................................12

4
JMNC Operating Instructions
Table of Contents
4 Technical Data .............................................................................................. 13
4.1 Safety Regulations .................................................................................................................. 13
4.2 Supply Voltage ........................................................................................................................ 13
4.3 Reference Data ....................................................................................................................... 13
4.4 Input Data ................................................................................................................................ 14
4.5 Output Data ............................................................................................................................. 14
4.6 Environment ............................................................................................................................ 15
4.7 Design ..................................................................................................................................... 15
4.8 JMNC Dimensions................................................................................................................... 16
4.9 Built-in Dimensions ISO Housing ............................................................................................ 17
5 Mounting and Dismounting ......................................................................... 18
5.1 Scope of Delivery .................................................................................................................... 18
5.2 Mounting.................................................................................................................................. 18
5.3 Electrical Connection............................................................................................................... 20
5.3.1 Connection Assignment........................................................................................................... 21
5.3.2 Connection Samples ............................................................................................................... 22
5.4 Dismounting the Rotational Speed Monitoring Device ............................................................ 24

5
JMNC Operating Instructions
Table of Contents
6 Setting the Rotational Speed Monitoring Device JMNC............................25
6.1 Before Setting the Device.........................................................................................................25
6.2 Setting the Underspeed with Run-up Bridging .........................................................................26
6.2.1 Basic Settings...........................................................................................................................26
6.2.2 Setting the Run-up Bridging Period (Start-up delay) ................................................................26
6.2.3 Setting the Switch Point for Underspeed Monitoring................................................................28
6.2.4 Underspeed Monitoring, Increasing the Switch Point Delay ....................................................31
6.3 Setting the Overspeed Monitoring (without Run-up Bridging) ..................................................31
6.3.1 Basic Setting ............................................................................................................................31
6.3.2 Setting the Switch Point for Overspeed....................................................................................33
7 Maintenance and Repair...............................................................................35
8 Ordering Devices ..........................................................................................35

6
JMNC Operating Instructions
1 For your own Safety
1 For your own Safety
1.1 Intended Application
The electronic rotational speed monitoring device JMNC
is applied together with a pulse indicator for monitoring
the rotational speed of drives.
The device is intended for use in stationary installations
and in vehicles.
Applications other than specified and unauthorised mod-
ifications to the device or its components may lead to in-
jury to persons and damage to the device for which the
manufacturer is not liable.
Make sure that the intended use is not impaired in any
way, even after unexpected outside influence on the de-
vice.
"Intended Application" particularly means that any work
performed with the device or on the device must be car-
ried out in accordance with the present operating in-
structions. Only qualified personnel that are familiar with
the regulations for the prevention of accidents as well as
the standard safety rules are allowed to work on the de-
vice.
Observing the intended application protects your-
self and prevents damage to the device!
1.2 Symbols
Please pay particular attention to the text passages that
are marked by the following symbols:
Danger!
Information that must be observed under all
circumstances in order to prevent the opera-
tor from being injured.
Attention!
Information that must be observed in order
to prevent damage to the device.
Helpful additional information.

7
JMNC Operating Instructions
2 Transport, Packing, Storage, and Disposal
2 Transport, Packing, Storage, and Disposal
2.1 Transport and Packing
Choose a suitable packing in order to prevent damage
to the device during transport or when sending devices
or components to Vossloh Kiepe GmbH for repair. Take
great care that the device is protected against shocks
and humidity. Thus, damage due to transport is prevent-
ed, for which the manufacturer is not liable.
2.2 Storage
Avoid significant variations in temperature that may
cause the formation of condensation water, as this might
damage the device.
The permissible storage temperature is between -35°C
to +80°C.
Attention!
Keep the device clean and dry.
2.3 Disposal
If possible, reuse the packing material or dispose of it in
an environmentally friendly way.
Send defective devices and components to Vossloh
Kiepe GmbH for correct recycling or disposal (company
address see back cover).

8
JMNC Operating Instructions
3 Design and Function
3 Design and Function
The electronic rotational speed monitoring device JMNC
is applied together with a pulse indicator for monitoring
and controlling drives. The pulses of the indicator are
analysed by the speed monitoring device which signals
the overspeeding or underspeeding of a nominal rota-
tional speed.
3.1 Design
The electronic rotational speed monitoring device JMNC
is equipped into a solid plastic housing (8), which can be
mounted onto an operating panel by means of screws.
All indicating and operating elements are assigned to
the front side of the device (s. fig. 3-1).
Potentiometer start-up delay (1), "run-up bridging"
This potentiometer serves to set the duration of the run-
up bridging in between 0 and approx. 45 seconds.
Pulse selection switch (2)
Fig. 3-1: Operating elements of the monitoring device
Start-up delay (1)
(run-up bridging)
Pulse selection switch (2)
Fine (3)
(Fine setting of the nominal value)
Coarse (6)
(Nominal value setting)
Set button (7)
LED orange (4)
(Input supervision)
LED green (5)
(Switching status indication)

9
JMNC Operating Instructions
3 Design and Function
Set the required range of pulses by means of this
switch.
Fine (3), fine setting of the nominal value
The setting of the nominal value can be readjusted by
± 10%. Thereby, the switching point of the output relay
can be changed about 10% of the set rotational speed.
LED orange (4), input supervision
This light-emitting diode flashes with the cycle of the in-
dicator pulses. When the pulses increase 1500/minute,
the diode lights continually.
LED green (5), switching status of the relay
By means of this light-emitting diode the switching status
of the rotational speed monitoring device can be
checked.
Coarse (6), nominal value setting
By means of this potentiometer the rotational speed
monitoring devices can be aligned to the operating
speed of the drive.
Set button (7)
By pressing the red button the output relay (16) can be
controlled directly and will not drop during the setting.
Switch position / Range of pulses
I8 to 120 pulses/minute
II 80 to 1200 pulses/minute
III 800 to 12000 pulses/minute
LED status, orange
Flashing: Pulses of the rotational speed indicator
are applied.
Permanently: Number of pulses > 1500/minute
Off: Malfunction (e. g. pulse indicator or con-
nection line defective).
LED status, green
On: output relay (16) attracted
Off: output relay (16) dropped

10
JMNC Operating Instructions
3 Design and Function
3.2 Function Principle of the JMNC
3.2.1 General
In connection with a rotational speed indicator, the rota-
tional speed monitoring device JMNC is used to monitor
drives for underspeed, standstill, or overspeed.
The pulses of the rotational speed indicator are ana-
lysed by the monitoring device, which signals the under-
speeding or overspeeding of a set nominal rotational
speed.
The indicator input (17) (terminals 1/2) of the rotational
speed monitoring device is designed for rotational speed
indicators complying with the npn and Namur regula-
tions. The indicator input (17) can be monitored by
means of the light-emitting diode LED orange (4).
Any number of monitoring devices JMNC can be con-
nected to one pulse indicator.
The output relay (16) of the rotational speed monitoring
device is a change-over contact. The current switching
status of the relay is indicated by the light-emitting diode
LED green (5).
In addition, the rotational speed monitoring device JMNC is
provided with a pulse output to connect common digital ro-
tational speed counters (see section 5.3.1, Connection As-
signment).
3.2.2 Run-up Bridging
In order to start up the plant, the rotational speed moni-
toring device JMNC is provided with the feature run-up
bridging.
By means of the potentiometer start-up delay (1) the pe-
riod of the run-up bridging can be set in between 0 and
45 seconds. During this time, the output relay (16) re-
mains attracted, and the plant can be started.
Type Number/switch-over contact
JMNC 1 x change-over contact (open contact/closed
contact)

11
JMNC Operating Instructions
3 Design and Function

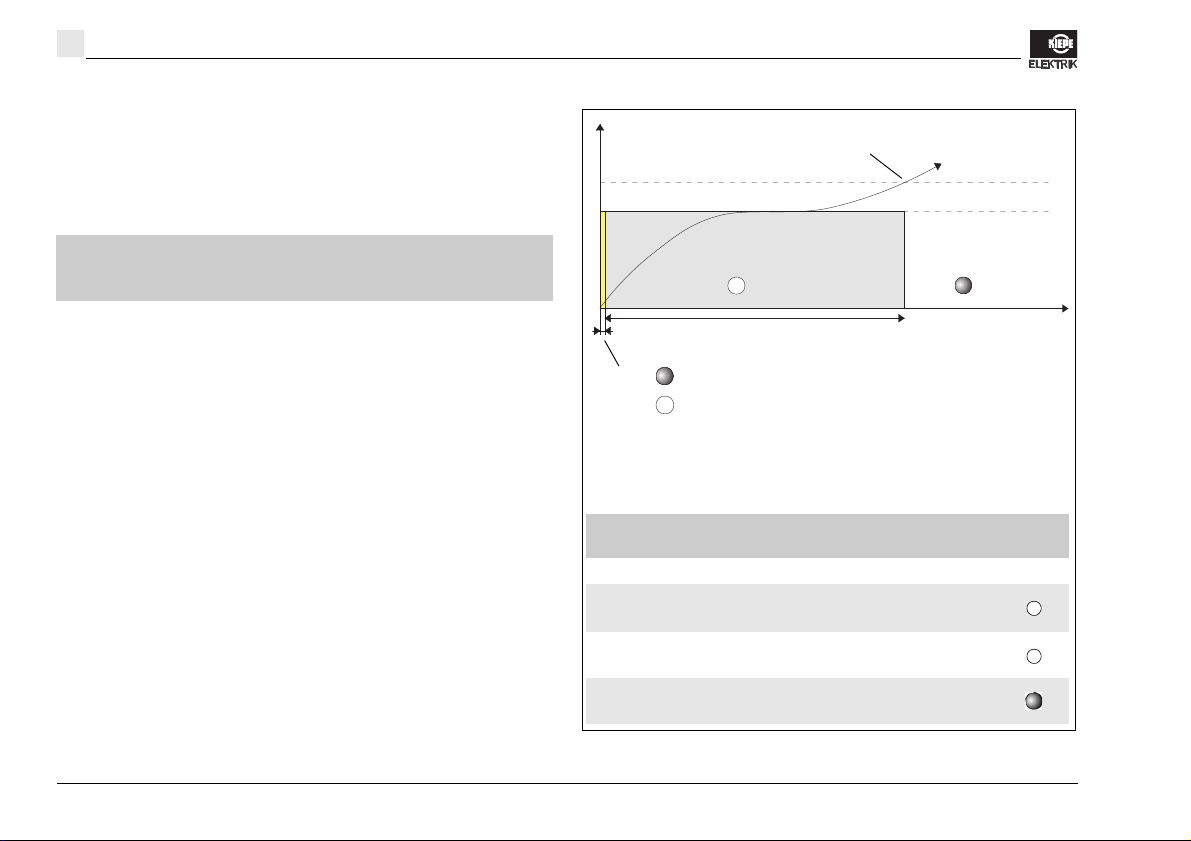

3.2.3 Underspeed Monitoring/Switching Function
(with run-up bridging)
During the set run-up bridging period the output relay (16)
is attracted (see also fig. 5-4).
After expiration of the run-up bridging period, and when
the drive operates with a constant rotational speed, the
output relay (16) remains attracted and the green LED (5)
lights. The orange LED (4) flashes in the cycle of the in-
coming pulses.
Underspeeding of the nominal rotational speed
If the set rotational speed is not reached, the output relay
(16) drops and the green LED (5) extinguishes (see also
fig. 5-4).
Rotational speed
monitoring
device
the following relay contacts are
closed
JMNC 8 and 10
Rotational speed
monitoring
device
the following relay contacts are
closed
JMNC 9 and 10
J
Switched speed
II
V
III
Standard operation
Run-up Malfunction
I
IV
green LED (5) on: output relay (16) attracted
green LED (5) off: output relay (16) dropped
Item Description Contact closed green
LED
JMNC
Irelay triggering time,
t = 200 ms 9 -10
II without run-up
bridging 9 -10
III with run-up bridging 8 -10
IV number of pulses
above nominal val-
ue
8 -10
Vnumber of pulses
below nominal value 9 -10
pulses/min. Rotational speed
of the drive Operating speed
Fig. 3-2: Time table for underspeed counter

12
JMNC Operating Instructions
3 Design and Function
3.2.4 Overspeed Monitoring (without Run-up
Bridging)
When overspeeding the set rotational speed the output
relay is attracted and the green LED (5) lights
(see also fig. 5-5)
Rotational speed
monitoring
device
the following relay contacts are
closed
JMNC 8 and 10 J
Operating speed
Switched speed
rotational speed
of the drive
II III
pulses/min.
Standard operation Malfunction
I green LED (5) on: output relay (16) attracted
green LED (5) off: output relay (16) dropped
Item Description Contact closed green
LED
JMNC
Irelay triggering time
t = 200 ms 9 -10
II number of pulses
below nominal value 9 -10
III
number of pulses
above nominal value
8 -10
Fig. 3-3: Time table for overspeed counter

13
JMNC Operating Instructions
4 Technical Data
4 Technical Data
4.1 Safety Regulations
4.2 Supply Voltage
4.3 Reference Data
1,379 m
2,3 m²
5 A
172 W
170 W
VDE 0100 Regulation for mounting power plants with nominal voltages up to 1,000 V
VDE 0113 part 1 (DIN EN 60204) Machines’ safety; Electrical equipment of machine
VDE 0113 part 101 (DIN EN 60204) Machines’ safety; Display, indication, operation
VDE 0160 (DIN EN 50178) Equipment of power plants with electronic materials
Regulations for the prevention of
accidents
particularly VBG 4
EN regulations, national standards, directions of the operating authority
Terminals 11, 12 Power consumption JMNC type
AC 230 V ±10%, 50 - 60 Hz < 3.5 VA 93.045 365.001
AC 115 V ±10%, 50 - 60 Hz < 3.5 VA 93.045 365.003
DC 24 V ±20% < 2.5 W 93.045 365.002
Accuracy of switching point ±5 % of the nominal speed value
Run-up bridging 0 to ~ 45 s (adjustable)
Switching hysteresis > 5%

14
JMNC Operating Instructions
4 Technical Data
4.4 Input Data
4.5 Output Data
Indicator input/pulse input Terminals 1, 2
Indicator type all 2-wire pulse indicators according to NAMUR (EN 50227), e. g. Kiepe type DG or DK
or 3-wire pulse indicator (npn), z. B. Kiepe type EOG.
Min. pulse duration of the indicator ≥ 1.5 ms
Pulse ranges (adjustable) pulses/minute switch-off delay in s (excl. relay dropping time)
I 8 … 120 7.5 … 0.5
II 80 … 1200 0.75 … 0.05
III 800 … 12000 0.075 … 0.005
Relay output Terminals 8,9,10
Type of contact 1 change-over contact
Max. switching voltage (AC/DC) 250 V (AC) / 250 V (DC)
Max. switching current (AC/DC) 5 A (AC) / 1 A (DC)
Max. switching capacity (AC/DC) 1000 VA (AC) / 30 W (DC)
Triggering time of the relay 200 ms (after applying supply voltage)
Pulse output Terminal 4
IL≤1 mA
DC output Terminal 5
Output voltage 24 V (DC)

15
JMNC Operating Instructions
4 Technical Data
4.6 Environment
4.7 Design
Permissible operating temperature - 25 °C to + 70 °C
Permissible storage temperature - 35 °C to + 80 °C
Protection class IP 40 according to DIN VDE 0470, part 1 (EN 60529) (when using the setting tools)
Protection class of ISO housing IP 57 according to DIN VDE 0470, part 1 (EN 60529)
Line cross section max. 2.5 mm2
Dimensions (w x h x d) 52 mm x 120 mm x 113 mm (+ 8 mm for the setting tools (22) or the set button (7))
Fastening Mounting by means of screwing (e. g. onto operating panels) or in ISO housing
(punched mounting bores in the bottom of the housing available)
Built-in position any
Weight approx. 370 g: 93.045 365.001, 93.045 365.003
approx. 270 g: 93.045 365.002

16
JMNC Operating Instructions
4 Technical Data
4.8 JMNC Dimensions
Ø 4,5 mm
52 mm 113 mm
113 mm
85 mm
Fig. 4-1: JMNC, built-in dimensions

17
JMNC Operating Instructions
4 Technical Data
4.9 Built-in Dimensions ISO Housing
Fig. 4-2: Built-in dimensions ISO housing
85 mm
130 mm
150 mm
185 mm
130 mm
165 mm
150 mm
185 mm
130 mm
165 mm
130 mm
85 mm

18
JMNC Operating Instructions
5 Mounting and Dismounting
5 Mounting and Dismounting
5.1 Scope of Delivery
The rotational speed monitoring device JMNC is deliv-
ered ready for operation. For setting the potentiometer
the delivery includes two setting tools (22) made of plas-
tic (s. fig. 5-1). Fastening screws etc. are not included in
our scope of delivery. On request, the speed monitoring
device can be delivered completely wired into an ISO
plastic housing (incl. transparent hood).
5.2 Mounting
Danger electric shocks!
The mounting and the electrical connection
may only be carried out by qualified electri-
cians.
Before mounting, disconnect the plant and
prevent it from being switched on again.
Cover live parts in the vicinity to prevent any
contact.
Attention!
Choose the mounting location and the built-
in position in such a way that the device can
be securely operated.
1. Before mounting, disconnect the plant and prevent it
from being switched on again.
2. Loosen the two screws (12) on both sides of the rota-
tional speed monitoring device (9) (s. fig. 5-2).
3. Pull the rotational speed monitoring device (9) off the
base (10).
Fig. 5-1: Setting tools
rotational speed monitoring device (9)
setting tools (22)

19
JMNC Operating Instructions
5 Mounting and Dismounting
Attention!
We recommend you to pull the rotational
speed monitoring device (9) straight off the
base (10), because the plug contacts (11)
could break off.
4. Drill the punched mounting bores (13) in the base
bottom by means of a 4.5 mm driller (see fig. 4-1).
5. Drill the fastening holes, and tightly fasten the base
(10) by means of two suitable M4 screws.
6. Make the electrical connection (see section 5.3).
7. After the electrical connection, plug the rotational
speed monitoring device (9) back onto the base (10)
and fasten the screws.
Attention
Make sure that the rotational speed monitoring
device (9) is plugged in the correct position!
Take care that the plug contacts (11) are
plugged into the terminal strip of the base.
Fig. 5-2: Mounting to rotational speed monitoring device
rotational speed monitor-
ing device (9)
base (10)
plug contacts (11)
screws (12)
mounting bores (13)

20
JMNC Operating Instructions
5 Mounting and Dismounting
5.3 Electrical Connection
Danger of electric shocks!
The mounting and the electrical connection
may only be realised by qualified electri-
cians.
Before making the electrical connection,
disconnect the plant and prevent it from
being switched on again. Cover live parts in
the vicinity to prevent any contact.
Install all connection cables in such a way
that they are not damaged or torn off the de-
vice.
Attention!
An operation with incorrect supply voltage
may damage the device.
Prior to the electrical connection check
whether the data indicated on the label com-
ply with the supply voltage of your plant
When connecting the pulse indicators ob-
serve the correct polarity.
Only use screened cables for the control lines in
order to prevent interferences.
1. Before making the electrical connection, disconnect
the plant and prevent it from being switched on
again.
2. Make sure that the plant is voltage-free.
3. Install the connection cables and guide them into the
cable inlets of the base (10) (s. fig. 5-3).
We recommend you to install the control lines
and the power supply line separately.
4. Make the electrical connection according to the be-
low indicated connection diagrams (see section
5.3.1).
Inside the ISO plastic housing, the electrical con-
nections from the rotational speed monitoring de-
vice are installed onto an external terminal strip,
however, the connection assignment is identical to
the below indicated.
5. Plug the rotational speed monitoring device (9) back
onto the base base (10) (s. fig. 5-2).
Attention!
Make sure that the rotational speed monitoring
device (9) is plugged onto the base (10) in the
correct position.
