KinAn KED101S Series User manual

KVM Extender
User Manual
www.kinankvm.com
@All right reserved Shenzhen Kinan Technology Co., Ltd.
Date: 2019/07
Version: V1.0
KED101S User Manual
- 1 -
Product Description
KED101S is a DVI KVM extender that transmits audio, video, USB and RS232
signals up to 100m trough a single CAT5E/CAT6 cable. With an easy cable
installation supporting various signals, the KVM Extender is ideal for applications
where convenient remote access is required –such as transportation control
centers, medical facilities, industrial warehouses, and extended workstations. A
complete set of KVM Extender consists of two parts - local unit and remote unit.
Features
Extends video, audio, USB, and RS-232 signals via a single CATx cable
Long Distance and Superior video quality: 1920x1200 @ 60 Hz @100m
Transparent USB2.0
Audio support: 1 LINEIN + 1 LINEOUT, supports dual channels in both
direction
Support 1 channel RS322 asynchronous serial transmission
Easy to install –just need to connect the cables
No software required
Structure

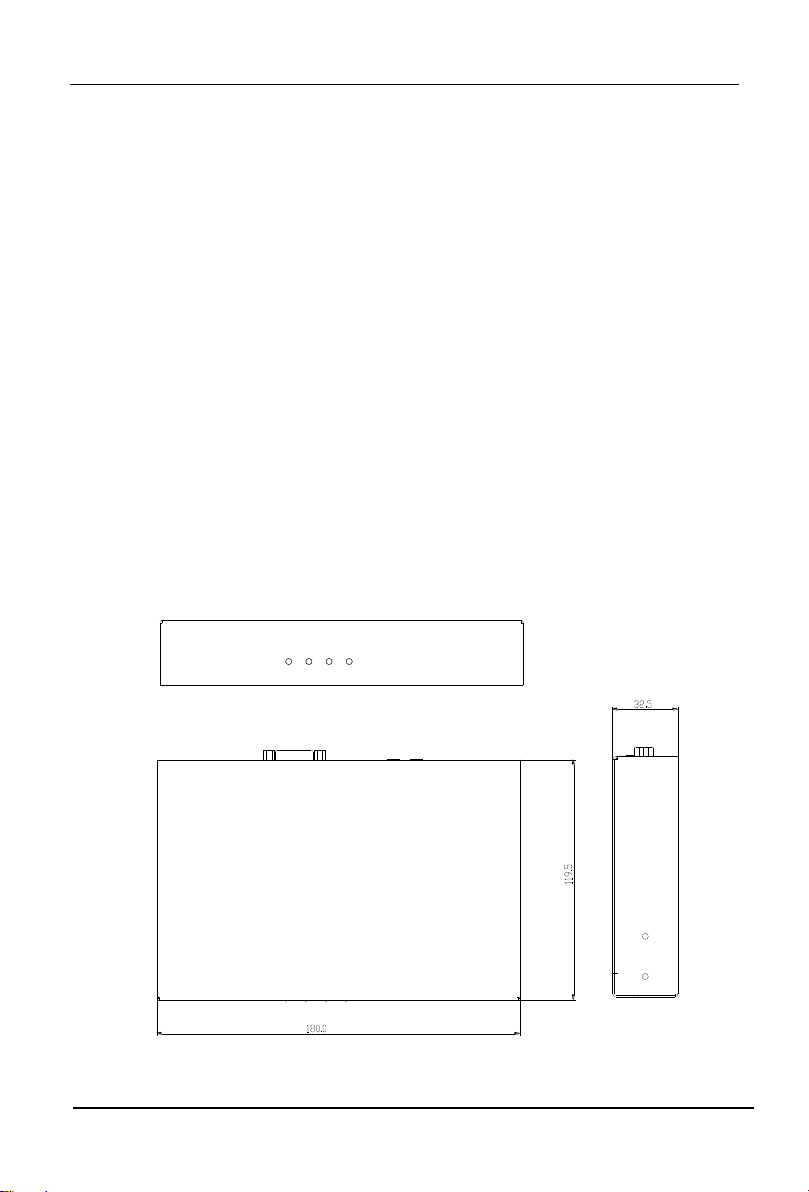

1.1 Dimension
KED101S User Manual
- 2 -
Pictures
KED101S_RX (Front View)
No.
Function
Description
1
FW
Device status
2
LINK
Indicate the connection status with local unit
3
HDCP
Indicate video status
4
PW
Indicate power status
KED101S_RX (Rear View)
No.
Function
Description
1
Power socket
9V-12V power connection port
2
RS232
Serial port
3
FIR
Reserved port
4
IN
MIC input
5
OUT
Audio output
6
HDRX
CAT5E/CAT6 cable connection port
7
DVI OUT
Display connection port
8
USB port
USB peripheral connection port
KED101S User Manual
- 3 -
KED101S_TX (Front View)
No.
Function
Description
1
FW
Device status
2
LINK
Indicate the connection status with local unit
3
HDCP
Indicate video status
4
PW
Indicate power status
KED101S_TX (Rear View)
No.
Function
Description
1
9V-12V
9V-12V power connection port
2
RS232
Serial port
3
FIR
Reserved port
4
AOUT
Server Audio output port
5
AIN
Server MIC input port
6
DVI IN
Video input port
7
USB IN
Server USB Connection port
8
HDTX
CAT5E/CAT6 cable connection port
KED101S User Manual
- 4 -
Connection Diagram
1. Connect to server, USB port, and audio port.
2. Connect to keyboard, mouse, display, audio port
3. Connect TX unit and RX unit with CAT5E/CAT6 cable (Max 100m)
4. Turn on the TX and RX unit
KED101S User Manual
- 5 -
Technical Specification
Model
KED101S (TX)
KED101S (RX)
Connector
DVI Output
1
NA
DVI Input
NA
1
Power
9V-12V
9V-12V
Network
RJ45 x1
RJ45 x 1
Microphone
3.5MM Stereo Jack
(pink)x1
3.5MM Stereo Jack
(pink)x1
Speaker
3.5MM Stereo Jack
(green)x1
3.5MM Stereo Jack
(green)x1
USB
1
N/A
USB 2.0
N/A
USB x 2
Resolution
1920 x 1200 @ 60 Hz
Cable
CAT 5E / 6
I/R Value
DC12V / 2A
DC12V / 2A
Power Consumption
5W
Operating Temperature
0 ~ 40 ℃
Storage Temperature
-20 ~ 60 ℃
Humidity
0~80% RH, Non-condensing
Net Weight (kg)
0.64 kg
0.64kg
Product Dimension
(W ×D ×H)
180mmx119.5mmx32.5mm
Package Dimension
(W ×D ×H)
260 mmx179 mm x102mm

This manual suits for next models
