kincrome RANGER PRO K13010 User manual

RANGER PRO 12V AIR COMPRESSOR
RANGER PRO
12V AIR
COMPRESSOR
K13010
ED1 July 17
8M
COILED
AIRHOSE
150PSI
MAX
WORKING
PRESSURE
169
LPM
MAXIMUM
POWERFUL
560W
MOTOR
DEFLATOR
FUNCTION

1
RANGER PRO 12V AIR COMPRESSOR
Table of Contents
Know Your Product ...................................................................................................1
General Safety Instructions .....................................................................................2
Additional Safety Instructions..................................................................................3-4
Assembly...................................................................................................................4
Operation...................................................................................................................5-9
Troubleshooting & Spare Parts...............................................................................9-10
Warranty....................................................................................................................10
1. BLACK Negative (-) Battery Terminal Clamp
2. RED Positive (+) Battery Terminal Clamp
3. ON/OFF Switch
4. Anti Vibration Feet
5. Base Plate
6. Brass Coupler (Not Shown)
7. Easy Grip Valve Locator (Not Shown)
8. Pressure Gauge (PSI)
9. Hose Quick Connect Fitting
10. Air Supply Hose
11. Air Filter
12. Carry Handle
13. Air Outlet
14. Thermal Cut Off
Reset Button
15. High Volume
Adaptor 1
16. High Volume
Adaptor 2
17. Needle Adaptor
18. Presta Valve
Adaptor
19. Handy Carry Bag
20. Deflator Button
Part No:......................................................................................................................................... K13010
Description: ................................................................................................................................. Ranger Pro 12V Air Compressor
Rated Power: ............................................................................................................................... 560W
Input Voltage: ............................................................................................................................... 12VDC
Max Current: ................................................................................................................................ 45A
Max Working Pressure: .............................................................................................................. 150PSI
Maximum Air Flow: ..................................................................................................................... 169LPM
Temperature Range: ................................................................................................................... -50°C to 60°C
Thermal Cut-Off:.......................................................................................................................... Yes
Cylinder Size: ............................................................................................................................... 60mm
Weight: .......................................................................................................................................... 7.83kg
Base Dimensions: ........................................................................................................................ 325mm X 150mm X 15mm
Motor Construction: .................................................................................................................... Steel
Pump Construction:..................................................................................................................... Alloy
Air Delivery Hose Length:........................................................................................................... 8m
12V Power Lead Length:............................................................................................................. 2.6m
1

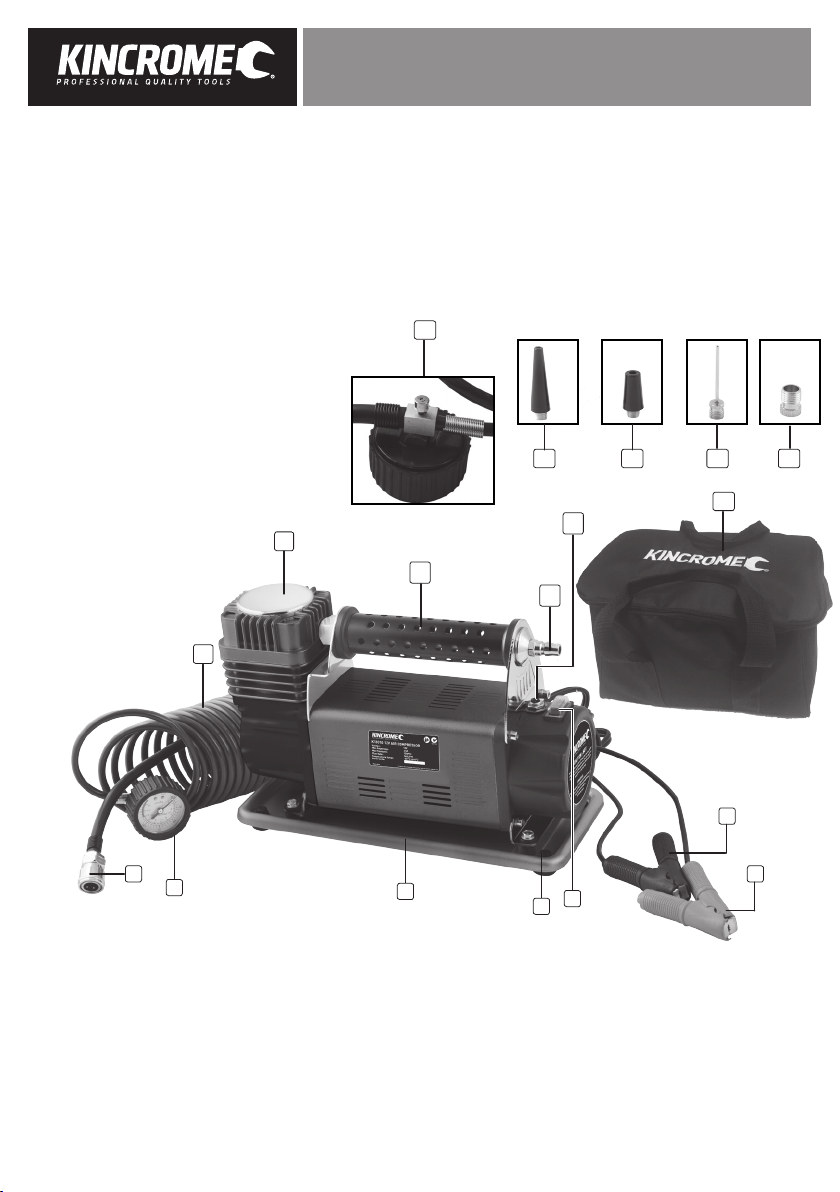

Know Your Product
15 16 17 18
2
3
4
5
8
9
10
11
12
13
14
20
19

2
RANGER PRO 12V AIR COMPRESSOR
General Safety Warnings
Save all warnings and instructions for future reference.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in serious injury.
1) Work Area Safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
d) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
e) Children should be supervised to ensure that they do not play with the appliance.
2) Electrical Safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of
an RCD reduces the risk of electric shock.
3) Personal Safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while
you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of
the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related hazards.

3
RANGER PRO 12V AIR COMPRESSOR
4) Power Tool Use And Care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch
is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any
adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting
the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that
may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions taking into account the working
conditions and the work to be performed. Use of the power tool for operations different from those intended could result in
a hazardous situation.
h) The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the
voltage on the rating plate.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that
the safety of the power tool is maintained.
6) Additional Safety Instructions for 12V Air Compressors
a) When using the compressor, ensure you are parked in a safe, well lit location, off the road and with the hand brake engaged.
b) Ensure your personal safety is not at risk and never use the Automotive Compressor while the car is in motion.
c) Do not place the hose end against anypart of your body when turned on, as this may infuse air into your blood stream putting your health at
serious risk.
d) Do not make any alterations to this Compressor. Only use the adaptors supplied with this product.
e) Use this product only in accordance with operation instructions included in this manual.
f) If the vehicle fuse is blown, only replace with identical rated fuse.
g) Inspect each part before use. Do not use if bent, broken, melted, burnt or if the unit appears to be damaged.
h )Check the tyre pressure before inflating. Never exceed the suggested pressure of the item being inflated. If suggested pressure is exceeded,
the item being inflated may burst.
I) Do not bend or pinch the air hose while the Compressor is in use.
j) It is not suggested that the Compressor work continuously for more than 30 minutes. If 30 minutes of use has been reached, turn it off and let
it cool for 8 minutes before using again.
k) If the Compressor is making abnormal sounds or its temperature if quite high, turn off the power straight away and let it cool for at least 10
minutes before trying again. Improper use may result in damage of the Compressor.
l)Do not leave unattended and operating. Keep out of reach of children.
m)Put the Compressor in a dry place if it is not in use for an extended period of time.
n) Keep the Compressor away from flammable liquid or gas. Do not allow the Compressor to become wet.
o) Never put the connector and adaptors into your mouth, ear or eye. They are not toys.
7) Electrical Safety
WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
a) Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
b) Save these instructions and other documents supplied with this tool for future reference.
c) The electric motor has been designed for 12V only. Always check that the power supply corresponds to the voltage on the rating plate.
d) If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
3

4
RANGER PRO 12V AIR COMPRESSOR
Description of Symbols
The following symbols could be shown on the tool:
Read the instruction manual before
use. Failure to follow the warnings and
instructions may result in electric shock,
fire and/or serious injury.
Risk of Explosion
Hot Surface, Contact with skin may cause
burns. DO NOT TOUCH.
Warning
Wear Ear Protection Wear Eye Protection
PSI Pounds per square inch VVolts
AAmps WWatts
DC Direct Current
Electrical Emissions Conformity (EMC)
Unpacking
Unpack all the components from the box.
When unpacking the K13010 12V Air Compressor, carefully inspect for any damage that may have occurred during transit.
Check for loose parts, missing parts or damaged parts.
1. Ensure all packaging materials are disposed of as per your local council guide lines.
Assembly
Connecting the Air Supply Hose (10) to the 12V Air Compressor
1. Remove all parts from within the Handy Carry Bag (19).
2. Gather the Air Supply Hose (10) and pull the Hose Quick Connect Fitting (9) backwards (Fig 1 & 2).
3. Allign the Air Supply Hose (10), Hose Quick Connect Fitting (9) with the 12V Air Compressor’s Air Outlet (13),
fit and release (Fig 3).
4. The Air Supply Hose (10) will now be securely attached to your 12V Air Compressor (Fig 4).
(Fig 1) (Fig 2) (Fig 3) (Fig 4)
