kincrome Stealth K7380 User manual
TWIN LID MOBILE WORKBENCH TROLLEY
1
15 DRAWER MOBILE WORK BENCH
K7380
Operation Manual
THIS OPERATING MANUAL CONTAINS IMPORTANT
SAFETY INFORMATION. READ CAREFULLY AND
UNDERSTAND ALL INFORMATION BEFORE
OPERATING TROLLEY.
SAVE THIS MANUAL FOR FUTURE USE
Parts List
1600mm 635mm 1070mm
720mm 545mm 100mm
230mm 535mm 65mm
500mm 535mm 65mm
500mm 535mm 205mm
865mm 535mm 65mm
865mm 535mm 100mm
865mm 535mm 205mm
220kg
TOOL TROLLEY SPECIFICATIONS
Overall
Medium Deep Drawer
Top Area (including lid)
Large Deep Drawer
Medium Drawer
Weight
Small Drawers
Large Extra Deep Drawer
17 x PVC Mat
Liners
2 x Keys
Large Drawer
K7380
Removing the Drawers
• Fully extend the empty drawer.
• Push down the right release
lever while pushing up the left
release lever.
• Pull the drawer outward until
it is released from the drawer
slide.
Re-Inserting The Drawers
• Extend the drawer slides.
• Insert the brackets on each side
of the drawer into the slots on the
slides, being careful that they are
properly positioned.
• Once properly inserted,
completely close the drawer to
set the slides in their proper
positions.
Push up the
right release lever
Pull down the
left release lever
1
2
1
2
Drawer Removal
Pull up the
left release lever
Push down the
right release lever
2 People 5mm Hex Key
For Handle:
Tools & Assistance
Required for Trolley:
Trolley Handle x 1
4x Hex6mm Bolts
For Trolley Handle
2

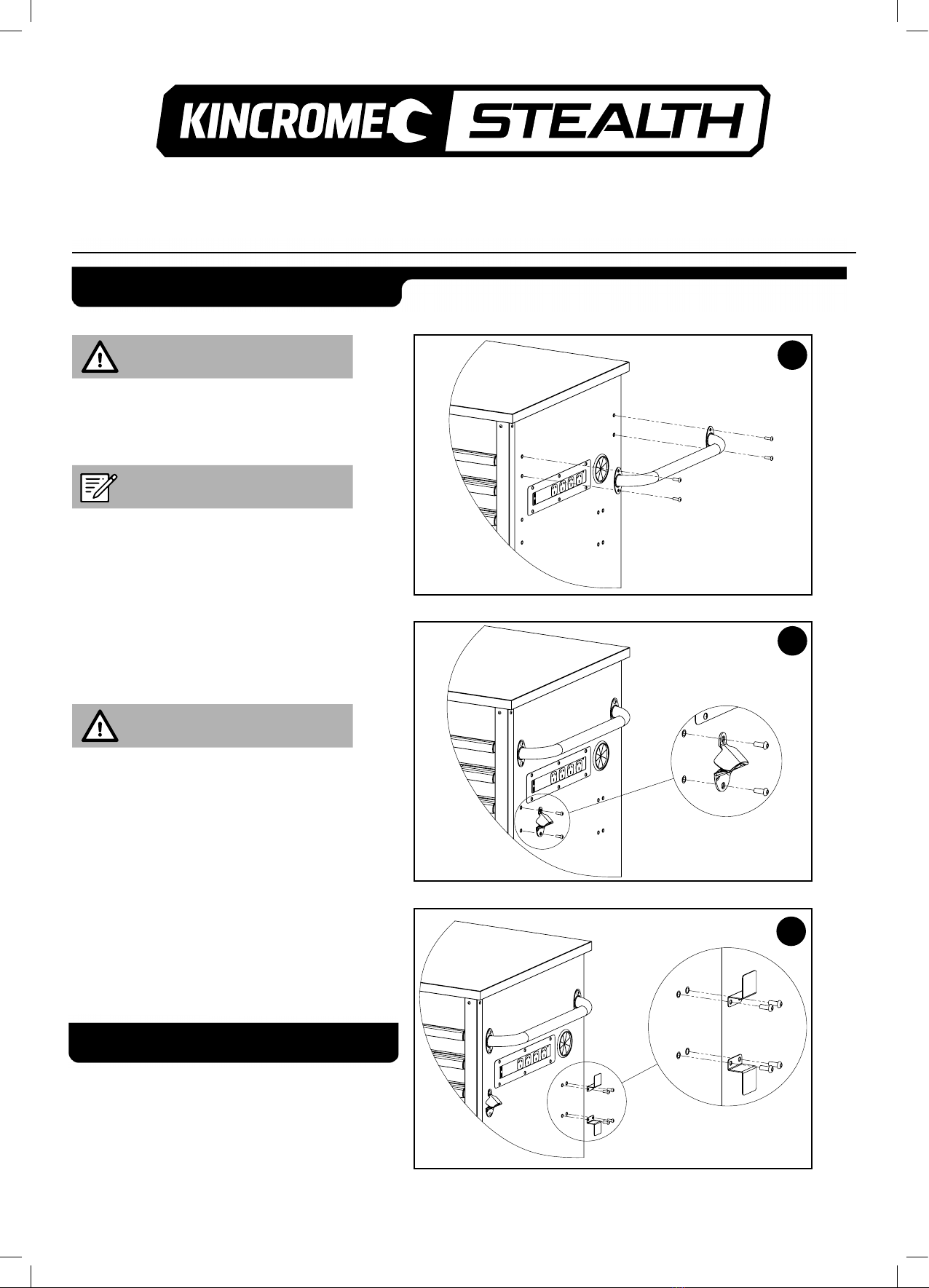

Step 1: Attaching the Cabinet Handle
• Position the cabinet handle over the holes on the cabinet.
• Attach with the 4 bolts and tighten with supplied
hex key.
Step 2: Attaching the bottle opener
• Position the bottle opener over the holes of the
cabinet.
• Attach with the 2 bolts and tighten with supplied
hex key.
15 DRAWER MOBILE WORK BENCH
K7380
NOTE: The Holes in the cabinet are tapped and do
not require nuts
CAUTION: Two people are recommended for
assembly.
CAUTION: Do not over tighten the bolts.
1
2
3
TWIN LID MOBILE WORKBENCH TROLLEY
K7380
Step 3: Attaching the storage hook
• Position the hook over the holes of the
cabinet.
• Attach with the 4 bolts and tighten with supplied
hex key.
Maintenance
Assembly Instructions
• Periodically tighten all hardware
• Periodically lubricate castors
• Lubricate the slides twice a year
• Lubricate the lock with graphite annually
• Use a damp Microfibre cloth to clean all surfaces
247.K7380线图2
Approved
批 准
Check
校 对
Design
设 计
Sign
标 记
Amount
处 数
Change Number
更改文件号
Material
材 料
Signature
签 名
Date
年/月/日
Edit
版本号
Amount
件 数
Weight
重 量
Scale
比 例
Drawing NO.
图 号
Drawing Name
图纸名称
Part ID
物料编码
Page 第 页 Total 共 页
Projection View
投影视角
中山基龙工业有限公司
Zhongshan Geelong Manufacturing
Company Limited
SPCC
00
247.K7380线图1
Approved
批 准
Check
校 对
Design
设 计
Sign
标 记
Amount
处 数
Change Number
更改文件号
Material
材 料
Signature
签 名
Date
年/月/日
Edit
版本号
Amount
件 数
Weight
重 量
Scale
比 例
Drawing NO.
图 号
Drawing Name
图纸名称
Part ID
物料编码
Page 第 页 Total 共 页
Projection View
投影视角
中山基龙工业有限公司
Zhongshan Geelong Manufacturing
Company Limited
SPCC
00
247.K7380线图3
Approved
批 准
Check
校 对
Design
设 计
Sign
标 记
Amount
处 数
Change Number
更改文件号
Material
材 料
Signature
签 名
Date
年/月/日
Edit
版本号
Amount
件 数
Weight
重 量
Scale
比 例
Drawing NO.
图 号
Drawing Name
图纸名称
Part ID
物料编码
Page 第 页 Total 共 页
Projection View
投影视角
中山基龙工业有限公司
Zhongshan Geelong Manufacturing
Company Limited
SPCC
00
