Kind KD-BC-8H User manual

KD-BC-8H/4H Director recording system
Instruction manual

Catalogue
一、Precautions for the use of the all-in-one machine
.........................................................................................................3
Product and Service Disclaimer......................................5
二、BC-8H/4H KIND Characteristics of the recording
system ...........................................................................................7
三、Host topology ....................................................................9
四、Diagram of rear interface connection .......................9
五、Operation panel introduction.................................... 13
六、The instructions for connecting the computer to the
driver...........................................................................................21
1、Device login............................................................21
2、Select a video/audio signal source................. 21
3、Connect wired and wireless networks........... 22
4、Coding and streaming ........................................23
5、Live webcast with encoder ................................ 23
6、factory data reset..................................................25
7、Firmware upgrade ................................................26
8、The device quickly resets and restarts .......... 27
七、KIND Assistant mobile APP usage instructions .. 28
八、Contact us.........................................................................40

一、
Precautions for the use of the all-in-one
machine
Before use, please read this manual carefully and
keep it properly；
Please follow the warning signs and instructions on
the product；
Please unplug the machine before cleaning. Do not
use alcohol, thinner, insecticide or other volatile
solvents, as doing so may deform the housing or damage
the surface
For your safety, do not allow the equipment to be
exposed to rain or moisture. In case of failure, do not
remove the chassis. Contact the manufacturer for
professional maintenance；
When recording or streaming important data, be sure
to check the device connection beforehand, or perform a
streaming test first, to ensure that the system can
operate properly and avoid data loss
According to copyright law, recorded video or audio
may not be used for purposes other than personal

enjoyment without the permission of the copyright owner.
Note that for live performances, shows and exhibitions,
even your personal entertainment may be restricted。
Do not use this product near water；
Do not place the product in an unstable place, such
as wheelbarrow, stand and other easy to fall places,
causing serious damage to the product。
The opening holes on the outside, back and bottom of
this product are for heat dissipation. Do not cover or
plug these opening holes to avoid overheating of the
machine. Do not put this product on the bed, sofa,
blanket and other objects with similar surfaces, so as
not to plug the opening holes. Do not place this product
near fire sources, heating furnaces or hot vents. Do not
place this product in a closed space unless you are sure
that a proper vent is available；
The power supply used in this product should be
identified according to the specifications；
When using the extension cable, please make sure that
the total power/total amperage used must not exceed the
total amperage loaded by the extension cable；
Do not insert anything into the body opening to

prevent short circuit. Do not spill any liquid on this
product；
Do not disassemble and repair without authorization；
If any of the following occurs, unplug the product
and consult a qualified technician；
①The power cord or plug is damaged or unraveled
②There is liquid seeping into the product；
③This product has been rained on or splashed with
water；
The equipment is packed in the original packing box
or similar packing box during transportation, which can
reduce the strong vibration of the equipment；
Product and Service Disclaimer
The information provided in this manual is intended
as a guide only. Throughout its history, KIND strives to
provide correct, complete and appropriate information.
However, KIND cannot exclude that some information in
this manual may be incorrect or incomplete, and this
Manual may contain typos, omissions or incorrect
information. KIND recommends that you double-check the

accuracy of the information in this document, and KIND
is not responsible for any omissions or errors. Or any
subsequent loss or damage caused by the information
provided in the contents of this Manual, further
information on the contents of this manual or products
may be contacted by local offices or KIND Headquarters。
For your safety, do not expose the equipment to rain or
moisture. In case of failure, do not remove the chassis.
For after-sales matters, contact the manufacturer to ask
professional engineers for maintenance
When recording or streaming important data, be sure
to check the device connection beforehand, or perform a
streaming test first, to ensure that the system can
operate properly and avoid data loss。
According to copyright law, recorded video or audio
may not be used for purposes other than personal
enjoyment without the permission of the copyright owner.
Note that for live performances, shows and exhibitions,
even your personal entertainment may be limited。

二 、
BC-8H/4H KIND Characteristics of the
recording system
KIND-BC8HA set of multi-channel audio and video
acquisition, video stunt transfer, Pinion control,
tuning and mixing, director communication, multi-channel
screen monitoring screen and streaming media server in
one of the portable recording machine, not only portable,
but also the video switching, mixing functions and video
surveillance, network broadcast together, is a multi-in-
one equipment for live content generation. With this
device, you don't have to have a variety of devices as
before, which greatly reduces the time and effort
required to install, connect boxes and adjust equipment。
KD-BC8HFull frame seamless hard cut in multiple video
input transitions；
This system provides the functions of mixing
(overlapping), stroke transition effect, combination
video picture in picture and so on. You can mix videos
with up to a hundred effects at the same time, such as

using stroke or other conversion effects and merging
(keying) a single video clip when switching between two
video clips。
You can mix audio inputs from 5-way stereo and 5-way
microphones. Each channel has a range of functional
components, including channel faders, input gain
adjustment, treble adjustment, and bass adjustment,
which will use your ability to adjust the quality and
level of sound on each channel individually。
PGM footage can be streamed live。
This system is a high performance network broadcast
system, using this system can provide LAN based.
Metropolitan area network, wide area network audio live
broadcast, recording and broadcasting services. At
present, the system has been widely used in the studio,
video live, quality class, distance education, news live,
conference live, academic exchange and other occasions
that need audio and video live.
Using modular design idea, portable live broadcast can
be built according to different needs。

三、

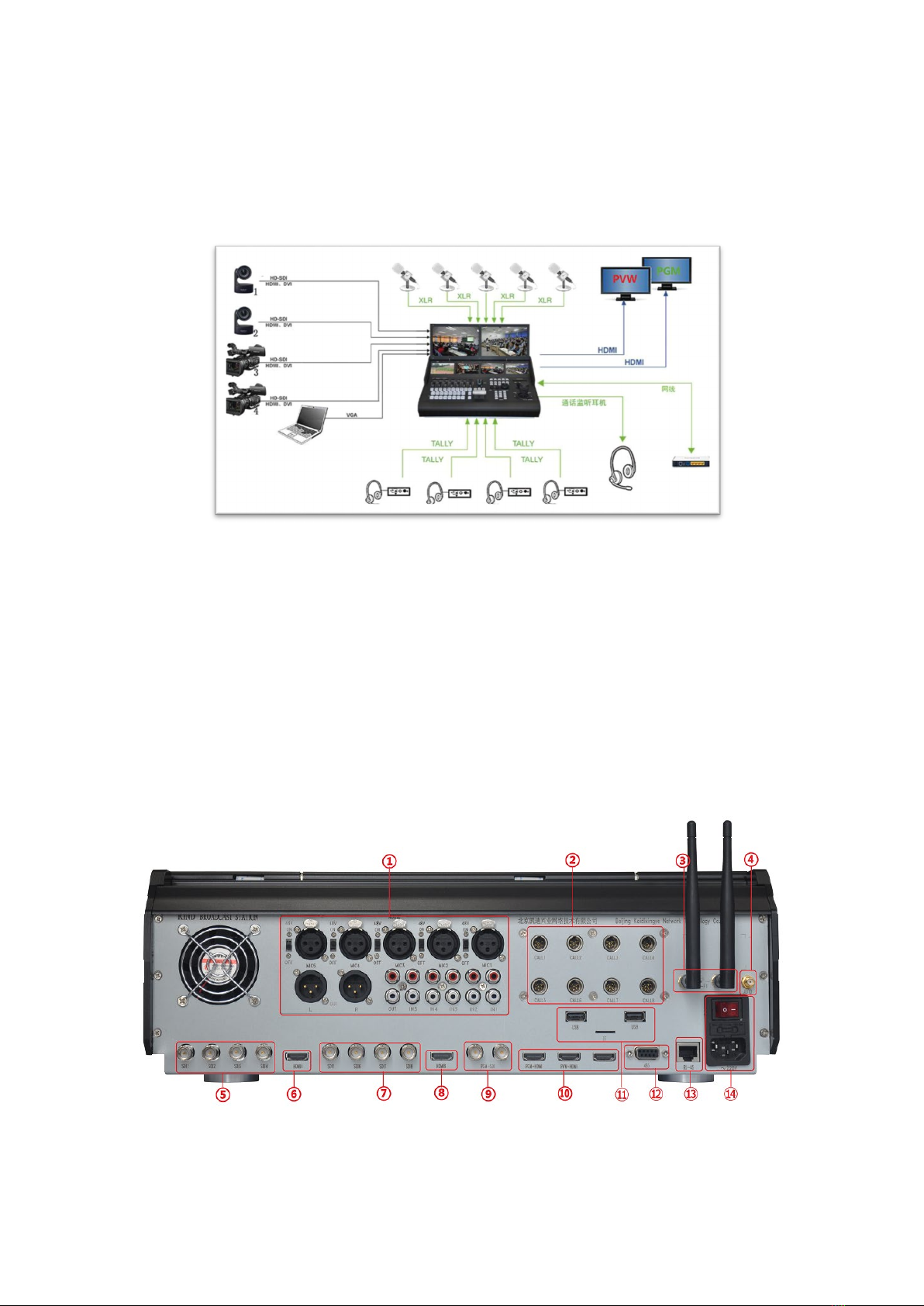

Host topology
四、
Diagram of rear interface connection
①MIC, stereo input, output

②Call director ports 1 to 8
③WIFI antenna interface
④Camera control antenna
⑤1-4 SDI inputs
⑥Channel 4 HDMI input
⑦5-8 SDI inputs
⑧Channel 8 HDMI input
⑨SDI output
⑩HDMI output
⑪USB and TF interface
⑫485 interface
⑬RJ45 network port
⑭220V power interface
Note: The interface panel in the above figure is 800H,
and 400H does not contain 5-8 signals；
External USB storage devices support NTFS and FAT32
file systems for USB flash drives and portable hard
drives；
Laptop HDMI signal acquisition signal standard is：
HDMI1080i50、720P50Hzinput；
SDI 1080i50/1080p50;

External computer signal recommended WIND10 system 1080P
full HD resolution, HDMI4 and SDI4 use the consent
channel, can not input signals at the same time；
Port Instructions
L/R Audio output XLR Balanced analog
audio output interface
1~5 Audio input XLR balanced analog
audio input interface and each with 48V
phantom power switch (support for
professional microphone power supply)
1~5
Audio input RCA Stereo analog audio
input (left/right channel) OUT Audio
output RCA stereo analog audio output
interface
Can input HDMI signal source, support
signal specifications 1080i50, p50 and
other video source input
SDI1-8 video input ports, supporting
signal specifications 1080i50 video
source input

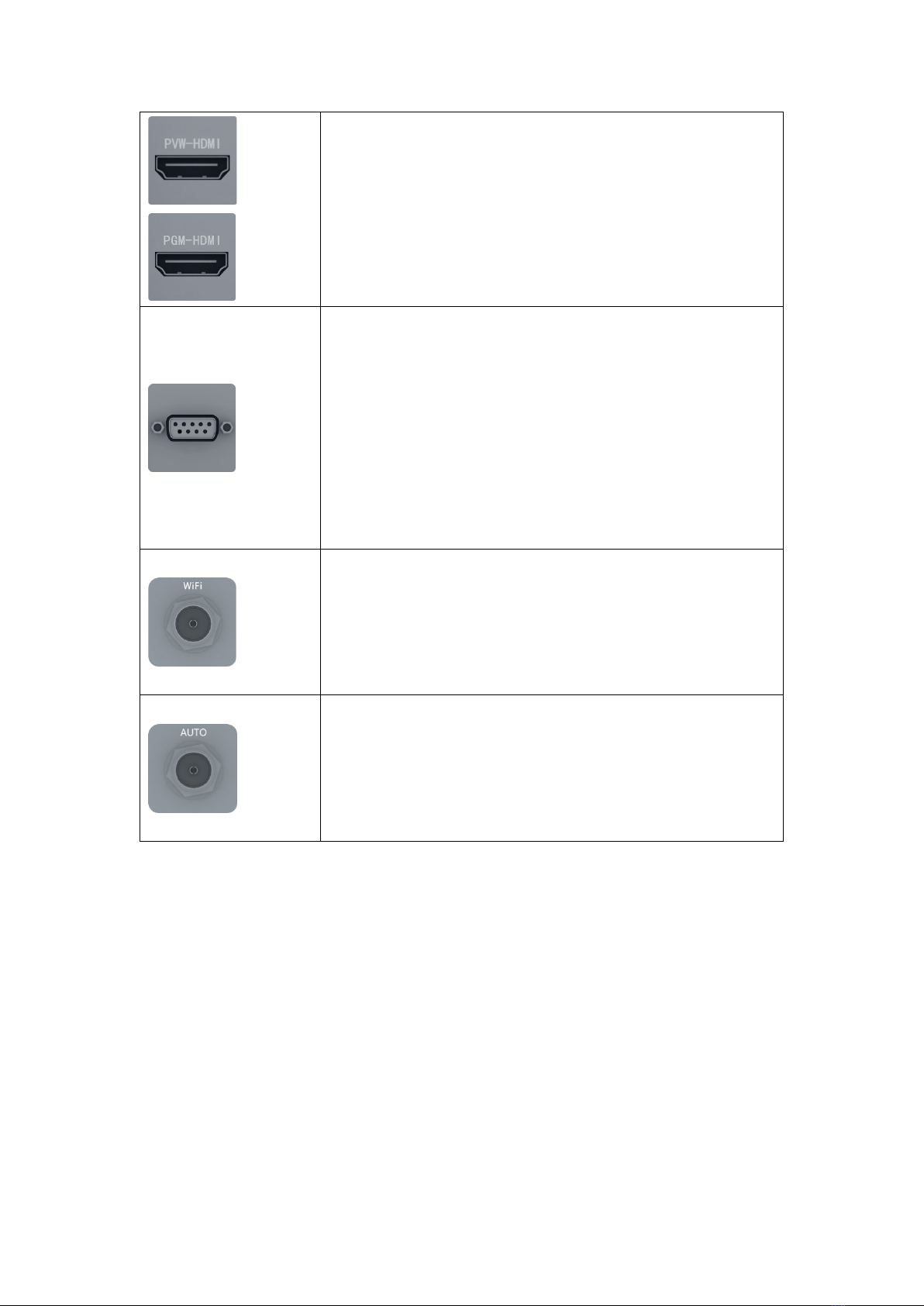

HDMI video output interface supports
signal specification 1080i50 video
source output
485 control interface: adopts RS485
control signal, supports PELCO-D,
VISCV control protocol, uses 8th and
9th hole connection, 8 is positive, 9
is negative
Wi-Fi interface, antenna can be
inserted to enhance signal search
range
Antenna interface, control camera, can
be inserted antenna to enhance signal
search range

五、
Operation panel introduction

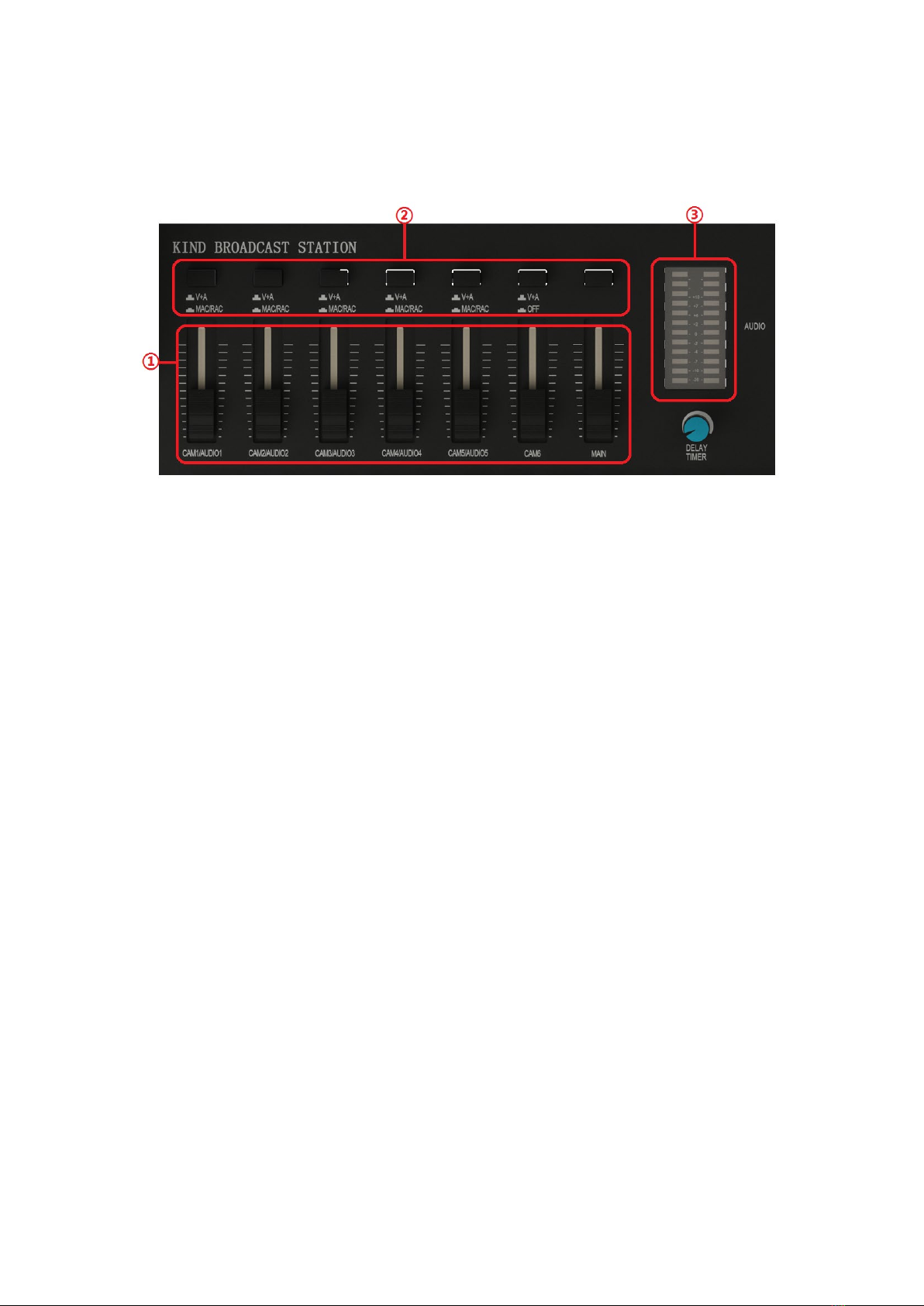

①Mixer: Supports five microphones, five stereo sound
and five digital audio, each group controls the size of
one sound, and the last one is the total audio,
controlling the overall volume。
②Audio differentiator switch: Press the first five
audio zone buttons for MAC and RCA, pop up for V+A digital
audio, the sixth audio pop up for digital audio, and
press down for mute。
③Audio indicator: Used to check the volume of the
audio。

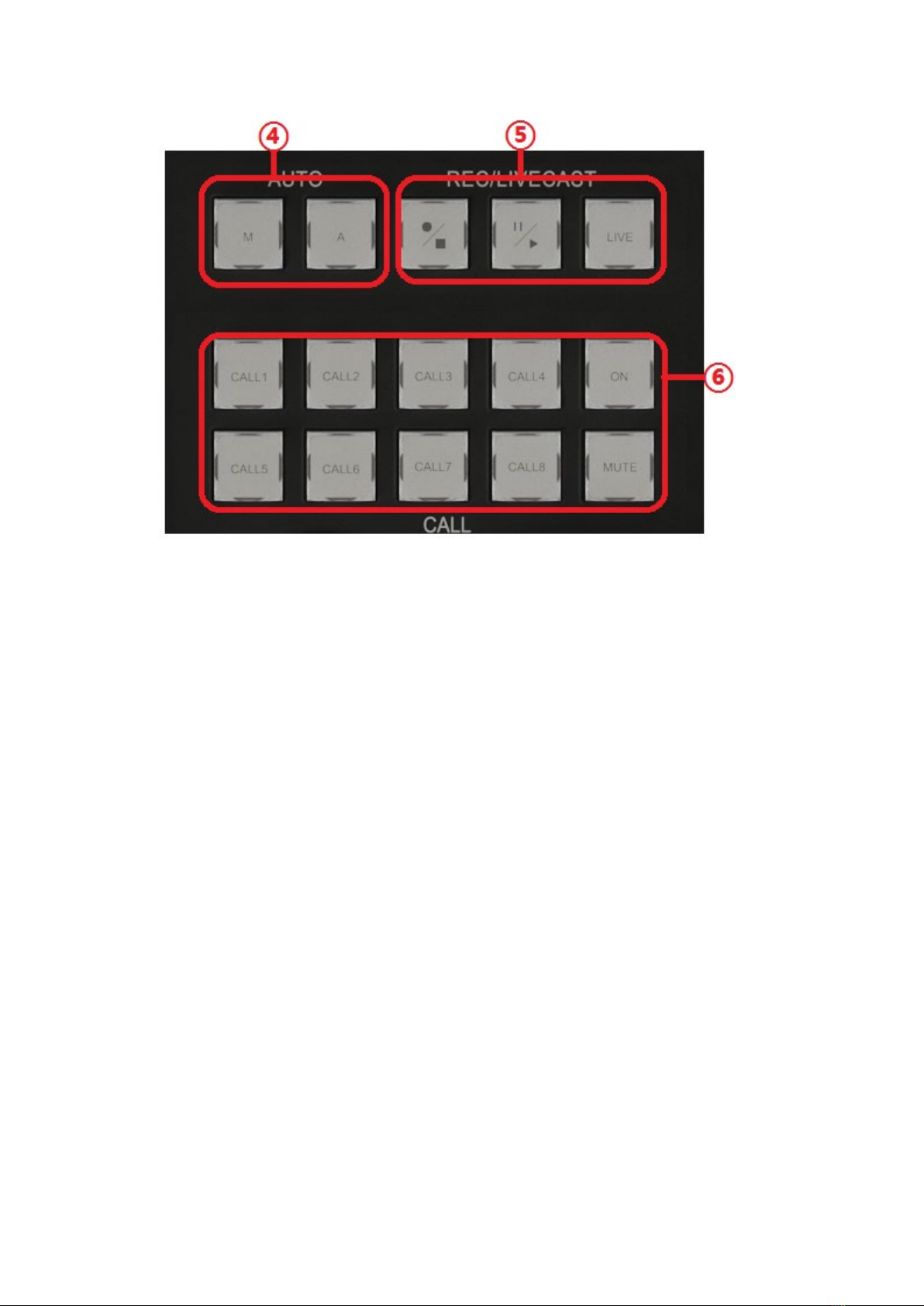

④Automatic and manual mode switch key: to distinguish
between two different modes (this function corresponds
to the model)；
⑤Recording button: You can control the start of
recording, pause and broadcast, press to start
recording, and hold down for 3 seconds to stop
recording (the indicator light is recording, the
indicator light is off, the recording button indicator
is consistent with the recording button indicator)。
⑥8-way guide call system: Through this button, you
can realize the call between the guide teacher and the
guest (this function is optional, there is also a
four-way call system, which requires specific

equipment support)；
⑦Transition effect key: includes stroke, fade in and
fade out, picture in picture, video transition effect
⑧Image transfer effect type selection, multi-mode
transfer effect, each key is a switching mode, each
key has 4 switching modes, each press, the way to
switch the screen is different；
⑨Switch station: The first row is the 8-way PGM
switch key, try to play the screen, the second row is
the PVW pre-monitoring switch key, view the pre-
monitoring screen；

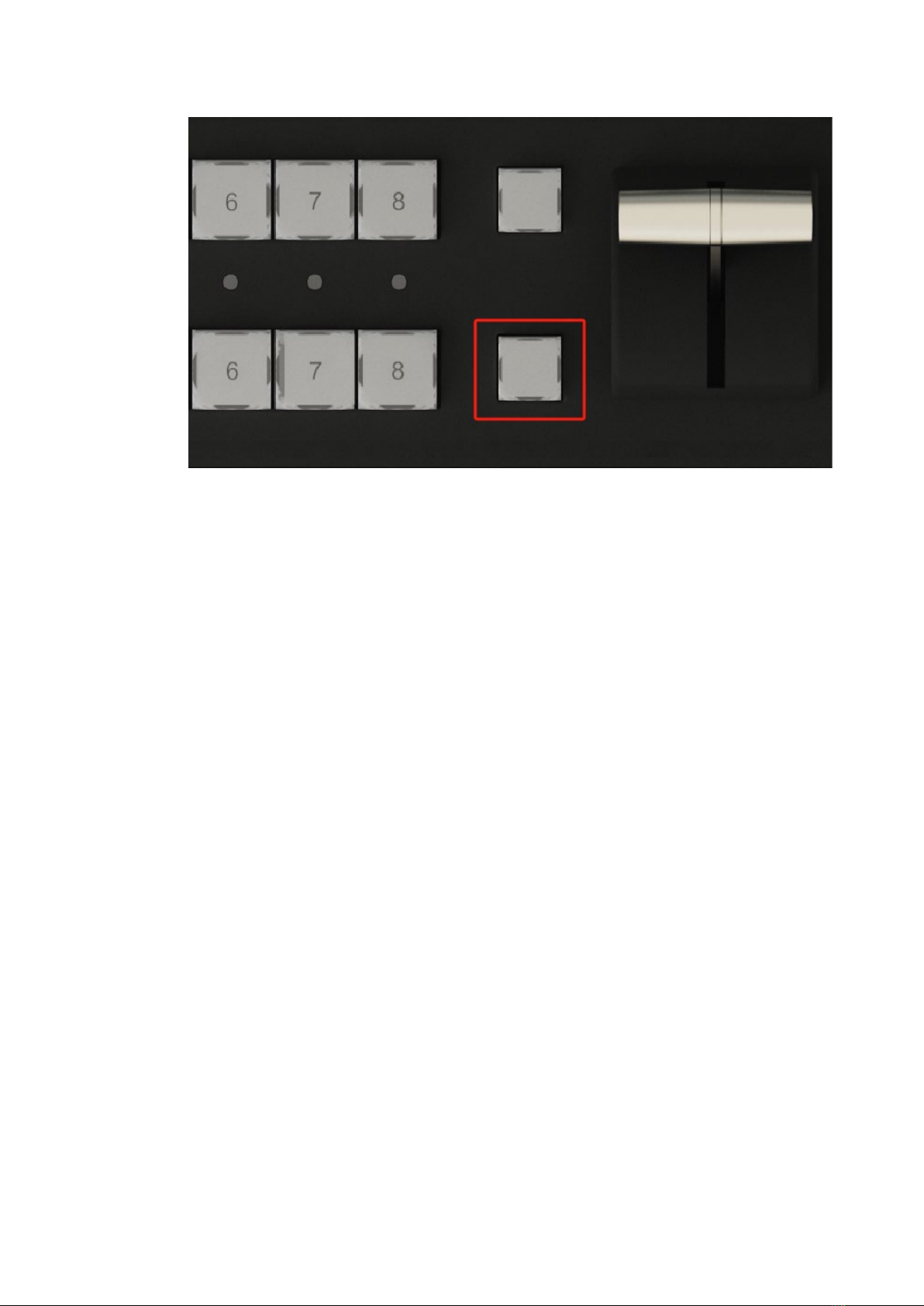

⑩T-pusher: For quick switching between PGM and PVW；

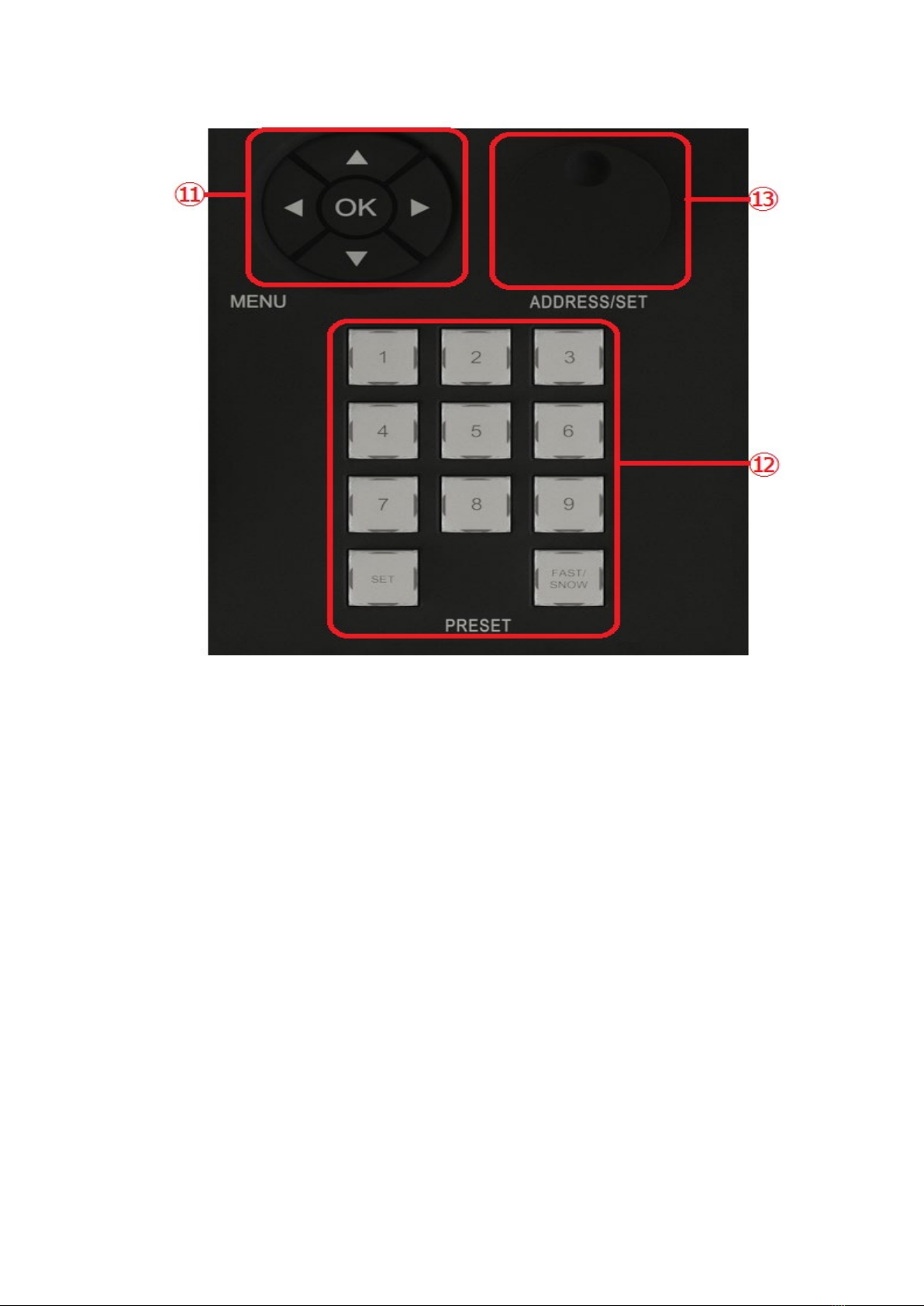

⑪Camera menu function: First click the OK key to
display the menu of the POC camera, and the built-
in functions of the camera can be adjusted through
the up and down left and right buttons。
⑫Preset point: you can SET 9 preset points for the
camera, adjust the camera lens to the position that
needs to be shot, press the set key, the preset point
is set successfully, after the setting is successful,
when the lens is in other directions, press the set
key to let it quickly return to the initial position.

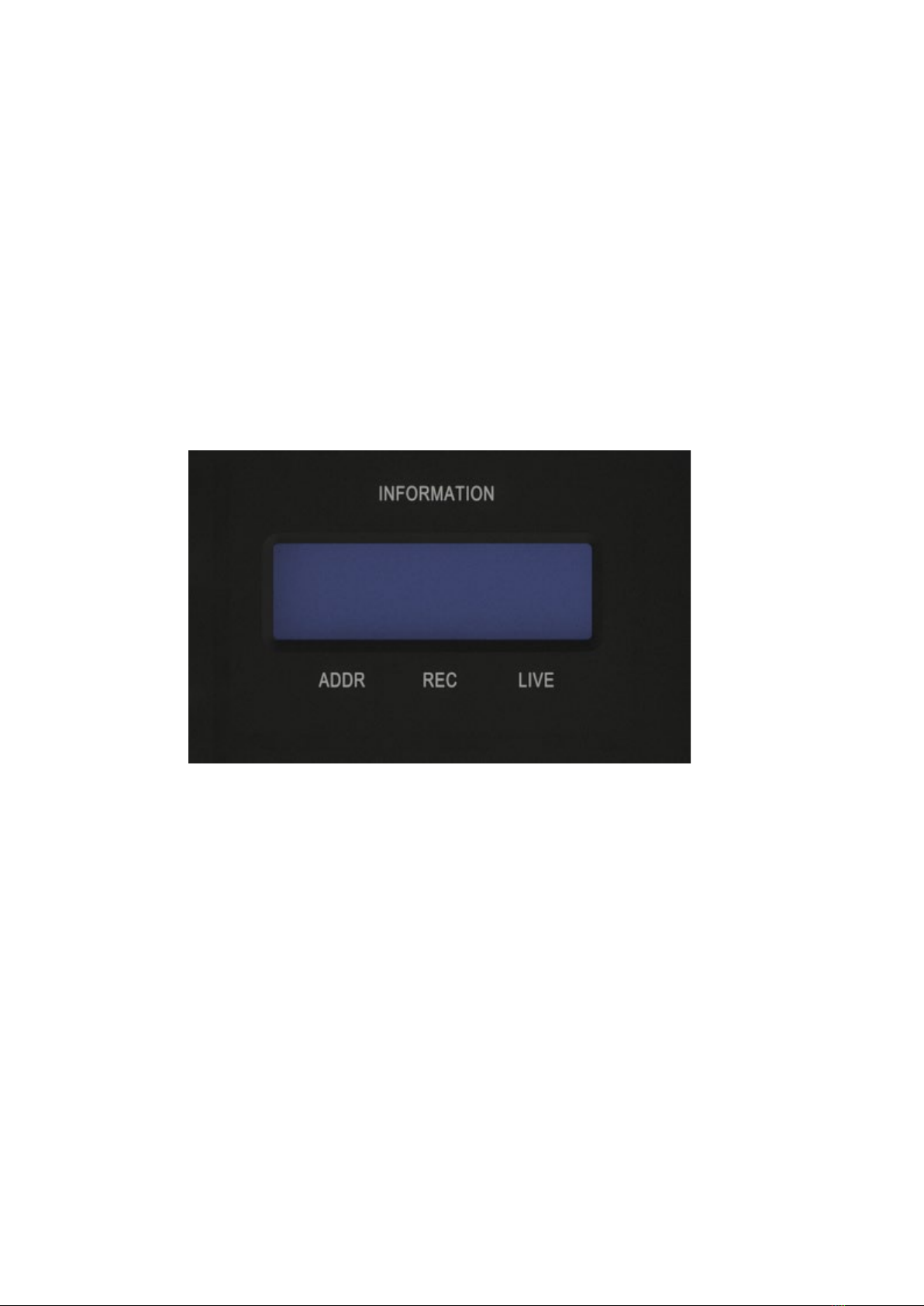

⑬Knob encoder: By rotating the knob encoder can see

the current control address information on the LCD
display on the console, rotating the knob encoder,
the control address number on the LCD will change,
for example, the address of the camera is 1 at this
time, you can adjust the number to 1 through the
knob encoder, and control the camera lens through
the joystick。
⑭Liquid crystal display: can display the current
video information, memory card remaining space,
control address and other information

⑮8 pre-monitoring mode switch key, press this
button once PVW window generates 8 small pre-
monitoring Windows (only 800H can achieve its
function)；

⑯Picture-in-picture: After use, the picture-in-
picture mode will appear in the PVW interface. By
selecting PVW and PGM two rows of keys to combine
picture-in-picture, you can adjust the picture-in-
picture position through the interface shown in the above
figure

⑰Controller: can pass the camera orientation and
focal length; The method of controlling the
orientation of the camera, by controlling the up and
down left and right rotation and left and right
rotation of the rocker, the camera is pushed and
pulled。
