INSTRUCTION MANUAL
MODEL: KC-689-OSC & KC-689-OSC-7
6” x 89” OSCILLATING EDGE SANDER
COPYRIGHT ©2005 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

IMPORTANT INFORMATION
2-YEAR
LIMITED WARRANTY
FOR THIS OSCILLATING EDGE SANDER
KING CANADA TOOLS
OFFERS A 2-YEAR LIMITED WARANTY
FOR INDUSTRIAL USE.
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this tool are available at our authorized KING CANADA service centers across Canada. For servicing, contact
or return to the retailer where you purchased your product along with your proof of purchase.
LIMITED TOOL WARRANTY
KING CANADA makes every effort to ensure that this product meets high quality and durability standards. KING CANADA warrants to
the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free
from defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs
or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for
incidental, special or consequential damages arising from the use of our products. Totake advantage of this warranty,the product or
part must be returned for examination by the retailer. Shipping and handling charges may apply. If a defect is found, KING CANADA
will either repair or replace the product.
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
KING CANADA TOOLS INC. DORVAL, QUEBEC, CANADA H9P 2Y4

GENERAL
SAFETY INSTRUCTIONS
VOLTAGE WARNING:Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the voltage supplied is the same as that
specified on the nameplate of the tool. A power source with voltage greater than that for the specified tool can result in SERIOUS INJURY to the
user - as well as damage to the tool. If in doubt DO NOT PLUG IN THE TOOL. Using a power source with voltage less than the nameplate is
harmful to the motor.
1.KNOW YOUR TOOL
Read and understand the owners manual and labels affixed to
the tool. Learn its application and limitations as well as its
specific potential hazards.
2. GROUND THE TOOL.
This tool is equipped with an approved 3-conductor cord and a
3-prong grounding type plug to fit the proper grounding type
receptacle. The green conductor in the cord is the grounding
wire. NEVER connect the green wire to a live terminal.
3. KEEP GUARDS IN PLACE.
Keep in good working order,properly adjusted and aligned.
4. REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
5. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents. Make sure the
floor is clean and not slippery due to wax and sawdust build-up.
6. AVOID DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations or expose them
to rain. Keep work area well lit and provide adequate
surrounding work space.
7. KEEP CHILDREN AWAY.
All visitors should be kept a safe distance from work area.
8. MAKE WORKSHOP CHILD-PROOF.
Use padlocks, master switches or remove starter keys.
9. USE PROPER SPEED.
A tool will do a better and safer job when operated at the
proper speed.
10. USE RIGHT TOOL.
Don’t force the tool or the attachment to do a job for which it was
not designed.
11. WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties or jewelry (rings,
watch) because they could get caught in moving parts. Non-slip
footwear is recommended. Wear protective hair covering to
contain long hair. Roll up long sleeves above the elbows.
12. ALWAYS WEAR SAFETY GLASSES.
Always wear safety glasses (ANSI Z87.1). Everyday eyeglasses
only have impact resistant lenses, they are NOT safety glasses.
Also use a face or dust mask if cutting operation is dusty.
13. DON’T OVERREACH.
Keep proper footing and balance at all times.
14. MAINTAIN TOOL WITH CARE.
Keep tools sharp and clean for best and safest performance.
Follow instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS.
Before servicing, when changing accessories or attachments.
16. AVOID ACCIDENTAL STARTING.
Make sure the switch is in the ‘’OFF’’ position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the manual for recommended accessories. Follow the
instructions that accompany the accessories. The use of
improper accessories may cause hazards.
18. NEVER STAND ON TOOL.
Serious injury could occur if the tool tips over. Do not store
materials such that it is necessary to stand on the tool to reach
them.
19. CHECK DAMAGED PARTS.
Before further use of the tool, a guard or other parts that are
damaged should be carefully checked to ensure that they will
operate properly and perform their intended function. Check for
alignment of moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard or other
parts that are damaged should be properly repaired or replaced.
20. NEVER LEAVE MACHINE RUNNING
UNATTENDED.
Turn power ‘’OFF’’. Don’t leave any tool running until it comes to
acomplete stop.

ELECTRICAL CONNECTIONS
WARNING
ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS
INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE EDGE SANDER DISCONNECTED FROM THE POWER
SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY!
POWER SUPPLY
WARNING: YOUR EDGE SANDER MUST BE CONNECTED TO
A220V, 20-AMP. MINIMUM BRANCH CIRCUIT. FAILURE TO
CONNECT IN THIS WAY CAN RESULT IN INJURY FROM
SHOCK OR FIRE.
GROUNDING
This edge sander must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance for
electric current, to reduce the risk of electric shock. This edge
sander is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING: TO MAINTAIN PROPER GROUNDING OF YOUR
EDGE SANDER, DO NOT REMOVE OR ALTER THE
GROUNDING PRONG IN ANY MANNER.
Not all outlets are properly grounded. If you are not sure if your
outlet is properly grounded, have it checked by a qualified
electrician.
WARNING: IF NOT PROPERLY GROUNDED, THIS EDGE
SANDER CAN CAUSE ELECTRICAL SHOCK, PARTICULARLY
WHEN USED IN DAMP LOCATIONS. TOAVOID SHOCK OR
FIRE, IF THE POWER CORD IS WORN OR DAMAGED IN ANY
WAY, HAVE IT REPLACED IMMEDIATELY.
220V OPERATION
As received from the factory, your edge sander is ready to run for
220V operation. This edge sander is intended for use on a circuit
that has an outlet and a plug which looks like the one illustrated in
Fig.1.
WARNING: DO NOT USE TWO-PRONG ADAPTORS FOR
THEY ARE NOT IN ACCORDANCE WITH LOCAL CODES AND
ORDINANCES. NEVER USE IN CANADA.
110V OPERATION
If 110V,single phase operation is desired, the following
instructions must be followed:
1. Disconnect the machine from its power source.
2. The edge sander comes with four motor leads that are
connected for 220V operation. Reconnect these four motor leads
for 110V operation, as indicated on the inside of the capacitor
cover.
3. The 220V plug supplied with the edge sander must be replaced
with a CSA listed plug suitable for 110V operation. This plug is
illustrated in Fig.2. Contact your authorized service center or
qualified electrician to install the plug and to change the
connections from 220V to 110V. The edge sander must comply
with all local and national codes after the 110V plug is installed.
4. An edge sander with a 110V plug should only be connected to an
outlet having the same configuration as illustrated by the
grounded outlet box in Fig.2. No adaptor is available or should be
used for 220V operation.
EXTENSION CORDS
The use of any extension cord will cause some loss of power. Use
the following table to determine the minimum wire size (A.W.G-
American Wire Gauge) extension cord. Use only 3-wire extension
cords which have 3-prong grounding type plugs and 3-hole
receptacles which accept the tool’s plug.
For circuits that are further away from the electrical circuit box, the
wire size must be increased proportionately in order to deliver
ample voltage to the edge sander motor. Refer to Fig.3 for wire
length and size.
FIGURE 2
LENGTH OF
CONDUCTOR
0-25 FEET
26-50 FEET
51-100 FEET
WIRE SIZES REQUIRED
(AMERICAN WIRE GAUGE)
220V LINES
NO.16
NO.14
NO.12
FIGURE 3
PROPERLY GROUNDED OUTLET
CURRENT CARRYING PRONGS
GROUNDING PRONG
FIGURE 1
PROPERLY GROUNDED OUTLET
CURRENT CARRYING
PRONGS
GROUNDING
PRONG

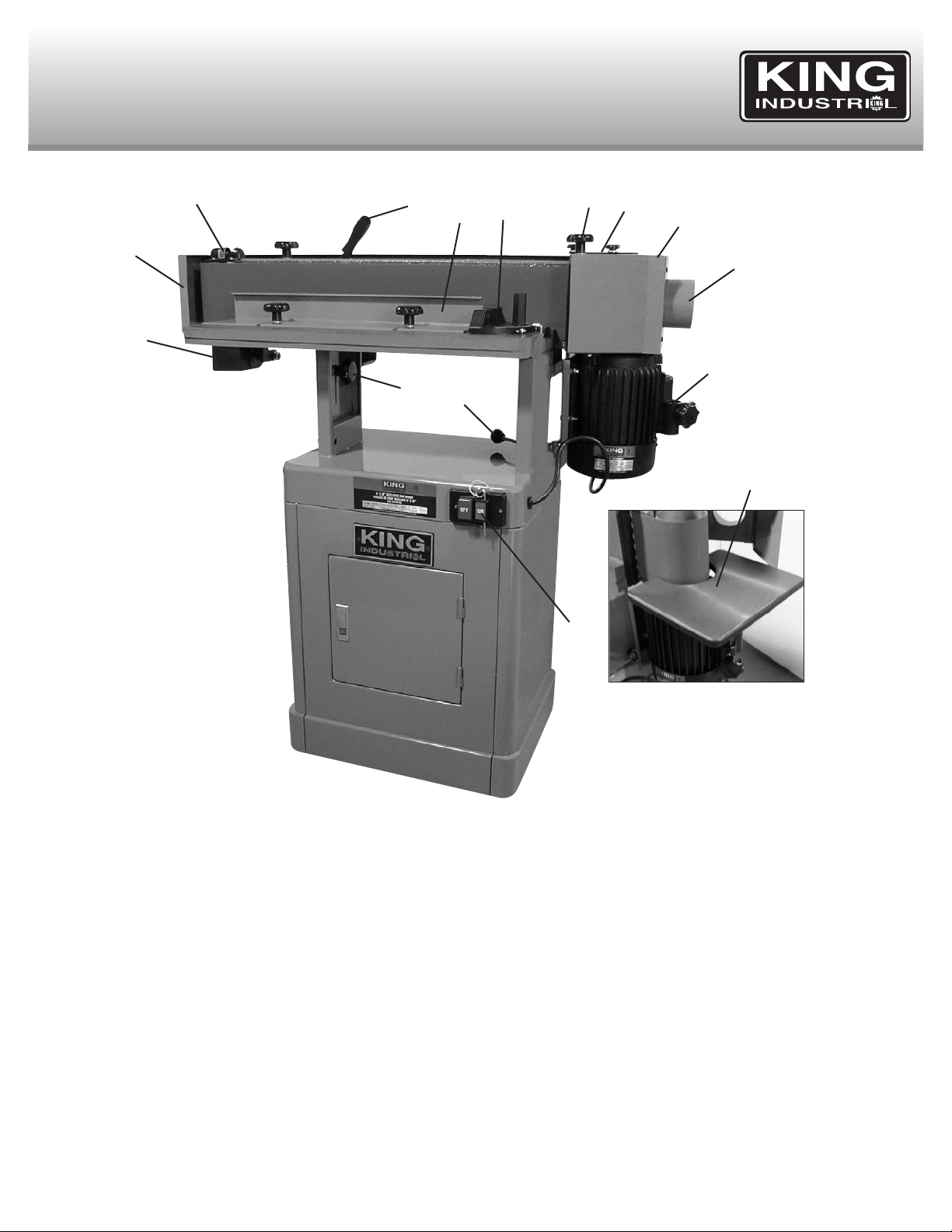

GETTING TO KNOW YOUR EDGE SANDER
A-On/Off Switch.Turns the machine on or off.
B-Belt Frame Lock Knob.Allows the operator to position the belt
frame in a horizontal or vertical position.
C-4” Dust Chute.Adapt a dust collection system to minimize air born
dust.
D-End Table Belt Guard.Protects the operator when in place, when
it is opened, it exposes the right end of the sanding belt. It allows
you to install the end table for contour sanding operations.
E-Workstop.Resting a workpiece against the workstop will prevent it
from being projected in the air accidentally during horizontal or
vertical operations. Also prevents the workpiece from entering and
jamming inside the main belt guard.
F-Workstop Lock Knob.Locks the workstop in place.
G-Miter Gauge. Allows miter angle sanding operations.
H-Fence.When the fence is used in horizontal sanding operations,
place workpiece between the fence and the sanding belt for
additional support and for safety purposes. When the fence is used
in vertical sanding operations, it allows for setting thickness or
sanding tapers.
I-Sanding Belt Tension Lever.Tensions the sanding belt after
sanding belt replacement or adjustment.
J-Belt Tracking Mechanism.Adjusts the tracking of the sanding belt.
K-Small Belt Guard.Protects the operator from the rear of the
sanding belt.
L-End Table Mounting Bracket. If contour sanding is desired, open
end table belt guard and install the end table to the end table
mounting bracket.
M-Table Height Adjustment Lock Knobs (2). These lock knobs
allow you to set the height of the work table. Make sure they are
tightened at all times.
N-End Table.Rest your workpiece on the end table during contour
sanding.
A
B
C
D
E
F
G
H
K
JI
Getting to know your Edge Sander
FIGURE 4
L
N
M
O

ASSEMBLY,
ADJUSTMENTS & OPERATIONS
Assembly
Mounting Tension Handle on Tension Lever
1) Place tension handle (A-Fig.5) over the tension lever (B-Fig.5).
Mounting Workstop to Belt Frame
1) Mount the workstop (C-Fig.5) to the right side of the belt frame using the lock
knob (D-Fig.5).
Mounting End Table
Note: The end table is used for contour sanding operations and requires the
small belt cover (right side) to be opened to expose the right end of the sanding
belt. Unlock the 2 small belt cover lock knobs on the top and pivot the small belt
cover open.
1) Fasten the end table (C-Fig.6) to the end table post (D-Fig.6) using hex. bolt
and hex. nut (E-Fig.6). Tighten the hex. bolt against the flat on the end table
post.
2) Insert the end table post into the end table support bracket fixed to the motor
and secure the end table to the desired height using lock knob (F-Fig.6).
Adjustments
Tilting Belt Frame
1) Disconnect the machine from the power source.
2) Pull belt frame lock knob (A-Fig.7) towards you to release the tension.
3) Tilt the belt frame to desired position, hold in place and push the lock knob
backwards to relock it in place. Get precise angles by placing a combination
square between the table and the sanding belt.
Belt Frame Lock Knob Tension Adjustment
After prolonged use, the belt frame lock knob tension may need to be adjusted.
If the lock knob does not lock the belt frame securely or if the lock knob is too
hard to lock into place, adjust as follows;
1) Disconnect the machine from the power source.
2) Pull belt frame lock knob (A-Fig.7) forward to release the tension.
3) Tilt the belt frame to a horizontal position, do not lock.
4) Adjust the eccentric block tension of the lock knob by tightening or loosening
the nylon hex. nut (A-Fig.8). Turn the nylon hex. nut in 1/4 turn increments and
verify the adjustment for proper tension.
Important Note: When the belt frame lock knob is locked, the belt frame and
motor assembly can not move. If it does, readjust lock knob tension.
FIGURE 5
FIGURE 6
FIGURE 7
FIGURE 8

ADJUSTMENTS & OPERATIONS
Changing the Sanding Belt
1) Disconnect the machine from the power source.
2) Lock the belt frame in a vertical position, see Fig.9.
3) Release the sanding belt tension by pulling the sanding belt tension lever (A-
Fig.9) to the left.
4) Slide both the small belt cover (B-Fig.9) and the main belt cover (C-Fig.9) off
the belt frame by removing the 2 belt cover lock knobs at the rear.
5)Remove the old sanding belt. Place the new sanding belt around the 2 rollers,
making sure the direction arrow on the belt matches the direct indicator on the
top of the main belt cover. Align the edge of the sanding belt with the edges
of the rollers.
6) Tension the sanding belt by pulling the tension lever to the right.
7) Sanding belts stretch with wear.You may need to adjust the belt tracking with
anew belt.
8) Reposition and lock the belt guards in place.
Belt Tracking Adjustment
1) Disconnect the machine from the power source.
2) Push the belt by hand in the direction indicated on the top of the main belt
cover. Observe the belt position on the rollers. The edge of the belt should
remain even with the edge of the rollers.
3) Insert the supplied belt tracking tool (A-Fig.10) into the micro adjusting nut (B-
Fig.10) and turn away from you to loosen.
4) Turn the micro adjusting screw (C-Fig.10) in 1/4 turn increments until the belt
is tracking evenly on the rollers when the belt is pushed by hand.
5) Retighten the micro adjusting nut.
6) Connect the machine to the power source.
7) Turn the power on but just enough to get the belt turning and turn the machine
off. Repeat this and observe the tracking of the belt. Continue to adjust as
necessary.
8) If it seems impossible to get the belt tracking properly, see the next section
“Motor Mount Tracking Adjustment”.
Motor Mount Tracking Adjustment
1) Disconnect the machine from the power source.
2) Slightly loosen the 4 motor mount hex. nuts (A-Fig.11) just enough so the
motor mount tracking hex. nuts can be loosened.
3) Loosen both hex. nuts (B-Fig.11). Turn one hex. bolt (C-Fig.11) a 1/4 turn and
push the belt by hand to observe the direction the belt is tracking. If the belt
is traveling in the direction needed to correctly track the belt, tighten both hex.
nuts (B-Fig.11) and fine tune the tracking with the belt tracking assembly on
the belt frame.
4) If the belt starts to travel in the wrong direction, back off a 1/4 turn and tighten
the other hex. bolt a 1/4 turn. This should start the belt in the proper direction.
Note: Use the motor mount bolts as a “major” tracking adjustment. Use the belt
tracking assembly on the belt frame as a “fine” tracking adjustment.
FIGURE 9
FIGURE 10
FIGURE 11

ADJUSTMENTS & OPERATIONS
Adjusting Table Height
WARNING! Donot position table below sanding belt! Keep an overlap of at least
1/16” between table and sanding belt to avoid material and/or fingers getting
caught! Failure to comply may cause serious injury!
1) Loosen two lock knobs (A-Fig.12).
2) Raise or lower the work table to desired level.
3)Retighten two lock knobs.
Operation
WARNING! Removing the belt covers expose more of the sanding belt! Replace
the belt covers immediately after completing any sanding that requires its
removal! Failure to comply may cause serious injury!
Horizontal Sanding
1) With the belt frame locked in the horizontal position, the adjustable fence (A-
Fig.13) may be used. The fence can be secured in place by screwing two lock
knobs (B-Fig.13) into the guide blocks found in the miter slot (C-Fig.13).
2) The backstop (D-Fig.13) can also be used, place the backstop pin in the
positioning hole and secure it in place with the workstop lock knob (E-Fig.1).
Vertical Sanding
1) With the belt frame locked in the vertical position, the backstop (A-Fig.13)
and/or the miter gauge (B-Fig.14) may be used.
2) Toset a miter gauge angle, loosen the lock handle (C-Fig.14), pivot the miter
gauge body to the desired angle and retighten the lock handle. If you need to
do precise 90° work use a square between the table and belt frame. Adjust for
square.
3) The fence (A-Fig.13) can also be positioned for tapered sanding operations by
setting the fence on an angle. Adjust the table so the fence is at a good height.
Contour Sanding
The use of the end table (A-Fig.15) is optional according to the particular
function of the sanding operation. It is ideal for sanding curves.
1) Always rest your workpiece on the end table for support.
2) Reposition the end table height for maximum belt use by loosening the end
table lock knob which fastens the end table post.
3) When the end table is not being used, remove the end table and post and store
them inside the enclosed cabinet. The end belt cover should always be in
place if the end table is not being used.
Connecting a Dust Collection System
Tocontrol the limit of airborne dust, it is highly recommended to connect a dust
collection system to your edge sander. The belt cover on the right side has a 4”
dust chute incorporated into it. Adapt a 4” hose from the edge sander to a dust
collector for best results.
FIGURE 12
FIGURE 13
FIGURE 14
FIGURE 15
