King Living King Cloud III User manual

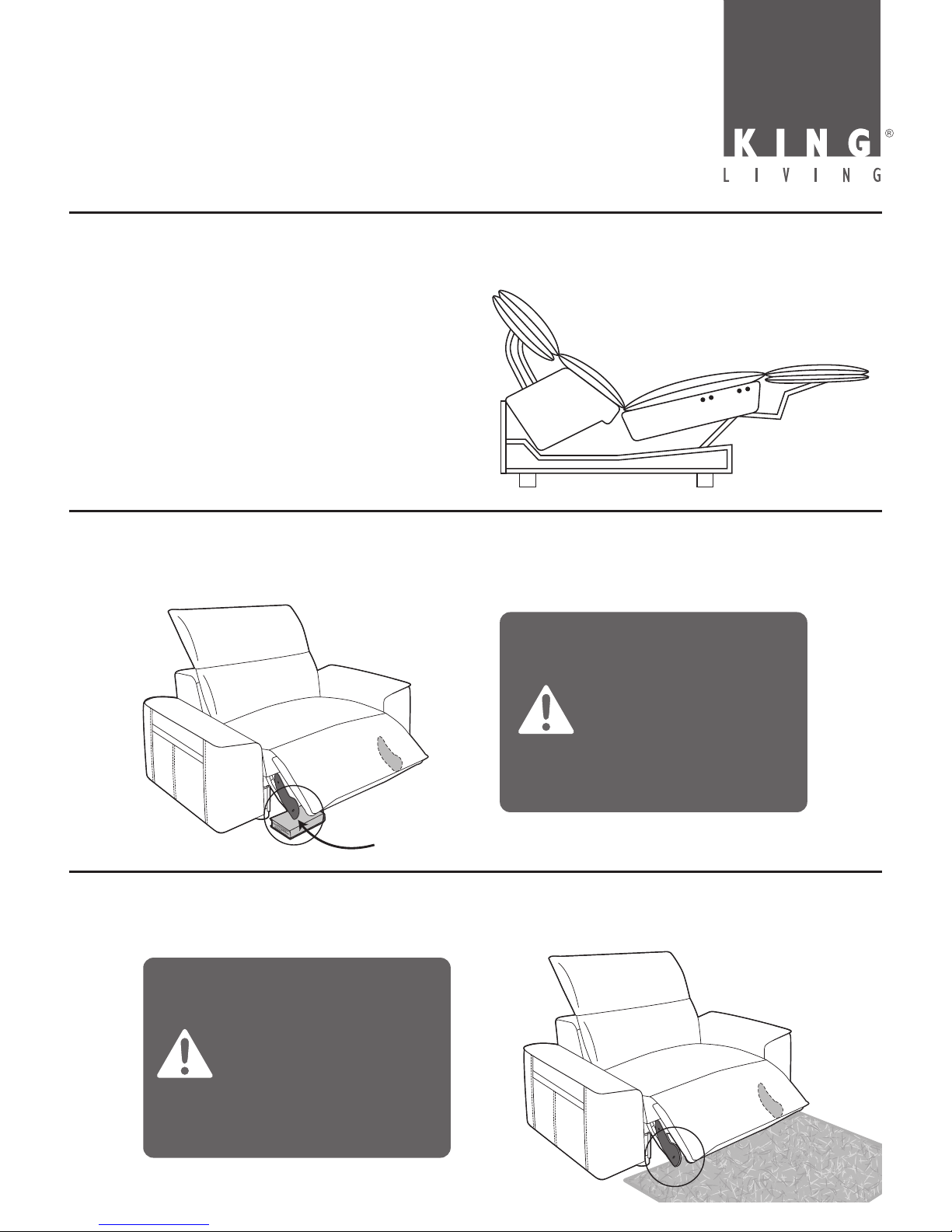

Safety Sheild
IF THE RECLINER DOESN’T
CLOSE, THERE MAY BE AN
OBSTRUCTION INTERFERING
WITH THE SAFETY SHIELD
REMOVE OBSTRUCTION BEFORE
FURTHER OPERATION
THE SAFETY SHIELD MAY ALSO
BE TRIGGERED BY A THICK RUG
UNDER THE SOFA. IF THE RUG
CANNOT BE MOVED OUT OF THE
WAY OF THE SAFETY GUARD,
PLEASE CONTACT CUSTOMER
SERVICE
Warning
Obstruction Detection
Do not sit on footrest when in
open reclined/extended position.
MAXIMUM LOAD 15 KG.
Always RETRACT FOOTREST
prior to standing.
King Cloud III
Instructions for Reclining Sofas

Safety Sheild
IF THE RECLINER DOESN’T
CLOSE, THERE MAY BE AN
OBSTRUCTION INTERFERING
WITH THE SAFETY SHIELD
REMOVE OBSTRUCTION BEFORE
FURTHER OPERATION
THE SAFETY SHIELD MAY ALSO
BE TRIGGERED BY A THICK RUG
UNDER THE SOFA. IF THE RUG
CANNOT BE MOVED OUT OF THE
WAY OF THE SAFETY GUARD,
PLEASE CONTACT CUSTOMER
SERVICE
Step 1: Parts
1x Recliner
Important – Do not connect power until step 6
1x Accessories Bag
Part# 12020011
Part# 12020019 Part# 12021857
x2
Part# 16020006
Each module has
two joiners – in an
upright position.
Step 1:
Rotate both
joiners 45º
(as shown).
Step 2:
Line up the modules
(as shown).
Step 3:
Rotate the joiners
another 45º until
horizontal (as shown).
Joining complete.
Step 2: Join Modules
King Cloud III
Quick Start Guide | Setup

Important
• Do not connect King Cloud III to power
until arms are assembled and modules connected.
• Every recliner must be connected to its own
power supply.

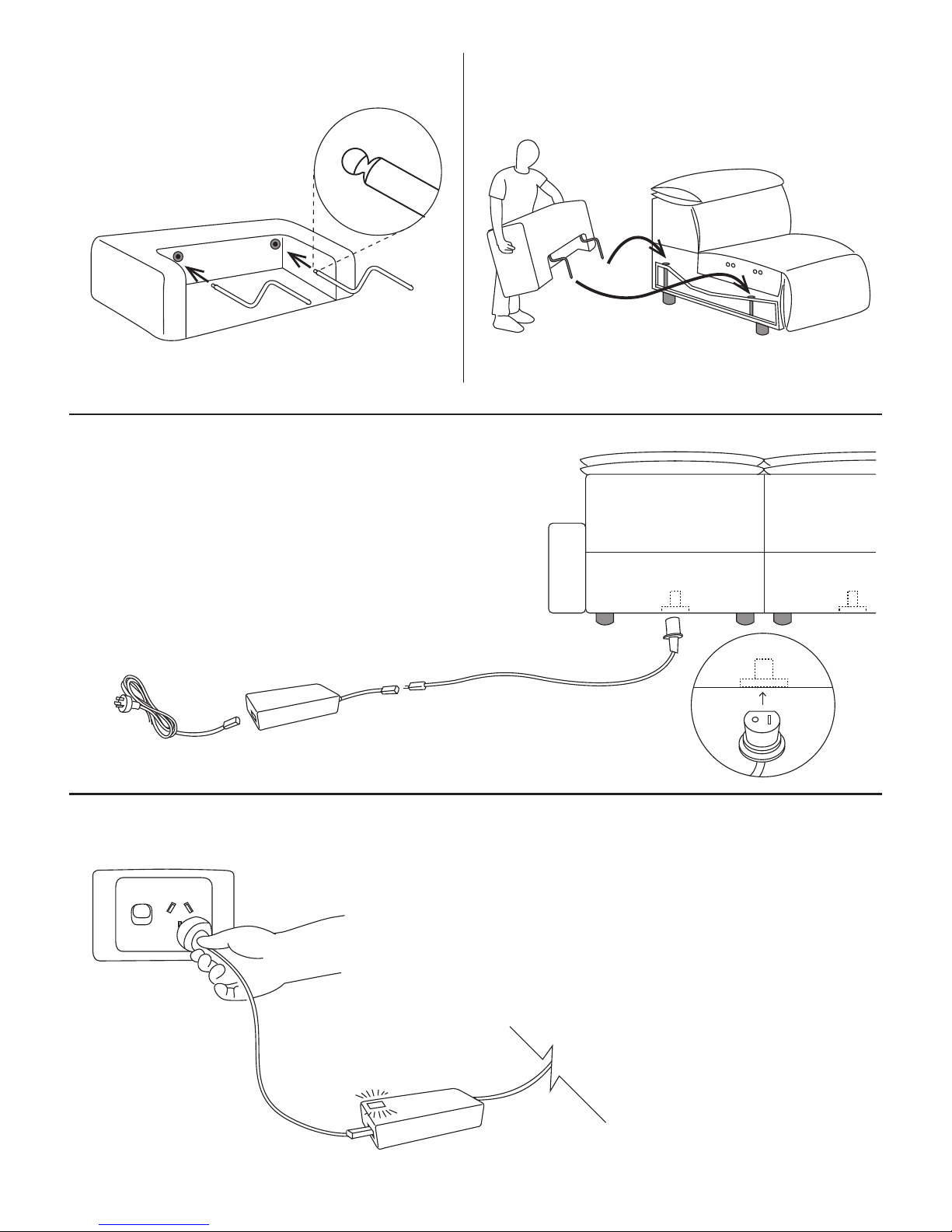

Step 3: Assembling Arms

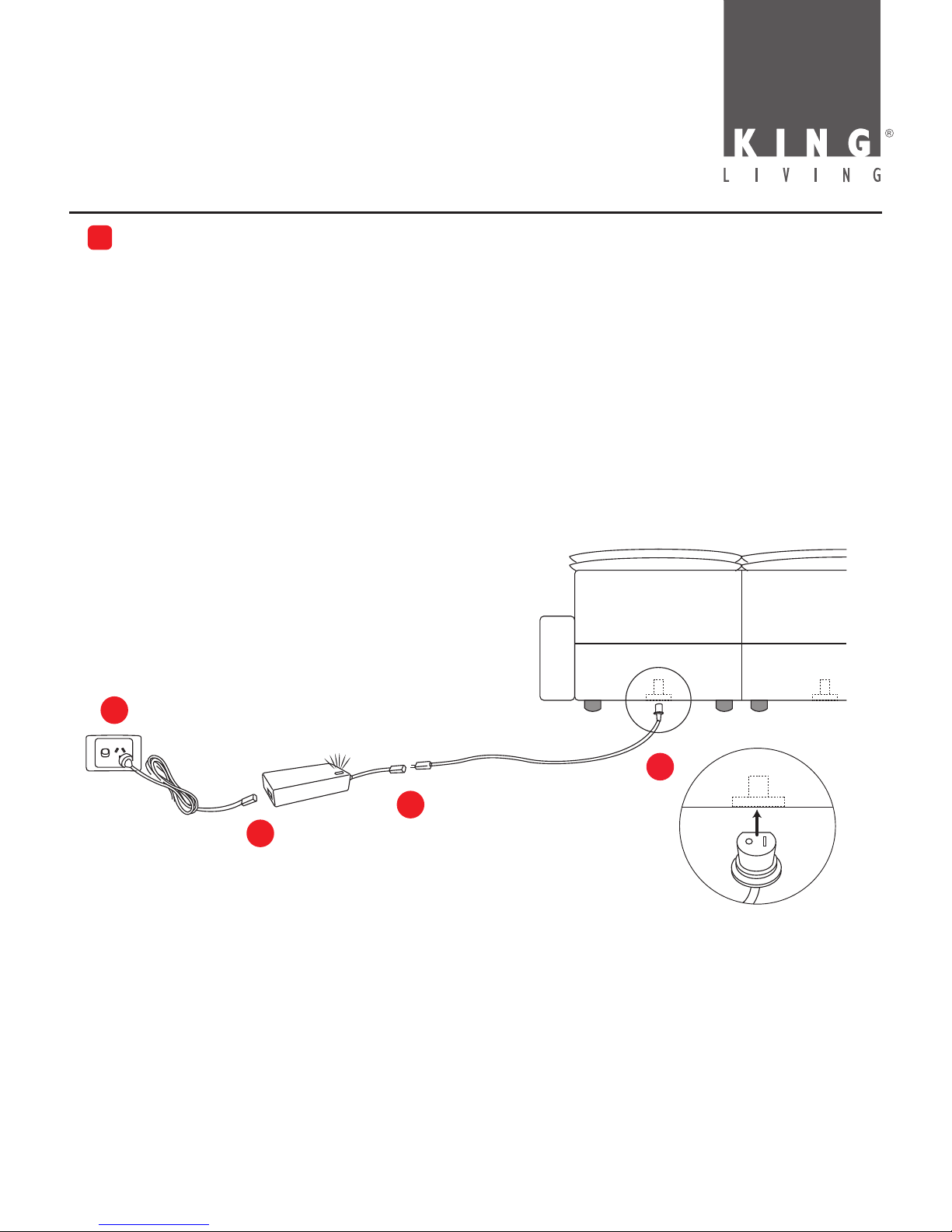

Step 5: Connect Power Cables
Step 4: Assembling Arms
Part# 12020019
Part# 12020011
Part# 16020006
Part# 12021857
Step 6: Connect King Cloud III to Power

Manual Operation
Automatic Close
1
2
Open
Close
3
4
Important
This should be completed
everytime the power supply
is connected or interrupted.

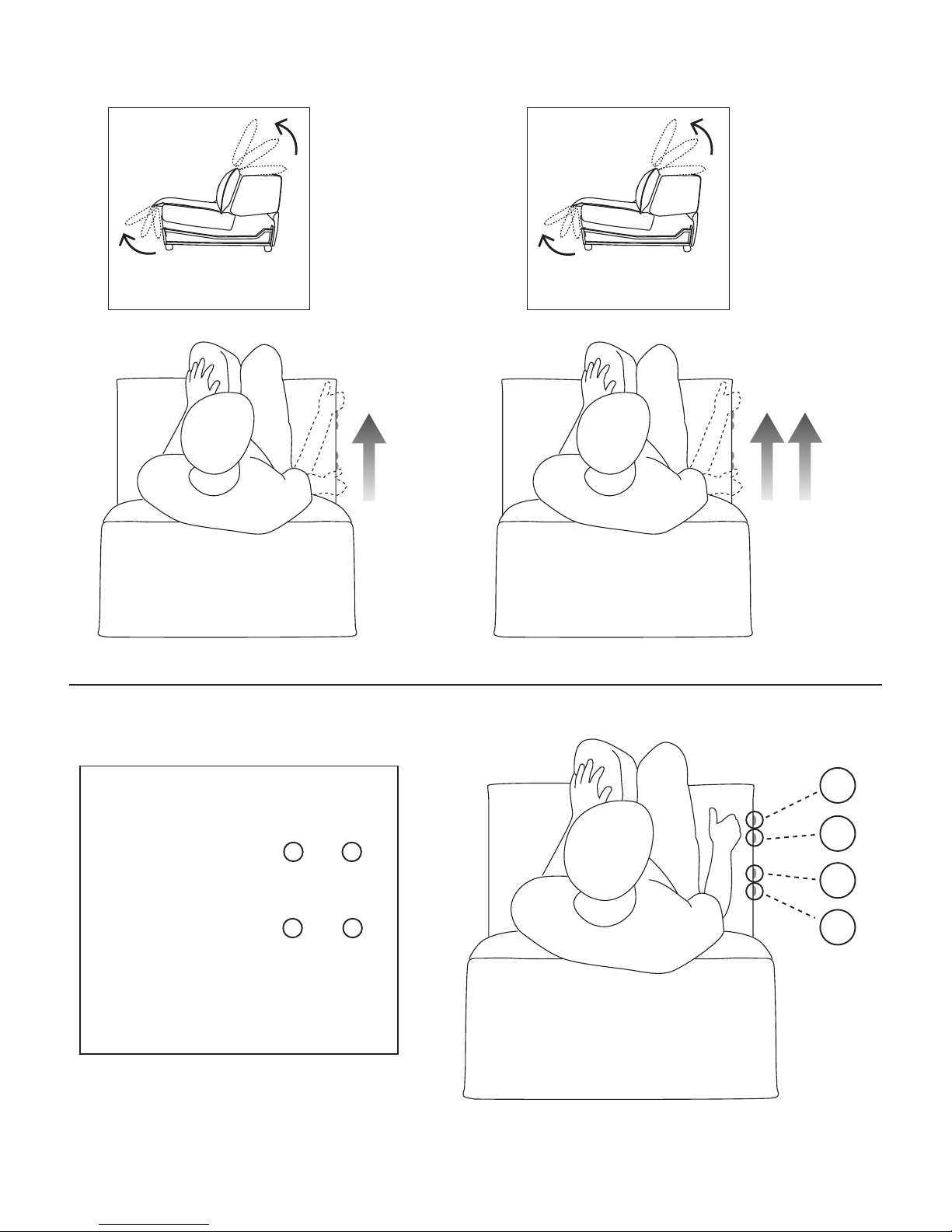

Swipe
towards
rear
Automatic close
King Cloud III
Quick Start Guide | Operation

Swipe
toward
front twice
Swipe
toward
front
1
2
3
4
Swipe
Memory
Position 1
Memory
Position 2
Set Memory Positions
Memory Position Recall
Manual adjust to desired position
Set memory Position 1:
Press and hold Button 1 and 3
for 8 seconds
Set memory Position 2:
Press and hold Button 2 and 4
for 8 seconds
Please note:
This will overwrite existing
memory position.
Button
number
DT2017343 V4
KING LIVING
CUSTOMER CARE:
AUSTRALIA:
T 1300 135 464
E [email protected]
W kingliving.com.au
NEW ZEALAND:
T 0800 546 422
E [email protected]
W kingliving.co.nz
SINGAPORE:
T [phone]
E [email protected]
W kingliving.com.sg
MALAYSIA:
T [phone]
E [email protected]
W kingliving.my

Warning
Important:
Read the below instructions carefully before
assembling and using this product.
IMPORTANT: ALWAYS FULLY RETRACT THE FOOTREST BEFORE SITTING IN OR GETTING
OUT OF THE RECLINER.
To avoid damage to your recliner, the reclining function should only be operated when you are seated in
the recliner. Any open footrests, which have a 15kg weight limit, must be closed before getting out of or
into the seat. Sliding forward over the footrest to get out of the seat or getting into a fully reclined seat
may cause damage to the mechanism of the recliner and can result in the sofa tipping forward in extreme
cases. This built-in tipping point was specically designed to preserve the integrity of the mechanism if
too much pressure is placed on it and to avoid permanent damage. Damage caused by improper use of
Recliners will not be covered under Warranty.
• Do not allow children to play with or on the unit or
allow children to use the unit unsupervised. Serious
injury or death could occur if head or body parts
are trapped within or under the unit while it is being
operated.
• Ensure children and pets are at a safe distance from
the unit when operating the electric mechanism /
moving parts.
• Keep hands and feet clear of moving parts at all
times.
• Each unit should be operated only by the person
sitting on it.
• Only use the electronic mechanism to operate the
unit. Do not attempt to open the footrest by pulling
on it.
• Always leave the unit in an upright and closed position
when not in use to avoid children and pets crawling
into any open cavities and becoming trapped under
moving parts.
• Always disconnect the electrical cord attached to
the unit from power before cleaning or moving the
unit or when not in use for an extended period.
• Ensure the unit is clear of walls, furniture and other
obstructions that may interfere with a clear path
for operation. Ensure that no objects are left under
the unit to avoid interference with the internal
mechanisms.
• Do not use the unit if it is wet, in water, or around
water or any liquid. Keep liquids away from unit. If
liquids are spilled on the unit, disconnect from power
immediately and wait until the spill is completely dry
before reconnecting to power. Do not handle the
plug or electric controls with wet hands.
• This product is for indoor residential use only.
• Use only a slightly damp cloth to clean metal parts of
the mechanism. Before cleaning ensure the furniture
has been disconnected from its power source.
• Ensure electrical wires are free from obstruction and
not twisted or trapped. If any wires are damaged,
turn o power supply and call King-Care.
• Do not attempt to disassemble or service the
internal mechanism, motor or other parts. No
customer serviceable parts inside.
DT2017494 V1
KING LIVING
CUSTOMER CARE:
AUSTRALIA:
T 1300 135 464
E [email protected]
W kingliving.com.au
NEW ZEALAND:
T 0800 546 422
E [email protected]
W kingliving.co.nz
SINGAPORE:
T [phone]
E [email protected]
W kingliving.com.sg
MALAYSIA:
T [phone]
E [email protected]
W kingliving.my

Your recliner module may not be connected to power. Follow these steps:
1) Ensure the power cable is plugged into the power socket and the power socket is
switched ON
2) Ensure the power cable is connected to the power supply and the LED on the power supply
is illuminated green
3) Ensure the extension power cable is connected to the power supply
4) Ensure the extension power cable is correctly plugged into the rear of the recliner module
5) If the recliner module still doesn’t respond when you touch a button, continue below.
Your power supply may have overheated. Follow these steps:
1) Turn power OFF at the power socket, unplug power cable and wait for 15 minutes
2) Re-connect power cable and turn power ON at the power socket
3) Check that the light on the power supply is illuminated green
4) If the recliner module still doesn’t respond when a button is touched,
contact King Living Customer Care.
Why doesn’t my recliner module respond when a button is
touched?
1
1
2
3
4
King Cloud III
Customer FAQs

Your recliner module may not be connected to power. Follow these steps:
1) Ensure the power cable is plugged into the power socket and the power socket is
switched ON
2) Ensure the power cable is connected to the power supply and the LED on the power supply
is illuminated green
3) Ensure the extension power cable is connected to the power supply
4) Ensure the extension power cable is correctly plugged into the rear of the recliner module
5) If the recliner module still doesn’t respond when you touch a button, continue below.
Your power supply may have overheated. Follow these steps:
1) Turn power OFF at the power socket, unplug power cable and wait for 15 minutes
2) Re-connect power cable and turn power ON at the power socket
3) Check that the light on the power supply is illuminated green
4) If the recliner module still doesn’t respond when a button is touched,
contact King Living Customer Care.
Why doesn’t my recliner module respond when a button is
touched?
1
1
2
3
4
Why does one recliner module sit higher or lower than
another recliner module?

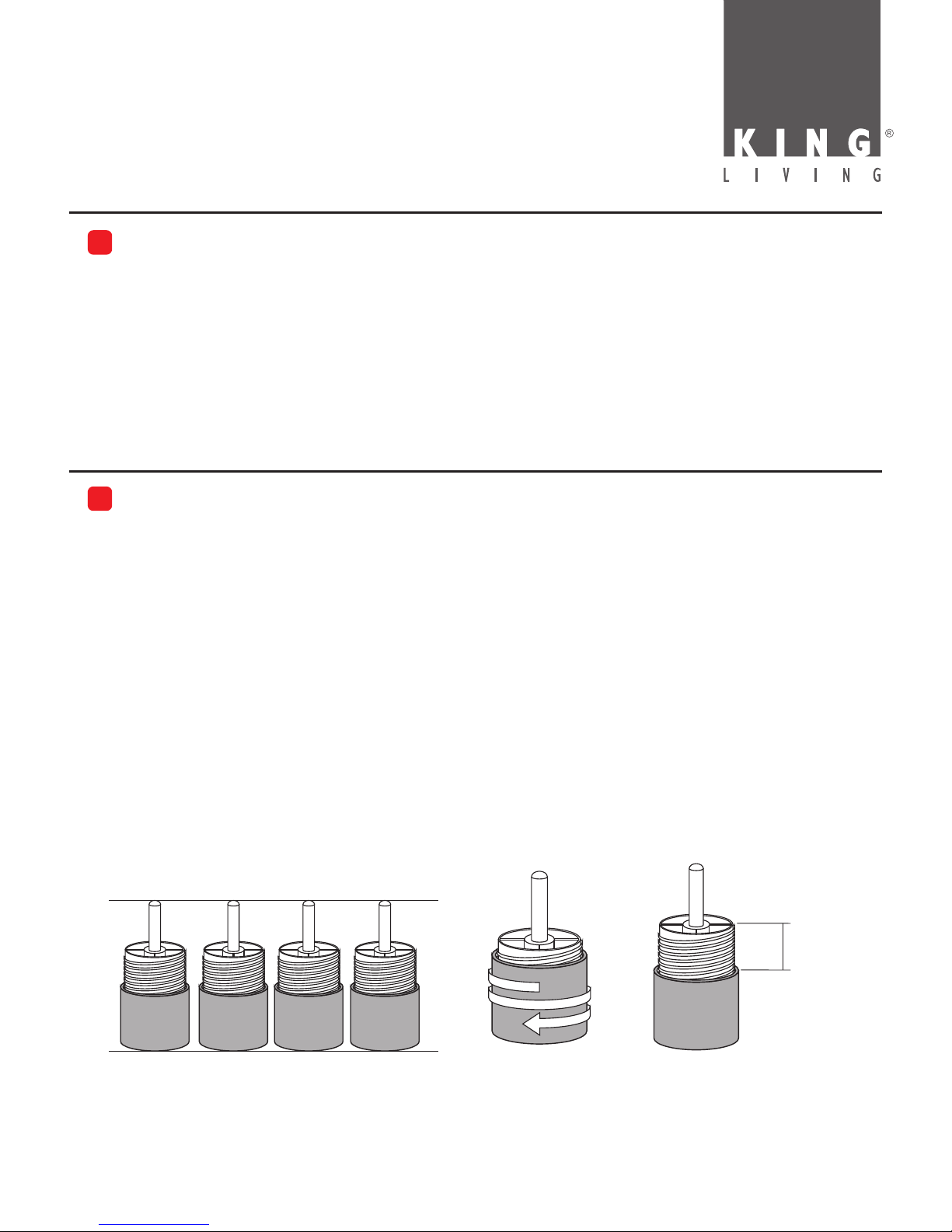

The adjustable feet on your recliner modules may be set to different heights. Follow these steps.
1) Turn power OFF at the power socket for each recliner module
2) Tilt each recliner module until they are lying on their backs
3) Adjust leg heights by rotating in a clockwise or anti-clockwise direction. Ensure the legs on all
recliner modules are adjusted to the same height
4) Lower each recliner module onto its legs
5) Turn power ON at the power socket for each recliner module and ensure that the
recliner modules are still connected to power (see FAQ 1 for more details)
6) Check the Setup section of your Quick Start Guide for instructions on how to correctly join
the King Cloud III modules back together.
3
35mm
maximum
Why aren’t the seams on my recliner modules sitting
straight?
For enhanced comfort King Cloud III uses a soft multi-layered cushioning system.
The soft nature of these layers means that the seams on one recliner module may not perfectly align
with the seams on another recliner module.
2
NOTE: If your recliner module has not been tted with adjustable legs,
contact King Living Customer Care.
See FAQ 3 for more details.
If there is a signicant misalignment between recliner modules, they may be sitting at different heights.
King Cloud III
Customer FAQs

Why does one recliner module sit higher or lower than
another recliner module?
The adjustable feet on your recliner modules may be set to different heights. Follow these steps.
1) Turn power OFF at the power socket for each recliner module
2) Tilt each recliner module until they are lying on their backs
3) Adjust leg heights by rotating in a clockwise or anti-clockwise direction. Ensure the legs on all
recliner modules are adjusted to the same height
4) Lower each recliner module onto its legs
5) Turn power ON at the power socket for each recliner module and ensure that the
recliner modules are still connected to power (see FAQ 1 for more details)
6) Check the Setup section of your Quick Start Guide for instructions on how to correctly join
the King Cloud III modules back together.
3
35mm
maximum
Why aren’t the seams on my recliner modules sitting
straight?
For enhanced comfort King Cloud III uses a soft multi-layered cushioning system.
The soft nature of these layers means that the seams on one recliner module may not perfectly align
with the seams on another recliner module.
2
NOTE: If your recliner module has not been tted with adjustable legs,
contact King Living Customer Care.
See FAQ 3 for more details.
If there is a signicant misalignment between recliner modules, they may be sitting at different heights.
The footrest on your recliner module will not close if the safety system detects an object
under the footrest. Follow these steps.
1) Remove any objects from underneath the footrest such as toys or books.
2) If the footrest still doesn’t close, continue below
Your recliner module may be sitting on a thick carpet or rug which is activating the safety
system. Follow these steps to raise your recliner above the carpet or rug.
1) Turn power OFF at the power socket for each recliner module
2) Tilt recliner module until it is lying on its back
3) Increase leg heights by rotating each leg in an anti-clockwise direction. Ensure all legs
are adjusted to the same height
4) Lower recliner module onto carpet/rug
5) Turn power ON at the power socket for each recliner module. Ensure that the recliner modules
are still connected to power (see FAQ 1 for more details)
6) If your recliner module’s footrest still doesn’t close, contact King Living Customer Care.
Why won’t the footrest of my recliner module close?
4
35mm
maximum
NOTE: If your recliner module has not been tted with adjustable legs,
contact King Living Customer Care.
King Cloud III
Customer FAQs
Why can’t my recliner module’s memory positions be
programmed or recalled?
Why do my recliner modules have gaps between them?
Your recliner module is brand new and needs to be used in order to wear in the soft cushioning. After
several weeks of use any gaps between your recliner modules will reduce. If the gaps don’t reduce over
time, continue below.
Your recliner modules may not be correctly joined together. Follow these steps.
1) Turn power OFF at the power socket for each recliner module
2) Check the Setup section of your Quick Start Guide for instructions on how to correctly join
your King Cloud III modules
3) Turn power ON at the power socket for each recliner module
4) If your recliner modules still have gaps between modules, contact King Living Customer Care.
5
6
The power to your recliner module may have been interrupted and therefore the home position
needs to be reset. Follow these steps
1) Touch and hold buttons 3 and 4 for 15 seconds. NOTE: It is important to touch the buttons for
the full 15 seconds
2) Set and recall memory positions as per the operation section of the Quick Start Guide
3) If your memory positions still cannot be set or recalled, contact King Living Customer Care.
1
2
3
4

The footrest on your recliner module will not close if the safety system detects an object
under the footrest. Follow these steps.
1) Remove any objects from underneath the footrest such as toys or books.
2) If the footrest still doesn’t close, continue below
Your recliner module may be sitting on a thick carpet or rug which is activating the safety
system. Follow these steps to raise your recliner above the carpet or rug.
1) Turn power OFF at the power socket for each recliner module
2) Tilt recliner module until it is lying on its back
3) Increase leg heights by rotating each leg in an anti-clockwise direction. Ensure all legs
are adjusted to the same height
4) Lower recliner module onto carpet/rug
5) Turn power ON at the power socket for each recliner module. Ensure that the recliner modules
are still connected to power (see FAQ 1 for more details)
6) If your recliner module’s footrest still doesn’t close, contact King Living Customer Care.
Why won’t the footrest of my recliner module close?
4
35mm
maximum
NOTE: If your recliner module has not been tted with adjustable legs,
contact King Living Customer Care.
Why can’t my recliner module’s memory positions be
programmed or recalled?
Why do my recliner modules have gaps between them?
Your recliner module is brand new and needs to be used in order to wear in the soft cushioning. After
several weeks of use any gaps between your recliner modules will reduce. If the gaps don’t reduce over
time, continue below.
Your recliner modules may not be correctly joined together. Follow these steps.
1) Turn power OFF at the power socket for each recliner module
2) Check the Setup section of your Quick Start Guide for instructions on how to correctly join
your King Cloud III modules
3) Turn power ON at the power socket for each recliner module
4) If your recliner modules still have gaps between modules, contact King Living Customer Care.
5
6
The power to your recliner module may have been interrupted and therefore the home position
needs to be reset. Follow these steps
1) Touch and hold buttons 3 and 4 for 15 seconds. NOTE: It is important to touch the buttons for
the full 15 seconds
2) Set and recall memory positions as per the operation section of the Quick Start Guide
3) If your memory positions still cannot be set or recalled, contact King Living Customer Care.
1
2
3
4
King Cloud III
Customer FAQs
NOTE: If you do not have King-Care Leather Conditioner, contact King Living Customer Care.
Why is my leather recliner module making a rubbing
noise during operation?
1
4
3
2
7
Why does my leather recliner module have slight wrinkles?
The King Cloud III is a luxurious, soft cushioned design which has been engineered for comfort.
The multi-layered cushioning system combined with the natural stretch of high quality, soft European
leathers will result in some slight wrinkling of your recliner module covers – this is perfectly normal.
8
During operation a rubbing noise may be present as the leather surfaces of your recliner modules slide
past one another. Applying King-Care Leather Conditioner will not only ensure the soft, luxurious feel
of your leather is maintained, but will allow the surfaces to move freely over each other and reduce any
rubbing noises.
Apply King-Care Leather Conditioner to:
f
1) The sides of the lumbar
2) The sides of the seats
3) The sides of the media console
4) The insides of each arm

Why can’t my recliner module’s memory positions be
programmed or recalled?
Why do my recliner modules have gaps between them?
Your recliner module is brand new and needs to be used in order to wear in the soft cushioning. After
several weeks of use any gaps between your recliner modules will reduce. If the gaps don’t reduce over
time, continue below.
Your recliner modules may not be correctly joined together. Follow these steps.
1) Turn power OFF at the power socket for each recliner module
2) Check the Setup section of your Quick Start Guide for instructions on how to correctly join
your King Cloud III modules
3) Turn power ON at the power socket for each recliner module
4) If your recliner modules still have gaps between modules, contact King Living Customer Care.
5
6
The power to your recliner module may have been interrupted and therefore the home position
needs to be reset. Follow these steps
1) Touch and hold buttons 3 and 4 for 15 seconds. NOTE: It is important to touch the buttons for
the full 15 seconds
2) Set and recall memory positions as per the operation section of the Quick Start Guide
3) If your memory positions still cannot be set or recalled, contact King Living Customer Care.
1
2
3
4
NOTE: If you do not have King-Care Leather Conditioner, contact King Living Customer Care.
Why is my leather recliner module making a rubbing
noise during operation?
1
4
3
2
7
Why does my leather recliner module have slight wrinkles?
The King Cloud III is a luxurious, soft cushioned design which has been engineered for comfort.
The multi-layered cushioning system combined with the natural stretch of high quality, soft European
leathers will result in some slight wrinkling of your recliner module covers – this is perfectly normal.
8
During operation a rubbing noise may be present as the leather surfaces of your recliner modules slide
past one another. Applying King-Care Leather Conditioner will not only ensure the soft, luxurious feel
of your leather is maintained, but will allow the surfaces to move freely over each other and reduce any
rubbing noises.
Apply King-Care Leather Conditioner to:
f
1) The sides of the lumbar
2) The sides of the seats
3) The sides of the media console
4) The insides of each arm
King Cloud III
Customer FAQs
DT2017343 V4
KING LIVING
CUSTOMER CARE:
AUSTRALIA:
T 1300 135 464
E [email protected]
W kingliving.com.au
NEW ZEALAND:
T 0800 546 422
E [email protected]
W kingliving.co.nz
SINGAPORE:
T [phone]
E [email protected]
W kingliving.com.sg
MALAYSIA:
T [phone]
E [email protected]
W kingliving.my
