These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started…
02
22
03-14
23-24
25-28
29-32
33
34
35-36
37
38
15
16-21
Getting started...
Technical and legal information
Your product
Before you start
In more detail...
Product functions
Operation
Care and maintenance
Trouble shooting
Recycling and disposal
Guarantee
Technical specications
Declaration of conformity
Technical and legal
information
Safety warnings
IMPORTANT
READ CAREFULLY BEFORE USE.
KEEP FOR FUTURE REFERENCE.
Blower/vacuum safety warnings
1. It is recommended that appliances should be
supplied via a residual current device (RCD) with a
tripping current of not more than 30mA.
2. Avoid using the machine in bad weather
conditions especially when there is a risk of
lightning.
3. Children should be supervised to ensure that they
do not play with the product.
Training
1. Read the instructions carefully. Be familiar with the
controls and the proper use of the product.
2. Never allow children, persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge or people unfamiliar
with these instructions to use the machine. Local
regulations can restrict the age of the operator.
3. Never operate the product while people, especially
children, or pets are nearby.
4. The operator or user is responsible for accidents
or hazards occurring to other people or their
property.
EN EN

EN EN
4 5
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2
Preparation
1. Obtain ear protection and safety glasses. Wear
them at all times while operating the machine.
2. While operating the machine always wear
substantial footwear and long trousers. Do not
operate the machine when barefoot or wearing
open sandals. Avoid wearing clothing that is loose
tting or that has hanging cords or ties.
3. Do not wear loose clothing or jewellery that can be
drawn into the air inlet. Keep long hair away from
the air inlets.
4. Operate the machine in a recommended position
and only on a rm, level surface.
5. Do not operate the machine on a paved or gravel
surface where ejected material could cause injury.
6. Before using, always visually inspect to see, that
the shredding means, shredding means bolts
and other fasteners are secure, the housing is
undamaged and that guards and screens are in
place. Replace worn or damaged components in
sets to preserve balance. Replace damaged or
unreadable labels.
7. Before use, check the supply and extension cord
for signs of damage or aging. If the cord becomes
damaged during use, disconnect the cord from the
supply immediately. DO NOT TOUCH THE CORD
BEFORE DISCONNECTING THE SUPPLY. Do
not use the machine if the cord is damaged or
worn.
Operation
1. Before starting the machine, make certain that the
feeding chamber is empty.
2. Keep your face and body away from the feed
intake opening.
3. Do not allow hands or any other part of the body
or clothing inside the feeding chamber, discharge
chute, or near any moving part.
4. Keep proper balance and footing at all times. Do
not overreach. Never stand at a higher level than
the base of the machine when feeding material
into it.
5. Always stand clear of the discharge zone when
operating this machine.
6. When feeding material into the machine be
extremely careful that pieces of metal, rocks,
bottles, cans or other foreign objects are not
included.
7. If the cutting mechanism strikes any foreign
objects or if the machine should start making any
unusual noise or vibration, immediately shut off
the power source and allow the machine to stop.
Disconnect the machine from the supply and take
the following steps before restarting and operating
the machine
- inspect for damage;
- replace or repair any damaged parts;
- check for and tighten any loose parts.
8. Do not allow processed material to build up in the
discharge zone; this may prevent proper discharge
Technical and legal
information
Technical and legal
information

EN EN
6 7
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2 Technical and legal
information
Technical and legal
information
and can result in kickback of material through the
intake opening.
9. If the machine becomes clogged, shut-off the power
source and disconnect the machine from supply
before cleaning debris.
10.Never operate the machine with defective guards
or shields, or without safety devices, for example
debris collector in place.
11. Keep the power source clean of debris and other
accumulations to prevent damage to the power
source or possible re.
12.Do not transport this machine while the power
source is running.
13.Stop the machine, and remove plug from the
socket. Make sure that all moving parts have come
to a complete stop
- whenever you leave the machine,
- before clearing blockages or unclogging chute,
- before checking, cleaning or working on the
machine.
- after striking a foreign object to inspect the
machine for damage.
- if the machine starts to vibrate abnormally, for
immediately check.
14.Do not tilt the machine while the power source is
running.
15.Do not overreach and keep the balance at all times,
always be sure of the footing on slopes and walk,
never run.
16.Do not touch moving hazardous parts before the
machine is disconnected from the mains and the
moving hazardous parts have come to a complete
stop.
17.Do not connect a damaged cord to the supply or
touch a damaged cord before it is disconnected from
the supply for the reason that damaged cords can
lead to contact with live parts.
18.Keep extension cords away from moving hazardous
parts to avoid damages to the cords which can lead
to contact with live parts.
19.The operating method shall be followed in the event
of accident or breakdown.
Maintenance and storage
1. When the machine is stopped for servicing,
inspection, or storage, or to change an accessory,
shut off the power source, disconnect the machine
from the supply and make sure that all moving parts
are come to a complete stop. Allow the machine to
cool before making any inspections, adjustments, etc.
Maintain the machine with care and keep it clean.
2. Store the machine in a dry place out of the reach of
children.
3. Always allow the machine to cool before storing.
4. When servicing the shredding means be aware that,
even though the power source is switched off due
to the interlock feature of the guard, the shredding
means can still be moved.

EN EN
8 9
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2
5. Replace worn or damaged parts for safety. Use only
genuine replacement parts and accessories.
6. Never attempt to override the interlocked feature of
the guard.
7. Switch-off the machine before attaching or removing
the bag.
Additional warnings
1. Warning! Do not operate the product near open
windows, etc.
2. Do not blow hard objects such as nails, bolts, or
rocks.
3. Apply extra care when cleaning debris from stairs or
other tight areas.
4. Keep all parts of your body away from the suction/
blowing device. Do not remove blockages or jams
when the product is switched on. Make sure the
switch is off when clearing jammed material. One
moment of inattentiveness while operating the
product may result in serious personal injury.
5. Carry the product by the handle with the motor
off. Handling the product properly reduces the
possibility of personal injury.
6. Never use the product standing on steps or a
ladder. Do not work above shoulder height.
7. If the product starts to vibrate abnormally, check it
immediately. Excessive vibration can cause injury.
8. Always ensure the product is fully assembled before
using it. Never attempt to use an incomplete product
Technical and legal
information
Technical and legal
information
or one tted with an unauthorised modication.
9. Check the suction/blowing device regularly for
damage, and if damaged repair immediately.
10.Do not overload the product.
11. Follow the maintenance and repair instructions for
this product. Never carry out any modications to the
product. Information about maintenance and repair is
provided in this user manual.
12.If the power cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied people in order to avoid a hazard.
13.Do not use extension cords lighter than below and
more than 75m:
- if rubber insulated, ordinary tough rubber sheathed
exible cord (code designation 60245 lEC 53; H05
RN-F with type 2 x 1.0mm²);
- if polyvinyl chloride insulated, ordinary polyvinyl
chloride sheathed exible cord (code designation
60227 lEC 53; H05 VV-F with type 2 x 1.0mm²).
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and low-
noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimize the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.

EN EN
10 11
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2
structure and design of this product:
1. Health defects resulting from vibration emission
if the product is being used over long periods of
time or not adequately managed and properly
maintained.
2. Injuries and damage to property due to broken
application tools or the sudden impact of hidden
objects during use.
3. Danger of injury and property damage caused by
ying objects.
WARNING! This product produces an
electromagnetic eld during operation!
This eld may under some circumstances
interfere with active or passive medical
implants! To reduce the risk of serious or
fatal injury, we recommend persons with
medical implants to consult their doctor
and the medical implant manufacturer
before operating this product!
2. Ensure that the product is in good condition and
well maintained.
3. Use correct application tools for the product and
ensure they in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high
vibration tool use across a longer period of time.
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1. Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage
to property.
2. Switch off and disconnect from the power
supply if there are malfunctions. Have the
product checked by a qualied professional and
repaired, if necessary, before you operate it again.
Residual risks
Even if you are operating this product in
accordance with all the safety requirements,
potential risks of injury and damage remain. The
following dangers can arise in connection with the
Technical and legal
information
Technical and legal
information

EN EN
12 13
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2

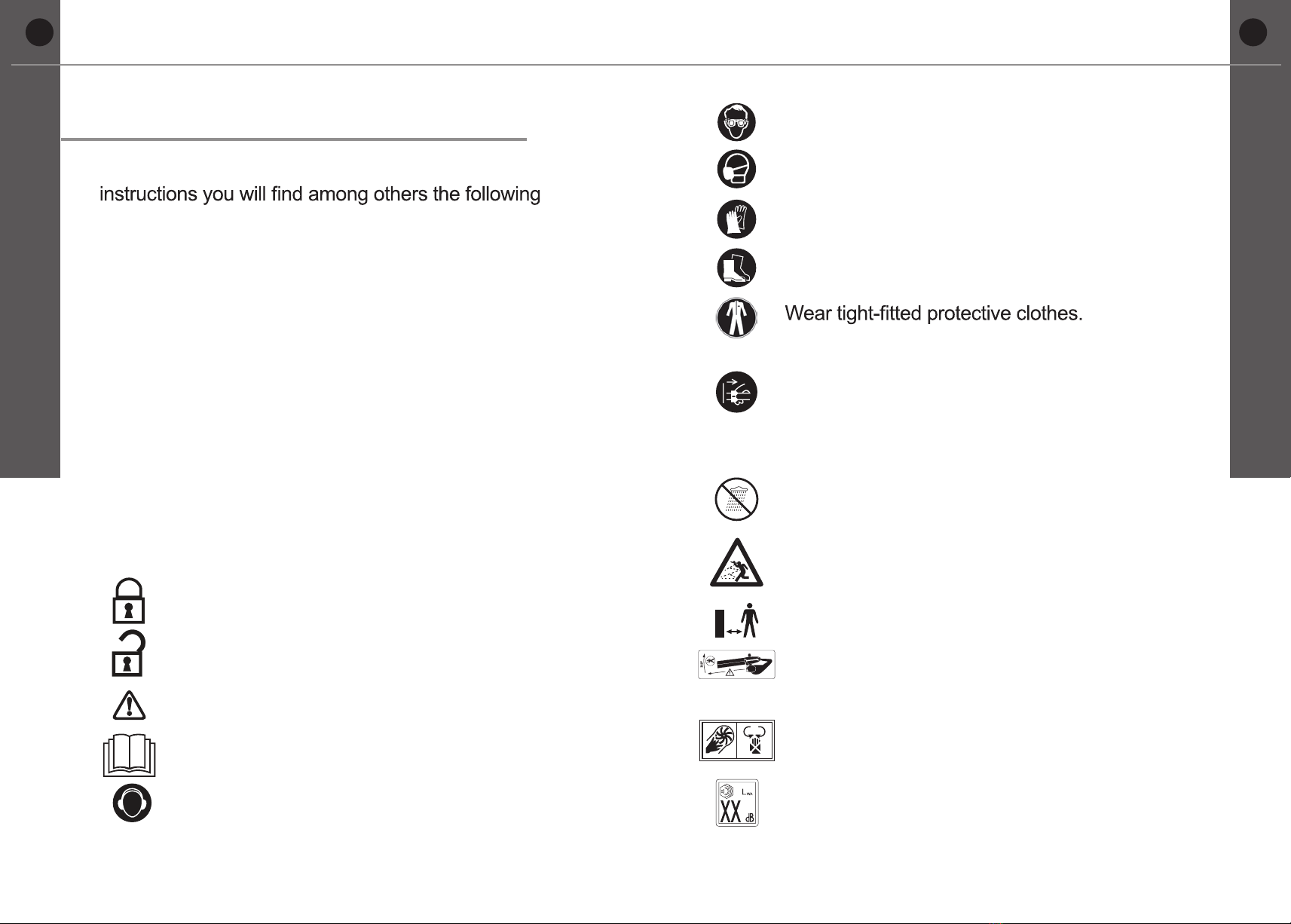

Symbols
On the product, the rating label and within these
symbols and abbreviations. Familiarise yourself with
them to reduce hazards like personal injuries and
damage to property.
V~ Volt, (alternating voltage)
WWatt
Hz Hertz
/min-1 per minute
mm Millimetre
kg Kilogram
dB(A) Decibel (A-rated)
m/s² Metres per second squared
yyWxx Manufacturing date code; year of
manufacturing (20yy) and week
of manufacturing (Wxx)
Lock / totighten or secure
Unlock / to loosen
Caution / Warning.
Read the instruction manual.
Wear hearing protection.
Technical and legal
information
Technical and legal
information
Wear eye protection.
Wear respiratory protection.
Wear protective gloves.
Wear protective slip-resistant footwear.
Switch the product off and disconnect it from
the power supply before assembly, cleaning,
adjustments, maintenance, storage and
transportation.
Do not expose the product to rain or wet
conditions.
Objects thrown by the product could hit the user
or other bystanders. Always ensure that other
people and pets remain at a safe distance from the
product when it is in operation. In general, children
must not come near the area where the product is.
Keep hands away for blowing device! Danger of
injuries.
Guaranteed sound power level value in dB

EN EN
14 15
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2
SWITCH OFF: Remove plug from mains before
cleaning or maintenance.
Disconnect the mains plug if the cord becomes
damaged or entangled.
This product is of protection class II. That
means it is equipped with enhanced or double
insulation.
The product complies with the applicable
European directives and an evaluation method
of conformity for these directives was done.
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice
FPBV2500-2 (FP_Brand Name; BV_Blower Vacuum)
Your productTechnical and legal
information
Your product
1. On/off switch
2. Main handle
3. Air vents
4. Cord retainer
5. Mode lever
6. Outlet nozzle
7. Collection bag
a. Connector
b. Hanging loop
8. Power cord with plug
9. Hook
10. Guide roller
11. Nozzle
12. Lower tube
13. Upper tube
14. Front handle
15. Hanging hole
16. Clip
17. Harness
a. Buckle
18. Mounting set (x4)
a. Nut (M4, pre-assembled)
b. Bolt (M4x40mm)
18b
17a
17
16
15 8
4
3
2
1
18a
11 10 7b
9
12
13
14
7
7a
6
5
UK Conformity Assessed.

EN EN
16 17
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2 Before you startBefore you start
Unpacking
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any
damage. If you nd that parts are missing or show damage do not
use the product but contact your dealer. Using an incomplete or
damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes suitable personal
protective equipment.
You will need
(items not supplied)
- Slot type screwdriver
- Suitable personal protective
equipment
(items supplied)
- 2 x M4 Nut (standby only)
Assembly
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly
assembled or assembled with damaged parts!
Follow the assembly instructions step-by-step and
use the pictures provided as a visual guide to easily
assemble the product!
Do not connect the product to power supply before it is
completely assembled!
NOTE: Take care of small parts that are removed during
assembly or when making adjustments. Keep them
secure to avoid loss.
NOTE: Pay attention to the alignment of the tubes. In
particular observe the orientation of the xation threads
on the tubes.
1. Align the lower tube (12) to the upper tube (13) and insert it all the
way to the stop. Secure the connection with the bolt (18b). (Fig. 1)
Fig. 1 Fig. 2
2. Align the upper tube (13) to the motor unit and insert it all the way to
the stop. Secure the tube (13) with the bolt (18b). (Fig. 2)

EN EN
18 19
Getting started...
Getting started...
FPBV2500-2 FPBV2500-2
Harness
The harness (17) helps the operator carry the product.
1. Place the harness (17) on one of the shoulders.
2. Attach the clip (16) of the harness (17) to the hanging hole (15) on
the upper side of the motor unit. (Fig. 5)
Fig 5
WARNING! Always use the product with the harness! Do
not carry it only with your hands!
3. Open the buckle (17a) to quickly release the harness (17).
Front handle
Lift up the front handle (14) until hear a “click”. To fold it back, simply
depress it a bit harder. (Fig. 6&7)
Fig 6 Fig 7
WARNING! Once the tube has been completely
assembled it may not be disassembled or removed from
the motor unit! Contact a qualied specialist in case the
tube must be disassembled, e.g. for removing blockages
or replacing damaged tube parts!
NOTE: Ensure that all screws are securely tightened with
a suitable slot head screwdriver.

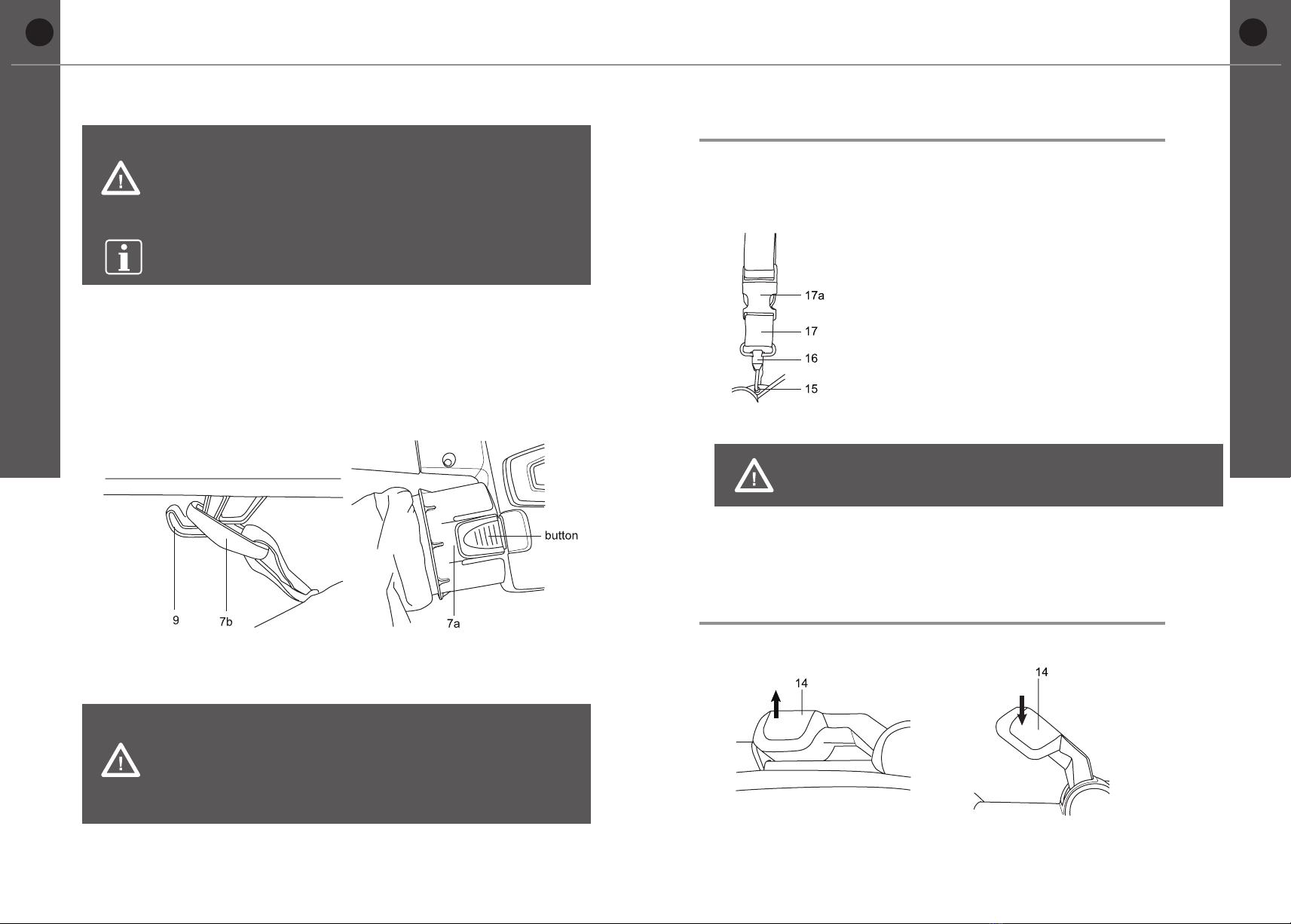

3. Attach the hanging loop (7b) on the collection bag (7) to the hook (9)
on the bottom side of the lower tube (12). (Fig. 3)
Align the connector (7a) with the outlet nozzle (6) and insert it in
place. To detach, press the buttons on both side deeply meanwhile
pull it away. (Fig. 4)
Fig. 3 Fig. 4
WARNING! Always use the product with its collection bag
attached when operating it to protect yourself against
dashed debris and to avoid injuries! Do not use this
product with a damaged collection bag or without one at
all!
Before you startBefore you start
