Kingfisher MBV3000-1 User manual

EN Electric Garden
Blower Vacuum
3000W
MBV3000-1
5063022106148
5063022106506
TTBV3000
5063022108463
5063022108548
V10323_5063022106148_MAND1_2223
Page Size: A5
EAN: 5063022106148
Impala Ref: PRJ27459
KNG: KNG-2208-0004
117/02/23
Mohit 230/03/23 SV 3XX/XX/23 NAME 4XX/XX/23 NAME 5XX/XX/23 NAME
EN ORIGINAL INSTRUCTIONS
IMPORTANT - These instructions are for your safety.
Please read through them thoroughly prior to handling
the product and retain them for future reference.
5063022106148_MNL_IN_V02.indd 15063022106148_MNL_IN_V02.indd 1 30-03-2023 23:51:3730-03-2023 23:51:37

2
EN Parts
EN You will need
x1
EN Contents
EN
Product description 3
Safety 4
Technical specication 15
Before you start 16
Functions & Settings 22
Operation 24
Care and maintenance 26
Guarantee 29
Declaration of conformity 30
01. x1 02. x1 03. x1 04. x1 05. x1
08. x107. x106. x1
5063022106148_MNL_IN_V02.indd 25063022106148_MNL_IN_V02.indd 2 30-03-2023 23:51:3830-03-2023 23:51:38

3

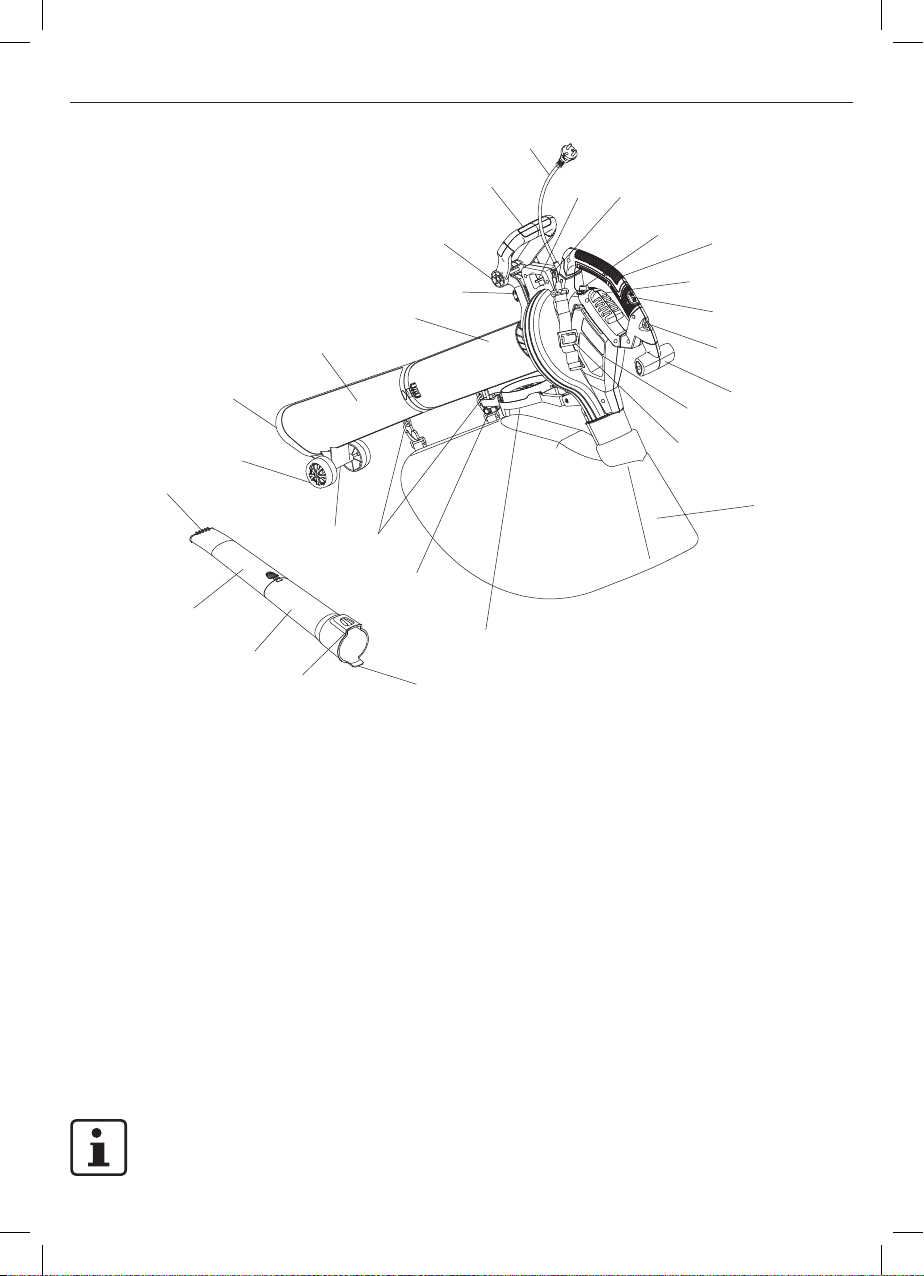

EN Product description
1. Guide roller (x2)
2. Lower vacuum tube
a. Connection part
b. Latch* (x2)
c. Slot*
d. Bag hook*
e. Nozzle*
3. Upper vacuum tube
a. Location hole* (x2)
b. Locking knob
c. Hanging loop*
d. Bag hook*
4. Front handle
a. Locking knob
5. Cord retainer
6. Hanging hole
7. On/off switch
8. Main handle
9. Air vents
10. Speed dial
11. Rear handle
a. Hanging hole
12. Main unit
a. Vacuum port*
b. Blower / Collection bag
port*
c. Slot*
d. Locking button*
13. Power cord with plug
14. Harness
a. Securing clip*
b. Quick release*
15. Collection bag
a. Bag connector*
b. Tab*
c. Location hole*
d. Securing clip* (x2)
e. Zipper*
16. Impeller cover
a. Locking knob*
17. Upper blower tube
a. Sliding pin*
b. Location hole
c. Latch* (x2)
d. Tab
18. Lower blower tube
a. Location hole* (x2)
b. Flat nozzle
c. Broom teeth*
NOTE: Parts marked with * are not shown in this overview. Please refer to the
respective part in the instruction manual.
1
2a
2e
2
3
3b
4a
4
13
56
78
9
10
11a
11
12
14
15
15d
16a
16
17d
17b
17
18
18b
5063022106148_MNL_IN_V02.indd 35063022106148_MNL_IN_V02.indd 3 30-03-2023 23:51:3930-03-2023 23:51:39

4
EN Safety
General power tool safety warnings
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this
power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious
injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres, such
as in the presence of ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical safety
a) Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or
grounded.
5063022106148_MNL_IN_V02.indd 45063022106148_MNL_IN_V02.indd 4 30-03-2023 23:51:3930-03-2023 23:51:39

5
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable,
use a residual current device (RCD) protected supply. Use
of an RCD reduces the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the inuence of drugs,
alcohol or medication. A moment of inattention while operating
power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the
o󰀨-position before connecting to power source, picking
up or carrying the tool. Carrying power tools with your nger
on the switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating part
of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair and clothing away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts.
5063022106148_MNL_IN_V02.indd 55063022106148_MNL_IN_V02.indd 5 30-03-2023 23:51:3930-03-2023 23:51:39

6
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a
fraction of a second.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on
and o󰀨. Any power tool that cannot be controlled with the switch
is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove
the battery pack, if detachable, from the power tool before
making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of parts
and any other condition that may a󰀨ect the power tool’s
operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
5063022106148_MNL_IN_V02.indd 65063022106148_MNL_IN_V02.indd 6 30-03-2023 23:51:3930-03-2023 23:51:39

7
g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of
the power tool for operations dierent from those intended could
result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in
unexpected situations.
Service
a) Have your power tools serviced by a qualied repair person
using only identical replacement parts. This will ensure that
safety of the power tool is maintained.
Safety instructions for garden blower / vacuum
Training
a) Read the instructions carefully. Be familiar with the controls and
the proper use of the product.
b) Never allow children, persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge or
people unfamiliar with these instructions to use the product.
Local regulations may restrict the age of the operator.
c) Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their property.
Preparation
a) Obtain ear protection and safety glasses. Wear them at all times
while operating the product.
b) While operating the product, always wear substantial footwear
and long trousers. Do not operate the product when barefoot or
wearing open sandals. Avoid wearing clothing that is loose tting
or that has hanging cords or ties.
c) To prevent dust irritation the wearing of a face mask is
recommended.
5063022106148_MNL_IN_V02.indd 75063022106148_MNL_IN_V02.indd 7 30-03-2023 23:51:3930-03-2023 23:51:39

8
d) Do not wear loose clothing or jewellery that can be drawn into
the air inlet. Keep long hair away from the air inlets.
e) Operate the product in a recommended position and only on a
rm, level surface.
f) Do not operate the product on a paved or gravel surface where
ejected material could cause injury.
g) Before using, always visually inspect to see that the bolts and
other fasteners are secure, the housing is undamaged and that
guards and screens are in place. Replace worn or damaged
components in sets to preserve balance. Replace damaged or
unreadable labels.
h) Before use check the supply and extension cord for signs
of damage or aging. If the cord becomes damaged during
use, disconnect the cord from the supply immediately. DO
NOT TOUCH THE CORD BEFORE DISCONNECTING THE
SUPPLY. Do not use the product if the cord is damaged or worn.
i) Never operate the product while people, especially children, or
pets are nearby.
j) Only use a weather proof extension cable tted with a coupler
according to EN 60320-2-3.
CAUTION! Do not touch a rotating impeller fan.
Operation
a) Always direct the cable to the rear away from the product.
b) Do not carry the product by the cable.
c) Before starting the product, make certain that the feeding
chamber is empty.
d) Keep your face and body away from the feed intake opening.
e) Do not allow hands or any other part of the body or clothing
inside the feeding chamber, discharge chute, or near any moving
part.
f) Keep proper balance and footing at all times. Do not overreach.
Never stand at a higher level than the base of the product when
feeding material into it.
5063022106148_MNL_IN_V02.indd 85063022106148_MNL_IN_V02.indd 8 30-03-2023 23:51:3930-03-2023 23:51:39

9
g) Always stand clear of the discharge zone when operating this
product.
h) When feeding material into the product be extremely careful that
pieces of metal, rocks, bottles, cans or other foreign objects are
not included.
i) If the cutting mechanism strikes any foreign objects or if the
product should start making any unusual noise or vibration,
immediately shut off the power source and allow the product
to stop. Disconnect the product from the supply and take the
following steps before restarting and operating the product:
• Inspect for damage;
• Replace or repair any damaged parts;
• Check for and tighten any loose parts.
j) Do not allow processed material to build up in the discharge
zone; this may prevent proper discharge and can result in
kickback of material through the intake opening.
k) If the product becomes clogged, shut-off the power source and
disconnect the product from supply before cleaning debris.
l) Never operate the product with defective guards or shields, or
without safety devices, for example debris collector in place, or if
the cord is damaged or worn.
m) Keep the power source clean of debris and other accumulations
to prevent damage to the power source or possible re.
n) Do not transport this product while the power source is running.
o) Stop the product and remove the plug from the power supply
(disconnect the product from the mains supply). Make sure that
all moving parts have come to a complete stop
• whenever you leave the product,
• before clearing blockages or unclogging chute,
• before checking, cleaning or working on the product,
• after striking a foreign object to inspect the product for
damage,
• if the product starts to vibrate abnormally, for immediate
check.
p) Operate the product only in daylight or in good articial light.
q) Always be sure of your footing on slopes.
5063022106148_MNL_IN_V02.indd 95063022106148_MNL_IN_V02.indd 9 30-03-2023 23:51:3930-03-2023 23:51:39

10
r) Walk, never run, when using this product.
s) Keep all cooling air inlets clear of debris.
t) Never blow debris in the direction of bystanders.
u) Do not tilt the product while the power source is running.
Recommendations for operation
a) Operate the product only at reasonable hours - not early in the
morning or late at night when people might be disturbed.
b) Use rakes and brooms to loosen debris before blowing /
vacuuming.
c) Slightly dampen surfaces in dust conditions or use mister
attachment.
d) Use the full blower nozzle extension so the air stream can work
close to the ground.
e) The machine should be supplied via a residual current device
(RCD) with a tripping current of not more than 30 mA.
f) Avoid using the machine in bad weather conditions especially
when there is a risk of lightning.
Maintenance and storage
a) Keep all nuts, bolts and screws tight to be sure the product is in
safe working condition.
b) Check the debris collector frequently for wear or deterioration.
c) Use only genuine replacement parts and accessories.
d) When the product is stopped for servicing, inspection, or
storage, or to change an accessory, shut off the power source,
disconnect the product from the supply and make sure that all
moving parts are come to a complete stop. Allow the product to
cool before making any inspections, adjustments, etc. Maintain
the product with care and keep it clean.
e) Store the product only in a dry place out of the reach of children.
f) Always allow the product to cool before storing.
g) When servicing the impeller wheel be aware that, even though
the power source is switched off due to the interlock feature of
the guard, the impeller wheel can still be moved.
5063022106148_MNL_IN_V02.indd 105063022106148_MNL_IN_V02.indd 10 30-03-2023 23:51:3930-03-2023 23:51:39

11
h) Replace worn or damaged parts for safety. Use only genuine
replacement parts and accessories.
i) Never attempt to override the interlocked feature of the guard.
j) When not in use, store the product in a dry place out of the
reach of children.
Additional safety warnings
a) Do not touch moving hazardous parts before the product is
disconnected from the power supply and the moving hazardous
parts have come to a complete stop.
b) Switch-off the product before attaching or removing the
collection bag.
c) Do not operate the product near open windows, etc.
d) Do not blow hard objects such as nails, bolts, or rocks.
e) Apply extra care when cleaning debris from stairs or other tight
areas.
f) Keep all parts of your body away from the suction/blowing
device. Do not remove blockages or jams when the product is
switched on. Make sure the switch is off when clearing jammed
material. One moment of inattentiveness while operating the
product may result in serious personal injury.
g) Carry the product by the handle with the motor off. Handling the
product properly reduces the possibility of personal injury.
h) Never use the product standing on steps or a ladder. Do not
work above shoulder height.
i) If the product starts to vibrate abnormally, check it immediately.
Excessive vibration can cause injury.
j) Always ensure the product is fully assembled before using it.
Never attempt to use an incomplete product or one tted with an
unauthorised modication.
k) Check the suction/blowing device regularly for damage, and if
damaged repair immediately.
l) Do not overload the product.
m) Follow the maintenance and repair instructions for this product.
Never carry out any modications to the product. Information
about maintenance and repair is provided in this user manual.
5063022106148_MNL_IN_V02.indd 115063022106148_MNL_IN_V02.indd 11 30-03-2023 23:51:3930-03-2023 23:51:39

12
Health surveillance
All employees should be part of an employer’s health surveillance
scheme to help identity any vibration related diseases at an early
stage, prevent disease progression and help employees stay
in work.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the
time of operation, use low-vibration and low-noise operating
modes as well as wear personal protective equipment.
Take the following points into account to minimise the vibration and
noise exposure risks:
1. Only use the product as intended by its design and these
instructions.
2. Ensure that the product is in good condition and well maintained.
3. Use correct attachments for the product and ensure they are in
good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these instructions and
keep it well lubricated (where appropriate).
6. Plan your work schedule to spread any high vibration tool use
across a longer period of time.
Emergency
Familiarise yourself with the use of this product by means of
this instruction manual. Memorise the safety directions and
follow them to the letter. This will help to prevent risks and
hazards.
1. Always be alert when using this product, so that you can
recognise and handle risks early. Fast intervention can
prevent serious injury and damage to property.
2. Switch o󰀨 and disconnect from the power supply if there
are malfunctions. Have the product checked by a qualied
professional and repaired, if necessary, before you operate
it again.
5063022106148_MNL_IN_V02.indd 125063022106148_MNL_IN_V02.indd 12 30-03-2023 23:51:3930-03-2023 23:51:39

13
Residual risks
Even if you are operating this product in accordance with all
the safety requirements, potential risks of injury and damage
remain. The following dangers can arise in connection with the
structure and design of this product:
1. Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
2. Injuries and damage to property due to broken attachments or
the sudden impact of hidden objects during use.
3. Danger of injury and property damage caused by ying objects.
WARNING! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with active
or passive medical implants! To reduce the risk of
serious or fatal injury, we recommend persons with
medical implants to consult their doctor and the
medical implant manufacturer before operating this
product!

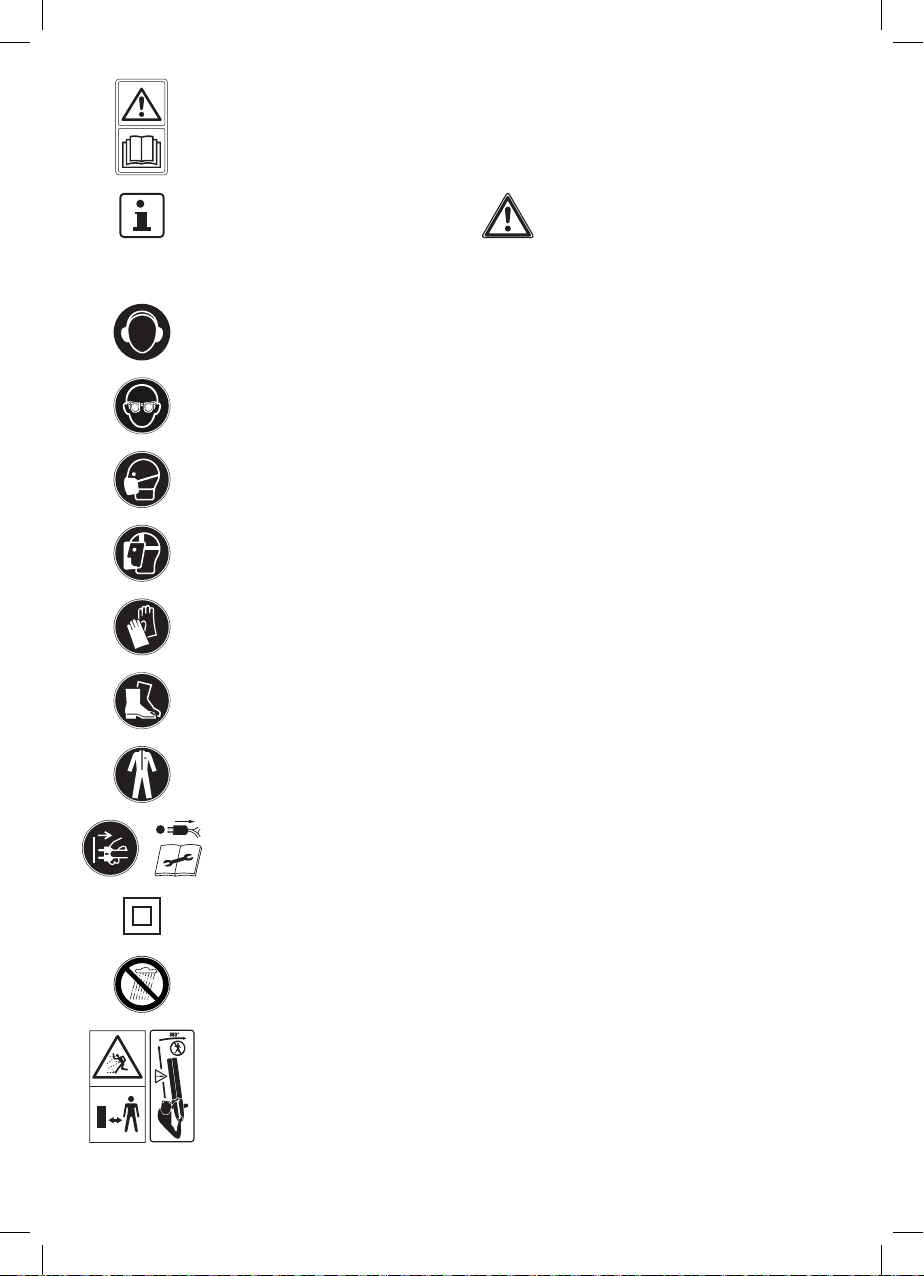

Symbols
On the product, the rating label and within these instructions you will nd among others the following
symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and
damage to property.
V~ Volt, (alternating voltage) Hz Hertz
WWatt /h Per hour
/min or min-1 Per minute kg Kilogram
mm Millimetre cm Centimetre
mMetre lLitre
dB(A) Decibel (A-rated) m/s2Metres per second squared
Lock / to tighten or secure. Unlock / to loosen.
5063022106148_MNL_IN_V02.indd 135063022106148_MNL_IN_V02.indd 13 30-03-2023 23:51:3930-03-2023 23:51:39

14
Read the instruction manual.
Note / Remark. Caution / Warning.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing
(Wxx).
Always wear hearing protection.
Always wear eye protection.
Wear a dust mask.
Wear face protection.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Wear tight-tted protective clothes.
Switch the product off and disconnect it from the power supply before assembly,
cleaning, adjustments, maintenance, storage and transportation.
This product is of protection class II. That means it is equipped with enhanced or double
insulation.
Do not expose the product to rain or wet conditions (moisture).
Keep bystanders away!
Objects thrown by the product could hit the user or other bystanders. Always ensure
that other people and pets remain at a safe distance from the product when it is in
operation. In general, children must not come near the area where the product is.
5063022106148_MNL_IN_V02.indd 145063022106148_MNL_IN_V02.indd 14 30-03-2023 23:51:4030-03-2023 23:51:40

15

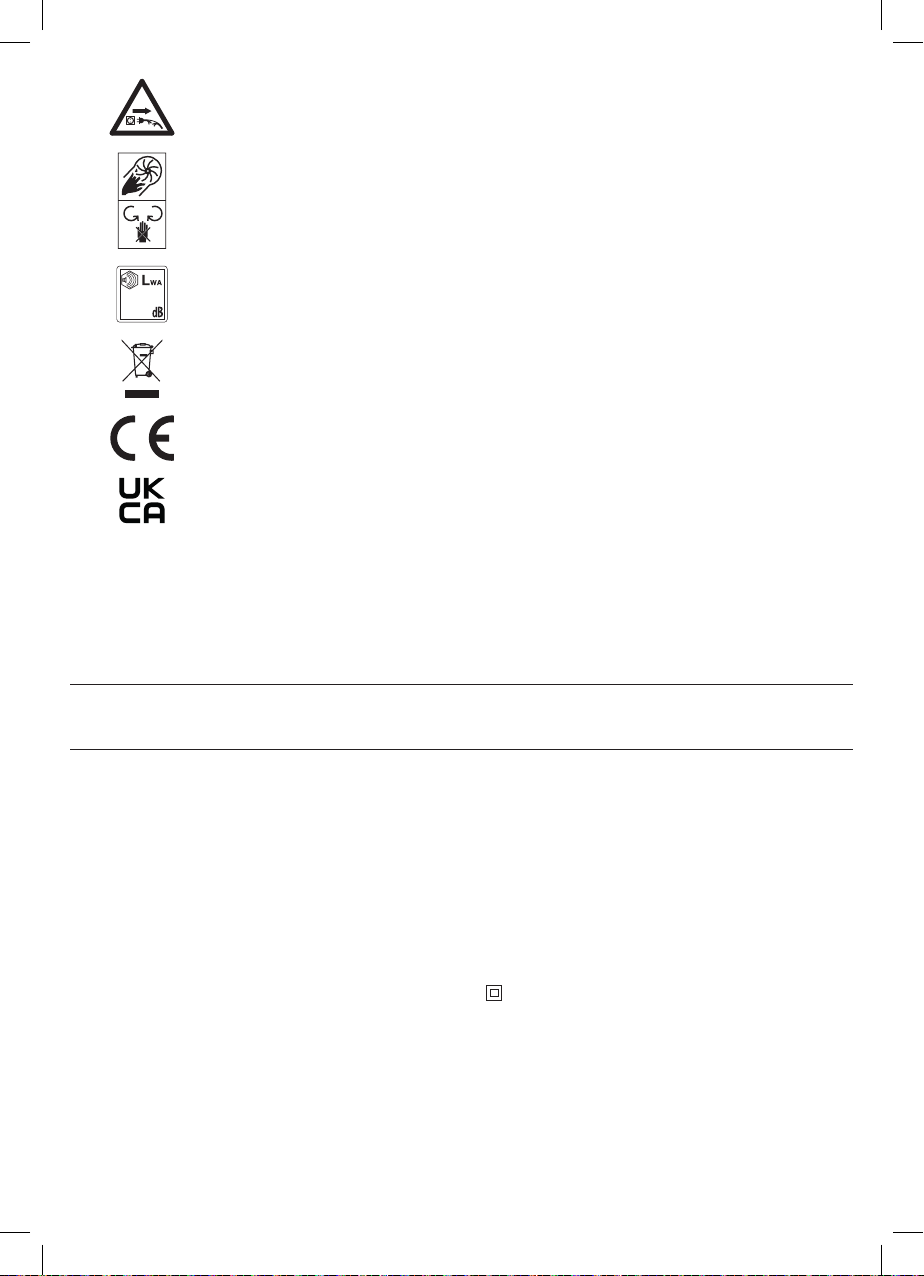

Disconnect the mains plug if the cord becomes damaged or entangled. DO NOT
TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
Danger of rotating parts. Keep hands away from blowing device! Danger of injuries.
104
Guaranteed sound power level value in 104 dB.
WEEE symbol. Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local Authority or local
store for recycling advice.
The product complies with the applicable European directives and an evaluation
method of conformity for these directives was done.
UK Conformity Assessed.
Rating label explanation
Garden Blower Vacuum: MBV3000-1 TTBV3000
M = Brand name (MAC Allister) TT = Brand name (TITAN)
BV = Blower Vacuum
3000 = Rated input (W)
1 = Version number
EN Technical specications
General :
> Rated voltage, frequency :230-240 V~, 50 Hz
> Rated power input : 3000 W
> Rated no load speed n0:10000 - 15000 min-1
> Collection bag capacity :50 l
> Max. suction volume :800 m3/h
> Max. air speed : 290 km/h
> Mulching ratio :15:1
> Protection class : II
> Degree of protection : IP20
> Weight :approx. 4.7 kg
> Dimensions :approx. 1220 x 220 x 600 mm
Sound values :
> Sound pressure level LpA :84.33 dB(A) for blowing / 88.67 dB(A) for vacuum
> Uncertainty KpA :3 dB(A)
5063022106148_MNL_IN_V02.indd 155063022106148_MNL_IN_V02.indd 15 30-03-2023 23:51:4030-03-2023 23:51:40

16
> Sound power level LWA :98.33 dB(A) for blowing / 100.91 dB(A) for vacuum
> Uncertainty KWA :3 dB(A)
> Guaranteed sound power level LWA :104 dB(A)
Hand arm vibration values :
> Blower :
Front handle ah:3.317 m/s2
Rear handle ah:3.447 m/s2
> Vacuum :
Front handle ah:1.536 m/s2
Rear handle ah:2.520 m/s2
> Uncertainty K : 1.5 m/s2
The sound value(s) have been determined according to noise test code given in EN 60335-1 and
EN 50636-2-100, using the basic standards EN ISO 11094 and EN ISO 3744.
The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
The declared total vibration value(s) and the declared noise emission value(s) have been measured in
accordance with a standard test method and may be used for comparing one tool with another;
The declared total vibration value(s) and the declared noise emission value(s) may also be used in a
preliminary assessment of exposure.
WARNING! The vibration and noise emission during actual use of the power
tool can differ from the declared total value depending on the ways in which the
tool is used especially what kind of workpiece is processed;
The need to identify safety measures to protect the operator that are based on
an estimation of exposure in the actual conditions of use (taking account of all
parts of the operating cycle such as the times when the tool is switched off and
when it is running idle in addition to the trigger time).
EN Before you start
Unpacking
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you nd that parts are missing
or show damage do not use the product but contact your dealer. Using an incomplete or damaged
product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This also
includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys! Children
must not play with plastic bags, sheets and small parts! There is a danger of
choking and suffocation!
5063022106148_MNL_IN_V02.indd 165063022106148_MNL_IN_V02.indd 16 30-03-2023 23:51:4030-03-2023 23:51:40

17
You will need
(items not supplied)
Suitable personal protective equipment
Suitable extension cord
(items supplied)
Vacuum tube assembly (2, 3)
Harness (14)
Collection bag (15)
Blower tube assembly (17, 18)
NOTE: The accessories required depend on the intended application. Ask your
dealer for advice.
Assembly
WARNING! The product must be fully assembled before operation! Do not use
a product that is only partly assembled or assembled with damaged parts!
Follow the assembly instructions step-by-step and use the pictures provided as a
visual guide to easily assemble the product!
Before using the product, familiarise yourself with the operating features read
the entire instruction manual paying particular attention to the safety rules and
operating procedures.
Do not connect the product to power supply before it is completely assembled.

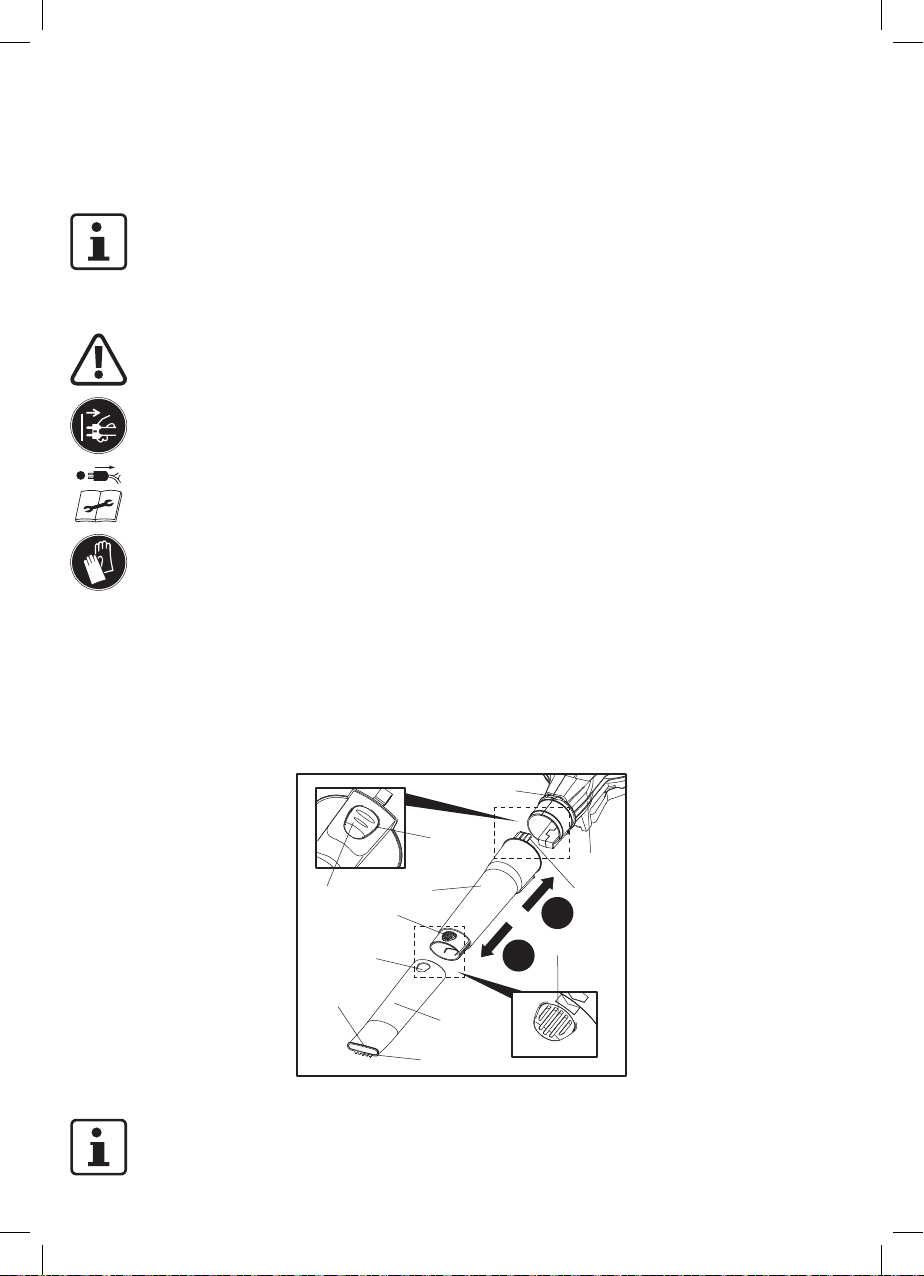

Blower tube assembly
1. Align and slide the sliding pin (17a) of the upper blower tube (17) into the slot of the lower blower
tube (18) all the way to the stop. Ensure that the two latches (17c) engage in the location holes (18a)
(Fig. 1, step 1).
2. Align and insert the tap (17d) of the upper blower tube (17) into the blower port (12b) of the main unit (12).
Ensure that the locking button (12d) engages in the location hole (17b) (Fig. 1, step 2).
3. Ensure that the broom teeth (18c) are under the blower tube after assembly.
17b
12d
17d
12
17
17c
18a
18b
18c
18
17c
12b
2
1
Fig. 1
NOTE: To detach the blower tube assembly from the main unit (12), depress the
locking knob (12d), then pull it out from the main unit (12).
5063022106148_MNL_IN_V02.indd 175063022106148_MNL_IN_V02.indd 17 30-03-2023 23:51:4130-03-2023 23:51:41

18
Vacuum tube assembly
1. Unscrew the guide rollers (1) and separate them (Fig. 2, step 1).
2. Lead the axles of the guide rollers (1) into the opening of the connection port (2a) on the lower vacuum
tube (2) and tighten them properly (Fig. 2, steps 2, 3).
3. Ensure the guide rollers (1) can rotate smoothly.
4. Align the slot of the lower vacuum tube (2) with the inner sliding pin of the upper vacuum tube (3) and
insert it all the way to the stop (Fig. 3, step 1). Ensure that the two latches (2b) engage in the location
holes (3a) (Fig. 3).
2
2a
1
1
1
3
2
Fig. 2
2
3a
2b
3
Fig. 3
NOTE: Pay attention to the alignment of the tubes (2 / 3). In particular observe
the orientation of the plug-in connection.
5. Unscrew the locking knob (16a) anticlockwise, then pull out the impeller cover (16) (Fig. 4, steps 1, 2)
and hold it in place.
6. Hook the hanging loop (3c) to the main unit (12), then insert the vacuum tube assembly to the vacuum
port (12a) of the main unit (12) all the way to the stop (Fig. 5, steps 1, 2).
7. Tighten the locking knob (3b) clockwise to secure the vacuum tube assembly in place (Fig. 5, step 3). You
can hear a click once the locking knob (3b) is positioned properly and the built-in switch will be activated.
NOTE: To detach the vacuum tube assembly from the main unit (12), unscrew
the locking knob (3b) anticlockwise, then pull it out from the main unit (12).
16a
16
1
2
Fig. 4
12a
12
16
3c
3b
3
3
2
1
Fig. 5
5063022106148_MNL_IN_V02.indd 185063022106148_MNL_IN_V02.indd 18 30-03-2023 23:51:4230-03-2023 23:51:42

19

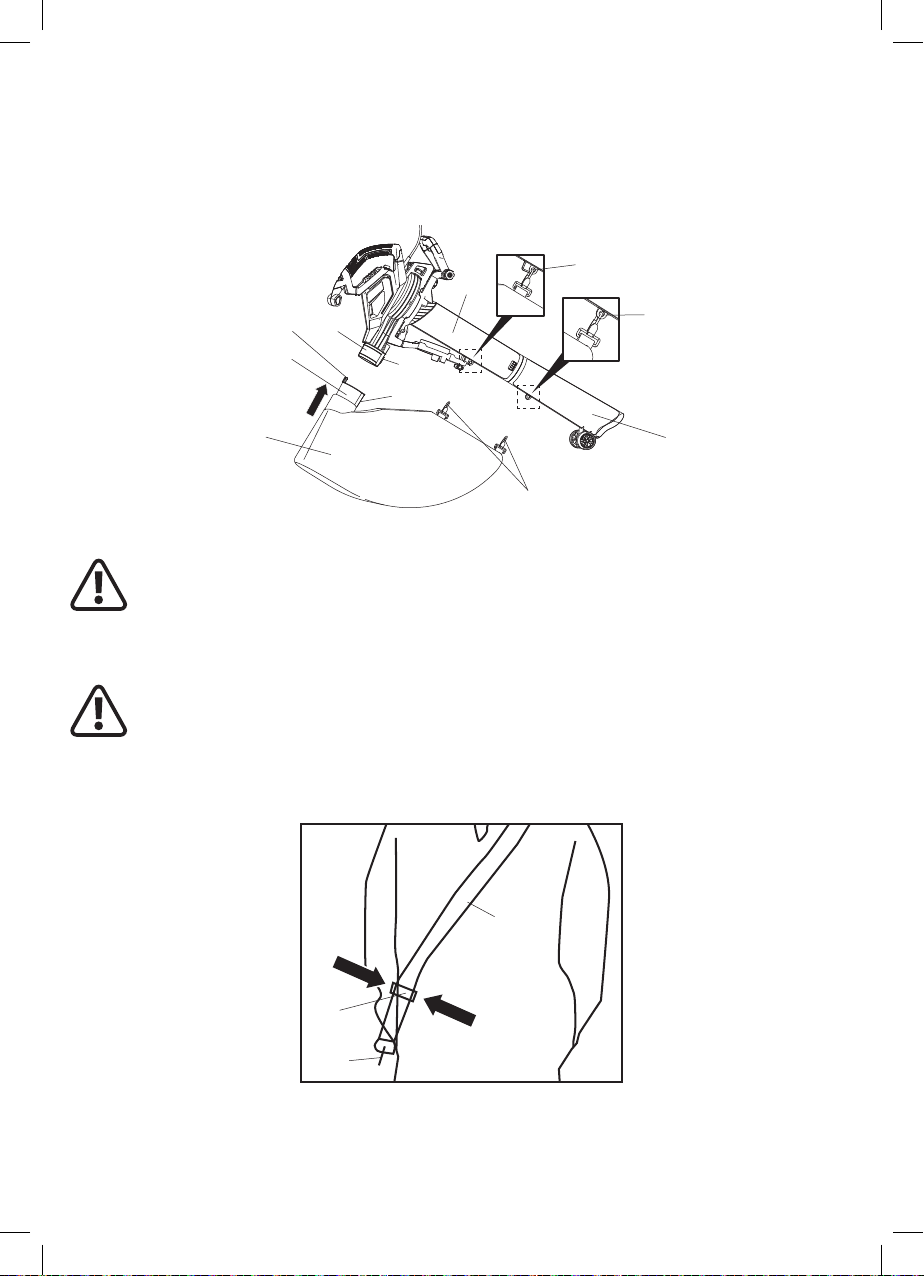

Collection bag
1. Align and insert the tab (15b) of the bag connector (15a) to the collection bag port (12b) and insert it
all the way to the stop (Fig. 6). Ensure that the locking button (12d) engages in the location hole (15c)
(Fig. 6).
2. Attach two securing clips (15d) to the bag hooks (2d / 3d) on the lower vacuum tube (2) and the upper
vacuum tube (3).
3
3d
2d
2
15d
15c
12b
15b
15
15
12d
Fig. 6
WARNING! Always operate the product with its collection bag (15) attached
when vacuuming to protect yourself against ying debris and to avoid injuries!
Do not use this product with a damaged collection bag or without one at all!
Harness
WARNING! Always use the product with the harness (14)! Do not carry it only
with your hands! Always adjust the harness (14) before operation.
The harness (14) helps the operator to carry the product.
1. Place the harness (14) so that it runs over the left shoulder, crossing the chest and back. The securing
clip (14a) must be located at the right hip. The quick release (14b) must be in front (Fig. 7).
14a
14b
14
Fig. 7
2. Adjust the length of the harness (14) so that the securing clip (14a) is approximately 15 cm below your waist.
3. Attach the securing clip (14a) to the hanging hole (6) when assembled for vacuuming (Fig. 8); Attach the
securing clip (14a) to the hanging hole (11a) when assembled for blowing (Fig. 9).
5063022106148_MNL_IN_V02.indd 195063022106148_MNL_IN_V02.indd 19 30-03-2023 23:51:4230-03-2023 23:51:42

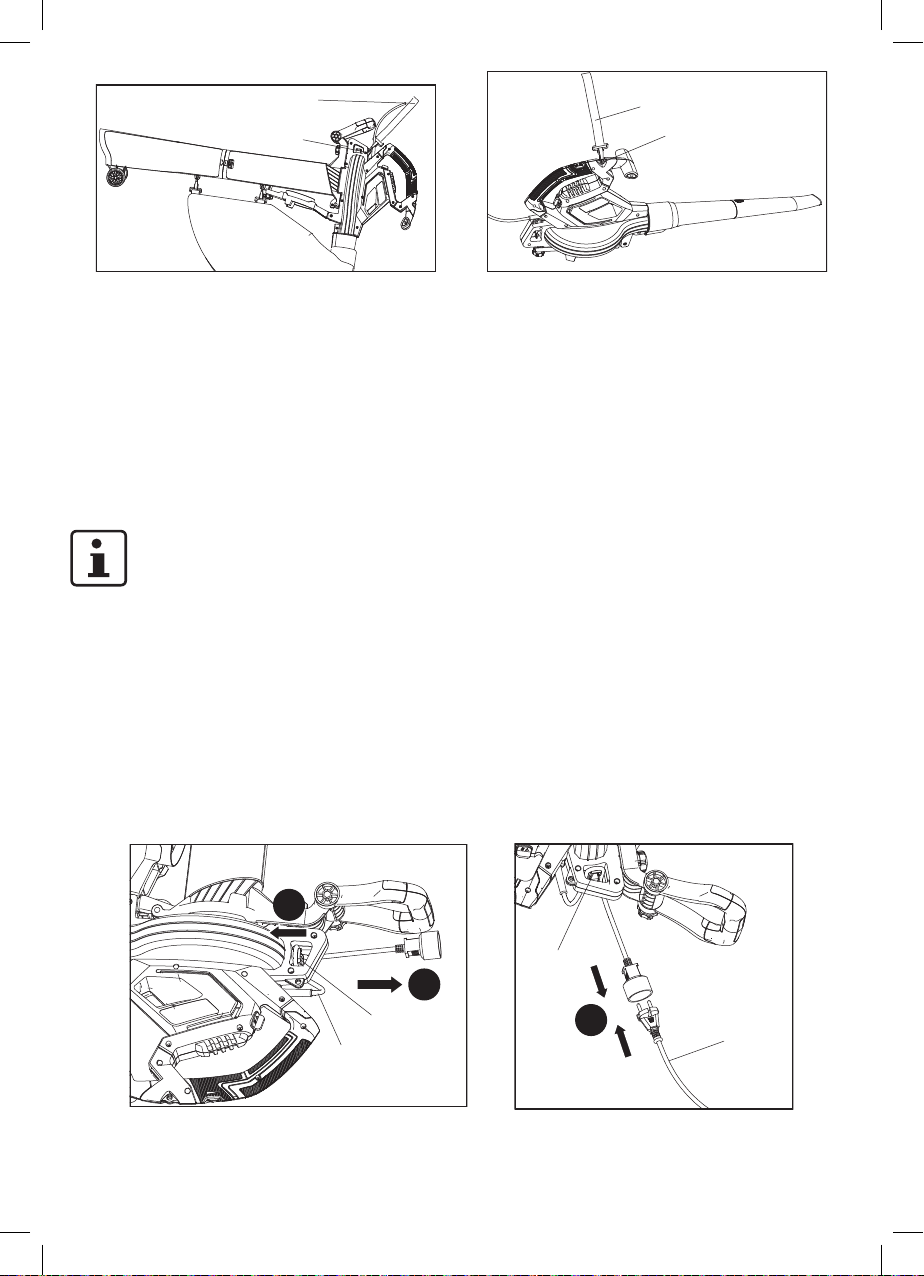

20
14
6
Fig. 8
11a
14
Fig. 9
4. Ensure the position of the product is comfortable and it is properly balanced.
5. In case of emergency press two clips of the quick release (14b). The product together with the securing
clip (14a) will be released automatically from the body because of the weight of the product (Fig. 7).
Connection to power supply
Only applicable for power cable length: Pigtail (EU), otherwise delete the below paragraph.
For safety reasons the product is equipped with a short power cord (13). Do not connect the product directly
to the power supply using this power cord. A proper extension cord is required for operation. Observe the
technical requirements for this product when purchasing an extension cord.
NOTE: For your safety, it is required that the plug attached to this product is
always connected to an extension cord! The extension cord must be suitable
for outdoor use with sockets protected against water splashing! Ensure the
extension cord is of the proper size and type for your product (≥ 1.0 mm2)!
Always use a residual current supply (RCD) protected supply.
Keep extension cords away from moving hazardous parts to avoid damage to
the cords which can lead to contact with live parts.
1. Double the extension cord back, about 40 cm from the end and lead the loop through the hole of the
cord retainer (5) (Fig. 10, step 1).
2. Pull the cord over the cord retainer (5) and gently tug on the cord to ensure that it is rmly secured
(Fig. 10, step 2).
3. Connect the power cord (13) to the socket of the extension cord (Fig. 10, step 3).
5
13
5
13
2
3
1
Fig. 10
5063022106148_MNL_IN_V02.indd 205063022106148_MNL_IN_V02.indd 20 30-03-2023 23:51:4430-03-2023 23:51:44
