Kingkraft Walker 320 User manual

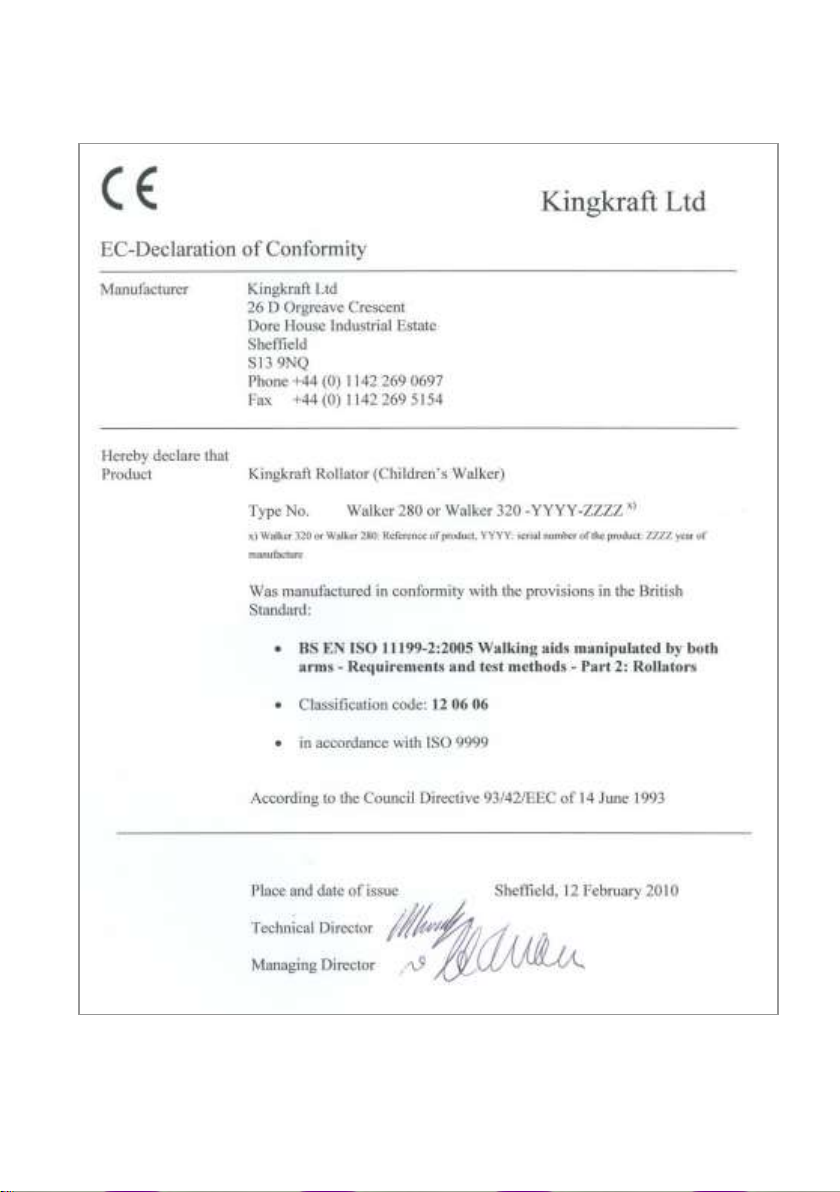

Guarantee
The Kingkraft Rollator (Children’s Walker) with it’s accessories is
guaranteed in the UK for a period of 12 months from the date of delivery
against defects arising from faulty material, inferior workmanship or
construction.
The result of incorrect handling of the unit shall not be covered by the
guarantee.
In line with the company’s policy of continual product improvement, we
reserve the right to carry out improvements to the specification without
notice.
26D Orgreave Crescent, Dore House Industrial Estate, Sheffield, S13 9NQ
Tel: [phone] Fax: [phone]
e-mail: [e-mail]
url: www.kingkraft.co.uk

USER MANUAL
Kingkraft Rollator (Children’s Walker)
Models: Walker 320 + Walker 280
Model.............
Serial No....................
Delivery date................................
26D Orgreave Crescent, Dore House Industrial Estate, Sheffield, S13 9NQ
Tel: [phone] Fax: [phone]
e-mail: [e-mail]
url: www.kingkraft.co.uk
CWFR - ISSUE 1 - 02/10

Technical Data
Dimensions: Walker 280 Walker 320
Main Frame Width 350 350
Main Frame Depth 465 465
Main Frame Height 280 320
Total Width 500 500
Total Length 720 780
Front Wheel Diameter 50 50
Rear Wheel Diameter 130 130
Maximum User load 35Kg 35Kg
All dimensions in mm
Materials:
The tubular frame is made from titanium and is powder coated.
Metal component parts are anodised aluminium or stainless steel.
Wheels are rubber and plastic construction.
Hand grips are covered with bicycle tape for ease of replacement of
damage and comfort.
This product is designed for use as a walking aid for young disabled
children with conditions such as those known as Osteogenesis Imperfecta.

CONTENTS
General information 4
Important Safety Advice 5
Important Safety Instructions / Labels 6
User Instructions / Operation 7
Securing the Rollator 7
(Front Castors / Rear Wheels)
Rollator Orientation 9
Locking Pin + Folding 10
Handle Options 13
Care and Maintenance 17
Cleaning and Tools 18
Technical data 19
Guarantee / Warranty Information 20

Care and Maintenance
Like every technical product, the rollator requires regular inspection. Check
the unit frequently for signs of damage, breakage, cracks, fatigue, lost parts
and/or non functioning parts.
Check all nuts and bolts are present and secured. The locking pin must be
inserted correctly and only be removed by pressing the end button.
Remove dirt and grease from the castors and check that the brakes are
working effectively.
We recommend that a competent person who is familiar with the product
undertakes the regular checks and the rollator is removed from normal use
when it is clear it is not functioning correctly or safely.
Main fixing points to check:
Locking Pin mechanism:
Must lock in position when fully
inserted and release only when
end button is pushed:
Hinge Frame Clamps:
All bolts must be checked regularly
and must be tight at all times:

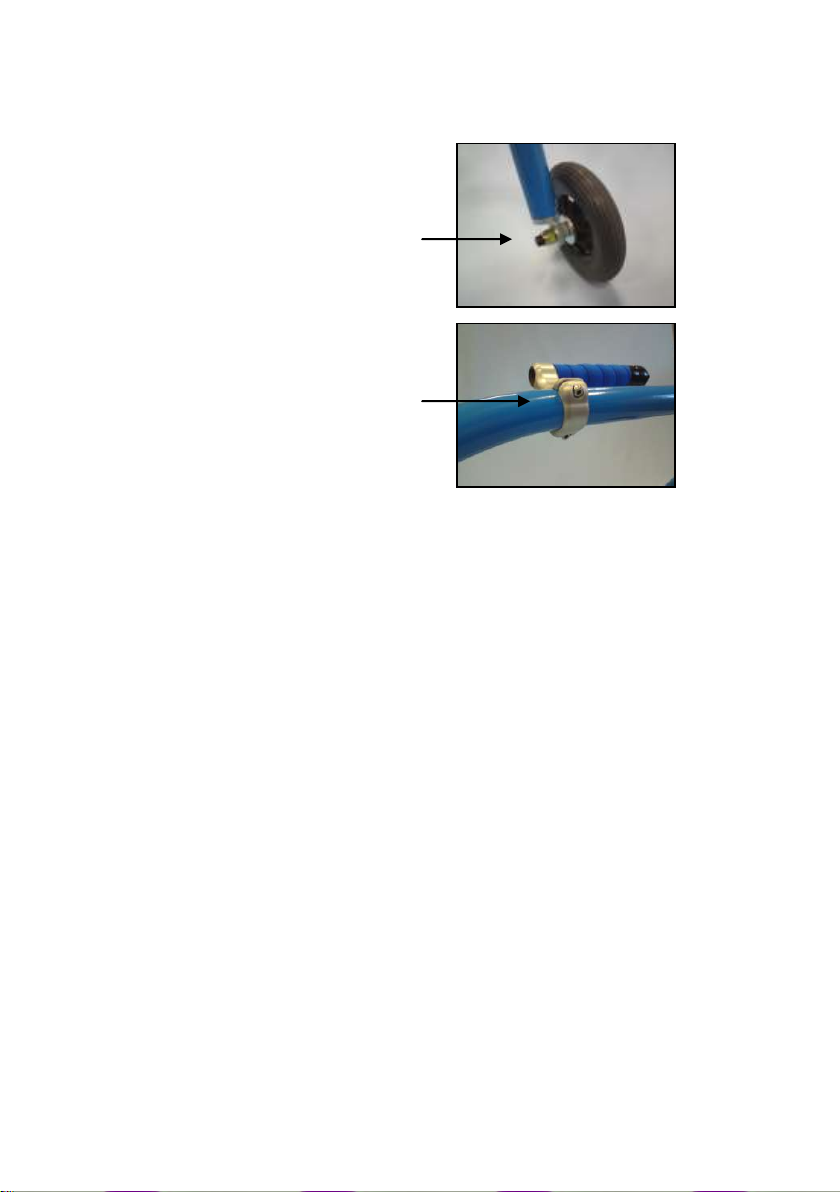

Front Castors:
Castor fixing nut (M10) must be
tight:
Castor brake lever must stop castor
wheels rotating:

Important Safety Advice
The correct use of the product requires the Carer to have carefully
read and understood these instructions and to have tried the
product first without a user.
The user must never be left unattended with the rollator.
The product must be used with care.
The height of either model of rollator is not adjustable.
All moving gaps are less than 4mm or greater the 25mm. Stationary
gaps are less than 5mm or greater than 12mm.
Please observe the limits for the maximum weight of the User. This
is 35Kg.
Whilst the rollator is being unfolded, the user must be kept away
from any hinged / moving parts.
Do not use this product if you suspect it is faulty or broken. Contact
Kingkraft Ltd immediately.
Use this product only on level floors.
Keep all objects or other people in the vicinity clear of the rear
wheels whilst the rollator is moving, to avoid harm or trapping within
the wheel spokes.
The rollator is foldable for transport purposes and the removable
pin should be re-inserted into the hinge mechanism to ensure the
frame does not swing loose and cause harm / damage.
The tools required (not supplied-see tools list later) should only be
used by competent persons / qualified professionals, for adjustment
only, not for removal of items such as the hinged clamp parts.
The Product is intended for use with the correct Kingkraft specified
accessories only.

Option 2: Straight Handles
These are intended to be fitted as shown to the main frame at a
comfortable height. They can be fitted anywhere along the straight part of
the frame. They can be rotated inwards / outwards before tightening the
bolts to adust to the width for the user.
Please ensure the two bolts are fully tightened to eliminate any movement
whilst in use.
2 x M4 Bolts

User Instructions / Operation
The product is to be used as a walking aid for children up to the weight limit
of 35Kg. The rollator is designed for use with smaller children. The
suitability of the rollator for a particular child is to be determined by
individual risk assessment for each child by the therapist.
Only use on even, level surfaces and avoid slopes or uneven surfaces.
The child is to enter the rollator from the front, turn around so they are
facing forward and grip the rollator frame or handles at a comfortable
position.
When familiar with the rollator, ensure the front castors are ‘unlocked’ to
allow the rollator to move. The user is to walk forward at their own pace.
WARNING! Whilst using the rollator, it is essential that the child is balanced
and stood as upright as possible within the frame. If the child’s weight /
force is applied onto the rollator whilst the wheels are not locked, the rollator
will move forward at a potentially high speed, especially on smooth
surfaces, which could lead to the child falling over if they can not move their
legs quick enough.
Securing the Rollator
Front Castors
The front castors can swizel through 360 degrees and rotate forwards and
backwards.
The rollator can be made secure by operating the brakes on the front
castors. These castors can be supplied with ’novelty character’ designs, for
example the ‘Bear’ or ‘Aeroplane’:

To secure the rollator frame whilst in transit, please follow these steps to
secure the main and rear parts together to stop the possibility of trapping or
pinching.

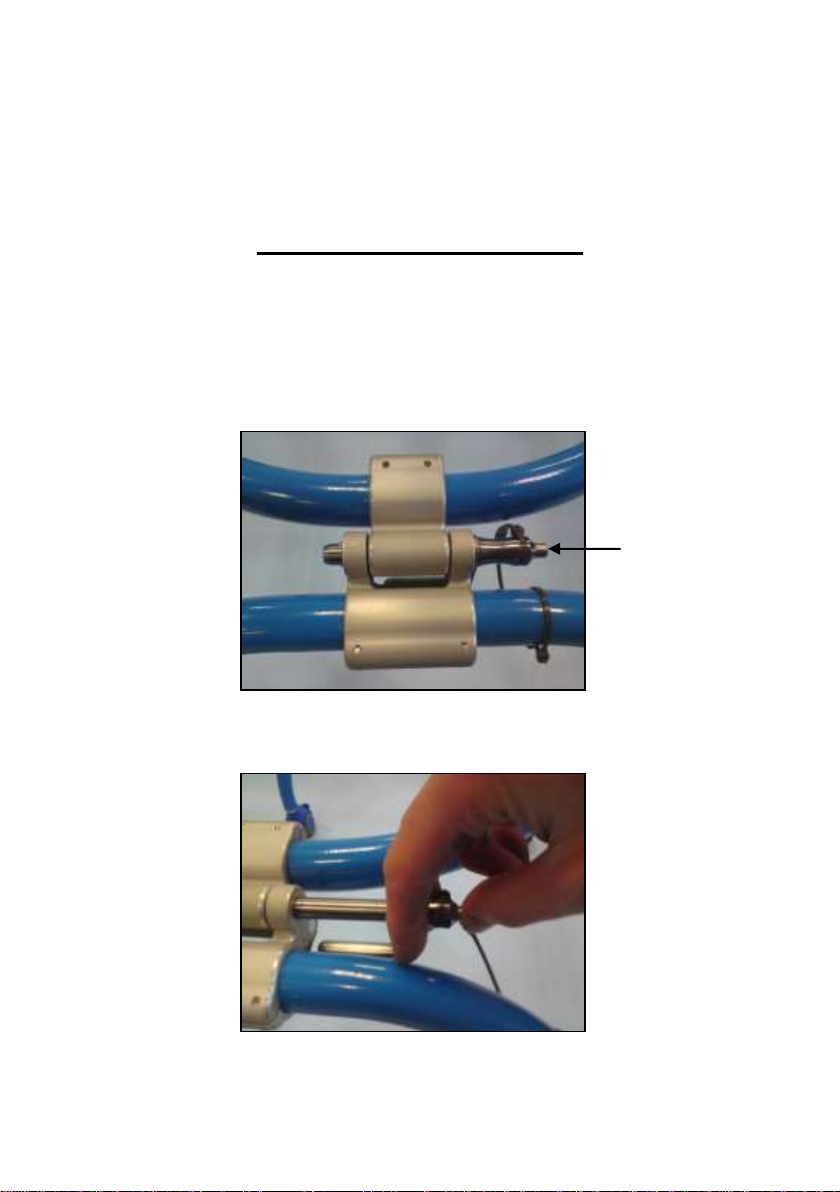

Hold the tubes together in one hand and insert the pin through the two holes
in the rear hinge / clamp part.
Whilst pushing the locking pin in, ensure the other smaller fixed pin locates
into the smaller single hole in the clamp part around the main frame.
Secured folded rollator frame:

Rear Wheels

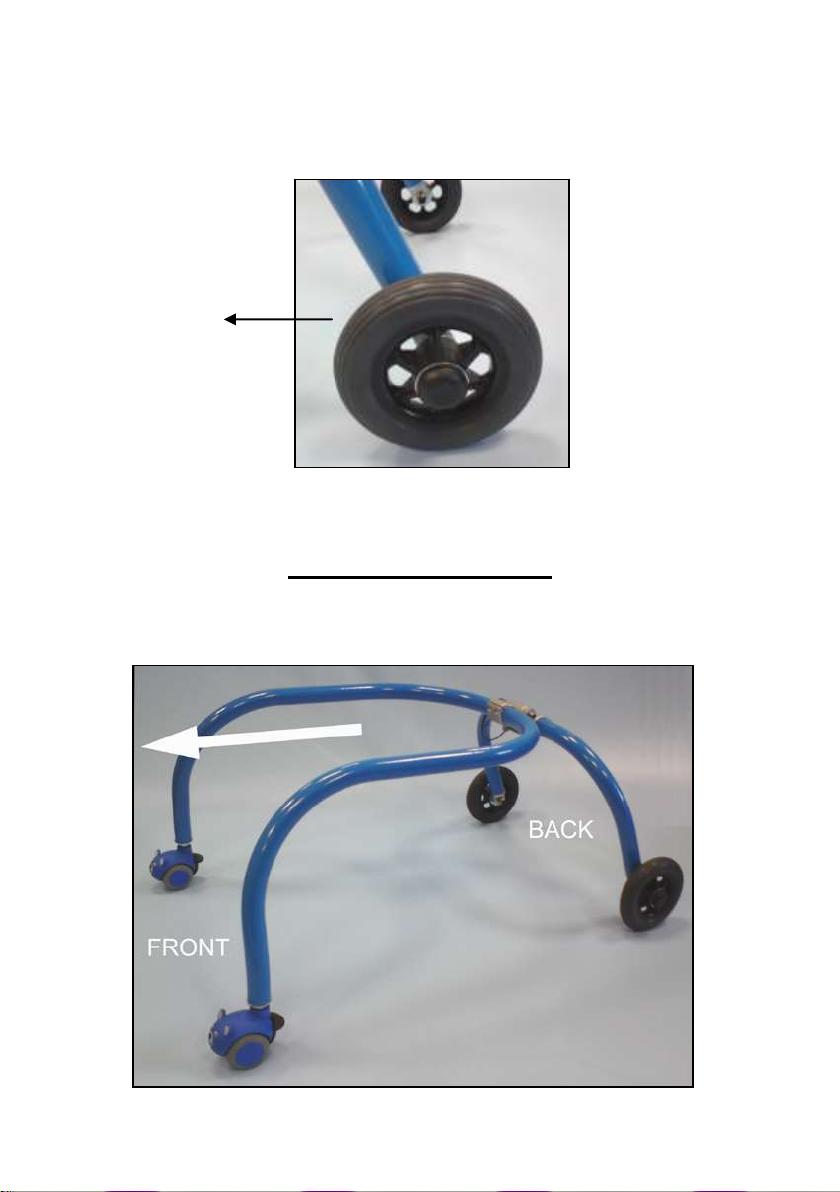

The rear wheels are fixed and uni-directional and will not allow the rollator to
roll backwards:
Rollator Orientation
The rollator will only move in a forward direction, or turn left or right when in
motion.
Movement in
this direction
(forward) only
Forwards

IMPORTANT SAFETY INSTRUCTONS
Dear Customer,
Thank you for purchasing this high quality Kingkraft product. We ask you to
carefully read through this manual before attempting to use the Rollator.
(We reserve the right to make technical alterations at any time)
Please also make sure that each person and any carer who uses the
product is also aware of their contents and follows the instructions each
time they use the product.
Please retain these instructions with the product, keeping them safely for
future reference. We advise you to make a photocopy in case they become
lost.
Yours faithfully,
Kingkraft Customer Service Team

General Information
The Kingkraft Rollator (Children’s Walker) is for indoor use only, on smooth
or carpeted surfaces, in the home and elsewhere. The rollator is shaped to
allow maximum stability and room for the user to walk inside the frame.
The Rollator is constructed from titanium tube and aluminium parts to
ensure the minimum weight possible. It is available in two sizes.
The front wheels are swivel castors that can be locked to stop the wheels
rotating until required. The rear wheels are fixed and uni-directional and will
not allow the rollator to move backwards.
The rollator is foldable to ease carrying and transport.
A variety of handle options are available which can be adjusted in angle and
position to suit the individual user.
For additional safety a small cushion is available to cover the hinge if
specifiied.

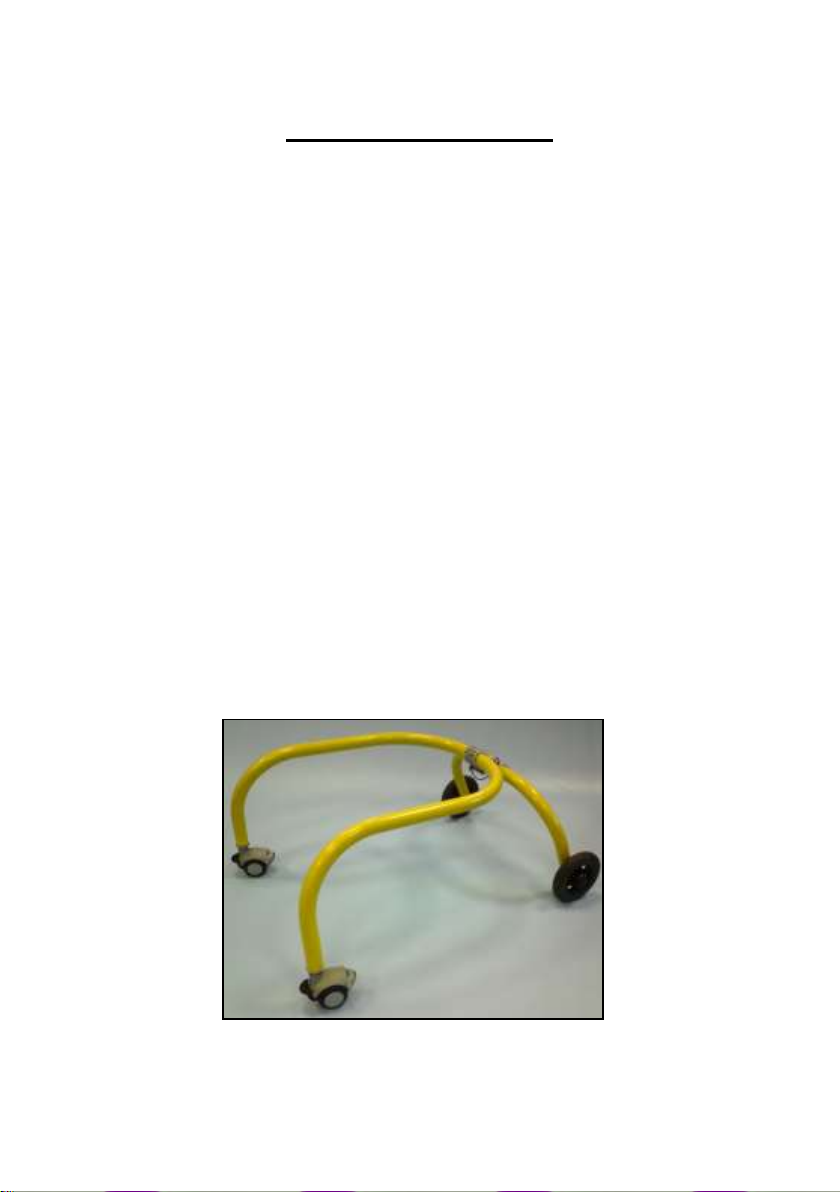

An example of the Kingkraft Rollator (Children’s Walker):

Rear Wheels:
All nuts must be tight and not moving
or loose:
Handle / Accessory Fittings:
All bolts securely tightened on any
fitted handles / accessory parts.
Cleaning:
The rollator should be cleaned as required. Wipe down with a warm mild
soapy detergent / solution, wipe off to dry. All materials used are corrosion
resistant. Do not use a bleach solution. To do so invalidates your
guarantee. Do not use any aggressive cleaning materials or hard brushes.
To do so may also invalidate your guarantee.
Tools:
Required for adjustment and maintenance:
1 x 13mm Spanner
1 x 15mm Spanner
1 x 4mm Allen / Hex Key
1 x Phillips / Pozi Drive Screwdriver

Kingkraft recommend the rollator is cleaned with a non-abrasive
cleaning solution. Please see separate cleaning information.
The rollator should be inspected regularly for any damage or signs
of faults by a competent person. Advice is available from Kingkraft
Ltd.
The Kingkraft Rollator (Children’s Walker) is intended as a walking
aid for young children only of a suitable size. Before use an
individual risk assessment for using the rollator with an idividual
child should be carried out by a comptetent therapist.
If any optional accessories do not satisfy the needs of the client, or
require removal or adjustment, a re-assessment should be
arranged between the client, a qualified individual, such as an
Occupational Therapist, or a Kingkraft Sales Manager.
IMPORTANT SAFETY INSTRUCTIONS / LABELS
WARNING:
Any person who is incapable of fully helping themselves must
NEVER be left alone with the rollator, even for the shortest of
periods.
Please note all safety labels on the chair before using.
Example of the Product Label:

Option 3: Curved Handles
These are curved so the ends of the handles blend to the frame. They are
intended to be fitted to the main frame at a comfortable height. They can be
fitted anywhere along the straight part of the frame. These handles must be
fitted as shown and not in any other orientation.
Please ensure the two bolts are fully tightened to eliminate any movement
whilst in use.
Warning!
Adjustment is only to be made with the user safely away of any possible
trapping points. After any adjustment, the screws must be retightened.
2 x M4 Bolts

Foot operation of the brakes:
The castor brake is operated using the black lever at the back of the castor:
To ‘lock’ the castors, press the rear lever downwards.
To ‘release’ the castors, raise the lever.
Warning: The brakes only operate correctly on even surfaces.
Brake Lever

Handle Options
A variety of handle options are available to order
Option 1: ‘Doughnut’ Frame Hand Stops
These are intended to be used if the main frame is at a comfortable height
and width for the user and they want to grip / lean into the rollator, instead of
using any additional handles. These can be positioned at a comfortable
location for the individual user as determined by the therapist.
Please ensure the two bolts are fully tightened to eliminate any movement
whilst in use.
2 x M4 Bolts

The rear wheels prevent the rollator from rolling backwards, unless the rear
wheels are lifted off the floor.
Do not tip or lift the rollator wheels off the floor at any time when in use.
Locking Pin and Folding
The rollator can be folded for ease of transportation. The main and rear
tubes are connected with a hinged clamp component.
This must have the locking pin fully inserted as shown below before the
rollator is used. The pin must only be removed when transporting the
rollator.
To remove the locking pin, hold between fingers and pull whilst pushing in
the end button:
Locking Pin

The locking pin is captured with the use of a tie so it can not be lost /
misplaced. The rollator must not be used if this locking pin is missing.
Contact Kingkraft immediately.
The rollator loosely folded with locking pin removed:
