Kingray DIGI6VHF User manual
INSTRUCTION MANUAL
Specialists in Digital TV Distribution Solutions
DIGI6VHF
VHF OUTDOOR TV ANTENNA
PRINTING SPECIFICATIONS: DIGI6VHF INSTRUCTION MANUAL
Dimensions: 210 (W) x 297 (H) mm (A4)
Stock: 80gsm paper
Print: 4 colour CMYK both sides
Finish: Matt stock
Part Number: 311153 Drawing Number: 52500-1
ARTWORK SUMMARY
DRAWING # 52500-1
PART # 311153
ECO # N/A

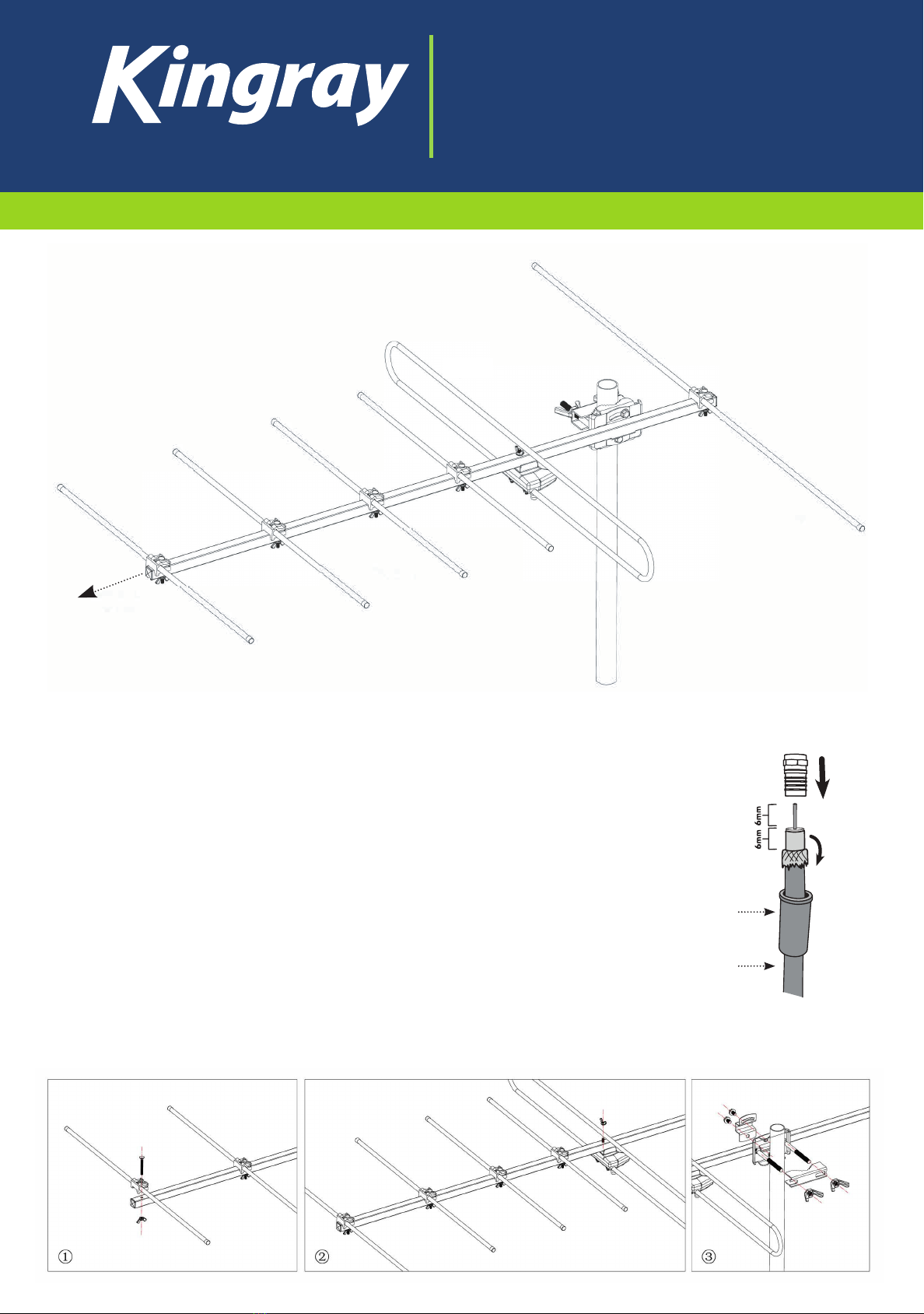

W-15-6 VHF Yagi Television Antenna Assembly Instructions
°
The DIGI6VHF is a quality VHF yagi TV Antenna which provides high gain over 174- 230MHz,
Australian channels 6 to 12. This antenna features a high overall performance with a matching balun
to ensure the maximum amount of signal is transferred to the coax cable for transmisson to the
Television.
Assembly Instructions:
1/ loosen boom clamp wing nut, insert element, rotate 90° to boom, centre per the mark on the
element, re-tighten & repeat for each director & the reflector.
2/ a) fit the folded dipole to the boom in the position shown, securing with wing nut.
b) slip boot onto the coaxial cable and fit an F connector to the coax cable.
c) screw the F connector on to the balun, being careful not to over-tighten and slide the boot
over the connector. For best results, tape the boot onto the cable to prevent it sliding off the
connector. Self-amalgamating tape is best if available, other PVC tape will suffice.
3/ loosen the wing nuts on the mounting bracket to fit over the antenna mast. Then tighten the
wing nuts, ensuring the antenna is pointing towards the TV transmitter. Cable tie or tape the coax
cable to the mounting pole, ensuring there are no sharp bends on the cable during this process.
Rubber
Boot
Coaxial
cable
W-15-6 VHF Yagi Television Antenna Assembly Instructions
towards
transmitter
directors
TheW-15-6isa qualityVHF yagiTV Antennawhich provideshigh gain over 174- 230MHz,ch's6 to 12.
This antennafeaturesa high overallperformancein a modest size. A matching balun ensures
maximumenergyof high signalqualityis transferredto the coaxcable fortransmissonto the Television.
Howto assemble:
1/ loosena boom clamp wingnut,insertelement,rotate90
° to boom, centre, re-tighten& repeat.
2/ a) slip weatherboot on to coaxialcable (excluded)and an F connectorto the coaxcable.
b) screwthe F connectoron to the dipole, the weatherboot overthe joined connectors.
c) the dipole to the boom in the positionshown,securingwithwingnut.
3/ the boom clamp to the antennaand complete antennato mast (excluded)by tighteningwingnuts.
reector
Folded
dipole boom clamp
mounting
bracket
balun
Drawing No: 52500-1 Part No: 311153
Product Type Warranty Period
Kingray TV Antenna 1 Year
GME WARRANTY AGAINST DEFECTS
This warranty against defects is given by GME Pty Ltd ACN 000 346 814 (We,
us, our or GME). Our contact details are set out in clause 2.7.
1. Consumer guarantees
1.1 Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
1.2 To the extent we are able, we exclude all other conditions, warranties
and obligations which would otherwise be implied.
2. Warranty against defects
2.1 This warranty is in addition to and does not limit, exclude or restrict your
rights under the Competition and Consumer Act 2010 (Australia) or any
other mandatory protection laws that may apply.
2.2 We warrant our goods to be free from defects in materials and
workmanship for the warranty period (see warranty table) from the
date of original sale (or another period we agree to in writing). Subject
to our obligations under clause 1.2, we will at our option, either repair
or replace goods which we are satisfied are defective. We warrant any
replacement parts for the remainder of the period of warranty for the
goods into which they are incorporated.
2.3 To the extent permitted by law, our sole liability for breach of a
condition, warranty or other obligation implied by law is limited.
(a) in the case of goods we supply, to any one of the following
as we decide –
(i) the replacement of the goods or the supply of equivalent goods;
(ii) the repair of the goods;
(iii) the cost of repairing the goods or of acquiring equivalent goods;
(b) in the case of services we supply, to any one of the following
as we decide –
(i) the supplying of the services again;
(ii) the cost of having the services supplied again.
2.4 For repairs outside the warranty period, we warrant our repairs to be
free from defects in materials and workmanship for three months from
the date of the original repair. We agree to re-repair or replace (at
our option) any materials or workmanship which we are satisfied are
defective.
2.5
We warrant that we will perform services with reasonable care and skill
and agree to investigate any complaint regarding our services made in
good faith. If we are satisfied that the complaint is justified, and as our
sole liability to you under this warranty (to the extent permitted at law),
we agree to supply those services again at no extra charge
to you.
2.6 To make a warranty claim you must before the end of the applicable
warranty period (see warranty table), at your own cost, return the goods
you allege are defective, provide written details of the defect, and
give us an original or copy of the sales invoice or some other evidence
showing details of the transaction.
2.7 Send your claim to:
GME Pty Ltd.
PO Box 96 Winston Hills, NSW 2153,Australia.
Tel: (02) 8867 6000 Fax: (02) 8867 6199
Email: servadmin@gme.net.au
2.8 If we determine that your goods are defective, we will pay for the cost
of returning the repaired or replaced goods to you, and reimburse you
for your reasonable expenses of sending your warranty claim to us.
3. What this warranty does not cover
3.1 This warranty will not apply in relation to:
(a) goods modified or altered in any way;
(b) defects and damage caused by use with non
GME products;
(c) repairs performed other than by our authorised representative;
(d) defects or damage resulting from misuse, accident, impact or
neglect;
(e) goods improperly installed or used in a manner contrary to the
relevant instruction manual; or
(f) goods where the serial number has been removed
or made illegal.
4. Warranty period
4.1 We provide the following warranty on GME and Kingray products. No
repair or replacement during the warranty period will renew or extend
the warranty period past the period from original date of purchase.
SPECIFICATIONS
Gain (dB) 12
Beamwidth (Horizontal) 30
Beamwidth (Vertical) 35
Front/Back (dB) 22
Windload (N) 80
Weight (kg) 0.5
Size (mm) 975 x 910
No. of elements 6
Frequency (MHz) 174 - 230
Channels 6 - 12
F Connection Yes
Impedance (Ω) 75
A division of GME Pty Ltd.
Head Office: PO Box 96, Winston Hills, NSW 2153, Australia T: 1300 463 463
New Zealand: PO Box 58446 Botany, Auckland, 2163, NZ. T: (09) 274 0955.
All other international enquiries email: export@gme.net.au
