UNVENTED (VENT-FREE) FIREBOX
Circulating Models
Listed Certified for USA ZVF24
ZVFB2410MVN, ZVFB2410MVP, ZVFB2426MVN, ZVFB2426MVP
Burner Systems are approved to: ANSI Z21.11.2-2007
for the ZVF24 Vent Free Firebox only
Owner’s Operation
and Installation Manual
Warning
If the information in this manual is not followed
exactly, a fire or explosion my result causing property damage,
personal injury, or loss of life.
– Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
Warning
Improper installation, adjustment,
alteration, service, or maintenance
can cause injury or property
damage. Refer to this manual for
correct installation and operational
procedures. For assistance or
additional information consult a
qualified installer, service agency, or
the gas supplier.
Warning
The ZVF24 Firebox is to be used
only with certain vent-free gas log
heaters (see Page 20). Do not burn
wood or other materials in these
fireboxes.
Save this manual for future reference • 2340 Logan Ave., Winnipeg, MB, Canada, Phone: [phone] •Printed in Canada • PART #24VF-MAN
Rev. July 24, 2008
Warning
Carefully review the instructions
supplied with the decorative type
unvented room heater for the
minimum size requirement.
DO NOT INSTALL THE APPLIANCE
IN THIS FIREBOX UNLESS THIS
FIREBOX MEETS THE MINIMUM
DIMENSIONS REQUIRED FOR THE
INSTALLATION
Warning
FOR USE ONLY WITH
A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER
NOT TO EXCEED
40,000 BTU/H.
DO NOT BUILD A WOOD FIRE
Warning
This is an unvented gas-fired heater. It uses air (oxygen) from the
room in which installed. Provisions for adequate combustion and
ventilation must be provided. Refer to Page 7.
This appliance must be
installed by a licensed
plumber or gas fitter in
the Commonwealth of
Massachusetts and meet
the requirements of 527
CMR 30 and 248 CMR.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

2

3
TABLE OF CONTENTS
SECTION PAGE
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
PreInstallation Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Local Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Air for Combustion and Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10

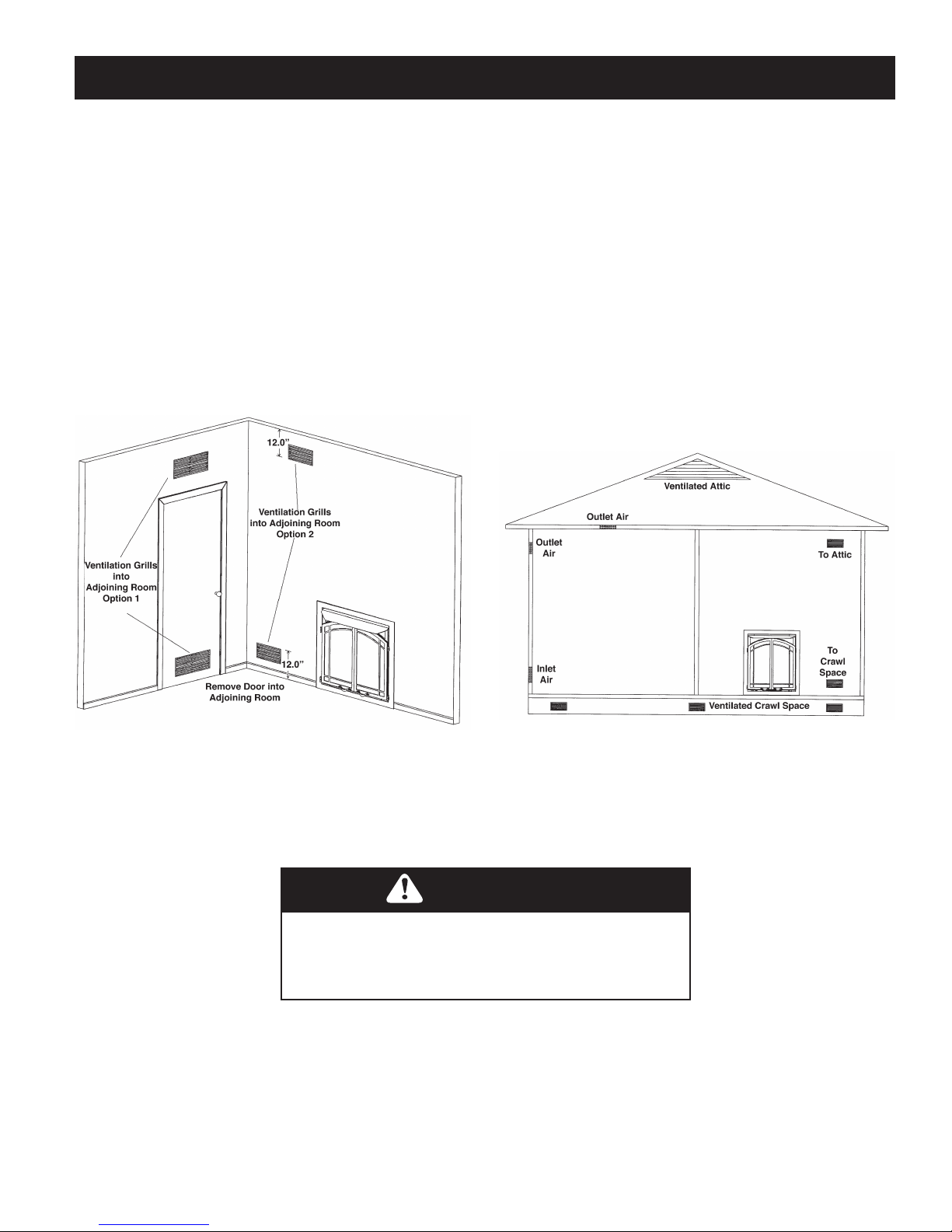

Providing Adequate Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Determining Air Flow for Firebox Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Ventilation Air From Inside Building . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Ventilation Air From Outdoors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Fireplace Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Framing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installing
Installing by Framing Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Installing Firebox Using Optional Pre-Built Mantel Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Installing Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Installing Z33FK Fan Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Installing ZVF2410 & ZVF2426 Brick Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Trim Assembly & Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Designer Trim Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Overlay & Designer Door Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Installing Burner System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cleaning and Servicing of Burner / ODS Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Log Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Millivolt Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Illustrated Burner Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24
Parts List & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

4
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries
quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone
components, the paint will cure when heat is applied to the appliance as it is first used.
The following information applies to the curing process to get the paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between
each. Be aware during log and firebox paint curing that a white deposit may be developing on the inside
of the glass doors. It is important to remove this white deposit from the glass doors with an appropriate
cleaner to prevent build-up (such as Windex or a commercial fireplace glass cleaner).
• Babies, small children, pregnant women and pets should leave the area during the cure phase.
• Ventilate well, open doors and windows.
• Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odour. This is due to the curing of the paint, adhesives,
silicones and any undetected oil from the manufacturing process as well as the finishing materials used
with the installations (e.g. marble, tile and the adhesives used to adhere this product to the walls can react
with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with
the fan off after the curing of the paint has been completed. These odours can last upward to 40 hours of
burn time, keep burning at a minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
• Noise caused by metal expanding and contracting as it heats up and cools down, similar to the sound
produced by a furnace or heating duct. This noise does not affect the operation or longevity of your
fireplace.
PRE-INSTALLATION QUESTIONS and ANSWERS

SAFETY INFORMATION WARNINGS
5
WARNINGS
Important: Read this owner’s manual carefully and
completely before trying to assemble, operate, or service
this firebox. Improper use of this firebox can cause serious
injury or death from burns, fire, explosion, electrical shock,
and carbon monoxide poisoning.
Early signs of carbon monoxide poisoning resemble the
flu, with headaches, dizziness, and / or nausea. If you have
these signs, the heater may not be working properly. Get
fresh air at once! Turn off gas appliance. Have appliance
serviced. Some people (such as pregnant women, persons
with heart or lung disease, persons with anemia and those at
high altitudes) are more affected by carbon monoxide than
others. Make certain you read and understand all warnings.
1. Use correct gas type for your appliance. Do not convert
from one gas type to another.
2. If this appliance is for use with Propane gas, do not
place propane supply tank(s) inside any structure.
Locate propane supply tank(s) outdoors.
3. If you smell gas:
– Shut off gas supply.
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any
phone in your building.
– Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
– If you cannot reach your gas supplier, call the fire
department.
4. Do not use this appliance for burning trash or cooking.
Never place matches, paper, garbage, or any other
material on top of logs or logs into flame.
5. Warning: Always operate appliance with front
fireplace screens closed.
6. Make sure any safety screen or guard removed for
servicing is in place before running appliance.
7. Never run appliance in a small, closed room. Open the
door into next room to help ventilate.
8. If appliance shuts off, do not relight until you provide
fresh outside air. If appliance keeps shutting off, have it
serviced.
9. Do not run appliance:
– where flammable liquids or vapors are used or stored.
– under dusty conditions.
10. Surface of appliance becomes very hot when operating.
Keep children and adults away from hot surface.
Appliance will remain hot for some time after
shutdown. Allow surface to cool before touching.
11. Do not use this appliance if any part has been
submerged under water. Immediately call a qualified
technician to inspect the appliance and to replace any
part of the control system and gas control which has
been under water.
12. The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1.
13. Never install the appliance:
– in a bedroom, bathroom, mobile home, or recreational
vehicle.
– where curtains, furniture, clothing, or other flammable
objects are less than forty-two inches (42”) from the
front
of the appliance.
– in high traffic areas.
– in windy or drafty areas.
14. Disconnect the appliance and its individual shut off
valve from the gas supply piping system during any
pressure testing of that system at test pressures in
excess of 1/2 psig, (3.5kPa).
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
NOTE: It is recommended that a Carbon Monoxide
(CO) Detector be installed in or near bedrooms and on all
levels of your home. Place a detector about 15 feet (4.5
meters) outside the room that houses your gas appliance.
This appliance is equipped for
(Natural or Propane) Gas.
Field conversion is not permitted.
Warning: Failure to position parts in accordance
with these diagrams or failure to use only part
specifically approved with this heater may result in
property damages or personal injury.

SAFETY INFORMATION WARNINGS Cont.
15. Isolate the appliance from the gas supply piping system by closing its individual manual shut off valve during any
pressure testing of the the gas supply piping system at test pressure equal or less than 1/2 psig.
16. Do not use any type of after-market blower that fits inside the fireplace. Drafts created by these type of blowers may
cause sooting.
17. Turn off appliance and let cool before servicing. Only a qualified service person should install, service and repair
appliance.
18. Inspect the appliance before use and at least annually by a professional service person. Frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc. It is important that control compartment, burner and
circulating air passage of the appliance be kept open.
19. When operated for the first time, there will be some smell from the appliance. This will diminish and disappear after a
few hours of operation.
20. Warning: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter flame patterns.
21. Warning: Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this heater.
22. The firebox canopy must not be replaced with a canopy which may be provided with the decorative type UNVENTED
room heater.
23. Warning: Do not operate ceiling fans in same room as the vent free appliance.
24. Must be installed by a licensed gasfitter in the Commonwealth of Massachusetts. Complies to code 527CMR.
25. Unvented gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no
circumstances shall they provide a primary heat source.
26. Warning: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.
LOCAL CODES
Install and use fireplace with care. Follow all local codes. In
the absence of local codes, use the latest edition of The
National Fuel Gas Code ANSI Z223.1, also known as NFPA
54*. Firebox must be electrically grounded in accordance
with the National Electrical Code, ANSI/NFPA 70 (latest
edition).
*Available from:
American National Standards Institute, Inc. National Fire Protection Association, Inc.
1430 Broadway BatterymarchPark
New York, NY 10018 Quincy, MA 02260
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly.
B. Before lighting, smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand,
don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.
6
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal
injury or loss of life.

7
AIR FOR COMBUSTION AND VENTILATION
Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods
help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as airtight as possible.
While it is good to make your home energy
efficient, your home needs to breathe. Fresh air must enter
your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireboxes, clothes dryers, and fuel burning
appliances draw air from the house to operate. You must
provide adequate fresh air for these appliances. This will
insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation:
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction, 2. Unconfined Space, 3. Confined Space.
The information on pages 14 through 16 will help you classify your space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in
building of usually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of one
perm (6 x 10-11 per pasec-m2) or less with openings gasketed or sealed and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and
floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and
at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air.
See Ventilation Air From Outdoors, page 16.
Confined and Unconfined Space
The National Fuel Gas Code (ANSI Z223.1, 1992 Section 5.3) defines a confined space as a space whose volume is less than
50 cubic feet per 1,000 btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with
doors, are considered a part of the unconfined space.
*Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.
DETERMINING AIR FLOW FOR FIREBOX LOCATION
Determining if You Have a Confined or Unconfined Space
Use the work sheet on the next page to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install firebox plus any adjoining rooms with doorless
passageways or ventilation grills between the rooms.
WARNING
This firebox shall not be installed in a confined space
unless provisions are provided for adequate combustion
and ventilation air. Read the following instructions to
insure proper fresh air for this and other fuel-burning
appliances in your home.

8
AIR FOR COMBUSTION AND VENTILATION Cont.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ______________ cu. ft. (volume of space)
Example: Space size 22ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total
volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.
______________ (volume of space) ÷ 50 cu. ft. = 63.3 or 63,300 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free firebox __________________ Btu/Hr
Gas water heater* __________________ Btu/Hr
Gas furnace __________________ Btu/Hr
Vented gas heater __________________ Btu/Hr
Gas firebox logs __________________ Btu/Hr
Other gas appliances* + __________________ Btu/Hr
Total = __________________ Btu/Hr
Example: Gas water heater 40,000 Btu/Hr
Vent-free firebox with log heater + 39,000 Btu/Hr
Total = 79,000Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the
outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 63,300 Btu/Hr (maximum the space can support)
79,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the
space can support. You must provide additional fresh air. Your options are a follows:
A. Rework work sheet, adding the space of an adjoining room. If the extra space provides and unconfined space, remove
door to adjoining room or add ventilation grills between rooms, See Ventilation Air from Inside Building, page 15.
B. Vent room directly to the outdoors. See ventilation Air
from Outdoors, page 16.
C. Install a lower Btu/Hr firebox, if lower Btu/Hr size
makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr
the space can support, the space is an unconfined fined
space. You will need no additional fresh air ventilation.
WARNING
If the area in which the firebox and gas log heater may be
operated is smaller than that defined as an unconfined
space, provide adequate combustion and ventilation air by
one of the methods described in the National Fuel Gas
Code, ANSI Z223.1, 1992, Section 5.3.

9
AIR FOR COMBUSTION AND VENTILATION Cont.
VENTILATION AIR FROM INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you
must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor on the wall connecting
the two spaces. You can also remove door into adjoining room. Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12” of the
ceiling and one within 12” of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces.
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a thermostat-controlled power vent.
Heated air entering the attic will activate the power vent.
FIGURE 5 - Ventilation Air from Inside Building FIGURE 6 - Ventilation Air from Outdoors
WARNING
Rework worksheet, adding the space of the adjoining
unconfined space. The combined spaces must have
enough fresh air to supply all appliances in both spaces.

10
ZVF2410-2426 FIREPLACE DIMENSIONS

11
ZVF2410/2426 FRAMING SPECIFICATIONS

12
INSTALLING – Framing
INSTALLING BY FRAMING
FIREPLACE
Built-in installation of this firebox involves installing firebox
into a framed-in enclosure. Optional brass trim accessories are
available. The brass trim will extend past sides of firebox.
This will cover the rough edges of the wall opening. If
installing a mantel above the firebox, you must follow the
clearances shown. Follow the instructions below to install the
firebox in this manner.
1. Frame in rough opening. The firebox framing should be
constructed of 2 x 4 lumber or heavier. Use dimensions on
page 11. Adjust framing so that firebox is flush with
finished wall surface.
TABLE 2 – ROUGH OPENING DIMENSIONS
FOR BUILT-IN INSTALLATION
MODEL # FRT WIDTH HEIGHT DEPTH
(Inside to Inside) (Minimum)
ZVF2410 243⁄8” 30” 123⁄4”
ZVF2426 243⁄8” 30” 123⁄4
2. Install gas piping to firebox location. See Installing Gas
Line on page 20 and Connecting to Gas Supply in log set
owners manual. IMPORTANT: If installing blower
accessory see page 35.
3. Carefully insert firebox into rough opening.
4. Attach firebox to wall studs using nails or wood screws
through holes in nailing flange.
5. If using optional Brass Surround Kit, install the trim after
final finishing and/or painting of wall. See instructions
included with brass trim accessory for attaching Surround.
6. Install and properly test gas log heater. Follow installation
instructions included with the vent-free gas log heater that
is being installed.
IMPORTANT: When finishing your firebox, combustible
materials such as wall board, gypsum board, sheet rock,
drywall, plywood, etc. may be butted up to the sides and top of
the firebox. Combustible materials should never overlap the
firebox front facing.
IMPORTANT: Non-combustible materials such as brick, tile,
etc. may overlap the front facing, but should never cover any
necessary openings like louvered slots.
CAUTION
Log heaters installed in this firebox create warm air
currents. These currents move heat to wall surfaces next
to firebox. Installing firebox next to vinyl or cloth wall
coverings or operating firebox where impurities in the
air (such as tobacco smoke) exist, may discolor walls.
WARNING
Do not allow any materials to overlap the firebox front
facing.
WARNING
Never modify or cover the louvered slots on the front
of the firebox.
WARNING
Use only non-combustible mortar or adhesives when
overlapping the front facing with non-combustible
facing material.
WARNING
Do not allow non-combustible materials to cover any
necessary openings like louvered slots.
CAUTION
Do not install the firebox on carpet or vinyl.

13
INSTALLING – Mantel Cabinets
INSTALLING FIREBOX USING OPTIONAL PRE-BUILT MANTEL CABINETS
This firebox may be installed using a cabinet mantel accessory against a wall in your home. The firebox and cabinet mantel
can be installed directly on the floor.
1. Assemble cabinet mantel. Assembly
instructions are included with each accessory.
2. If using an optional Blower, install a properly
grounded, 120 volt three-prong electrical
outlet. See Installing optional Fan Kit, page
35, for complete installation. If possible,
locate outlet so cabinet mantel will cover it
when installed (see Figure 9).
3. Install gas piping to firebox location. See
Installing Gas Line, page 20. You may have
to cut an access hole in the floor or wall to
run gas line to firebox. Make sure to locate
access hole so cabinet mantel will cover it
when installed (see Figure 9).
4. Place cabinet mantel on floor in desired
location. Make sure mantel is flush against
wall.
5. Carefully insert firebox into cabinet mantel.
Be careful not to scratch firebox, cabinet
mantel, flooring, etc. when installing.
6. Install and properly test gas log heater. Follow
installation instructions included with the
vent-free gas log heater that is being installed.
NOTICE
A qualified service person must install firebox. Follow
all local codes.
NOTICE
Installation and repair should be done by a qualified
service person well trained in the installation of such
appliances. You will also need a building permit from
your local Building Commissioner before installing this
appliance, otherwise your insurance company may not
cover this appliance.
FIGURE 9 – Installing Cabinet Mantel
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
WARNING
Any changes to this heater or its controls can be
dangerous.
CAUTION
Use new black pipe only. Internally tinned copper
tubing can be used in some areas when permitted by
local codes. Only use pipe of 1/2” or greater diameter
to allow full gas volume to heater. Excessive pressure
loss will occur if the pipe is too small.
A manual shutoff valve, union and plugged 1⁄8” NPT
pressure tap pointer must be installed upstream of the
heater.
A sediment trap must be installed upstream of the heater
to prevent moisture and contaminants from passing
through the pipe to the heater controls and burners. Failure
to do so could prevent the heater from operating
reliably.

14
INSTALLING – Clearances
IMPORTANT: Vent-free gas log heaters add moisture to
the air. Although this is beneficial, installing firebox in
rooms without enough ventilation air may cause mildew to
form from too much moisture. See Air for Combustion and
Ventilation, pages 7 through 9.
IMPORTANT: Make sure the firebox is level. If firebox is
not level, log set will not work properly.
INSTALLATION CLEARANCES
Carefully follow the instructions below. This will ensure
safe installation.
Minimum Wall and Ceiling Clearances
A. Clearances from the firebox to adjacent wall should
not be less than 4 inches.
B. Clearance from the top of the fireplace front to the
ceiling should not be less than 41 inches.
C. Clearance from the bottom of firebox to the floor is
0 inches.
D. Clearance from side of fireplace to enclosure is 0 inches.
E. Clearance from top of fireplace standoffs is 0 inches.
These fireboxes can be installed as freestanding units
against a wall with the approved, optional cabinet mantels
or as a built-in unit. The clearances are the same for either
installation method.
NOTICE
A qualified service person must install firebox.
Follow all local codes.
WARNING
Maintain the minimum clearances. If you can, provide
greater clearances from floor, ceiling, and adjoining wall.
WARNING
Ensure the minimum clearances shown in Figures 7 and
8 are maintained. Left and right clearances are
determined when facing the front of the heater.
FIGURE 8 – Mantel Clearances.
FIGURE 7 – Minimum Clearances - Top and Sides
of Room Heater to Ceiling and Walls.
WARNING
Never install the firebox
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable
objects are less than 42 inches from the front, top, or
sides of the firebox
• in high traffic areas
• in windy or drafty areas
• unless the installed log set is rated at 10,000 Btu/Hr or
less in a bedroom or 6,000 Btu/Hr or less in a
bathroom
WARNING

15
INSTALLING Z33FK– Fan Kit
ZVF2410 & ZVF2426 Fan Installation & Removal
Warning: Before installing or removing Fan System make sure power is off.
Note: When re-sealing access panel in the firebox, use high temperature
silicon/millpac.
1. When installing or servicing fan remove access cover. Remover 12 screws
form access cover and gently pry one corner of cover to break seal (Fig.1)
2. Junction box is now accessible for wiring. Wire receptacle into the junction
box to 120v, also junction box should be wired inline to the supplied wall
mounted variable speed control, or on/off wall switch.
3. Attach fan thermodisc securely to bottom of fan access cover. (Screws for
thermodisc are factory installed)
4. Install fan by placing fan over mounting tabs on bottom of fireplace. (Fig.2)
5. At this time power to the receptacle should not be on. Attach the 2 leads
exiting fan onto the thermodisc and plug fan into receptacle junction box.
Note: Make sure that excess wiring to thermodisc and fan cord to junction
box is coiled up and placed under the burner bottom. Avoid letting the cord or
thermodisc wire extend into blower wheel or project upward between the
firebox wall and outer wall to prevent damage of wires.
6. Re-install fan access cover. Use Millpac or high temp silicone to seal fan
access cover from combustion system. Power can now be turned on. Note:
Fan will not turn on until thermodisc has reached maximum temperature or
turn off until thermodisc has cooled to its minimum temperature.
WARNING
Label all wires prior to
disconnection when servicing
controls. Wiring errors can cause
improper and dangerous operation.
Verify proper operation and servicing.
WARNING
Electrical Grounding Instructions - This
appliance is equipped with a three - pronged
(grounding) plug for your protection against
shock hazard and should be plugged directly
into a properly grounded three-prong
receptacle.
WARNING
A qualified electrician must
connect electrical wiring to
junction outlet for built-in
installation. Follow all
codes.

16

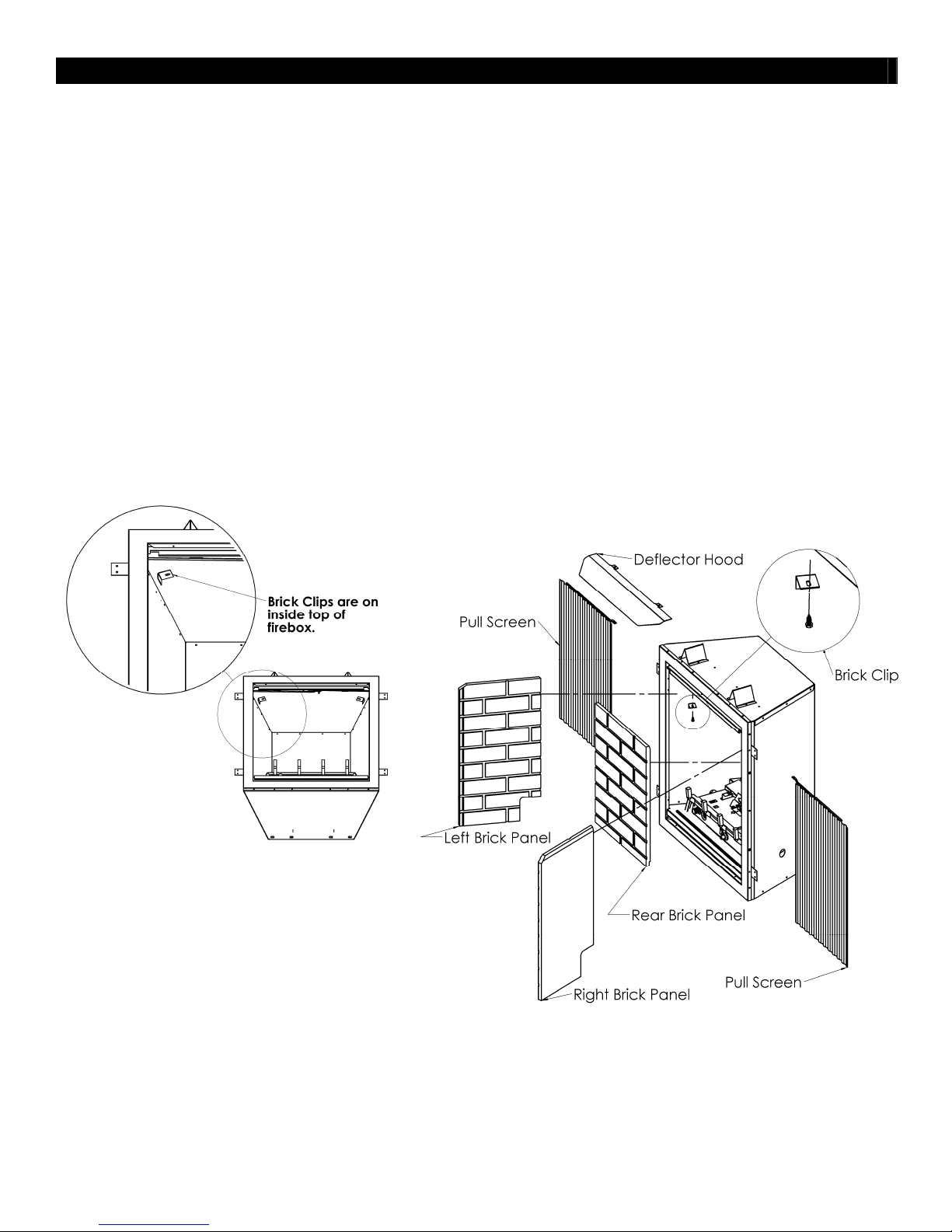

ZVF2410 & ZVF2426 Brick Panel Installation
1. Remove Deflector Hood by tilting front of hood up and pulling towards you.
2. Remove Pull Screens & Rods from fireplace.
3. Remove accessories, Overlays, Designer Doors, and or Logs if installed.
4. Place Rear Brick Panel up against the back of the firebox, ensuring the notched portion is at the bottom, and the
beveled edge is at the top.
5. Loosen Brick Clip Screws, & rotate Brick Clips out of the way. Tilt & slide Side Brick Panels into position up
against the rear Brick Panel. Slide Brick Clips up against side Brick Panels & tighten.
6. Replace Deflector Hood, Rods & Pull Screens, accessories, and Log Set as per instructions.
Warning: Fireplace screen must be closed
while appliance is in operation.

17

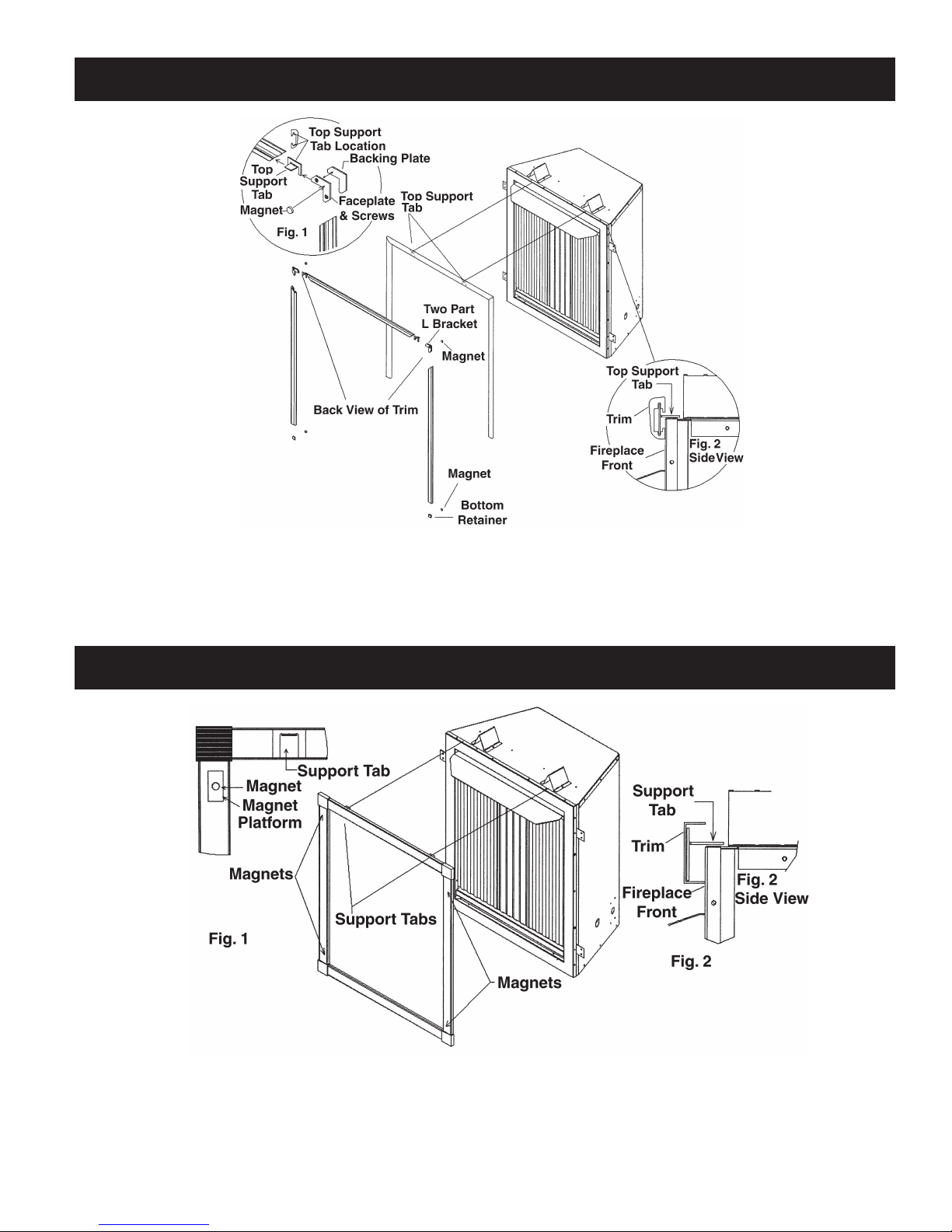

TRIM ASSEMBLY AND INSTALLATION
DESIGNER TRIM INSTALLATION
1. Slide the two top support tabs into slot of top trim piece as shown. (Fig.1)
2. Place two part L brackets and backing plates into 45 degree cut ends of trim and tighten screws. If this is a four piece trim repeat for
bottom assembly.
3. Place magnet onto inside corners of L brackets and onto face of bottom retainer bracket.
4. Center top support tabs approximately 5” from either side of trim. Place trim onto fireplace by hanging trim from support tabs and Magnets.
(Fig.2)
* Careful: To avoid scratching paint on face of trim DO NOT place trim on hard surfaces.
1. On the back side of trim top there are two support tabs, using a small screwdriver bend tabs up 90 degrees. Tabs can also be bent by
hand or pliers once partially bent up.
2. Place four supplied magnets onto center of each magnet platform. (Fig.1)
3. Place trim onto fireplace by hanging trim from support tabs and magnets (Fig.2)

18
Overlay Door Installation
1. Remove deflector hood by tilting front of hood up and pulling towards you.
2. Do not remove woven mesh screen. Screen will hang behind overlay door.
3. Hook top of overlay door into firebox top.
4. Bottom overlay is held in place by magnets. Make sure magnets are located on the bottom inside corners of overlay door.
5. Replace hood removed in step 1.
Designer Door Installation
1. Remove deflector hood by tilting front of hood up and pulling towards you.
2. Remove woven mesh screen. Remove two 10-32 nuts from screen rods, and remove woven mesh screens.
3. Hook top of designer door into firebox top
4. Attach right/left side of designer door to frame of fireplace with two supplied 5/32 screws.
5. Replace hood removed in step 1.
OVERLAY & DESIGNER DOOR INSTALLATION
Warning: Fireplace screen must be closed
while appliance is in operation.

19
INSTALLING – Burner System
CLEANING AND SERVICING OF
BURNER / ODS PILOT
It is recommended to annually inspect and clean the unit to
prevent malfunction and / or sooting. This operation should
be performed by your dealer or a qualified technician.
Remove log set, handling carefully by holding gently at
each end. (Refer to Log Placement) Gloves are
recommended to prevent skin irritation from ceramic.
Annual Cleaning / Inspection
• Do not use cleaning fluids to clean logs or any part of the
heater.
• Use a soft bristle brush or a vacuum with brush attachment.
• Vacuum loose particles and dust from burner ports, valve and
blower compartments.
• Vacuum any accumulation of lint from primary mixing tube.
• Inspect ODS pilot for operation, accumulation of lint at the air
inlet holes.
• Verify flame pattern and log placement for proper operation.
• Verify that all ports ignite and cross over smoothly from rear
to front burner.

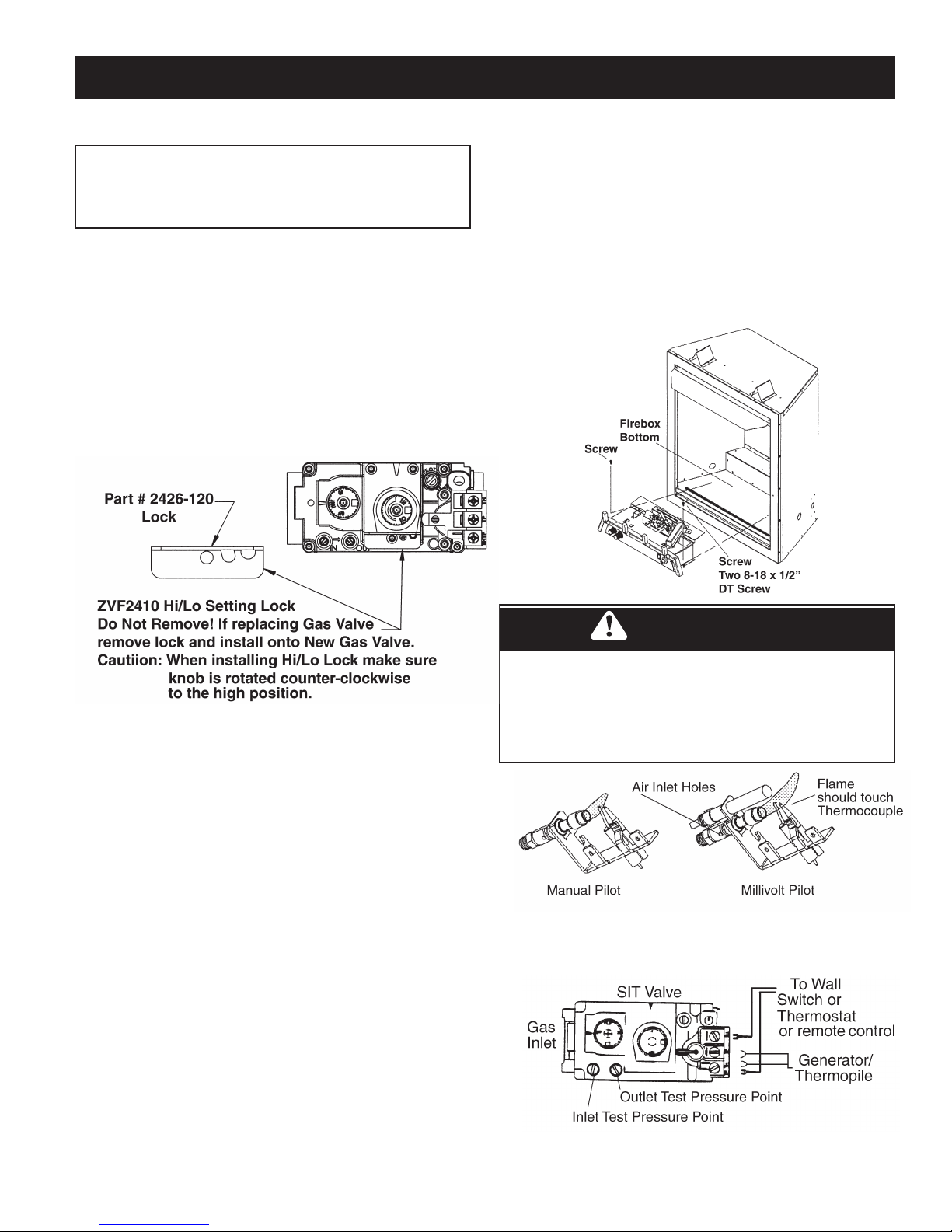

FIGURE 11 – Manual and Millivolt Pilot Flames
FIGURE 12 – Millivolt Models
WARNING
Turn off heater and allow to cool before cleaning. Only
a qualified service technician should service and repair
appliance.
Failure to keep primary air openings clear, may result in
sooting and property damage.
The Zero Clearance Fireplace ZVF24 Series can be installed with its listed burners only.
Burner Model Valve Type Fuel Type BTU - Input Min/Max Inlet Manifold Pressure Orifice Size Primary Air
ZVFB2410MVN Millivolt Natural Gas 10,000 non-adjustable 5.5”/10” 3.5” #52 1/32” open
ZVFB2410MVP Millivolt Liquid Propane 10,000 non-adjustable 11”/13” 10” #65 1/2” open
ZVFB2426MVN Millivolt Natural Gas 17,500 - 25,250 5.5”/10” 1.6” - 3.5” #42 1/8” open
ZVFB2426MVP Millivolt Liquid Propane 19,500 - 24,250 11”/13” 6.3” - 10” #52 3/8” open
Note Install optional fan before installing burner system. See fan installation instruction.
1. To install burner system locate two holes in the bottom
of firebox. Align two holes in firebox bottom with holes right
and left of burner system. Using the two (2) supplied screws
fasten burner system to firebox bottom.
This appliance is equipped for
(Natural or Propane) Gas.
Field conversion is not permitted.
Warning: Failure to position parts in accordance
with these diagrams or failure to use only part
specifically approved with this heater may result in
property damages or personal injury.

20
LOGF10 PLACEMENT FOR ZVF24
WARNING
The positioning of the logs is critical for the safe
and clean operation of this heater. Sooting and other
problems can occur if the logs are not properly and
firmly positioned in the heater. Never add additional
logs or embellishments such as pine cones, vermiculite,
volcanic rock or rock wool to the heater.

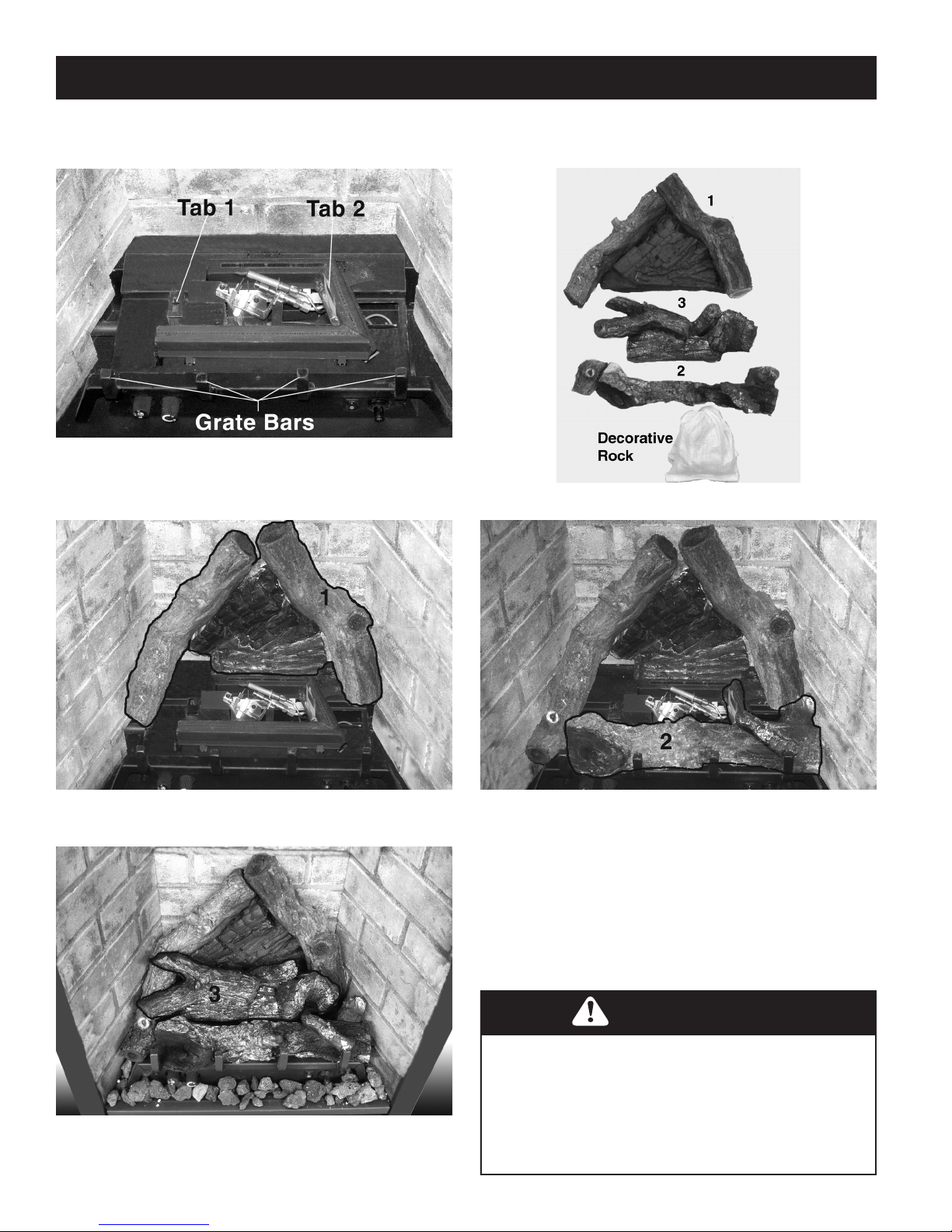

Log Attachment Points
Log components
1. Place log #1 against the back wall of the unit. Center
log as shown. Do not place log over the burner posts.
2. Locate the two notched areas of Log #2 and line them
up with the two grate bars as shown.
3. Locate the two guide holes at the bottom of Log #3 and
place them on Tabs 1 & 2. Add decorative rock to the
bottom of firebox. Do not put rock on burner assembly.
Warning: Failure to position parts in accordance with these diagrams or failure to use only part specifically
approved with this heater may result in property damages or personal injury.
