Kinivo 360BNT User manual

Kinivo 360BNT HDMI Switch with Toslink
User Manual
© 2021 Kinivo LLC. All rights reserved.
Kinivo is a trademark of Kinivo LLC. HDMI word mark and the
HDMI logo are registered trademarks of HDMI Consortium.
All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media
or form without the written consent of Kinivo LLC.
Kinivo Product Support
Online : http://support.kinivo.com
Email : [e-mail]
360BNT

English: Thank you for choosing Kinivo. Our
user manuals are available in multiple languages at
http://downloads.kinivo.com
Français: Merci d’avoir choisi Kinivo. Nos modes
d’emploi sont disponibles en plusieurs langues sur http://
downloads.kinivo.com
Deutsch: Danke für die Wahl von Kinivo. Unsere
Bedienungsanleitungen sind unter http://downloads.
kinivo.com in mehreren Sprachen verfügbar
Español: Gracias por elegir Kinivo. Nuestros manuales
de usuario están disponibles en varios idiomas en http://
downloads.kinivo.com
Italiano: La ringraziamo per aver scelto Kinivo. I nostri
manuali utente sono disponibili presso http://downloads.
kinivo.com

Table of Contents
Thank You .....................................................4
Introduction .................................................4
Important Safety Instructions.....................5
Installation....................................................7
Operation......................................................12
ARC ................................................................13
Auto Switching .............................................14
Specications ...............................................16
Frequently Asked Questions (FAQ).............16
FCC Statement..............................................18
Warranty .......................................................19
Online Support / Contact Us........................21

Kinivo 360BNT HDMI Switch with Toslink
4
Thank You
Dear Customer,
Thank you for choosing Kinivo. Our company’s goal is to
provide high-quality products and attentive customer
service to valued customers like you. We hope to meet
and exceed your expectations! Our development
team continues to work hard producing high quality,
innovative products that will help you stay on the
leading edge. Be sure to look out for our new and exciting
product line that can further improve your audio & visual
experience.
Yours Sincerely,
Kinivo
Introduction
The Kinivo 360BNT 4K 60Hz HDMI Switch With Toslink
enables up to three HDMI source devices (such as
the DVD player, cable box, game console etc.) to be
connected to a single HDMI input port on your HDTV
or video projector, while the audio is extracted through

Kinivo 360BNT HDMI Switch with Toslink 5
Toslink. It can be used to expand the number of HDMI
ports on a single input HDMI equipped video receiver
with Toslink capability. It is an easy, convenient and
inexpensive solution to expand your home theater setup.
Important Safety Instructions
Please read instructions carefully before
operation
1. To prevent risk of electric shock, do not remove
the cover of the unit. Refer all servicing to qualied
service personnel only.
2. Do not use the device near water.
3. Clean only with dry cloth.
4. Do not install or place this unit in a bookcase, built-
in cabinet or in any other conned Space. Ensure the
unit is well ventilated.
5. To prevent risk of electric shock or re hazard, do not
block the unit’s ventilation openings.
6. Do not install near any heat sources such as
radiators, stoves, heat registers etc.
7. Unplug during lightning storms or when unused for
a long period of time.
8. Protect power cord from being pinched, particularly

Kinivo 360BNT HDMI Switch with Toslink
6
near plug points.
9. Only use attachments/accessories specied by the
manufacturer.
Warning

Kinivo 360BNT HDMI Switch with Toslink 7
Installation
Front Panel Controls
Back Panel Connectors
1 Power Indicator
2 Switch & Auto Switch Button
3 ARC Button
4 Infrared Remote Sensor
5 Out/ARC LED Indicator
6 HDMI Input LED Indicators
Power IR Out/ARC Input 1 Input 3
SWITCH ARC
1 2 3 4 5 6
Input 2
Input 3 Input 2 Input 1 Output
HDMI Output PortHDMI Input Ports

Kinivo 360BNT HDMI Switch with Toslink
8

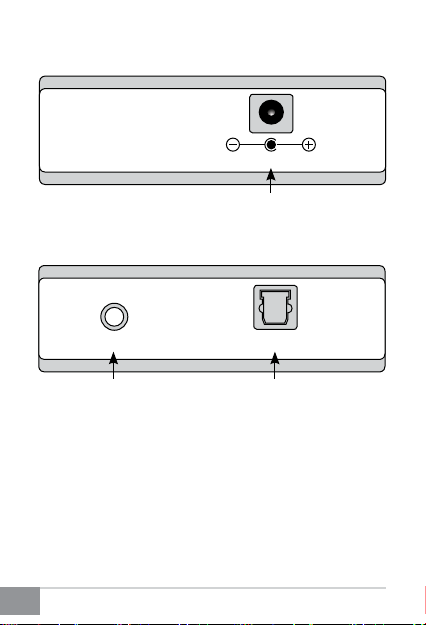

Left Side Panel
Right Side Panel
DC 5V input port
+ DC 5V
STEREO SPDIF
SPDIF optical output port3.5mm audio output port

Kinivo 360BNT HDMI Switch with Toslink 9
Remote Control
1. Select a specic HDMI Input by choosing 1, 2 or 3.
2. Cycle the HDMI Inputs using the “Up and Down”
buttons.
3. Pressing the “Auto”button turns the Auto Switching
on or o.
4. Pressing the“ARC” button turns the ARC “on”or “o”.
5. Pressing the “Memory” button makes sure the
desired input is automatically selected.
Note:
1. The remote control uses infrared light signal and
ARC
HDMI Input 1
HDMI Input 2
HDMI Input 3
Memory
Auto
Switching
Down
Up

Kinivo 360BNT HDMI Switch with Toslink
10
requires direct line-of-sight to the IR Remote Sensor.
Please make sure that the IR Remote Sensor is not
blocked.
2. Please remove the screw before opening the battery
bay to replace the remote’s battery.
3. Please take out the lm at the rear of the remote
before use.
Setup
1. Connect the output port of the HDMI Switch to
HDTV or Projector using a HDMI cable (Note: HDMI
cable is not included).
2. Connect devices (Game Console, DVD Player,
Streaming Media Player, etc) to the input ports on
the HDMI Switch.
3. Repeat the above step to connect your Cable Box,
DVD Player, Streaming Media Player, etc.
4. Connect a Toslink cable to the Toslink Port of HDMI
Switch and the other end to the Sound System.
5. Plug the included power adapter to the HDMI
Switch and connect it to a AC power outlet.

Kinivo 360BNT HDMI Switch with Toslink 11
Connection Diagram
Blu-ray/DVD
Player
HDTVXbox
One S
PS4 Pro
HDMI SWITCH 3x1
360BNT
SPDIF
SPDIF
Optical
Output
Port
STEREO
3.5mm Audio
Headphone
Output
Input 3 Input 2 Input 1 Output
HDMI Output Port
HDMI Input Ports

Kinivo 360BNT HDMI Switch with Toslink
12
LED Indicators
Red Blue Green No LED
Input LED Non
Active Port
Active Port *N/A No Input
Connected
Output
LED
*N/A Output
Connected
*N/A No Output
Connected
Power
LED
*N/A Power On *N/A No Power
ARC LED *N/A ARC
Disabled
ARC
Enabled
*N/A
Auto
Switching
LED
Auto
Switching
Disabled
Auto
Switching
Enabled
*N/A
*N/A: Not Applicable
Operation
HDMI Input Indicators
The 360BNT Switch has three HDMI Input indicator
lights on its front panel. When the Switch senses audio/
video transmission on one of its HDMI Input ports, the
corresponding HDMI Input Indicator is illuminated in

Kinivo 360BNT HDMI Switch with Toslink 13
Red color. When an HDMI Input is selected for use, the
corresponding HDMI Input Indicator is illuminated in
Blue. The HDMI Input Indicator is not lit when there is no
input signal or no HDMI cable is connected.
Input Selection with the Front Panel
Button
To select an HDMI input, press the‘SWITCH’button on the
front panel of the HDMI Switch. Each press of the button
progresses to the next active HDMI Input. Signal from
the selected HDMI Input is sent to the Output port and
its corresponding HDMI Input Indicator is illuminated in
Blue.
Input Selection with the Remote Control
There are also direct input selection buttons on the
remote control (Buttons 1, 2 & 3). Pressing each button
selects the corresponding HDMI Input port, no matter
whether the port has an active input signal or not.
ARC
Enable or Disable ARC
To enable or disable ARC, press the“ARC/Auto Switching”

Kinivo 360BNT HDMI Switch with Toslink
14
button on the front panel of the Switch. The ARC LED will
turn Blue when enabled.
Note: ARC is enabled by default.
Auto Switching
Automatic Input Selection
When the auto switching is turned on on the
360BNTSwitch, it senses input ports automatically and
switches to the input port source automatically in the
sequence 1 › 2 › 3. It bypasses input ports without signal.
When a new device is turned on, the Switch automatically
selects that input. For example, if you power on your
cable TV, the HDMI Switch will automatically switch to
the cable TV. Turn the currently selected device o and
the 360BNT Switch automatically selects the next higher
numbered input that has an active signal (1 › 2 › 3...)
While Auto Switching is a convenient feature, it will
not work with every HDMI input device, unfortunately,
because some cable TV boxes, streaming devices, game
consoles, and similar devices don’t ever really turn o
their HDMI signal, even when they appear to be turned
o or asleep. These devices transmit a blank HDMI signal

Kinivo 360BNT HDMI Switch with Toslink 15
or black screen to the TV through our switch, even when
asleep or turned o.
Here is a list of popular devices that do not support Auto
Switching:
Amazon Fire TV
Apple TV (all generations)
Roku
Xbox One, Xbox One S, Xbox One X
Enable or Disable Auto Switching
Note: The Auto Switching function is enabled by default
and the “Power” LED will emit a Blue light.
1. To disable the Auto Switching function, press and
hold the “Switch” button on the front panel of the
switch for approximately 3-5 seconds. The “Power”
LED will turn Red.
2. When enabling the Auto Switching function, press
and hold the “Switch” button on the front panel
of the switch for approximately 3-5 seconds. The
“Power” LED will turn Blue.

Kinivo 360BNT HDMI Switch with Toslink
16
Specications
Supports Resolution: 4K 60Hz / 1080P
Supports HDR,3D, HDCP 2.2 and CEC bypass
Supports Bandwidth up to 18Gbps and transfer
bitrates up to 6 Gbps per channel
Supports Audio Format: LPCM/Dolby-AC3/DTS7.1/
DSD/Dolby True HD/DTS-HD
Power supply: DC 5V
Max working current: 600mA
Operating Temperature Range: 41 to 95F
Operating Humidity Range: 5 to 90%
Dimensions: 6.8in x 4in x .8in
Supported HDMI Cable Length - < 15FT
Frequently Asked Questions (FAQ)
1. What do I do if I have a HDCP error?
HDCP errors are usually caused by syncing/
handshake issues.
Simply unplug all your devices from the Switch.
Unplug the Switch from the power source.

Kinivo 360BNT HDMI Switch with Toslink 17
Replug all your devices and restart the entire set up
again. This should help resolve the issue.
2. What do I do if my switch is not
working or there is no audio?
Steps to diagnose the device:
Ensure all HDMI cables are completely inserted into
the Switch. Loss of connection can cause issues.
Make sure that the HDMI cables are working. Try a
dierent HDMI cable to check if cable is the issue.
Ensure input devices are powered on.
Test with just one input device to diagnose. Check
if the input device works directly with the TV. This
will also help verify the HDMI cable. Try pressing
the input number on the remote corresponding to
where the input is connected.
3. What do I do if Auto Switching is not
working as advertised?
Refer to the “Auto Switching” section page. If none
of the steps in the “Auto Switching” section resolve
the issue then please contact customer service
using the information provided at the end of this
user manual in the “Online Support/Contact Us”
section on page.

Kinivo 360BNT HDMI Switch with Toslink
18
FCC Statement
This equipment has been tested and found to comply
with limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference
in residential installations. This equipment generates,
uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause interference to radio or television equipment
reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to
correct the interference by
One or more of the following measures
Reorient or relocate the receiving antenna.
Move the equipment away from the receiver.
Plug the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/
television technician for additional suggestions.
You are cautioned that any change or modications

Kinivo 360BNT HDMI Switch with Toslink 19
to the equipment not expressly approved by the
party responsible for compliance could void your
authority to operate such equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subjected to the following two conditions
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation. If the time arises to throw away your
product, please recycle all the components possible.
Batteries and rechargeable batteries are not to be
disposed of in your domestic waste! Please recycle
them at your local recycling point. Together we can
help to protect the environment.
Warranty
2 Year Limited Hardware Warranty
Kinivo hereby warrants to the customer of record that
this product is in good-working condition and free from
defects in material or workmanship under normal use
for a duration of 1 year after the date of purchase. The
product has been tested to meet the highest quality
standards in each testing category. In the unlikely event
that the product proves to be defective, Kinivo will repair

Kinivo 360BNT HDMI Switch with Toslink
20
or replace the product free of charge. If replacement is
required and if Kinivo then no longer carries the same
product, then Kinivo reserves the right to substitute the
product with a replacement product of like quality and
size, suitable for the intended use.
This warranty is limited to repair or replacement of
the mentioned product only, is non-transferable and
does not extend to any product damaged by misuse,
natural disasters or any other circumstances beyond
Kinivo’s control. The warranty does not cover or provide
for the reimbursement or payment of incidental or
consequential damage resulting from breach of the
limited warranty described above. Except for the limited
warranty described above we oer no other warranties
expressed or implied, and other than limited warranty
expressly contained herein, we hereby disclaim any and
all warranties, including without limitation any implied
warranties of merchantability, suitability or tness for a
particular purpose.
If your product is not functioning or you have any
concerns please contact Kinivo Support before returning
the product.
