Kinivo 550BN HDMI Switch
User Manual
© 2015 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. Bluetooth word mark and the Bluetooth logo are registered trademarks of
Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may
not be copied in any media or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : [e-mail]

English: Thank you for choosing Kinivo. Our user manuals are available in multiple languages at http://
downloads.kinivo.com
français: Merci d’avoir choisi Kinivo. Nos modes d’emploi sont disponibles en plusieurs langues sur http://
downloads.kinivo.com
Deutsch: Danke für die Wahl von Kinivo. Unsere Bedienungsanleitungen sind unter http://downloads.
kinivo.com in mehreren Sprachen verfügbar
español: Gracias por elegir Kinivo. Nuestros manuales de usuario están disponibles en varios idiomas en
http://downloads.kinivo.com
italiano: La ringraziamo per aver scelto Kinivo. I nostri manuali utente sono disponibili presso http://
downloads.kinivo.com
日本の:Kinivo製品をお選びいただき、まことにありがとうございます。弊社取扱説明書は
http://downloads.kinivo.comにて多言語でご覧いただけます。

Table of Contents
Important Safety Instructions.........................................................................................................4
Introduction .....................................................................................................................................5
Panel Description.............................................................................................................................5
Front and Side Panel Controls......................................................................................................................................5
Back and Side Panel Connectors.................................................................................................................................6
Remote Control .................................................................................................................................................................7
Typical Setup ......................................................................................................................................................................8
Connection Diagram .......................................................................................................................................................8
LED Indication....................................................................................................................................................................9
Specications ...................................................................................................................................9
FAQ Frequently Asked Questions ..................................................................................................11
Operation..........................................................................................................................................12
HDMI Input Indicators.....................................................................................................................................................12
Input Selection with the Front Panel Button ..........................................................................................................12
Input Selection with the Remote Control................................................................................................................12
Automatic Input Selection ..............................................................................................................13
How to Enable or Disable Auto switching......................................................................................14
FCC Statement..................................................................................................................................14
Warranty ...........................................................................................................................................15
Online Support / Contact Us............................................................................................................16

Kinivo 550BN HDMI Switch
4
Important Safety Instructions
Please read instructions carefully before operation
1. To prevent risk of electric shock, do not remove cover of the unit. Refer all servicing to qualied service
personnel only.
2. Do not use the switch near water.
3. Clean only with dry cloth.
4. Do not install or place this unit in a bookcase, built-in cabinet or in any other conned Space. Ensure the
unit is well ventilated.
5. To prevent risk of electric shock or re hazard, do not block the unit’s ventilation openings.
6. Do not install near any heat sources such as radiators, stoves, heat registers etc.
7. Unplug during lightning storms or when unused for a long period of time.
8. Protect power cord from being pinched, particularly near plug points.
9. Only use attachments/accessories specied by manufacturer.

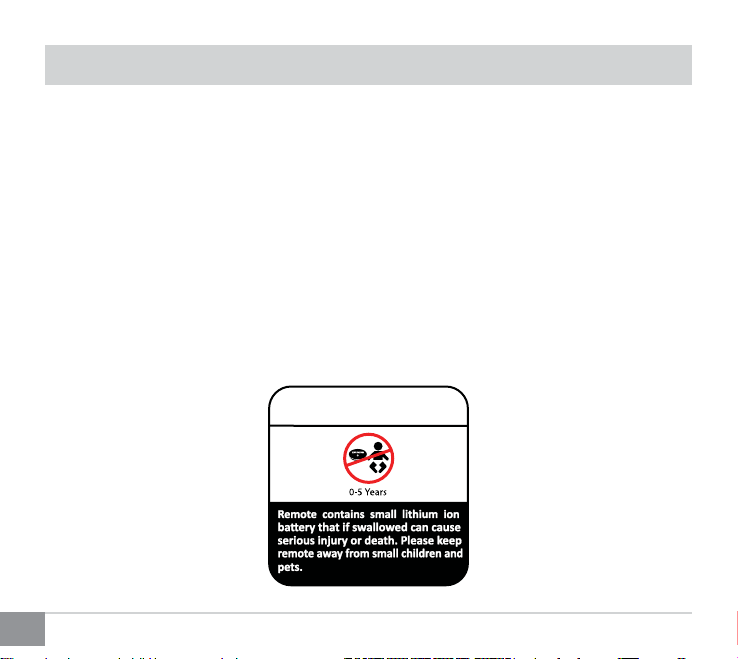

Warning

Kinivo 550BN HDMI Switch 5
Introduction
The Kinivo 550BN 4K HDMI switch enables up to three HDMI source devices (Such as the DVD player, cable
box, gaming console etc.) to be connected to a single HDMI input port on your HDTV or video projector. It can
be used to expand the number of HDMI ports on a single input HDMI equipped audio/video receiver. It is an
easy, convenient and inexpensive solution to expand your home theater setup.
Panel Description

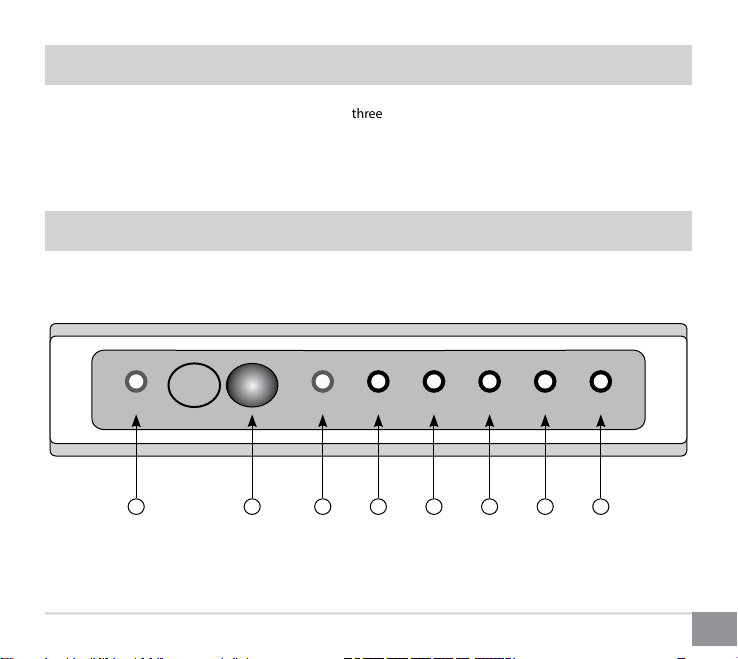

Front and Side Panel Controls
1) Power Indicator
2) IR Remote Sensor
3) HDMI Output Indicator
4) to 8) HDMI Input Indicator
Power Output Input 1 Input 2 Input 3 Input 4 Input 5
SWITCH
3 41 2 5 6 7 8

Kinivo 550BN HDMI Switch
6
Back and Side Panel Connectors
1) to 4) HDMI Inputs; 5th Input located on the side panel beside the DC Power Jack
Input 1 Input 2 Input 3 Input 4
1 32 4
Output
HDMI
Output

Kinivo 550BN HDMI Switch 7

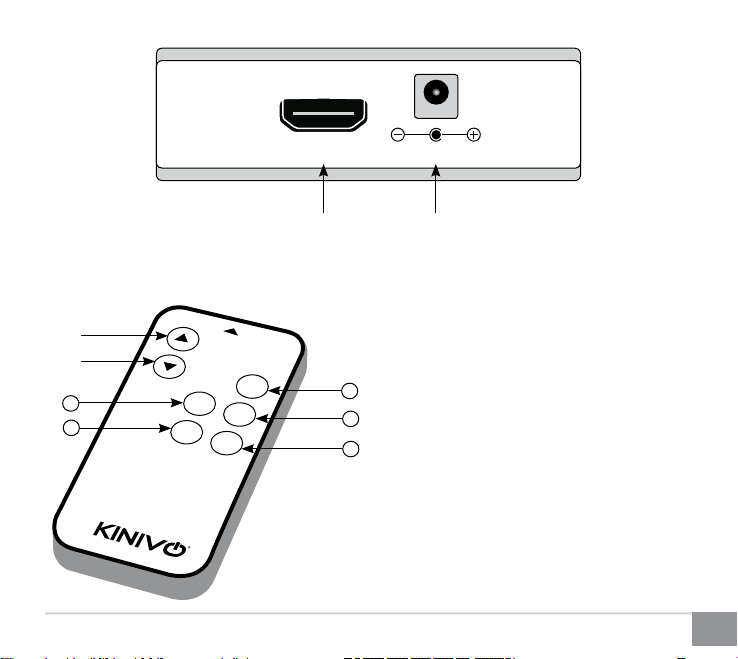

Remote Control
DCPower Jack
+ DC 5V
HDMI Input 5
Input 5
Functioning
1. Directly select a specic HDMI Input by
choosing 1, 2, 3, 4 or 5
2. Press‘Up’or ‘Down’buttons to select the
previous or next input source.
1
2
3
4
5
Up
1
2
3
5
4
Down

Kinivo 550BN HDMI Switch
8
Typical Setup
1. Take an HDMI cable and plug one end into the HDMI input port on your HDTV or projector. Plug the other
end to the output port of the HDMI switch.
2. Take another HDMI cable and plug one end into the HDMI Output port on your Gaming Console. Plug
the other end into the HDMI Input 1 port of the HDMI Switch.
3. Repeat the above step to connect your Cable Box, Digital Video Recorder (DVR), DVD Player etc.
4. Plug the +DC 5V output plug of the power adapter into the DC IN jack of the HDMI Switch (Shown under
‘Side Panel Connector’ on Page 2). Plug the power adapter into an AC power outlet. Your HDMI switch is
now connected and ready for use.
Connection Diagram
Note: The remote control uses infrared light signal and requires direct line-of-sight to the IR Remote Sensor.
Please make sure that the IR Remote Sensor is not blocked.
HDMI In
DVD Player
Game Console
HDTV
HDMI Cables
HDMI Cable
Cable Box or DVR
Input 1 Input 2 Input 3 Input 4
Output

Kinivo 550BN HDMI Switch 9
LED Indication
Red Blue Green No LED
Output LED *N/A Auto switching
enabled (default)
Auto switching disabled
(see section 8a.)
No signal
Input LED Non active port Active port *N/A No signal
*N/A: Not Applicable
Specications
Supported resolution 4Kx2K@60Hz/ 4Kx2K@30Hz/1920x1200@60Hz/1080P/
1080i/720P/576P/576i/480P/480i
Supports deep color up to 36 bit, and for 8-bit, 10-bit, 12-bit deep color per
channel
Supports HDR
Supports 3D
Supports bandwidth up to 18Gbps and transfer bitrates up to 6 Gbps per channel
Compatible with Standard HDMI devices
Supports TMDS clock frequency range 25~600Mhz

Kinivo 550BN HDMI Switch
10
Supported audio format LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD
master audio Input video signal: 0.5 -1.5 Volts P-P
DC input volts 5 Volts P-P
Power Consumption 2.5W
Power supply DC 5V
Max working current 500mA
HDMI input cable distance ≤10m(1080P)/ 5m (4K) AWG24 HDMI standard cable
HDMI output cable distance ≤10m(1080P)/ 5m (4K) AWG24 HDMI standard cable
Operating temperature range 0 to + 40°C (-41 to 95°F)
Operating humidity range 5 to 90% RH (No Condensation)
Storage Temperature -15 to 55°C
Storage Humidity 5 ~95% RH (No Condensation)
Warranty 1 Year Warranty

Kinivo 550BN HDMI Switch 11
FAQ Frequently Asked Questions
1. What do I do if I have a HDCP error?
HDCP errors are usually caused by syncing/handshake problems.
Simply unplug all your devices from the switch
Unplug switch from the power source
Re-Plug all your devices and restart the entire set up again. This should help resolve the issue.
2. What do I do if my switch is not working or there is no audio? How do I
diagnose the issue?
Steps to diagnose the device
Ensure all HDMI cables are completely inserted into the switch. Lose connection can cause Issues.
Make sure that the HDMI cables are working. Try a dierent HDMI cable to check if cable is the issue
Ensure your input devices are powered on.
Test with just one input device to diagnose. Check if the input device works directly with the TV. This will
also help verify the HDMI cable. Try pressing the input number on the remote corresponding to where
the input is connected
3. What do I do if Automatic Switching is not working as advertised?
Refer to “Automatic Input Selection”section on page 13 to understand how auto-switching works.

Kinivo 550BN HDMI Switch
12
Operation
HDMI Input Indicators
The 550BN Switch has ve HDMI Input indicator lights on its front panel. When the switch senses audio/video
transmission on one of its HDMI Input ports, the corresponding HDMI Input Indicator is illuminated in Red
color. When an HDMI Input is selected for use, the corresponding HDMI Input Indicator is illuminated in Blue.
The HDMI Input Indicator is not lit when there is no input signal or no HDMI cable is connected.
Input Selection with the Front Panel Button
To select an HDMI input, press the ‘SWITCH’ button on the front panel of the HDMI switch. Each press of the
button progresses to the next active HDMI INPUT. Signal from the selected HDMI INPUT is sent to the OUTPUT
port and its corresponding HDMI Input Indicator is illuminated in Blue.
Input Selection with the Remote Control
The Up and Down buttons on the remote control have the same function as the SWITCH button on the front
panel. To select an HDMI input, press the Up or Down button on the remote of the HDMI switch. Pressing the
‘Up’ button will move to the next active HDMI Input. Pressing the ‘Down’ button will move to the previous
active HDMI Input. Signal from the selected HDMI Input is sent to the Output port and its corresponding HDMI
Input Indicator is illuminated in Blue.
There are also direct input selection buttons on the remote control (Buttons 1, 2, 3, 4 & 5). Pressing each
button selects the corresponding HDMI INPUT port, no matter whether the port has active input signal or not.

Kinivo 550BN HDMI Switch 13
Automatic Input Selection
When the 550BN 4K HDMI Switch is powered on for the rst time, it senses input ports automatically and
switches to the input port source automatically in the sequence 1 -> 2 -> 3 -> 4-> 5. It bypasses input ports
without signal. When a new device is turned on, the switch automatically selects that input. For example, if
you switch on your cable TV, the HDMI switch will automatically switch to the cable TV. Turn the currently
selected device o and switch automatically selects the next higher numbered input that has an active signal
(1 -> 2 -> 3 -> 4 ->5...)
Some source devices stay in a standby mode even when you think they are switched o and always maintain
a connection with the switch. This non-compliant behavior does not allow the HDMI switch to perform its
auto switching. You can test this by looking at the HDMI switch LEDs after switching o your inputs.
Note: The Apple TV, Roku and Amazon Fire TV are examples of non-compliant devices: Please verify all
your input devices by looking at their LEDs when they are powered o. Powering o / powering on the apple
TV will not make any dierence. However, powering o/on other devices may allow auto switching. You will
be able to switch out of Apple TV to a newly powered cable box or a Blu-ray player. You can switch back to
apple TV by powering o the cable box or the Blu-ray player if the Apple TV falls next in the sequence 1 -> 2
-> 3 -> 4 ->5.
You can contact [email protected] if you need help in deciding the best assignment of ports. As a rst step,
you will need to test your input devices (such as the cable box, Blu-ray player etc.) for the above mentioned
non-compliant behavior of keeping their HDMI port active in powered-o state.

Kinivo 550BN HDMI Switch
14
How to Enable or Disable Auto switching
Note: The 550BN auto switching function is enabled by default.
a. When the auto switch function is enabled the Output LED will emit a blue light. To disable the auto
switch function, press and hold the “switch” button on the front panel of the 550BN for approximately
8 seconds. The output LED will ash 4 times and turn green. Output LED will stay green when Auto
switching is disabled.
b. When enabling the auto switch function, press and hold the “switch” button on the front panel of the
550BN for approximately 8 seconds. The output light will ash 4 times and turn blue. Output LED will stay
blue when Auto switching is enabled (default).
FCC Statement
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television equipment reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by
One or more of the following measures
Reorient or relocate the receiving antenna.

Kinivo 550BN HDMI Switch 15
Move the equipment away from the receiver.
Plug the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for additional suggestions. You are
cautioned that any change or modications to the equipment not expressly approved by the party
responsible for compliance could void your authority to operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation. If the time arises to throw away your product, please recycle all the components possible.
Batteries and rechargeable batteries are not to be disposed in your domestic waste! Please recycle them
at your local recycling point. Together we can help to protect the environment.
Warranty
1 Year Limited Hardware Warranty.
Kinivo hereby warrants to the customer of record that this product is in good-working condition and free from
defects in material or workmanship under normal use for a duration of 1 year after the date of purchase. The
product has been tested to meet the highest quality standards in each testing category. In the unlikely event
that the product proves to be defective, Kinivo will repair or replace the product free of charge. If replacement
is required and if Kinivo then no longer carries the same product, then Kinivo reserves the right to substitute
the product with a replacement product of like quality and size, suitable for the intended use.
This warranty is limited to repair or replacement of the mentioned product only, is non-transferable and
does not extend to any product damaged by misuse, natural disasters or any other circumstances beyond
Kinivo’s control. The warranty does not cover or provide for the reimbursement or payment of incidental or

Kinivo 550BN HDMI Switch
16
consequential damage resulting from breach of the limited warranty described above. Except for the limited
warranty described above we oer no other warranties expressed or implied, and other than limited warranty
expressly contained herein, we hereby disclaim any and all warranties, including without limitation any
implied warranties of merchantability, suitability or tness for a particular purpose.
If your product is not functioning or you have any concerns please contact Kinivo Support before returning
the product.
Online Support / Contact Us
Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s.
You may also reach us via email or live chat (details below).
Kinivo Product Support
Toll Free Number: 1-855-454-6486
Email : [e-mail]
Live chat : http://support.kinivo.com

This page intentionally
left blank

Made in china
www.kinivo.com
Technical Support (Email) : [e-mail]
year limited
hardware warranty
1
