Kino Flo DMX-ONE User manual

Operation Manual
DMX-ONÉ

DMX-ONÉ Signal Generator is a diagnostic tool designed to:
• Generate a DMX signal for trouble shooting
• Dim a ParaBeam
• Adjust light levels in an Image Series fixture, Wall-O-Lite and 4Bank.
• Chase lamps in an Image 80, Wall-O-Lite, Multi-Flo unit and 4Bank.

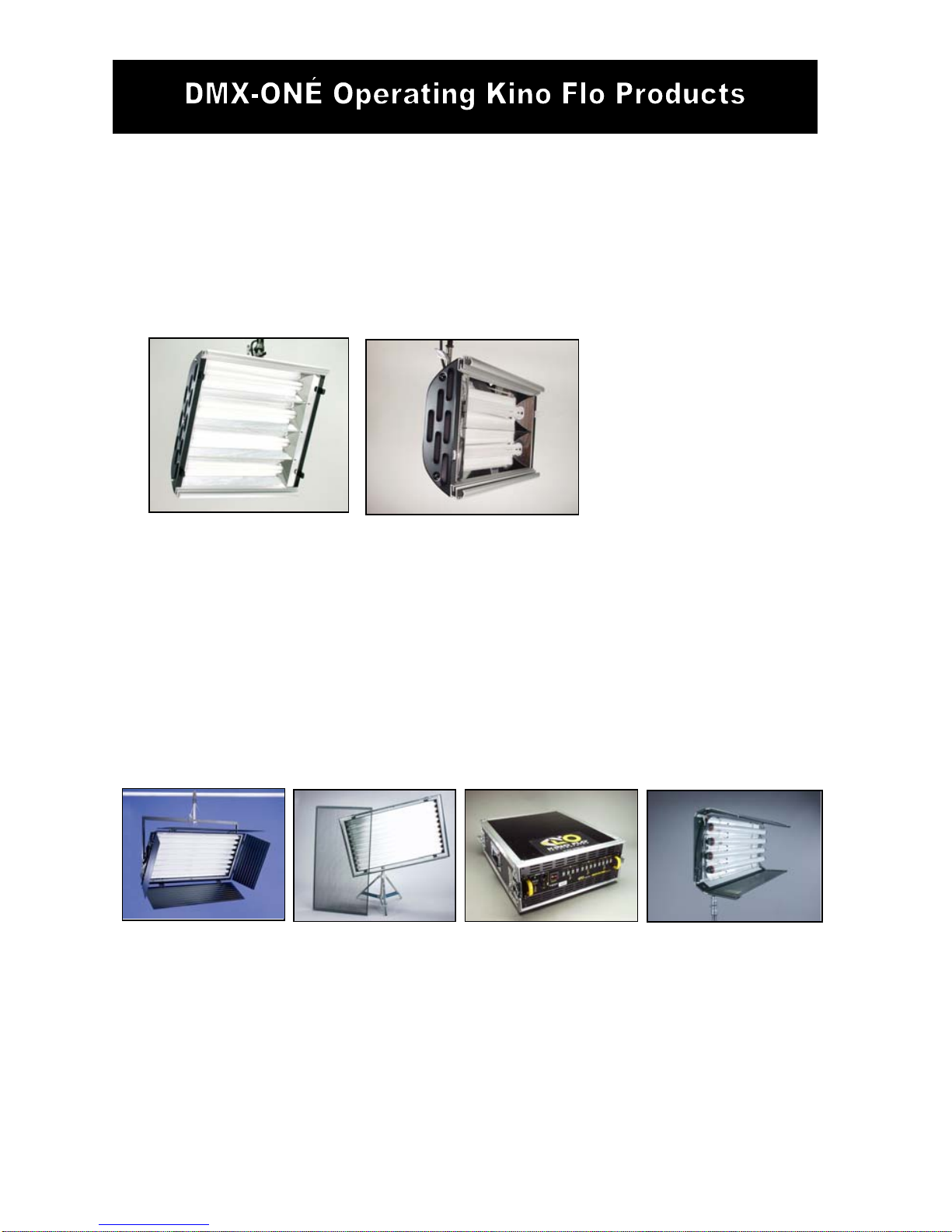

DMX DIMMING OF:
2
DMX ParaBeam 400 DMX ParaBeam 200
The DMX-ONÉ is primarily a diagnostic tool that generates a single
channel with DMX 512 Address capabilities for troubleshooting. As a
limited secondary application it can be used in place of a dimmer board
to control a small number of fixtures. The DMX- ONÉ can be used to
provide remote dimming control for the ParaBeam 400 and 200. This is
useful for checking the dimming performance of the product prior to
sending it out on a production.
DMX LAMP SWITCHING OF:
DMX Image Series DMX Wall-O-Light DMX Multi-Flo DMX 4Bank*
The DMX ONÉ is used for remote control of DMX lamp switching on the products
pictured above. The unit can also provide a DMX chasing control of lamps
without the necessity of a dimmer board.
*The DMX ONÉ will operate the DMX 4Bank in the 4ft setting only. Reason:
need second DMX channel to control the 2ft setting. For 2ft control of the DMX
4Bank , recommend using a DMX dimmer board.

DCBA

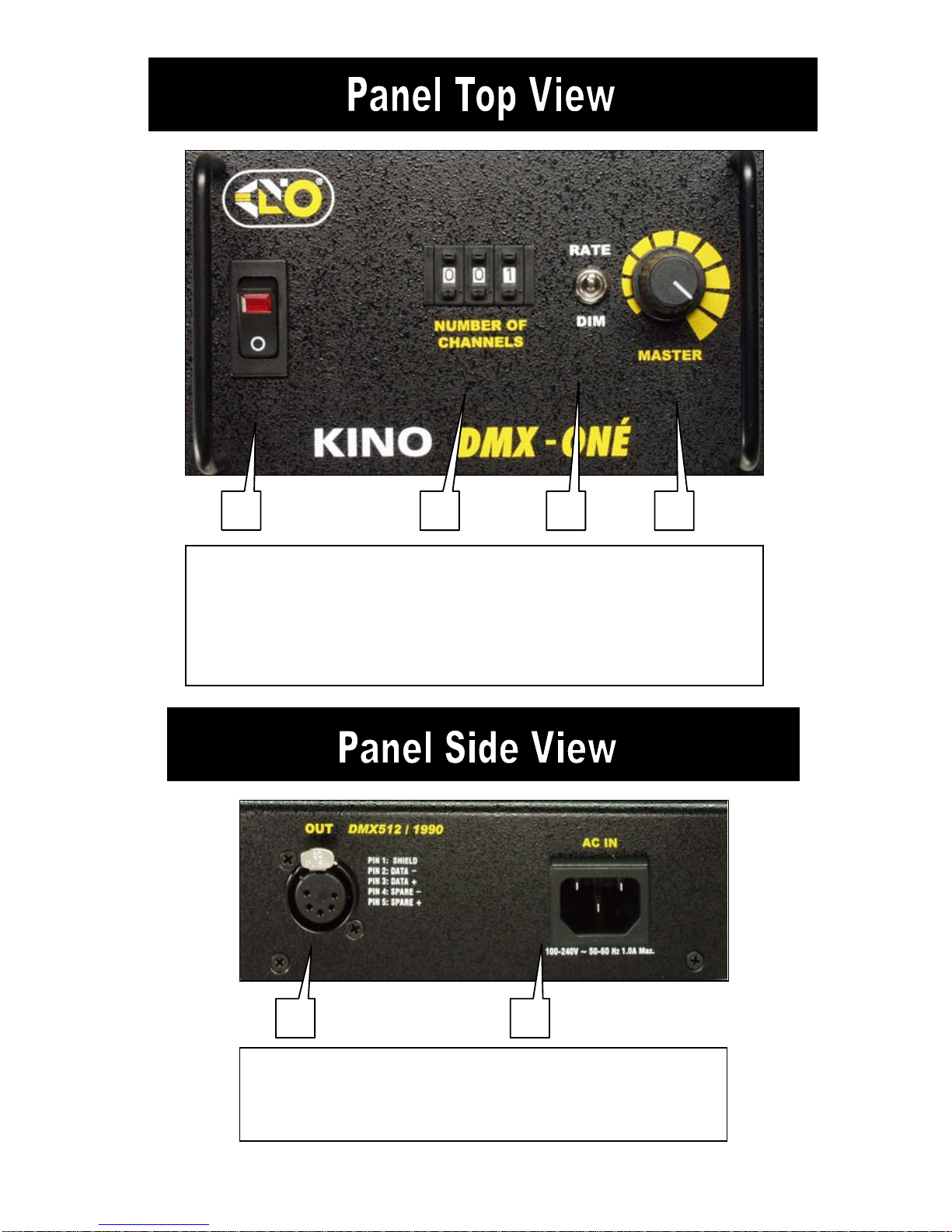

(A) Power Switch: Built-in indicator light. Lights if AC power is present in
the power cord. “O” = Off position
(B) NUMBER OF CHANNELS: Sets number of channels being chased.
(C) RATE/DIM Switch: When set to RATE,MASTER knob controls rate
of chase. When set to DIM, MASTER knob controls dimming.
(D) MASTER Knob: Controls rate of chase or controls dimming.
B
A
3
(A) DMX Output: Transmits DMX signal.
(B) AC Input: Universal voltage input, 100-240VAC.

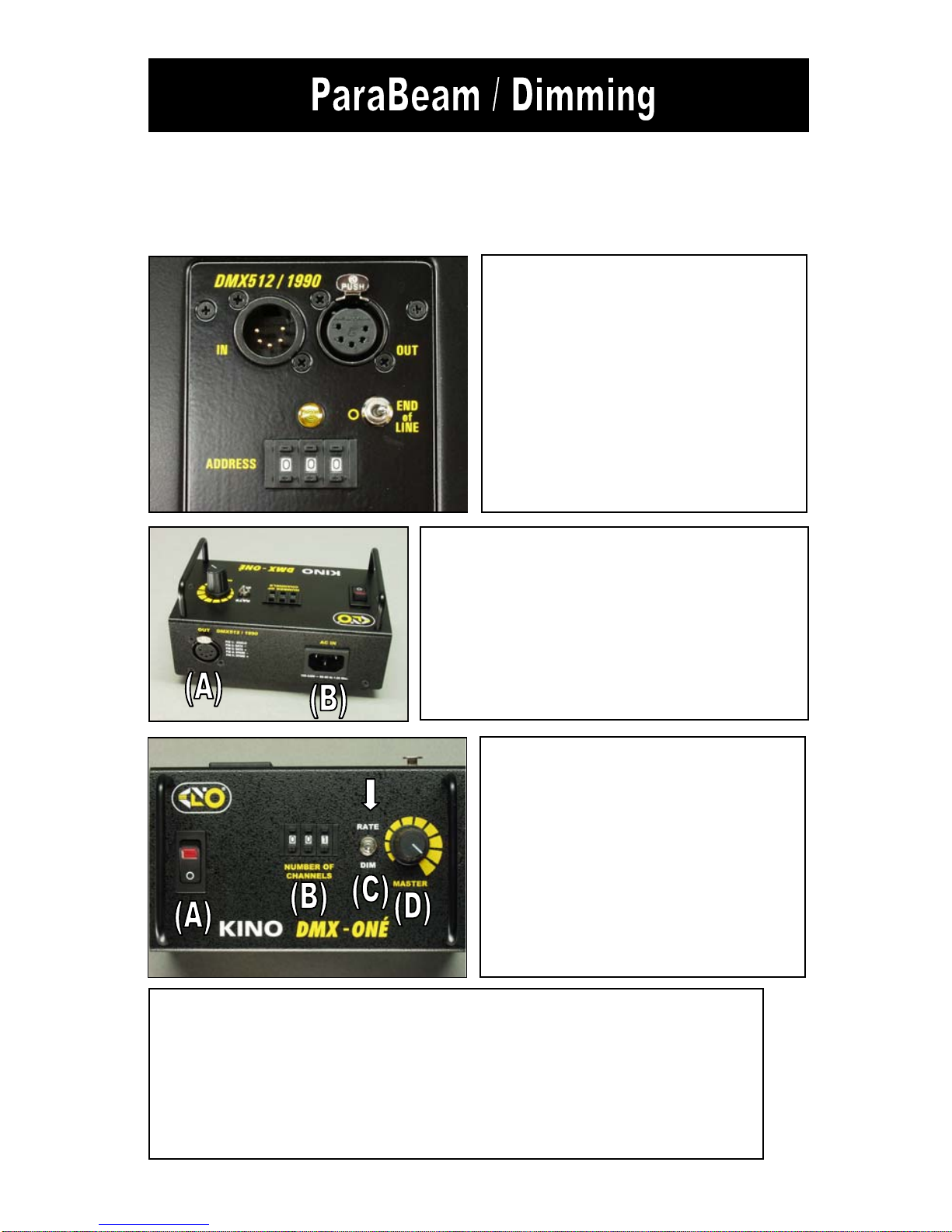

A ParaBeam can be dimmed by DMX using the DMX ONÉ. This is useful
when checking or trouble shooting a fixture. The DMX ONÉ can operate
next to the fixture in place of a dimmer board.
Note: DMX overrides all manual settings
PARABEAM CONTROL SETTINGS
• Set address “001” .
• Set toggle switch to END of
LINE .
• Turn on power switch.
Note: If multiple ParaBeams are
being tested address all to
“001”and only set the LAST
unit to “END OF LINE”.
4
DMX-ONÉ CONNECTIONS
(A) Plug in 5 pin XLR DMX cable into DMX
output plug and connect to a fixture’s
DMX Input plug.
(B) Plug in power cable to DMX-ONÉ AC
power input. (100-240 VAC, 50-60Hz)
DMX ONÉ SETTINGS
(A)Turn on power switch.
(B) Set NUMBER OF CHANNELS
to “001”
(C) Set RATE/DIM switch to DIM
(D) Use MASTER knob to control
dimming level.
NOTE: If a fixture loses its DMX signal it will hold it’s last DMX
command. For this reason it is important to turn a fixture off using the
DMX commands.
To turn off a fixture using the DMX ONÉ:
• Set RATE/DIM to DIM.
• Turn MASTER down to Minimum.
• Turn off power switch.

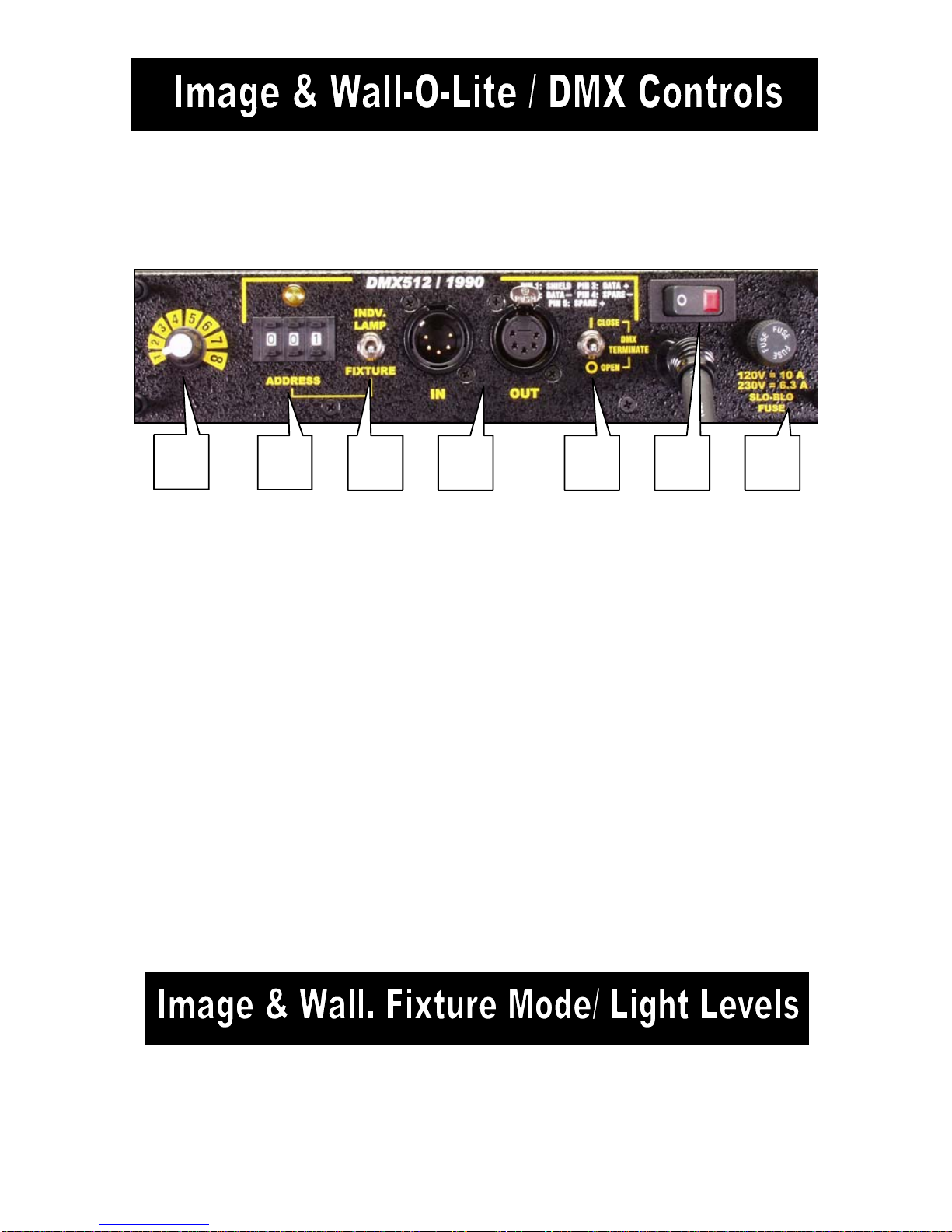

The Image Series and Wall-O-Lite share a similar control interface. The
DMX Image 80 is pictured below as an example. Image series and Wall-
Lites have 2 modes of operation. In Fixture Mode one address controls 8
lamps. In Individual Lamp Mode each lamp has a unique DMX address.
G
FED
A
C
B
A) Manual Selector Dial: Turns lamps on and off manually without connecting
DMX Cable to Fixture. Note: DMX overrides all manual controls
B) DMX Address: Sets DMX Address of Fixture.
C) Individual Lamp / Fixture Switch: Converts between INDIVIDUAL LAMP
and FIXTURE methods of DMX control.
D) DMX-In & DMX-Out: DMX-In receives DMX signals from Dimmer Board
and DMX-Out relays DMX signal through to other Fixtures or Instruments.
E) DMX TERMINATE Switch: Terminates DMX signal at the end of Fixture
series.
F) Power Switch: Has a built-in indicator light, which can detect if AC power is
present in power cord. "O" = OFF position.
G) Fuse: Provides circuit protection. Note: If Fuse is "blown" or "open" replace
with same type of fuse rating as marked.
5
The light level of one or more fixtures can be adjusted by turning
lamps off and on in a progressive outside in pattern.

6

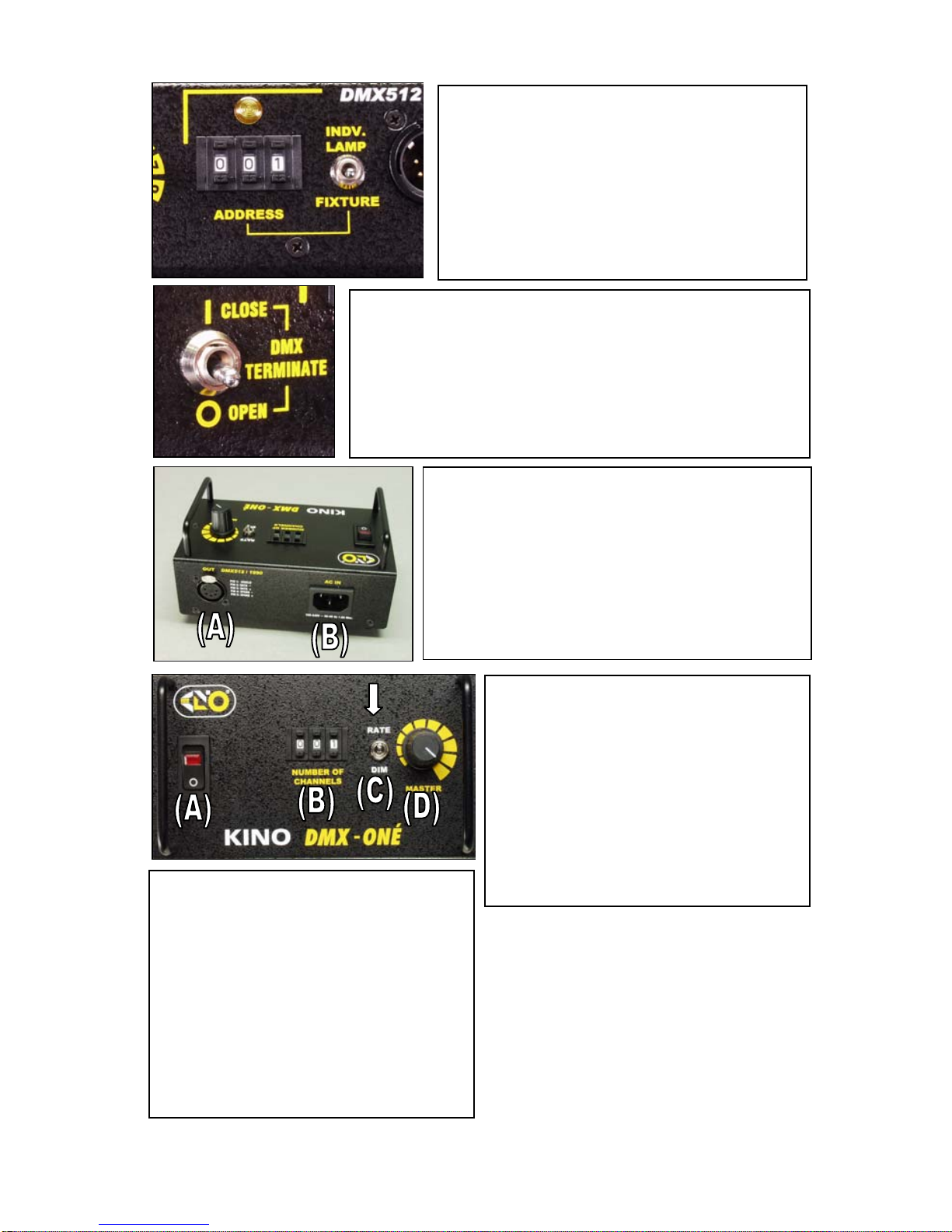

FIXTURE CONTROL SETTINGS
To adjust light levels on one or more
Fixtures:
• Set all Fixtures to address “001”
• Set toggle switch to FIXTURE.
• Turn on power switch.
Set the DMX TERMINATE switch on the
LAST Fixture to “I” CLOSE. The preceding
Fixtures in the daisy chain must have the
switch set to “O” Open.
DMX-ONÉ CONNECTIONS
(A) Plug in 5 pin XLR DMX cable into DMX
output plug and connect to a fixture’s
DMX Input plug.
(B) Plug in power cable to DMX-ONÉ AC
power input. (100-240 VAC, 50-60Hz)
DMX ONÉ SETTINGS
(A) Turn on power switch.
(B) Set NUMBER OF CHANNELS
to “001”
(C) Set RATE/DIM switch to DIM
(D) Use MASTER knob to control
light level. Lamps will turn off in
a progressive outside in pattern.
NOTE: If a fixture loses its DMX signal
it will hold it’s last DMX command. For
this reason it is important to turn off the
instrument through a DMX command.
To turn off a fixture using the DMX
ONÉ:
• Set RATE/DIM to DIM.
• Turn MASTER down to
Minimum.
• Turn off power switch.

7

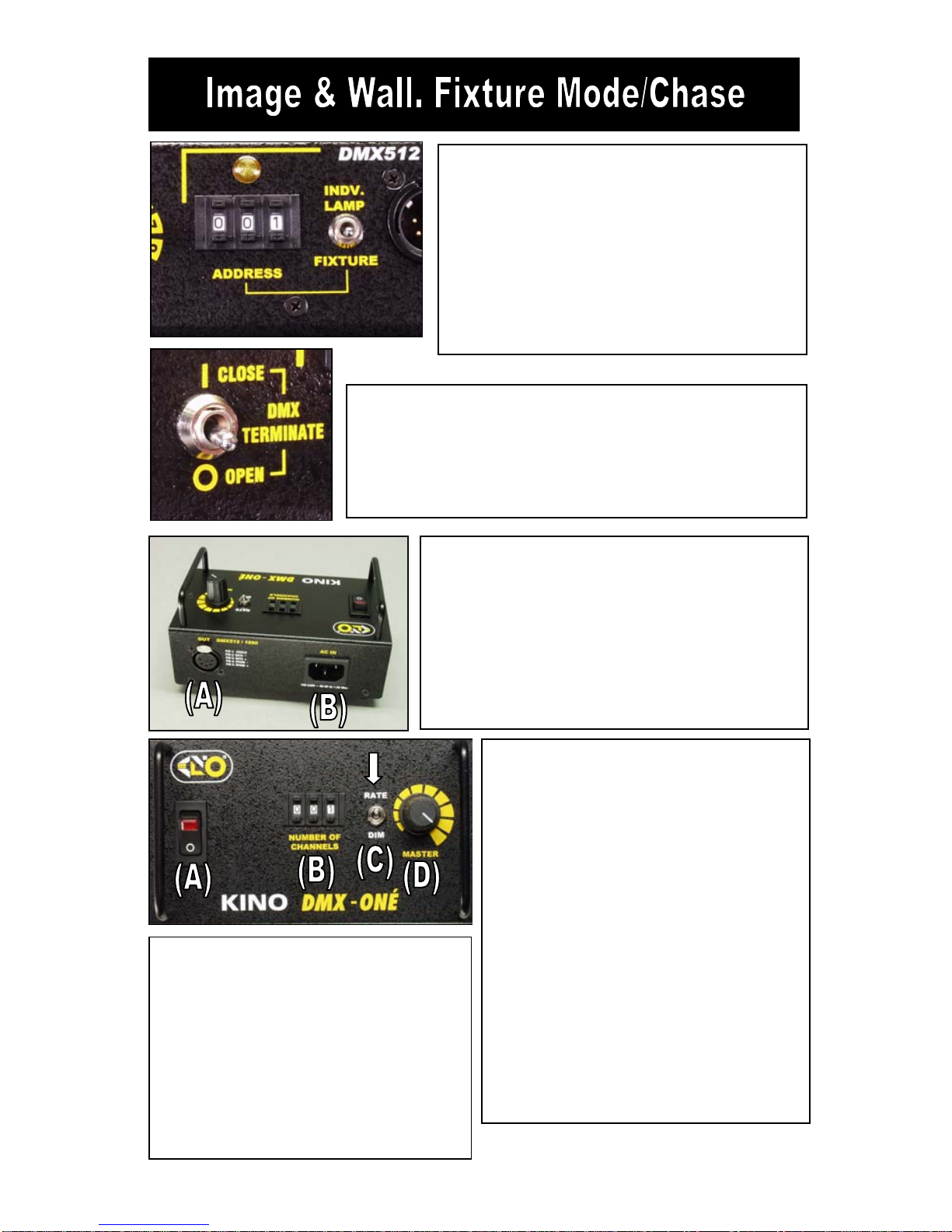

Fixture Control Settings:
To Chase Fixtures :
• Set individual address for each
fixture; 001, 002 ,003 and so on.
• Set toggle switch to FIXTURE.
• Turn on power switch.
Set the DMX TERMINATE switch on the
LAST Fixture to “I” CLOSE. The preceding
Fixtures in the daisy chain must have the
switch set to “O” Open.
DMX-ONÉ CONNECTIONS
(A) Plug in 5 pin XLR DMX cable into DMX
output plug and connect to a fixture’s
DMX Input plug.
(B) Plug in power cable to DMX-ONÉ AC
power input. (100-240 VAC, 50-60Hz)
DMX ONÉ SETTINGS
(A) Turn on power switch.
(B) Set RATE/DIM switch to
DIM and turn MASTER up
to max.
(C) Set NUMBER OF
CHANNELS to number of
FIXTURES being chased.
(D) Set RATE/DIM switch to
RATE.
(E) The MASTER knob controls
the rate of chase. Each
Fixture will chase one after
another.
NOTE: If a fixture loses its DMX signal
it will hold it’s last DMX command. Fo
r
this reason it is important to turn off the
instrument through a DMX command.
To turn off a fixture using the DMX
ONÉ:
• Set RATE/DIM to DIM.
• Turn MASTER down to
Minimum.
• Turn off power switch.

8

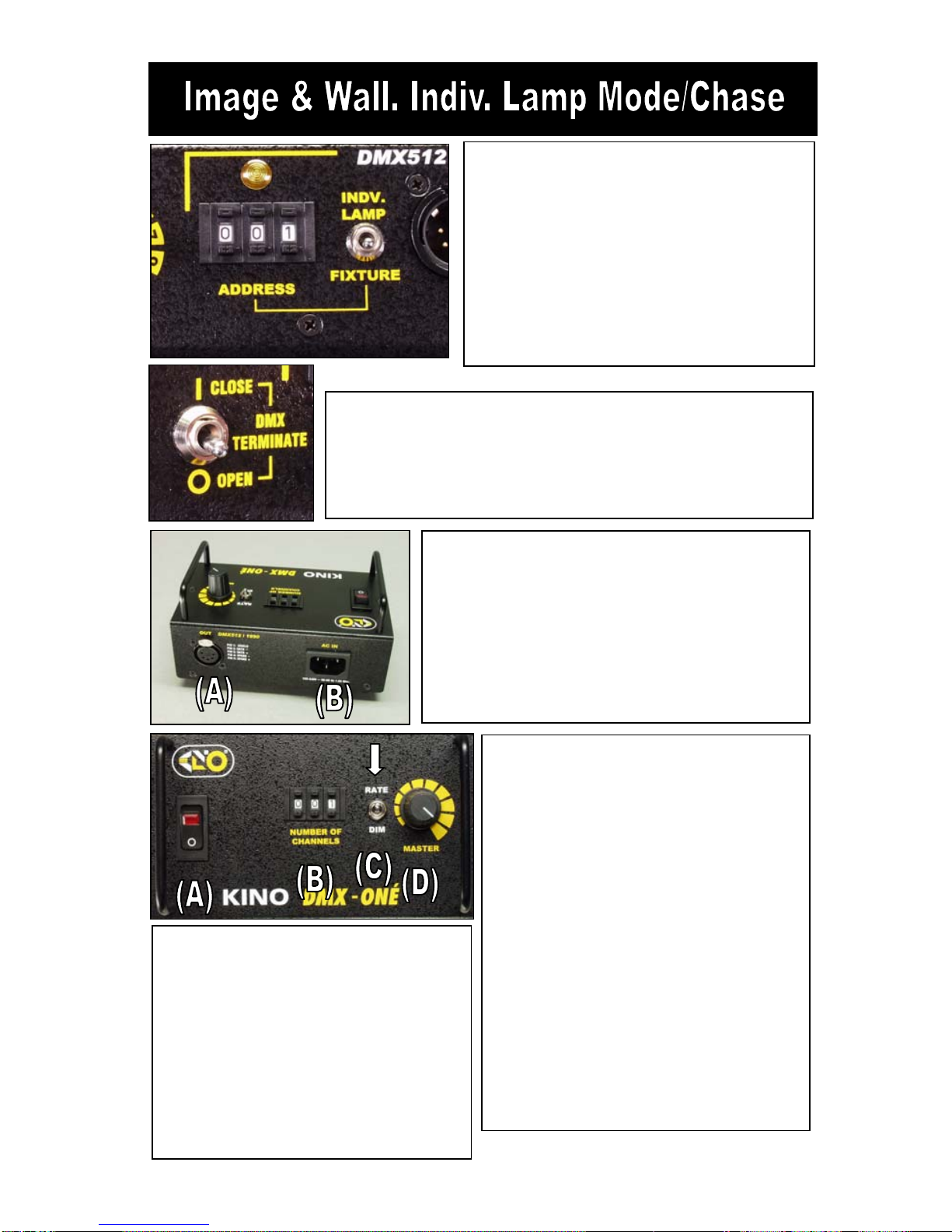

FIXTURE CONTROL SETTINGS:
To simultaneously chase same
lamp position in one or more
fixtures:
• Set Toggle to
INDV.LAMP.
• Set address to “001”.
• Turn on power switch.
Set the DMX TERMINATE switch on the LAST
Fixture to “I” CLOSE. The preceding Fixtures
in the daisy chain must have the switch set to
“O” Open.
DMX-ONÉ CONNECTIONS
(A) Plug in 5 pin XLR DMX cable into DMX
output plug and connect to a fixture’s
DMX Input plug.
(B) Plug in power cable to DMX-ONÉ AC
power input. (100-240 VAC, 50-60Hz)
DMX ONÉ SETTINGS
(A) Turn on power switch.
(B) Set RATE/DIM switch to DIM
and turn MASTER up to max.
(C) Set NUMBER OF
CHANNELS to total number
of LAMPS PER FIXTURE
being chased.
(D) Set RATE/DIM switch to
RATE.
(E) The MASTER knob controls
the rate of chase. The same
lamp position in each fixture
will chase simultaneously
throughout the chain.
NOTE: If a fixture loses its DMX
signal it will hold it’s last DMX
command. For this reason it is
important to turn off the instrument
through a DMX command.
To turn off a fixture using the DMX
ONÉ:
• Set RATE/DIM to DIM.
• Turn MASTER down to
Minimum.
• Turn off power switch.

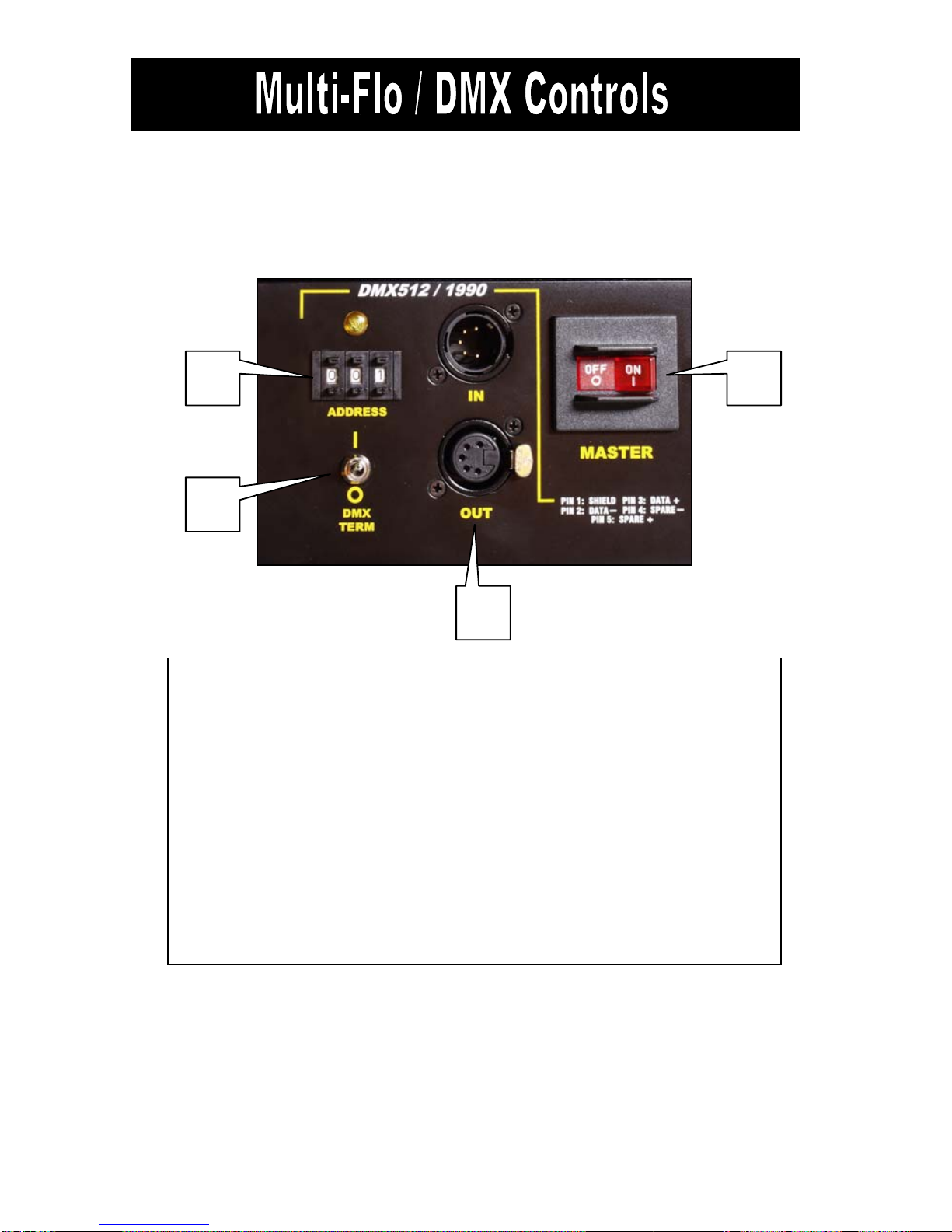

The Multi-Flo operates 12 lamps. As soon as the unit is addressed it
automatically assigns the next 11 addresses to lamps 2 -12.
Note: DMX overrides all manual controls
D
C
B
A
A) DMX Address: Sets DMX Address of Multi-Flo
B) DMX Terminate Switch: Terminates DMX signal at the last
unit of a DMX chain.
C) DMX-In & DMX-Out: DMX-In receives DMX signals from
Dimmer Board and DMX-Out relays DMX signal through to other
Multi-Flos or Instruments.
D) MASTER Power Switch: Main power switch has a built-in
indicator light, which can detect if AC power is present in power
cord. This switch also acts as a thermal breaker.
9

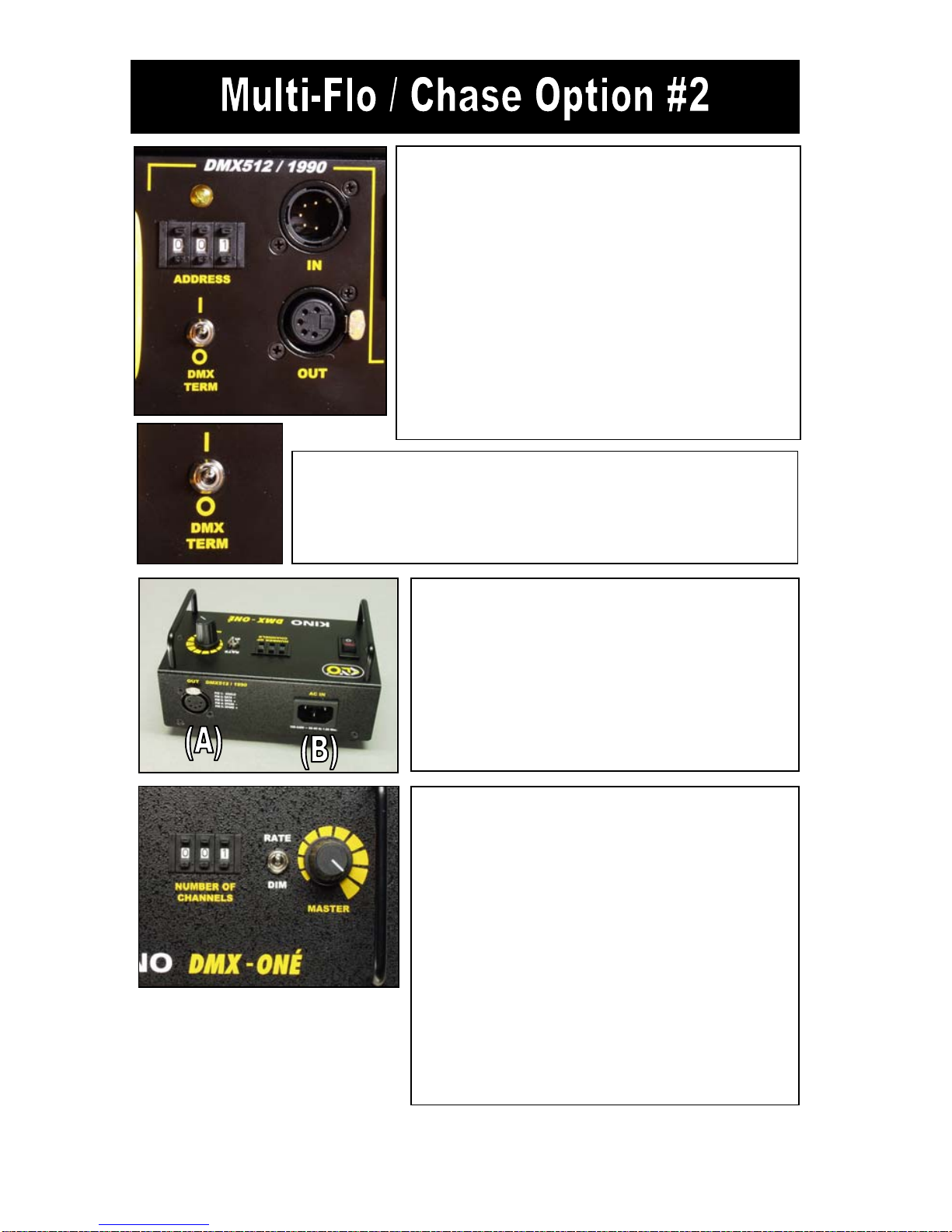

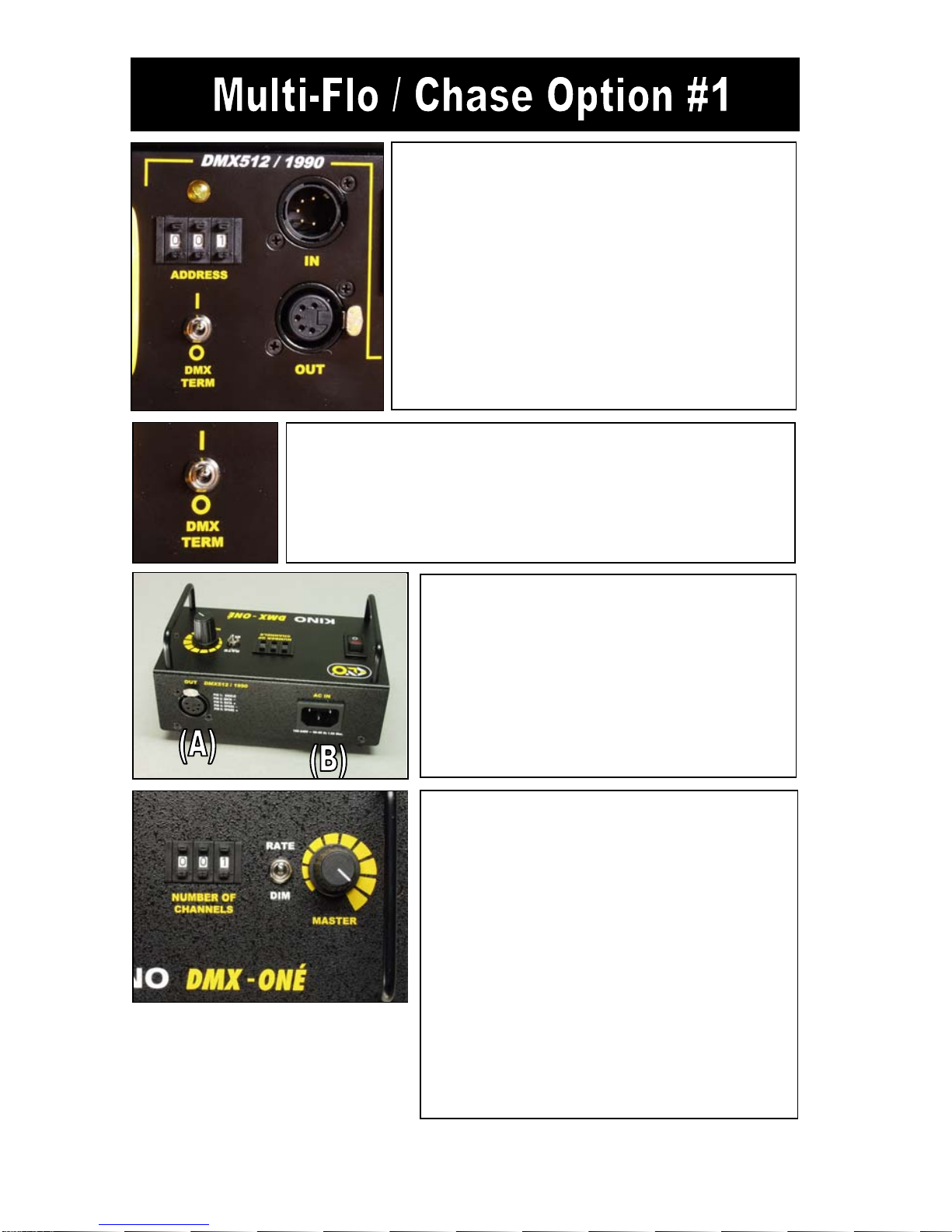

MULTI-FLO CONTROL SETTINGS
To simultaneously chase same lamp
position in one or more Multi-Flos:
• Set all Multi-Flo addresses to
“001”
• Turn on power switch.
10
Set the DMX TERMINATE switch on the LAST
unit to “I” CLOSE. The preceding units in the
daisy chain must have the switch set to “O”
Open.
DMX-ONÉ CONNECTIONS
(A) Plug in 5 pin XLR DMX cable into DMX
output plug and connect to a fixture’s
DMX Input plug.
(B) Plug in power cable to DMX-ONÉ AC
power input. (100-240 VAC, 50-60Hz)
DMX ONÉ SETTINGS
(A) Turn on power switch.
(B) Set RATE/DIM switch to DIM and
turn MASTER up to max.
(C) Set NUMBER OF CHANNELS to
“012”
(D) Set RATE/DIM switch to RATE.
(E) The MASTER knob controls the
rate of chase. Same lamp position
will chase on and off from channel
1 through 12 in one or more Multi-
Flos.
