FOREWORD
Enquiries
Please state the model type and serial number when making enquiries or orders and all written
correspondence. The serial number is recorded on a plate located on the main body next to the
hydraulic motor.
Operating Limits
This equipment must be operated within the parameters stated on the serial plate. Failure to do so
may cause damage to the equipment and invalidate the warranty. Full operating limitations can be
found in the Specifications section. If in doubt, contact your nearest Auger Torque dealer.
The Machinery Directive (European Community only)
The Machinery Directive 2006/42/EC (formerly 98/37/EEC) provides the harmonisation of the
essential health and safety requirements for machinery, through a combination of mandatory
health and safety requirements and voluntary harmonised standards. Such directives apply only to
products that are intended to be placed on or put into service in the market for the first time.
The manufacturer or the authorised representative must draw up a ‘Declaration of Conformity’.
Declaration Of Conformity
Where Hedge Trimmer Units are supplied in conjunction with Auger Torque Europe Ltd
manufactured mounting frames, Auger Torque Europe Ltd have control over the suitability of the
parts supplied. To show this and meet with the lawful requirements of the Machinery Directive a
Declaration of Conformity is issued and a CE mark is applied to the assembly.
(copy example follows)
Date of
Manufacture
Model: Serial No:
Flow
Range: From To
From To
Pressure
Range:
Max. Back
Pressure:
Weight:
99-5057
Distributed by:

www.augertorque.com 55
EU Declaration of Conformity
The responsible person:
Name
Position
Company Name Auger Torque Europe Ltd.
Address
Telephone
Fax
Hazelton, Cheltenham,
GL54 4DX, England
++44 (0) 1451 861652
++44 (0) 1451 861660
Declares that the product described:
Manufacturer Auger Torque Europe Ltd.
Model
Serial Number
Conforms to the Machinery Directive 2006/42/EC.
It also complies with the essential health and safety requirements, national standards and
the transposed harmonised standards appropriate for this product.
Signed by: Dated
(The responsible person)
Manufactured By
Auger Torque Europe Limited

www.augertorque.com 66
REGISTRATION
Complete this form and keep it with the manual
MODEL NUMBER:
SERIAL NUMBER:
DATE OF MANUFACTURE:
SUPPLIER / DEALER:
DATE SOLD TO SUPPLIER / DEALER:
DATE SOLD TO ORIGINAL END USER:
OWNER OR OPERATOR:
PARENT MACHINE MAKE & MODEL:
Auger Torque USA LLC
2640 Jason Industrial Parkway
Winston, GA 30187
USA
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Auger Torque Australia Pty Ltd
122 Boundary Rd
Rocklea
Queensland 4106
Australia
Tel:[phone]
Fax:[phone]
Email: [e-mail]
Auger Torque Europe Ltd
Hazleton
Cheltenham
GL54 4DX
England
Tel:[phone]
Fax:[phone]
Email: [e-mail]
Note; Always quote the serial number in any communication with your supplier / dealer

www.augertorque.com 77
REGISTRATION
For warranty purposes this form MUST be completed and returned to Auger Torque within 14 days
of purchase by the end user.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF MANUFACTURE:
SUPPLIER / DEALER:
DATE SOLD TO SUPPLIER / DEALER:
DATE SOLD TO ORIGINAL END USER:
OWNER OR OPERATOR:
PARENT MACHINE MAKE & MODEL:
Auger Torque USA LLC
2640 Jason Industrial Parkway
Winston, GA 30187
USA
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Auger Torque Australia Pty Ltd
122 Boundary Rd
Rocklea
Queensland 4106
Australia
Tel:[phone]
Fax:[phone]
Email: [e-mail]
Auger Torque Europe Ltd
Hazleton
Cheltenham
GL54 4DX
England
Tel:[phone]
Fax:[phone]
Email: [e-mail]
Note; Always quote the serial number in any communication with your supplier / dealer

www.augertorque.com 88
For warranty purposes the form on the reverse of this page should be completed and returned to
the appropriate address.
Just fill in the details on the back and post it to us,
the address is printed on the front.
Auger Torque USA LLC
2640 Jason Industrial Parkway
Winston, GA 30187
USA
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Auger Torque Australia Pty Ltd
122 Boundary Rd
Rocklea
Queensland 4106
Australia
Tel:[phone]
Fax:[phone]
Email: [e-mail]
Auger Torque Europe Ltd
Hazleton
Cheltenham
GL54 4DX
England
Tel:[phone]
Fax:[phone]
Email: [e-mail]

www.augertorque.com 99
INTRODUCTION
Auger Torque thank you for purchasing your new product. This operating manual has been
prepared to enable you to operate the equipment in a safe manner.
Auger Torque Hedge Trimmer Units have been designed for use with specific Auger Torque
mounting frames. Provided these are used and maintained correctly, they will provide a safe and
reliable method of hedge trimming.
The T150 is a reciprocating trimmer finger bar type attachment for use with small to medium sized
360 degree excavators, or other power units as approved by the manufacturer.
For attachment of the unit, consult the manual of the parent machine and follow the manufacturers
instructions.
To use the Hedge Trimmer, the operator positions the parent machine adjacent to the hedge and
within safe reach of the machine’s boom. Using the boom controls, the Hedge Trimmer is moved
along the hedge, allowing the hydraulically driven, reciprocating Trimmer bar to cut the vegetation.
Care should be taken to match the speed of travel to the maturity and density of the hedge.
The standard controls on the parent machine will provide more than 90 degrees of rotation of the
Trimmer bar, this will allow fine control of the cutting angle, to permit accurate “topping” and
“breasting” of the hedge. To allow positioning of the Trimmer bar behind timber or electric fences,
the Trimmer bar linkage can be inverted prior to operation, to provide a range of operating angles
below the mounting hitch.
NOTE:
This operating manual should be used in conjunction with the parent machine’s operating
instructions.
Instruction books should be regarded as part of the machine. They should always be kept safe with
the machine for easy and quick reference.
The directions left, right, front and rear, which may be mentioned throughout this manual, are as
seen from the driver’s seat and facing in the direction of travel.
New or extra copies can be obtained from your Auger Torque dealer or direct from Auger Torque.
Auger Torque continually strives to improve and increase its range of products and therefore
reserves the right to alter its specifications at any time without notice or obligation. The company
accepts no responsibility for discrepancies which may occur between specifications of its machines
and descriptions thereof contained in its publications.

www.augertorque.com 1010
SAFETY NOTES
Protect Yourself
Make sure you wear protective clothing and personal safety items.
You May Need
• A Hard Hat
• Safety Goggles
• Hearing Protection
• Foul Weather Clothing
• Reflective Clothing
• Protective Gloves
• Safety Boots
DO NOT wear items of loose clothing, jewellery or other items and tie up any long hair which could
entangle in the controls or other parts of the machine.
Know Your Equipment
Get to know how to operate all controls on the machine and the attachments.
IF THERE IS SOMETHING IN THE MANUAL WHICH YOU DO NOT UNDERSTAND, CONTACT THE
MACHINE AGENT OR MANUFACTURER AND ASK THEM TO EXPLAIN IT TO YOU.
Danger, Warning And Caution
This symbol below has 3 important meanings when used with the following captions.
DANGER: An IMMINENTLY HAZARDOUS situation that WILL result in DEATH or
VERY SERIOUS INJURY
WARNING: A POTENTIALLY HAZARDOUS situation that COULD result in DEATH
or VERY SERIOUS INJURY
CAUTION: A POTENTIALLY HAZARDOUS situation that MAY result in MINOR
INJURY

www.augertorque.com 1111
Protective And Safety Devices
Keep all protective devices in place and securely fastened. Make sure all guards, sheilds and safety
signs are properly installed and are in good condition.
Check The Equipment
Before you operate the equipment, take time to check your machine and ensure that all systems
are in good operational order.
• Never operate the equipment with worn, damaged or missing parts. Use only genuine
replacement parts.
• Always ensure that the parent machine is secure and stable with its engine switched off and
hydraulic pipes disconnected before carrying out any maintenance work.
• Check for loose, broken, missing or damaged parts. Have everything put into good repair and
make sure all safety devices are in place.
• Perform all maintenance procedures outlined for the equipment.
• Always protect hands. Select appropriate gloves when handling the equipment during fitting,
removing or adjusting
• Always protect feet with safety boots.
WARNING: Hydraulic fluid under pressure can penetrate the skin or eyes and cause
serious PERSONAL INJURY, BLINDNESS OR DEATH.
Fluid leaks under pressure may not be visible. Use a piece of wood or thick cardboard to
find leaks. DO NOT USE YOUR BARE HANDS.
Wear safety goggles for eye protection.
If any fluid is injected into the skin, it MUST be surgically removed.
SEE A DOCTOR IMMEDIATELY
Make sure all hydraulic lines are correctly installed
Before applying pressure to the hydraulic system be sure all connections are tight and that lines,
pipes and hoses are not damaged. Before disconnecting hydraulic lines, be sure to relieve all
pressure.
Hazard Classification (Only applicable to ANSI Safety Labels)
DANGER: IMMEDIATE HAZARD! - Failure to understand or obey this
information is likely to result in personal injury or death.
WARNING: Failure to follow these instructions may result in personal
injury or death.
CAUTION: Failure to follow these instructions may result in minor
personal injury or damage to the machine or the vehicle.
NOTICE: This is important information for the proper use of this
equipment. Failure to comply may lead to premature equipment
failure.
CLEAN OR REPLACE THE SAFETY LABELS IF THEY CANNOT BE CLEARLY READ OR UNDERSTOOD

www.augertorque.com 1212
Safety Precautions
NEVER operate or assemble the equipment without fully understanding the operating instructions
of both the equipment unit and the parent machine.
Auger Torque recommend you receive dealer instruction before operating the unit.
NEVER operate the equipment unless you are in good physical condition and mental health.
NEVER operate the equipment under the influence of any substance (including drugs & alcohol)
which might impair vision.
NEVER operate the equipment with worn, damaged or missing parts. Use only genuine
replacement parts.
NEVER proceed with works before completing a site risks assessment immediately before
commencing work. Nominating the safe work exclusion zone radius for persons and animals as
part of identifying risks and implementing controls.
NEVER allow minors to operate the equipment.
ALWAYS survey the work area before commencing operations. Check for potential hazards,
eg. Electricity or communication cables etc.
ALWAYS ensure that the parent machine is secure and stable with it’s engine switched off before
carrying out any maintenance work.
ALWAYS ensure the hydraulic oil supply to the attachment is disconnected by uncoupling the
hydraulic hose connectors before fitting, removing or adjusting the equipment.
ALWAYS wear head protection and eye protection when working on the unit.
ALWAYS protect hands. Select appropriate gloves when handling the equipment
during fitting, removing or adjusting the unit.
ALWAYS protect feet. Wear approved safety boots.
ALWAYS follow the parent machine instructions regarding noise protection.
STAY ALERT. Should something break, come loose or fail to operate on your equipment, STOP
WORK, lower equipment to the ground, shut off the engine and lock out hydraulic supply, inspect
the machine and have repairs or adjustments made before resuming operation.

www.augertorque.com 1313

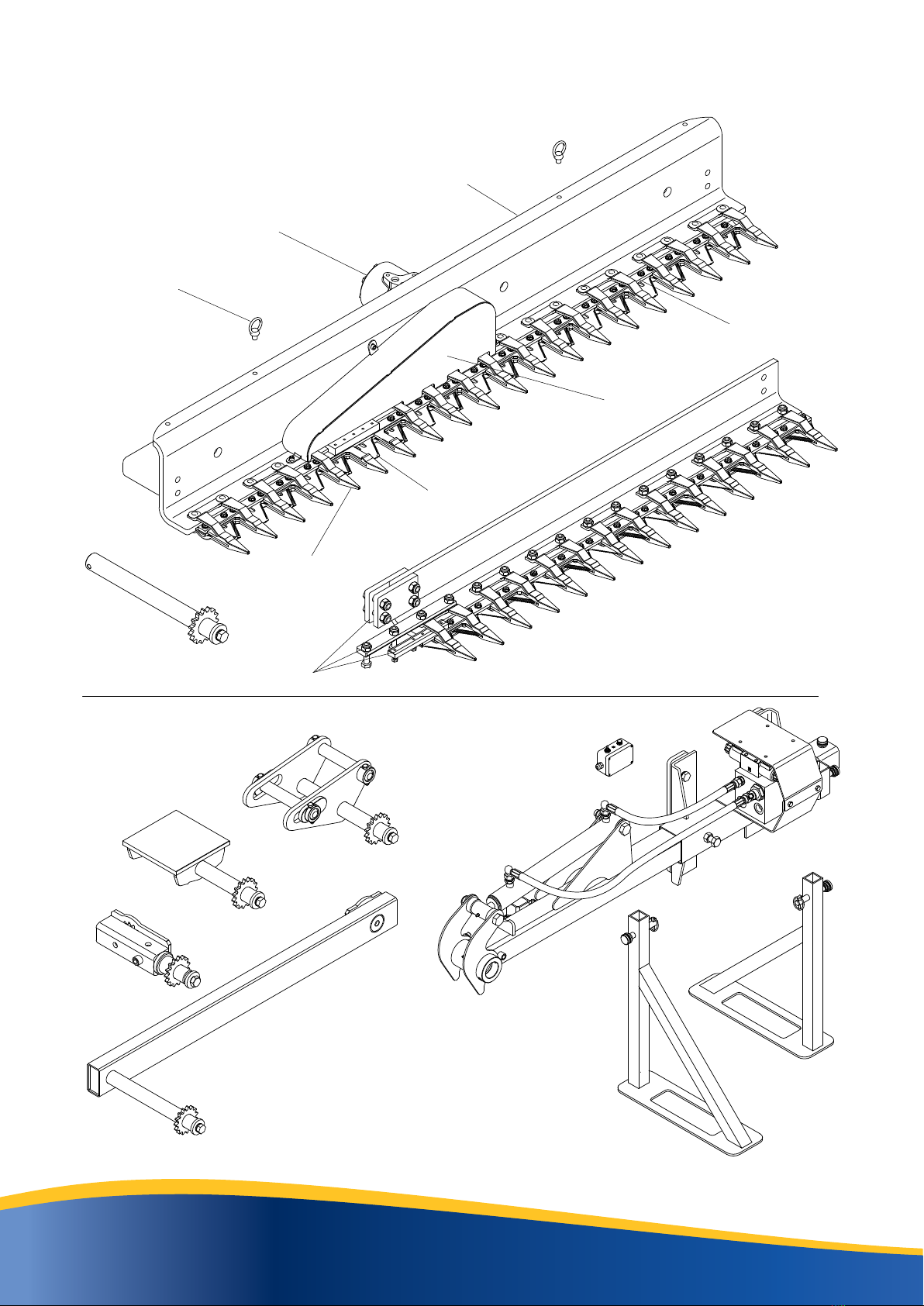

IDENTIFICATION
Typical Setup
Mounts and Hitches
1M Extension
Finger
Hydraulic Motor
Link Plates
Guard
Blade Bar
Knife Blade
Main Body
Universal Mount
Double Pin Hitch
Offset Mount
Angle Mount
Lifting Eye
Long Reach Arm
Hitch Bar
Storage Stands

www.augertorque.com 1414
SPECIFICATION
Oil Flow Limitations
The Hedge Trimmer attachment requires an
absolute minimum of 30 LPM to the attachment
at all times to cut a maximum of 25mm diameter
foliage. Increase the oil flow accordingly to
effectively cut up to 40 mm diameter foliage.
When used with the optional 1 metre Extension, the
Hedge Trimmer attachment requires an absolute
minimum of 45 LPM.
The minimum hydraulic flow rate needs to be delivered to the attachment regardless of whether
the carrier machine is stationary or tracking. When tracking, most excavators take flow from the
attachment line and prioritise it to the tracking function. If this results in the attachment line receiving
less than the minimum flow rate required, the hedge trimmer will not operate efficiently.
With a lot of excavators, the slewing function does not starve the hydraulic flow to the attachment line
to the same severity as the tracking function, which means the operator can use the hedge trimmer
effectively by slewing to cut then moving the tracks, stopping and slewing to cut again, repeating this
process to complete the task.
T150 TECHNICAL INFORMATION 50cc Motor 80cc Motor 100cc Motor
CARRIER WEIGHT
1.5 - 2.5T
Excavators
Skid Steer Loaders
2.5 - 4.5T
Excavators
Skid Steer Loaders
4.5 - 8.0T
Excavators
Skid Steer Loaders
BLADE LENGTH 1500 mm 1500 mm 1500 mm
MAXIMUM CUTTING THICKNESS 25mm 40mm 40mm
OIL PRESSURE RANGE 150 - 220 Bar 150 - 220 Bar 150 - 220 Bar
OIL FLOW RANGE 30 - 48 lpm 40 - 68 lpm 50 - 71 lpm
UNIT HEIGHT 292mm 292mm 292mm
UNIT WIDTH 1537mm 1537mm 1537mm
UNIT DEPTH 357mm 357mm 357mm
UNIT WEIGHT 69kg 69kg 69kg
EXTENSION INFORMATION Not suitable 3.5T/45LPM and above
BLADE LENGTH - 1000mm
UNIT HEIGHT - 120mm
UNIT WIDTH - 1058mm
UNIT DEPTH - 217mm
UNIT WEIGHT - 26kg
100Kg

www.augertorque.com 1515
MOUNTING AND ADJUSTING THE HEDGE TRIMMER
SAFETY FIRST
ALWAYS check parent machine:
• Is in correct working order
• Is parked correctly on flat ground
• Has its hand brake ON, its hydraulic circuit locked out and its engine switched OFF.
Check that the mounting frame is of the correct model and type to fit the parent machine.
Ensure mounting frame and attachment points are clean before fitting.
Use suitably rated lifting equipment if required (see data plate for weight).
Hoses should always be disconnected when fitting, removing or adjusting mounts

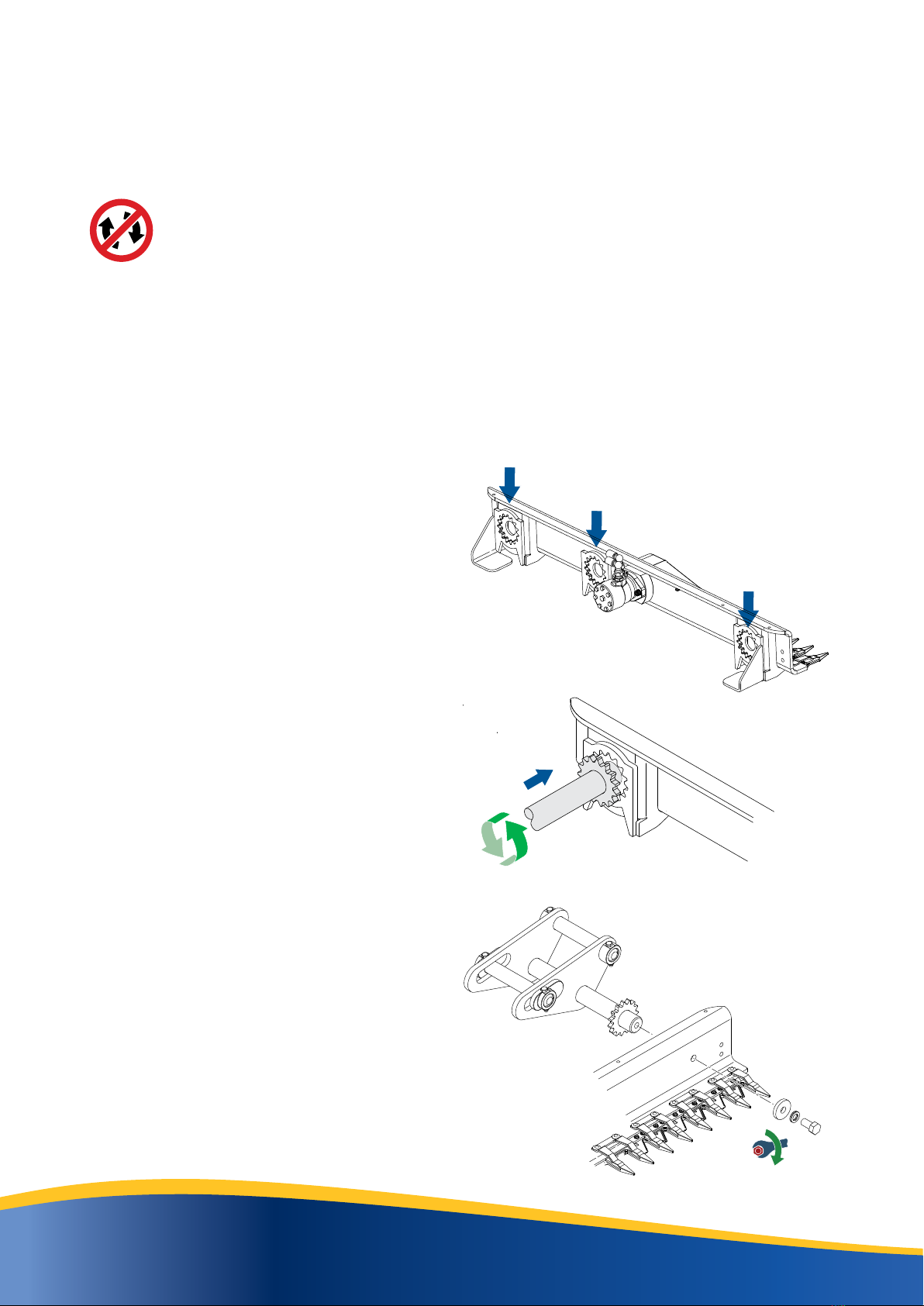

The Hitches and Mounts are connected to the
Hedge Trimmer in the same way.
Engage dog gear into one of the three Hedge
Trimmer mounts on the rear of the main body
(dependent on customer requirements). These
mounts allow the hedge trimmer a 360°
mounting position.
Once required position is located secure with
fixing bolt and washers and tighten to 100Nm.
100Nm/73.7ft-lb

www.augertorque.com 1616

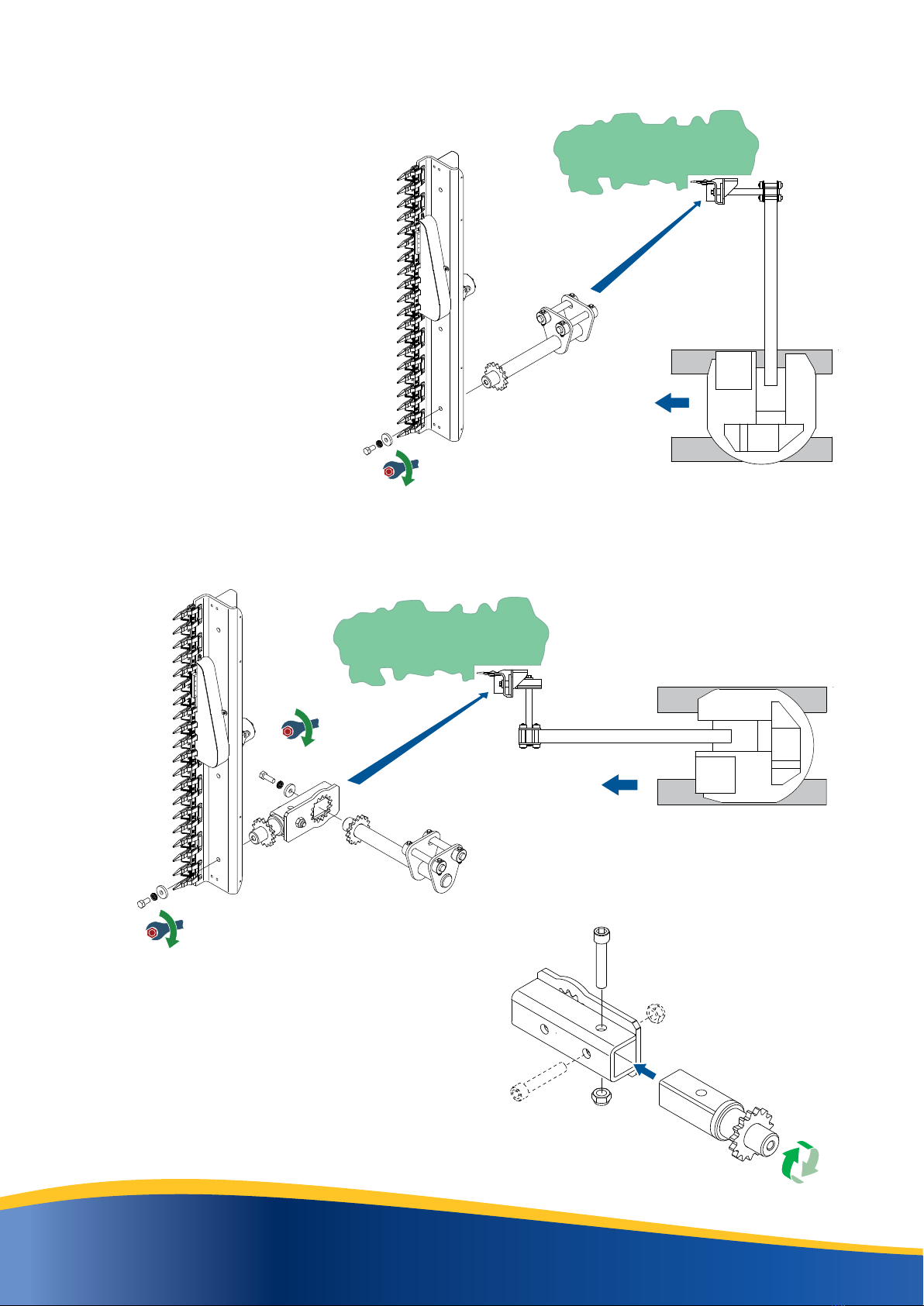

Angle Mount
The angle mount allows the hedge
trimmer to be mounted at 90° to
the hitch.
When the excavator is fitted with
a double pin hitch and a hedge
trimmer mounted in a vertical
position, the cab and boom have to
be at 90° to the tracks.
With the angle mount fitted between the double pin hitch and the hedge trimmer the cab and boom
remain in line with the tracks.

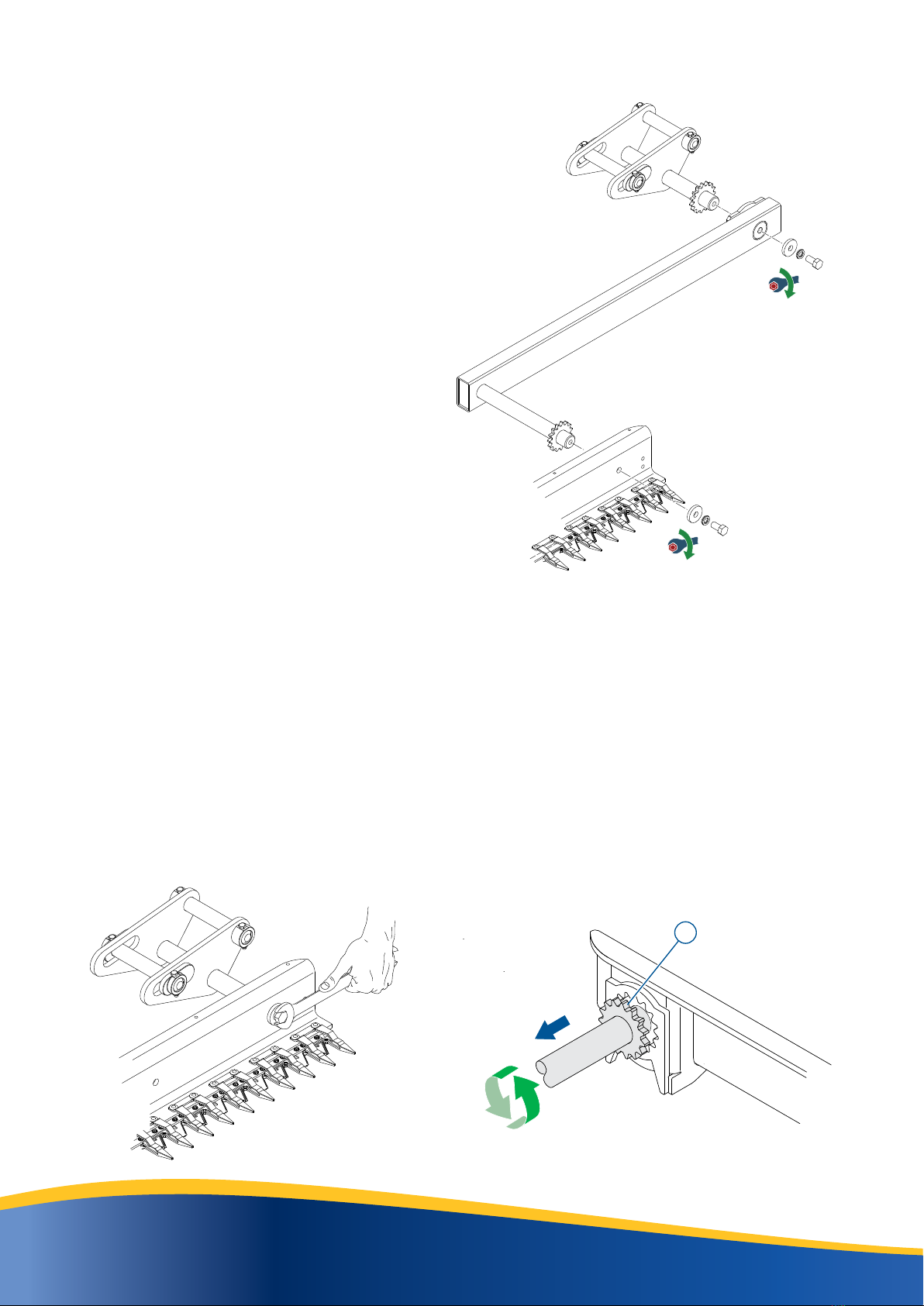

To achieve the desired angle of the hedge
trimmer the angle mount shaft can be removed
and rotated 90°
100Nm/73.7ft-lb
100Nm/73.7ft-lb
100Nm/73.7ft-lb

www.augertorque.com 1717
Long Reach Arm
The long reach arm can be used with all our
hitches and the angle mount and extends the
reach of the hedge trimmer by a metre.
Adjustment
Slacken the fixing bolt to allow adjustment to the required angle of operation. Carefully slide the
cutter head along the mounting shaft 20-25mm to disengage the dog gear (A).
Rotate the cutter head to select the required angle of operation then re-engage the dog gear by
sliding the cutter head back into position. Re-tighten the fixing bolt to 100Nm before operation.
A
100Nm/73.7ft-lb
100Nm/73.7ft-lb

www.augertorque.com 1818
HYDRAULIC CONNECTIONS
WARNING:
Hydraulic fluid under pressure can penetrate the skin or eyes and cause serious per-
sonal injury, blindness or death. Fluid leaks under pressure may not be visible. Use a
piece of card or wood to find leaks. DO NOT use your bare hands. Wear safety goggles
to protect your eyes. If any fluid is injected into the skin, it MUST be surgically removed.
Seek immediate medical attention.
Auger Torque Hedge Trimmers have been designed for use with specific Auger Torque mounting
frames. Provided these are used and maintained correctly, they will provide a safe and reliable
method of hedge trimming.

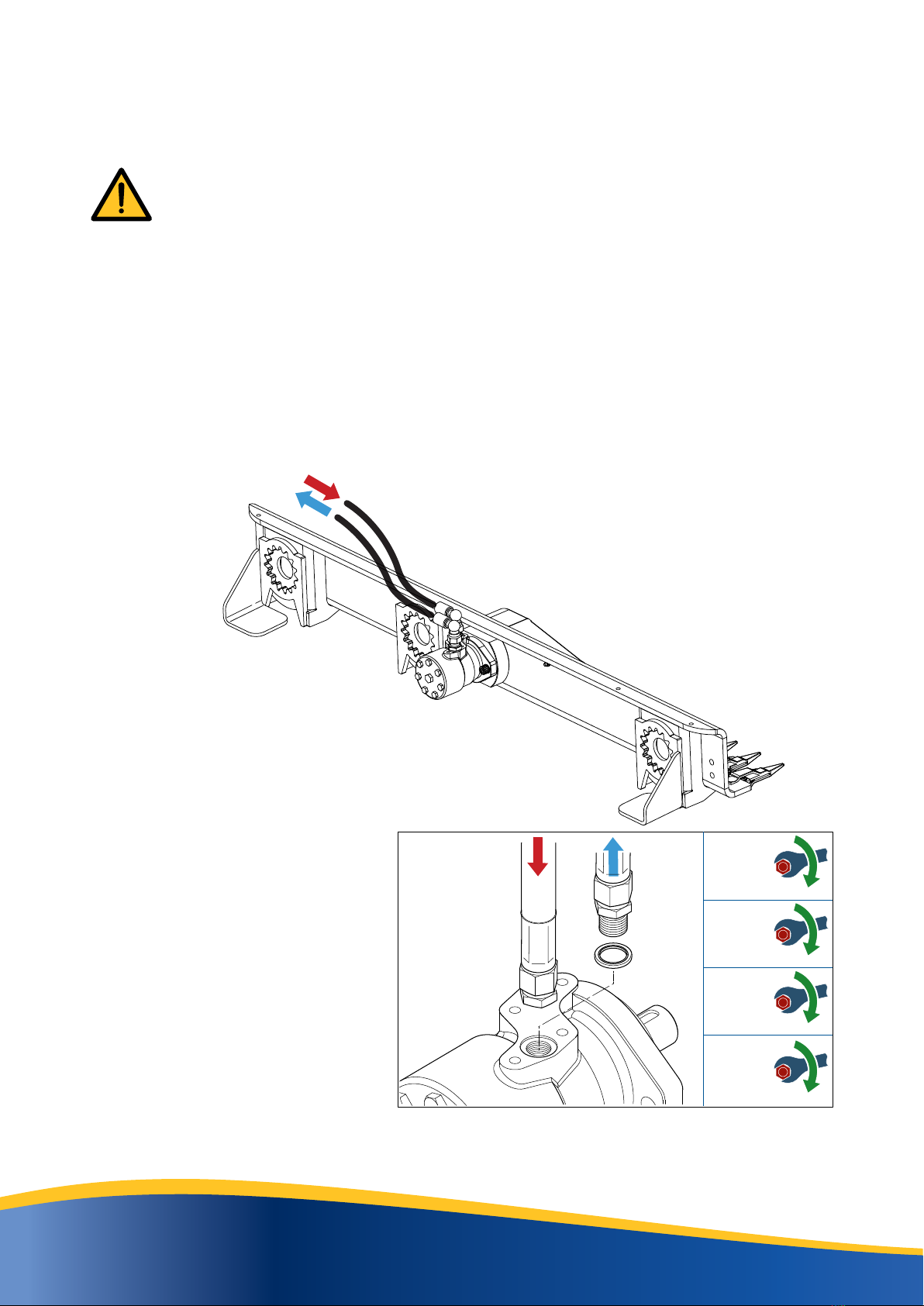

Auger Torque Hedge Trimmers require a ‘flow’ and ‘return’ of hydraulic fluid from the parent
machine’s auxiliary hydraulic power supply to operate. The Hedge Trimmer requires the host
machine to be fitted with a two way flow auxiliary circuit. Check with the parent machine dealer for
advice.
When fitting hydraulic hoses, ensure
that they are tightened to the correct
torque for the hose fittings.
When routing hoses from Hedge
Trimmer to parent machine ensure
hoses are free and clear of blades.
The parent machine auxiliary
hydraulic connections are normally
located near the end of the excavator
dipper.
It is critical that the supply of oil is
within the stated limits of the Hedge
Trimmer.
Check that the rated flow (l/min - gal/
min) & pressure (Bar - PSI) of your
machine does not exceed the limits
shown on the serial plate.
56Nm/41ft-lb
73Nm/54tf-lb
1
/
2
” BSP
112Nm/83ft-lb
1” BSP
3
/
4
” BSP
137Nm/101ft-lb
1
1
/
4
” BSP

www.augertorque.com 1919
MOUNTING - Skidsteer and Miniloader Offset Mount
SAFETY FIRST
ALWAYS work in pairs (2 skilled operatives) whenever the components are being
assembled or disassembled from the parent machine. Always check the weight of the
attachment and ensure you have the correct equipment for handling it.
ALWAYS check parent machine:
• Is in correct working order
• Is parked correctly on flat ground
• Has its hand brake ON, its hydraulic circuit locked out and its engine switched OFF.
Check that the mounting frame is of the correct model and type to fit the parent machine.
Ensure mounting frame and attachment points are clean before fitting.
Use suitably rated lifting equipment if required (see data plate for weight).
Hoses should always be disconnected when fitting, removing or adjusting.
FITTING: Ensure all components are greased on assembly:
• Fit offset mount back plate to mounting
frame, ensure spacer is fitted between back
plate and mount supports tighten to 100Nm.
• Slot the top of the parent machine frame
under the top edge of the Mounting Frame or
Locating Hooks (A) (refer to parent machine
operator’s manual).
• Swing the parent machine frame to the
vertical position (B).
• Following the parent machine operators
manual, ensure that the Mounting Frame is
securely locked in place (C).
DIN 1284
100Nm/73.7ft-lb
A
B
C

www.augertorque.com 2020
• Slide offset mount body assembly in to the right-hand side of the back plate with the ram
uppermost.
NOTE: If the valve block is rotated through 180° the offset mount body can be fitted on the left-
hand side dependent on customer requirements.
• Lock body in required position using the three locking screws in the back plate.
• Fit pin and lynch pin to the end of offset mount body.
• Connect hydraulic hoses. See Page 21.
• Push hitch bar (supplied with hedge trimmer)
though the body assembly and fix using the
rear hole position. The hitch bar can be fitted
from either side always using the rear hole
position.
