Kintec Digital Technology KDS?1160 User manual

Instruction Manual
Digital Signage
KDS‐1160/KDS‐1330/KDS‐1561/KDS‐1564/KDS‐1901/KDS‐1902/KDS
‐2150/KDS‐2360/KDS‐2700/KDS‐3201/KDS‐4200/KDS‐4600
TheQuickGuideintroducesyoutothebasicfeaturesandfunctions of the device. Before operating the device,
please read this manual thoroughly and retain it for future reference.
Push Button Functions
1 Menu Menu/Back to previous Menu
2 Exit /Copy Exit/Press the key to activate Copy function
3 Volume+/Menu Select Increase sound level/Move to a right item
4Volume‐/Menu Select Decrease sound level/Move to a left item
5 Previous/Menu Select Return to the previous track/Move to a upper item
# Icon Item Description

6 Next/Menu Select Jump to the next track/Move to a lower item
7 Play/Enter Press to play and enter function
Remote Control Instruction:
Content‐Delivery Method: Removable Devices: USB Drives
SD card is inside the device for content storage
Use a USB drive for content delivery
File transfer is the easiest way to get files from your PC to the device
The file list will automatically pop up, when a USB drive is connected to device.
Click to select one or more files to download by using a remote or push buttons.

Rolling Text Creation:
1. Create a text file named ROLLTXT.TXT.
2. Start input texts.
3. Save ROLLTXT.TXT as UNICODE, while completed.
4. Copy a file to a USB drive.
5. Insert a USB drive to a USB port and select the TXT. file to transfer to the device.
Scroll Mode (Continued)
Default OFF: Make sure rolling text message function is set “On” before activating the function.
Text Speed: (0: Slow, 1: Mid, 2: Fast, Default: OFF)
Text Size: (1: Small, 2: Big)
Text Color: White/Black/Red/Blue/Yellow, Default: White)
Background Color: Transparent/Red/Yellow/Blue, Default: Transparent)
Copy Mode
1. Format: Format SD card and copy all files from a USB drive to a SD card.
2. Overwrite: Transfer all files from a USB drive to SD card (the same file name overwritten, the different file name
duplicated).
3. Format and Copy: Format SD card and select files from a USB drive to copy to a SD card.
4. Overwrite and Copy: Remain all files on a SD card, and select files from a USB drive to copy to a SD card (the
same file name overwritten, the different file name duplicated).
Functional introductions
Menu setup options: time setting, system setting, scroll setting, panel setting, picture setting, and switch source of
the six options as illustrated in the figure 1 below.
How to access menu interface:
Press the MENU button on a remote or a push button to access the MENU interface and also use push buttons or
remote buttons to select setup options.
Figure 1

Time Setting:
Year/Month/Date/Hour/Minute as illustrated in the figure 2 below.
HHMM/HHMMSS/YYYYMMDD_HHMM/YYYMMDD_HHMMSS/YYYYMMDD_W_HHMM .
Timer Mode: Date/Week.
Timer 1‐Timer 5: Maximum 5 timed on‐off time areas of day.
Clock Mode: Default Off.
Figure 2
General settings
OSD Setting
Chinese and English.
Default: English.
Play Mode
All/Video/Image+Music/Image.
Default: All.
Repeat Mode
Repeat All
Repeat Once‐single file.
Default: Repeat All.
Resume Play
On/Off
Default: On
Sensor Setting
Mute/Standby/Off/Motion Sensor.

Default: Mute, Motion Sensor On.
Motion sensor operating principle:
Detecting distance: 120 degree, 3‐4M.
Screen and sound are simultaneously switched on while detecting object movement, but sound is switched
off after 10 sec.
While out of detection range or inactive within the detection range, the device will continue to work for
30sec, then turning to sleeping mode. The device will be aroused again if any object re‐enter the detection
range.
Delay Time
0~60 Seconds.
Default: 45Sec.
HDMI Input

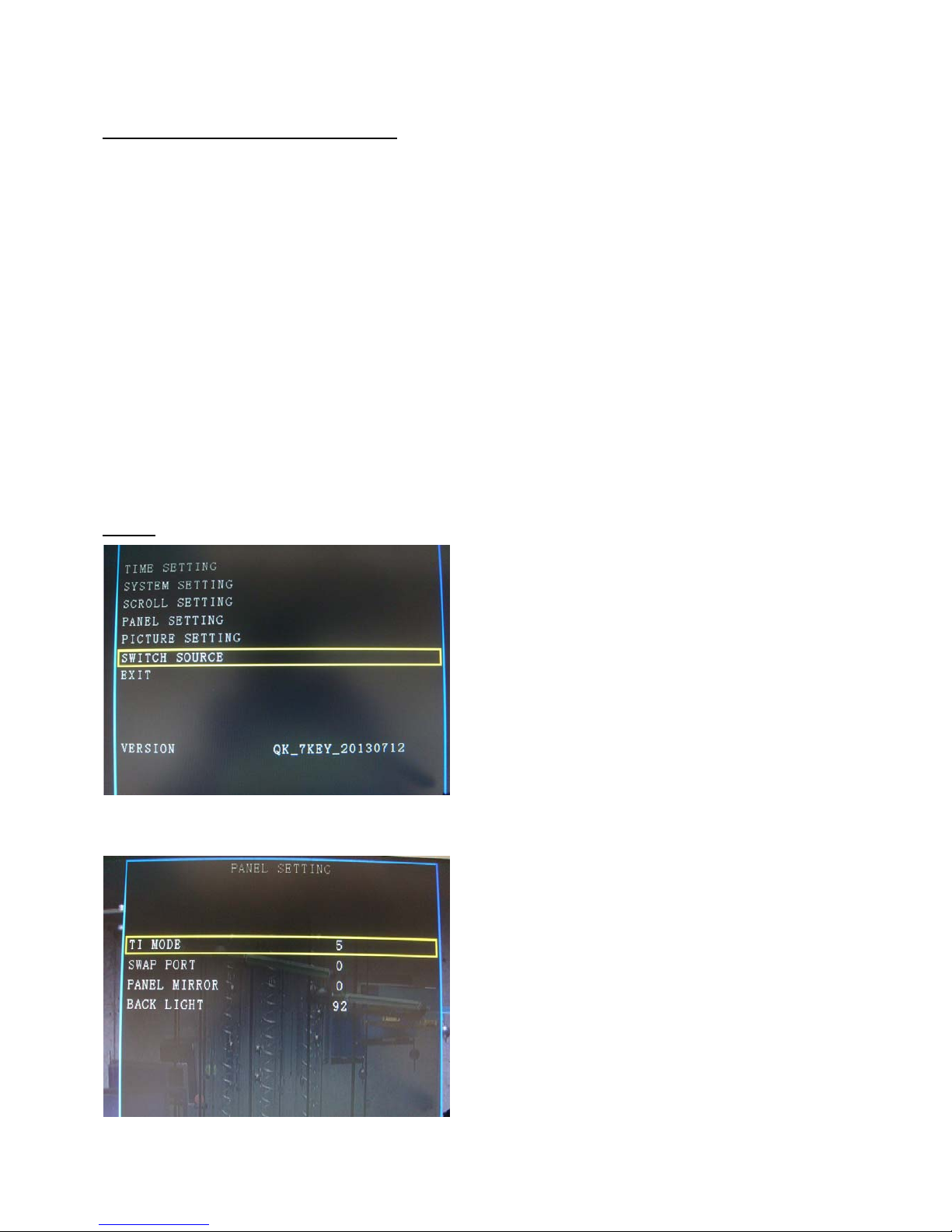

Press the MENU button on a remote or a push button to access the MENU interface as illustrated in the figure
3below.
Select Switch Source and press the enter button on a remote or a push button to switch to HDMI function
if HDMI switch doesn't start automatically, restart the device and make sure a HDMI cable is well‐connected.
Figure 3
Panel Setting (Factory Setting)

TI Mode
0,1,2,3,4,5
Map 1=0
Map 0=1
Default: 5.
Swap Port
0,1
LVDS A/B port switching.
Default: 0.

Panel Mirror
Normal, 90°/180°/270°
Default: Normal
Back Light
1~99.
Default: 92.
Picture Setting
Video Size
Full View/Auto
Default: Full View
Brightness
0~100
Default: 50
Contrast
0~100
Default: 50
Color
0~100
Default: 50
Sharpness
0~100
Default: 50

Red
0~150
Default: 130
Green
0~150
Default: 120
Blue
0~150
Default: 128
USB system upgrading
Request files from the origin manufacturer and select files to transfer from USB drive to the device.
The updating process takes about 40sec. No in process message displaying during system updating.
Remove a USB drive, once update is completed. Please note that the device will automatically reboot itself
while updating is completed.
Specifications:
Support Format
Video MPG, MPG‐1, MPG‐2, MPG‐4, AVI, MP4, DIV, TS, TRP,
MKV, WMV, RM, RMVB
Image JPEG, BMP
Audio MP3, WMA
File TXT
Video decoding
support
Max. Resolution 1920*1080@60Hz
NDS 24bit
Max Frame rate 30frm/s
Max. Data rate USB2.0 device: 20Mb/s
Audio decoding
support
Sample rate 32kHz, 44.1kHz, 48kHz, 96kHz
Bit Rate 32kbps to 384kbps
