AndroidDongleKAD-P601
User Manual
I. ProductFeatures：
Android Donglebasedonintelligentsystems,multimediaand entertainmentfeaturesprovide
amore advanceand convenient form.
You can:
Connected totheInternetviaWi-Fi
ThroughtheInternettodownloadandinstallavarietyofapplicationsincludingweb browsing,
communication, social,office,games,maps,videoandaudioentertainment,reading,TV
Internet, entertainment,officecomputer.
Machineandaccessories
1. AndroidDongleKAD-P601
2. USB cable
3. Remotecontrolsignalreception head
4. Remotecontrol
5. Usermanual
Machineinterfacedescription:
1．HDMIoutput:Connectto theTV'sHDMIinput；
2.Remotecontrolreceiverinterface:whenusingtheremotecontrol,thesignalreceiverhead
shouldinsertto thisinterface
3.Mini-USBinterface:thisinterfaceusingtheUSBcableconnectedUSB Hostinterfacewith

2/7
莞市长安镇长青南路 306 号金 大厦 8F
8F,JINYE BUILDING,NO.306,CHANGQINGSOUTH ROAD,
CHANG'AN,DONGGUANG CITY,GUANGDONG,CHINA
TEL: [phone] FAX:[phone]
www.kintecdigital.com
other equipment,suppliespower ,canalsobeconnectedtothePC,readtheinternaldataof
themachine.
4.TF (MicroSD)slot:Externalexpansion memorycardslot, supportup to 32GBTF (MicroSD)
memorycard.
5.USB HostInterface:accessto USBremovablestoragedevices,wirelesskeyboardandmouse
receiver,USB,theHUB and otherequipment.
QuickInstallation Guide
1. Youneed aTV orother displaydevice with HDMIinput
2. InsertKAD-P601HDMIportto theTVorother displaydeviceHDMIinputport.
3. IftheTV haveUSBTYPEAHOSTinterface，then insertTYPEAportoftheUSBcableto TV
USB interface,and theotherportinsertto themini-USBportofKAD-P601.
Note:
Thismachineisprovidedpower throughtheUSBinterface,makesuretheTV sUSB interface
can providemaximum5V/1Acurrent, ifthecurrentisnot enough maycausethemachinenot
workorisnot workingproperly,IftheTV SUSB Interfacecannotprovidethemaximum
5V/1A,please changeanother 5V/1Apower adapter.
TheoperationofKAD-P601
1. Operationofusingtheremotecontrol
Connectedtheremotecontrol signalreceivingheadPLUG totheremotereceiver
interface,fixthereceiver headtoauncoveredplace,thenyoucanusetheremotecontrol
tooperation themachine.

3/7
莞市长安镇长青南路 306 号金 大厦 8F
8F,JINYE BUILDING,NO.306,CHANGQINGSOUTH ROAD,
CHANG'AN,DONGGUANG CITY,GUANGDONG,CHINA
TEL: [phone] FAX:[phone]
www.kintecdigital.com
2. Operationofusingamouse with wirelesskeyboard
Insertthemouse withwirelesskeyboardreceiver totheUSB Hostinterfaceofthismachine,it
willbedone.
Recommendedusertousemousewith wirelesskeyboard,you will getabetterusing
experience.
TheUse ofKAD-P601:
1. After installingandconnectingperipheraldevicesbecompleted,switchTVdisplaymode
toHDMImode,youwillseethestartscreenofthemachine,after 30 to 60 seconds,
screen showsthemaininterface:
2. SettheWi-Ficonnection
SelectSettingstoenterthesettinginterface:

4/7
莞市长安镇长青南路 306 号金 大厦 8F
8F,JINYE BUILDING,NO.306,CHANGQINGSOUTH ROAD,
CHANG'AN,DONGGUANG CITY,GUANGDONG,CHINA
TEL: [phone] FAX:[phone]
www.kintecdigital.com
TurnonWi-Fiswitch, theunitwillautomaticallysearchforWi-Fiaccess point,selectthe
accesspoint ,enter thepassword,saveand connect.
Wi-Fiaccess point willbesuccessfullysaved, after usingthenativebootwillautomaticallyfind
and connect,and donotneed tore-enterthepassword.

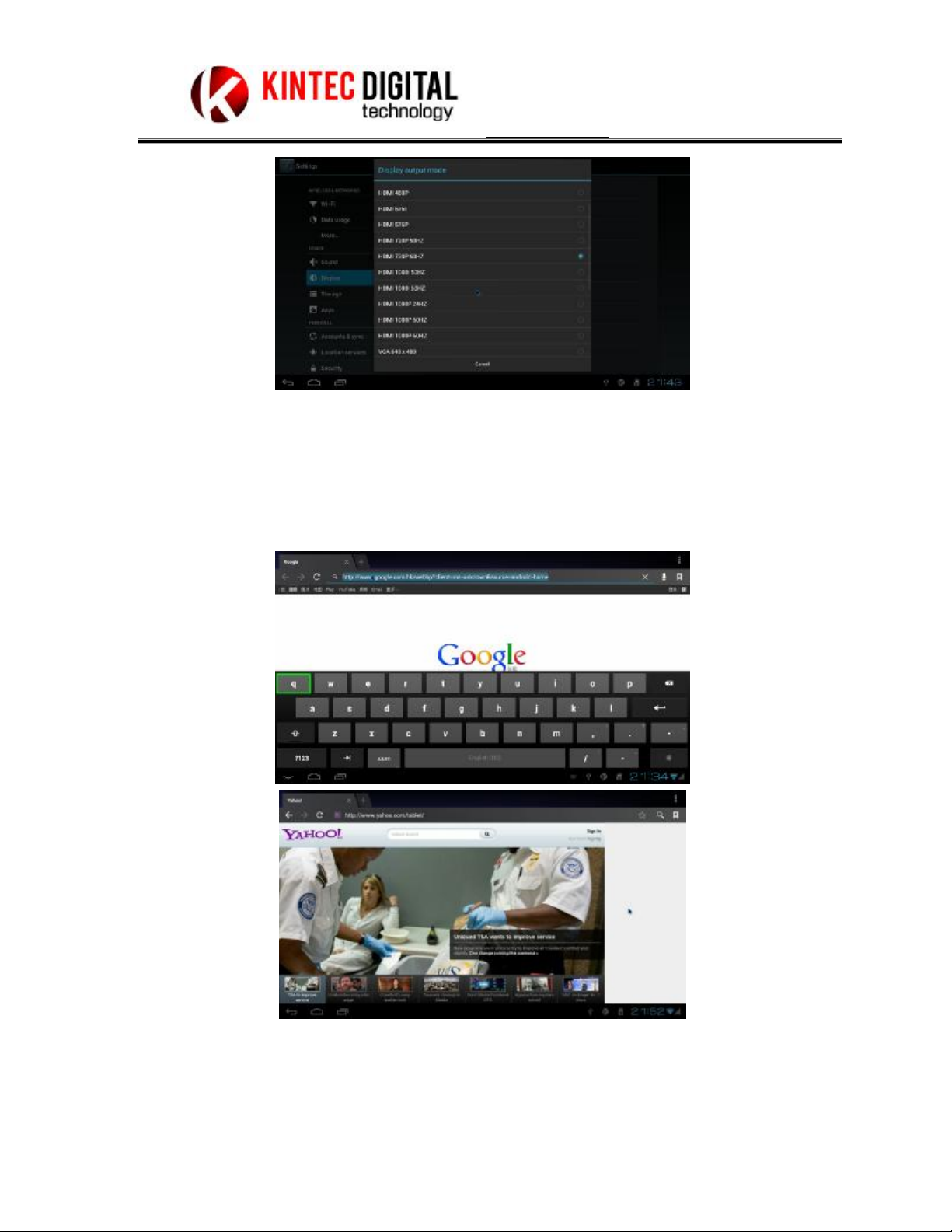

3. SettingHDMIinput format,
Inthesetupinterface,selecttheDisplay:
SelectDisplayoutputmode：

5/7
莞市长安镇长青南路 306 号金 大厦 8F
8F,JINYE BUILDING,NO.306,CHANGQINGSOUTH ROAD,
CHANG'AN,DONGGUANG CITY,GUANGDONG,CHINA
TEL: [phone] FAX:[phone]
www.kintecdigital.com
Can settheHDMIoutputformataccordingto specificationsoftheTV and theirown
preferences.
4. UseInternetbrowser
Inthemain interface,selectthewebbrowser，open thebrowser andentertheURLyou want
tovisit,thenyoucanaccesstheinternetsitefreely:
5. Application

6/7
莞市长安镇长青南路 306 号金 大厦 8F
8F,JINYE BUILDING,NO.306,CHANGQINGSOUTH ROAD,
CHANG'AN,DONGGUANG CITY,GUANGDONG,CHINA
TEL: [phone] FAX:[phone]
www.kintecdigital.com
SelectApplicationto enterthemaininterface:
Use GooglePlayStore，createoruseanexistingGoogleaccount，youcan downloadtensof
thousandsofvariousapplicationsinthePlayStore,includingsocialnetworking,multi-media,
entertainment,onlinevideogames,reading,officeand soon.

7/7
莞市长安镇长青南路 306 号金 大厦 8F
8F,JINYE BUILDING,NO.306,CHANGQINGSOUTH ROAD,
CHANG'AN,DONGGUANG CITY,GUANGDONG,CHINA
TEL: [phone] FAX:[phone]
www.kintecdigital.com
KAD-P601specifications General
CPU ARMCoretex-A8,1.2GHz
GPU Mali400,OpenGL ES1.12.0
OS Android4.0
Storage
InternalRAM 512MBDDR3
InternalFlash 4GB (upto32GB)
ExternalStorage MicroSDCardup to 32GB
SupportFormat
Video MKV(H.264HP),AVI,RM/RMVB,FLV,
MPEG-1,MPEG-2@2160P
Audio MP3/WMA/AAC/WAV/APE/FLAC
Images JPEG/BMP/GIF/PNG/TIF
Connectivity
WiFi EE802.11b/g/n
DLNA Need3rd partyapplication
USB Port USBHostx1, USB Devicex1
Remotecontrol Support
HDMI V1.3720p/1080p
Mouse,Keyboard,Touchpad USBinterface
USBRFwireless
Dimension/Weight/Condition
Dimension 91x34x14mm
Weight 35g
Operation Condition 0 ~40
StorageCondition -20 ~55
Power
AC/DCAdapter Input:100V~240V AC,0.5A,50HZ~60Hz,
output: DC5V/1A
