KITCHEN KIT DOCU0040B User manual

Assembly
1
4 5
3
x 2 x 2
Plinth Clip
Circular Leg Clip
Leg Boss
2
N15mm Screw
x 20
x 4 x 4
A
B
A
B
C
B
A
“CLICK”
A
C
Slide back panel into place
Lock B panels into
side panel A
A
Fittings
3 Drawer Base Cabinet Instructions
Carefully align front edges
Adjustable Leg
E
E
F
A
B
C
Base End Panel
Top/Bottom Panel
Back Panel
EDrawer Front (283mm height)
FDrawer Front (140mm height)
Please note - drawer boxes are packed separately
“CLICK”
“CLICK”
We recommend using PVA
glue for an additional bond -
simply run a bead of glue
along each joint line
during assembly
BA02 - 12K
DOCU0040B
B
A
B
Press end panel A into top/bottom
panels B and gently tap with a mallet

6
7 8
9 10
11
Gently tap leg boss into place
Attach plinth clip to plinth Slide circular leg clip into plinth clip
Fix plinth into place
Insert adjustable legs into leg boss
12
E
E
F
B
B
Once
assembled,
measure and
adjust feet to
150mm
Screw leg boss in place

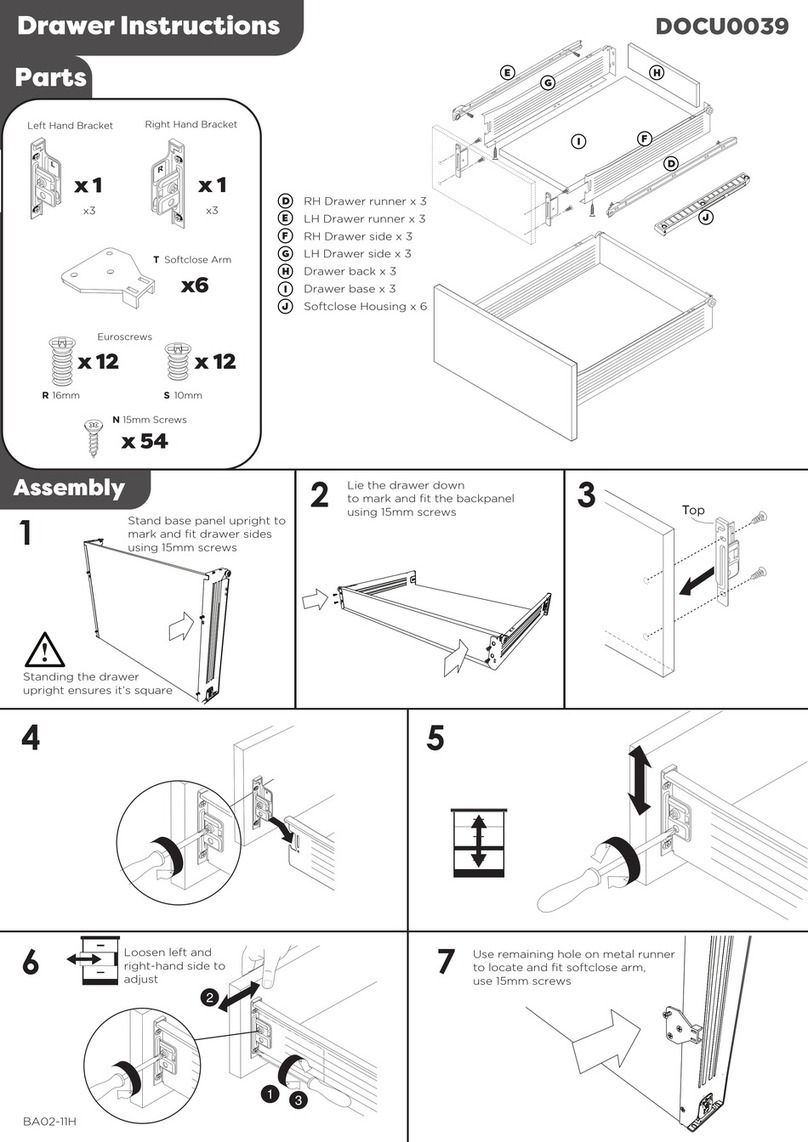

Begin assembling drawer runners
and drawer boxes (see drawer
instruction leaflet).
