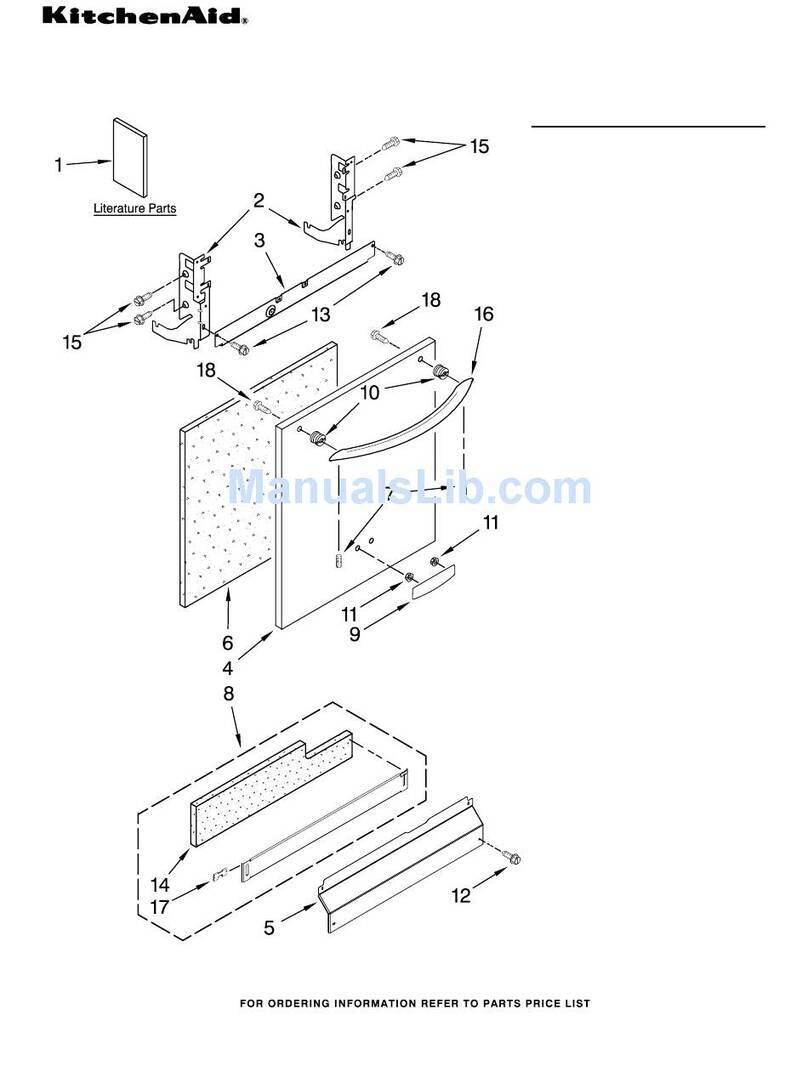

DOOR AND PANEL PARTS
1
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
11−09 Litho in U.S.A. (els) (eeb) Part No. W10201505 Rev. B
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10078153 Instructions,
Installation
W10056403 Energy Guide
W10193741 Guide, Use & Carer
Spanish
W10193740 Guide, Use & Care
English/French
W10130990 Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener, Door
4
W10073520 Insulation, Door
5 Access Panel
8573255 Black
8573256 White
6 Panel, Full Front
(Includes Items
4, 10, 16, 17,
18 & 20)
W10078003 Black
W10078004 White
W10137622 Stainless
7 Bezel
W10077798 Black
W10077799 White
W10077801 Stainless
8 Toe Panel
(Includes
Items 11 & 19)
W10205336 Black
W10205337 White
9 Handle
(Includes
Items 14)
W10257146 Black
W10257147 White
W10257145 Stainless
10 8564951 Stud, Mounting
11
W10073540 Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
13 304392 Screw
14 8534008 Screw
15 3400071 Screw
16 Nameplate
W10021860 Black
W10021870 White
W10021850 Stainless
17 2004333 Nut
18
W10123421 Screw
19 8269016 Clip, Grounding
20
W10133538 Plate, Backing

CONTROL PANEL PARTS
2
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10084163 Black
W10084164 White
W10084165 Stainless
2 8531877 Cable, Ribbon
3 8546546 Clip, BI−Metal
5 8531873 Board,
Interconnect
6 661663 BI−Metal
7
W10134019 Switch, Door
8 3369051 Screw
9
W10077360 Latch Assembly
11
W10084141 Control,
Electronic

DOOR AND LATCH PARTS
3
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249 Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883 Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877 Deflector, Vent
(Also Order
Item 6)
8
W10224431 Dispenser,
Assembly
9
W10077881 Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
12
W10078202 Wiring Harness
13
W10177098 Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser

FILL, DRAIN AND OVERFILL PARTS
4
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10219505 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871 Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
15 356138 Clamp, Hose
16
W10137608 Drain Loop
with Check Valve

TUB AND FRAME PARTS
5
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505

TUB AND FRAME PARTS
6
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 W10164353 Tub Assembly
(Also Includes
Heater Assembly)
2 8574123 Barrier, Moisture
Undercounter
3
W10112096 Door Seal
4
W10082838 Plug Tub
5 8572661 Actuator Assembly
6
W10082769 Motor, Wax
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9
W10084086 Balance, Door
Assembly
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13 3400924 Retainer, Push−in
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 9743002 Wheel, door
Assembly
Balance
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21
W10158291 Cable, Door
Balance
22 8268582 Insulator, Sound
23 304666 Retainer, Push
24 8573239 Shield, Sound
Tub
25 9742648 Bracket,
Thermostat
26 661566 Thermostat
27
W10077370 Strike, Latch
28 3378128 Washer,
Pronged Cup
29 3400014 Screw
30 3400072 Screw
31
W10078083 Mount, Track
(Also Order
Items 17 & 30)

PUMP AND MOTOR PARTS
7
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505

PUMP AND MOTOR PARTS
8
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9
W10239404 Motor Assembly
10 3400217 Screw
11
W10084567 Screen, Separation
12
W10237169 Sump & Motor
Assembly
(Includes
Item 13)
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
(Also Order
Items 21 & 25)
17 8269144 Hose, Drain
18 8535759 Motor
19 8268397 Seal, Volute
20 8531017 Impeller Kit
(Also Order
Item 25)
21 8268403 Face Seal Assembly
(Also Order
Item 25)
22 356138 Clamp, Hose
23
W10134017 Optical Water
Indicator
24
W10216724 Capacitor
25 8531018 Washer

UPPER WASH AND RINSE PARTS
9
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 W10077859 Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8557720 Sprayarm, 3rd
Level
4
W10118464 Cover, Screw
5
W10082867 Mount
6
W10082949 Manifold
7
W10082832 Hanger
8 8268433 Seal, Sprayarm
9
W10082831 Probe, Manifold
10
W10082841 Sprayarm
11
W10077600 Manifold, Spray
Zone
12
W10077903 Valve Assembly,
Manifold

HEATER PARTS
10
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
5 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.

UPPER RACK AND TRACK PARTS
11
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505

UPPER RACK AND TRACK PARTS
12
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 8539235 Dishrack, Upper
2
W10082839 Housing, Adjuster
3 Actuator, Adjuster
W10077838 Right Hand
W10077839 Left Hand
4 8268654 Adjuster Assembly
5 3385088 Wheel
6 8268703 Axel, Adjuster
7 8281156 Screw
8 9744566 Tine Row
9
W10082853 Clip, Pivot
12 8539102 Positioner, Dual
14
W10082840 Cover, Adjuster
15 9741232 Retainer
16
W10082834 Positioner, Arm
17
W10077844 Clip, No−Flip
18 3385089 Track, Assembly
19
W10082860 Stop, Track
20 8539110 Handle,
Dishrack
21
W10082649 Cupshelf
22
W10082848 Clip, Cupshelf

LOWER RACK PARTS
13
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 8519680 Lower Rack
2 Lid, Basket
Silverware
8519695 Left Side
8519663 Right Side
3
W10082868 Wheel & Transport
Assembly
4 8531233 Basket,
Silverware
5
W10078227 Pivot, Tine Row
6 8519682 Tine Row
7 8519702 Basket, Utensil
8
W10078215 Retainer, Tine Row
(Combo)
9
W10175279 Retainer, Tine Row

LOWER WASHARM AND STRAINER PARTS
14
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION
1 W10077965 Wash Arm Assembly
2
W10077899 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4
W10077898 Hub, Lower
Sprayarm
(Also Order
Item 3)

OPTIONAL PARTS (NOT INCLUDED)
15
For Models: KUDS03STBL3, KUDS03STWH3, KUDS03STSS3
(Black) (White) (Stainless)
W10201505
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
ACCESSORIES
Side Panel Kits
8171656 White
8171657 Black
8171658 Biscuit
8171659 Stainless Steel
Towel Bar Handle Kit
8573938 Stainless Steel
Architect II Handles
W10083935A Stainless Steel
W10083936A Black
W10083937A White
W10083938A Biscuit
Custom Panel & Trim Kit
8212489 Black
Drain Hose
3385556 12 Ft.
Moisture Barrier Kit
4396277 Kit
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
4392899 Biscuit
4396603 Meteorite
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
4392901 Biscuit
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit
POWER CORD KIT
4317824 Power Cord Kit
(Includes Power
Cord & Misc.
Hardware)
ANTI−TIP KIT
8171477 Floor Mount Kit
8212560 Side Mount Kit
DISHRACK REPAIR
Tip Tine Repair Kit
(Enough for Two
Complete Dishracks)
4396838 White
4396840 Grey
4396854 Silver Atlantis
Vinyl Touch−Up (4 oz.)
676453 White
676455 Grey
4396853 Silver Atlantis
