KitchenAid OUTDOOR GRILL User manual

FREESTANDING OUTDOOR GRILL
InstallationInstructionsandUse&CareGuide
For questions about features, operation/performance, parts, accessories or service, call: 1-877-373-2301
or visit our website at www.Kitchenaidgrills.com
ASADOR AUTÓNOMO PARA EXTERIORES
Instrucciones deinstalación yManualdeuso ycuidado
Para consultas respecto a características, funcionamiento, rendimiento, piezas, accesorios o servicio técnico, llame al:1-877-373-2301
o visite nuestro sitio de internet en www.Kitchenaidgrills.com
GRIL D'EXTÉRIEUR AUTOPORTANT
Instructionsd’installation etGuided’utilisation etd’entretien
Pour des questions à propos des caractéristiques, du fonctionnement/rendement, des pièces, des accessoires ou du service,
composer le : 1-877-373-2301 ou visiter notre site web www.Kitchenaidgrills.com
Table of Contents/Índice/Table des matières................................................................................. 2
720-0826 (LP) 730-0826(NG) 19000409A1

OUTDOOR GRILL SAFETY……………………………… 3
INSTALLATION REQUIREMENTS……………………… 5
Tools and Parts…..………………………………………… 5
Location requirements……………………………….……. 5
Product Dimensions……………………………………….. 6
Electrical Requirements…………………………………... 6
Gas Supply Requirements………………………………… 7
Gas Connection Requirements…………………………… 8
PACKAGE CONTENTS LIST …………………………….9

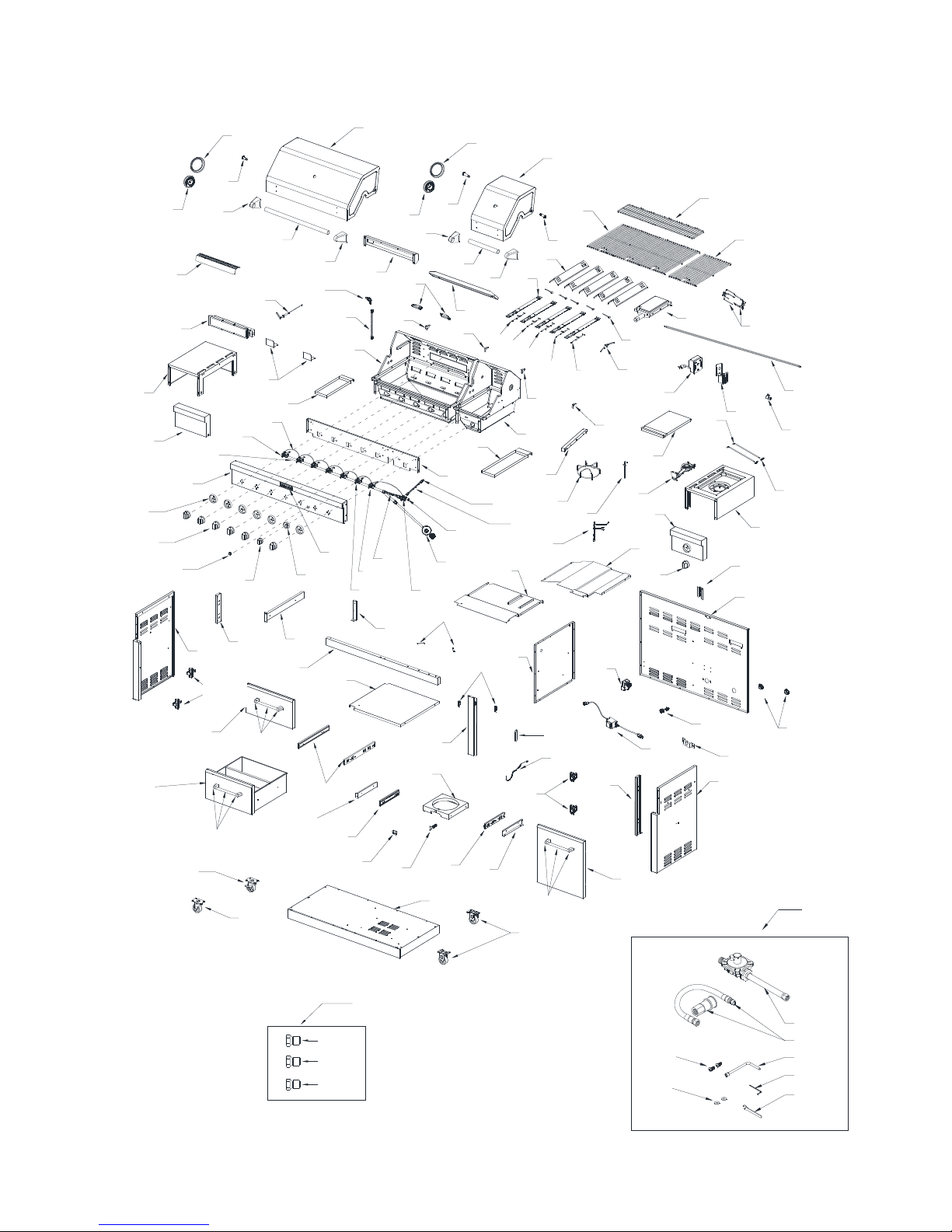

REPLACEMENT PARTS…………………………………. 10
INSTALLATION INSTRUCTIONS……………………….. 13
Freestanding Outdoor Grill Installation…………………... 13
Make Gas Connection…………………………...…………17
GAS CONVERSION…………………………………......... 18
Tools and Parts for Gas Conversion……………….......... 18
Conversion from LP Gas to Natural Gas……………....... 19
TABLE OF CONTENTS
Check and Adjust the burners……………………………..23
OUTDOOR GRILL USE……………………………………24
Using Your Outdoor Grill…………………………....…….. 24
Prepare Your Grill for Lighting……………………………. 25
TIPS FOR OUTDOOR GRILLING……………..………… 29
Cooking Methods……………………………………………29
Grilling Chart………………………………………………... 30
OUT DOOR GRILL CARE…………………………...…… 32
Replacing the Igniter Battery……………………………… 32
Changing the Grill Light Bulb………………………………32
General Cleaning……………………………………………33
TROUBLE SHOOTING................................................... 35
ASSISTANCE……………………………………………… 35
WARRANTY………………………………………………... 36
SEGURIDAD DEL ASADOR PARA EXTERIORE…….. 38
REQUISITOS DE INSTALACIÓN ………………………. 39
Herramientas y piezas ………...………………………….. 39
Requisitos de ubicación …………………………………... 39
Medidas del producto ………………………………….......41
Requisitos eléctricos………………………………………. 41
Requisitos del suministro de gas …………………...........42
Requisitos para la conexión de gas ………………….......43
LISTA DE CONTENIDO DEL PAQUETE…………..……44
PIEZAS DE REPUESTO
ÍNDICE
USO DEL ASADOR PARA EXTERIORES……….…….. 59
Cómo usar el asador para exteriores…………….………. 59
Prepare el asador para encenderlo………………….…… 60
CONSEJOS PARA ASAR AL AIRE LIBRE……………..64
Métodos de cocción …………………………………..…… 64
Cuadro para asar ……………………………………...……65
CUIDADO DEL ASADOR PARA EXTERIORES….....… 67
Cómo reemplazar la batería del encendedor …………… 67
Limpieza general ………………………..…………………. 70
PIEZAS DE REPUESTO …………………………………. 45
INSTRUCCIONES DE INSTALACIÓN ………………… 48
Instalación del asador autónomo para exteriores …….. 49
Conexión del suministro de gas …………………………. 52
CONVERSIONES DE GAS ……………………………… 53
Herramientas y piezas para la conversión de gas …...... 54
Conversión de gas LP a gas natural ……………………..54
Revise y regule los quemadores ……………………........58
SOLUCIÓN DE PROBLEMAS……………………….……70
ASISTENCIA…………………………...……………………70
GARANTÍA ……………………….………………………… 71
SÉCURITÉ DU GRIL D'EXTÉRIEUR ………..…………..73
EXIGENCES D’INSTALLATION ……………..…………. 75
Outils et pièces ……………...………………..…………….75
Exigences d'emplacement …………………..…………….75
Dimensions du produit ………………………….……........76
Spécifications de l'alimentation en gaz …………………..77
Exigences concernant le raccordement au gaz……….... 78
LISTE DU CONTENU DE L'EMBALLAGE……………...79
PIÈCES DE RECHANGE ………………………………… 80
CONSIGNES D’INSTALLATION…………………….…... 83
Installation du gril d’extérieur autoportant ………………. 83
Raccordement au gaz …………………………...………...87
CONVERSIONS POUR CHANGEMENT DE GAZ ……. 88
Outils et pièces pour conversion de gaz …………….......88
Conversion de propane à gaz naturel ……………………89
Contrôle et réglage des brûleurs ………………….….......93
TABLE DES MATIÈRES
UTILISATION DU GRIL D’EXTIEUR ………………….... 94
Utilisation du gril d’extérieur ………………………….…... 94
CONSEILS POUR L'UTILISATION DU GRIL
D'EXTÉRIEUR ...............................................................99
Méthodes de cuisson ………………………………………99
Tableau de cuisson au gril ……………………………….. 100
ENTRETIEN DU GRIL D’EXTÉRIEUR …………………. 103
Remplacement de la pile de l’allumeur …………………. 103
Nettoyage général ……………………………………........ 104
DÉPANNAGE..................................................................106
ASISTANCE…………………………………………………106
GARANTIE…………………………………………………..107
2

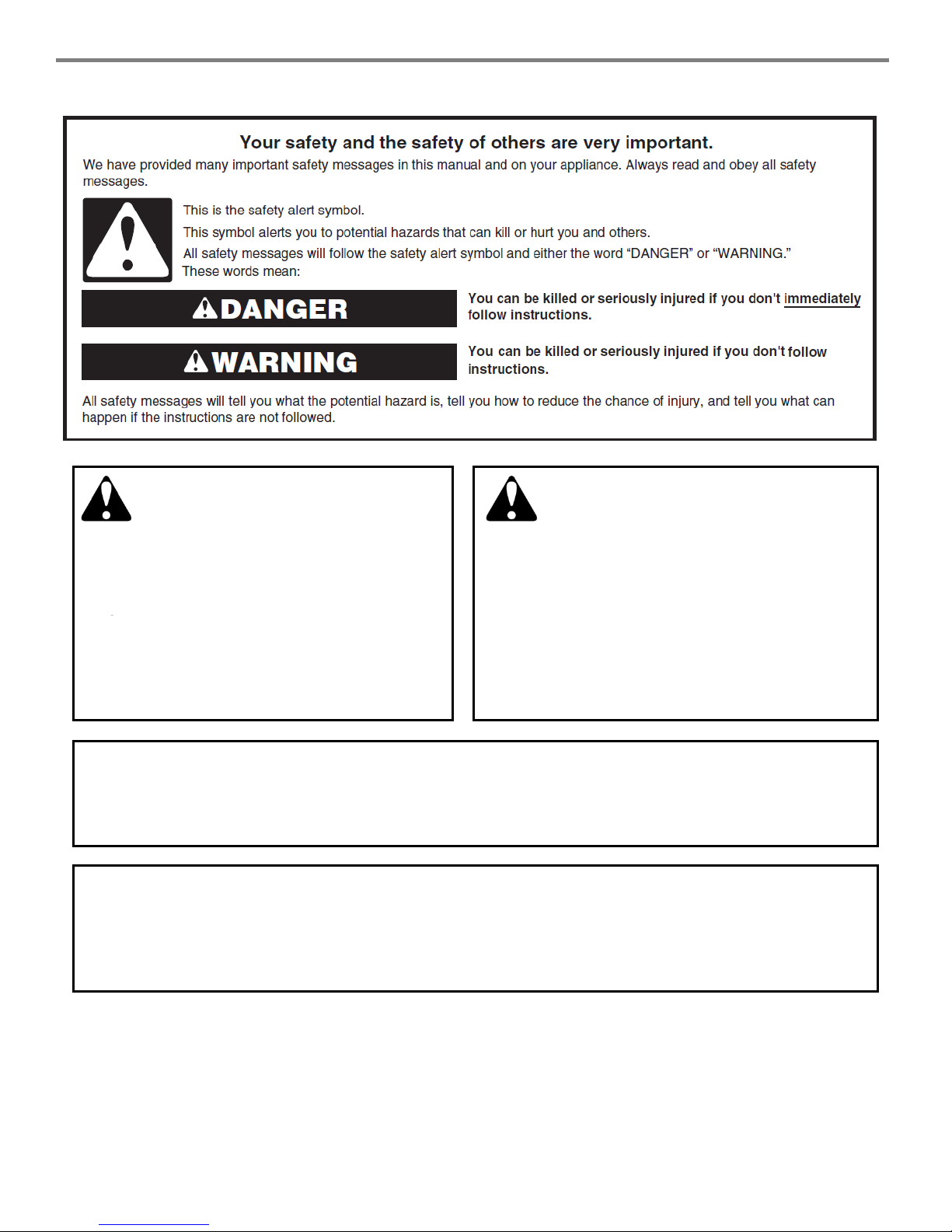

OUTDOOR GRILL SAFETY
DANGER
If you smell gas:
1.Shut off gas to the appliance.
2.Extinguish any open flame.
3.Open lid.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
2. An LP cylinder not connected for use
IMPORTANT: This grill is manufactured for outdoor use only. For grills that are to be used at elevations above 2,000ft (609.6 m)
orifice conversion is required. See “ Gas Supply Requirements” section. It is the responsibility of the installer to comply with the
minimum installation clearances specified on the model/serial rating plate. The model/serial rating plate for freestanding models
can be found on the inside cabinet door.
3.Open lid.
4.If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this or
any other appliance.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
In the State of Massachusetts, the following installation instructions apply:
Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
If using a ball valve, it shall be a T-handle type.
A flexible gas connector, when used, must not exceed 3 feet.
3

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock,
Injury to persons, or damage when using the outdoor cooking
gas appliance, follow basic precautions, including the following:
Do not install portable or built-in outdoor cooking gas
appliances in or on a recreational vehicle, portable trailer,
boat or in any other moving installation.
Always maintain minimum clearances from
combustible construction, see “ Location
Requirements” section.
The outdoor cooking gas appliance shall not be located
under overhead unprotected combustible construction.
This outdoor cooking gas appliance shall be used only
outdoors and shall not be used in a building, garage, or
any other enclosed area.
Keep any electrical supply cord and fuel supply hose
away from any heated surfaces.
Keep outdoor cooking gas appliance area clear and
free from combustible material, gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of combustion and ventilation
air. Keep the ventilation openings of the cylinder
enclosure free and clear from debris.
Open the cabinet door and Inspect the gas cylinder supply
hose before each use of the outdoor cooking gas appliance.
If the hose shows excessive abrasion or wear, or is cut, it
MUST be replaced before using the outdoor cooking gas
appliance. Contact your dealer and use only replacement
hoses specified for use with the outdoor
cooking gas appliance.
The LP gas supply cylinder to be used must be:
- constructed and marked in accordance with the
Specification for LP Gas cylinders of the U.S. Department
of Transportation (DOT) or the National Standard of
Canada, CAN/CSA-b339, Cylinders, Spheres, and Tubes
for Transportation of Dangerous Goods; and Commission.
- provided with a listed overfilling prevention device.
- provided with a cylinder connection device compatible with
the connection for outdoor cooking gas appliances.
Always check connections for leaks each time you connect
and disconnect the LP gas supply cylinder. See “Installation
Instructions” section.
When the outdoor cooking gas appliance is not in use, the
gas must be turned off at the supply cylinder.
Storage of an outdoor cooking gas appliance indoors is
permissible only if the cylinder is disconnected and removed
from the outdoor cooking gas appliance Cylinders must be
stored outdoors and out of the reach of children and must
not be stored in a building, garage, or any other enclosed
area.
The pressure regulator and hose assembly supplied with the
outdoor cooking gas appliance must be used. A replacement
pressure regulator and hose assembly specific to your model
is available from your outdoor cooking gas appliance dealer.
Gas cylinder must include a collar to protect the cylinder
valve.
For appliances designed to use a CGA791 Connection:
Place a dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on the

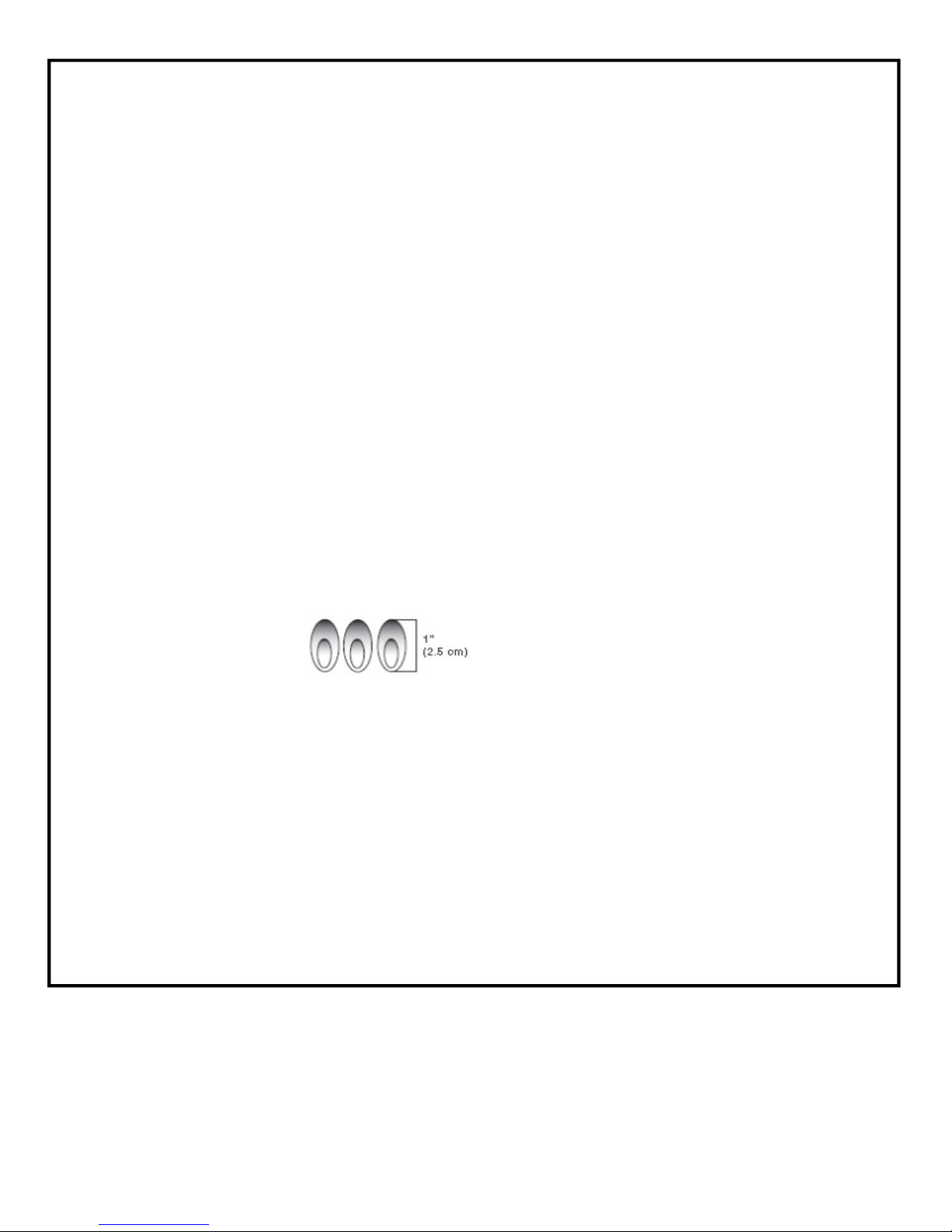

Visually check the burner flames.
They should be blue. Slight
yellow tipping is normal for
LP gas. The flames should
Be approximately 1" (2.5 cm) high.
Check and clean burner/venturi tube for insects and
insect nest. A clogged tube can lead to fire under the
outdoor cooking gas appliance.
cylinder valve outlet that is provided with the cylinder valve.
Other types of caps or plugs may result in leakage of
propane.
If the following information is not followed exactly, a fire
causing death or serious injury may occur.
Do not store a spare LP gas cylinder under or near this
outdoor cooking gas appliance.
Never fill the cylinder beyond 80 percent full.
SAVE THESE INSTRUCTIONS
4

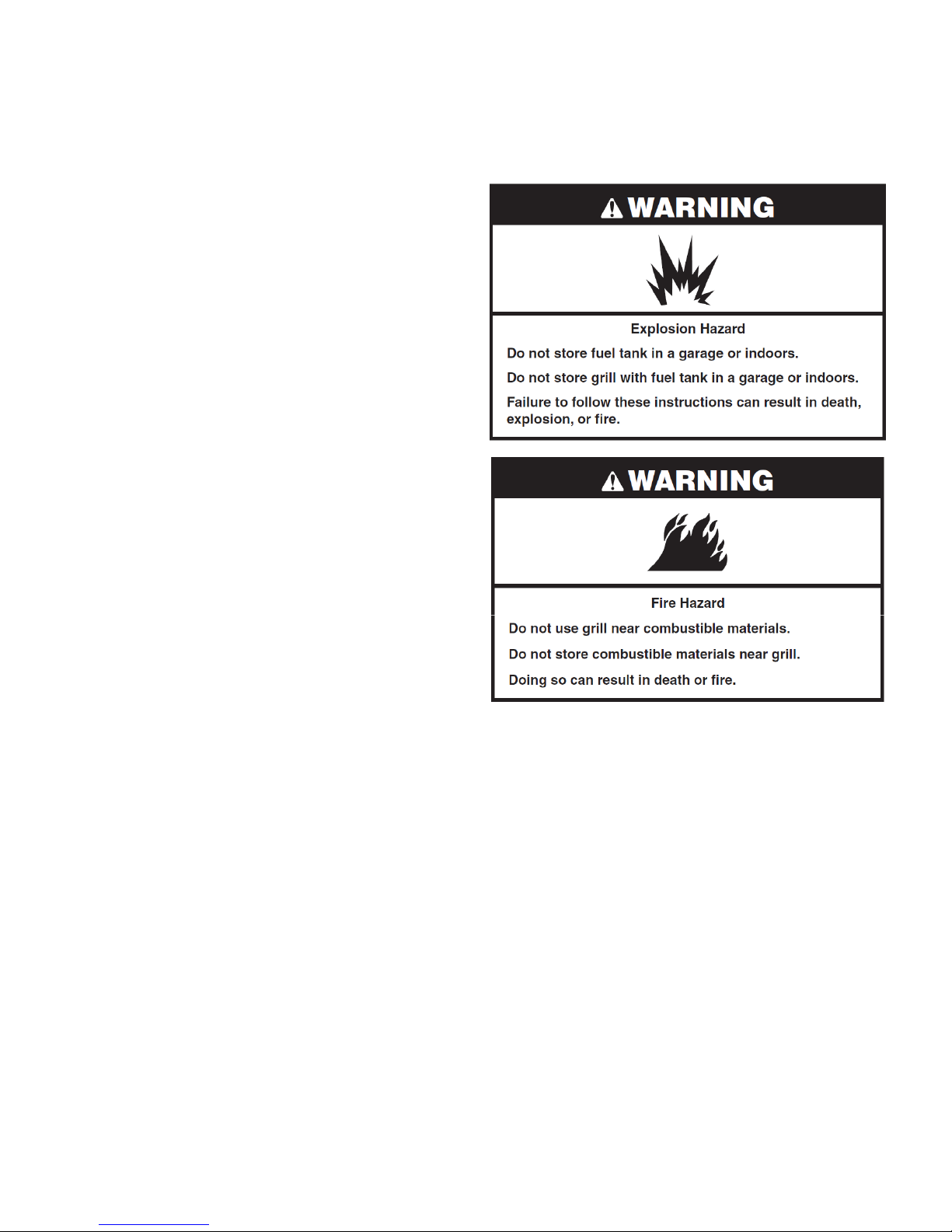

Installation Requirements
Tools and Parts
Gather these required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Location Requirements

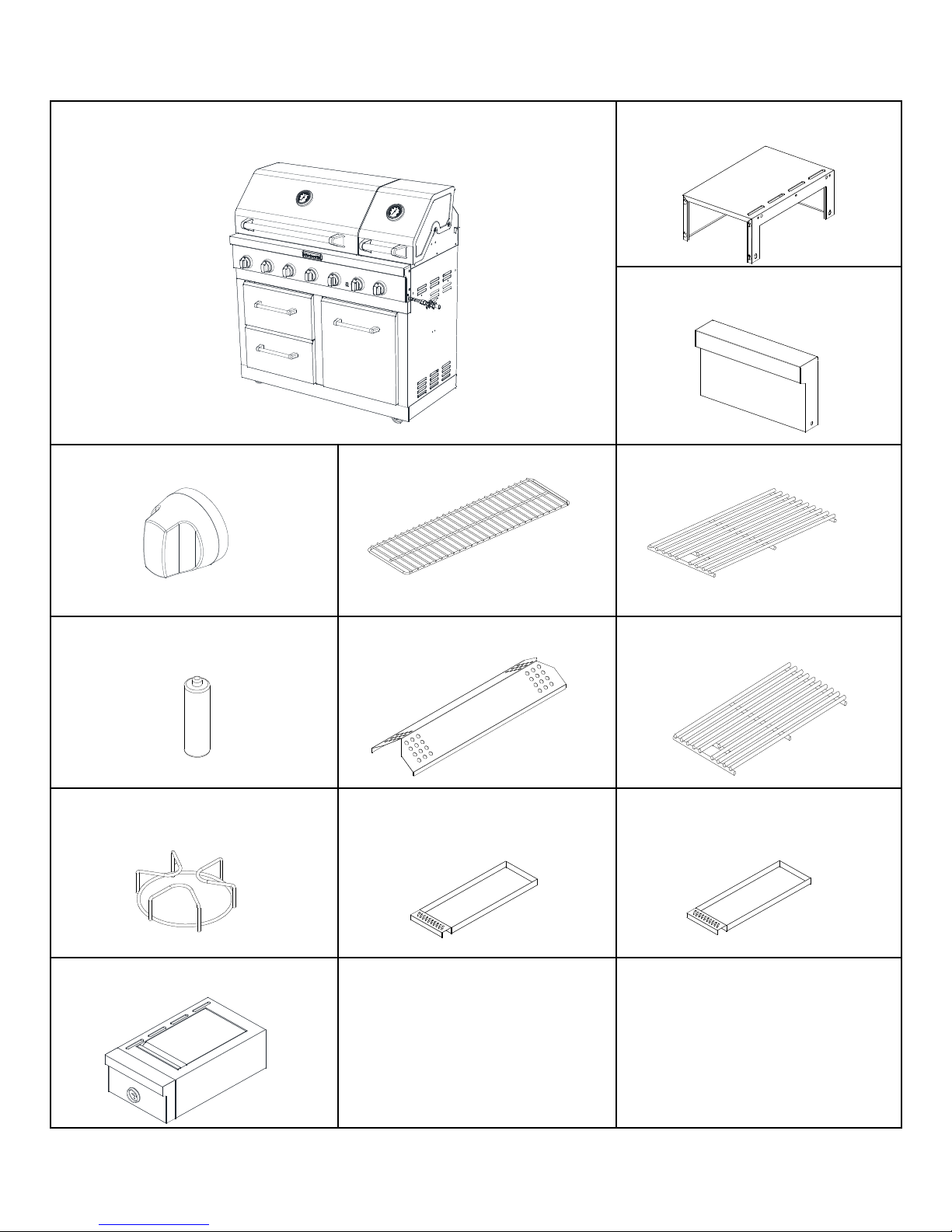

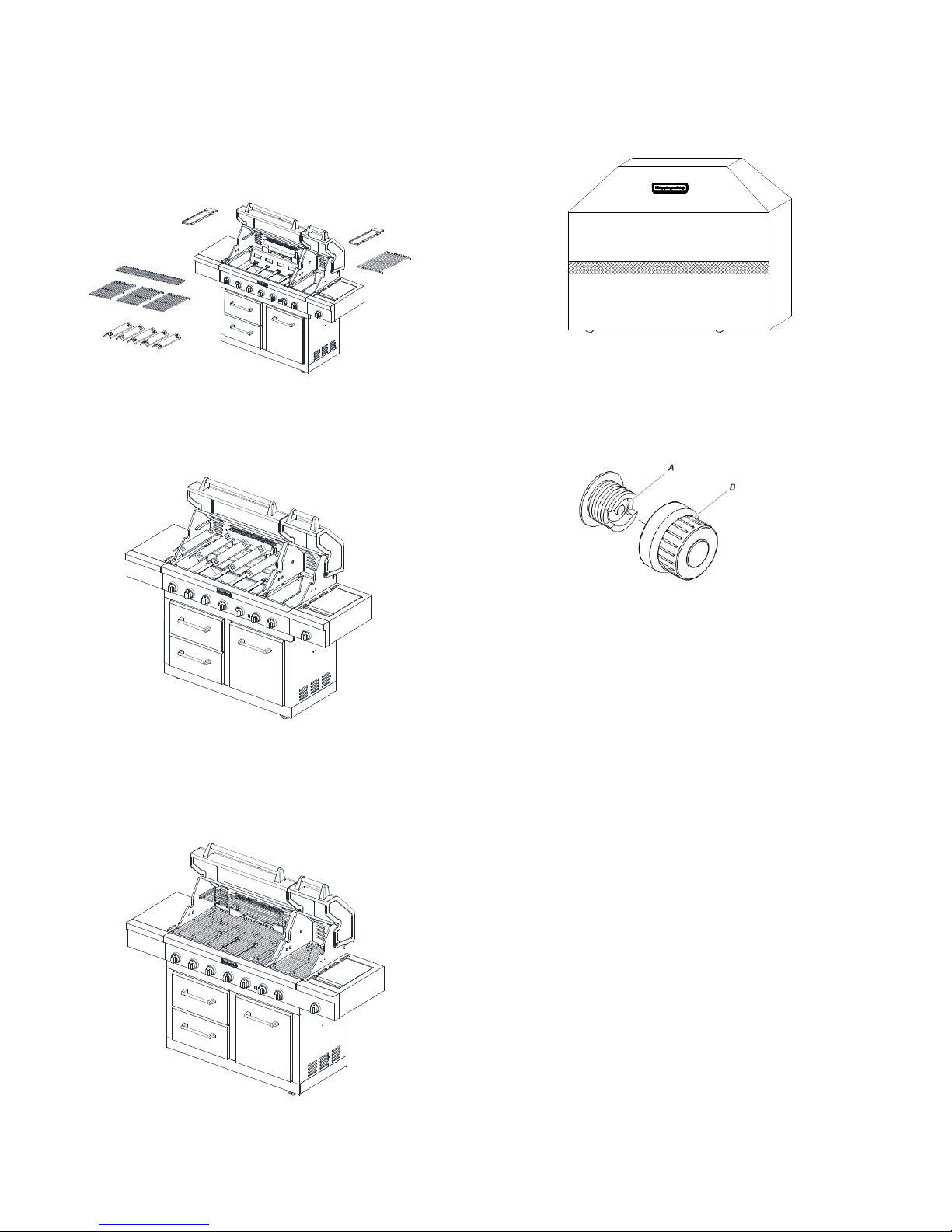

Parts Supplied
Gas pressure
regulator/hose assembly
set for 11” WCP LP gas
Side shelf, left
Side burner assembly
“AA” Battery (1)
Tools needed
Phillip screwdriver
Wrench or pliers
Pipe wrench
Scissors or cutting pliers (to
remove tie-downs)
Noncorrosive leak-detection
solution
Parts Needed
Warming rack
Cooking grids with hole
Main burner grease tray
Sear burner grease tray
Flame tamers
Natural gas orifice for sear
burner, side burner and rear
burner
Parts Needed
20 lb LP gas fuel tank-approximately 18” (45.7cm) height.
Parts Needed for Conversion to Natural Gas
Natural gas conversion kit Part Number 710-0003. See
“Assistance” section to order. The conversion kit includes:
• Natural gas regulator 4" W.C. (marked “Natural Gas
Regulator”)
• 10 ft (3.0 m) Natural gas hose with quick connector
• 5.9" (150 mm) Natural gas regulator hose
• 6 mm nut driver
• 6 mm wrench
• Hex key
Gas line shutoff valve
1/2" male pipe thread nipple for connection to pressure regulator.
LP gas-resistant pipe-joint compound
CSA design-certified outdoor flexible stainless steel appliance
connector (4-5 ft [1.2-1.5 m]) or rigid gas supply line as needed.
Select a location that provides minimum exposure to wind
and traffic paths. The location should be away from strong
draft areas.
Do not obstruct flow of combustion and ventilation air.
Clearance to combustible construction for grill:
A minimum of 24” (61 cm) must be maintained between
the front of the grill hood, sides and back of the grill
and any combustible construction.
A 24” (61 cm) minimum clearance must also be
maintained below the cooking surface, and the grill
shall not be used under overhead combustible
construction.
5

Product Dimension
A. Model/Serial number plate
A
Electrical Requirements
Unplug from the outlet when not in use and before cleaning.
Allow to cool before attaching or taking off parts.
Do not operate any outdoor cooking gas appliance with a
damaged cord, damaged plug, or after the appliance
malfunctions or has been damaged in any manner. Contact the
manufacturer for repair.
Do not let the cord hang over the edge of a table or touch hot
surfaces.
Do not use an outdoor cooking appliance for purposes other
than intended.
When connecting, first connect plug to the outdoor cooking gas
appliance then plug appliance into the outlet.
Use only a Ground Fault Interrupter (GFI) protected circuit with
this outdoor cooking gas appliance.
Do not remove the ground prong or use with an adapter of 2
prongs.
Use extension cords with a 3 prong grounding plug rated for
the power of the equipment and approved for outdoor use with
a W-A marking.

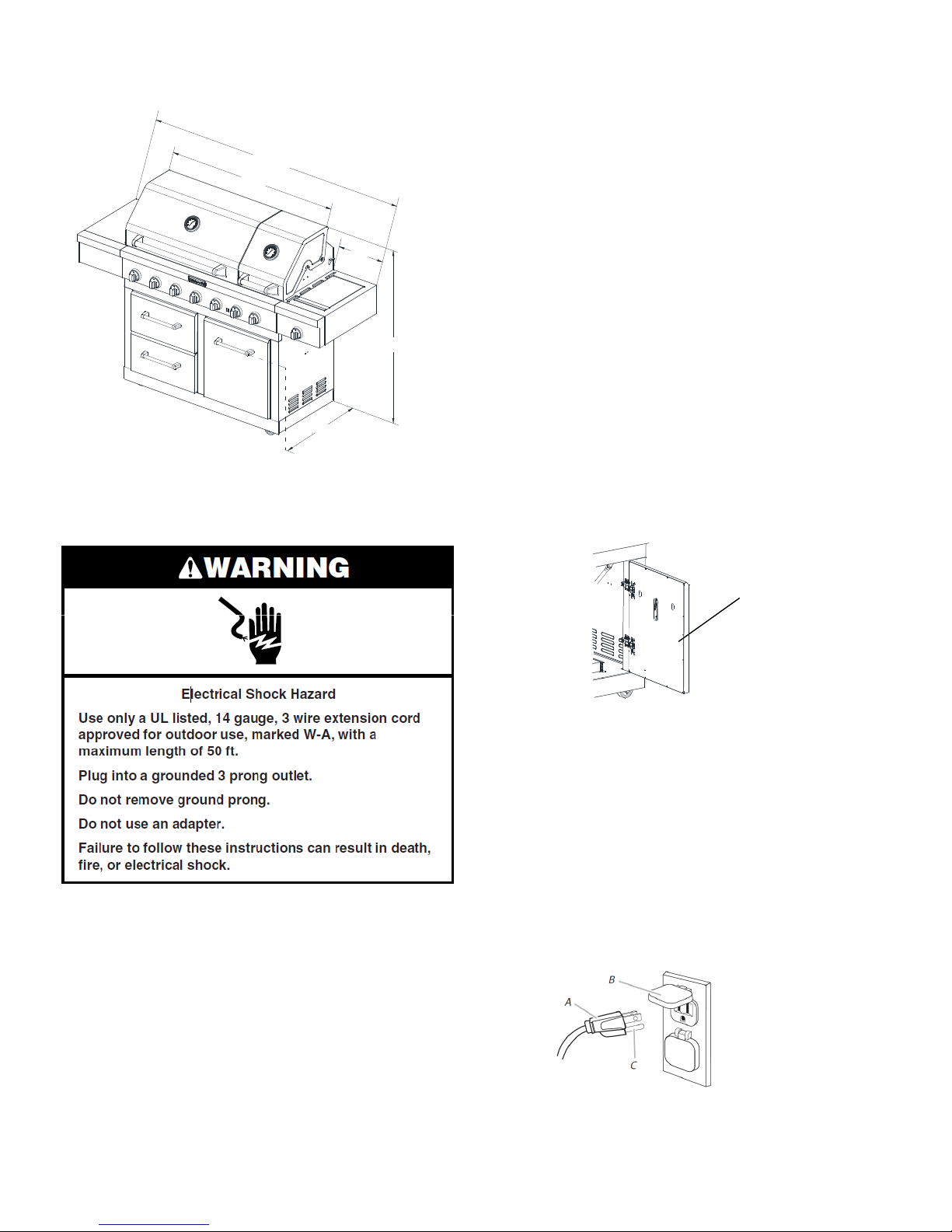

The model/serial number rating plate is located on the inside of the
left cabinet door. See the following illustration.
253/5"(65CM)
484/5"(124CM)
123/5"(32CM)
46"(117CM)
703/10"(178.5CM)
Electrical Requirements
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
Check with a qualified electrician if you are not sure whether the
grill is properly grounded.
A 120-volt, 60-Hz, AC-only, 15-amp, fused electrical supply is
required.
It is recommended that a separate circuit servicing only this grill
be provided.
To avoid electrical shock, do not immerse cord or plugs in
water or other liquid.
Recommended Ground Method
The outdoor grill, when installed, must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electrical Code ANSI/NFPA 70, or
Canadian Electrical Code, CSA C22.1.
Copies of the standards listed above may be obtained from:
CSA International
8501 East Pleasant Valley Rd.
Cleveland, Ohio 44131-5575
National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269
A. 3-prong ground plug
B. 3-prong polarized type outdoor GFI outlet
C. Ground prong
6

Gas Supply Requirements
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes
and ordinances. In the absence of local codes, installation must
conform with either the National Fuel Gas Code, ANSI
Z223.1/NFPA54, Natural Gas and Propane Installation Code,
CSA B149.1, Propane Storage And Handling Code, B149
.2, or
CSA B149.1, Propane Storage And Handling Code, B149.2, or
the Standard for Recreational Vehicles, ANSI A119.2/NFPA
1192 and CSA Z240 RV Series Recreational Vehicle Code as
applicable.
IMPORTANT: Grill must be connected to a regulated gas supply.
Refer to the model/serial rating plate for information on the type
of gas that can be used. If this information does not agree with
the type of gas available, check with your local gas supplier.
Gas Conversion:
No attempt shall be made to convert the grill from the gas
specified on the model/serial rating plate for use with a different
gas type without consulting the serving gas supplier. The
conversion kit supplied with grill must be used. See “Gas
Conversions” section for instructions.
Gas Pressure Regulator
The gas pressure regulator supplied with this grill must be used.
The inlet (supply) pressure to the regulator should be as follows
for proper operation:
LP Gas:
Operating pressure: 11" (27.9 cm) WCP
Inlet (supply) pressure: 11" to 14" (27.9 cm to 35.5 cm) WCP
Natural Gas:
Operating pressure: 4" (10.2 cm) WCP
Inlet (supply) pressure: 7" to 14" (17.8 cm to 35.5 cm) WCP
maximum.
Contact local gas supplier if you are not sure about the inlet
(supply) pressure.
7

20 lb LP Gas Fuel Tank
This grill is equipped for use with a 20 lb LP gas fuel tank (fuel
tank not supplied). A gas pressure regulator/hose assembly is
supplied.
Any brand of 20 lb LP gas fuel tank is acceptable f
or use with the
Burner Requirements for High Altitude
Input ratings shown on the model/serial rating plate are for
elevations up to 2,000 ft (609.6 m).
For elevations above 2,000 ft (609.6 m), ratings are reduced at a
rate of 4% for each 1,000 ft (304.8 m) above sea level. Orifice
conversion is required. See “Assistance” section to order.
Gas Supply Line Pressure Testing
Testing above 1/2 psi (3.5 kPa) or 14" (35.5 cm) WCP (gauge):
The grill and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing of
that system at test pressures greater than 1/2 psi (3.5 kPa).
Testing below 1/2 psi (3.5 kPa) or 14" (35.5 cm) WCP (gauge)
or lower:
The grill must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psi (3.5 kPa).

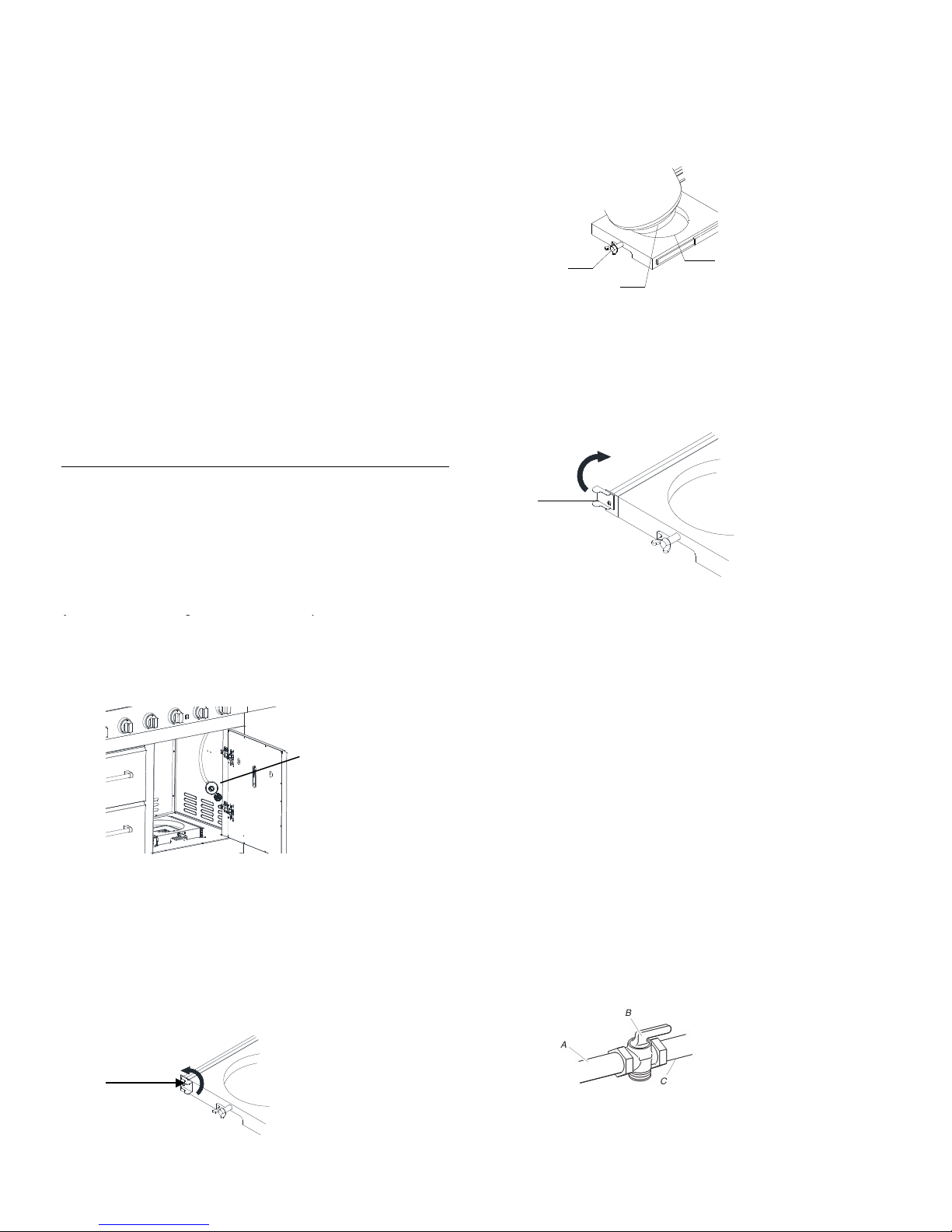

3. Place the 20 lb LP gas fuel tank bottom collar into the
mounting hole in the tank tray.
4. Tighten the locking screw against the bottom collar of the
Natural Gas Conversion 20 lb LP gas fuel tank to secure.
5. Slide the drawer with the 20 lb LP gas fuel tank back into
the cabinet. Turn the tank tray locking bracket clockwise 90˚
to tighten.
A
A. Tank tray locking bracket
Gas Connection Requirements
A. Locking screw
B. Mounting hole
C. Bottom collar
A
C
B
Any brand of 20 lb LP gas fuel tank is acceptable for use with the
grill, provided that it is compatible with the grill’s retention means
(tank tray included).
It is also design-certified by CSA International for local LP gas
supply or for Natural gas with appropriate conversion.
The 20 lb LP gas fuel tank must be mounted and secured.

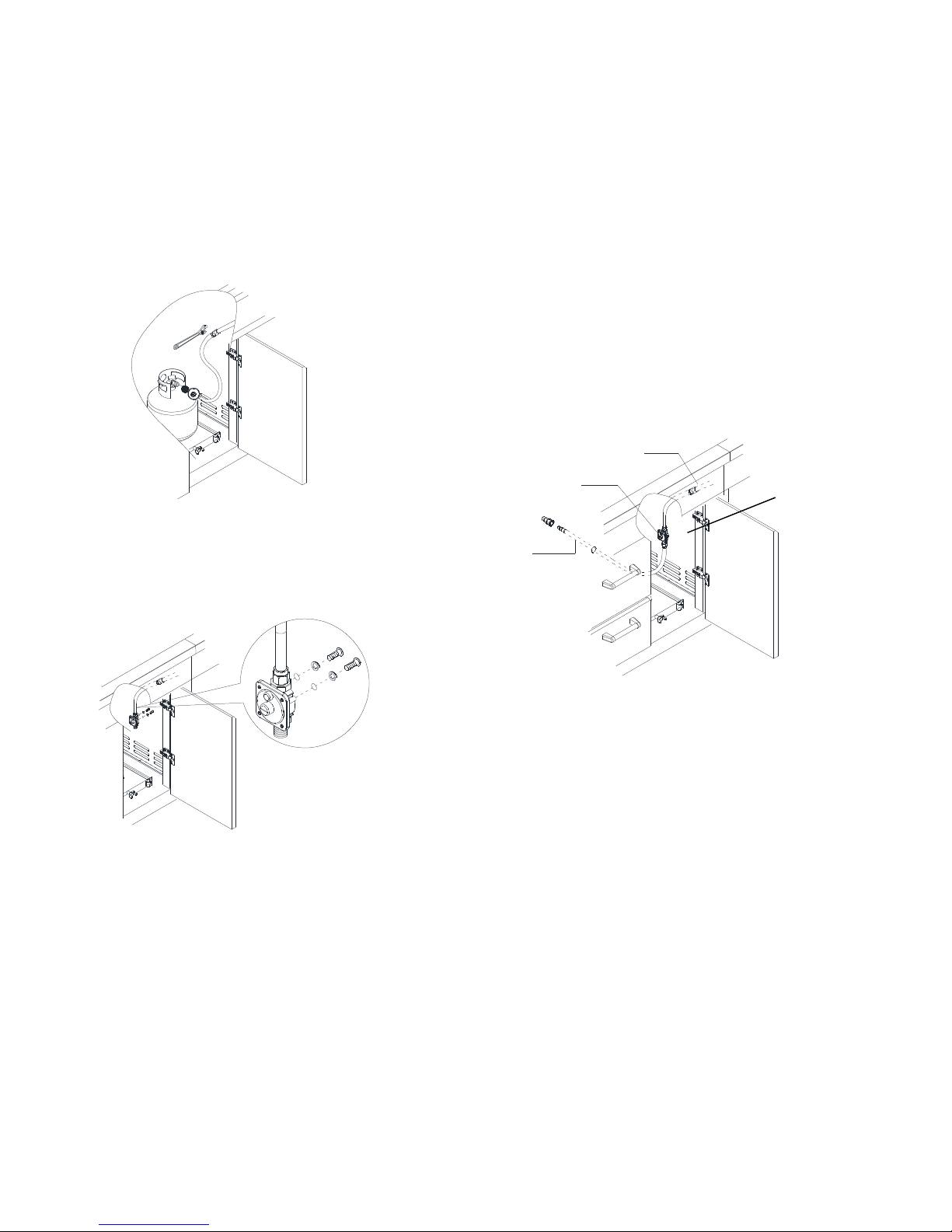

Door style Tank Tray
1. Open cabinet doors.
2. Slide the tank tray locking bracket counterclockwise
90˚ and pull out the tray.
A. Gas pressure regulator/hose assembly
A
A. Tank tray locking bracket
A
Natural Gas Conversion
The qualified Natural gas technician shall provide the Natural
gas supply to the selected grill location in accordance with the
National Fuel Gas Code ANSI Z223.1/NFPA 54 - latest edition,
and local codes. For conversion to Natural gas, the Natural Gas
Conversion Kit supplied with the grill (on some models) or the
Natural Gas Conversion Kit Part Number 710-0003 must be
used. See “Assistance” section for information on ordering.
IMPORTANT: The gas installation must conform with local
codes, or in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 - latest edition.
Follow instructions for converting to Natural gas in the “Gas
Conversions” section of this manual or the instructions supplied
with Natural Gas Conversion Kit Part Number 710-0003.
The gas supply line shall be equipped with an approved shutoff
valve. This valve should be located in the same area as the grill
and should be in a location that allows ease of opening and
closing. Do not block access to the shutoff valve. The valve is
for turning on or shutting off gas to the grill.
A. Gas supply line
B. Shutoff valve “open” position
C. To grill
8

A. Firebox assembly-—1pc
D. Control knob—1pc E. Warming rack—1pc F. Cooking grid with hole—3pcs
B. Left side shelf—1pc
PACKAGE CONTENTS LIST
C. Side shelf control panel—
1pc
M. Side burner bowl
assembly—1pc
H. Flame Tamer—5pcsG. Battery—1pc I. Sear burner cooking grid --1pc
J. Side burner cooking grid --1pc K. Main burner grease tray– 1pc L. Sear burner grease tray– 1pc
9

1
2
3
3
44
5
5
6
7
7
88
9
10
11
12
13
14 15
16
17
18
19
20
22
21
23
24
25
31
30 29 28 28 27
33
34 35
35
34
37
36
39
38
72
40
48
49
46
47
43
44
50
51
57
52
54
70 69
68
67
71
53
53
56
55
73
82
83
74
75
59
61 60
63
26
65
62
66
64
41
42
45
32
118
58
Replacement Parts
113a
113b
113c
113d
113e
113g
113f
113
84
83
88
85
86
87
70
98
106
89 90 81 80
77
78
79
96
94
92
93
95
91
105
107
98 104 100
100
102
103 101 99
98
97
110
111
108
109
76
114a
114b
114c
114
NG Conversion Kit
94
10

Part List
Part
Number Part (description) Warranty
Coverage Quantity Part
Number Part description) Warranty
Coverage Quantity
1 Main lid 3 1 30 Main burner igniter wire C 1 1
2 Sear burner main lid 3 1 31 Main burner igniter wire D 1 1
3 Temperature gauge seat 1 2 32 Lamp case 1 1
4 Temperature gauge 1 2 33 Lamp 1 2
5 Main lid screw A 1 2 34 Main lid bracket seat, left 3 2
6 Main lid screw B 1 1 35 Main lid bracket seat, right 3 2
7 Main lid handle seat, left 1 2 36 Main burner bowl assembly Non-
replaceable 1
8 Main lid handle seat, right 1 2 37 Sear burner bowl assembly Non-
replaceable 1
9 Main lid handle tube 1 1 38 Sear burner grease tray 3 1
10 Sear main lid handle tube 1 1 39 Main burner grease tray 3 1
11 Rear baffle 1 1 40 Front baffle 1 1
12 Rear burner heat shield 3 1 41 Side burner orifice brass
connector 1 1
13 Rear burner 1 1 42 Side burner flex gas line A 1 1
14
Rear burner ignition wire
1
1
43
Side manifold
1
1
14
Rear burner ignition wire
1 1 43 Side manifold 1 1
15 Rear burner orifice with
brass elbow 11 44 LP regulator 1 1
16 Rear burner flex gas line 1 1 45 Side Burner flex gas line B 1 1
17 Rotisserie burner igniter
bracket 3 2 46 Sear burner gas valve 1 1
18 Side shelf, left 3 1 47 Rear burner gas valve 1 1
19 Side shelf front panel, left 3 1 48 Igniter junction wire 1 1
20 Warming rack 3 1 49 Main gas valve 1 5
21 Cooking grid with hole 3 3 50 Main manifold 1 1
22 Searing main burner
cooking grid 3 1 51 Main control panel 3 1
23 Flame tamer 3 5 52 Bezel 1 6
24 Sear burner 1 1 53 Knob 1 7
25 Main burner 10 5 54 Light switch 1 1
26 Burner pin assembly 1 5 55 Rear burner knob 1 1
27 Sear burner ignition wire 1 1 56 Rear burner bezel 1 1
28 Main burner igniter wire A 1 2 57 Logo 1 1
29 Main burner igniter wire B 1 1 58 Side burner gas valve 1 1
11

Part
Number
Part (description) Warranty
Coverage Quantity Part Number Part description)
Warranty
Coverage Quantity
59 Spit fork 1 2 94 Door hinge 1 4
60 Spit rod 1 1 95 Door hinge support bracket 1 1
61 Rotisserie motor 1 1 96 Side panel, right 1 1
62 Rotisserie motor bracket 3 1 97 Door 3 1
63 Shaft Collar 1 1 98 Door Handle 1 3
64 Side burner lid hinge rod 1 2 99 Gas tank tray slide bracket, right 1 1
65 Side burner lid 3 1 100 Gas tank tray slide 1 2
66 Side burner lid hinge rod pin 1 2 101 Tank bolt 1 1
67 Side burner bowl assembly 3 1 102 Gas tank tray 1 1
68 Side burner 1 1 103 Gas tank tray block piece 1 1
69 Side burner ignition wire 1 1 104 Gas tank tray slide bracket, left 1 1
70 Side burner cooking grid 3 1 105 Drawer slide 1 2
71 Side burner front panel 3 1 106 Small door 3 1
72 Lamp cord 1 1 107 Drawer 3 1
73 Heat shield, right 1 1 108 Swivel caster with brake 1 1
74 Igniter wire cover A 1 1 109 Swivel caster 1 1
75 Rear panel 1 1 110 Bottom panel 1 1
76 Rubber grommet 1 2 111 Caster 1 2
77 Power cord buckle 1 1 112 Manual
78 Igniter wire cover B 1 1 113 NG conversion Kit
NG conversion kit sold
separately as a set
79 Transformer 1 1 113a NG regulator assembly for NG unit 1
80 Electronic igniter modular 1 1 113b NG Gas Hose with Quick Connector
assembly for NG unit 1
81 Clapboard B 1 1 113c 6mm Nut Driver 1
82 Heat shield, left 1 1 113d Hex Wrench 1
83 Door hinge support bracket
strengthen piece 1 2 113e 6mm Wrench 1
84 Firebox support piece A 3 1 113g Truss Head Screw 2
85 Drawer support piece 1 1 113f Flat Washer 2
86 Small door support piece 1 1 114 NG orifice pack 1
87 Side panel, left 1 1 114a
Side burner NG orifice (1.7mm) 1
88 Cart frame 1 1 114b Rear burner NG orifice (1.84mm) 1
89 Clapboard A 1 1 114c Sear burner NG orifice (1.98mm) 1
90 Door magnet 1 2 Preassembly hardware pack 1
91 Cart frame, middle 3 1 1
92 Lighting rod cover 1 1
93 Lighting Rod 1 1
12
118 Firebox connecting bracket

INSTALLATION INSTRUCTIONS
Freestanding Outdoor Grill Installation
Unpack Grill
1. Remove all packaging materials and remove grill from
the shipping base.
2. Move grill close to desired outdoor location.
3. Open the grill hood.
Remove Packaging Material Inside the Grill
Attach side burner assembly
1. Unpack the side burner assembly.
2. Loosen and remove 3 screws on left side burner.
3. Loosen but do not remove the 2 screws on the side panel
(A), remove the screw on the main control panel (B).
A
1. Use a utility knife to cut straps and packing tape to
open box from top and remove the boxes.
2. Remove the warming shelf and grill grates from inside
the grill and remove the package inside the firebox.
3. Remove foam block and wrap from inside the grill.
4. Remove the cooking grids with hole.
5. Remove warming rack on brackets as
shown.
IMPORTANT: This step is meant to help with the
installation, but do not depend solely on the two
screws to hold the weight of the side shelf.
B
4. Align slots on the side shelf with the loosened screws.
Hook the side burner onto the two loosened screws and let
the shelf slide down so the screws are in the narrow neck
of the slots.
13

5. Attach the top of the side burner shelf to the grill firebox
by inserting three screws into the side burner shelf from
inside the grill firebox and tighten. See (A) below.
6. Attach the bottom of the side burner shelf to the side
panel of the grill by tightening the two screws inserted
in the keyhole slots in Step 3. See (B) below.

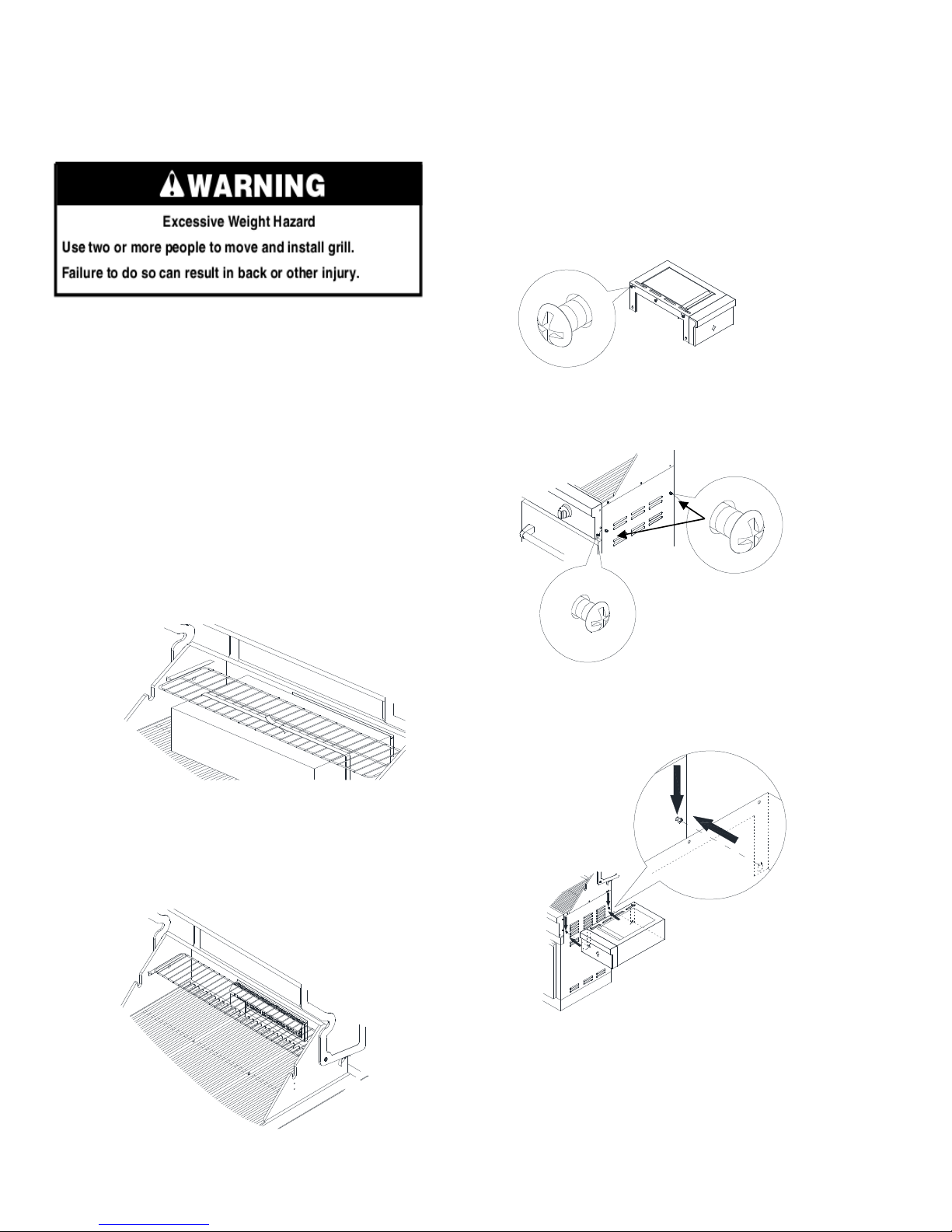

7. Attach the right side burner shelf to the control panel by
inserting the screw which was removed from step 3 and
tighten, see (C) below.
A B

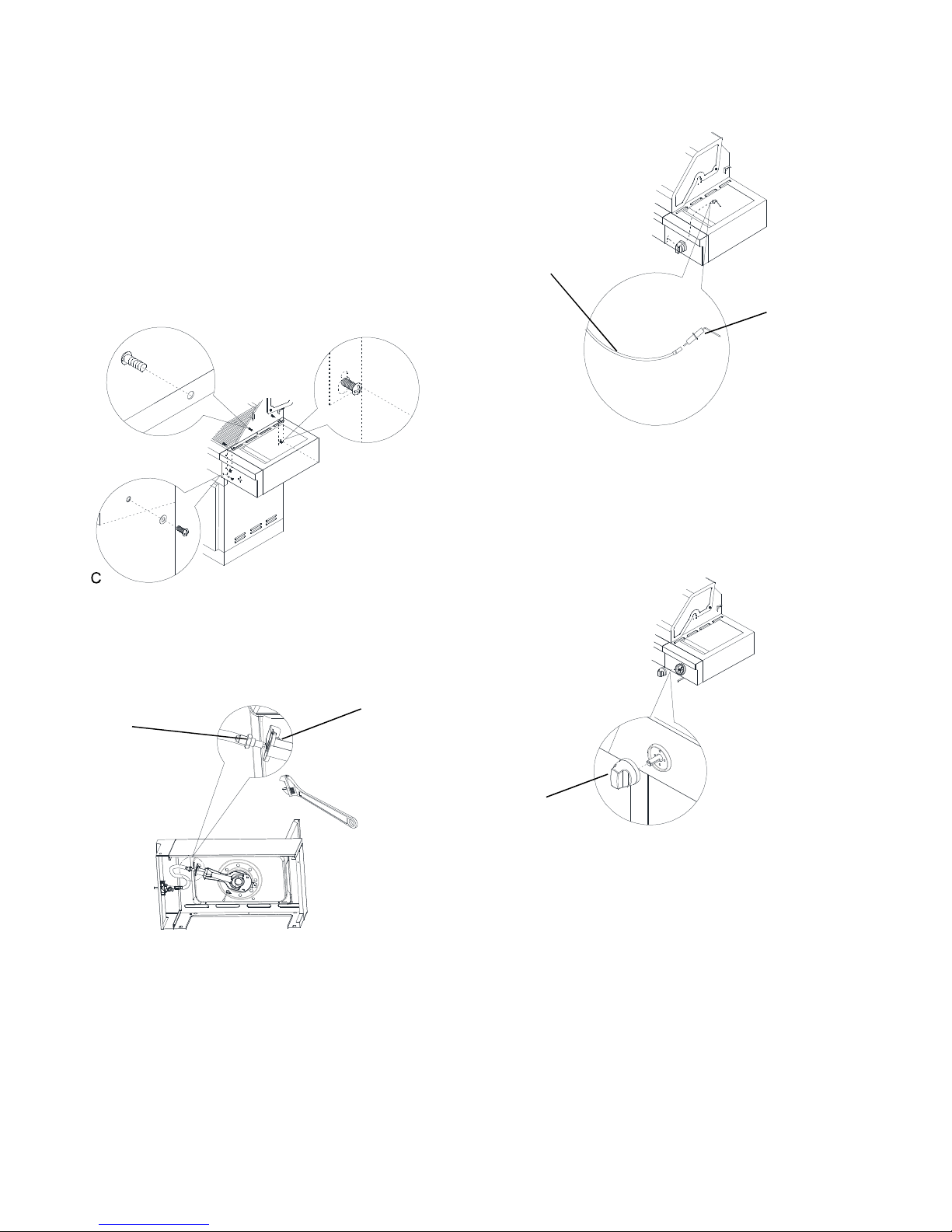

9. Connect side burner igniter wire to underside of side burner.
10. Insert the valve stem into the knob and push knob into
place.
A
B
A. Side burner igniter wire from grill
B. Side burner ignition pin
8. Attach side burner orifice brass connector to side
burner tube with preassembled brass screw then
tighten by wrench.
B
A
A. Side burner orifice brass connector
B. Side burner tube
A
A. Control knob
14

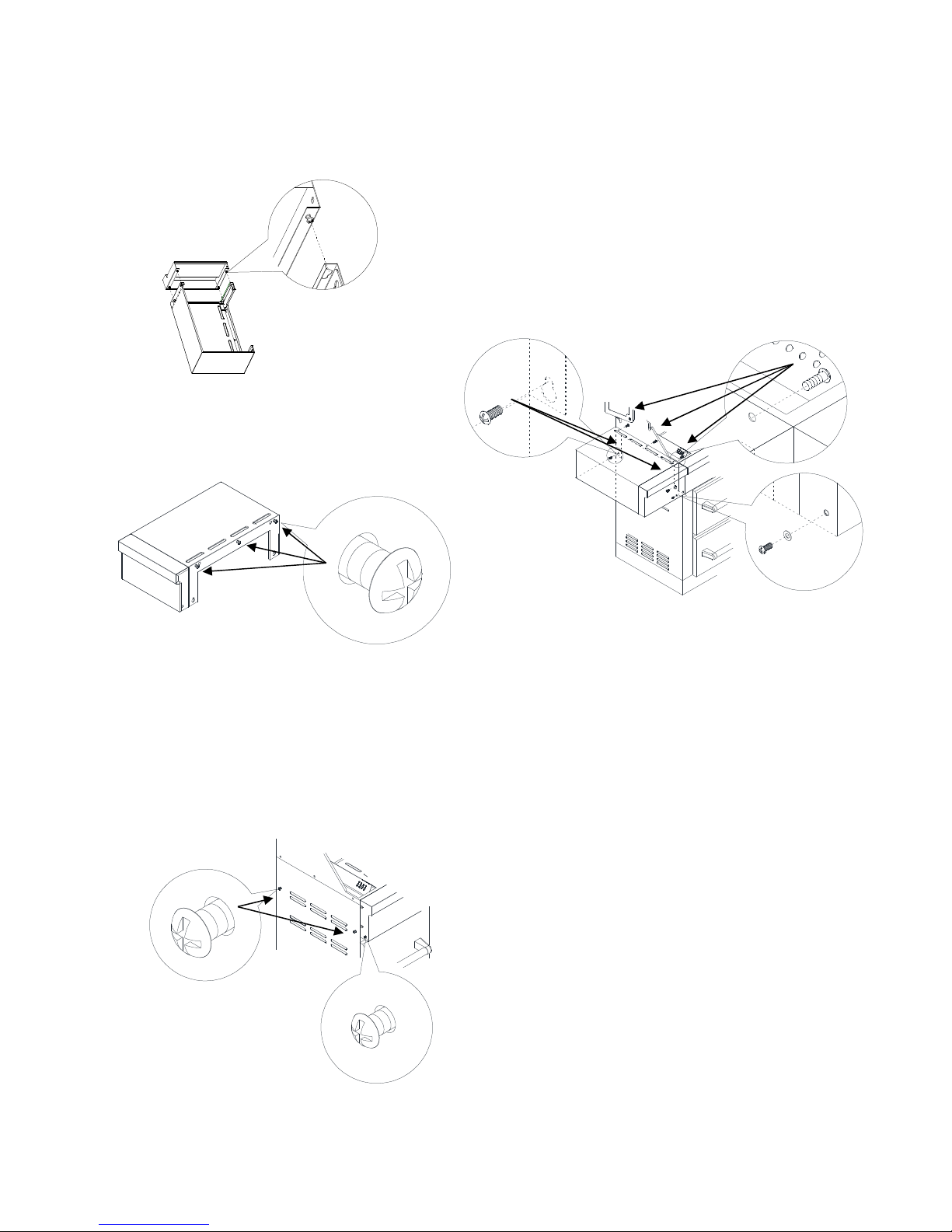

4. Align the bottom keyhole slots on the side shelf, left
with the loosened screws. Hook the side shelf, left onto
the two loosened screws and let the shelf slide down so
the screws are in the narrow neck of the slots, Tighten
these two screws, see below (A)
5. Attach 3 screws from firebox inside to side shelf, and
tighten, see below (B).
6. Attach the side shelf, left to the main control panel by
inserting the screw which was removed from Step 2
and tighten, see (C) below.
A
B
C
Attach Left Side Shelf
1. 1. Unpack side shelf, left and side shelf front
panel, left. Attach side shelf front panel, left with the
preassembled screws to the side shelf, left using
the pre-drilled holes, and tighten.
2. 2. Loosen but do not remove the 3 screws on the
side shelf, left.
IMPORTANT: This step is meant to help with the
installation, but do not depend solely on the two
screws to hold the weight of the side
shelf.
A
3. 3. Loosen but do not remove the 2 screws on the
side panel, left (A). Remove the screw on main
control panel (B).
B
15

Spare Parts Assembly
1. Unpack the main burner grease tray and searing burner grease
tray, 5 flame tamers, 3 cooking grids, warming rack, and sear
burner cooking grid.
2. Put the flame tamers on the indentations in firebox.
Igniter Battery Assembly
1. Unscrew igniter button cap counterclockwise to remove.
2. Place the battery in, negative end first, and screw the
igniter button cap clockwise.
A. “AA” sized battery
Cover your grill
Once your grill has cooled down, cover the grill between
uses. See below picture.
3. Then put on the cooking grids, and warming rack.
B. Igniter cap
16

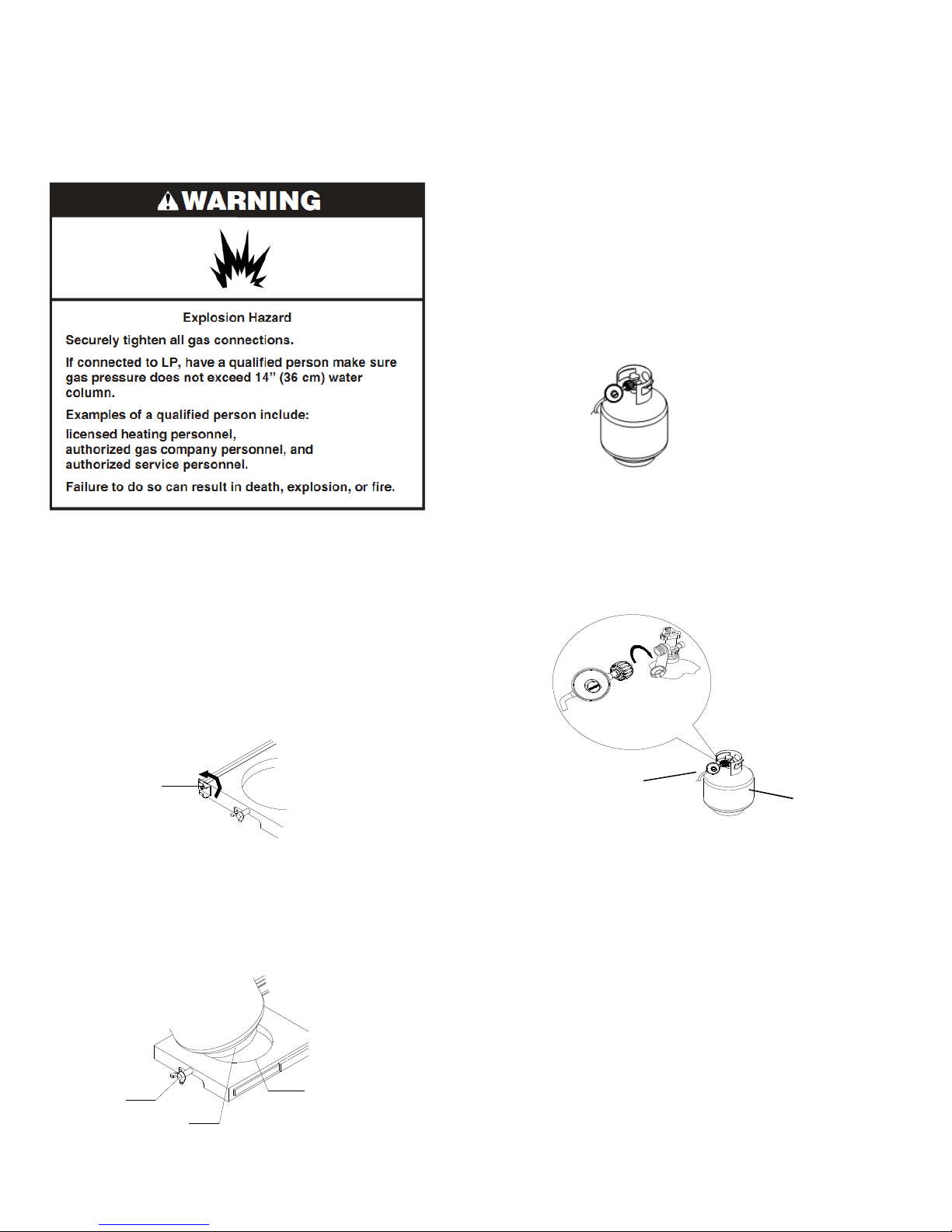

Make Gas Connection
NOTE: If grill is to be converted to Natural gas, follow
instructions in the “Gas Conversions” section.
20 lb LP Gas Fuel Tank
To Connect the 20 lb LP Gas Fuel Tank:
1. Check that the 20 lb LP gas fuel tank is in the “Off” position.
If not, turn the valve clockwise until it stops.
2. Check that the 20 lb LP gas fuel tank valve has the proper
type-1 external male thread connections per ANSI Z21.81.
3. Check that the burner control knobs are in the “Off” position.
4. Remove any debris and inspect the valve connections, port,
and gas pressure regulator/hose assembly for damage.
NOTE: Always keep the LP cylinder at 90°(upright) orientation
to provide vapor withdrawal.
5. Using your hand, turn the gas pressure regulator/hose
assembly clockwise to connect to the 20 lb LP gas fuel tank
as shown.
Hand tighten only. Use of a wrench could damage the quick
coupling nut.
LP Gas:
IMPORTANT: A 20 lb LP gas fuel tank must be purchased
separately.
IMPORTANT: The gas pressure regulator/hose assembly
supplied with the grill must be used. Replacement gas pressure
A. Gas pressure regulator/hose assembly
B. 20 lb LP gas fuel tank
A
B

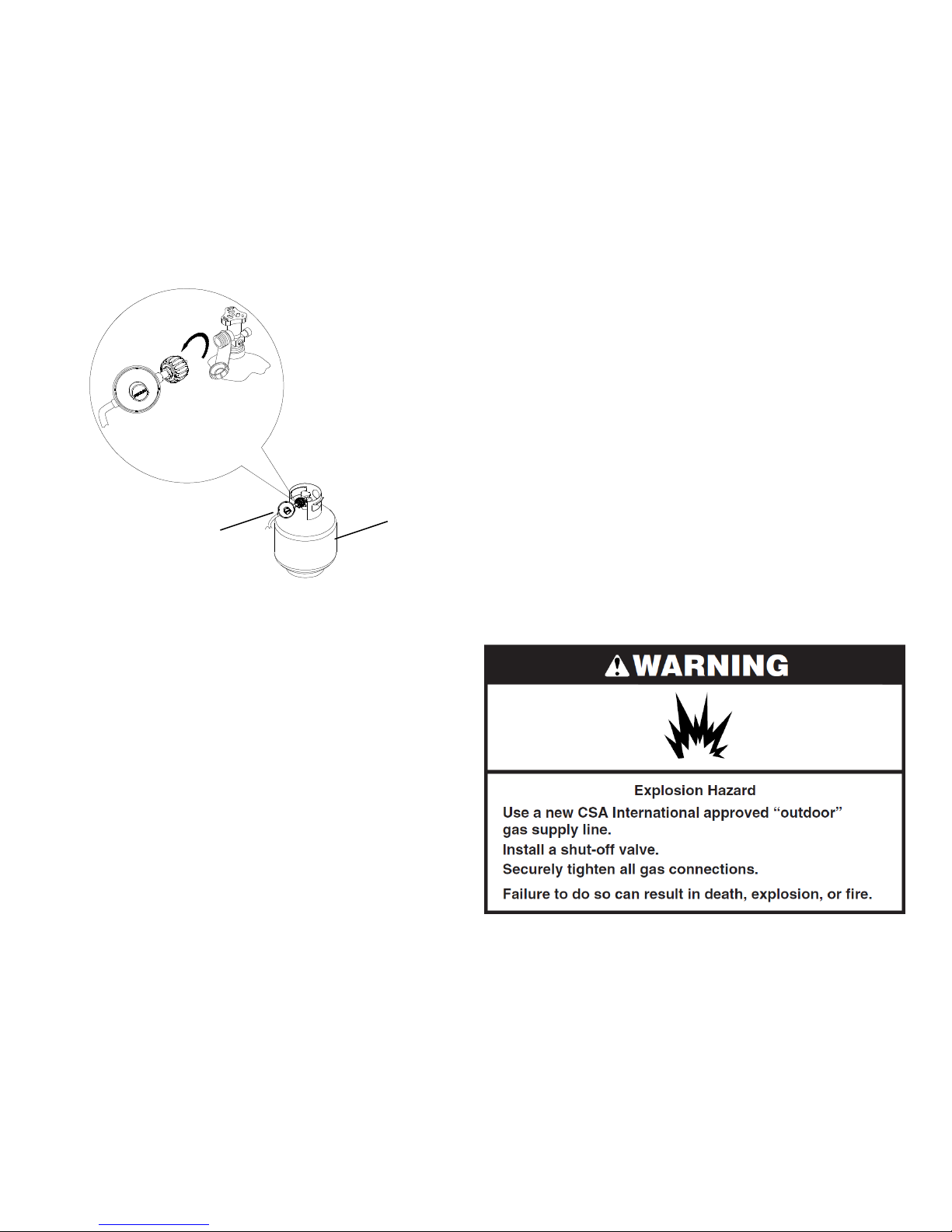

Make sure that the cylinder valve connection device
properly mates with the connection device attached to
the inlet of the pressure regulator.
6. Open the tank valve fully by turning the valve
counterclockwise. Wait a few minutes for gas to move
through the gas line.
7. Before lighting the grill, test all connections by brushing
on an approved noncorrosive leak-detection solution.
Bubbles will show a leak.
8. If a leak is found, turn the tank valve off and do not use
the grill. Contact a qualified gas technician to make
repairs.
9. Go to “Check and Adjust the Burners” section.
supplied with the grill must be used. Replacement gas pressure
regulator/hose assembly specific to your model is available from
your outdoor grill dealer.
Door Style Tank Tray
1. Open cabinet doors.
2. Slide the tank tray locking bracket counterclockwise 90º and
pull out the tray.
A. Tank tray locking bracket
A
3. Place the 20 lb LP gas fuel tank bottom collar into the
mounting hole in the tank tray.
4. Tighten the locking screw against the bottom collar of
the 20 lb LP gas fuel tank to secure.
AB
C
A. Locking screw
B. Mounting hole
C. Bottom collar
17

To Disconnect the 20 lb LP Gas Fuel Tank:
1. Check that the burner control knobs are in the “Off” position
and the grill is cool.
2. Check that the 20 lb LP gas fuel tank is in the “Off” position.
If not, turn the valve clockwise until it stops.
3. Using your hand, turn the gas pressure regulator/hose
assembly counterclockwise to disconnect to the 20 lb LP
gas fuel tank as shown.
Hand loosen only. Use of a wrench could damage the quick
coupling nut.
A
.
Gas
pressure
regulator/hose
assembly
AB
GAS CONVERSION
Tools and Parts for Gas Conversion
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Parts supplied
Natural gas orifices
Parts needed
Natural gas conversion kit Part Number 710-0003. See
“Assistance” section to order. The conversion kit includes:
Natural gas regulator 4" W.C. (marked “Natural Gas
Regulator”)
10 ft (3.0 m) Natural gas hose with quick connector
5.9" (150 mm) Natural gas regulator hose
6 mm nut driver
6 mm wrench
Hex key
IMPORTANT: Gas conversions must be done by a qualified installer.
Before proceeding with conversion, shut off the gas supply to the
Tools needed
Phillip screwdriver
Pipe Wrench
Adjustable wrench
6 mm socket and
wrench or 6 mm nut driver
Thin flat-blade screwdriver
Pliers
Pipe thread sealant certified
for LP gas
A
.
Gas
pressure
regulator/hose
assembly
B. 20 lb LP gas fuel tank
4. Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of dust cap on the valve outlet that is
provided with the cylinder valve. Other types of caps or plugs may
result in leakage of propane.
Before proceeding with conversion, shut off the gas supply to the
appliance.
18

1. A combination of pipe fittings must be used to connect the
grill to the existing gas line.
The 10 ft (3.0 m) PVC flexible gas supply hose design
certified by CSA must be used.
Pipe-joint compounds suitable for use with Natural gas
must be used. Do not use Teflon®+ tape.
There must be a certified manual shut-off valve in the
gas supply line near the grill for easy access.
2. Connect the brass connector on one end of the 10 ft (3.0 m)
PVC flexible gas supply hose to the Natural gas pressure
regulator.
3. Connect the quick connector on the other end of the 10 ft
(3.0 m) PVC flexible gas supply hose to the rigid Natural
gas supply pipe.
6. Use an adjustable wrench to install the Natural gas
regulator hose to the manifold and secure. Attach the
Natural gas regulator to the side panel inside the grill
cart with the two screws that are pre-assembled on the
regulator.
Conversion from LP Gas to Natural Gas
1. Turn off the main gas supply valve.
2. Disconnect 20 lb LP gas fuel tank (if present).
3. Turn off all burner control valves.
4. Remove the 20 lb LP gas fuel tank (if present) from the grill
cart.
5. Use an adjustable wrench to remove the LP regulator from
the manifold.
Installation of the regulator Make Gas Connection
A
C
DB
† ®Teflon is a registered trademark of E.I. Du Pont De Nemours
and Company.
A. Manifold
B. Right side panel
C.10 ft. (3.0 m) PVC gas hose
D. Natural gas pressure regulator/hose assembly
19

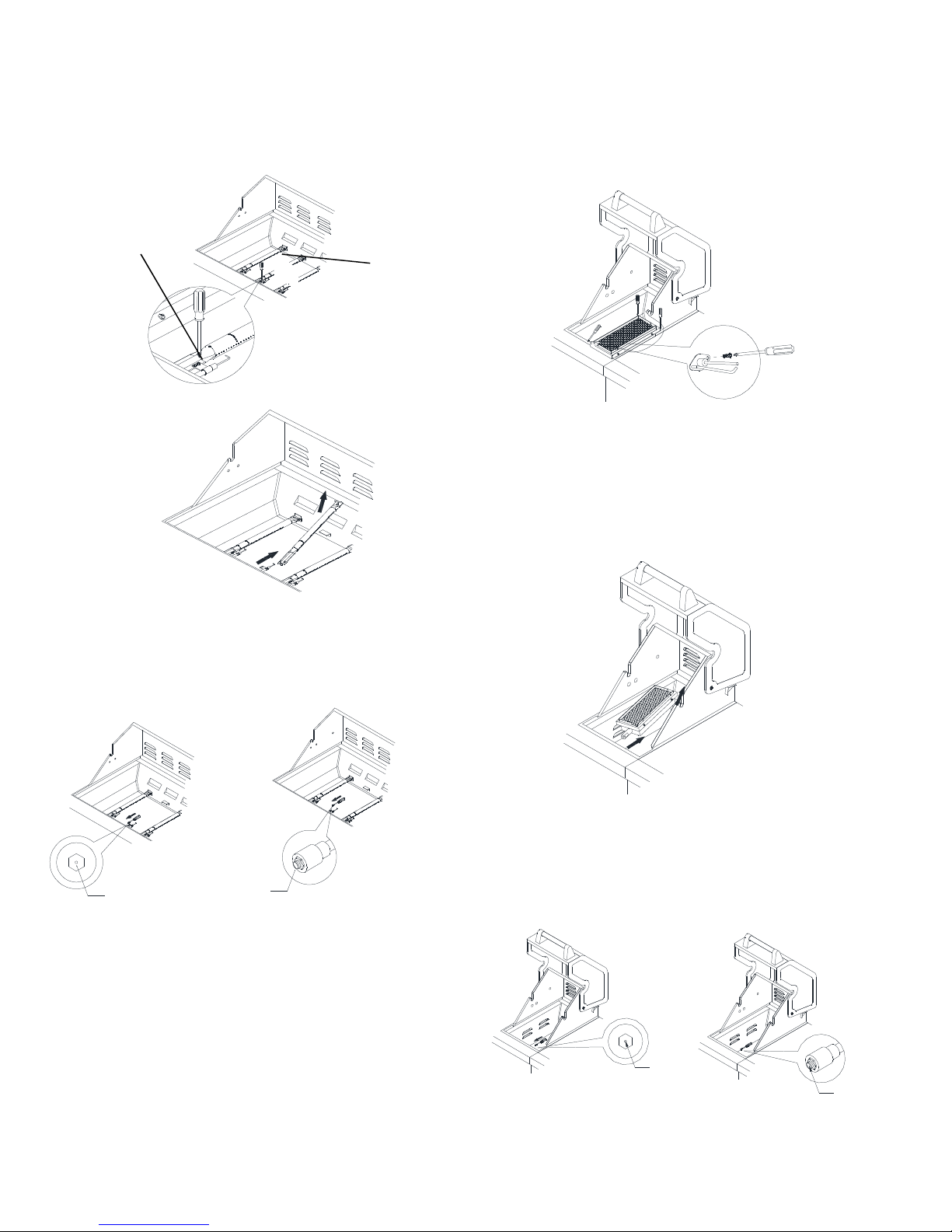

Change Grill Main Burner Valve Orifices
1. Remove the grates and flame tamers.
2. Remove 1 screw and cotter clip that hold the burner in place.
Set the screw and clip aside. Remove the burner from the grill
by lifting the burner out.
Change the Sear Burner Orifice
1. Remove the 2 screws securing the igniter and remove the
igniter from the side burner.
2. Remove the searing side burner screws. Set the screws
and cover aside.
A
B
A. Screw
B. Cotter Clip
3. Use a 6 mm socket and wrench or 6 mm nut driver to remove
the brass orifice from the end of each main gas valve. The
NG orifice is located behind the LP orifice, so no additional
orifice needs to be installed.
IMPORTANT: Check that the orifice is properly installed inside of
the burner opening.
4. Reinsert the burner and reattach using the screw and cotter
clip previously removed.
5. Position the igniter so that it is 1/8th" (6.0 mm) away from each
burner.
6. Repeat this process for each main burner.
LP Orifice
NG Orifice
3. Lift the searing side burner out of the grill.
4. Use 6 mm socket wrench or 6 mm nut driver to remove
the orifice. Replace with the Natural gas orifice.
NG Orifice
LP Orifice
20
