NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 Membrane, Switch
3183529 Black
3183530 White
3183531 Almond
2 3181889 Bracket, Mounting Switch Membrane
3 3181705 Microcomputer
3179117 Screw
5 3182985 Clip, Retainer
6 3182162 Trim, Door
7 Door, Latch Handle
3182152 Black
3182155 White
3182158 Almond
8 3183703 Trim, Panel
9 3185424 Bracket
3182939 Screw
10 3182149 Frame, Control Panel
11 3184567 Clip, Control Frame
FOLLOWING PARTS NOT ILLUSTRATED
LITERATURE PARTS
LIT3182131 Tech Sheet
LIT3182137 Installation Instructions
LIT3185643 Use & Care Guide
LIT3150693 Cookbook
LIT4174216 Repair Parts List
LIT3183987 Guide-Autoset

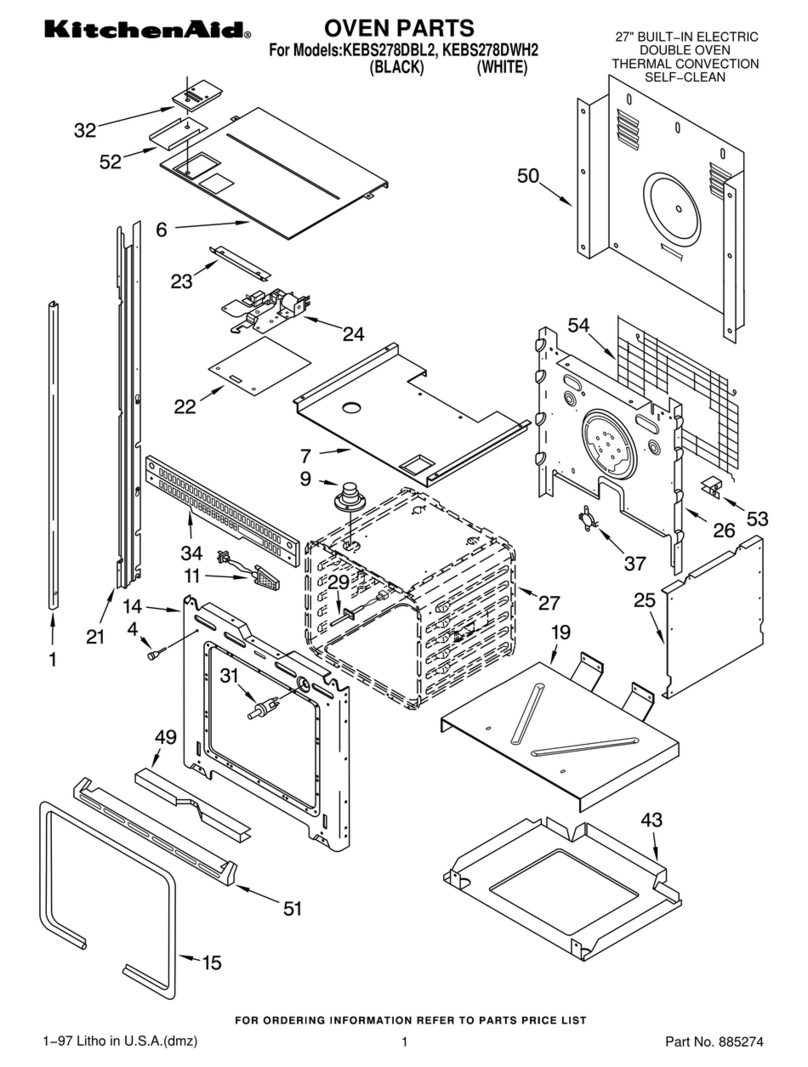

NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 3176700 Frame Front
2 307985 Pin, Hinge Ear (2)
3 309111 Snubber, Door (2)
4 308306 Pushnut (2)
5 3182031 Oven 30"
311056 Screw (3)
6 310713 Bracket, Oven Mounting (2)
343641 Screw (6)
8 3185086 Button, Plug
9 310770 Insulation Tray
3148107 Screw (2)
10 311774 Support, Side Wrapper (4)
3148107 Screw (4)
11 Side Wrapper
311005 Right Side
311008 Left Side
3148107 Screw,
12 Hinge Ear
328801 Right Side
328802 Left Side
13 310659 Plate (2) (Side Panel)
308544 Screw (4)
14 329713 Channel Arm (2)
15 307986 Pin, Hinge (2)
16 307594 Retainer Ring (2)
17 308125 Anchor Spring (2)
18 308126 Spring, Oven Door (2)
19 3183792 Tube, Vent
343641 Screw, Ground
20 310839 Eliminator, Smoke
21 310662 Plate Cover
3148107 Screw (2)
22 3185197 Seal, Pyro
24 3150505 Oven Light Assy.
25 311255 Bulb, Oven Light
26 3184533 Gasket, Light
28 3183796 Baffle, Top Insulation
3148107 Screw (2)
29 3182585 Bracket, Mounting Control Frame
3179847 Screw
35 310345 Switch, Door
40 3184099 Cover, Top
3148107 Screw (4)
41 Side Trim
310686 Left Side
310690 Right Side
42 3182052 Panel, Back
3148107 Screw (16)
43 Trim, Center vent
3183633 Black
3183644 Aluminum
309133 Screw (3)
44 311582 Stand Off
48 311011 Cover, Rear

3148107 Screw (9)
55 309102 Bracket Stand Off
3148107 Screw
58 3182042 Bracket, Motor
3179117 Screw
FOLLOWING PARTS NOT ILLUSTRATED
INSULATION
310433 Insulation, Wrap
310435 Insulation, Oven
3149328 Insulation, Top

NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 3176700 Frame, Front
2 307985 Pin, Hinge Ear (2)
3 309111 Snubber, Door (2)
4 308306 Pushnut (2)
5 3182032 Oven 30"
311056 Screw (3)
6 3185086 Button, Plug
7 310713 Bracket, Oven Mounting (2)
9 3182814 Button, Plug
10 310770 Insulation Tray
3148107 Screw (2)
11 Side Wrapper
311007 Right Side
311010 Left Side
12 311774 Support, Side Wrapper (4)
3148107 Screw (2)
13 Hinge Ear
328801 Right Side
328802 Left Side
14 310659 Plate, Side Panel (2)
308544 Screw (4)
15 329713 Channel Arm (2)
17 307986 Pin Hinge
18 307594 Retainer, Ring
19 308125 Anchor, Spring (2)
20 308126 Spring, Oven Door (2)
343641 Screw
21 3182159 Tube, Vent (Lower)
22 310839 Eliminator, Smoke
3148107 Screw (2)
23 310662 Plate Cover
3148107 Screw (2)
24 3182161 Tube, Vent (Upper)
25 3183796 Baffle, Top
26 3184533 Gasket, Light Insulation
3150532 Screw (4)
27 3150505 Oven Light Assy.
28 311255 Bulb, Oven Light
29 310345 Switch, Door
30 3185197 Seal, Door
31 3182052 Panel, Back
3148107 Screw (6)
32 255095 Angle Support (2)
3148107 Screw (6)
33 Side Trim
310685 Left Side
310689 Right Side
3148107 Screw (14)
34 Grill, Bottom
3150349 Black
3150350 White
3150351 Almond
338156 Screw, Chrome
309029 Screw, 8-15 x 1/2 Black (3)

35 311592 Angle Support (2)
37 310458 Cover, Bottom
3148107 Screw (4)
41 311013 Cover, Rear
3148107 Screw (11)
FOLLOWING PARTS NOT ILLUSTRATED
INSULATION
310433 Insulation, Wrap
310435 Insulation, Oven

NOTE: The scews and nuts required to attach a part are listed immediately
following that part.
1 3182045 Mounting Plate
2 4173193 Screw (3)
3 4173194 Lockwasher (3)
5 4173237 Nut(Left Hand)
6 4173236 Fan
7 3183220 Motor
8 4173238 E-Ring
10 4173230 Flatwasher
11 3181750 Bracket, Guard
12 3179790 Gasket, Foam
