PRODUCT MODEL SERIES OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
KEBC167M
Electrical: A four-wire or three-wire, single
phase, 240-volt, 60 Hz, AC-only electrical supply is
required on a separate, 30-ampere circuit, fused
on both sides of the line.Use minimum 8 gauge
copper wire only. A time-delay fuse or circuit
breaker is recommended. A U.L.-listed conduit
connector must be provided at the junction box.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8304426
11-22-06
36" Built-in Single Oven
®
Cabinet side
view
Electrical supply junction box should be located 3 inches maximum
below the support surface when oven is installed in a wall cabinet. Drill
a 1-inch minimum diameter hole in the right rear or left rear corner of
the support surface to pass the appliance cable through to the junction
box. For undercounter installation, it is recommended that the junction
box be located in the adjacent right or left cabinet. If installing the
junction box on rear wall behind oven, junction box must be recessed
and located in the upper or lower right or left corner of cabinet.
27-1/2"
(69.9 cm)
recessed
height
34-3/8" (87.3 cm)
max.
recessed width
23" (58.4 cm)
max.
recessed
depth
29" max.
(73.7 cm)
overall
height
35-3/4"
(90.8 cm)
overall width
36" (91.4 cm) min.
cabinet width
34-1/2"
(87.6 cm)
cutout width
5-1/4" (13.3 cm)
bottom of cutout
to floor
27-3/4"
(70.5 cm)
min.
cutout
height
1-1/2" (3.8 cm)
min. top of cutout
to underside of
countertop
recessed
oven
cabinet oven
front
36" (91.4 cm) min.
cabinet width
34-1/2"
(87.6 cm)
cutout
width
1" (2.5 cm)
top of cutout to
bottom of upper
cabinet door
1-1/2" (3.8 cm)
min. bottom of
cutout to top of
cabinet door
32"
(81.3 cm)
bottom of
cutout to
floor
27-3/4"
(70.5 cm)
min.
cutout
height
Single
undercounter oven
(without cooktop
installed above)
23" (58.4 cm)
recessed oven depth
23-1/4" (59.1 cm) min.
cutout depth

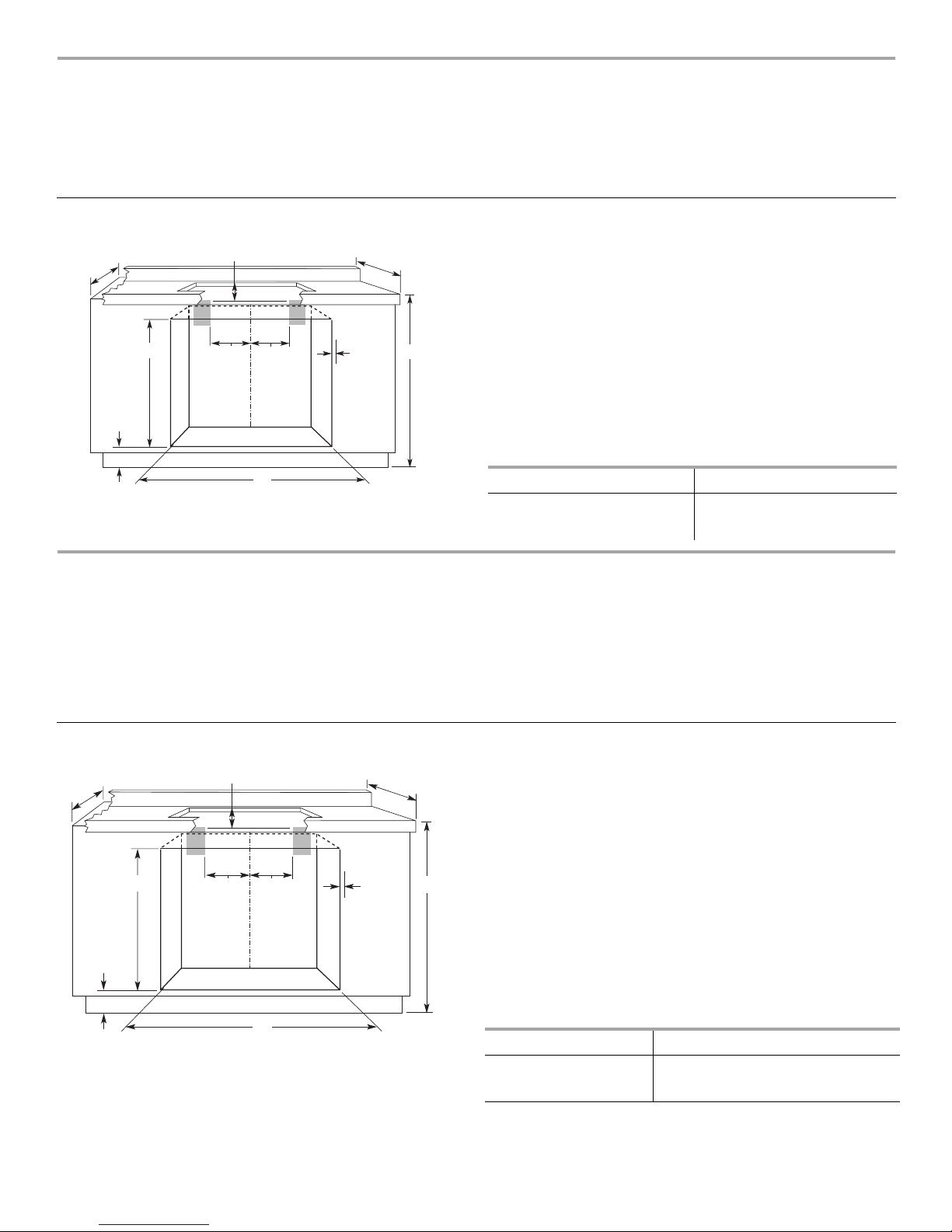

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP
U.S.A. ONLY
IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See Cooktop Installation
Instructions for cutout dimensions. Center the cooktop cutout over oven cutout. The junction box for the oven can be installed on either
side of the cutout area. The shaded area not used for the oven junction box is recommended for a junction box for the cooktop.
Approved Built-In Oven and Electric Cooktop Combinations
For the approved model number combinations refer to the
undercounter label located on top of the oven chassis and on
the bottom of the cooktop burner box.
Approved Built-In Oven and Gas Cooktop Combinations
For the approved model number combination refer to the
undercounter label located on top of the oven chassis.
*NOTE: Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas pipe can be installed on
either side of the cutout, and either through the floor or through the wall. The shaded area not used for oven junction box is
recommended for 120-volt grounded outlet for cooktop.
ABC
DEF GH
I
J
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow ⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. 4⁵⁄₈" (11.7 cm) from floor
J. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
24" (61 cm) 22¹⁄₂" (57.2 cm)
27" (68.6 cm) 25¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34¹⁄₂" (87.6 cm)
ABC
DEF
GH
J
I
L
K
N
M
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow ⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. Gas line through wall 9" (22.9 cm) to center of cutout
J. 3¼" (8.26 cm)*
K. 4⁵⁄₈" (11.7 cm) from floor
L. 3¼" (8.26 cm)*
M. Gas line through floor 9" (22.9 cm) to center of cutout
N. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
24" (61 cm) 22¹⁄₂" (57.2 cm)
27" (68.6 cm) 25¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34¹⁄₂" (87.6 cm)
8303946

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP
CANADA ONLY
IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See Cooktop Installation
Instructions for cutout dimensions. Center the cooktop cutout over oven cutout. The junction box for the oven can be installed on either
side of the cutout area. The shaded area not used for the oven junction box is recommended for a junction box for the cooktop.
Approved Built-In Ovens and Electric Cooktops
For the approved model number combination refer to the
undercounter label located on top of the oven chassis and on
the bottom of the cooktop burner box.
NOTE: The installation of gas cooktops and oven combinations is
not approved for use in Canada.
FOUR INSTALLÉ SOUS LA TABLE DE CUISSON - DIMENSIONS
POUR L'OUVERTURE À DÉCOUPER - CANADA SEULEMENT
IMPORTANT : Observer toutes les dispositions des codes et règlements en vigueur. La table de cuisson doit être homologuée pour
l'utilisation au-dessus d'un four. Pour les dimensions de l'ouverture àdécouper, voir les “Instructions d'installation de la table de
cuisson”. Centrer l'ouverture àdécouper pour la table de cuisson par rapport àl'ouverture découpée pour le four. On peut installer le
boîtier de connexion pour le four d'un côtéou de l'autre de l'ouverture découpée. On recommande d'utiliser pour le boîtier de
connexion de la table de cuisson la zone grisée qui n'est pas étéutilisée pour le boîtier de connexion du four.
Combinaisons table de cuisson/four encastré(produits homologués)
Pour connaître les combinaisons approuvées par numéro de
modèle, consulter l'étiquette située sur la partie supérieure
du châssis du four et au fond de la boîte de brûleur de la
table de cuisson.
REMARQUE : L'installation de combinaisons table de cuisson à
gaz/four n'est pas approuvée pour utilisation au Canada.
ABC
DEF GH
I
J
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow ⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. 4⁵⁄₈" (11.7 cm) from floor
J. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
27" (68.6 cm) 25¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
ABC
DEF GH
I
J
A. Profondeur de placard 24" (61 cm)
B. 4" (10,2 cm) jusqu’au sommet du plan de travail
C. Profondeur du plan de travail 25" (63,5 cm)
D. Hauteur minimale de l'ouverture àdécouper 27¾" (70,5 cm)
E. Boîtier de connexion 9" (22,9 cm) jusqu'au centre de
l'ouverture découpée
F. Boîtier de connexion 9" (22,9 cm) jusqu'au centre de
l'ouverture découpée
G. Prévoir ⁵⁄₈" (1,6 cm) pour le chevauchement de la garniture du
four, de chaque côté.
H. 36" (91,4 cm) entre la base du placard et le plan de travail
I. 4⁵⁄₈" (11,7 cm) depuis le plancher
J. Voir le tableau Dimensions de l'ouverture àdécouper.
OUVERTURE ÀDÉCOUPER - DIMENSIONS
Taille du four Ouverture àdécouper pour le four
27" (68,6 cm) 25¹⁄₂" (64,8 cm)
30" (76,2 cm) 28½" (72,4 cm)
8303946
