KitchenAid SMART OVEN+ User manual

SMART OVEN+ POWERED ATTACHMENTS
USER INSTRUCTIONS
INSTRUCTION D’UTILISATION DES
ACCESSOIRES ÉLECTRIQUES POUR
FOUR INTELLIGENT

THANK YOU for purchasing this high-quality product. Register
your built-in oven at register.kitchenaid.com. In Canada, register your
built-in oven at register.kitchenaid.ca.
For future reference, please make a note of your product model and
serial numbers. They can be found on the label located on the bottom
edge of the control panel, right hand side.
Model Number_________________ Serial Number___________________
TABLE OF CONTENTS
3 INSTALLING THE +POWERED ATTACHMENTS
4 Using the +Powered Attachments
6 Storing the +Powered Attachments
8 SMART OVEN+ POWERED BAKING STONE ATTACHMENT
9 Installing the +Baking Stone Attachment
10 Using the +Baking Stone Attachment
13 SMART OVEN+ POWERED GRILL ATTACHMENT
14 Installing the +Grill Attachment
15 Using the +Grill Attachment
18 SMART OVEN+ POWERED STEAMER ATTACHMENT
19 Installing the +Steamer Attachment
20 Using the +Steamer Attachment
22 TROUBLESHOOTING
24 WARRANTY

3
THANK YOU for purchasing this high-quality product. Register
your built-in oven at register.kitchenaid.com. In Canada, register your
built-in oven at register.kitchenaid.ca.
For future reference, please make a note of your product model and
serial numbers. They can be found on the label located on the bottom
edge of the control panel, right hand side.
Model Number_________________ Serial Number___________________
TABLE OF CONTENTS
3 INSTALLING THE +POWERED ATTACHMENTS
4 Using the +Powered Attachments
6 Storing the +Powered Attachments
8 SMART OVEN+ POWERED BAKING STONE ATTACHMENT
9 Installing the +Baking Stone Attachment
10 Using the +Baking Stone Attachment
13 SMART OVEN+ POWERED GRILL ATTACHMENT
14 Installing the +Grill Attachment
15 Using the +Grill Attachment
18 SMART OVEN+ POWERED STEAMER ATTACHMENT
19 Installing the +Steamer Attachment
20 Using the +Steamer Attachment
22 TROUBLESHOOTING
24 WARRANTY
INSTALLING THE +POWERED ATTACHMENTS
INSTALLATION
The +Powered Attachments fit on the SatinGlideTM Roll-Out Extension Rack for Smart Oven+
Attachments. They will not rock or wobble when installed correctly. Always fully extend the roll-out rack
before placing the +Powered Attachments. The roll-out rack will lock in place when fully extended.
1
2
1
2
34
Insert the roll-out rack into the
lowest rack position. Some force is
required. Extend the rack.
Roll-out rack
Heating
Element
Base
Pan
Place the Base Pan and Heating
Element on the roll-out rack. Push
the Base Pan back and in until the
feet lock into place.
+Grill
Attachment
Place the desired +Powered
Attachment on the Heating Element.
Push the roll-out rack into the oven
fully. A tone will sound and an icon
will appear in the display.
INSTALLING THE +POWERED ATTACHMENTS | 3

USING THE +POWERED ATTACHMENTS
HELPFUL TIPS: When moving the +Powered
Attachments, carry only the pieces you will be
using. It is not necessary to carry the whole unit at
once.
GETTING STARTED
The +Powered Attachments are composed of
several parts. The roll-out rack for powered
attachments and Base Pan positions the
+Powered Attachments in the oven and catches
drips. The Heating Element provides even heat
to the +Powered Attachments. One +Powered
Attachment can be used at a time, but the
+Baking Stone Attachment, +Grill Attachment,
and +Steamer Attachment can be stacked
together for easy storage with the Heating
Element and Base Pan.
TIPS FOR BEST RESULTS
yAlways fully extend the roll-out rack to gain
easy access to the +Powered Attachments.
yTo avoid damage, do not cook food directly
on the Heating Element.
Steamer
Lid
Perforated
Steamer
Tray
Water
Basin
Pan
+Baking
Stone
Attachment
+Grill
Attachment
Heating
Element
Base Pan
Roll-out rack
for powered
attachments
4| USING THE +POWERED ATTACHMENTS

5
USING THE +POWERED ATTACHMENTS
CLEANING
Wash the Base Pan and +Powered Attachments
after every use. Food spills can react with the
coating and result in permanent stains, foods
sticking to the attachments, or smoking while in
use.
yTo avoid damage to the +Powered
Attachments, do not use the oven’s self-
cleaning function for the +Powered
Attachments.
yThe Base Pan and +Powered Attachments are
dishwasher-safe. The Heating Element is not
dishwasher-safe.
yIf hand-washing, use soapy water and a soft
cloth or sponge.
yDo not immerse Heating Element in water.
Electrical Shock Hazard
Do not immerse heating element in water
or place in dishwasher.
Doing so can result in death or electrical
shock.
WARNING
USING THE +POWERED ATTACHMENTS | 5

STORING THE +POWERED ATTACHMENTS
GETTING STARTED
The +Powered Attachments are designed for
ease of storage. The +Steamer Attachment,
+Baking Stone Attachment, and +Grill Attachment
conveniently stack together on top of the Heating
Element and the Base Pan. There are many ways
to store the +Powered Attachments, including:
KITCHEN CABINET
The +Powered Attachments can be stored inside
any large enough kitchen cabinet by stacking
them together.
SMART OVEN+
The +Powered Attachments can be stored inside
the Smart Oven+ cavity for ease of access. Place
the +Grill and the +Baking stone attachment
on top of the Heating Element inside the Base
Pan, place the +Powered Attachments on the
roll-out rack for powered attachments, and push
the rack inside the oven. Place the +Steamer
Attachment on a flat rack above the +Baking
Stone Attachment.
IMPORTANT: Remove the +Powered Attachments
from the oven cavity before using non powered
attachment modes or self-cleaning the oven.
6| STORING THE +POWERED ATTACHMENTS

SMART OVEN+ POWERED
BAKING STONE ATTACHMENT
The Smart Oven+ Baking Stone Attachment allows you to expand the possibilities of your baking. It
can crisp a variety of dishes from seared kabobs to crab cakes to breakfast scones, and the stone's
large size empowers you to stone-bake even a 14" (35.6 cm) pizza. Because it's integrated with the
oven, the Smart Oven+ Baking Stone preheats in half the time of a non-integrated stone* and alerts
you when preheating is complete. And you can control the baking stone through the display, or
monitor and control it from a mobile device when remote-enabled.**
* Compared to baking stones of similar size, weight and material.
**Wi-Fi & App required. Features subject to change. For details and privacy statement, visit kitchenaid.com/connect.
8| SMART OVEN+ POWERED BAKING STONE ATTACHMENT

INSTALLING THE +BAKING STONE ATTACHMENT
INSTALLATION
The +Powered Attachments fit on the SatinGlideTM Roll-Out Extension Rack for Smart Oven+
Attachments. They will not rock or wobble when installed correctly. Always fully extend the roll-out rack
before placing the +Powered Attachments. The roll-out rack will lock in place when fully extended.
1
2
1
2
3
4
Insert the roll-out rack into the lowest
rack position. Some force is required.
Extend the rack.
Place the Base Pan and Heating
Element on the roll-out rack. Push
the Base Pan in until the feet lock
into place.
Place the Baking Stone onto the
Heating Element.
Push the roll-out rack into the oven
fully. A tone will sound and an icon
will appear in the display.
INSTALLING THE +BAKING STONE ATTACHMENT | 9

USING THE +BAKING STONE ATTACHMENT
GETTING STARTED
Preheat the +Baking Stone Attachment before
placing food. While the length of preheat time
will vary depending on the oven temperature, the
Heating Element will bring the +Baking Stone
Attachment to temperature in under 30 minutes.
The +Baking Stone Attachment is glazed for
easy cleaning, but it can be lined with a sheet of
parchment paper.
TIPS FOR BEST RESULTS
yTo transfer multiple items on and off the
+Baking Stone Attachment easily, place
parchment paper on a non-rimmed cookie
sheet and arrange the items on the parchment
in a single layer. When the +Baking Stone
Attachment is preheated, slide the parchment
paper with the items onto the stone and bake
as usual. When done, slide the parchment
paper back onto the sheet.
yCover the +Baking Stone Attachment with a
sheet of parchment paper for easier clean-
up, especially when baking items such as free
form pies, tarts, or fruit turnovers. Baked-on
pie filling can be very difficult to remove from
the +Baking Stone Attachment.
yTo gain easy access to the stone, extend the
roll-out rack for powered attachments. Simply
push the +Baking Stone Attachment fully
back into the oven cavity (within 2 minutes) to
continue the cycle.
ySome items, such as bread and rolls, do not
need to be turned. When baking items such
as fresh breaded fish or chicken, turn halfway
through baking.
yPizza up to 14" (35.6 cm) will fit on the
+Baking Stone Attachment.
yLong, skinny items, such as baguettes, can
be placed diagonally on the +Baking Stone
Attachment to better fit.
10 | USING THE +BAKING STONE ATTACHMENT

USING THE +BAKING STONE ATTACHMENT
CLEANING
Wash the +Baking Stone Attachment after every
use. Food spills can react with the coating and
result in permanent stains, foods sticking to the
+Baking Stone Attachment, or smoking while in
use.
yTo avoid damage, do not use the oven’s
self-cleaning function for the +Baking Stone
Attachment.
yThe +Baking Stone Attachment is
dishwasher-safe.
yIf hand washing, use soapy water and a soft
cloth or sponge.
yBaking soda can aid in removing difficult spills.
yAvoid extreme temperature changes.
yBefore cleaning, allow the +Baking Stone
Attachment to cool.
yDo not use +Baking Stone Attachment if
damaged or chipped.
yUse a plastic scraper to remove baked-on
foods.
yDo not use under the broiler.
yAvoid bumping or dropping the +Baking
Stone Attachment, which can break.
yAvoid placing any other pan or rack on top of
the +Baking Stone Attachment.
yThe +Baking Stone Attachment is metal
utensil safe.
yWhen placing the +Baking Stone Attachment
on a surface, first cover surface with a sturdy
material to avoid scratches.
Electrical Shock Hazard
Do not immerse heating element in water
or place in dishwasher.
Doing so can result in death or electrical
shock.
WARNING
USING THE +BAKING STONE ATTACHMENT | 11

SMART OVEN+ POWERED
GRILL ATTACHMENT

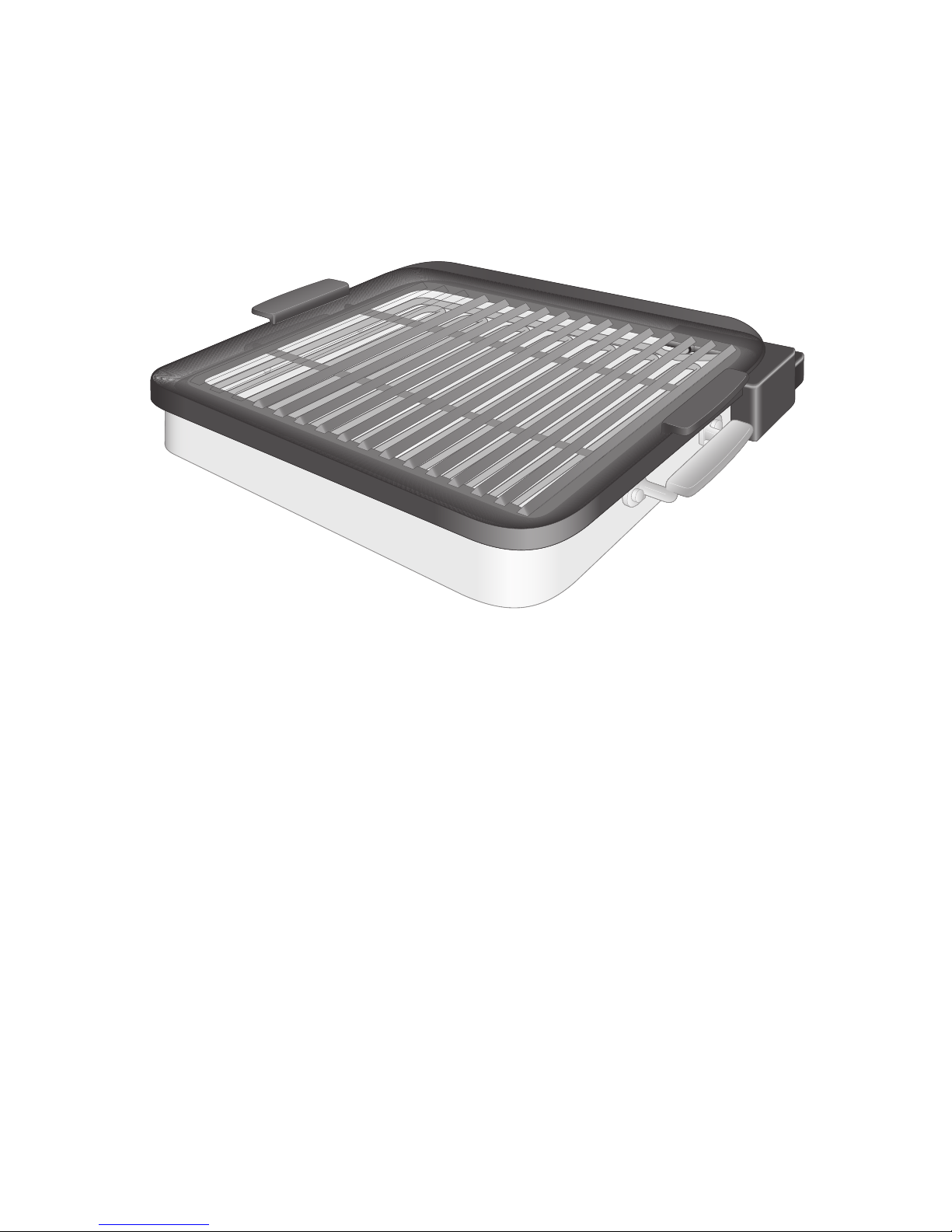

The Smart Oven+ Grill Attachment allows true grilling year-round. Its advanced design minimizes
smoke and eliminates the flare-ups common with outdoor grills. It also heats evenly from edge to
edge, providing consistent results and enabling you to use the entire grilling surface for everything
from steak and burgers to pizza and scallops. And you can control the grilling process through the
display, or monitor and control it from a mobile device when remote-enabled.*
*Wi-Fi & App required. Features subject to change. For details and privacy statement, visit kitchenaid.com/connect.
SMART OVEN+ POWERED GRILL ATTACHMENT | 13

INSTALLING THE +GRILL ATTACHMENT
INSTALLATION
The +Powered Attachments fit on the SatinGlideTM Roll-Out Extension Rack for Smart Oven+
Attachments. They will not rock or wobble when installed correctly. Always fully extend the roll-out rack
before placing the +Powered Attachments. The roll-out rack will lock in place when fully extended.
1
2
1
2
34
Insert the roll-out rack into the lowest
rack position. Some force is required.
Extend the rack.
Place the Base Pan and Heating
Element on the roll-out rack. Push
the Base Pan in until the feet lock
into place.
Place the Grill on the Heating
Element.
Push the roll-out rack into the oven
fully. A tone will sound and an icon
will appear in the display.
14 | INSTALLING THE +GRILL ATTACHMENT

USING THE +GRILL ATTACHMENT
GETTING STARTED
Preheat the +Grill Attachment per the recipe
instructions before placing food.
The +Grill Attachment has a nonstick coating
for easy cleaning. Metal utensils may scratch or
damage this coating.
The +Grill Attachment has an additional Sear
functionality for creating grill lines. While cooking,
touch the Sear button on the console. The +Grill
Attachment will reach a more intense heat for
5 minutes to sear grill lines into the food.
TIPS FOR BEST RESULTS
Food Notes
Bone-In Chicken
Breast
(Up to 12 oz each)
Start with skin-side down.
Boneless Chicken
Breast
(Up to 8-10 oz
each)
Start with smooth-side down.
Hamburger
Patties
(Up to nine 1/4 lb
[115 g] patties)
80% lean or leaner will
produce best results.
Pizza
(Up to
8" [20.3 cm] in
diameter)
Too many toppings or highly
liquid sauces can make grilled
pizzas soggy. Precooked or raw
toppings that only need to be
warmed should be used.
Fruit Cook until both sides have grill
marks and fruit is just warmed
to the center. Do not overcook
or fruit will become very soft.
yAdd 1 cup (240 mL) of water to the base
pan when grilling to avoid smoke generation
(recommended if broiling greasy/fatty foods
such as burgers, rib eye steaks, etc.).
yWhen grilling unevenly thick pieces of fish
or meat, position the thickest parts in the
center of the +Grill Attachment for more even
results.
yFor best results, do not turn thin fillets of fish.
yRemove excess fat from meats or poultry.
With steaks or chops, slash the edges of fat to
prevent meat from curling.
yChoose items to be grilled that are about the
same size and thickness. Leave 1" (2.5 cm) of
space around each item being grilled.
yBrush sauces or glazes on in the last few
minutes. High-sugar sauces or glazes are more
likely to burn if added too early.
ySeason with desired herbs and spices before
grilling, but season with salt after grilling.
yWhen grilling pizza, cook one side of the crust
until grill marks are the desired darkness.
Remove from the +Grill Attachment and put
toppings on the grilled side. Slide pizza back
onto the +Grill Attachment to finish cooking.
yOpening the door will slow grilling and may
adversely affect the browning.
yAlways use an instant-read meat thermometer
to determine doneness.
USING THE +GRILL ATTACHMENT | 15

USING THE +GRILL ATTACHMENT
CLEANING
Wash the +Grill Attachment after every use.
Food spills can react with the coating and result
in permanent stains, foods sticking to the +Grill
Attachment, or smoking while in use.
yTo avoid damage, do not use the oven’s self-
cleaning function for the +Grill Attachment.
yThe +Grill Attachment is dishwasher-safe.
yIf hand washing, use soapy water and a soft
cloth or sponge.
Electrical Shock Hazard
Do not immerse heating element in water
or place in dishwasher.
Doing so can result in death or electrical
shock.
WARNING
16 | USING THE +GRILL ATTACHMENT

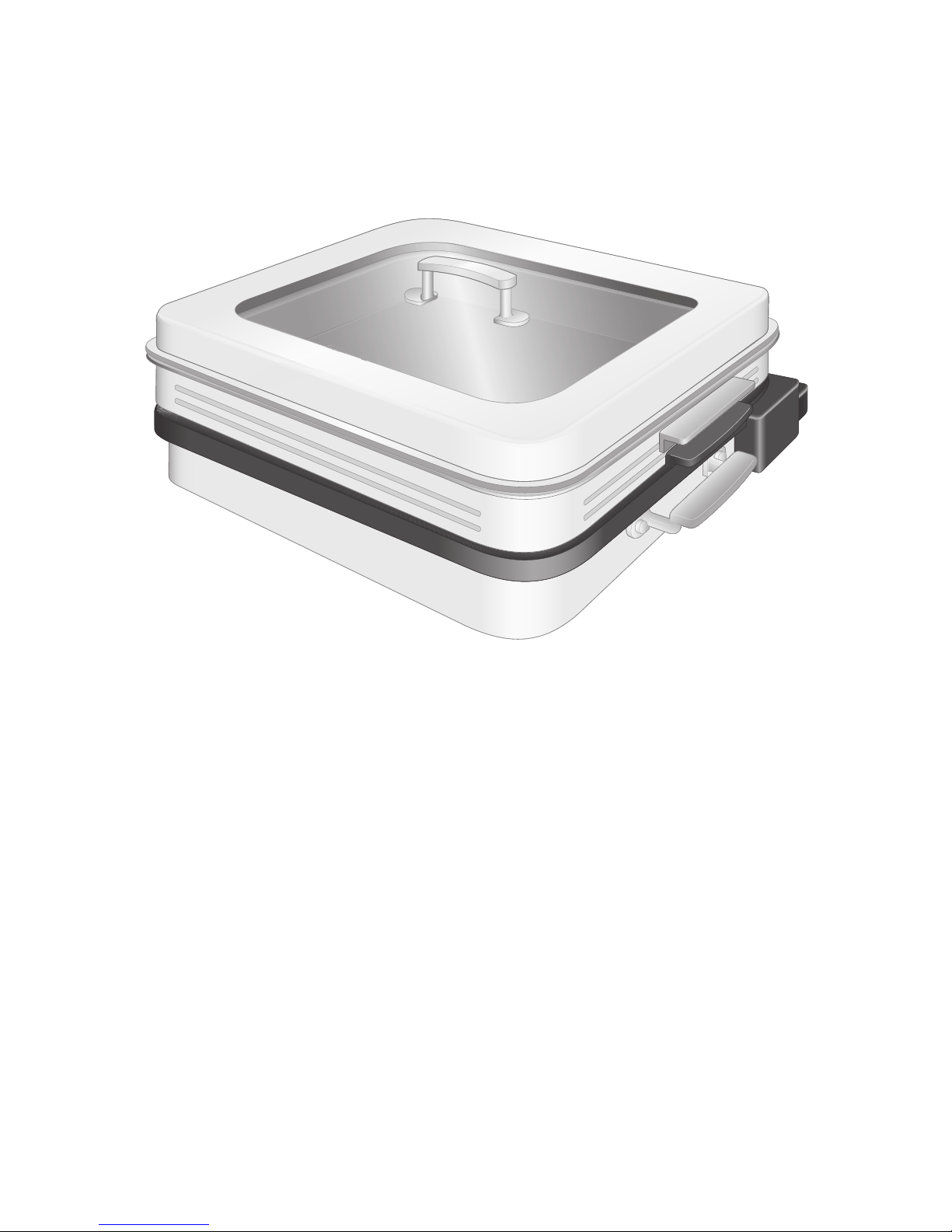

SMART OVEN+ POWERED
STEAMER ATTACHMENT
The Smart Oven+ Steamer Attachment keeps foods tender and provides the benefits of steaming.
It has the capacity to dramatically expand the capabilities of steam cooking across a wider range of
foods. It can even prepare a complete dinner for four including meat or fish, potato or pasta, and
vegetable. The attachment can also be used with the Steam Assist mode to create a humid cooking
environment ideal for baked goods, breads and roasts. And you can control the attachment through
the display, or monitor and control it from a mobile device when remote-enabled.*
*Wi-Fi & App required. Features subject to change. For details and privacy statement, visit kitchenaid.com/connect.
18 | SMART OVEN+ POWERED STEAMER ATTACHMENT

INSTALLING THE +STEAMER ATTACHMENT
INSTALLATION
The +Powered Attachments fit on the SatinGlideTM Roll-Out Extension Rack for Smart Oven+
Attachments. They will not rock or wobble when installed correctly. Always fully extend the roll-out rack
before placing the +Powered Attachments. The roll-out rack will lock in place when fully extended.
1
2
1
2
34
Insert the roll-out rack into the lowest
rack position. Some force is required.
Extend the rack.
Place the Base Pan and Heating
Element on the roll-out rack. Push
the Base Pan in until the feet lock
into place.
Place the Steamer on the Heating
Element.
Push the roll-out rack into the
oven fully. A tone will sound and
an icon will appear in the display.
INSTALLING THE +STEAMER ATTACHMENT | 19

USING THE +STEAMER ATTACHMENT
GETTING STARTED
Pour approximately 4 cups (960 mL) of water
into the Steamer Water Basin, and then place the
Perforated Steamer Tray onto the Steamer Water
Basin.
The +Steamer Attachment was designed to hold
6 servings of food. Arrange food in a single layer
on the Perforated Steamer Tray with space around
each piece. Cover with the Steamer Lid.
STEAM ASSIST MODE
The Steam Assist Mode combines the dry heat
of a convection oven with steam to create a
humid environment for cooking, enhancing the
flavor and texture of foods. It is ideal for items
like cheesecake, breads, and a whole chicken or
turkey, as it results in a moist interior and perfectly
browned exterior of the food.
The Steam Assist Mode uses the +Steamer
Attachment. When cooking with the Steam Assist
Mode, do not use the Steamer Lid. This will allow
the steam to escape and fill the oven cavity during
the cooking process.
TIPS FOR BEST RESULTS
yLike-sized pieces will cook more evenly.
yDifferent types foods, such as fish and
vegetables, may be cooked at the same time
without mixing their flavors.
yFor best results, choose foods that cook for
approximately the same length of time.
yAlways open the Steamer Lid away from you
to allow steam to escape.
yOpening the oven and removing the Steamer
Lid frequently during steaming will affect the
quality of the food. Check food only when
necessary.
yWhen using Steam Assist for foods like
cheesecake, place the food in a standard pan
and set it directly in the Perforated Steamer
Tray; set it inside the Steamer Water Basin, but
do not cover with the Steamer Lid.
yWhen using Steam Assist for items, like bread
or poultry, place the food in a regular pan,
according to baking instructions, and place
it on the standard rack above the +Steamer
Attachment.
Steamer
Lid
Steamer
W
ater
Basin
Perforated
Steamer
Tray
20 | USING THE +STEAMER ATTACHMENT
