KitchenAid SUPERBA KEBS277YAL4 User manual

CONTROL PANEL PARTS SUPERBA
27" BUILT−IN ELECTRIC
DOUBLE OVEN
Convection Upper
Self Clean Lower
1
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
10−93 Litho in U.S.A. Part No. 4174355

Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION

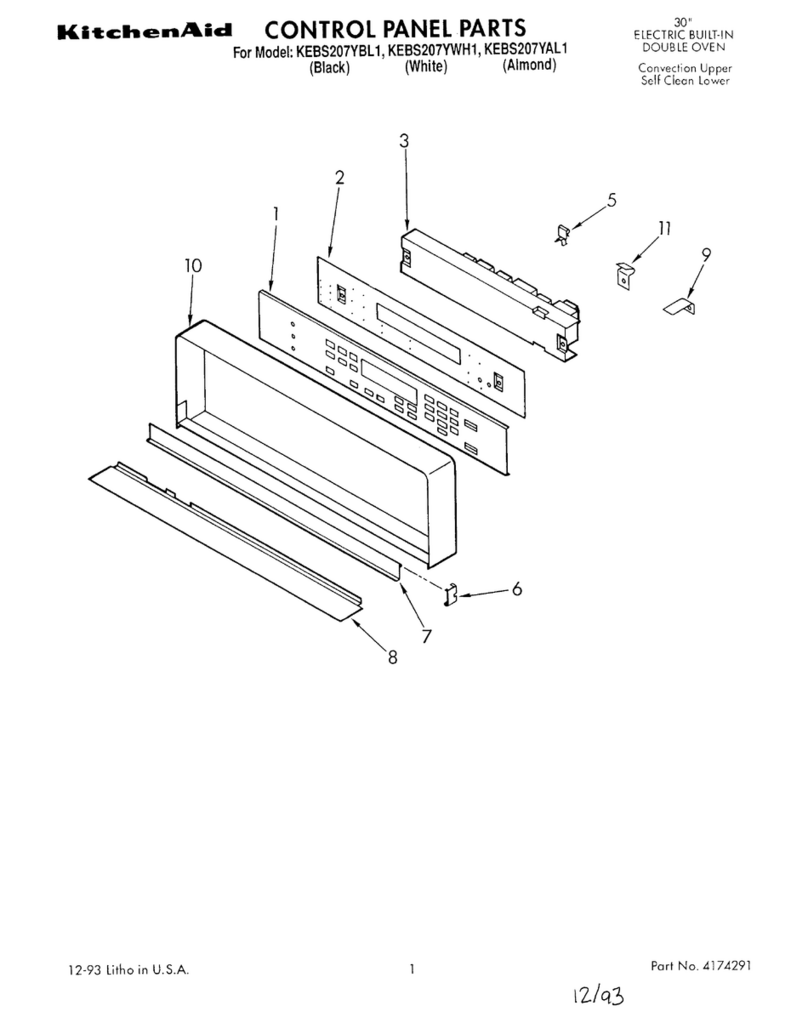

CONTROL PANEL PARTS
OPTIONAL PARTS (NOT INCLUDED)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
2
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Membrane, Switch
3181783 Black
3181784 White
3181785 Almond
2 3181889 Bracket, Mounting
Membrane Switch
3 3181705 Microcomputer
3185648 Screw (2)
4 3183705 Retainer, Bracket
3182939 Screw
5 3182985 Clip, (3)
Retainer
6 3182162 Hinge, Vent Door
7 Door, Latch Handle
3182151 Black
3182157 Almond
3182154 White
3179847 Screw (2)
3178001 Screw
8 3183702 Trim, Panel
3185647 Screw
9 3184321 Bracket (2)
3182939 Screw (2)
10 3182148 Frame, Control
Panel
11 3184567 Clip, Control
Frame
LITERATURE PARTS
LIT3185962 Tech Sheet
LIT3183659 Installation
Instructions
LIT3185643 Use & Care Guide
LIT3150693 Cookbook
LIT3183987 Guide, Auto Set
Miscellaneous
3171507 Mounting Hardware
FOLLOWING PARTS
NOT ILLUSTRATED
SPLICING WIRES−−25FT.
LENGTH
18 Ga. 80 c Rating
350806 Yellow
16 Ga. 80 c Rating
242829 Blue
14 Ga. 150 c Rating
242820 Black
242821 Blue
242822 Brown
242823 Green
242824 Orange
242825 Red
242826 White
242827 Yellow
14 Ga. 200 c Rating
242830 Brown
242831 Red
242832 Yellow
12 Ga. 150 c Rating
242828 Black
242829 Red
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
72110 Harvest Gold
72112 Toast
72113 Platinum
72032 Black
261869 Citrine White
PAINT, PRESSURIZED SPRAY
(13 oz.)
350930 White
350956 Almond
261890 Harvest Gold
285365 Toast
285366 Platinum
830864 Black
350942 Primer
350941 Leveler (Primer)
PAINT, BULK (1 qt.)
799344 White
978883 Almond
261891 Harvest Gold
285367 Toast
285368 Platinum
ADHESIVE
482338 Sealer, Silastic
(3 Oz.)
591014 Adhesive, Loctite
(1/3 Oz.)

UPPER OVEN PARTS
3
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355

Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
CONVECTION FAN PARTS
UPPER OVEN PARTS
4
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
2 3177545 Bracket, Conduit
3 3177739 Cabinet, Back
3185647 Screw
6 3178143 Cabinet, Top
3185647 Screw
7 3183748 Top, Module
3185647 Screw
8 Side, Cabinet
3177440 Right Hand
3177438 Left Hand
3185647 Screw
9 3181699 Tube, Vent
3185648 Screw (3)
10 3150505 Oven Light Assy.
11 3184533 Gasket, Light
12 311255 Bulb, Oven
Light
13 3185085 Plug, Button
Bulb
14 3185860 Frame, Front
15 3179813 Seal, Door
16 3179848 Clip, Oven Seal
17 3177681 Bracket, Switch
18 3177923 Insulator, Switch
19 3177621 Module, Bottom
20 3179220 Rail, Support (4)
3185647 Screw
21 3181733 Insert, Middle
Vent Trim
4173601 Screw (2)
22 3177434 Support, Oven
3185647 Screw
23 3178612 Shield, Radiation
3179795 Screw (6)
3185647 Screw
24 3177433 Bracket, Hinge
3185647 Screw
26 3177561 Back, Module
3185647 Screw
27 3185563 Liner, Oven
28 3178298 Hinge, Door (2)
31 4173553 Switch, Door
4159117 Nut (2)
313489 Screw (2)
33 3179587 Retainer, Seal
4159450 Screw (2)
34 Vent, Middle Trim
3181965 Black
3181968 Brushed Chrome
3180022 Screw (4)
4168863 Screw (2)
35 3183791 Vent, Tube
4173231 Screw
39 4168203 Cover, Cap Tube
4159445 Screw
41 3183752 Bracket, Control
3177991 Screw
44 4173179 Retainer,
Insulation
3185647 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
3185551 Insulation, Wrap
3177872 Insulation, Back
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 3178512 Mounting Plate
2 4173193 Screw (3)
3 4173194 Lockwasher (3)
5 4173237 Nut(Left Hand)
6 4173236 Fan
7 3182088 Motor
8 4173238 E−Ring
9 4173185 Bracket Guard
10 4173230 Flatwasher
11 3179790 Gasket, Foam

LOWER OVEN PARTS
5
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355

Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LOWER OVEN PARTS
6
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
3 3183748 Top, Module
3185647 Screw
4 3181699 Tube, Vent
3185648 Screw (3)
5 3185562 Liner, Oven
7 311255 Bulb, Oven Light
9 3150505 Oven Light Assy.
11 3184533 Gasket, Light
12 3177684 Frame, Front
13 3179813 Seal, Door
3179848 Clip, Oven Seal
14 3177681 Bracket, Switch
3177991 Screw (2)
15 3177923 Insulator, Switch
16 3177551 Bottom, Oven
17 3179220 Rail, Support (2)
3185647 Screw
18 3177433 Bracket, Hinge (2)
3179795 Screw (6)
3185647 Screw
19 3177621 Bottom, Module
20 3178612 Shield, Radiation
3179795 Screw (6)
3185647 Screw
21 3177434 Support, Oevn
3185647 Screw
22 3177560 Back, Module
3185647 Screw
24 3179848 Clip, Seal (3)
25 3178298 Hinge, Door (2)
26 3185085 Button, Plug
27 3182814 Button, Plug
28 3182159 Vent Tube, Lower
3185647 Screw
29 3182160 Vent Tube, Upper
30 4173553 Switch, Door
4159117 Nut (2)
313489 Screw (2)
32 3179587 Retainer, Seal
4159450 Screw (2)
33 4168203 Cover, Cap Tube
4159445 Screw
34 Trim, Lower Vent
3177787 Black
3177789 Brushed Chrome
35 4163883 Cover, Probe
36 3149652 SPST Thermostat
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
3185551 Insulation, Wrap
3177872 Insulation, Back

Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
UPPER AND LOWER OVEN DOOR PARTS
7
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 3185497 Liner, Door
2 3185462 Gasket, Window
3 3185457 Glass, Clear
4 3185460 Insulation, Door
5 3185437 Insulation
Retainer
4173601 Screw (4)
6 3185458 Glass, Reflective
7 Glass, Door
3185474 Black
3185478 Almond
3185476 White
8 3185439 Retainer, Glass
9 3185459 Glass, Clear
10 Handle, Door
3182165 Black
3182171 Almond
3182168 White
11 3185438 Plate, Latch
12 3181402 Frame, Door
13 3182138 Spacer, Handle
14 3185456 Bushing, Handle
3181637 Screw
342043 Screw
15 3185470 Foil, Adhesive
16 3181701 Bumper, Door
Glass

Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
INTERNAL OVEN PARTS
8
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Liner, Oven
3185562 Self Clean (Lower)
3185563 Convection (Upper)
2 661415 Element, Broil
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
5 3185307 Rack, Offset
6 3185308 Rack, Oven
7 661416 Element, Bake
3185648 Screw (2)
8 4167277 Nut, Meat Probe
9 4163975 Gasket, Meat Probe
10 4167266 Probe Cover
11 4159557 Washer
12 3179672 Spacer − Tubing
13 3150107 Meat Probe Jack
14 3150144 Meat Probe
19 3180815 Cover, Fan
3185648 Screw (4)
20 3178517 Element, Convect.
3185648 Screw (3)
22 313570 Clip, Tubing
23 3180694 Bracket, Element
3185648 Screw (2)
24 3181534 Rack, Roasting T/C
25 3148440 Sensor

LATCH AND VENT PARTS
9
4174355
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)

LATCH AND VENT PARTS
Illus. Part
No. No. DESCRIPTION
10
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 3183748 Module, Top
2 258076 Block, Terminal
308043 Screw
4 Switch, Latch
3178668 Upper Oven
3183784 Lower Oven
98106 Screw
5 3178185 Insulator, Switch
6 3177662 Guard, Latch
3177991 Screw
7 Handle, Latch
3177969 Upper Oven
3184037 Screw (2)
3179116 Screw
3181963 Lower Over
3185414 Screw (2)
8 3184039 Knob, Handle
3183294 Screw
9 3184040 Spacer, Latch
Handle
3184037 Screw
10 3178410 Latch Mechanism
11 3177496 Plate, Mounting
3177991 Screw
12 3185455 Baffle, Blower
311773 Screw
13 3183954 Nozzle, Vent
Bottom (2)
14 3183955 Nozzle, Vent
Top (2)
15 3183999 Box, Vent
16 3183964 End, Vent Box
3185647 Screw
17 3183533 Bracket, Mounting
Fan
3177991 Screw
18 3183720 Blower, Fan
19 3183791 Vent, Tube
4173231 Screw
20 3149650 SPST Thermostat
3185647 Screw
21 3183785 Shield, Heat
3177991 Screw
22 3183953 Box, Vent
23 3183965 End, Vent Box
3185647 Screw
24 3183793 Vent Tube, Lower
Oven
25 3183532 Clamp, Tube
26 313755 Seal, Foam
27 4159035 Bushing

Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
11
For Model: KEBS277YBL4, KEBS277YAL4, KEBS277YWH4
(Black) (Almond) (White)
4174355
1 3187607 Harness Wire
(Door Switch
Upper Light)
2 3183656 Harness Wire
(Door Switch
Lower Light)
3 3185950 Harness Wire
(Lower Oven)
4 3185949 Harness Wire
(Upper Oven)
6 3179668 Standoff, Wire
3185647 Screw
112432 Nut, Hex (3)
8 4159037 Clamp, Wire
10 3185952 Harness, Wire
Latch Assy.
Upper Oven
11 3183361 Harness, Wire
Latch Assy.
Lower Oven
12 313438 Clip
