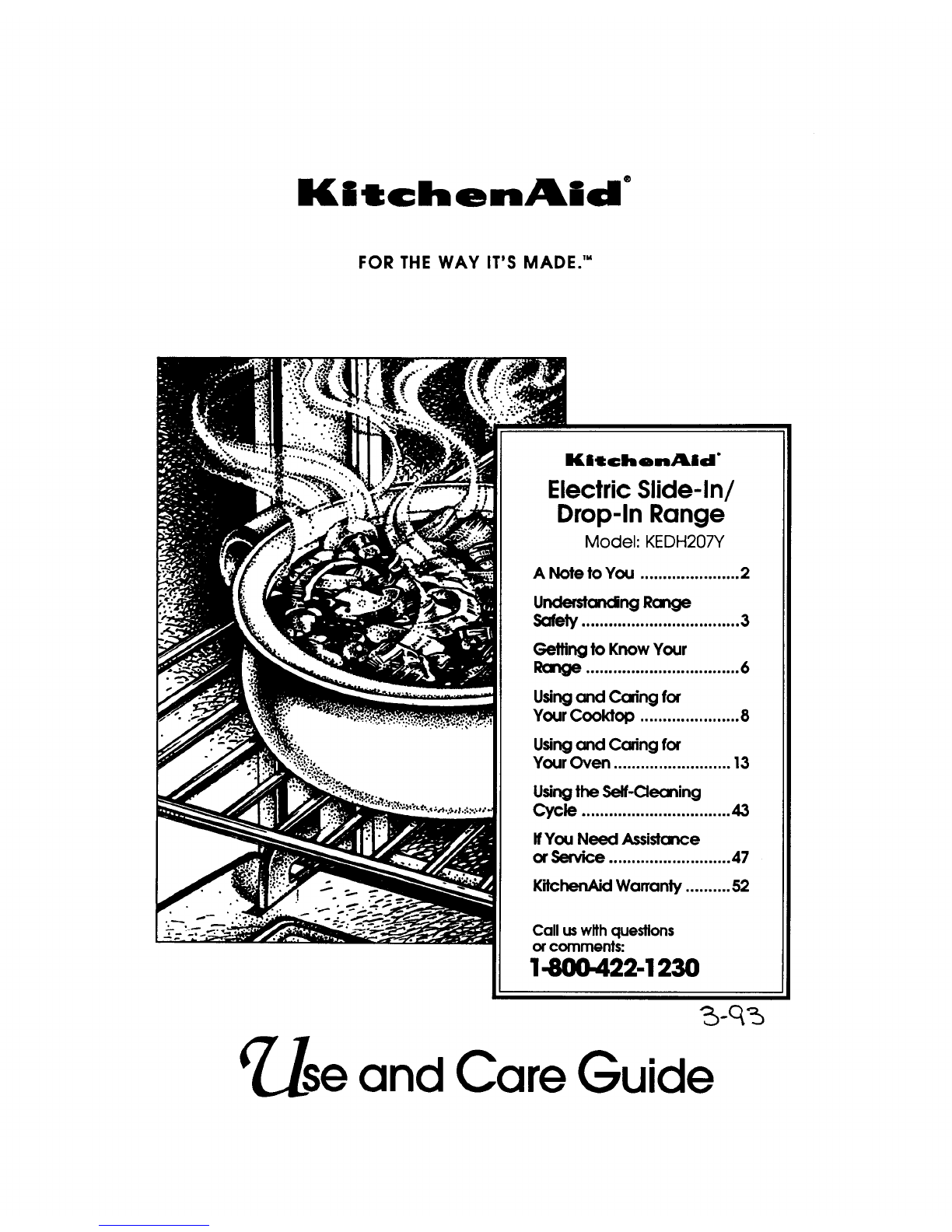

KitchenAid KEDH207WHO User manual

Kitchen_kid _
FOR THE WAY IT'S MADE.'"
KltchenAId"
Electric Slide-ln/
Drop-ln Range
Model: KEDH207Y
A Note toYou ......................2
Understandng Range
Safely...................................3
Getting to Know Your
Range .................................. 6
Using and Caring for
Your Cooktop ...................... 8
Using and Caring for
Your Oven .......................... 13
Using the Self-Cleaning
Cycle .................................43
IfYOU Need Assistance
or Service ........................... 47
KitchenAid Warranty .......... 52
Call uswlth questlons
or comments:
1.800422-1230
%-q%
¢ se and Care Guide

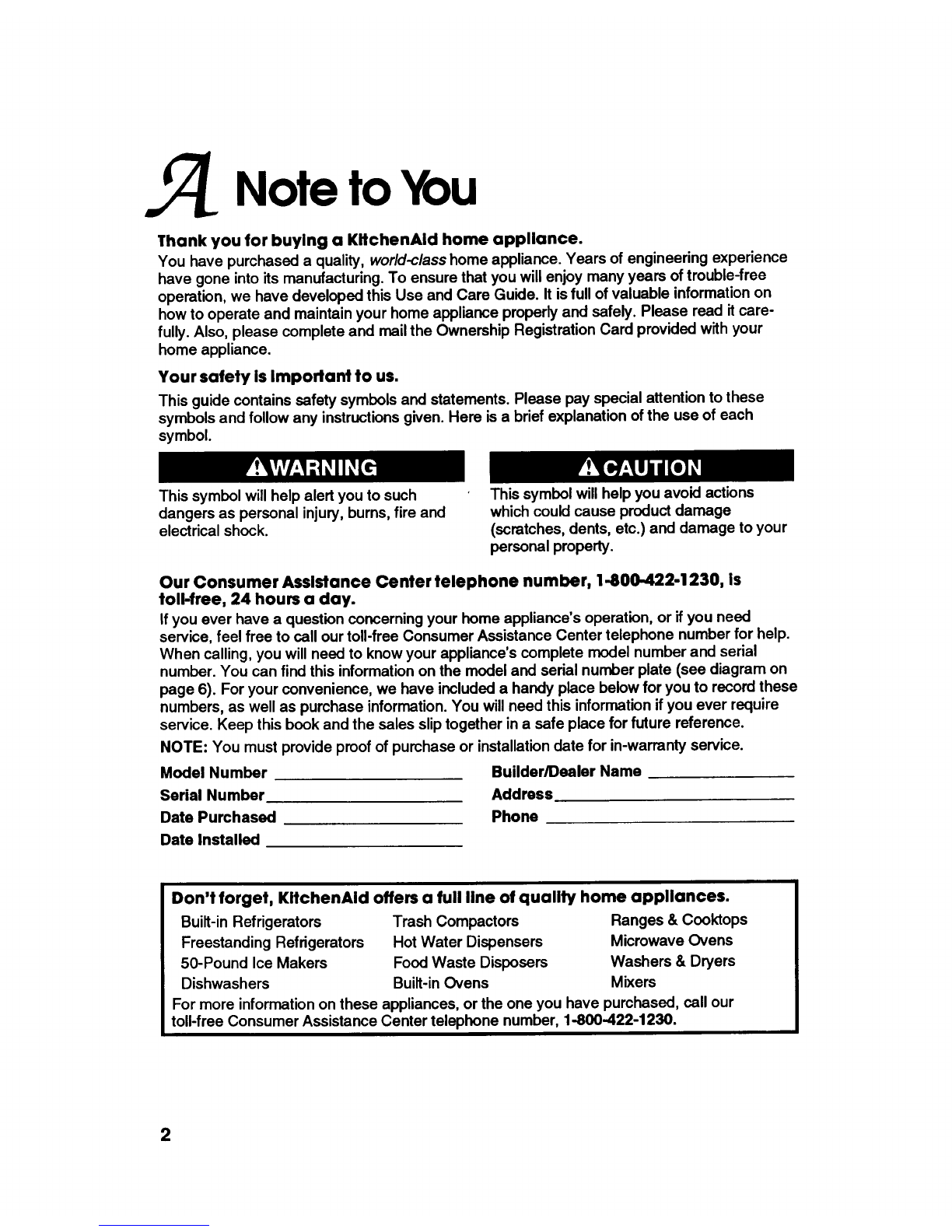

Note to You
Thank you for buylng a KltchenAld home appllance.
You have purchased a quality, world-class home appliance. Years of engineering experience
have gone into its manufacturing. To ensure that you will enjoy many years oftrouble-free
operation, we have developed this Use and Care Guide. It isfull ofvaluable information on
how to operate and maintain your home appliance properly and safely. Please read itcare-
fully. Also, please complete and mail the Ownership Registration Card provided with your
home appliance.
Your safety Is Impodant to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here isa brief explanation ofthe use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire and
electrical shock.
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to your
personal property.
Our Consumer Asslstance Center telephone number, 1400422-1230, Is
toll-free, 24 hours a day.
If you ever have a question concerning your home appliance's operation, or if you need
service, feel free to call ourtoll-free Consumer Assistance Center telephone number for help.
When calling, you will need to know your appliance's complete model number and serial
number. You can find this information on the model and serial number plate (see diagram on
page 6). For your convenience, we have included a handy place below for you to record these
numbers, as well as purchase information. You will need this information ifyou ever require
service. Keep this book and the sales slip together in a safe place for future reference.
NOTE: You must provide proof of purchase or installationdate for in-warranty service.
Model Number Builder/Dealer Name
Serial Number Address
Date Purchased Phone
Date Installed
Don't forget, KltchenAld offers a full llne of quallty home appllances.
Built-in Refrigerators Trash Compactors Ranges & Cooktops
Freestanding Refrigerators Hot Water Dispensers Microwave Ovens
50-Pound Ice Makers Food Waste Disposers Washers & Dryers
Dishwashers Built-in Ovens Mixers
For more information on these appliances, or the one you have purchased, call our
toll-free Consumer Assistance Center telephone number, 1-800-422-1230.
2

_ mportantSafetyInstructions
General
• Read all instructions before
using the range.
• Install or locate the range
only in accordance with
the provided Installation
Instructions. The range must
be installed by a qualified
installer. The range must be
properly connected to
electrical supply and
grounded.
•WARNING: To reduce the risk
of tippin.g of the appliance,
the apphance must be
secured by anti-tip fasteners.
To check if the appliance is
installed properly, open the
oven door and verify that the
range issecured to cabinets
with four screws through the
mounting holes in the front
frame of the oven.
.CAUTION: Do not store things
children might want above
the range. Children could be
burned or injured while
climbing on it.
•Do not leave children alone or
unattended in area where the
range is in use. They should
never be allowed to sit or
stand on any part of the
range. They could be burned
or injured.
• Do not operate the range if it is
damaged or not working
properly.
• Do not use the range for
warming or heating the room.
Persons could be burned or
injured, or a fire could start.
• Use the range only for its
intended use as described in
this manual.
• DO NOT TOUCH SURFACE UNITS,
AREAS NEAR UNITS, HEATING
ELEMENTS OR INTERIOR
SURFACES OF OVEN. Surface
units and heating elements may
be hot even though they are
dark in color. Areas near
surface units and interior
surfaces of an oven become
hot enough to cause burns.
During and after use, do not
touch, or let clothing or other
flammable materials contact
surface units, areas near units,
heating elements or interior
surfaces of oven until they have
had sufficient time to cool.
Other surfaces of the range
may become hot enough to
cause burns; such as, the oven
vent opening, the surface near
the vent opening, the cooktop,
the oven door and window.
continued on next page
3

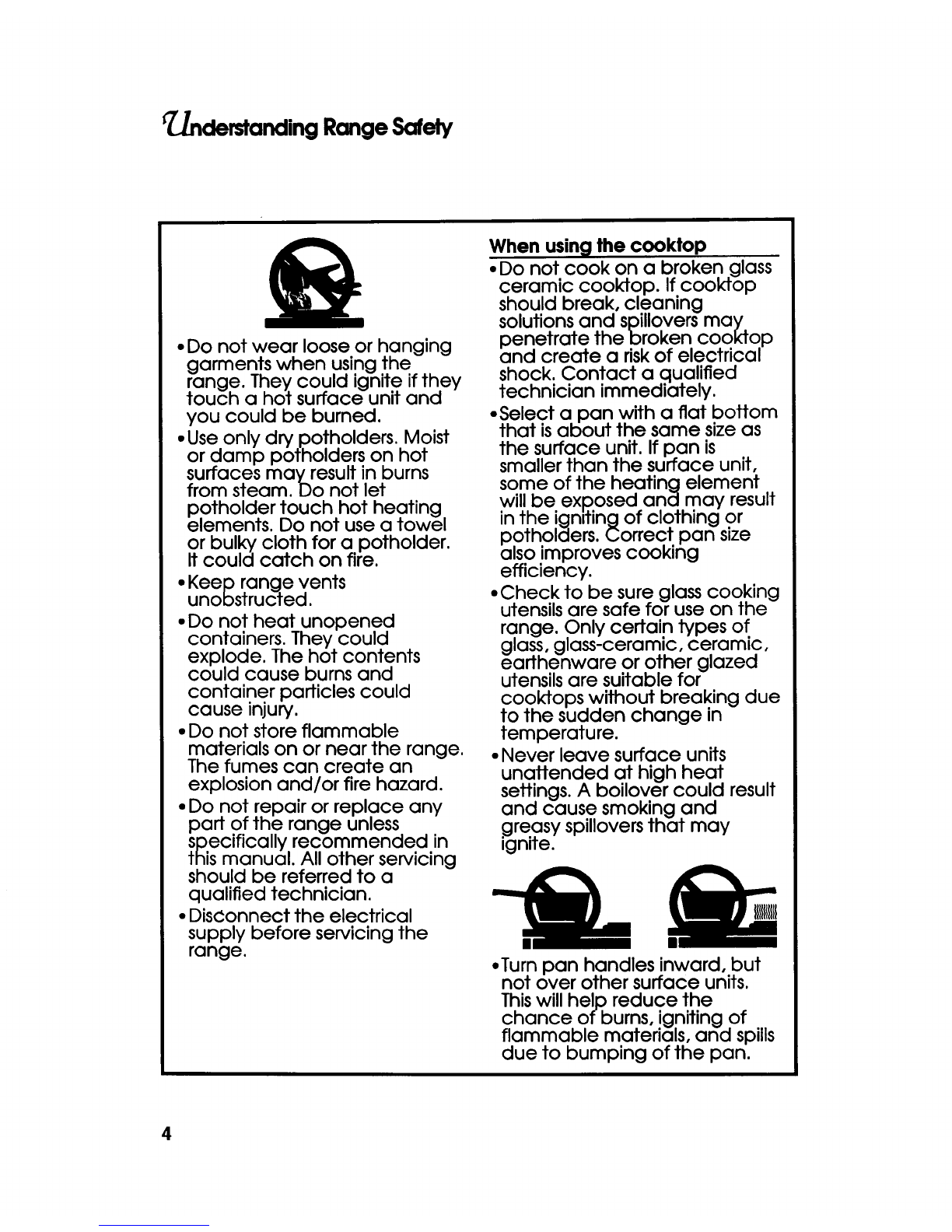

_nderstanding Range Safety
•Do not wear loose or hanging
garments when using the
range. They could ignite if they
touch a hot surface unit and
you could be burned.
• Use only dry potholders. Moist
or damp potholders on hot
surfaces may result in burns
from steam. Do not let
potholder touch hot heating
elements. Do not use a towel
or bulky cloth for a potholder.
It could catch on fire.
• Keep range vents
unobstructed.
•Do not heat unopened
containers. They could
explode. The hot contents
could cause burns and
container particles could
cause injury.
• Do not store flammable
materials on or near the range.
The fumes can create an
explosion and/or fire hazard.
• Do not repair or replace any
part of the range unless
specifically recommended in
this manual. All other servicing
should be referred to a
qualified technician.
• DisConnect the electrical
supply before servicing the
range.
When usinGlthe cooktop
• Do not cook on a broken glass
ceramic cooktop. If cooktop
should break, cleaning
solutions and spillovers may
penetrate the broken cooktop
and create a risk of electrical
shock. Contact a qualified
technician immediately.
•Select a pan with a fiat bottom
that is about the same size as
the surface unit. If pan is
smaller than the surface unit,
some of the heating element
will be exp..osed and may result
in the ignffing of clothing or
potholders. Correct pan size
also improves cooking
efficiency.
• Check to be sure glass cooking
utensils are safe for use on the
range. Only certain types of
glass, glass-ceramic, ceramic,
earthenware or other glazed
utensils are suitable for
cooktops without breaking due
to the sudden change in
temperature.
• Never leave surface units
unattended at high heat
settings. A boilover could result
and cause smoking and
greasy spillovers that may
ignite.
•Turn pan handles inward, but
not over other surface units.
Thiswill help reduce the
chance of burns, igniting of
flammable materials, and spills
due to bumping of the pan.
4

_nderstanding Range Safety
•Grease isflammable. Do not
allow grease to collect around
or
cooktop in vents. Wipe
spillovers immediately.
d
• Do not use water on grease
fires. Never pick up a flaming
pan. Smother flaming pan on
range by covering with a well-
fitted lid, cookie sheet or flat
tray. Flaming grease outside of
pan can be extinguished with
baking soda or, if available, a
multipurpose dry chemical or
foam-type extinguisher.
• Clean glass ceramic cooktop
with care. Some cleaners can
produce noxious fumes if
applied to a hot surface. If a
wet paper towel is used to
wipe spills on a hot cooking
area, be careful to avoid
steam burns.
When using the oven
• Always position oven rack(s) in
desired location while oven is
cool. If a rack must be
removed while oven is hot, do
not let potholder contact hot
heating element in oven.
• Use care when opening oven
door. Let hot air or steam
escape before removing or
replacing food.
•Small amounts of formal-
dehyde and carbon monoxide
are given off in the Self-
Cleaning cycle from fiberglass
insulation and food
decomposition. Significant
exposure to these substances
can cause cancer or
reproductive harm. Exposure
can be minimized by venting
with a hood or open window
and wiping out excess food
spills prior fo self-cleaning.
•Do not use oven cleaners. No
commercial oven cleaner or
oven liner protective coating
of any kind should be used in
or around any part of the oven.
• Before self-cleaning the oven,
remove broiler pan, broiler grid,
oven racks and other utens_s.
Do not use your oven to clean
miscellaneous parts unless you
are instructed to do so in this
Use and Care Guide.
• Do not clean door gasket. It is
essential for a goodseal. Care
should be taken not to rub,
damage or move the gasket.
Clean only parts recom-
mended in this Use and
Care Guide.
- SAVE THESE INSTRUCTIONS -
5

Getting toKnowYourRange
This section tells you what features your range has and where they are located. It also
discusses some safety and convenience features that you should know about, but
which are not needed to operate the range. Please review this information before
using your range.
Feature locations
Surface
unit
Electronic
oven
control
Model and
serial
number
plate
Lock lever
cover panel
Removable
storage
drawer
Oven vent
Surface unit
control panel
Automatic
oven light
switch
Broil element
Bake element
Cooktop control panel
Oven vent
Right rear
control knob
Left rear
control knob
Leftfront
knob
Right front
knob
Power on light
6

Getting to Know Your Range
The oven vent
Hot air and moisture escape from the oven
through a vent on the rear ofthe cooktop
control panel. Do not block the vent. Poor
baking/roasting can result.
Burn and Fire Hazard
Keep flammable materials away from
oven vent.
Failure to do so can result in burns
or a fire.
The storage drawer
You can remove the storage drawer to make
it easier to clean under the range. Use care
when handling the drawer.
Removing the storage drawer:
Replacing the storage drawer:
1. Empty drawer before removing. Pull
drawer straight out to the stop.
2. Lift back slightly and slide drawer all the
way out.
Drawer slide
rail
1. Fit ends of drawer slide rails into the
drawer guides on both sides of
opening.
2. Lift drawer frontand push in until rollers
on drawer slide rails clear rollers on
drawer guides. Lower drawer front and
slide drawer closed.
7

sing and Caring for
YourCooktop
This section tells you how to operate the controlsto the cooktop. It also discusses the
characteristics of the glass ceramic cooktop, along with tips on how to cook with and
maintain the cooktop.
IN THIS SECTION
Using the surface units .................... 8
Cookware tips ................................. I0 Caring for your cooktop ................. 11
Usingthe surface units
Control knobs
Push in control knobs before turning them
to a setting. Set them anywhere between HI
and OFF.
Surface unit markers
_un he triangle by each surface unit
control knob shows which surface
it isturned on by that knob.
Power on lights
When you use a control knob to
turn on a surface unit, the Power
On Light willglow.
Control setting guide
For best results, start cooking at the high
setting;then turn the control knob down to
continue cooking.
SETTING RECOMMENDED USE
HI *To start foods cooking.
• To bring liquidsto a boil.
6-5 •To hold a rapid boil.
•To fry chicken or
pancakes.
4•For gravy, pudding and
icing.
•To cook large amounts
ofvegetables.
3-2 •To keep food cooking
after starting it on a
higher setting.
LO •To keep food warm until
ready to serve.
8

sing and Caring for YourCooktop
The glass ceramic cooktop Hot surface indicator lights
The Hot Surface Indicator
Lights on the cooktop surface
will glow when the surface
units get hot. The Indicator
Lights will continue to glow
as long as the surface units are too hot to
touch, even after they are turned off.
Standard Hot surface Halogen
elements indicator elements
lights
Cooking on the glass ceramic cooktop is
almost the same as cooking on conventional
surface units. There are, however, a few
differences:
• The glass ceramic cooktop may take
slightly longer to heat up than a coil
surface unit. Itwill also take a littlelonger
to cool down.
•You will see the element cycling on
(glowing red) and off to maintain the
proper temperature setting you have
selected. You may even see some cycling
when the control knob is set at HI.
• The surface units on the rightside of the
cooktop feature halogen elements. These
elements light up as soon as you turn them
on, and are brighter than conventional coil
elements.
•Sliding metal pans on the glass ceramic
cooktop surface could leave marks. (See
"How to keep your cooktop looking like
new" on page 12 for cleaning information.)
Burn and Fire Hazard
Be sure all control knobs are turned to
OFF and the Power On Light(s) is OFF
when you are not cooking.
Someone could be burned or a fire could
start if a surface unit is accidentally left
ON.
9

Using and Caring for YourCooktop
Cookware tips
•Select a pan that isabout the same size
as the surface unit.
• NOTE: For best results and greater
energy efficiency, use only flat-bottomed
utensils that make good contact with the
surface units. Utensils with rounded,
warped, ribbed (porcelain enamel-ware) or
dented bottoms could cause severe
overheating, which damages the utensil
and/or surface unit.
Woks, canners and teakettles with flat
bottoms suitable for use on your cooktop
are now available in most stores that sell
housewares.
•The pan should have straight sides and a
tight-fitting lid.
•Choose medium to heavy gauge (thick-
ness) pans that are fairly lightweight.
•The pan material (metal or glass) affects
how fast heat transfers from the surface
unitthrough the pan material and how
evenly heat spreads over the pan bottom.
Choose pans that provide the best cooking
results.
•Handles should be made of sturdy, heat-
resistant material and be securely attached
to the pan.
•With your hand, feel the bottom of your
pans while they are cool for nicks and
scratches. Nicks and scratches on pan
bottoms will scratch the glass ceramic
cooktop.
•Make sure bottoms of pans are clean and
dry before using on cooktop.
•Avoid spillovers on cooktop. Use pans
with tall sides.
Do not cook food directly on cooktop.
Product Damage Hazard
Do not leave an empty utensil, or one
which has boiled dry, on a hot surface
unit.
The utensil can overheat and may dam-
age the utensil or surface unit.
Home canning information
•Use the largest surface unit for best
results. Also, use a canner/pan which can
be centered over the surface unit.
•Start with hot water. This reduces the time
the control is set on high. Reduce heat
setting to lowest position needed to keep
water boiling.
10

Using and Caring for YourCooktop
Caring for your cooktop
This cooktop is designed for easy care.
However, glass ceramic cooktops need to
be maintained differently than standard
electric coil elements. Foods spilled directly
on the cooktop will not bum off as on coil
elements. Because of this, the surface
should be dust-free and soil-free before
heating.
Your cooktop has been prepolished at the
factory for improved protection and
cleanability. The Cooktop Polishing Creme
(included with your unit), paper towels or a
sponge, and a single-edge razor blade in a
holder isall you need to clean your cooktop.
For proper cleaning methods, please review
the chart on page 12. Follow this chart after
each use to ensure top performance and to
preserve that uniquely elegant look.
Personal Injury Hazard
•When removing heavy or sugary spills
from hot cooldop, wear oven mitts to
prevent burns.
•Do not use cooktop cleaner on a hot
cooktop. The cleaner may produce
hazardous fumes or damage the
cooktop.
•Do not use the range ifthe cooktop is
cracked or broken.
Failure to follow these instructionscan
result in personal injury.
To avoid damaging the cooktop, follow
these instructions:
• Remove sugary spills before cooktop
cools to prevent pitting.
•Do not use the cooktop as a cutting
board.
•Do not allow anything that may melt
(such as plastic or aluminum foil) to
come in contact with the surface while it
is hot.
•Do not use the ceramic cooktop to cook
popcom that comes in prepackaged
aluminum containers. The container can
leave aluminum marks on the cooktop
that cannot be removed completely.
•Do not use steel wool, plastic cleaning
pads, abrasive powdered cleansers,
chlorine bleach, rust remover, ammonia
or glass cleaning products with ammo-
nia. These could damage the cooktop
surface.
•Dropping heavy or hard objects on the
cooktop can crack it. Be careful with
heavy skillets. Do not store jars or cans
above the cooktop.
11

Using and Cadng for YourCooktop
Cleaning steps:
Burn and Electrical Shock Hazard
Make sure all controls are OFF and the
range is cool before cleaning.
Failure to do so can result in burns or
electrical shock.
1. Most spills (except sugary spills and
soils- see chart on this page) can be
wiped off easily using a paper towel or
clean, damp sponge as soon as Hot
Surface Indicator Light(s) goes off.
2. Rub Cooktop Polishing Creme into
cooked-on soil using a paper towel. If
some soil remains, leave some creme on
the spot(s) and follow Step 3.
3. Carefully scrape spots with a single-
edge razor blade in a holder.
4. Finish by polishing entire cooktop with
Cooktop Polishing Creme and a paper
towel.
To obtain order information for Cooktop
Polishing Creme (Part No. 3184477),
write to:
KitchenAid
Parts Distribution Center
123 Koomler Drive
LaPorte, IN 46350
OR
Call 1-800-422-1230 to order. You must
have a major credit card to order by
phone.
How to keep your cooktop
looking like new:
IF THERE ARE WHAT TO DO
Sugary spills
and soils (such
as jellies and
candy syrups)
To prevent pitting on
the cooktop, wipe up
with paper towel or
clean, damp sponge
while glass ceramic
surface is still warm.
Remove as soon as
possible after spill
occurs.
Dark streaks,
specks and
discoloration
Metal marks
(from copper or
aluminum pans)
Tiny scratches
or abrasions
Use Cooktop
Polishing Creme or
nonabrasive cleanser
with damp paper towel
or sponge.
Use Cooktop Polishing
Creme or nonabrasive
cleanser with damp
paper towel or sponge
before heating the
cooktop again. If
heated before
cleaning, metal marks
may not come off.
Scratches and abra-
sions do not affect
cooking. In time, they
will become less
visible as a result of
cleaning. To prevent
scratches and abra-
sions, use Cooktop
Polishing Creme
regularly.
NOTE: Always rinse and dry your cooktop
thoroughly after using cleanser to prevent
streaking or staining.
12

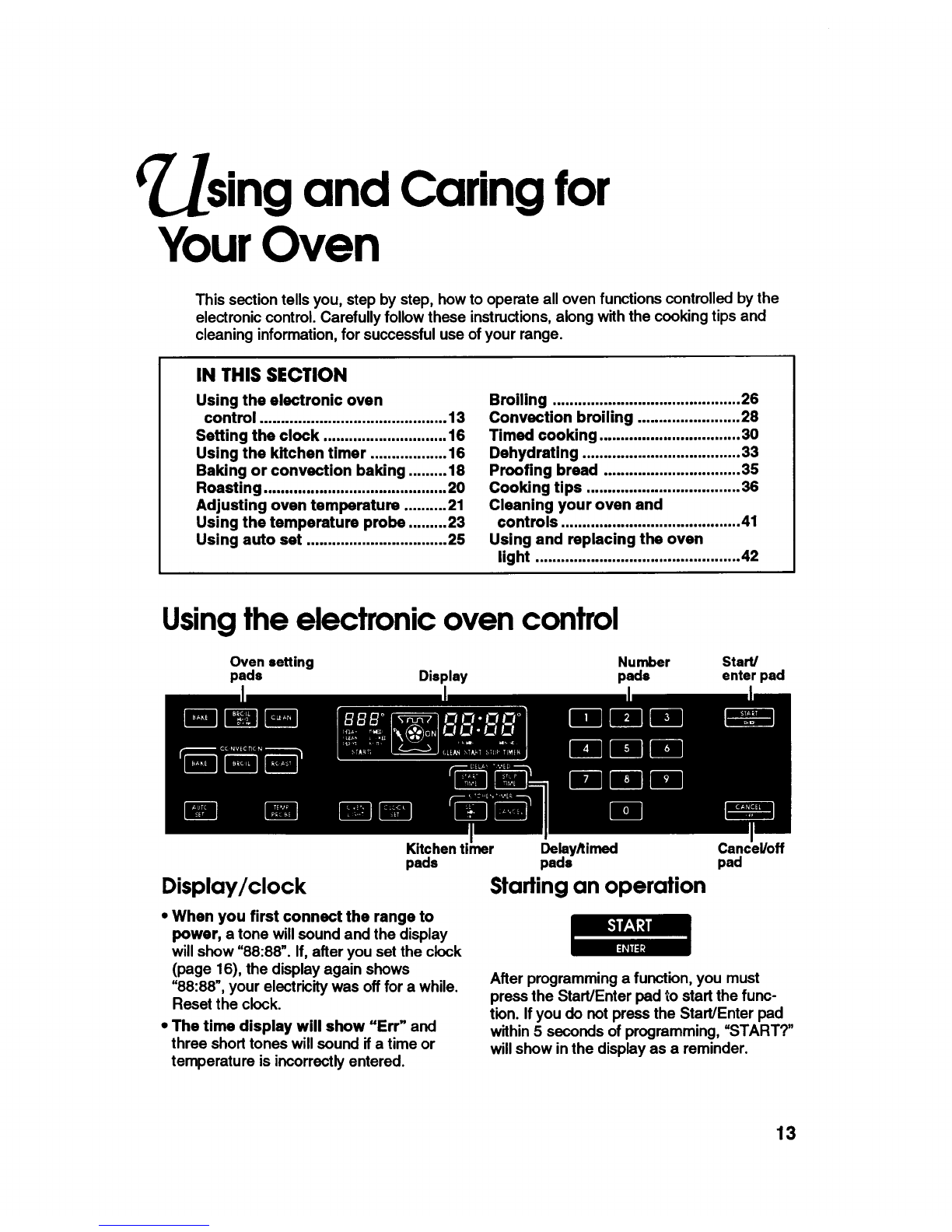

C ..]sing and Caring for
YourOven
This section tells you, step by step, how to operate all oven functions controlled by the
electronic control. Carefully follow these instructions, along with the cooking tips and
cleaning information, for successful use ofyour range.
IN THIS SECTION
Using the electronic oven
control ............................................ 13
Setting the clock ............................. 16
Using the kitchen timer .................. 16

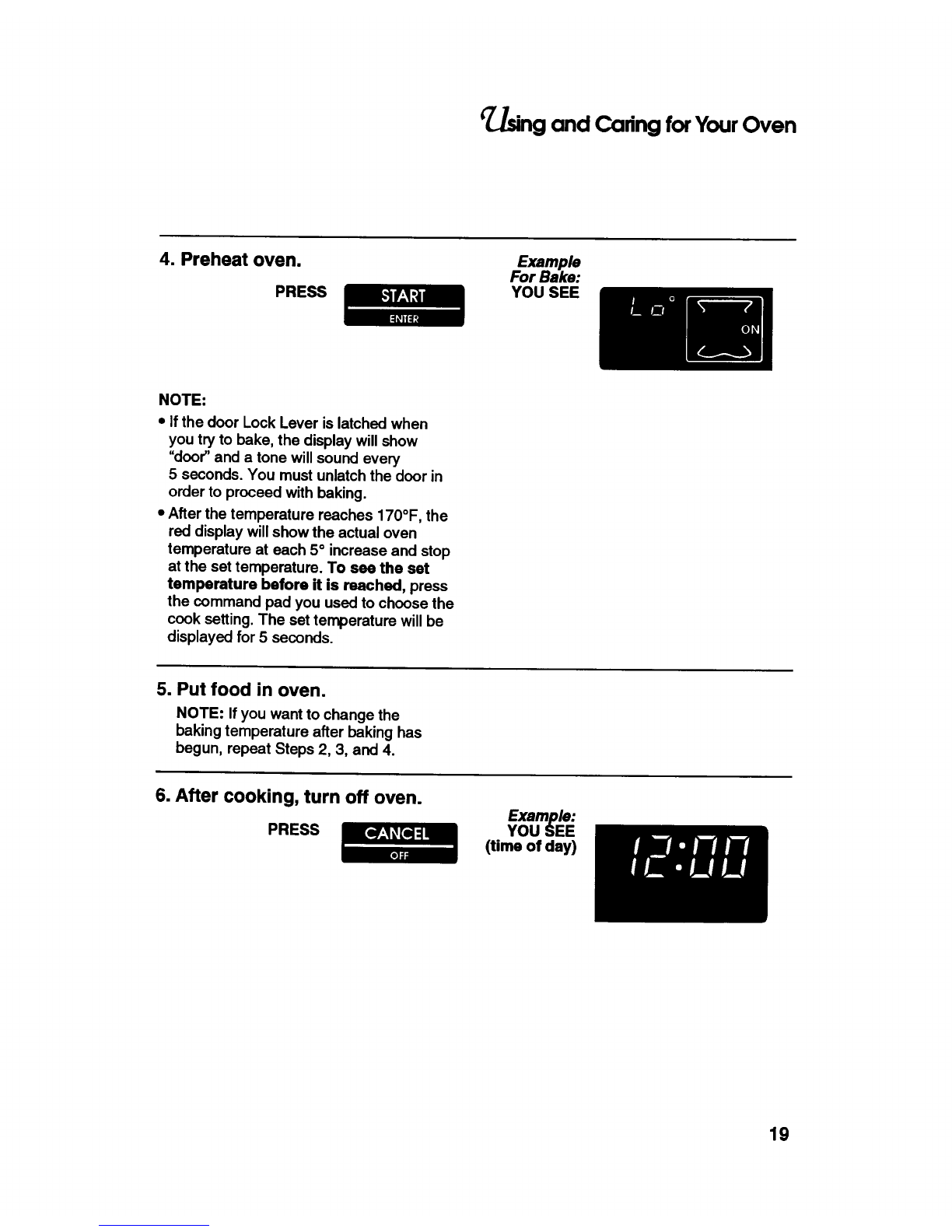

Baking or convection baking ......... 18

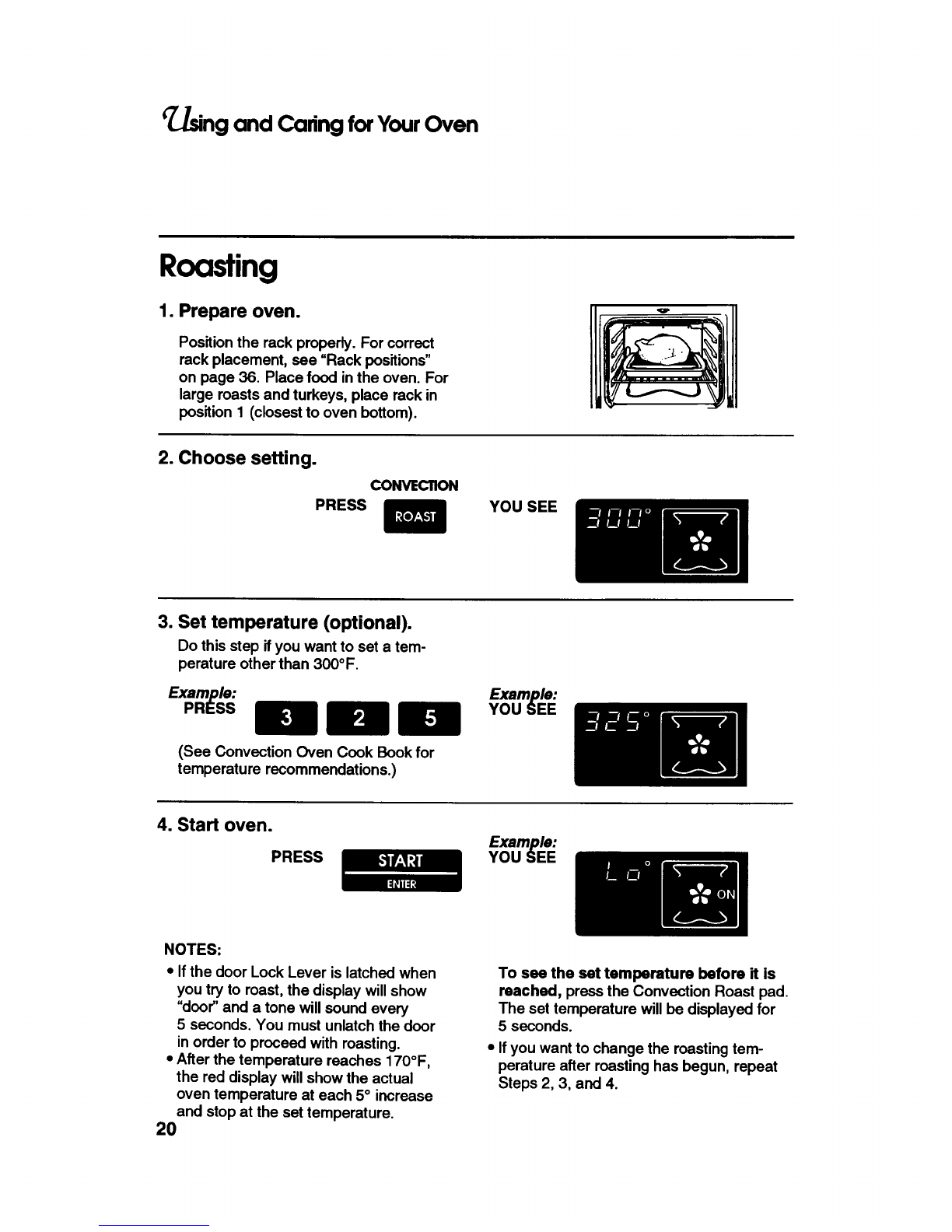

Roasting ........................................... 20
Adjusting oven temperature .......... 21
Using the temperature probe ......... 23
Using auto set ................................. 25
Broiling ............................................ 26
Convection broiling ........................ 28
Timed cooking ................................. 30
Dehydrating ..................................... 33
Proofing bread ................................ 35
Cooking tips .................................... 36
Cleaning your oven and
controls .......................................... 41
Using and replacing the oven
light ................................................ 42
Usingthe electronic oven control
Oven setting Number Start/
pads Display pads enter pad
Display/clock
Kitchen timer Delay/timed CanceVoff
pads pads pad
Starting an operation
• When you first connect the range to
power, a tone willsound and the display
will show "88:88". If, after you set the clock
(page 16), the display again shows
"88:88", your electricity was off for a while.
Reset the clock.
*The time display will show "Err" and
three shorttones will sound if a time or
temperature is incorrectly entered.
After programming a function, you must
press the Start/Enter pad to start the func-
tion. If you do not press the Start/Enter pad
within 5 seconds of programming, "START?"
willshow in the display as a reminder.
13

Using and Cawingfor YourOven
Canceling an operation
The CanceVOff pad will cancel any com-
mand pad, except for the Clock Set and
Kitchen Timer pads. When you press the
CanceVOff pad, the large display willshow
the time of day.
Changing audible signals
Audible signals tell you if a function is
entered correctly or not. They also tell you
when a cycle is completed.
To shut off audible signals during
programming:
PRESS
and hold
for four
seconds
To shut off all signals except for the end-
of-timer tone:
PRESS
and hold
for four
seconds
To change the end-of-timer tone to a
four-second tone:
PRESS
and hold
for four
seconds
A short tone willsound to tell you the signals
have been changed.
Repeat to turn the signals back on.
14

' sing and Caring forYourOven
Oven settings
This chart tells you when to use each setting. It also explains, both in pictures and in words,
what elements heat up for each setting.
SE'R'ING DIAGRAM SETTING INFORMATION
BAKE
Use this setting for baking
and for heating casse-
roles.
• The bottom element and outer top
element heat up.
•During baking, the elements will
turn on and off to maintain the oven
temperature.
BROIL (MAXI/ECONO)
Use this setting for
broiling regular-sized and
smaller cuts of meat,
poultry, and fish.
•Both top elements heat during Maxi
Broil. (Maximum browning cover-
age)
•Only the inner element heats up
during Econo Broil. (Browning
coverage in center only)
CONVECTION BAKE
Use this setting for foods
which require gentle
heating and for baking
breads and cakes. Use
also when baking large
quantities of food on
more than one oven rack.
For faster preheating, all elements
heat up untiloven reaches
desired temperature. After
preheat, only the rear element
heats up.
For even heating, the fan at the
back of the oven circulates air in the
oven cavity.
CONVECTION BROIL
Use this setting for
broiling thick cuts of
meat.
The top elements heat up.
For even heating, the fan at the
back of the oven circulates air in the
oven cavity.
CONVECTION ROAST
Use this setting for
roasting and baking on
one rack.
•The bottom element and outer top
element heat up.
•For even heating and faster cook-
ing, the fan at the back of the oven
circulates air in the oven cavity.
CLEAN Use this setting for self-cleaning only.
15

Using and Caring forYourOven
Seffing the clock
1. Choose Clock Set.
PRESS Example:
YOU SEE
2. Set time.
Example:
PRESS Example:
YOU SEE
3. Start clock.
PRESS If the time has not been entered correctly,
three short tones willsound and "Err" is
displayed for 1 second. The previous
display then reappears. Repeat Steps 1,2,
and 3 to reenter the time of day.
Using the kitchen timer
The Kitchen Timer does not start or stop the
oven. It works like a regular kitchen timer. It
can be set in hours and minutes up to 99 hours,
99 minutes or in minutes and seconds up to
99 minutes, 99 seconds.
1. Choose Kitchen Timer.
PRESS
once to
count down
minutes and
seconds
YOU SEE
16

Using and Caring for Your Oven
PRESS
twice to
count down
hours and
minutes
YOU SEE
2. Set time.
Example:
,. ss 000 Example:
YOU SEE
3. Start Kitchen Timer.
PRESS
The Kitchen Timer willbegin counting down
immediately after you press the Start/Enter
pad.
When time is up, you will hear a single tone
that sounds every 5 seconds.
PRESS
to turn off tone
KITCHEN/
tIMER YOU SEE
NOTE: To change the end-of-timer tone to a
four-second tone, press and hold the
Kitchen Timer Set pad for 4 seconds. A
shorttone will sound to tell you the tone has
been changed.
Tocancel the kitchen timer:
KITCHEN/
11MER
PRESS
17

_jTsing and Caring for YourOven
Baking or convection baking
1. Position racks.
For correct rack placement, see "Rack
positions"on page 36 and "Rack
placement" chart on page 37.
2. Choose setting.
PRESS YOU SEE
OR
CONVEC_ON
PRESS YOU SEE
3.Set temperature (optional).
Do this step if you want to set a tem-
perature other than 350 ° (for Bake) or
325 ° (for Convection Bake).
Example:
PRESS
Example
For Bake:
YOU SEE
(See a reliable cookbook or the Convec-
tion Oven Cook Book for temperature
recommendations.)
18

Using and Caring for YourOven
4. Preheat oven.
PRESS
Example
For Bake:
YOU SEE
NOTE:
• Ifthe door Lock Lever is latched when
you try to bake, the display will show
"door" and a tone will sound every
5 seconds. You must unlatch the door in
order to proceed with baking.
•After the temperature reaches 170°F, the
red display will show the actual oven
temperature at each 5° increase and stop
at the set temperature. To see the set
temperature before it is reached, press
the command pad you used to choose the
cook setting. The set temperature will be
displayed for 5seconds.
5. Put food in oven.
NOTE: If you want to change the
baking temperature after baking has
begun, repeat Steps 2, 3, and 4.
6. After cooking, turn off oven.
PRESS Example:
YOU SEE
(time of day)
19

Using and Cadng forYourOven
Roasting
1. Prepare oven.
Positionthe rack properly. For correct
rack placement, see "Rack positions"
on page 36. Place food in the oven. For
large roasts and turkeys, place rack in
position 1 (closest to oven bottom).
2. Choose setting.
PRESS CONVECTION YOU SEE
3. Set temperature (optional).
Do this step ifyou want to set a tem-
perature other than 300°F.
Example:
PRESS Example:
YOU SEE
(See Convection Oven Cook Book for
temperature recommendations.)
4. Start oven.
PRESS Example: YOU SEE
NOTES:
*If the door Lock Lever is latched when
you try to mast, the display will show
"door" and a tone will sound every
5 seconds. You must unlatch the door
in order to proceed with masting.
•After the temperature reaches 170°F,
the red display will show the actual
oven temperature at each 5° increase
and stop at the set temperature.
20
To see the set temperature before it is
reached, press the Convection Roast pad.
The set temperature will be displayed for
5 seconds.
•Ifyou want to change the roasting tem-
perature after roasting has begun, repeat
Steps 2, 3, and 4.
