KitchenAid KESC307 User manual

"Use and Ca Guide
•. _itch_id*
Table of Contents
(complete) ................. 2
A Note to You ............... 3
Range Safety ............. 4°6

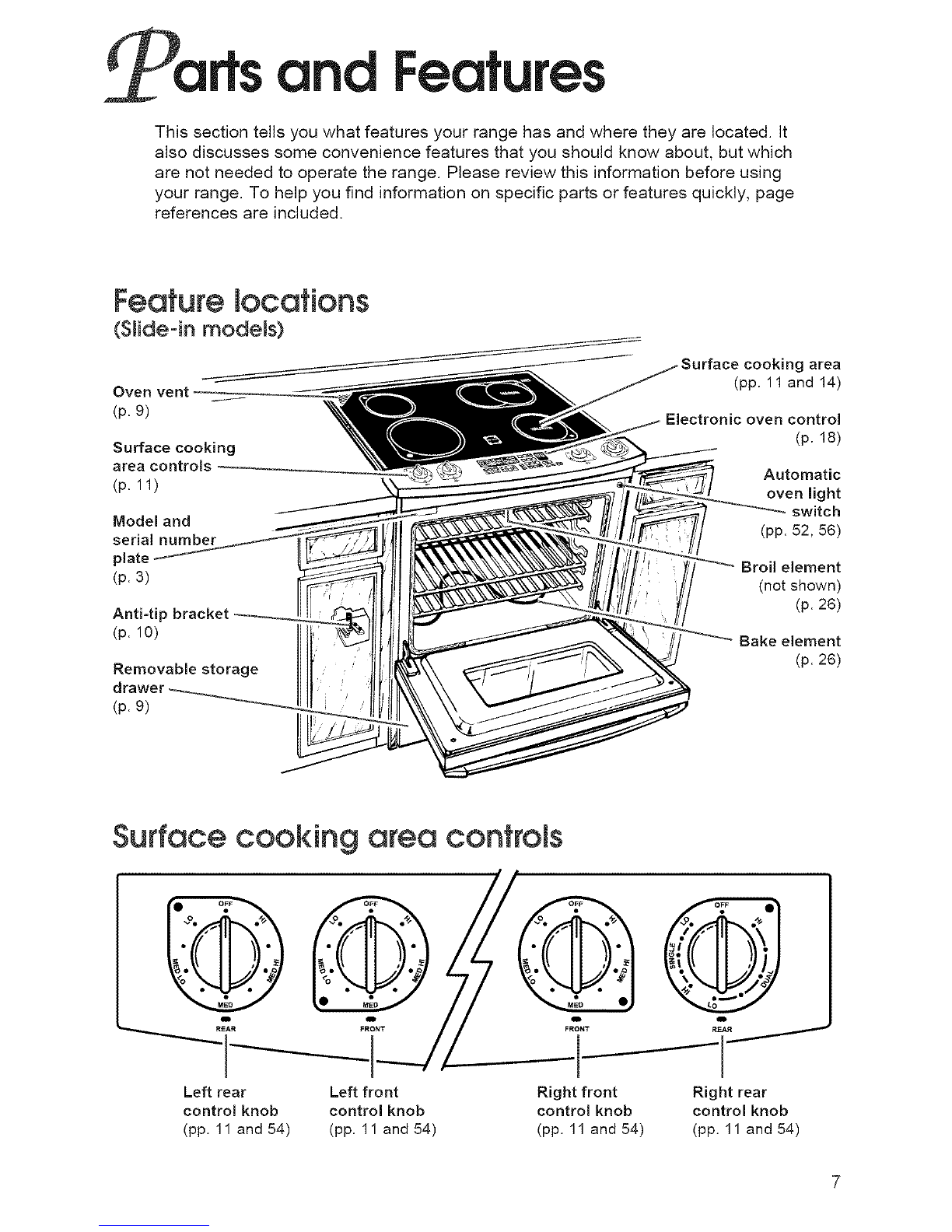

Parts and Features ...... 7
Using and Caring for
Your Cooktop ............. 11
Using and Caring for
Your Oven .................. 18
Using EASY
CONVECT*
Conversion .............. 42
Using the Self=
Cleaning Cycle ........... 57
Troubleshooting ........ 61
Requesting Assistance
or Service .................... 63
.- _ Index ........................... 66
Warranty ..................... 68
In the U.S.A, for assistance or service,
call the Consumer Assistance Center:
to800o422ol 230
in Canada for assistance or service,
see page 64.
KITCHENAID* THERMAL-CONVECTION*
ElectricRanges
PART NO. 9752957
Models: KESC307 KESH307 KERC607
YKESC307 YKESH307 YKERC607

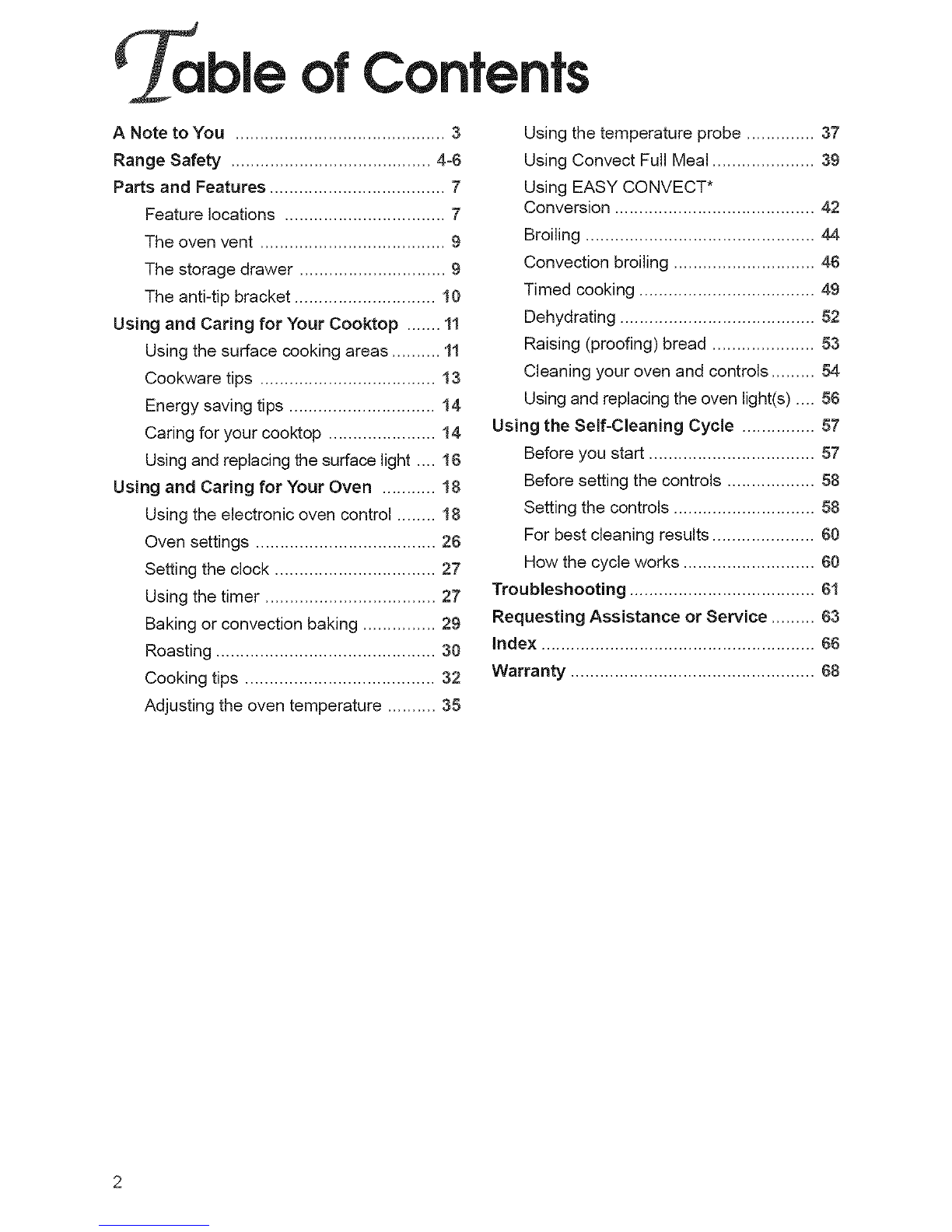

Contents
A Note to You ........................................... 3
Range Safety ......................................... 4-6
Parts and Features .................................... 7
Feature locations ................................. 7
The oven vent ...................................... 9
The storage drawer .............................. 9
The anti-tip bracket ............................. 10
Using and Caring for Your Cooktop ....... 11
Using the surface cooking areas .......... 11
Cookware tips .................................... 13
Energy saving tips .............................. 14
Caring for your cooktop ...................... 14
Using and replacing the surface light .... 16
Using and Caring for Your Oven ........... 18
Using the electronic oven control ........ 18
Oven settings ..................................... 26
Setting the clock ................................. 27
Using the timer ................................... 27
Baking or convection baking ............... 29
Roasting ............................................. 30
Cooking tips ....................................... 32
Adjusting the oven temperature .......... 35
Using the temperature probe .............. 37
Using Convect Full Meal ..................... 39
Using EASY CONVECT*
Conversion ......................................... 42
Broiling ............................................... 44
Convection broiling ............................. 46
Timed cooking .................................... 49
Dehydrating ........................................ 52
Raising (proofing) bread ..................... 53
Cleaning your oven and controls ......... 54
Using and replacing the oven light(s) .... 56
Using the Self-Cleaning Cycle ............... 57
Before you start .................................. 57
Before setting the controls .................. 58
Setting the controls ............................. 58
For best cleaning results ..................... 60
How the cycle works ........................... 60
Troubleshooting ...................................... 61
Requesting Assistance or Service ......... 63
index ........................................................ 66
Warranty .................................................. 68

Note toYou
c__O_ for buying a KITCHENAID* appliance!
KitchenAid designs the best tools for the most important room in your house. To ensure
that you enjoy many years of trouble-free operation, we developed this Use and Care
guide. It contains valuable information concerning how to operate and maintain your
new appliance properly and safely. Please read it carefully.
Also, please complete and mail the enclosed Product Registration Card.
In fhe U.S.A.
For assistance or service
Call the Consumer Assistance Center toll free ................................................ 1-800-422-1230
Throughouf Canada forassisfance
CalltheConsumer AssistanceCentretollfree................................................1-800-461-5681
8:30a,m.- 6 p.m.(EST)
Throughouf Canctdct for service ............................................................. see page 64.
If you need assistance or service, first see the "Troubleshooting" section of this book. After
checking "Troubleshooting," additional help can be found by checking the "Requesting
Assistance or Service" section, or by calling one of the telephone numbers above.
When calling, you will need to know your appliance's complete model number and serial
number. You can find this information on the model and serial number label/plate (see
diagrams in the "Parts and Features" section).
Keep this book and the sales slip together in a safe place for future reference. You must
provide proof of purchase or installation date for in-warranty service.
Model Number BuildeflDealer Name
Serial Number Address
Date Installed Phone

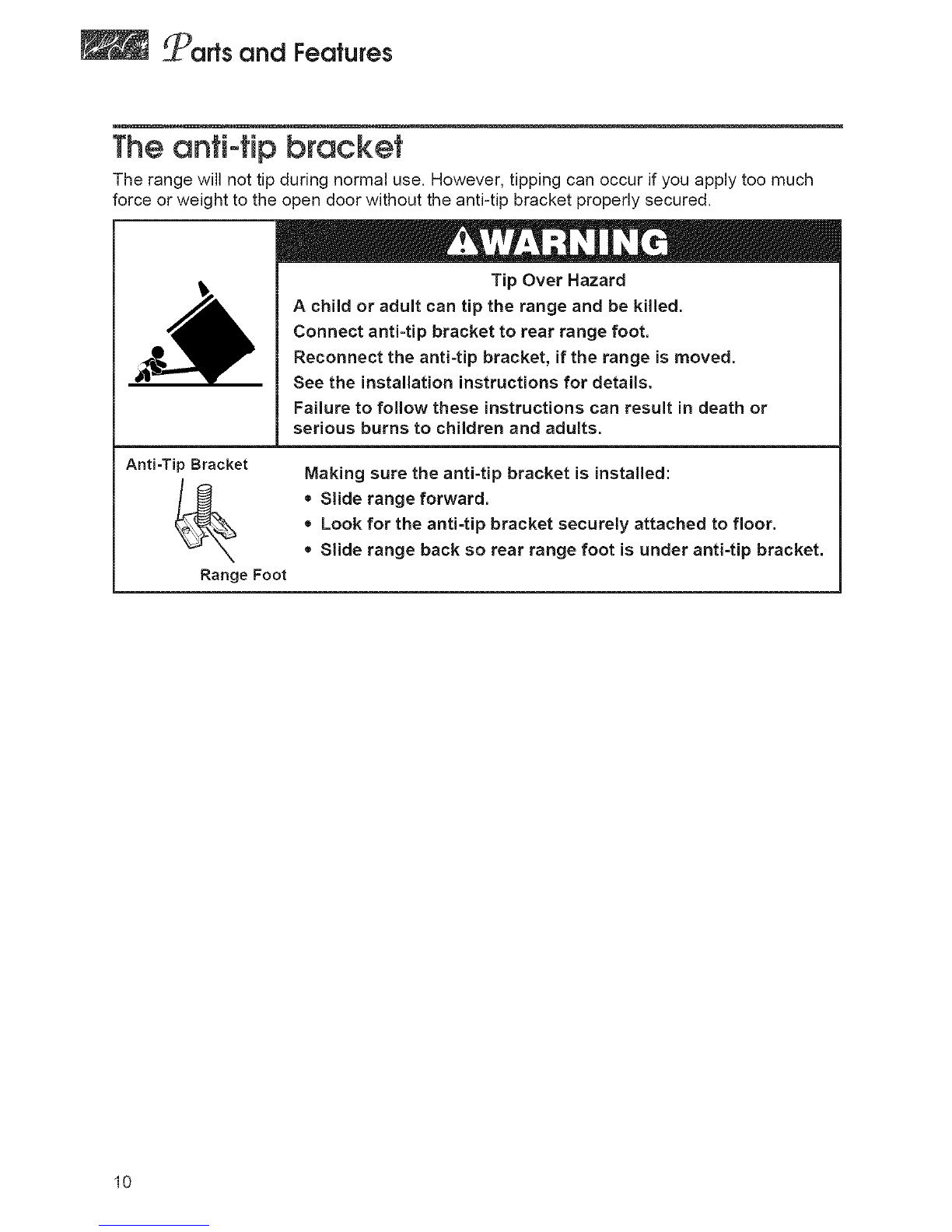

Tip Over Hazard
Achild or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or
serious burns to children and adults.
Anti-Tip Bracket
Range Foot
Making sure the anti-tip bracket is installed:
*Slide range forward.
* Look for the anti-tip bracket securely attached to floor.
* Slide range back so rear range foot is under anti-tip bracket.

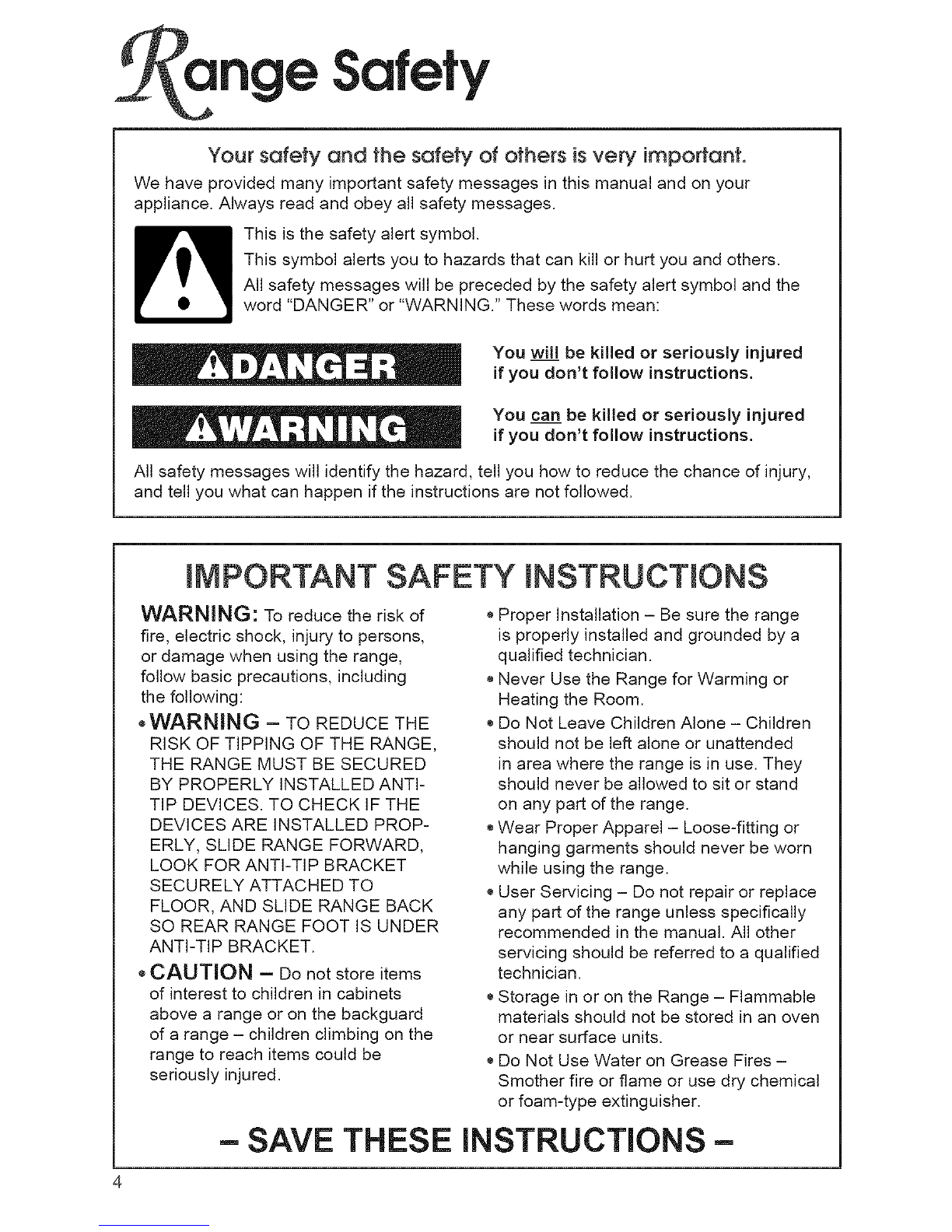

Safety
Your safely ond fhe sofefy of ofhers is very imporfant,
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word "DANGER" or "WARNING." These words mean:
You will be killed or seriously injured
if you don't follow instructions.
You can be killed or seriously injured
if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of
fire, electric shock, injury to persons,
or damage when using the range,
follow basic precautions, including
the following:
,WARNING - TO REDUCETHE
RISK OF TIPPING OF THE RANGE,
THE RANGE MUST BE SECURED
BY PROPERLY INSTALLED ANTI-
TIP DEVICES. TO CHECK IF THE
DEVICES ARE INSTALLED PROP-
ERLY, SLIDE RANGE FORWARD,
LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO
FLOOR, AND SLIDE RANGE BACK
SO REAR RANGE FOOT IS UNDER
ANTI-TIP BRACKET.
CAUTION = Do not store items
of interest to children in cabinets
above a range or on the backguard
of a range - children climbing on the
range to reach items could be
seriously injured.
• Proper Installation -Be sure the range
is properly installed and grounded by a
qualified technician.
e Never Use the Range for Warming or
Heating the Room.
• Do Not Leave Children Alone - Children
should not be left alone or unattended
in area where the range is in use. They
should never be allowed to sit or stand
on any part of the range.
• Wear Proper Apparel - Loose-fitting or
hanging garments should never be worn
while using the range.
e User Servicing - Do not repair or replace
any part of the range unless specifically
recommended in the manual. All other
servicing should be referred to a qualified
technician.
• Storage in or on the Range - Flammable
materials should not be stored in an oven
or near surface units.
• Do Not Use Water on Grease Fires -
Smother fire or flame or use dry chemical
or foam-type extinguisher.
-SAVE THESE INSTRUCTIONS-

_ nge Safety

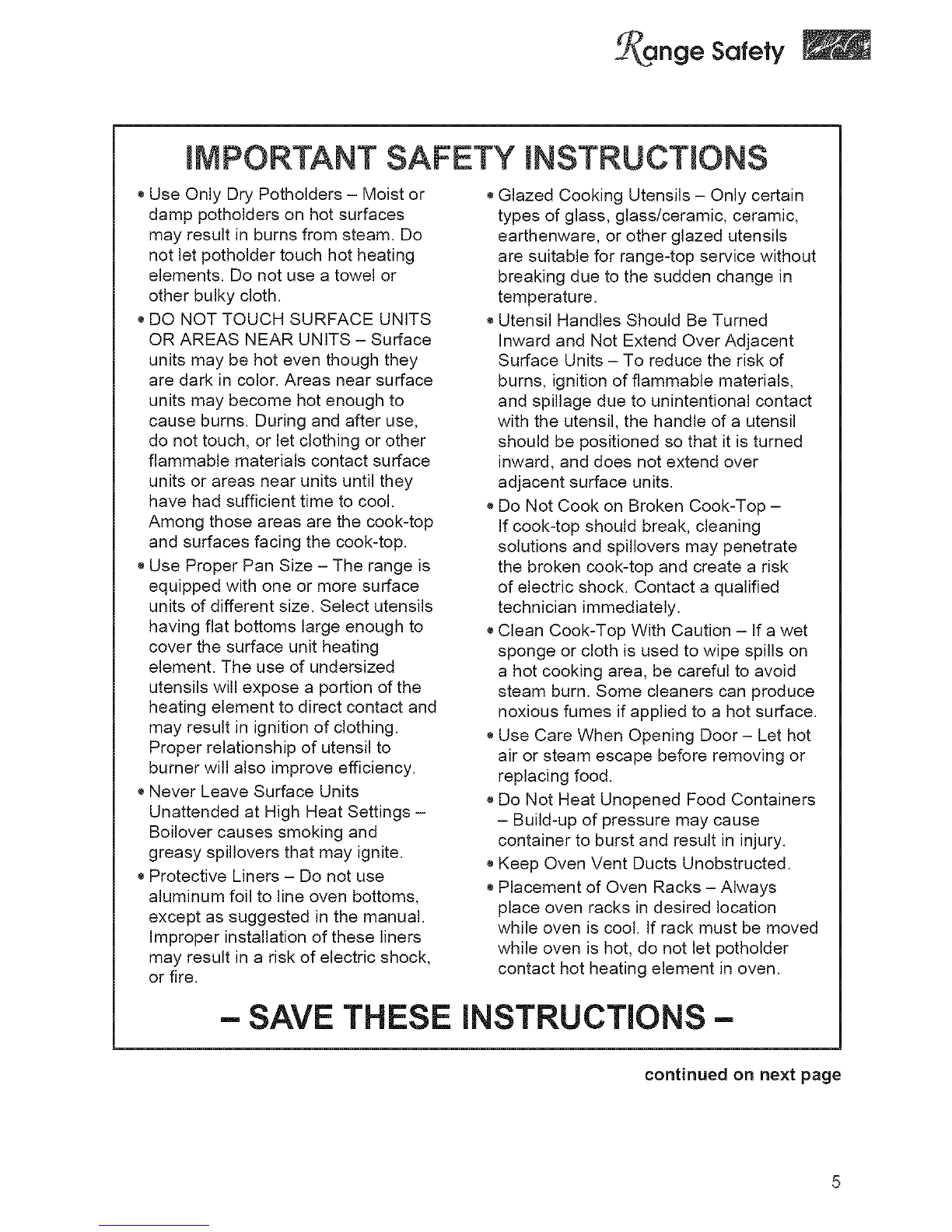

IMPORTANT SAFETY iNSTRUCTiONS
• Use Only Dry Potholders - Moist or
damp potholders on hot surfaces
may result in burns from steam. Do
not let potholder touch hot heating
elements. Do not use a towel or
other bulky cloth.
e DO NOT TOUCH SURFACE UNITS
OR AREAS NEAR UNITS - Surface
units may be hot even though they
are dark in color. Areas near surface
units may become hot enough to
cause burns. During and after use,
do not touch, or let clothing or other
flammable materials contact surface
units or areas near units until they
have had sufficient time to cool.
Among those areas are the cook-top
and surfaces facing the cook-top.
e Use Proper Pan Size - The range is
equipped with one or more surface
units of different size. Select utensils
having flat bottoms large enough to
cover the surface unit heating
element. The use of undersized
utensils will expose a portion of the
heating element to direct contact and
may result in ignition of clothing.
Proper relationship of utensil to
burner will also improve efficiency.
e Never Leave Surface Units
Unattended at High Heat Settings -
Boilover causes smoking and
greasy spillovers that may ignite.
• Protective Liners - Do not use
aluminum foil to line oven bottoms,
except as suggested in the manual.
Improper installation of these liners
may result in a risk of electric shock,
or fire.
• Glazed Cooking Utensils - Only certain
types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils
are suitable for range-top service without
breaking due to the sudden change in
temperature.
e Utensil Handles Should Be Turned
Inward and Not Extend Over Adjacent
Surface Units - To reduce the risk of
burns, ignition of flammable materials,
and spillage due to unintentional contact
with the utensil, the handle of a utensil
should be positioned so that it is turned
inward, and does not extend over
adjacent surface units.
e Do Not Cook on Broken Cook-Top -
If cook-top should break, cleaning
solutions and spillovers may penetrate
the broken cook-top and create a risk
of electric shock. Contact a qualified
technician immediately.
e Clean Cook-Top With Caution - If a wet
sponge or cloth is used to wipe spills on
a hot cooking area, be careful to avoid
steam burn. Some cleaners can produce
noxious fumes if applied to a hot surface.
• Use Care When Opening Door- Let hot
air or steam escape before removing or
replacing food.
e Do Not Heat Unopened Food Containers
- Build-up of pressure may cause
container to burst and result in injury.
e Keep Oven Vent Ducts Unobstructed.
• Placement of Oven Racks - Always
place oven racks in desired location
while oven is cool. If rack must be moved
while oven is hot, do not let potholder
contact hot heating element in oven.
-SAVE THESE INSTRUCTIONS-
continued on next page

nge Safety

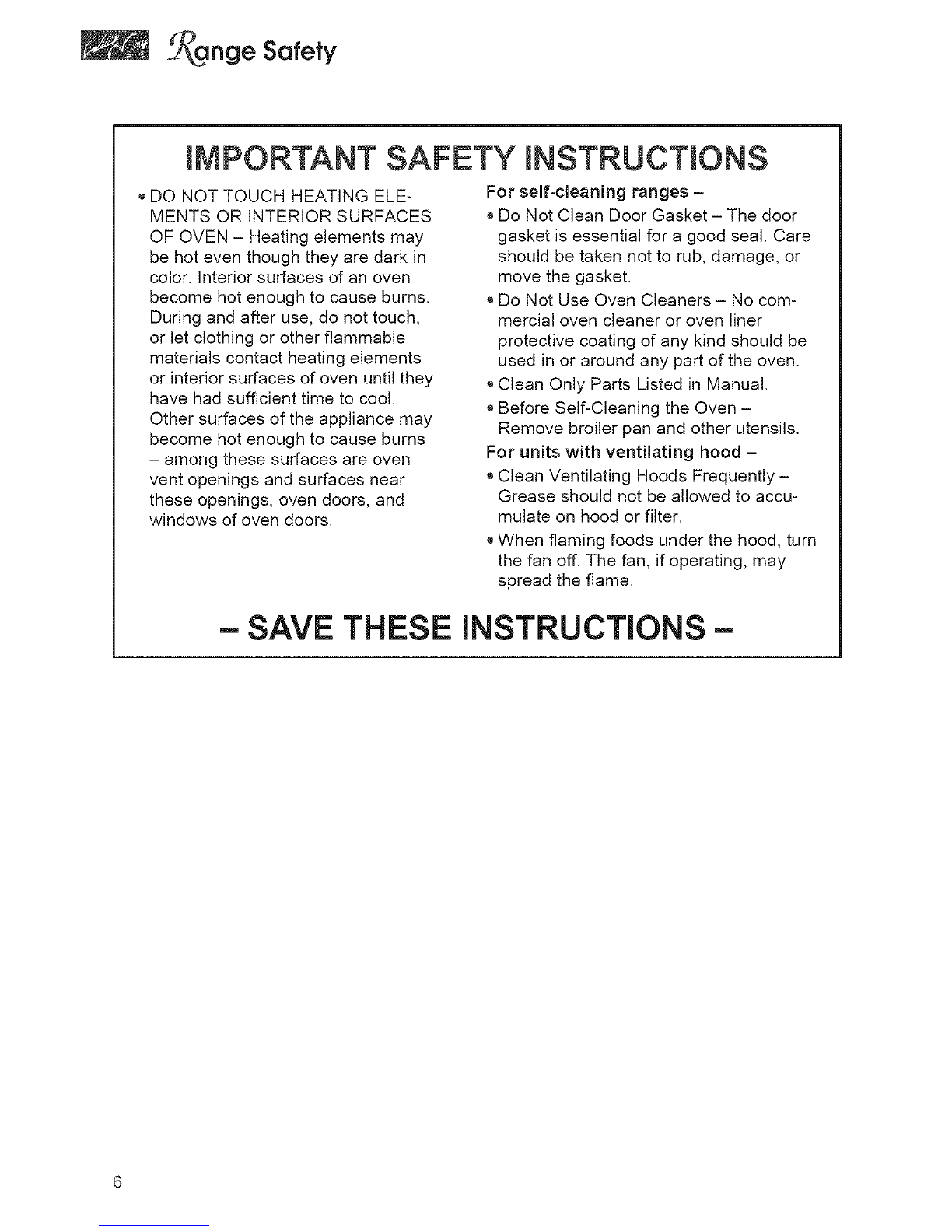

IMPORTANT SAFETY NSTRUCT ONS
• DO NOT TOUCH HEATING ELE-
MENTS OR INTERIOR SURFACES
OF OVEN - Heating elements may
be hot even though they are dark in
color. Interior surfaces of an oven
become hot enough to cause burns.
During and after use, do not touch,
or let clothing or other flammable
materials contact heating elements
or interior surfaces of oven until they
have had sufficient time to cool.
Other surfaces of the appliance may
become hot enough to cause burns
- among these surfaces are oven
vent openings and surfaces near
these openings, oven doors, and
windows of oven doors.
For self-cleaning ranges -
• Do Not Clean Door Gasket - The door
gasket is essential for a good seal. Care
should be taken not to rub, damage, or
move the gasket.
e Do Not Use Oven Cleaners - No com-
mercial oven cleaner or oven liner
protective coating of any kind should be
used in or around any part of the oven.
e Clean Only Parts Listed in Manual.
• Before Self-Cleaning the Oven -
Remove broiler pan and other utensils.
For units with ventilating hood -
• Clean Ventilating Hoods Frequently -
Grease should not be allowed to accu-
mulate on hood or filter.
eWhen flaming foods under the hood, turn
the fan off. The fan, if operating, may
spread the flame.
-SAVE THESE INSTRUCTIONS-

_. artsand Features
This section tells you what features your range has and where they are located. It
also discusses some convenience features that you should know about, but which
are not needed to operate the range. Please review this information before using
your range. To help you find information on specific parts or features quickly, page
references are included.
Feature ocafions
(Slide-in models)
Surface cooking area
Oven vent (pp. 11 and 14)
(p. 9) Electronic oven control
Surface cooking (p. 18)
area controls Automatic
(p. 11) oven light
Model and switch
serial number (pp. 52, 56)
plate Broil element
(p. 3) (not shown)
Anti-tip (p. 26)
(p. 10) Bake element
Removable storage (p. 26)
(p. 9)
Surface cooking area confroms
Left rear Leftfront Right front Right rear
control knob control knob control knob control knob
(pp. 11 and 54) (pp. 11 and 54) (pp. 11 and 54) (pp. 11 and 54)

__artsand Features
(Freesfanding models)
Surface lig
(p. 16)
(p. 9)
Surface cooking
area controls
(p. 11)
Anti-tip
(p. 10)
Model and
serial number
(p. 3)
Removable
storage drawer,
(p. 9)
Surface cooking area
(pp. 11 and 14)
Electronic oven
control
(p. 18)
Automatic oven
light switch
(pp. 52, 56)
Broil element
(not shown)
(p. 26)
(p. 26)
Surface cooking area controls
Left rear
control knob
(pp. 11 and 54)
Left front
control knob
(pp. 11 and 54)
Right front
control knob
(pp. 11 and 54)
Right rear
control knob
(pp. 11 and 54)

__ads and Features
The oven vent
Oven vent
Hot air and moisture escape from the oven
through a vent in the left rear corner of the
cooktop. Do not block the vent by using
large pans or covers. Poor baking/roasting
can result.
NOTE: Plastic utensils left over the vent
can melt.
Burn Hazard
Use pot holders when touching items
left near oven vent.
Failure to do so can result in burns.
The storage drawer
You can remove the storage drawer to make
it easier to clean under the range, Use care
when handling the drawer.
Removing the storage drawer:
1. Empty drawer of any pots and pans
before removing drawer. Use recessed
area on top edge of drawer to pull drawer
straight out to the first stop, Lift front and
pull out to the second stop,
2. Lift back slightly and slide drawer all the
way out.
Replacing the storage drawer:
Drawer slide
rail
1. Fit ends of drawer slide rails into the
drawer guides on both sides of opening.
2. Lift drawer front and press in until metal
stops on drawer slide rails clear white
stops on drawer guides, Lift drawer front
again to clear second stop and slide
drawer closed,

_ ads and Feafures
The anti°tipbrackef
The rangewillnottipduringnormaluse.However,tippingcan occurifyou applytoomuch
forceorweighttotheopen doorwithouttheanti-tipbracketproperlysecured.
_.____ Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or
serious burns to children and adults.
Anti=TipBracket
Range Foot
Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
10

"rigand
Cooktop Caring forYour
This section tells you how to operate the controls to the cooktop. It also discusses
how the ceramic glass cooktop works, and includes tips on how to cook with and
maintain the cooktop.
Usingthe surface cooking areas
Control knobs
Push in control knobs before turning them
to a setting. Set them anywhere between HI
and OFF.
Surface cooking area markers
The solid dot in the surface cooking area
marker shows which surface
cooking area is turned on by
that knob.
Power on lights
When you use a control knob to turn on a
surface cooking area, the
Power On Light by that knob
FRONT willglow.
("CHAUD" is
French for
"HOT")
Hot surface indicator lights
The Hot Surface Indicator Lights on the
cooktop surface will glow
when any of the surface
cooking areas are hot. The
Indicator Lights will continue
to glow as long as the surface
cooking areas are too hot to
touch, even after they are
turned off.
Fire Hazard
Turn off all controls when done
cooking.
Failure to do so can result in death
or fire.
Control seffing guide
For best results, start cooking at the high
setting; then turn the control knob down to
continue cooking.
SETTING RECOMMENDED USE
HI oTo start foods cooking.
oTo bring liquids to a boil.
MED HI eTo hold a rapid boil.
eTo fry chicken or
pancakes.
MED o For gravy, pudding, and
icing.
oTo cook large amounts
of vegetables.
MED LO eTo keep food cooking
after starting it on a
higher setting.
LO oTo keep food warm until
ready to serve.
11

' sing and Caring for Your Cooktop
Using the dual=size surface
cooking area
(some models)
You can use the right rear surface cooking
area as either a small diameter, lower
wattage element or large diameter, full
wattage element.
Use both elements
for larger pans
Use small element
for smaller pans
To use the small element
(for smaller pans):
o Push in and turn the control knob to the
left (counterclockwise) to the desired
setting in the area marked "SINGLE."
To use both elements
(for larger pans):
o Push in and turn the control knob to the
right (clockwise) to the desired setting in
the area marked "DUAL."
NOTE: You can turn the control knob in
either direction to reach "OFF."
12
The ceramic glass cookfop
Standard Hot surface Halogen
elements indicator elements
lights (some
models)
Cooking on the ceramic glass cooktop
is almost the same as cooking on coil
elements. There are, however, a few
differences:
o The surface cooking area will glow red
when the element is turned on. You will
see the element cycling on and off - even
on the HI setting - to help the area stay at
the temperature setting you choose.
oWiping off the cooktop before and after
each use will help keep the surface free
from stains and give you the most even
heating. See "Cleaning the cooktop" in
the "Caring for Your Range" section.
e Do not cook foods directly on the cooktop.
o Lift pots and pans onto and off of the
cooktop. Sliding pots and pans on the
cooktop could leave marks that are
difficult to remove or could leave
permanent marks.
o Do not cook popcorn that comes in
prepackaged aluminum containers on
the cooktop. The container could leave
aluminum marks on the cooktop that
cannot be removed completely.
e Do not use the cooktop as a cutting board.
o Do not allow anything that could melt,
such as plastic or aluminum foil, to come in
contact with the cooktop while it is hot.
e Dropping a heavy or hard object on the
cooktop could crack it. Be careful when
using heavy skillets and large pots. Do not
store jars or cans above the cooktop.
e Sugary spills and soils can cause pitting.
See "Cleaning the cooktop" in the "Caring
for Your Range" section.

J sing and Caring for Your Cooktop
Cookware tips
e Use the correct cookware to prevent
damage to the surface cooking area,
cooktop, wiring, and surrounding areas.
o if the cookware is too small for the
surface cooking area or the bottom is not
flat, the surface cooking area could stay
glowing red for an extended length of time
causing damage to the range.
o If you start cooking on high, it is impor-
tant to turn the control down to a lower
setting to complete cooking.
e Flat-bottomed cookware, including woks,
canners, and teakettles, will provide better
contact with the surface cooking area and
provide the best cooking results.
oWarped, dented, and ribbed-bottomed
cookware can result in uneven cooking
clue to incomplete contact with the surface
cooking area.
o Cookware that has been designed with
slightly indented bottoms or small expan-
sion channels can be used.
e Choose medium to heavy gauge
(thickness) cookware.
o The pan material (type of metal or
glass) affects how quickly and evenly
the pan heats.
e Check for rough spots on the bottom of
your metal or glass cookware which could
scratch the ceramic glass surface.
e Make sure the bottoms of pots and pans
are clean and dry before using them. Food
and water particles left on the bottoms can
leave deposits on the cooktop when it is
heated.
Home canning information
o Use flat-bottomed canner/pan.
Canners with rippled or ridged bottoms
do not allow good contact with the
surface cooking area.
center over
Isurface cooking I
o Use the largest surface cooking area
and center the canner/pan on it. A large
diameter canner/pan, if not centered
correctly, can trap heat and cause
damage to the cooktop.
e Do not place your canner/pan on
2 surface cooking areas at the same
time. Too much heat will build up and
damage the cooktop.
e Start with hot water. This reduces the
time the control is set on high. Reduce
the heat setting to the lowest position
needed to keep water boiling.
oWhen canning for long periods of
time, alternate use of the surface
cooking areas between batches to allow
the areas to cool down, or prepare food
in small batches.
o Refer to your canner manual for specific
instructions.
NOTE: Do not leave empty cookware, or
cookware which has boiled dry, on a hot
surface cooking area. The cookware could
overheat, causing damage to the cookware
or surface cooking area. 13

. sing and Caring for Your Cooktop
Energy saving tips
Although the energy used for cooking is
usually a very small percentage of the total
energy used in the home, cooking energy
can be used efficiently. Here are some tips
to help you save energy when using your
cooking product:
Cookfop
e Match the pan to the surface cooking
area size.
e The pan should have a flat bottom,
straight sides, and a well-fitting lid.
o To help shorten your cooking time, use
the least amount of liquid possible.
e Preheat your pots and pans only when
recommended and for the shortest time
possible.
e Start your food on a higher heat setting,
then turn the control to a lower setting to
finish cooking.
o Place a filled pan on the surface cooking
area before turning it on.
Oven
o "Oven peeking" can make cooking
times longer and affect the food quality.
o Rely on a timer to keep track of
cooking time.
*Plan your meals for the most efficient use
of the oven by cooking more than one
food at a time, or baking while the oven
is still hot after cooking a meal.
oit is not necessary to preheat the oven
when broiling or roasting, unless your
recipe recommends doing so.
Caring for your cooktop
Your cooktop is designed for easy care.
However, you need to maintain your
ceramic glass cooktop differently than you
would standard electric open-coil elements.
Foods spilled directly on the cooktop will not
burn off as on open-coil elements. Because
of this, you should keep the surface dust
free and soil free before heating.
%
Your cooktop has been prepolished at the
factory for improved protection and easier
cleaning. The Cooktop Polishing Creme
included with your range, paper towels or
a sponge, and a single-edge razor blade in
the holder are all you need to clean your
cooktop. For proper cleaning methods, please
review "Cleaning tips" later in this section.
Follow them each time you use your
cooktop. This will ensure you get the best
performance out of your cooktop, as well as
preserve that uniquely elegant look.
NOTE: Let cooktop cool before cleaning.
To avoid damaging the cooktop, follow
these instructions:
e Remove sugar spills and soils from the
cooktop while the surface is still warm to
avoid pitting on the surface.
o Marks from sliding metal pans on the
cooktop are difficult to remove completely.
Use cooktop polishing creme to clean
the area. Several applications may be
necessary.
o Do not use steel wool, plastic cleaning
pads, gritty powdered cleansers, chlorine
bleach, rust remover, ammonia, or glass
cleaning products with ammonia. These
could damage the cooktop surface.
14

. sing and Caring for Your Cooktop
Cleaning tips
What to use:
, Cooktop Polishing Creme (included
with your range) with paper towel or
clean, damp sponge - This creme has
been developed especially for cleaning
and protecting your cooktop. When using
the creme, follow the instructions on the
container.
, Razor scraper in aholder (not included
with your range) = Use to remove cooked-on
soils from your ceramic glass cooktop. To
avoid scratches, keep the razor blade as flat
against the cooktop as possible. Store
razor blades out of reach of children.
Steps to follow:
1. Most spills can be wiped off easily using
a paper towel or clean, damp sponge as
soon as the Hot Surface Indicator Light
goes off.
2. For stubborn spills, rub Cooktop
Polishing Creme into cooked-on soil
using a paper towel. If some soil remains,
leave some creme on the spot(s) and
follow Step 3.
3. Carefully scrape spots with the razor
scraper.
4. Finish by polishing entire cooktop
with Cooktop Polishing Creme and
a paper towel.
To order Cooktop Polishing Creme
(Part No. 3184477), call 1-800-422-1230.
You will hear a recording. Follow the steps
to place an order.
How fo keep your cookfop
looking like new:
iF THERE ARE WHAT TO DO
Sugary spills
and soils (such
as jellies and
candy syrups)
Dark streaks,
specks, and
discoloration
Metal marks
(from copper and
aluminum pans)
To prevent pitting on
the cooktop, wipe up
with a paper towel or
clean, damp sponge
while the ceramic
glass surface is still
warm. Remove spills
as soon as possible
after they occur.
Use the Cooktop
Polishing Creme or a
nonabrasive cleanser
with a damp paper
towel or sponge.
Use the Cooktop
Polishing Creme with
a damp paper towel
or sponge before
heating the cooktop
again. If heated
before cleaning,
metal marks may not
come off.
Tiny scratches
or abrasions Scratches and abrasions do not
affect cooking. After
many cleanings, they
will become less
visible. To prevent
scratches and
abrasions, use the
Cooktop Polishing
Creme regularly.
NOTE: Always wipe your cooktop with clean
water and dry it well after using the cleanser
to prevent streaking or staining.
15

lsing and Caring for Your Cooktop
UsWngand reptacing the surface Hghf
(Freestanding modeb
The surface light is in the backguard. It is
controlled by the Surface Light Command
Pads on the control panel. The ON
Command Pad turns on the light immediately
and keeps it on until you press OFF. The
Night Command Pad will turn on the surface
light automatically when the light in the room
is low enough to require a night light. When
the night light comes on, it will also dim all
lights appearing on the display. Press OFF
to turn off the regular surface light or press
NIGHT again to turn off the night light.
Replacing the surface light:
1. Unplug range or disconnect power.
2. Flip up the top of the backguard.
To turn on the surface light:
PRESS
_]lI;]f_.T_ rR[€'l:l
To turn off surface light:
PRESS
3. Pull up glass on front of backguard.
To turn on night light:
PRESS
"NIGHT LIGHT" shows on the display when
the night light is on.
To turn off night light:
PRESS again
4. Grasp the fluorescent light tube at both
ends. Turn the tube approximately 90°
in either direction until both ends come
out of the receptacles, Replace with a
20-watt cool-white fluorescent light tube,
16

_lsing and Caring for Your Cooktop
5. if the surface light still does not work,
you may need to replace the starter. The
starter is a knob-shaped part located on
the right side of the backguard, under the
light tube.
m
To remove and replace the starter, first
remove light tube. Push starter in and
turn approximately 90° counterclockwise.
Pull starter out of recessed area. You can
find replacement starters at stores that
sell fluorescent light tubes.
6. Replace glass and close the top panel.
7. Plug in range or reconnect power.
17

sing and
Oven Caring for Your
This section tells you, step by step, how to operate all oven functions controlled by
the electronic control. Carefully follow these instructions, along with the cooking tips
and cleaning information, for successful use of your range. Your model may not have
all the features shown on the control display.
Using fhe elecfronic oven control
Oven display Timed and delayed
(see below) cooking pads --
I
Oven
setting
pads
(p. 26)
(pp.49,51)
BAKED MEATS OTHER
I'
EASY CONVECT* Convect
conversion full meal
pads pad
(p. 42) (p. 39)
Number Clock Time of day/ Start
pads set/start timer display pad
pad (pp. 27 and 28) (p. 25)
(p. 27) /
EC]! @"
Surface light Oven Timer pads Cancel/
pads (free- light (pp. 27, 28) off pad
standing pad (p. 25)
models only) (p. 56)
(p. 16)
Display/clock
oWhen you first plug in the range, a tone
will sound, the display will be fully lit for a
few seconds, and the display will show the
last time set and "PF" (power failure). If,
after you set the clock (see "Setting the
clock" later in this section), the display
again shows "PF," your electricity was off
for a while. Reset the clock.
o The time display will show "Err" and 3
short tones will sound if a time or tempera-
ture is incorrectly entered.
NOTE: If you press a command pad
several times, the pad can stop working.
If you wait a few seconds, you can use the
pad again. When you first use the pad
again, you may have to hold clown on the
pad a short time to get it to work.
18

_._sing and Caring for Your Oven
Fahrenheit/Celsius
To set your oven to cook in Celsius instead
of Fahrenheit:
1. Open the door.
2. Press CANCEL/OFF. PRESS
3. Press the Number Pads 1, 2,
and 3, in that order. PRESS
4. Press BROIL. PRESS
5. Start oven.
NOTES:
e Press BAKE to confirm that you are
using Celsius.
o Only the temperature and a flashing
degree symbol will appear in the
temperature display area when you set
your oven to cook in Celsius.
PRESS
Repeat the steps above to change
from Celsius to Fahrenheit.
19

¢_sing and Caring for Your Oven
if you need to convert temperatures from
Celsius to Fahrenheit or vice versa, you
can refer to this chart:
Temperature replacement values
38°C=100°F
60°C=140°F
66°C=150°F
77°C=170°F
93°C=200°F
121°C=250°F
135°C=275°F
149°C=300°F
163°C=325°F
177°C=350°F
191°C=375°F
204°C=400°F
218°C=425°F
232°C=450°F
246°C=475°F
260°C=500°F
Disable/enable audible signals
Audible signals tell you if a function is
entered correctly or not. They also tell
you when a cycle is completed. To turn
off key entry tone, end-of-cycle tone, and
reminder tones, follow these steps:
1. Open the door.
2. Press CANCEL/OFF. PRESS
2O
