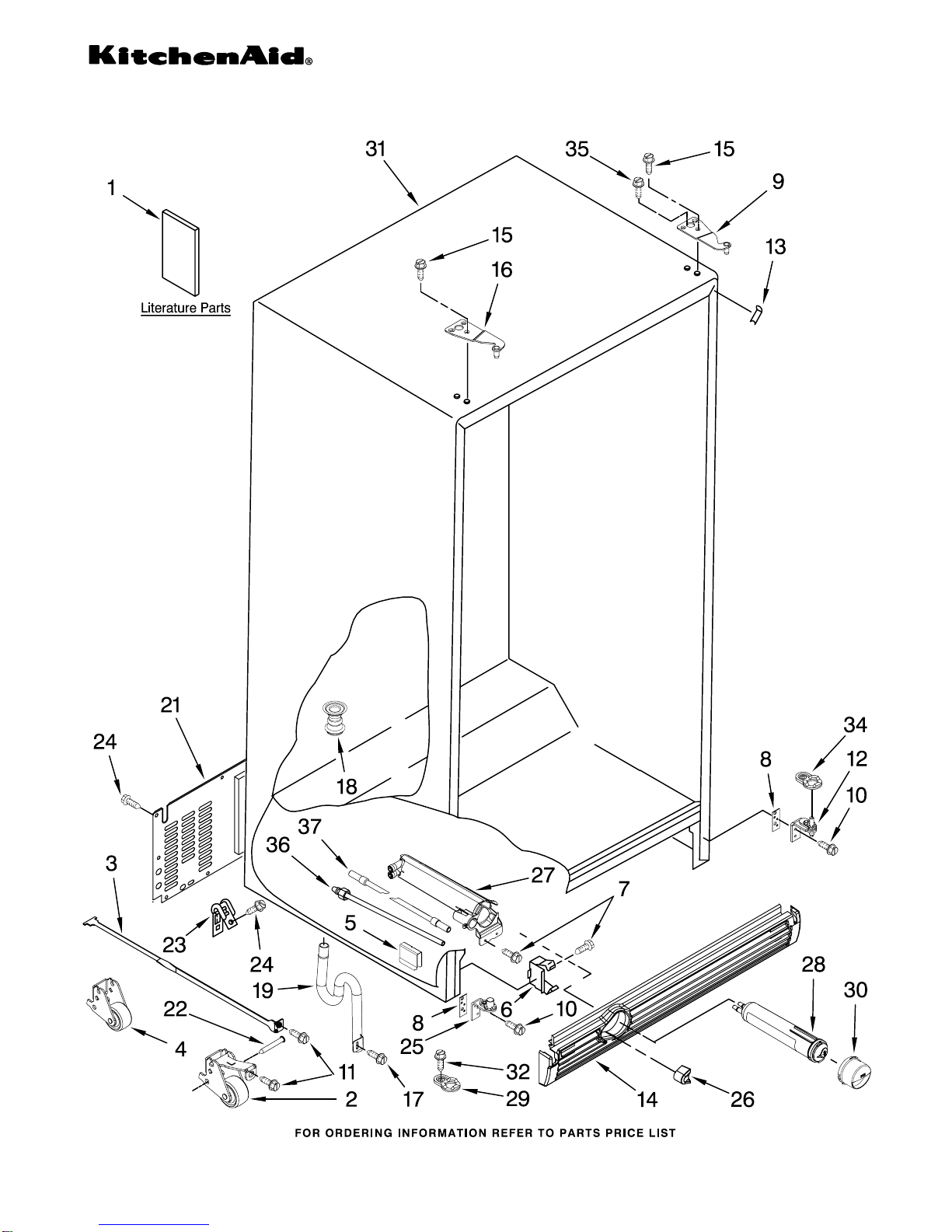

CABINET PARTS
1
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
Part No. W10133448 Rev. A
REFRIGERATOR
04−07 Printed In U.S.A. (rrm)

CABINET PARTS
2
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2318583 Use & Care Guide
2223419 Service & Wiring
Sheet
2223996 Installation
Instructions
2318827 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 488500 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008T Biscuit
2307008B Black
2307008AP Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
13 Filler, Wrapper
2223893W White
2223893T Biscuit
2223893B Black
2223893AP Apollo Gray
14 Grille
2322234W White
2322234T Biscuit
2322234B Black
2322234AP Apollo Gray
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007T Biscuit
2307007B Black
2307007AP Apollo Gray
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503AP Apollo Gray
27 2260526 Housing, Water
Filter
28 4396841 Water Filter
29 2307051 Door Closer (FC)
30 Cap, Water
Filter
2260518W White
2260518T Biscuit
2260518B Black
2260518AP Apollo Gray
31 Cabinet (Not A
32 489483 Screw
Serviceable Part)
34 2307049 Door Closer (RC)
35 3400858 Screw
36 2304709 Tube, Filter
Outlet
37 2319868 Tube, Filter
Inlet

REFRIGERATOR LINER PARTS
3
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2224121 Escutcheon, Meat
Pan Control
3 2224123 Slide Meat
Pan Control
6 1118894 Switch, Rocker
Arm
7 2188820 Thermistor
9 2319866 Ladder, Shelf (2)
10 2301234 Housing, Door
Control
11 489084 Screw
13 2301235 Slide, Door
Control
14 2171846 Release Valve
16 2179404K Rack, Wine & Egg
17 2317105 Cover, Thermistor
18 489478 Screw
19 2304597 Gasket,
Air Baffle
20 2223403 Cover,
Air Baffle
21 2224076 Air Diffuser
Assembly
22 2220377 Air Baffle
23 2162085 Socket
24 2223876 Reservoir
25 2205813 Strap
26 2255743 Light Bulb
27 2223663 Light Lens
28 488280 Screw

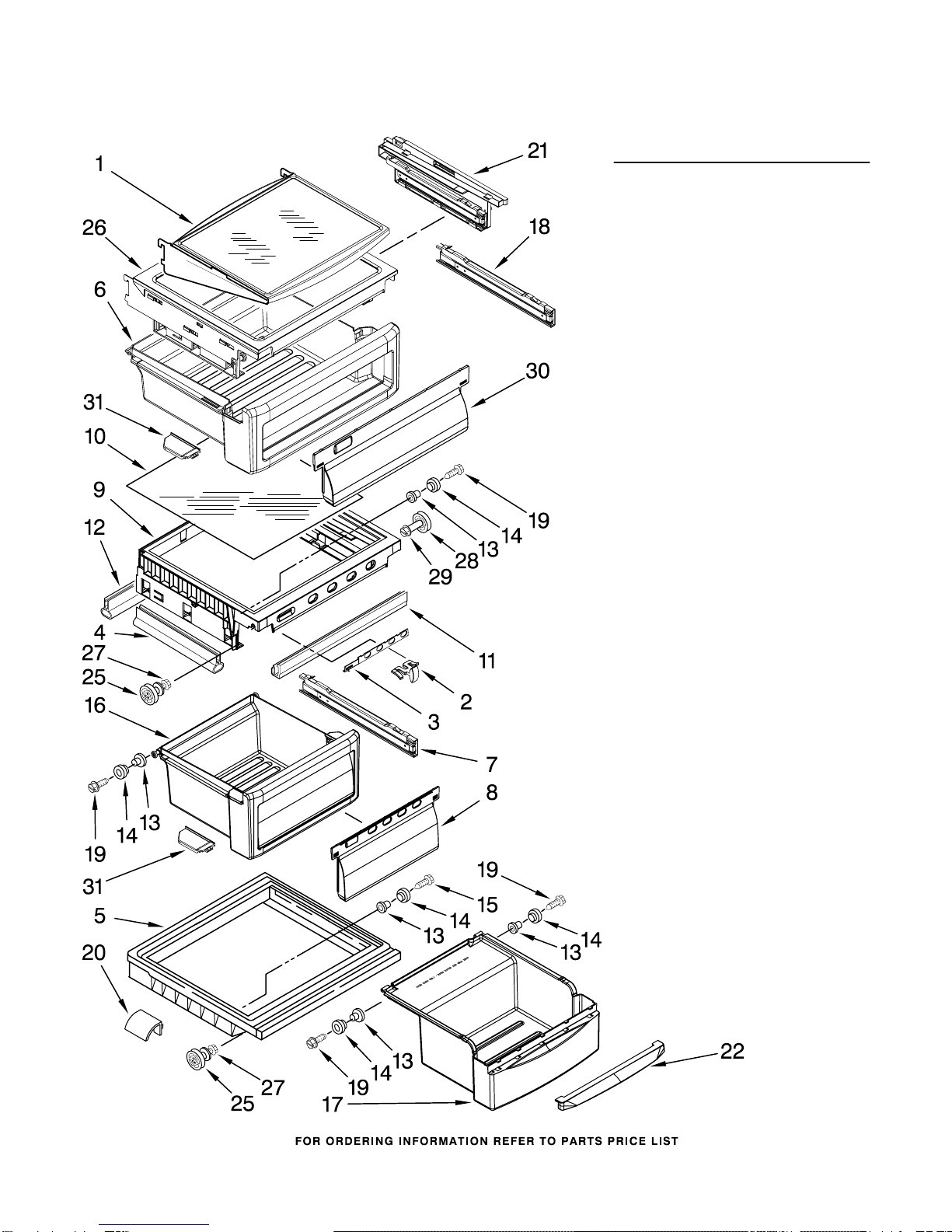

REFRIGERATOR SHELF PARTS
4
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 2224061 Shelf Assembly,
Cantilever (2)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2301023 Snack Pan
(Includes 30 & 31)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9 2301567 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2301027 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301031 Crisper Pan
(Includes 8, 13
14, 19 & 31)
17 2223790 Meat Pan
(Includes 13,
14, 19 & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
25 2196485 Stud Assembly
26 2301566 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side

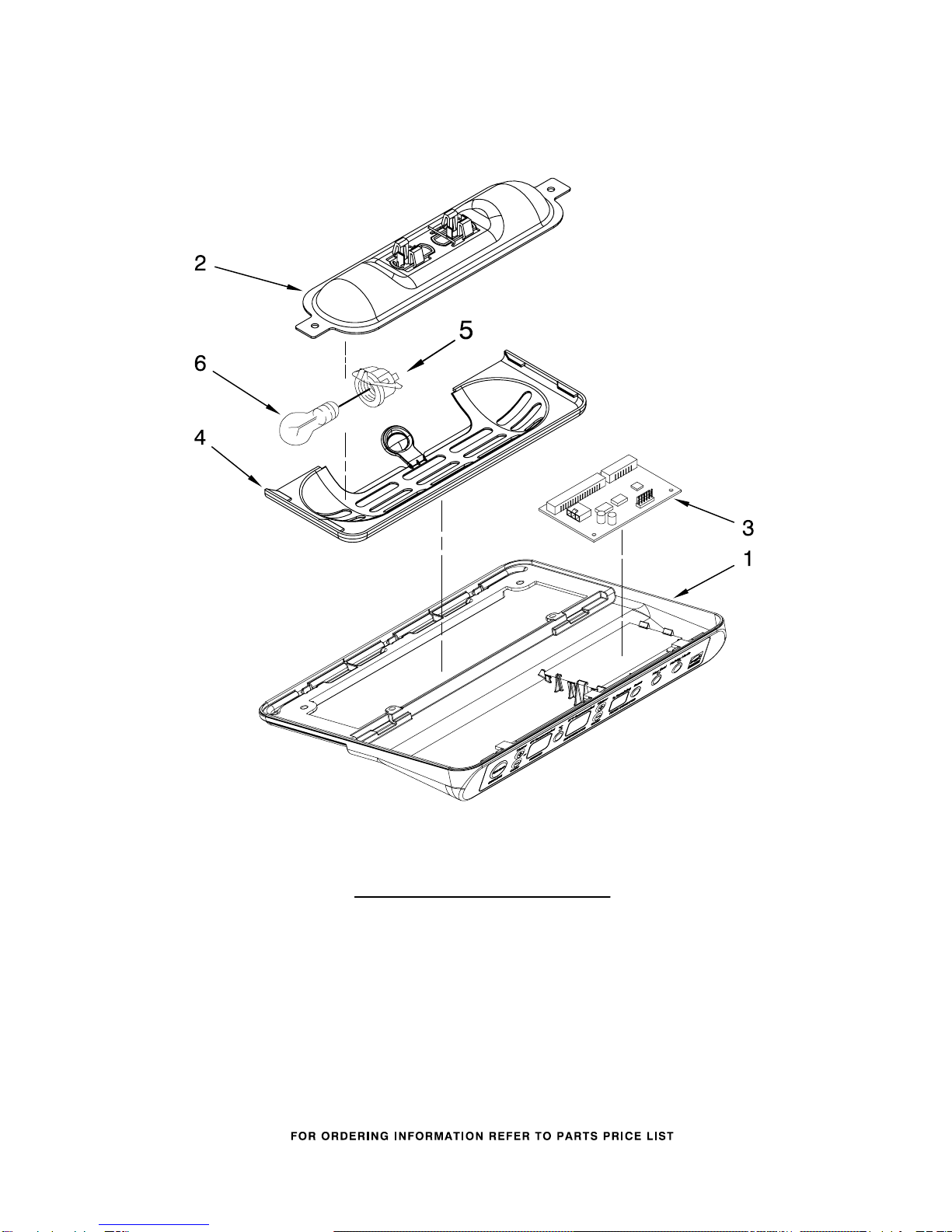

FREEZER LINER PARTS
5
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448

FREEZER LINER PARTS
6
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 2223782 Front−Basket
5 2196483 Stud Assembly
6 2254611 Basket, Deep (2)
8 8281158 Screw
9 2223500 Shelf Assembly,
Cantilever (2)
11 2224053 Front, Basket
13 Shelf Track
2223787 Right Side
2223788 Left Side
14 2254612 Shelf, Fixed
15 2223812 Basket, Lower
17 842534 Clip, Air Duct
18 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
19 2259487 Cover, Emitter
20 8534064 Screw
22 2198635 Spring
23 2198634 Pin
24 2198665 Tube, P.C. Board
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2224125 Cover, Ice Maker
28 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 3400893 Screw
45 Ladder
2320024 Left Side
2320025 Right Side
46 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 2223317 Ice Bin
2 2317256 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
20 2317272 Latch, Bin
21 2198608 Spring, Latch
23 8281163 Screw
24 2188919 Holder
25 2317243 Wiper
26 2198628 Seal
27 2317250 Divider−Chamber
30 2188916 Drive Shaft
31 2256154 Enclosure, Motor
32 2315547 Dispenser, Motor
33 2212305 Cover
36 2315559 Sleeve, Coupling
37 2187725 Wire Harness,
IDI Motor
100 2317268 Ice Container
(Complete)

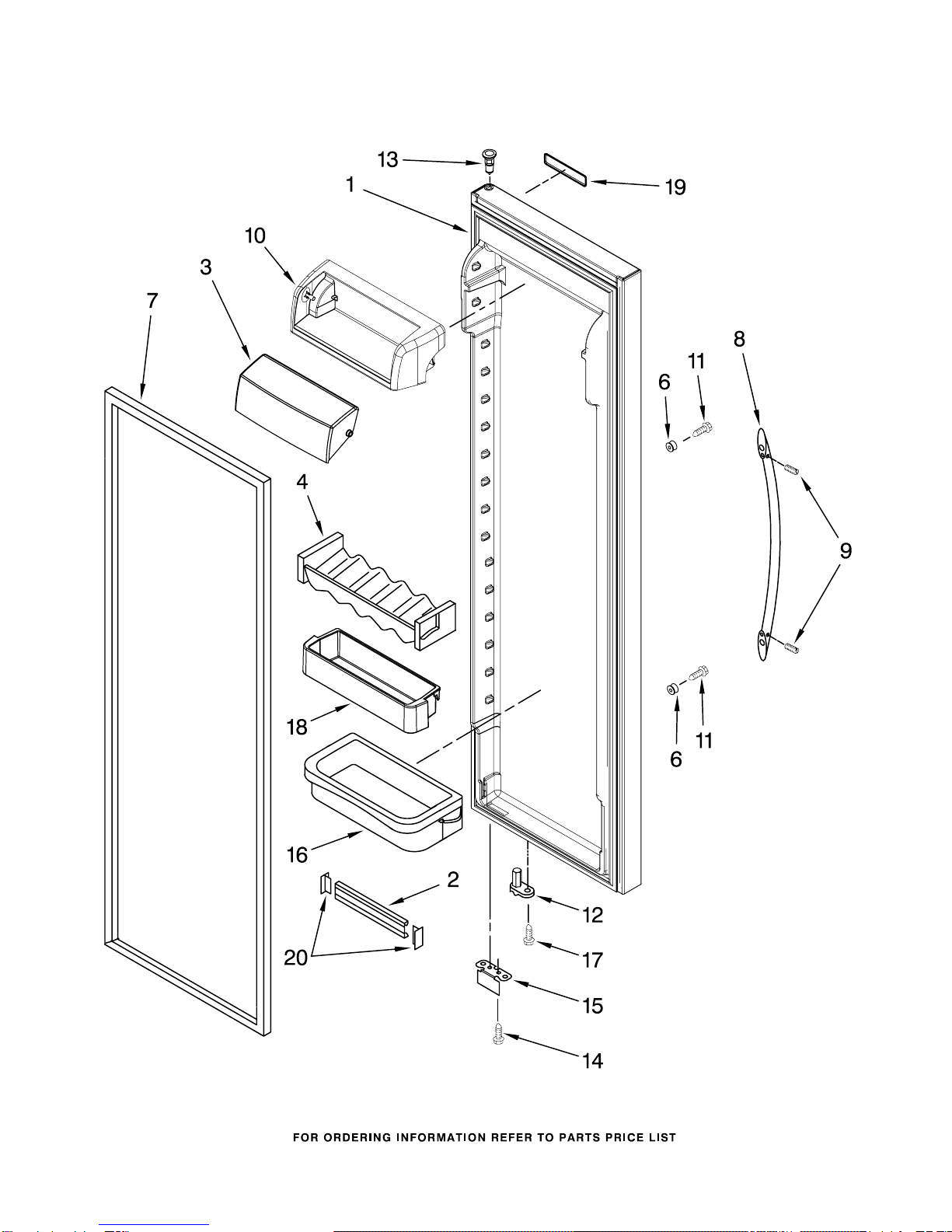

REFRIGERATOR DOOR PARTS
9
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448

REFRIGERATOR DOOR PARTS
10
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2307199W White
2307199T Biscuit
2307199B Black
2307199S Stainless Steel
2307199SA Monochromatic
Stainless
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
6 2219698 Stud, Handle
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
8 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
9 Screw
W10010140 Chrome
W10010150 Black
10 2223879 Dairy Compartment
11 488208 Screw
12 2307048 Door Closer,
Upper Cam
13 2308050 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
19 Nameplate
W10046670 White
W10046700 Biscuit
W10046640 Black
W10046610 Gray
20 2156006K Plug, Trim

FREEZER DOOR PARTS
11
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448

FREEZER DOOR PARTS
12
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2327680W White
2327680T Biscuit
2327680B Black
2327680SB Stainless Steel
2327680SAP Monochromatic
Stainless
2 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
3 2219698 Stud, Handle
4 488208 Screw
5 3400012 Screw
6 Screw
W10010140 Chrome
W10010150 Black
7 2304925K Shelf Bin (3)
8 Door Gasket,
Magnetic
2223850 Mist Beige
2223912 Black
10 2219982 Trim, Door Shelf
11 2308050 Thimble, Top
12 2307050 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2306940 Chrome
2306940B Black

13
DISPENSER FRONT PARTS
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448

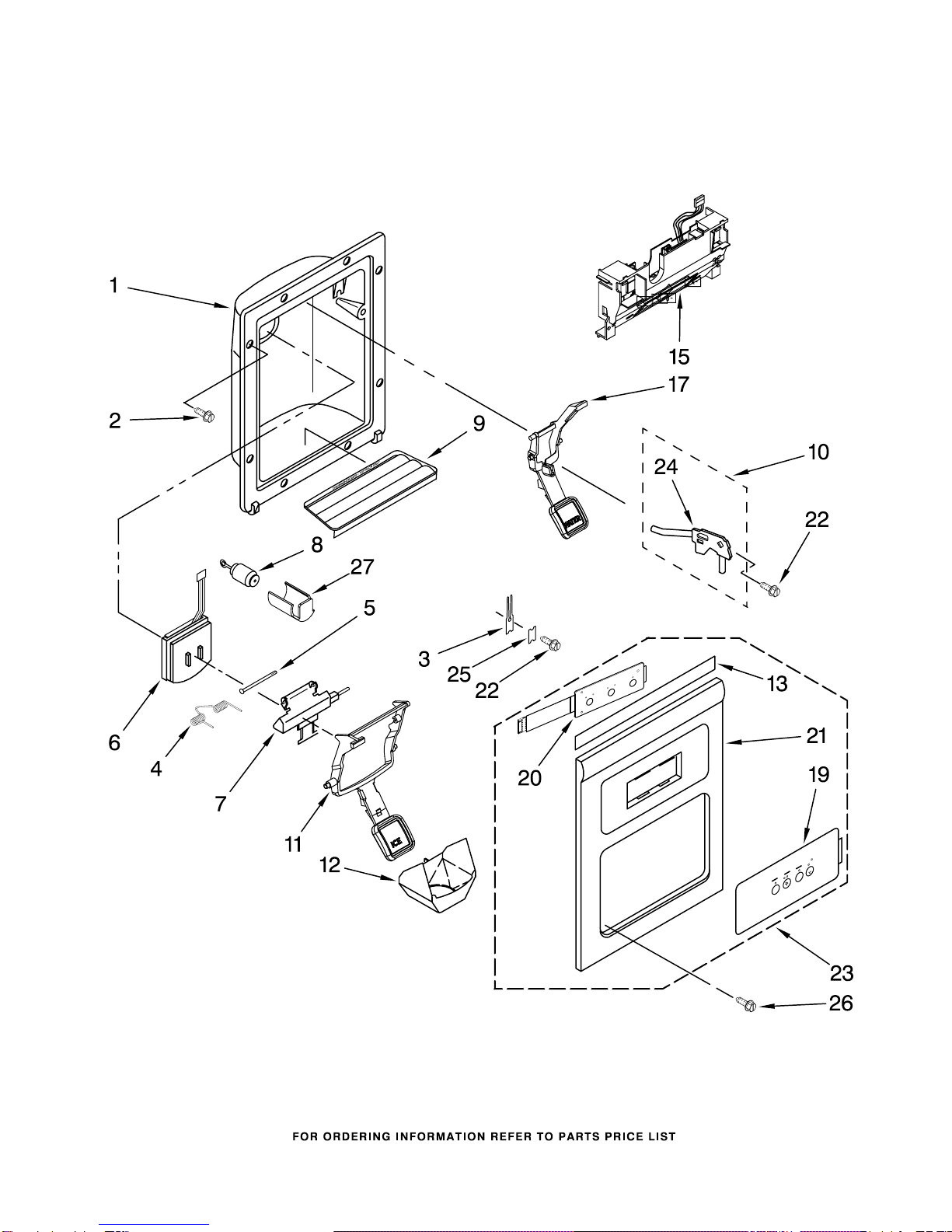

DISPENSER FRONT PARTS
14
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670T Biscuit
2206670B Black
2206670US Universal Silver
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2259396W White
2259396T Biscuit
2259396SB Black
2259396AP Apollo Gray
12 2180224 Guide, Ice
13 2305571 Gasket
15 2323009 Bracket, Control
17 Lever, Water
Dispenser
2259395W White
2259395T Biscuit
2259395SB Black
2259395AP Apollo Gray
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 LED Display
(Not Available,
Order #23)
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
13, 19, 20 & 21)
2318821W White
2318821T Biscuit
2318821B Black
2318821US Universal Silver
24 2304673 Bracket, Dispenser
25 2195051 Strain Relief
26 3400065 Screw
27 2252127 Sleeve, Mechanism

AIR FLOW PARTS
15
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223771 Air Duct Freezer
6 2319914 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2223986 Fan Grommet (2)
12 2310236 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket, Fan Scroll
14 2203876 Gasket
15 2223413 Cover, Evaporator
(Includes #9)
16 8281159 Screw
17 489478 Screw
18 2223395 Support, R.S
19 2203596 Support, L.S

CONTROL PARTS
16
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 2319753 Control Box
(Includes #3)
2 2223882 Heat Shield Asm
(Includes # 5)
3 2307037 Control Board Asm
4 2223506 Light Lens,
Control Box
5 2223857 Light Socket
6 2326255 Light Bulb

UNIT PARTS
17
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448

UNIT PARTS
18
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 777070 Screw
2 2225834 Fan, Blade
3 2223315 Condenser
Assembly
4 8281197 Screw
5 3400524 Screw (6)
6 2223703 Housing,
Control Board
7 2223351 Tube Suction
8 2161302 Sleeve
10 2301979 Plate, Mounting
11 8281196 Screw
12 2215676 Cover, Terminal
13 2319835 Grommet−Cond(4)
14 2185788 Clamp, Cable
15 488649 Screw
18 2223353 Tube, Condenser
to Heat Loop
19 2307028 Electronic Control
20 2306932 Baseplate
21 2169104 Insulation, Sound
22 2188823 Evaporator
23 2161324 Clamp
24 2188729 Fan, Motor
25 2223398 Tray, Evaporator
26 2224022 Heat Shield
27 2319825 Drier
28 2223801 Compressor
(Includes Items
12 & 39)
29 2223800 Spacer (5)
31 2187849 Harness,
Main Control
32 2224024 Fan, Motor Bracket
33 2210737 Heater, Defrost
34 2304287 Clip
36 2304175 Inverter Box
37 489373 Screw
38 2223352 Tube, Discharge
39 Grommet (4)
2183042 Production
4387558 Service
41 2223394 Extension,
Air Baffle
42 2155547 Clip, Heat Shield
43 2187737 Unit Harness
44 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448

ICEMAKER PARTS
20
For Models: KSCS23FSWH02, KSCS23FSBT02, KSCS23FSBL02, KSCS23FSMS02, KSCS23FSSS02
(White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel)
W10133448
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting, Water
Tube
3 628379 Clip, Fuse
4 489478 Screw
5 2315533 Water Valve Asm
6 2208136 Tube Clip
7 2174358 Cover
8 488649 Screw
9 628228 Mold & Heater
Assembly (Also
Order 542638
10 628356 Cup, Water Fill
11 627843 Ejector
12 2198598 Ice Striper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 489276 Screw
18 2187467 Harness, Wiring
19 2303583 Bracket, Icemaker
Mounting
20 626691 Module Assembly
(Includes Items
21 & 22)
21 626684 Motor
22 489136 Screw
100 2198597 Icemaker Assembly
