CABINET PARTS
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
8−00 Litho In U.S.A. (mek) Part No. 4398831
48" BUILT IN
REFRIGERATOR

2
CABINET PARTS
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 LITERATURE PARTS
LIT2209249 Use & Care Guide
LIT2209474 Energy Label
LIT2209309 Service & Wiring
Sheet
LIT628370 Modular Icemaker
Service Sheet
LIT2209250 Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2005004 Grommet, Tube
Crossover
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
8 Cap, Water Filter
2186494W White
2186494B Black
2186494T Biscuit
9 2006442 Mounting Stud,
Grill
10 2005237 Clip, Wire
11 1112849 Cap, Grommet
12 2209022 Housing, Water
Filter
13 1113122 Grommet, Wiring
14 2209061 Wiring Harness,
Cabinet
15 2203220 Filter, Water
16 934011 Tube, Clamp
17 2005378 Screw, Door Stop
18 2005295 Hinge (Top)
20 489478 Screw
21 2004994 Lock, Adjustable
Bushing
22 2002903 Bushing
23 2209090 Clamp, Filter
Housing
24 Spring, Door
Closure
2004566 Refrigerator Side
2004567 Freezer Side
25 486194 Screw
26 2005008 Retaining Ring,
Adjustable Bushing
27 1113227 Fastener (3)
28 2006342 Gap, Cover
Assembly (Bottom)
29 Hinge (Bottom)
2006780 Freezer Side
2006779 Refrigerator Side
30 2004992 Bushing,
Adjustable
31 2001415 Screw
32 Skirt−Grille,
Bottom
2209026W White
2209026B Black
2209026T Biscuit
33 2004516 Linkage, Door
Closure
34 Grille Bottom,
Front
2209431W White
2209431B Black
2209431T Biscuit
35 489238 Screw
36 2004512 Cover, Rear
37 2209203 Grommet, Wiring
39 2006346 Washer
40 2004565 Bushing, Door
Closure
41 1163283 Screw
42 2196152 Union
43 2001415 Screw (4)
44 489464 Screw

3
CABINET TRIM PARTS
Illus. Part
No. No. DESCRIPTION
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
1 Trim, Cabinet
Right Side
2209475W White
2209475B Black
2209475S Stainless Steel
2209475T Biscuit
2 2003857 Screw
3 1163283 Screw
4 2209075 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2003647 Cabinet, Trim Top
7 Trim, Cabinet
Left Side
2209485W White
2209485B Black
2209485S Stainless Steel
2209485T Biscuit
9 2005925 Seal−Trim, Side

FREEZER LINER PARTS
4
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2005567 Bracket, Light
3 1113650 Lens
4 2005042 Light, Socket
5 548049 Light, Bulb
6 538533 Support Clip,
Icemaker (2)
7 2000193 Grommet, Screw (2)
8 488552 Screw
12 486194 Screw
13 1112591 Spacer, Control
Panel (3)
14 842534 Clip, Air Duct (4)
16 1112260 Support,
Evaporator
17 2004068 Stud, Shelf (20)
18 487559 Screw

5
REFRIGERATOR LINER PARTS
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831

6
REFRIGERATOR LINER PARTS
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 1112591 Spacer, Control
Panel (3)
5 2001117 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 488357 Screw
8 486194 Screw
9 1112257 Hole Plug
10 2003579 Meat Pan, Air
Duct Cover
11 2000337 Meat Pan, Air Duct
12 2003299 Inlay, Control
Meat Pan
13 2001326 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2003811 Control Knob,
Meat Pan
16 2003841 Retainer, Knob
17 2004484 Air Baffle
Assembly
21 2208996 Diffuser Assembly
22 1116793 Cover, Thermistor
23 1116959 Thermistor
25 2208953 Cover, Diffuser
26 2003577 Guard, Air Return

REFRIGERATOR CONTROL PANEL PARTS
7
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 2209227 Control Panel
2 2209003 Inlay, Control
Panel
3 2208995 Circuit Board
4 2003842 Control Knob
5 2003841 Retainer, Knob
6 1118894 Switch, Rocker Arm
7 1113137 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 2209174 Shield, Control
Panel
11 2005043 Socket, Light
12 548049 Light Bulb (2)
13 486194 Screw
14 2006223 Wire, Light
15 2001141 Channel, Wiring
16 1115375 Clip, Wiring (2)
17 2200096 Lens, Indicator
Light
18 2200097 Retainer, Lens
19 2203384 Circuit Board,
Filter Indicator
20 489214 Screw

8
FREEZER CONTROL PANEL PARTS
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 1113627 Control Panel
2 2003309 Inlay, Control
Panel
3 1113466 Thermostat &
Barrier Assembly
4 488974 Screw (2)
5 1115373 Switch, Rocker Arm
6 1113136 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 2209254 Shield, Control
Panel
11 2005042 Socket, Light
12 486194 Screw
13 548049 Light Bulb
14 2001974 Channel, Wiring
16 2182112 Knob, Thermostat
17 1115375 Clip, Wiring

REFRIGERATOR SHELF PARTS
9
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831

REFRIGERATOR SHELF PARTS
10
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 2174404 Frame, Shelf
2 2003377 Glass, Shelf
3 1112006 Reflector, Shelf
4 1113792 Gasket, Glass (2)
5 2179375 Rack, Wine
6 2169933 Egg Bin
7 2006525 Frame, Assembly
Meat Pan
8 2164373 Egg Carrier
9 1112247 Cover, Crisper
10 2003380 Glass, Crisper
(Includes #9)
11 2000742 Meat Pan,
Connector
12 2169935 Cover
14 2006546 Crisper Pan (2)
15 2188212 Roller
16 2174478 Eyelet, Roller
17 2003478 Screw
20 2006531 Meat Pan
23 2002181 Retainer, Glass
25 2003411 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 2003410 Crisper Spacer,
Left Side (2)
29 486194 Screw

11

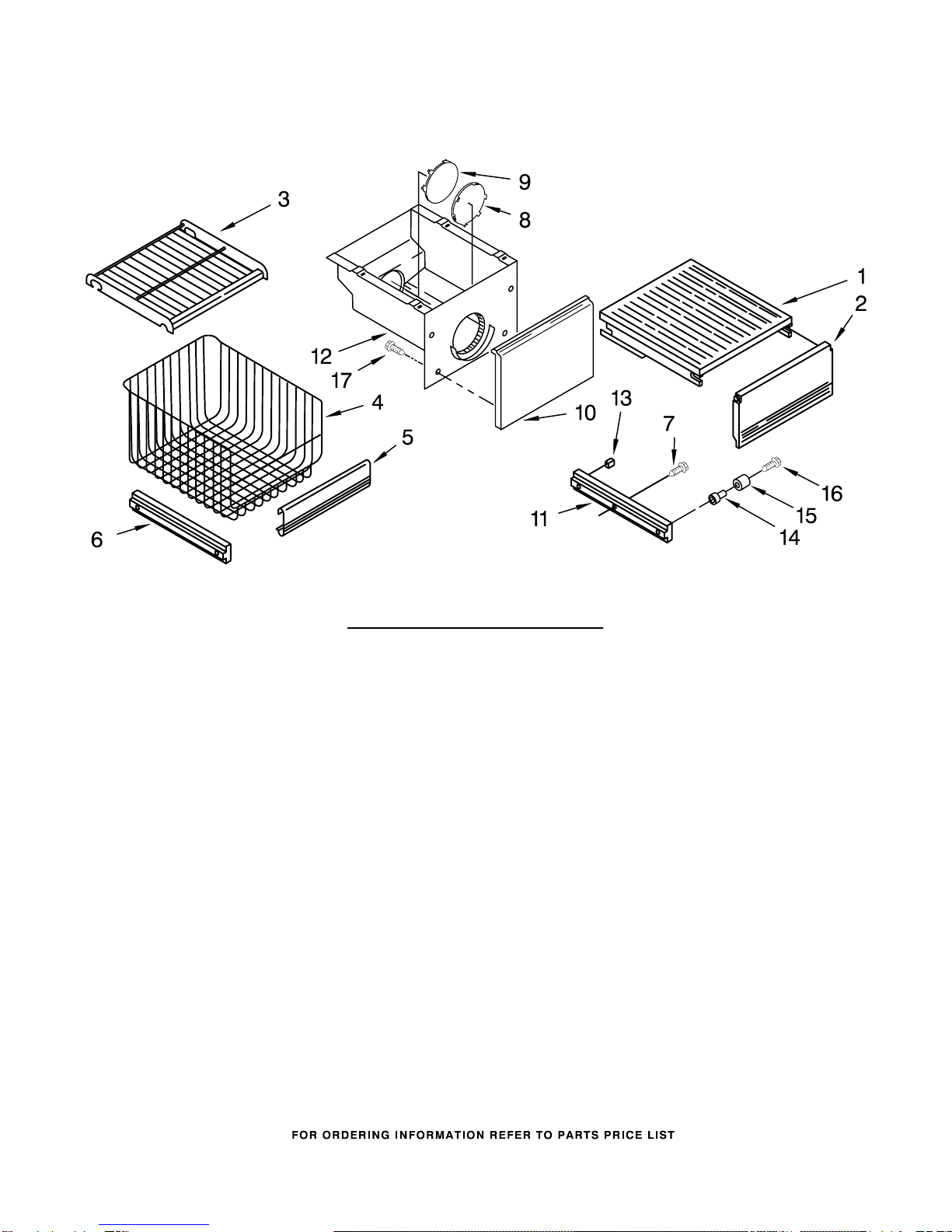

FREEZER SHELF PARTS
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 2003144 Solid Shelf
2 2188383 Front, Ice
Compartment
3 1113638 Shelf, Fixed (2)
1112052 Shelf, Deep
4 2208196 Basket
5 2003114 Trim, Basket
6 Slide, Basket
2208198 Right Side
2208197 Left Side
7 486194 Screw
8 2003046 Hole Plug, Front
9 2003047 Hole Plug, Rear
10 2003045 Front Cover
11 Slide, Container
2002720 Right Side
2002721 Left Side
12 2208908 Ice Container
13 1113169 Stop, Roller
14 2174478 Eyelet, Roller
15 2188212 Roller
16 2003478 Screw
17 488886 Screw

TOP GRILLE AND UNIT COVER PARTS
12
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2209104W White
2209104B Black
2206796 Stainless Steel
2209104T Biscuit
2 2005549 Cover, Unit
3 486194 Screw
4 2002484 Grille, Bracket
5 2001415 Screw
6 Nameplate
2209118W White
2005292 Black
2209118T Biscuit
7 2005534 Guard, Compressor
Wiring
8 2006445 Baffel−Air,
Condenser
9 2004333 Nut
10 2005485 Bracket, Trim
Panel
11 2005483 Bracket, Louver
12 Vent, Louver
2209160W White
2209160B Black
2005259 Stainless Steel
2209160T Biscuit
13 488649 Screw

REFRIGERATOR DOOR PARTS
13
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831

REFRIGERATOR DOOR PARTS
14
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2003872 Refrigerator
Door Panel
(Includes
Insulation)
2 939101 Screw Anchor (8)
3 2005329 Hinge Assembly,
Top
4 2004520 Spacer−Door,
Top
5 489282 Screw
6 2004523 Hinge Assembly,
Bottom
7 1112533 Gasket Retainer,
Side (2)
8 1112542 Gasket Retainer,
Top & Bottom
9 2188321 Door Gasket,
Magnetic
10 2004447 Brace, Door Corner
11 Handle, Door
2209095W White
2209095B Black
2005290 Stainless Steel
2209095T Biscuit
12 2209202 Plate, Door Handle
13 2004549 Door, Spacer
Bottom
14 Skin, Door
2209102W White
2209102B Black
2006773 Stainless Steel
2209102T Biscuit
15 Screw
2001208 White
3400878 Black
487052 Stainless Steel
3400877 Biscuit
16 2005433 Spacer, Top
17 2005327 Filler, Door
18 2005030 Spacer, Hinge Side
19 2004935 Spacer, Door
Bottom
20 1113950 Panel, Interior
Door
21 1113951 Ladder, Shelf (2)
22 1112530 Retainer, Shelf
Ladder (2)
23 1112514 Back Up Plate (8)
24 486194 Screw
25 1113955 Gasket
26 2003465 Door, Utility Bin
27 1113974 Door Shelf (3)
28 2165792 Butter Tray
29 2004881 Retaining Ring,
Door−Closure
30 2188333 Shelf, Gallon
Door
31 308544 Screw
32 2005330 Spacer, Handle
Side

FREEZER DOOR PARTS
15
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831

FREEZER DOOR PARTS
16
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 2003878 Freezer Door
Panel (Includes
Insulation)
2 Skin, Door
2209103W White
2209103B Black
2006776 Stainless Steel
2209103T Biscuit
3 2004447 Brace, Door Corner
4 2004881 Retaining Ring,
Door−Closure
5 308544 Screw
6 2004524 Hinge, Bottom
7 489282 Screw
8 2005329 Hinge, Top
9 2004520 Spacer−Door,
Top
10 2005323 Filler, Door
11 2005330 Spacer, Handle
Side
12 1112533 Gasket Retainer,
Side (2)
13 1112539 Gasket Retainer,
Top & Bottom
14 2188319 Door Gasket,
Magnetic
15 486194 Screw (34)
16 Handle, Door
2209095W White
2209095B Black
2005290 Stainless Steel
2209095T Biscuit
18 2004549 Door, Spacer
20 Screw
2001208 White
3400878 Black
487052 Stainless Steel
3400877 Biscuit
21 2005433 Spacer, Top
23 2004933 Spacer, Door
Bottom
24 2005030 Spacer, Hinge Side
26 2209032 Panel, Interior
Door
28 2195934 Shelf Bin (4)
29 Trim, Endcap
2208954 Left Side
2209134 Right Side
34 2209202 Plate, Door Handle

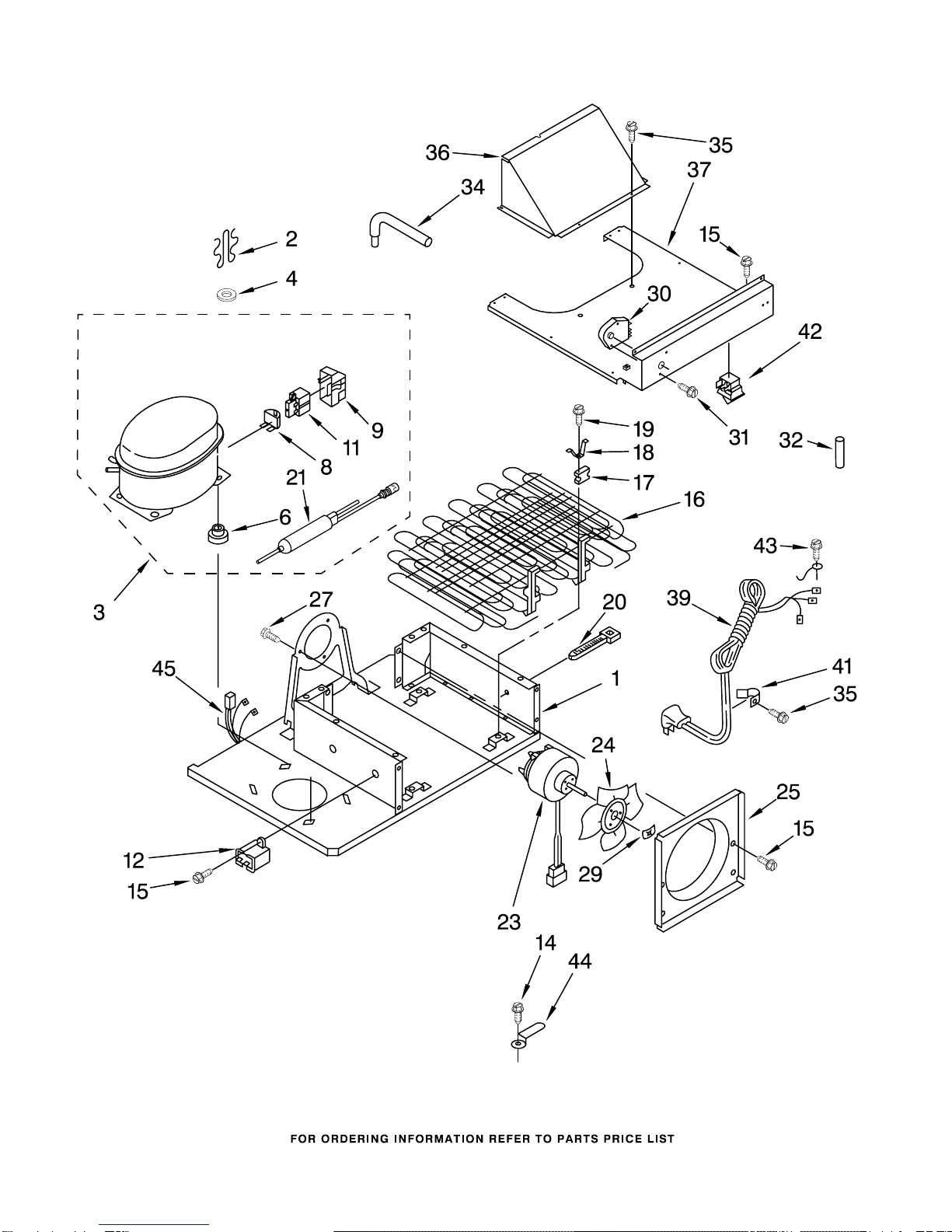

UPPER UNIT PARTS
17
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831

UPPER UNIT PARTS
18
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2003398 Assembly, Unit
Base
2 2163787 Clip, Compressor
Mounting (4)
3 2183420 Compressor
(Includes Items
8, 9, 11, 12 & 21)
(Also Order
876765 Tube Kit)
4 680975 Washer
6 2163786 Grommet, Mounting
8 2176858 Overload
9 2162358 Terminal Cover
11 1108143 Relay
12 2169137 Capacitor
14 486899 Screw
15 487869 Screw
16 2003392 Condenser
17 943447 Grommet (4)
18 1113019 Clamp (4)
19 487522 Screw
20 851095 Wire Tie (2)
21 2202581 Drier
23 2208903 Motor, Fan
24 2190685 Blade, Fan
25 2003169 Orifice, Fan
27 489099 Screw (3)
29 486692 Speed Nut
30 2162044 Defrost Timer
31 488911 Screw
32 2000645 Sleeve,
Condenser
34 2003011 Process, Tube
35 486194 Screw
36 2003174 Cover, Fan
37 2005535 Cover, Condenser
39 2003381 Service Cord
41 1113162 Clamp, Cord (2)
42 1113229 Switch, Power
Disconnect
43 488879 Screw, Ground
44 653035 Clip, Cord Plug
45 2207479 Wiring Harness,
Unit Compartment
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
7.5 oz.
(R−134A)

LOWER UNIT AND TUBE PARTS
19
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831

LOWER UNIT AND TUBE PARTS
20
For Models: KSSC48FJW00, KSSC48FJB00, KSSC48FJS00, KSSC48FJT00
(White) (Black) (Stainless Steel) (Biscuit)
4398831
Illus. Part
No. No. DESCRIPTION
1 2006755 Defrost Bi−Metal
2 1113043 Clamp, Bi−Metal
3 486194 Screw
4 2003271 Sleeve
5 2002171 Sleeve
6 2002999 Condenser
Inlet Tube
7 2003484 Sleeve
8 2003015 Tube, Connect
(Drier)
9 2004545 Heater, Drain Pan
10 1113062 Hanger, Heater
11 2005908 Shield, Drain Pan
12 2002448 Sleeve
13 2002995 Tube, Discharge
14 2003272 Sleeve
15 2003003 Heat Exchanger
16 2002966 Evaporator
17 2006751 Heater, Defrost
18 1113048 Clamp, Heater (2)
19 1108431 Clamp, Heater (2)
20 1112844 Gasket, Evaporator
21 857547 Wire Tie
23 851095 Strap
25 2001264 Drain Pan
26 Bracket, Drain Pan
1113206 Left
1113207 Right
27 513942 Dampener
