CABINET PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
5−03 Litho In U.S.A. (rcg) Part No. 8198078
48" BUILT IN
REFRIGERATOR

2
CABINET PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
LIT2254714 Use & Care Guide
LIT2221285 Energy Label
LIT2254722 Service & Wiring
Sheet
LIT628370 Modular Icemaker
Service Sheet
LIT2215852 Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2005004 Grommet, Tube
Crossover
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
8 Cap, Water Filter
2186494W White
2186494B Black
2186494T Biscuit
9 2006442 Mounting Stud,
Grill
10 2005237 Clip, Wire
11 2005783 Cam, Door Closer
12 2209022 Housing, Water
Filter
14 3400525 Screw
15 2203221 Filter, Water
16 489399 Screw
17 2005378 Screw, Door Stop
18 2221134 Hinge (Top)
19 489478 Screw
20 489464 Screw
21 2004994 Lock, Adjustable
Bushing
22 2002903 Bushing
23 2209090 Clamp, Filter
Housing
24 2004517 Spring, Door
Closure (2)
25 486194 Screw
26 2005008 Retaining Ring,
Adjustable Bushing
27 1113227 Fastener (3)
28 2006342 Gap, Cover
Assembly (Bottom)
29 Hinge (Bottom)
2006780 Freezer Side
2006779 Refrigerator Side
30 2004992 Bushing,
Adjustable
31 2001415 Screw
32 Skirt−Grille,
Bottom
2209026W White
2209026B Black
2209026T Bisciut
33 Extension Arm,
Door Closer
2221095 Right
2221094 Left
34 Grille Bottom,
Front
2209431W White
2209431B Black
2209431T Biscuit
35 2005921 Screw
36 Bracket, Support
Base (Front)
2006616 Left
2006556 Right
37 1157158 Screw
38 2006617 Bracket, Support
Base (Rear) (2)
39 2006346 Washer
40 2006960 Bushing,
Extension Arm
41 1163283 Screw
42 2209709 Union
43 488500 Screw
44 Switch, Rocker Arm
1118894 Refrigerator Door
Side
1115373 Freezer Door Side
45 2215938 Cover, Switch (2)
46 487415 Screw (2)
47 Bracket, Switch
2221097 Right
2221096 Left
48 2209449 Cover, Rear

3

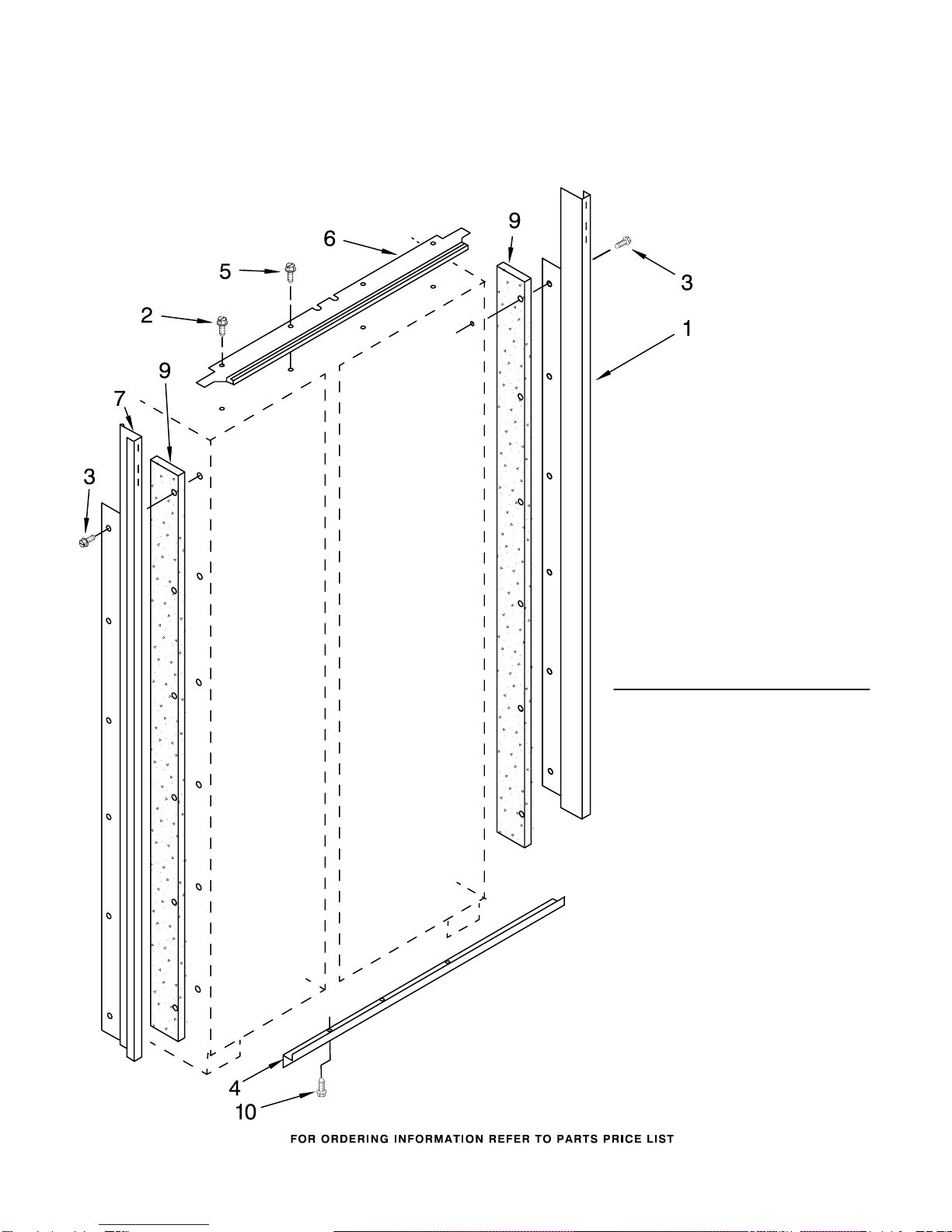

CABINET TRIM PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 Cabinet, Trim
(Right Side)
2215919W White
2215919B Black
2215919T Biscuit
8201535 Etched Aluminum
2 486194 Screw
3 Screw
8281251 White
8281252 Black
8281253 Biscuit
8281250 Stainless Steel
4 2254726 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2003647 Cabinet, Trim Top
7 Cabinet Trim
(Left Side)
2215936W White
2215936B Black
2215936T Biscuit
2215936 Etched Aluminum
9 2005925 Seal−Trim, Side
10 489464 Screw

4
FREEZER SHELF PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 2220891 Solid Shelf
2 2220848 Front, Ice
Compartment
3 1113638 Shelf, Fixed (2)
1112052 Shelf, Deep
4 2208196 Basket
5 2220845 Trim, Basket
6 Slide, Basket
2208198 Right Side
2208197 Left Side
7 486194 Screw

5
REFRIGERATOR LINER PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078

6
REFRIGERATOR LINER PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
3 2208970 Air Duct
4 2209204 Clip, Thermistor
5 2221211 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 2006475 Screw
8 486194 Screw
9 1112257 Hole Plug
10 2220888 Meat Pan, Air
Duct Cover
11 2000337 Meat Pan, Air Duct
12 2220993 Release Valve
13 2221175 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2003811 Control Knob,
Meat Pan
16 2003841 Retainer, Knob
17 2221296 Air Baffle
Assembly
18 2209687 Reservoir
19 488280 Screw
21 2208997 Diffuser Assembly
22 1116793 Cover, Thermistor
23 2213442 Thermistor
25 2215728 Cover, Diffuser
26 2003577 Guard, Air Return

7

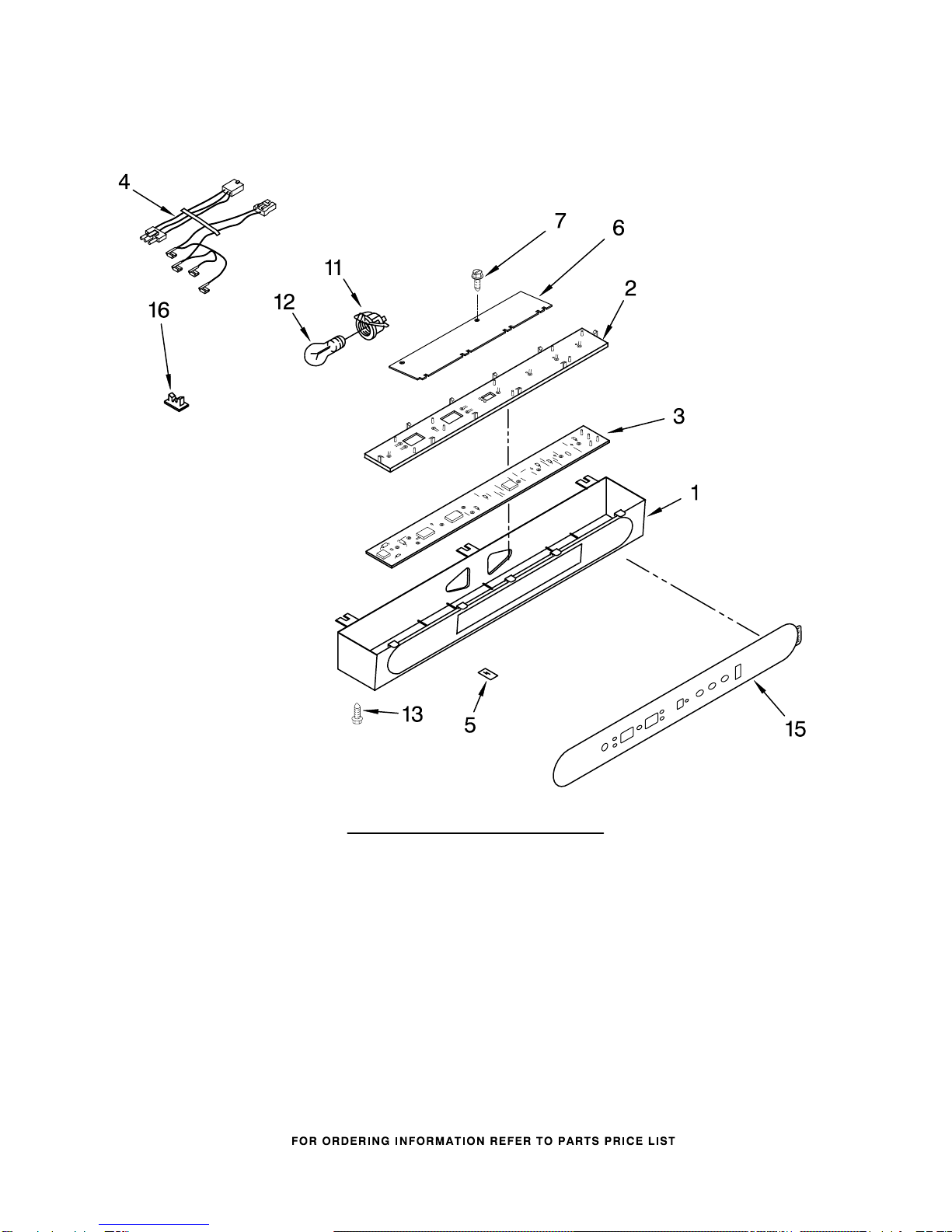

CONTROL PANEL PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 8201533 Control Box
2 2215670 Insert, Control
Box
3 2209159 Circuit Board,
Housing Control
4 2187424 Control Box
Wire Harness
5 2003841 Retainer, Knob
6 2221121 Support, Control
Box
7 489006 Screw (2)
11 2162085 Socket, Light
12 2160708 Light Bulb (2)
13 486194 Screw
15 2221065 Overlay
16 1115375 Clip, Wiring (3)

TOP GRILLE AND UNIT COVER PARTS
8
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2215963W White
2215963B Black
2215963T Biscuit
2215963 Etched Aluminum
2 2209490 Cover, Unit
3 486194 Screw
4 2215830 Back Panel
5 2209492 Guard, Wiring
6 1157158 Screw
7 2187429 Wire Assembly
RC/FC Light Switch
8 2006440 Baffle−Air,
Condenser
9 489348 Clamp
10 2221297 Enclosure,
Terminal

REFRIGERATOR SHELF PARTS
9
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078

REFRIGERATOR SHELF PARTS
10
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 2174404 Frame, Shelf
2 2003377 Glass, Shelf
3 1112006 Reflector, Shelf
4 1113792 Gasket, Glass (2)
5 2179404 Rack, Wine
6 2216625 Egg Bin
7 2006525 Frame, Assembly
Meat Pan
9 1112247 Cover, Crisper
10 2003380 Glass, Crisper
(Includes #9)
11 2000742 Meat Pan,
Connector
12 2169935 Cover
14 2220897 Crisper Pan (2)
15 2188212 Roller
16 2174478 Eyelet, Roller
17 2003478 Screw
20 2220903 Meat Pan
23 2002181 Retainer, Glass
25 2006515 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 2006516 Crisper Spacer,
Left Side (2)
29 486194 Screw

11

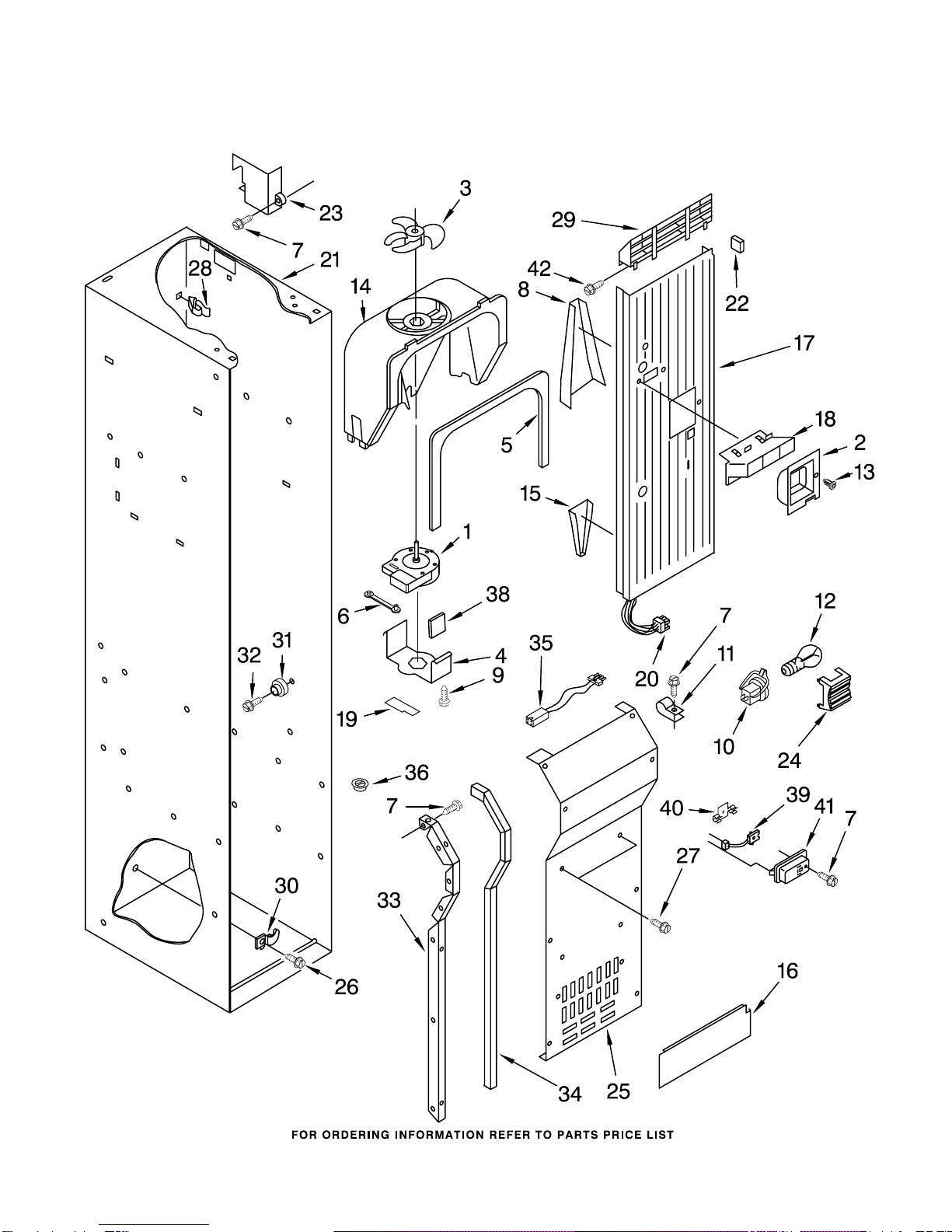

FREEZER LINER AND AIR FLOW PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078

12
FREEZER LINER AND AIR FLOW PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 2208939 Fan Motor
2 2002732 Cup, Clearance
3 2169142 Fan Blade
4 2155590 Retainer,
Fan Motor
5 2155789 Gasket, Cover
6 2208968 Grommet
7 486194 Screw
8 2003924 Deflector,
Air Duct
9 488500 Screw, Ground
10 2162085 Socket, Light (2)
11 488937 Clamp, Nylon
12 2160708 Light Bulb
13 1112871 Fastner
14 2182120 Scroll, Fan
15 2003929 Deflector,
Air Duct
16 2215612 Cover, Air Duct
17 2209336 Assembly, Air Duct
18 2182146 Duct, Icemaker
19 Block, Fan Scroll
2209482 Right
2209066 Left
20 2221262 Harness, Wire
21 Liner (Not A
Serviceable Part)
22 1112869 Gasket, Air Baffle
23 2215718 Cover, Air Outlet
24 2198589 Light Shield
25 2221106 Cover, Evaporator
26 486194 Screw
27 487539 Screw
28 2215823 Clip, Air Duct (4)
29 2208929 Diffuser, Air Duct
30 1112260 Support,
Evaporator
31 2196483 Shelf, Stud (20)
32 8281158 Screw
33 Evaporator,
Cover Rail
2221107 Left Side
2221108 Right Side
34 2220904 Gasket (2)
Evaporator Cover
35 2221077 Wire, Jumper
36 2171931 Release Valve
38 2220241 Insulation (4)
39 2213442 Thermistor
40 2209204 Clip, Thermistor
41 1116793 Cover, Thermistor
42 488208 Screw

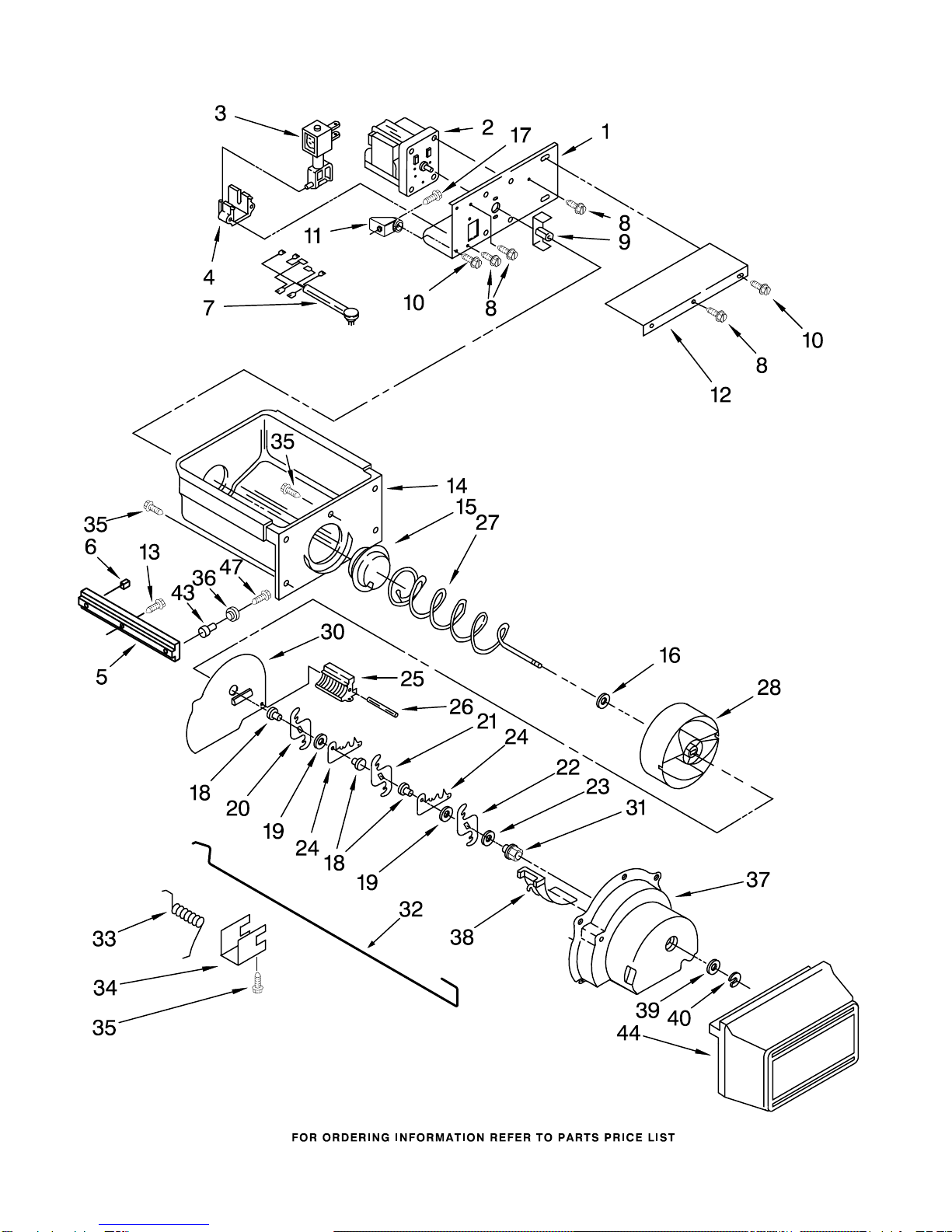

MOTOR AND ICE CONTAINER PARTS
13
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078

MOTOR AND ICE CONTAINER PARTS
14
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 2003941 Bracket, Motor
2 2155263 Motor, Dispenser
3 2003979 Soleniod Assembly
4 2149100 Guide, Solenoid
5 Slide, Container
2002720 Right Side
2002721 Left Side
6 1113169 Stop, Roller
7 2187421 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 2205716 Coupling, Motor
10 489478 Screw
11 2196206 Stud, Auger
12 1113130 Cover, Motor
13 486194 Screw
14 2208908 Ice Container
15 983668 Coupling, Conveyor
16 3400912 Washer
17 3400893 Screw
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2160602 Conveyor
28 2196194 Drum
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2002728 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
36 2188212 Roller
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
43 2174478 Eyelet, Roller
44 2002724 Front Cover,
Ice Container
47 2003478 Screw
99 2160606 Complete Ice
Crusher Mechanism
Assembly
100 2006543 Complete Ice
Container Assembly

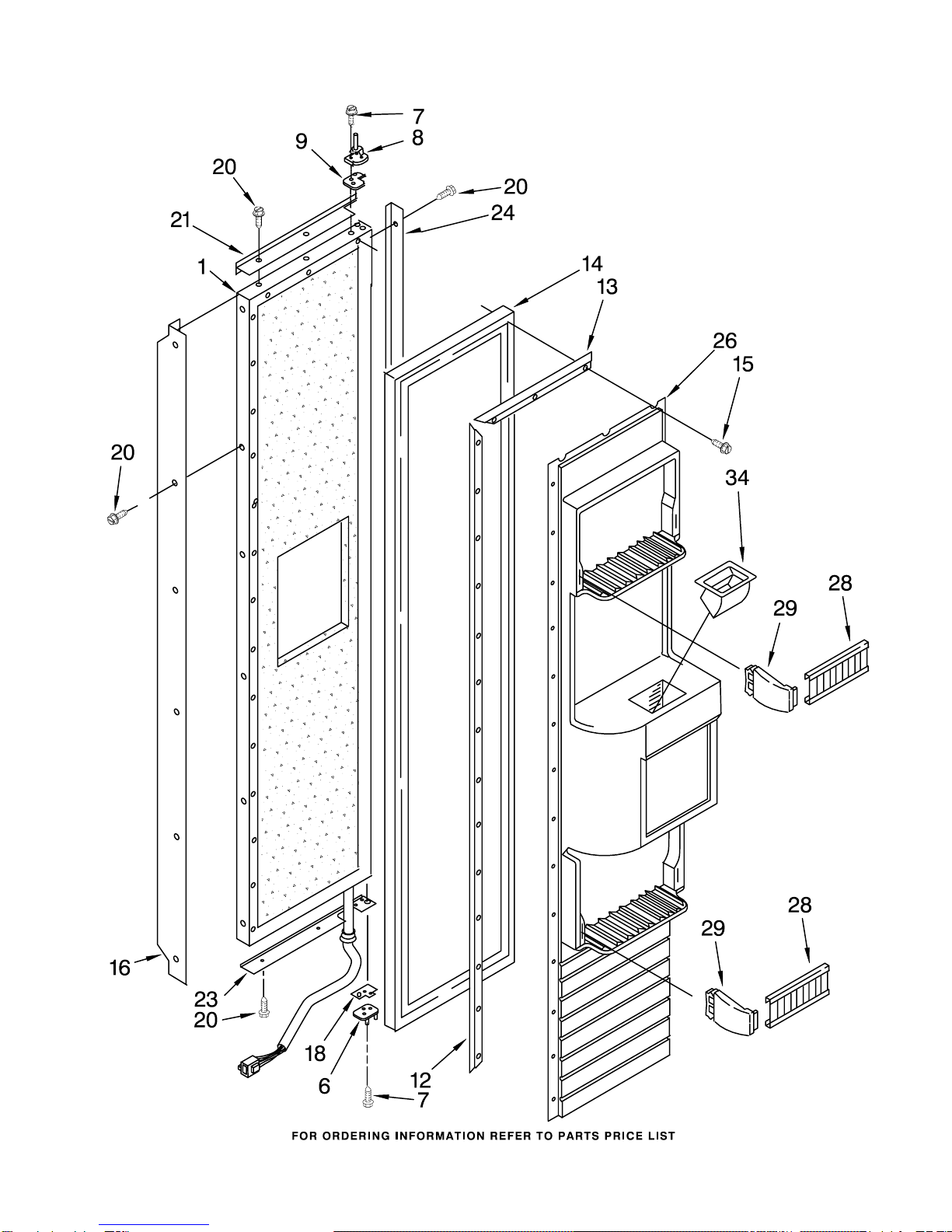

REFRIGERATOR DOOR PARTS
15
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078

REFRIGERATOR DOOR PARTS
16
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 8201581 Refrigerator
Door Panel
(Includes
Insulation)
3 2220922 Hinge Assembly,
Top
4 2004520 Spacer−Door,
Top
5 489282 Screw
6 2220809 Hinge Assembly,
Bottom
7 1112533 Gasket Retainer,
Side (2)
8 1112542 Gasket Retainer,
Top & Bottom
9 2188499 Door Gasket,
Magnetic
11 Handle, Door
2005953 White
2005956 Black
2005955 Biscuit
2005952 Etched Aluminum
12 2001230 Washer
13 2004549 Door, Spacer
Bottom
15 Screw
8281251 White
8281252 Black
8281253 Biscuit
8281250 Stainless Steel
16 Trim (Top)
2005015 White
2005841 Black
2005769 Biscuit
2005012 Etched Aluminum
18 Trim (Side)
2005968 White
2005971 Black
2005970 Biscuit
2005967 Etched Aluminum
19 Trim (Bottom)
2209419W White
2209419B Black
2209419T Biscuit
2209419 Etched Aluminum
20 1113950 Panel, Interior
Door
21 1113949 Ladder, Shelf (2)
22 1113948 Retainer, Shelf
Ladder (2)
23 1112514 Back Up Plate (8)
24 486194 Screw
25 1113955 Gasket
26 2003465 Door, Utility Bin
27 1113974 Door Shelf (3)
28 2165792 Butter Tray
30 2006381 Shelf, Gallon
Door

17
FREEZER DOOR PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078

FREEZER DOOR PARTS
18
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
Panel (Includes
Insulation and
Dispenser Housing)
2254732W White
2254732B Black
2254732T Biscuit
6 2220810 Hinge, Bottom
7 489282 Screw
8 2220922 Hinge, Top
9 2004520 Spacer−Door,
Top
12 1112533 Gasket Retainer,
Side (2)
13 1112539 Gasket Retainer,
Top & Bottom
14 2188497 Door Gasket,
Magnetic
15 486194 Screw (34)
16 Handle, Door
2005943 White
2005946 Black
2005945 Biscuit
2005942 Etched Aluminum
18 2004549 Door, Spacer
20 Screw
8281251 White
8281252 Black
8281253 Biscuit
8281250 Stainless Steel
21 Trim (Top)
2005024 White
2005887 Black
2005772 Biscuit
2005021 Etched Aluminum
23 Trim (Bottom)
2209422W White
2209422B Black
2209422T Biscuit
2209422 Etched Aluminum
24 Trim (Side)
2005963 White
2005966 Black
2005965 Biscuit
2005962 Etched Aluminum
26 2209029 Panel, Interior
Door
28 2195934 Trim, Door Shelf
29 Trim, Endcap
2208954 Left Side
2209134 Right Side
34 2208909 Ice Chute

19
DISPENSER FRONT PARTS
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078

DISPENSER AND FRONT PARTS
20
For Models: KSSS48QKB01, KSSS48QKT01, KSSS48QKW01, KSSS48QKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198078
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 2195051 Strain Relief
3 2221203 Wire Assembly
4 Cover, Dispenser
(Not Serviced)
5 2180209 Spring, Torsion
6 2196195 Pin
7 2206423 Ice Door Mechanism
8 2180352 Door, Ice
9 489000 Screw
10 Lever, Ice
Dispenser
2180259 White
2180261 Black
2186850 Biscuit
11 2180236 Switch Assembly
12 Lever, Water
Dispenser
2180268 White
2180270 Black
2186852 Biscuit
13 2194719 Spring, Lever
14 2205686 Delay Mechanism
15 2183771 Bracket, Control
16 2162361 Switch (2)
18 2180200 Lamp Holder
19 488500 Screw
20 2187409 Wire Assembly
21 2180224 Guide, Ice
22 3406124 Light Bulb
23 Grille, Overflow
2180323 White
2180325 Black
2186860 Biscuit
24 Overlay, Cover
(Not Serviced)
25 Front Cover
Assembly
(Includes Items
4, 11, 20 & 24)
2220988W White
2220988B Black
2220988T Biscuit
26 Trim, Front (2)
2208919 White
2208928 Black
2208925 Biscuit
27 Screw 8−15 x 1/2
8281251 White
8281252 Black
8281253 Biscuit
8281250 Stainless Steel
28 487944 Washer
29 488568 Screw 8−15 x 3/4
