KitchenAid KHWS01PMT / WH User manual

TECHNICAL EDUCATION
JOB AID 4317352
KAL-4
FRONT-LOADING
AUTOMATIC WASHER
MODEL KHWS01PMT / WH

- ii -
WHIRLPOOL CORPORATION assumes no responsibility for any repairs made
on our products by anyone other than Authorized ervice Technicians.
FORWARD
This KitchenAid Job Aid “Ensemble Front-Loading Automatic Washer” (Part No. 4317352),
provides the technician with information on the installation, operation, and service of the Ensemble
Front-Loading Automatic Washer. It is to be used as a training Job Aid and ervice Manual. For
specific information on the model being serviced, refer to the “Use and Care Guide,” or “Tech
heet” provided with the washer.
The Wiring Diagram used in this Job Aid is typical and should be used for training purposes only.
Always use the Wiring Diagram supplied with the product when servicing the unit.
GOALS AND OBJECTIVES
The goal of this Job Aid is to provide detailed information that will enable the service technician to
properly diagnose malfunctions and repair the KitchenAid Ensemble Front-Loading Automatic
Washer.
The objectives of this Job Aid are to:
• Understand and follow proper safety precautions.
• uccessfully troubleshoot and diagnose malfunctions.
• uccessfully perform necessary repairs.
• uccessfully return the washer to its proper operational status.
Copyright © 2004, Whirlpool Corporation, Benton Harbor, MI 49022

- iii -
TABLE OF CONTENTS
Page
GENERAL............................................................................................................................... 1-1
KitchenAid Model & erial Number Designations.............................................................. 1-1
Model & erial Number Label And Tech heet Locations................................................. 1-2
pecifications..................................................................................................................... 1-3
Pedestal Warranty ............................................................................................................. 1-3
KitchenAid Washer Warranty............................................................................................. 1-4
INSTALLATION INFORMATION ........................................................................................... 2-1
Installation Requirements .................................................................................................. 2-1
Installation Instructions ...................................................................................................... 2-5
Installing The Washer On The Pedestal ............................................................................ 2-7
PRODUCT OPERATION ........................................................................................................ 3-1
Theory Of Operation .......................................................................................................... 3-1
Customer Interface & Cycle election ............................................................................... 3-7
Cycles ................................................................................................................................ 3-8
Options ............................................................................................................................ 3-10
Modifiers .......................................................................................................................... 3-11
COMPONENT ACCESS ......................................................................................................... 4-1
Component Locations ........................................................................................................ 4-1
Removing The Console And The Touchpad/LED Assembly ............................................. 4-2
Removing The Door Lock/ witch Assembly, And The Front
Panel & Bellows ............................................................................................................. 4-4
Removing The Flowmeter.................................................................................................. 4-7
Removing The Detergent Dispenser Motor & Assembly ................................................... 4-8
Removing The Inlet Valves .............................................................................................. 4-10
Removing The Central Control Unit ................................................................................. 4-11
Removing The Interference Filter .................................................................................... 4-12
Removing The Pressure witch ...................................................................................... 4-13
Removing The Motor Controller....................................................................................... 4-14
Removing The Temperature ensor & The Heating Element ......................................... 4-16
Removing The Heating Element Relay............................................................................ 4-17
Removing The Drain Pump Assembly ............................................................................. 4-18
Removing The Airtrap ...................................................................................................... 4-19
Removing An Interlock witch ......................................................................................... 4-20
Removing The Drive Motor .............................................................................................. 4-22
Removing The Tub And Basket Assembly ...................................................................... 4-24

- i -
COMPONENT TESTING ........................................................................................................ 5-1
Pressure witch ................................................................................................................. 5-1
Detergent Dispenser Motor & witch................................................................................. 5-2
Inlet Valve olenoids ......................................................................................................... 5-2
Door Lock/ witch Assembly .............................................................................................. 5-3
Drain Pump Motor.............................................................................................................. 5-4
Interference Filter............................................................................................................... 5-4
Heating Element & Temperature ensor ........................................................................... 5-5
Heating Element Relay ...................................................................................................... 5-5
Drive Motor ........................................................................................................................ 5-6
Interlock witch.................................................................................................................. 5-6
DIAGNOSTICS & TROUBLESHOOTING .............................................................................. 6-1
WIRING DIAGRAM................................................................................................................. 7-1
TECH TIPS ............................................................................................................................. 8-1
Manual Door Latch ............................................................................................................ 8-1
Door Plunger...................................................................................................................... 8-1
Page

1-1
MODEL & SERIAL NUMBER DESIGNATIONS
MODEL NUMBER
SERIAL NUMBER
GENERAL
MODEL NUMBER KHWS01PMT0
PRODUCT GROUP
K = KITCHENAID
PRODUCT IDENTIFICATION
H = HORIZONTAL AXIS - DOMESTIC
FEATURE CODE
W = WASHER
FEATURE CODE
S = SUPERBA
SERIES
YEAR OF INTRODUCTION
P = 2004
COLOR CODE
MT = METEORITE
WH = WHITE
ENGINEERING CHANGE (NUMERIC)
MODEL NUMBER (PEDESTAL)
SERIAL NUMBER (PEDESTAL)
MODEL NUMBER L A B 2 7 0 0 P MT 0
PRODUCT GROUP
L = Domestic Laundry
PRODUCT IDENTIFICATION
A = Laundry Accessory
FEATURE CODE
B = Pedestal Base
PRODUCT WIDTH
FILLER
FILLER
YEAR OF INTRODUCTION
COLOR CODE
MT = Meteorite, Q = White
ENGINEERING CHANGE
SERIAL NUMBER CS P 42 09 93
DIVISION RESPONSIBILITY
CS = Schorn orf, Germany
YEAR OF PRODUCTION
P = 2003
WEEK OF PRODUCTION
42 = 42ND WEEK
PRODUCT SEQUENCE NUMBER
SERIAL NUMBER
C P 01 10001
MANUFACTURING SITE
C = CLYDE, OH
YEAR OF PRODUCTION
P = 2003
WEEK OF PRODUCTION
PRODUCT SEQUENCE NUMBER

1-2
MODEL & SERIAL NUMBER LABEL
AND TECH SHEET LOCATIONS
The Mo el/Serial Number label an Tech Sheet locations are shown below.
Model & Serial
Number Label
Location
Tech Sheet Location
(Behind Toe Panel)

1-3
SPECIFICATIONS
FULL ONE YEAR WARRANTY ON MECHANICAL PARTS
For one year from the ate of purchase, when this Pedestal is installe with the liste washer or
ryer an operate accor ing to the instructions provi e in the washer or ryer Owner’s Manual
or Use an Care Gui e, supplier will repair or replace any of its mechanical parts if efective in
material or workmanship.
WARRANTY RESTRICTION
If the Pedestal is subject to other than private family use an or use with any other pro uct than
those liste in the installation instructions, the warranty is null an voi .
PEDESTAL WARRANTY
Model Number
Color
Electrical Requirements
Heating Power
Max. Current
Rate Current
Voltage
Frequency
Gallons/Normal Cycle
Capacity
Volume
Max. Spin Speed
Dimensions
Height
Height (Feet Exten e )
Wi th
Depth
Weight
Installation Options
Programs
Program Selector
Temperature Selector
Spin Spee
KHWS01PMT / WH
MT = Meteorite, WH = White
1,000W
12A
15A
120V
60 Hz
15.8 Gal./60 L
19.8 lbs. (9 kg.)
3.7 cu. ft. (IEC equivalent)
1150 RPM
37.4″ (950mm)
38.2″ (970mm)
27″ (686mm)
30.3″ (770mm)
245 lbs. (111kg.)
Pe estal
Stackable
Rotary 12 Programs
Button (5 levels)
Button (5 levels)

1-4
KITCHENAID WASHER WARRANTY
TWO-YEAR FULL WARRANTY
For two years from the ate of purchase, when this washer is operate an maintaine accor ing to instructions
attache to or furnishe with the pro uct, KitchenAi will pay for replacement parts an repair labor costs to
correct efects in materials or workmanship. Service must be provi e by a KitchenAi esignate service com-
pany.
THIRD THROUGH FIFTH YEAR LIMITED WARRANTY
ON MOTOR AND CENTER POST ASSEMBLY BEARINGS
For the thir through fifth year from the ate of purchase, when this washer is operate an maintaine accor -
ing to instructions attache to or furnishe with the pro uct, KitchenAi will pay for replacement parts for the
motor an center post assembly bearings if efective in materials or workmanship.
THIRD THROUGH TENTH YEAR LIMITED WARRANTY ON TOP AND
CABINET ASSEMBLY, GEARCASE ASSEMBLY, AND OUTER TUB
For the thir through tenth year from the ate of purchase, when this washer is operate an maintaine accor -
ing to instructions attache to or furnishe with the pro uct, KitchenAi will pay for replacement parts for the
following components if efective in materials or workmanship: the top an cabinet assembly ue to rust; any
part of the gearcase assembly; the outer tub shoul it crack or fail to contain water.
LIFETIME LIMITED WARRANTY ON STAINLESS STEEL WASH DRUM
For the lifetime of the washer, when this washer is operate an maintaine accor ing to instructions attache to
or furnishe with the pro uct, KitchenAi will pay for replacement parts for the stainless steel wash rum shoul
it chip or rust ue to efects in materials or workmanship.
KitchenAid will not pay for:
1. Service calls to correct the installation of your washer, to instruct you how to use your washer, or to replace
house fuses or correct house wiring or plumbing.
2. Repairs when your washer is use in other than normal, single-family househol use.
3. Damage resulting from acci ent, alteration, misuse, abuse, fire, floo , acts of Go , improper installation, in-
stallation not in accor ance with local electrical an plumbing co es, or use of pro ucts not approve by
KitchenAi .
4. Any labor costs uring the limite warranty perio s.
5. Replacement parts or repair labor costs for units operate outsi e the Unite States an Cana a.
6. Pickup an elivery. This pro uct is esigne to be repaire in the home.
7. Repairs to parts or systems resulting from unauthorize mo ifications ma e to the appliance.
8. In Cana a, travel or transportation expenses for customers who resi e in remote areas.
KITCHENAID AND KITCHENAID CANADA SHALL NOT BE LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states an provinces o not allow the exclusion or limitation of inci ental or consequential amages, so
this exclusion or limitation may not apply to you. This warranty gives you specific legal rights an you may also
have other rights which vary from state to state or province to province.
Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized
KitchenAid dealer to determine if another warranty applies.
If you nee service, first see “Troubleshooting” in the Use an Care Gui e. A itional help can be foun by
checking “Assistance or Service” in the Use an Care Gui e, or by calling our Customer Interaction Center at
1-800-422-1230, from anywhere in the U.S.A. or write: KitchenAi Bran Home Appliances, Customer Interac-
tion Center, 553 Benson Roa , Benton Harbor, MI 49022-2692. In Cana a, call KitchenAi Cana a at 1-800-
80 -6 .

2-1
INSTALLATION INFORMATION
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Assemble the necessary tools and supplies
before beginning the washer installation. The
parts supplied are in the washer basket.
Tools needed for connecting t e water inlet
oses
• Pliers (that open to 1-9 16″ [39.5 mm])
• Flashlight (optional)
Tools needed for installation
• Open end wrench 5 8″ (17 mm) and
1 2″ (13 mm)
• Level
• Wood block (2″ x 4″)
• Ruler or measuring tape
Parts supplied
OPTIONAL PEDESTAL
A pedestal (LAB2700PMT/LAB2700LQ) may
be purchased separately for this washer. This
pedestal will add about 13″ (33 cm) to the
height of the unit for a total vertical height of
approximately 51″ (130 cm).
Beaded Strap Transport Bolt Hole Plug (4)
Optional Pedestal
Alternate parts
If You Have You Will Need To Buy
Laundry tub or standpipe
taller than 96″(2.4 m)
Sump pump system (if not already
available).
Overhead sewer
Standard 20 gal. (76 L), 30″
(76.2 cm) tall drain tub or utility
sink and sump pump (available from
local plumbing supplier).
Floor drain
Siphon break, #285834; additional
drain hose #8318155; and
connector kit #285835.
Drain hose too short Drain hose extension kit #285863.
Water faucets beyond
reach of fill hoses
2 longer water fill hoses: 6′(1.8 m)
#76314, 10′(3.0 m) #350008.
OPTIONAL STACK KIT
To stack your washer and dryer, you will need
to purchase Stack Kit, Part Number 8541503.
LOCATION REQUIREMENTS
Selecting the proper location for the washer
improves performance, and minimizes noise
and possible washer “walk.”
The washer can be installed under a custom
counter, or in a basement, laundry room, closet,
or recessed area (see “Drain System”).
Companion appliance location requirements
should also be considered. Proper installation
is your responsibility.
You will need
• A water heater set to deliver 120°F (49°C)
water to the washer.
• A grounded electrical outlet located within
5 ft. (1.5m) of where the power cord is
attached to the back of the washer (see
“Electrical Requirements”).
Continued on t e next page.

2-2

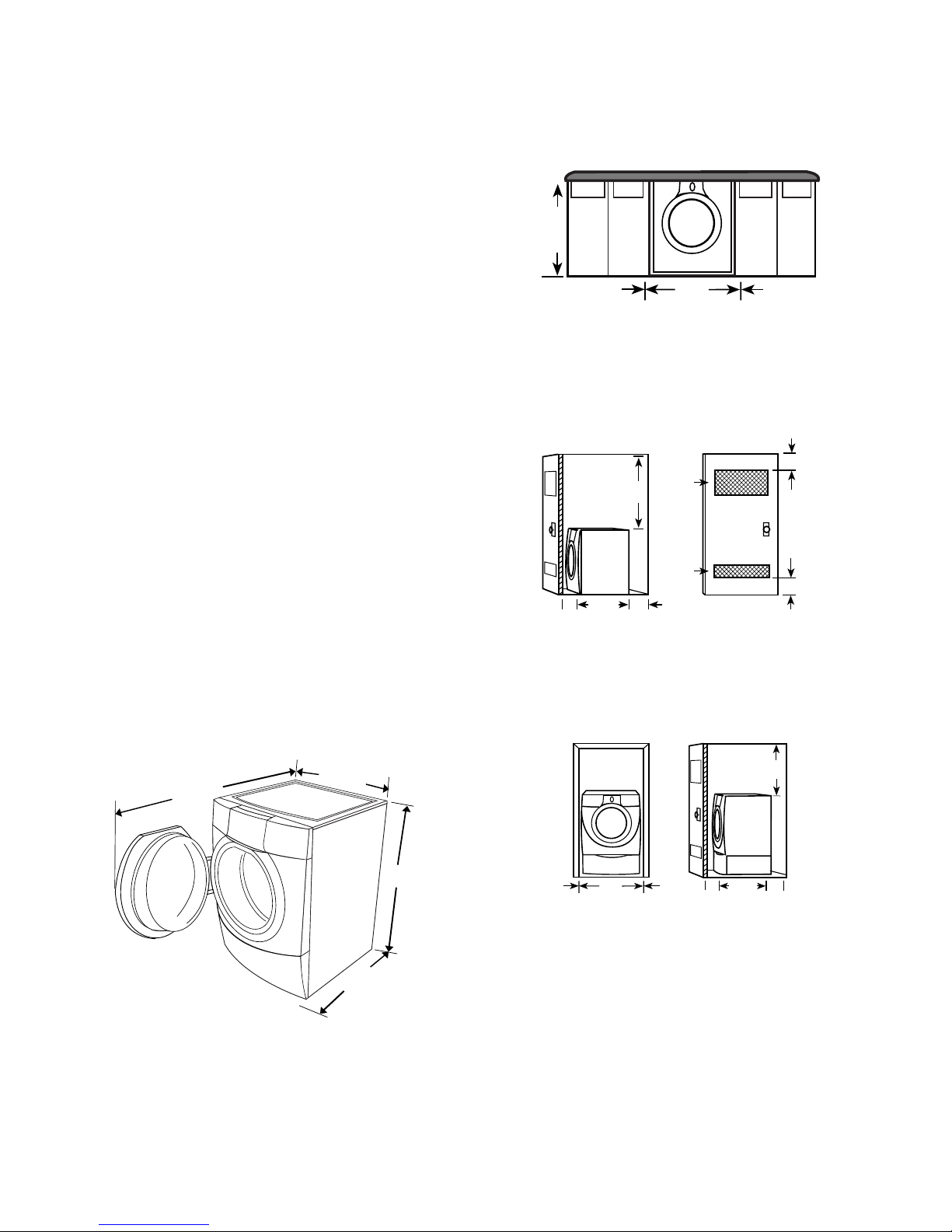

Was er Dimensions
Custom Undercounter Installation
The dimensions shown are for the recom-
mended spacing.
Recessed Or Closet Installation
The dimensions shown are for the recom-
mended spacing.
Recessed Area Or Closed Installation
27"
(68.6 cm)
50-1/2"
(128.3 cm)
38"
(96.5 cm)
31-1/2"
(80.0 cm)
1"
(2.5 cm)
1"
(2.5 cm)
39" min
(99.0 cm)
27"
(68.6 cm)
1. Side view - closet or confined area
2. Closet door with vents
"
34
(
86.4 cm)
12
3"
(7.6 cm)
3"
(7.6 cm)
48 in.
2
(310 cm
2
)
24 in.
2
(155 cm
2
)
1"
(2.5 cm)
4"
(10.2 cm)
31-1/2"
(80 cm)
• Hot and cold water faucets located within
4 ft. (1.2 m) of the hot and cold water fill
valves, and water pressure of 20-100 psi
(137.9-689.6 kPa).
• A level floor with a maximum slope of 1″
(2.5 cm) under entire washer. Installing the
washer on carpeting is not recommended.
• A sturdy and solid floor to support the washer
with a total weight (water and load) of 400
lbs. (180 kg).
Do not operate your washer in temperatures
below 32°F (0°C). Some water can remain in
the washer and can cause damage in low tem-
peratures.
Installation Clearances
• The location must be large enough to allow
the washer door to be fully opened.
• Additional spacing should be considered for
ease of installation and servicing.
• Additional clearances might be required for
wall, door, and floor moldings.
• Additional spacing of 1″ (2.5 cm) on all sides
of the washer is recommended to reduce
noise transfer.
• Companion appliance spacing should also
be considered. Recessed Or Closet Installation—
Washer On Pedestal
1. Recessed area
2. Side view - closet or confined area
1"
(2.5 cm)
31-1/2"
(80 cm)
1"
(2.5 cm)
1"
(2.5 cm)
27"
(68.6 cm)
4"
(10.2 cm)
18 min."
(45.7 cm)
21

2-3
Recessed Or Closet Installation—
Wit Stacked Was er & Dryer
The dimensions shown are for the recom-
mended spacing.
* Min. top and bottom air openings for closet door.
** External exhaust elbow requires additional space.
*** Wall, door and floor molding may require
additional spacing.
48 in.2*
(310 cm2 )
3" (7.6 cm)
6" (15.2 cm)
76"
(193 cm)
27"
(68.6 cm)
3" (7.6 cm)
1" (2.5 cm)
5-1/2"**
(14 cm)
1"***
(2.5 cm) 1"***
(2.5 cm)
24 in.2*
(155 cm2 )
Cabinet Installation
The dimensions shown are for the recom-
mended spacing. For cabinet installation with
a door, the minimum ventilation openings in
the top are required.
7" (17.8 cm)
9"
(22.9 cm)
7" (17.8 cm)
4"
(1
0.2 cm )
31-1/2"
(80.0 cm)
27"
(68.6 cm)
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
30" min.
(76.2 cm)
12
30" min.
(76.2 cm)
28" min.
(71 cm)
12
DRAIN SYSTEM
The washer can be installed using the standpipe
drain system (floor or wall), the laundry tub
drain system, or the floor drain system. Select
the drain hose installation method you need
(see “Alternate Parts”).
Standpipe Drain System—
Wall Or Floor (View 1 & 2)
The standpipe drain requires a minimum diam-
eter standpipe of 2″ (5 cm). The minimum
carry-away capacity can be no less than 17 gal
(64 L) per minute.
The top of the standpipe must be at least 30″
(76.2 cm) high and no higher than 96″ (2.4 m)
from the bottom of the washer.
Laundry Tub Drain System (View 1)
The laundry tub needs a minimum 20 gal.
(76 L) capacity. The top of the laundry tub must
be at least 30″ (76.2 cm) above the floor.
Floor Drain System (View 2)
The floor drain system requires a siphon break
that may be purchased separately (see “Alter-
nate Parts ”).
The siphon break must be a minimum of 28″
(71 cm) from the bottom of the washer. Addi-
tional hoses might be needed.

2-4
Electrical S ock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow t ese instructions can
result in deat , fire, or electrical s ock.
WARNING
• A 120-volt, 60-Hz., AC-only, 15- or 20-am-
pere, fused electrical supply is required. A
time-delay fuse, or circuit breaker, is recom-
mended. It is recommended that a separate
circuit serving only this appliance be pro-
vided.
• This washer is equipped with a power supply
cord having a 3 prong grounding plug.
• To minimize possible shock hazard, the cord
must be plugged into a mating, 3 prong,
grounding-type outlet, grounded in accor-
dance with local codes and ordinances. If a
mating outlet is not available, it is the per-
sonal responsibility and obligation of the
customer to have the properly grounded
outlet installed by a qualified electrician.
• If codes permit and a separate ground wire
is used, it is recommended that a qualified
electrician determine that the ground path is
adequate.
• Do not ground to a gas pipe.
• Check with a qualified electrician if you are
not sure the washer is properly grounded.
• Do not have a fuse in the neutral or ground
circuit.
For a grounded, cord-connected
was er:
This washer must be grounded. In the event
of a malfunction or breakdown, grounding
will reduce the risk of electrical shock by
providing a path of least resistance for elec-
tric current. This washer is equipped with a
cord having an equipment-grounding con-
ductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is
properly installed and grounded in accor-
dance with all local codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result
in a risk of electric shock. Check with a
qualified electrician or serviceman if you are
in doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the
appliance. If it will not fit the outlet, have a
proper outlet installed by a qualified electri-
cian.
For a permanently connected was er:
This washer must be connected to a grounded
metal, permanent wiring system, or an equip-
ment-grounding conductor must be run with
the circuit conductors and connected to the
equipment-grounding terminal or lead on the
appliance.
1. 3 prong grounding plug
2. 3 prong grounding-type wall receptacle
3. Grounding prong
4. Power supply cord
1
2
3
4
ELECTRICAL REQUIREMENTS
GROUNDING INSTRUCTIONS

2-5
INSTALLATION INSTRUCTIONS
Installing T e Was er
Excessive Weig t Hazard
Use two or more people to move and
install was er.
Failure to do so can result in back or
ot er injury.
WARNING
IMPORTANT: Position the washer so that the
rear of the unit is within approximately 3 feet
(90 cm) of the final location.

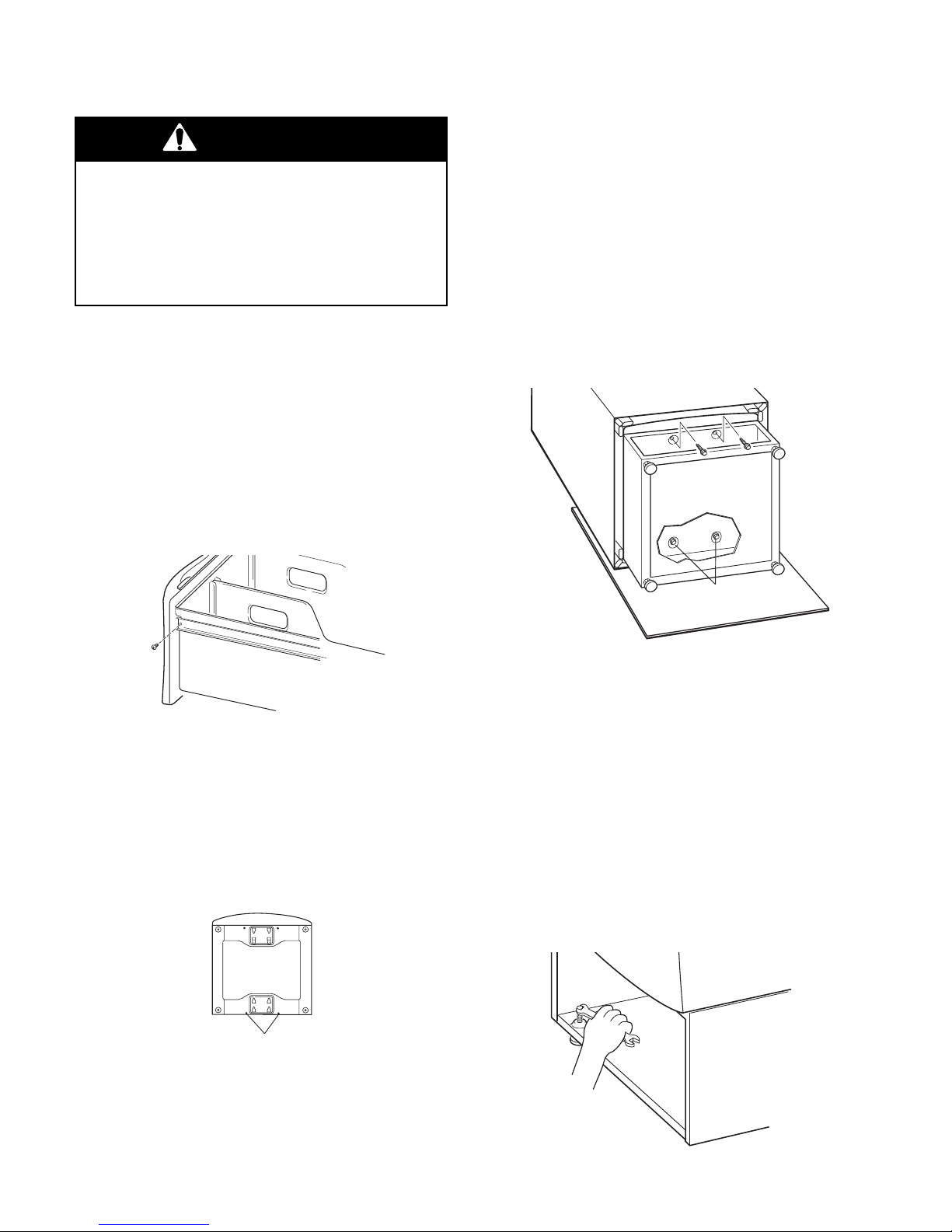

There are 4 bolts in the rear panel of the washer
that support the suspension system during
transportation. These bolts also retain the power
cord inside the washer until the bolts are re-
moved. To remove the bolts:
1. Using a 1 2″ (13 mm) wrench, loosen each
of the bolts.
2. Once the bolt is loose, move it to the center
of the hole, and completely pull out the
bolt, including the plastic spacer covering
the bolt, and the cable attached to the bolt.
The power cord will be attached to all 4
bolts inside the washer.
3. Once all 4 bolts are removed, pull the
power cord through the opening of the rear
panel, and close the hose with the at-
tached cap.
REMOVE TRANSPORT SYSTEM 4. Close the bolt holes with the four transport
bolt hole plugs.
CONNECT THE INLET HOSES
Connect t e inlet oses to t e water fau-
cets.
Make sure the washer basket is empty.
1. Using a pair of pliers, check the tightness
of the hose couplings that are attached to
the washer. NOTE: Do not overtighten the
couplings, or damage to the coupling can
result.
2. Attach the hose with the red color indicator
to the hot water faucet, and the hose with
the blue color indicator to the cold water
faucet. Screw on the couplings by hand
until they are seated on the washer.
3. Using a pair of pliers, tighten the couplings
an additional two-thirds turn. NOTE: Do
not overtighten the couplings, or damage
to the coupling can result.
4. Turn on the water and check the couplings
for leaks.
NOTE: Replace the inlet hoses after 5 years of
use to reduce the risk of hose failure. Record
the hose installation, or replacement dates on
the hoses for future reference. Periodically
inspect and replace hoses if bulges, kinks,
cuts, wear, or leaks are found.

2-6
LEVEL THE WASHER
Properly leveling your washer prevents exces-
sive noise and vibration. To level the washer:
1. Check the levelness of the washer by
placing a level on the top edge of the
washer, first side-to-side, then front-to-
back.

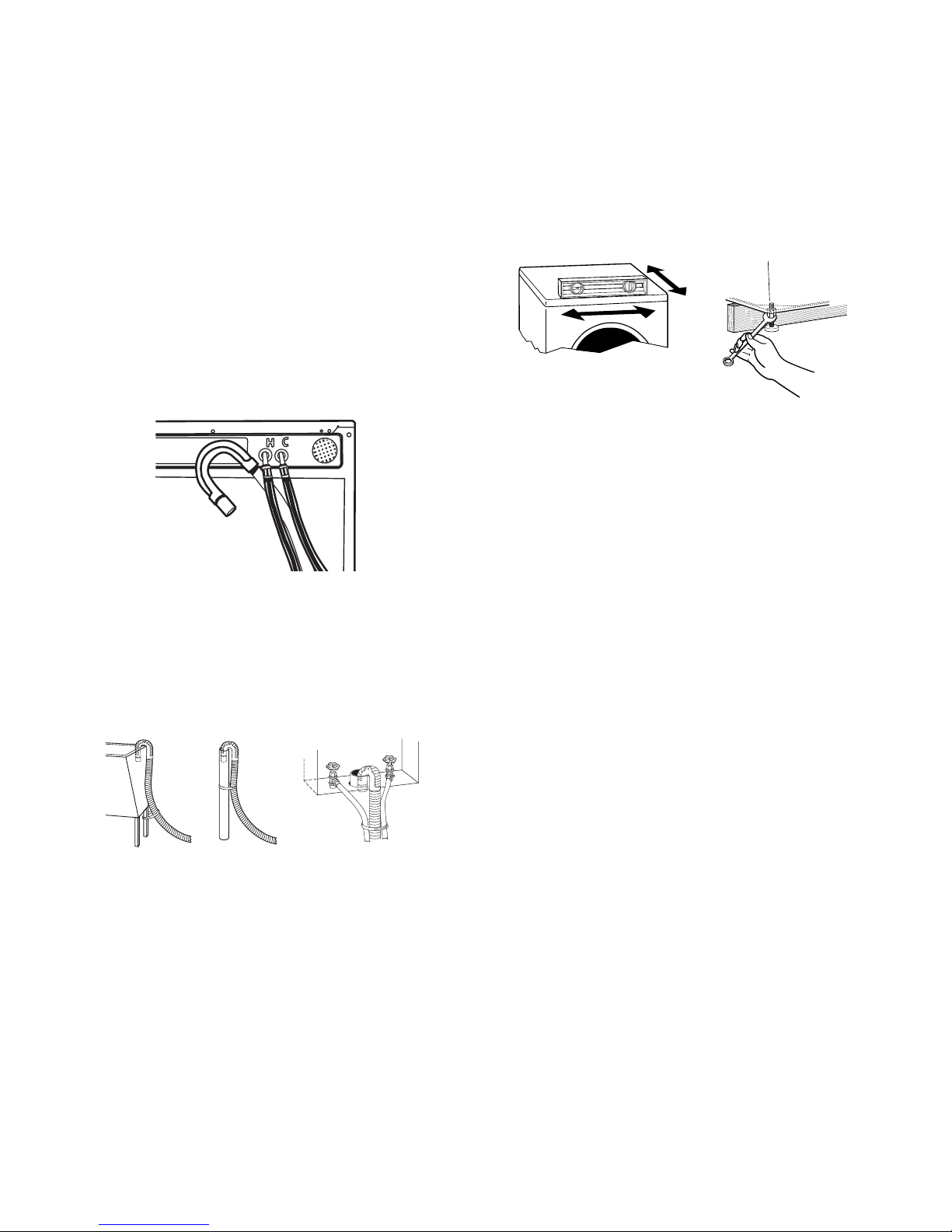

If the washer faucets and the drain
standpipe are recessed, place the hooked
end of the drain hose in the standpipe.
Tightly wrap the beaded strap around the
water inlet and drain hoses.
NOTE: Do not force excess drain hose into the
standpipe.
123
If the washer is against a wall, move the
washer out slightly before tipping back. If
the washer is not level, first prop the front
with a wood block (2″ x 4″) and adjust the
feet as necessary; then prop the back and
adjust feet as necessary. Repeat this step
until washer is level.

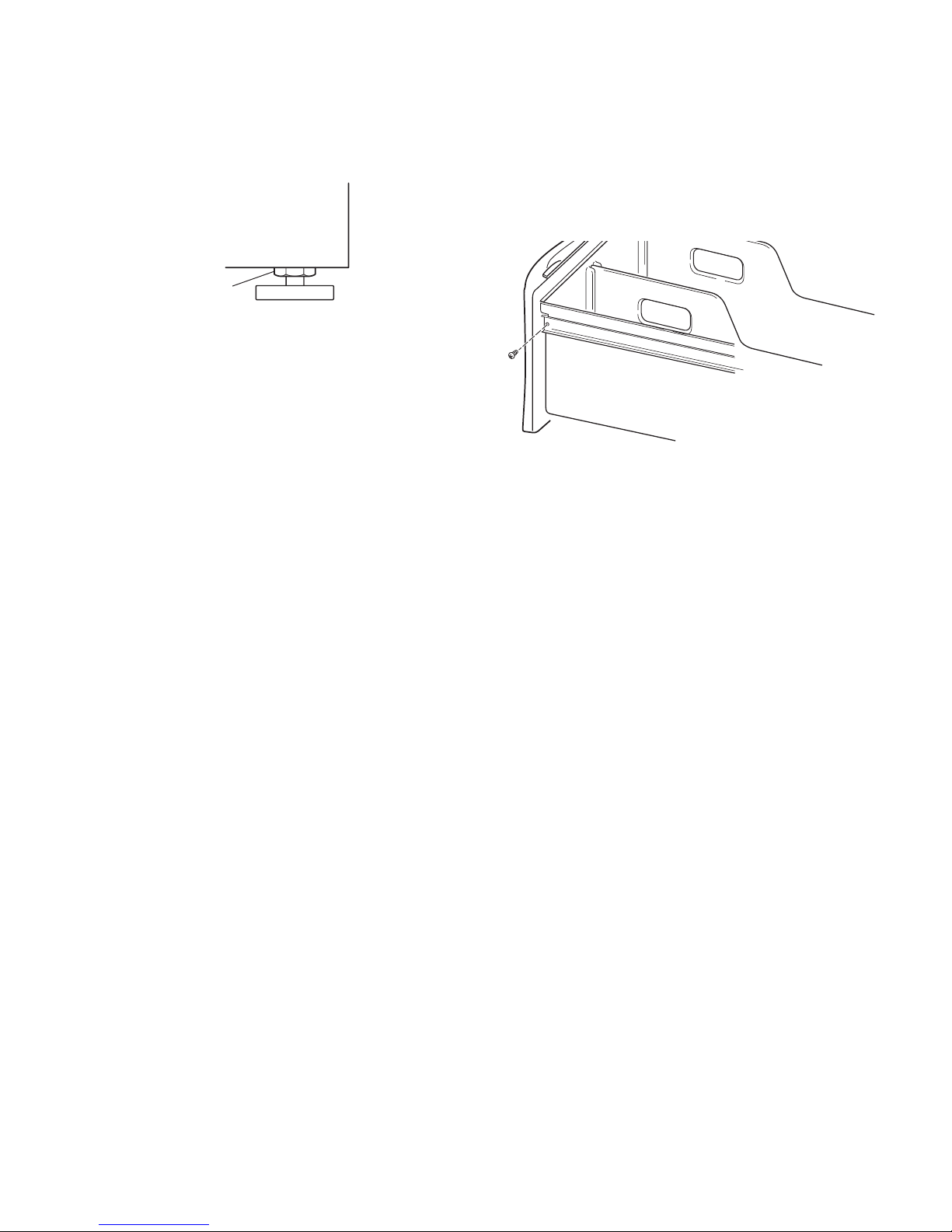

2. After the washer is level, use a 5 8″ (17
mm) open-end wrench to turn the nuts on
the feet tightly against the washer cabinet.
All 4 feet must be tightened. If the nuts are
not tight against the washer cabinet, the
washer may vibrate.
3. Slide the washer to its final location.
4. Confirm the levelness of the washer.
COMPLETE THE INSTALLATION
1. Check the electrical requirements. Be sure
that you have the correct electrical supply
and the recommended grounding method
(see “Electrical Requirements”).
2. Check to be sure all parts are now in-
stalled. If there is an extra part, go back
through the steps to see which step was
skipped.
3. Check to be sure you have all of your tools.
4. Dispose recycle all packaging materials.
5. Check to be sure the water faucets are on.
6. Check for leaks around faucets and inlet
hoses.
7. Plug into a grounded 3 prong outlet.
ROUTE THE DRAIN HOSE
The drain hose is connected to your washer.
Proper routing of the drain hose protects your
floors from damage due to water leakage.
Carefully read and follow these instructions.
To prevent drain water from going back into
t e was er:
• Do not straighten the drain hose, and do not
force excess drain hose into the standpipe.
The hose should be secure, but loose enough
to provide a gap for air.
• Do not lay excess hose on the bottom of the
laundry tub.
SECURE THE DRAIN HOSE
1. Drape the power cord over the washer top.
2. Secure the drain hose to the laundry tub
leg, or to the standpipe with the beaded
strap that is provided.

2-7
INSTALLING THE WASHER ON THE PEDESTAL
Excessive Weig t Hazard
Use two or more people to move and
uninstall was er.
Failure to do so can result in back or
ot er injury.
WARNING
IMPORTANT: If the washer is already installed,
it must be uninstalled. See Installation Instruc-
tions that came with the washer for tools re-
quired.
1. Turn off the hot and cold water to the
washer.
13"
(33 cm)
27"
(68.6 cm)
18-9/16"
(47.2 cm)
23-5/8"
(60 cm)
2-5/8"
(6.7 cm)
UNINSTALLING THE WASHER 2. Unplug the power supply cord.
3. Slowly loosen the fill hoses at the faucets
to relieve the water pressure.
4. Remove the “HOT” and “COLD” fill hoses
from the back of the washer. Drain water
in the hoses into a bucket.
5. Squeeze the ears of the drain hose clamp
with pliers to open and slide the clamp
down the hose. Disconnect the drain hose
from the washer and drain any water in the
hose into a bucket.
6. Pull the washer away from the wall so it
can be tipped on its back.
7. Protect the floor with a large piece of
cardboard cut from the pedestal carton.
Lay the washer on its back so that the
cardboard is under the entire lower back
edge of the washer.
IMPORTANT: Check that all 4 pads are
present as shown. If they are not, do not
install the pedestal, and contact your dealer.

2-8
1. Open the pedestal drawer, and remove
the envelope taped inside the drawer.
This envelope contains four (4) #12 x 5 8″
(1.6 cm) hex-head sheet metal screws
that will be used in step 4.
2. Remove the phillips screw from both
drawer slides and save the screws. Re-
move the drawer from the slides and set it
aside. Push the drawer slides back into
the pedestal.
3. Remove the four feet from the washer, but
DO NOT install the feet that were supplied
with the new washer.
4. Partially install the two lower hex-head
sheet metal screws. Leave a space of
about 3 8″ (1 cm) between the screw head
and the bottom of the washer.
5. Move the pedestal against the washer
bottom, and slide the pedestal’s keyhole
slots over the lower two partially installed
screws.
Position the pedestal toward the front of
the washer and install the two remaining
hex-head sheet metal screws. Do not
tig ten completely.
Align the sides of the pedestal so that they
are even with the sides of the washer.
Reach inside the pedestal drawer open-
ing, and securely tighten all four pedestal
screws.
Washer Bottom
Install Screws
6. Tip the washer and pedestal assembly
back to an upright position and remove
protective cardboard.
7. Slide the washer close to its final location.
8. Follow the Installation Instructions that
were supplied with the washer, and finish
installing or reinstalling the unit.
9. Locate the 1 4″ hex nut on the top of each
pedestal foot. Reach inside the pedestal
and use a ratchet or open-end wrench,
and adjust the feet up or down, as neces-
sary to level the washer and pedestal.
lower screws in
keyhole slots
Excessive Weig t Hazard
Use two or more people to move and
install pedestal.
Failure to do so can result in back or
ot er injury.
WARNING
INSTALLING THE PEDESTAL

2-9
10. When the washer is level, use a 9 16″
open-end wrench to securely tighten the
locknuts on all four feet against the pedes-
tal.
11. Pull both drawer slides out and reas-
semble the drawer to the drawer slides
with the two (2) phillips screws you re-
moved earlier. NOTE: Use of the two (2)
dividers is optional.
12. Close the pedestal drawer.
locknut

2-10
— NOTES —

3-1
PRODUCT OPERATION
THEORY OF OPERATION
INTRODUCTION
The KitchenAid Ensemble Front-Loading Au-
tomatic Washer presents a number of new
features and operating characteristics quite
different from previous models. n addition to
the introduction of front-loading operation, the
washer contains a number of unique operating
features designed to increase clothes cleaning
ability while offering very high water and en-
ergy conservation.
WATER SYSTEM
The water system consists of the hot and cold
water inlet valves, a water temperature sensor,
a water flowmeter and control, and the dis-
penser distribution system along with a tradi-
tional pressure switch.
WATER INLET VALVES
The hot and cold water inlet valves are located
at the back of the washer. These valves re-
ceive a control signal from the Central Control
Unit to manage the temperature of incoming
water. The temperatures are determined by
the specific wash cycle selected and a tem-
perature sensor located in the wash tub. To
improve cleaning of heavily soiled clothing and
to provide a sanitizing feature, the water tem-
perature can be increased through the use of a
heating element located in the bottom of the
tub.
FLOWMETER
Water flow, or the quantity of water introduced
throughout any cycle, is monitored by a flow-
meter and Central Control Unit. When the
flowmeter registers a maximum of 10.5 gal
(40 L), and the Central Control Unit has not
detected the pressure switch trip, the water
valves will be shut off and an error code will
show in the digital display.
DISPENSER DISTRIBUTION
SYSTEM
All wash and rinse water is introduced into the
wash tub through a Dispenser Distribution Sys-
tem located in the top left corner of the washer.
The system consists of a motor that turns a
cam gear. The cam follower will divert the
incoming water to one or more of the follow
water inlet modes:
• Detergent Dispensing
• Bleach Dispensing
• Fabric Softener Dispensing
• Rinse Dispensing (no additives)
The flowmeter is also used to introduce addi-
tional water into the tub for higher water levels,
based on cycle requirements.
Flowmeter
Dispenser
Motor
Cam
Actuator
Water
Distribution
Lever
Cam
Follower

3-2
The dispenser drawer has four separate com-
partments for adding laundry products to the
wash load. These compartments are:
1. Prewash Detergent Compartment
2. Main Wash Detergent Compartment
3. Bleach Compartment
4. Fabric Softener Compartment
Laundry products are diluted and dispensed
automatically at the proper time during the
wash cycle. The separator in the Prewash and
Main Wash Detergent Compartment can be
moved to accommodate either liquid or pow-
dered detergents.
The drawer release lever can be installed in the
stack position to accommodate stacking a
matching dryer on top of the washer.
The water enters the wash tub through the
main inlet tube.
AIR VENT SYSTEM
As a safety feature, the washer is designed to
allow fresh air to circulate through the tub. An
inlet vent at the rear of the washer brings air
into the tub. The fresh air is vented through the
dispenser assembly vent tube and out the front
of the dispenser drawer cutout.
Main nlet
Tube
Vent Tube
Air Vent
Vent Tube
1
24
3
Release Lever
Stack Position
Release Lever
