KJM A860 User manual

A860
MARINE VHF ANTENNA
Installation Guide
KJM is dedicated to providing the finest in shipboard equipment. Our products are built to withstand the harsh marine
environment, and are designed by people with over three decades of experience in the marine industry.
Please read the following pages before attempting installation to ensure complete understanding of the A860
Marine VHF Antenna.
FEATURES
White 8 Foot marine band VHF antenna with 6dB Gain
1"-14 stainless ferrule
Brass radiators for maximum transmit and receive performance
Includes: Gold plated PL-259 connector and 20' of RG-58 C/U Milspec double-shielded coaxial cable
ACCESSORIES
M-860
Stainless Steel Ratchet Mount
INSTALLATION
FCC Information:
The antenna must me located at least 3’ away from passengers in order to comply with FCC RF exposure requirements.
The antenna should be mounted as high as possible for best performance. Keep the antenna
away from large metal objects and other radiating devices like RADAR and other antennas.
The A-860 VHF Antenna is supplied with 20 feet of RG-58 C/U Milspec double-shielded
cable for maximum radiation and interference rejection. KJM does not recommend shortening
the 20’ cable; instead simply coil and tie-wrap the excess cable in a secure location. The
cable may be extended using a PL-258 barrel connector between the antenna PL-259 and
the additional coax cable PL-259. KJM recommends using RG-8X or RX213/U to extend the
length.
PL-258 Barrel
(not supplied)

Page 2

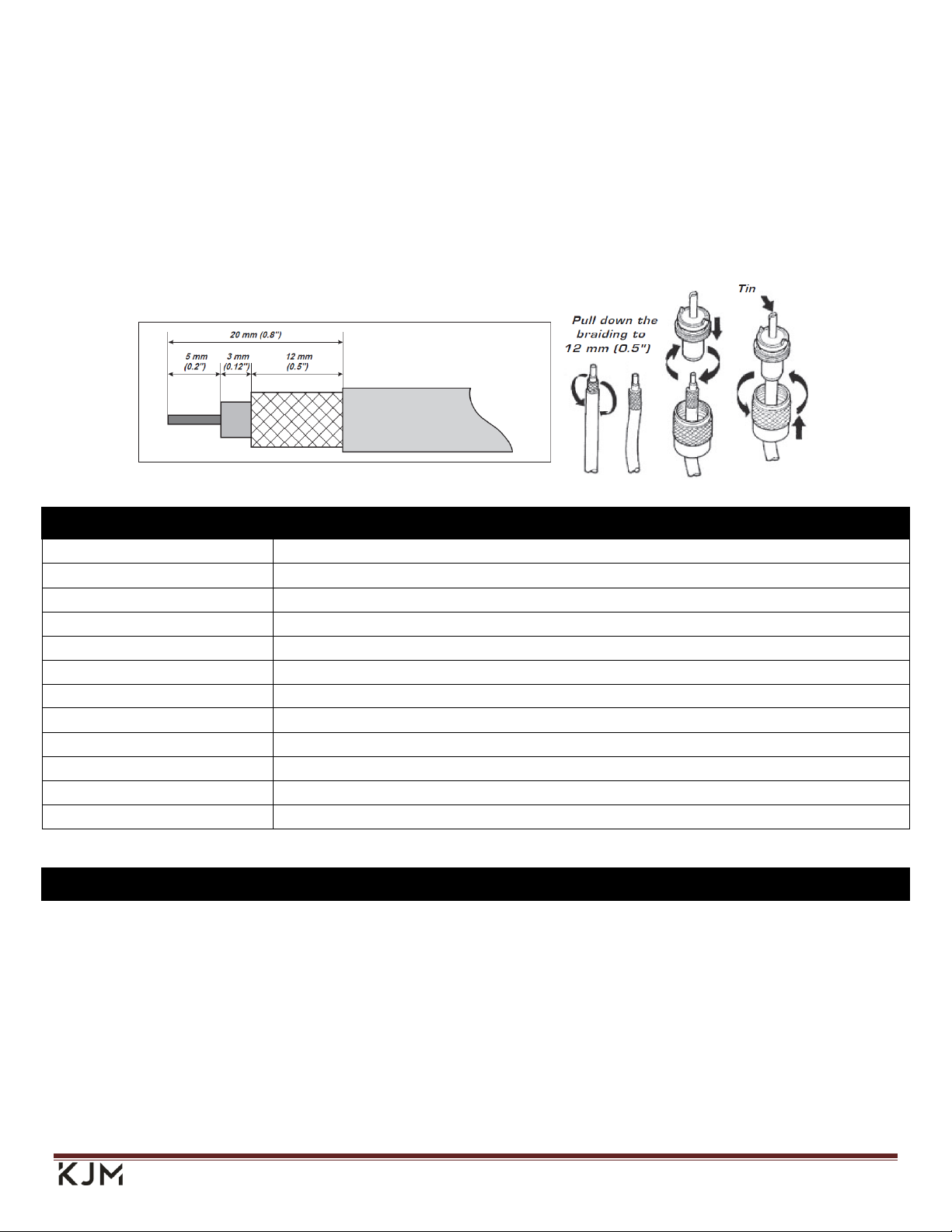

PL-259 Connector Installation
1. Cut the end of the coax cable to the dimensions shown Figure 1.
DO NOT CUT THE CABLE SHORTER THAN 5 FEET!
2. Remove the Threaded collar from the PL-259 connector and slide onto the cable.
3. Referring to Figure 2, pull the braid down on top of the white insulation on the cable.
4. Insert the cable into the connector (using a twisting motion) onto the cable until the center conductor appears
through the center pin of the connector.
5. Solder the cables center conductor to the center pin of the PL-259 Connector.
6. Screw the threaded collar onto the connector.
Note: After installation it is recommended to have a qualified technician check the VSWR to ensure proper
connections have been made.
Figure 1
Figure 2
SPECIFICATIONS
FREQUENCY RANGE
156 - 162 MHz
GAIN AVERAGE
6 dB
IMPEDANCE
50 ohms
POLARIZATION
Vertical
ELEMENTS
Brass and copper
SWR at 156.8MHz
1.3:1
DC GROUND
Yes
RADOME
Polished polyurethane
CONNECTOR
Gold plated PL-259
FERRULE
1"-14 threaded stainless steel
CABLE LENGTH / TYPE
20' / Milspec RG-58 C/U
WARRANTY
Limited Lifetime
Performance specifications are nominal and unless otherwise indicated, are subject to change without notice.
WARRANTY / CONTACT
KJM warrants its products to be free of defects in materials and workmanship for as long as the
product remains the property of the original purchaser. KJM's obligation under this warranty is
limited to repair or replace defective products. No material will be repaired or replaced without
written authorization from KJM. Repair or replacement will be made only after an examination
indicates defective material or workmanship at time of manufacture. KJM is in no event liable
for consequential damages, installation costs or other costs of any nature incurred as a result
of the use of the products manufactured by KJM, whether used in accordance with instructions
or not. All shipping costs on returned material are the responsibility of the purchaser. KJM is
not liable for repair or replacement of any product damaged by lightening, other natural
phenomenons or incorrect installation including reverse polarity connections. This warranty is in
lieu of all others, either expressed or implied. Proof of purchase is required.
KJM MARINE
7137 24TH Court East
Sarasota, FL 34243
[e-mail]
