Kleenmaid cooking MWG4512K Installation guide

cooking collection
Instructions for use and warranty details
Built In Microwave Oven
Model No.!4>.K
~kLeenma1d

Dear Customer,
Thank you and congratulations for choosing
Kleenmaid.
Your new appliance has been designed
and meticulously tested to ensure that it
meets all your culinary requirements, and
has been carefully manufactured using top
quality materials to give you years of reliable
performance.
For best results, carefully read the instructions
on how your new appliance is to be installed.
Correct installation will avoid delays and
unnecessary service call costs.
Once installation is complete, please read this
instruction manual carefully and get to know
the controls and the features of your new
Kleenmaid appliance. These simple instructions
will enable you to achieve excellent results from
the very first time you use it.
Again, congratulations and thank you for
choosing The Best You Can Own.
KLEENMAID

CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO 2
EXCESSIVE MICROWAVE ENERGY
SPECIFICATIONS 2
IMPORTANT SAFETY INSTRUCTIONS 3
EARTHING INSTALLATION TO REDUCE THE RISK OF INJURY 7
CLEANING 8
UTENSILS 8
SETTING UP YOUR OVEN 10
INSTALLATION AND CONNECTION 11

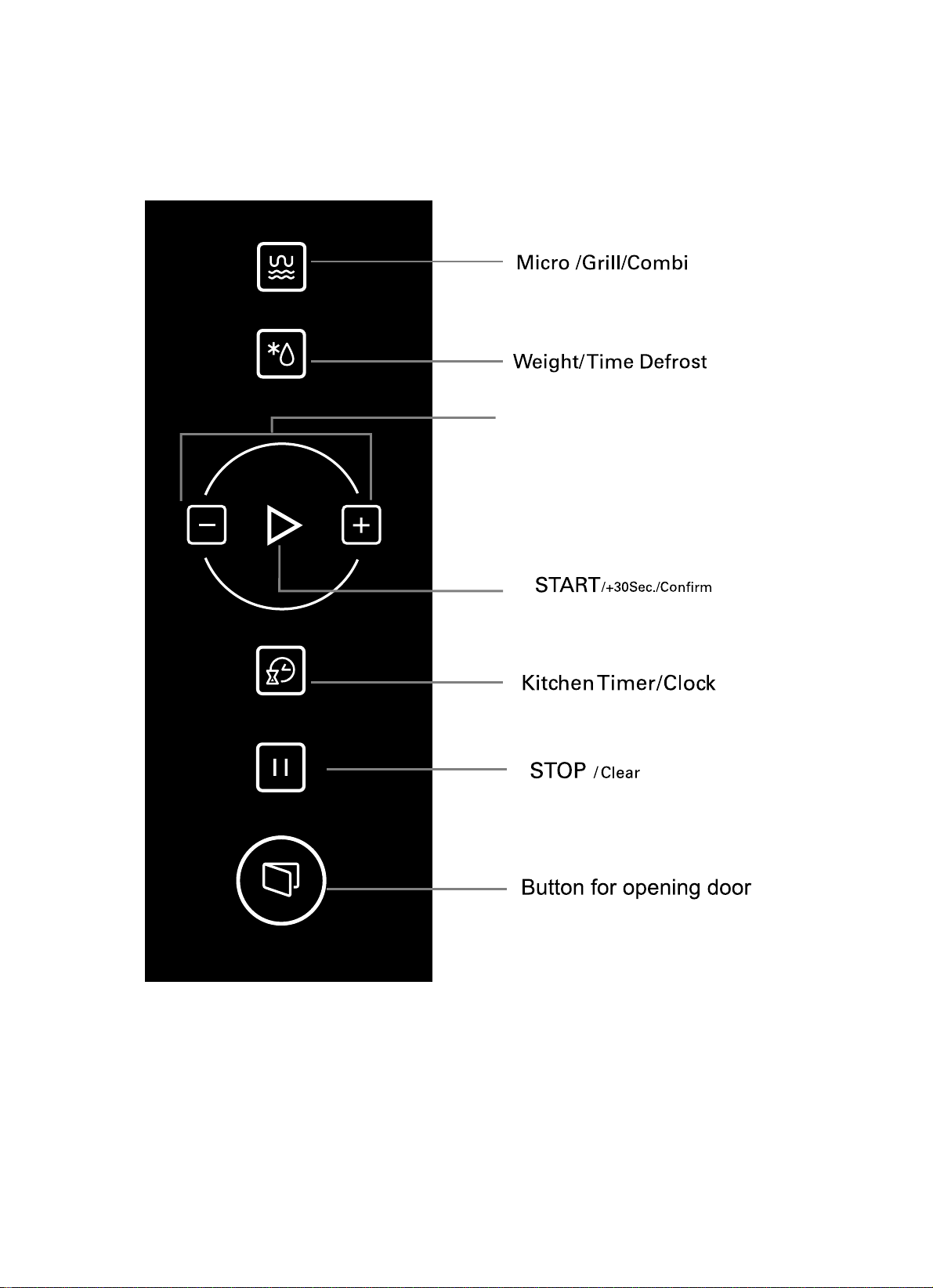

CONTROL PANEL 12
OPERATING INSTRUCTIONS 13
TROUBLE SHOOTING 18
INSTALLATION INSTRUCTIONS 19
1

(a) Do not attempt to operate this oven with the door
open since this canresult in harmful exposure
to microwave energy. It is important not to break or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ATTENTION
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous
situation.
SPECIFICATIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
MWG4512K
230-240V 50Hz
2
Model:
Rated Voltage: ~
Rated Input Power(Microwave): 145OW
Rated Output Power(Microwave ):
9OOW
Rated Input Power(Grill):
1OOOW
Oven Capacity: 25L
Turntable Diameter:
0315mm
External Dimensions(WxDxH):
595x4O1 x388 mm
Net Weight: Approx 19kg

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Warning: Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
TXDOLILHGperson to carry out any service or repair
operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
3. This appliance can be used by children and persons
with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
4. Children shall not play with the appliance.
5. Children shall be kept away unless continuously
supervised.
6. Cleaning and user maintenance shall not be made by
children without supervision.
7. Keep the appliance and its cord out of reach of children.
8. Only use utensils that are suitable for use in microwave
ovens.
9. The oven should be cleaned regularly and any food
deposits should be removed.
10. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
11. When heating food in plastic or paper containers,
3

and keep the door closed in order to stifle any flames.
13. Do not overcook food.
14. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
15. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
16. Install or locate this oven only in accordance with the
installation instructions provided.
17. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
18.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
19. If the supply cord is damaged, it must be replaced by
the manufacturer,its service agent or similarly qualified
persons in order to avoid a hazard.
Do not store or use this appliance outdoors.
Do not use this oven near water, in a wet basement
or near a swimming pool.
The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep the cord away from heated
keep an eye on the oven due to the possibility of ignition.
ir
4
12. If smoke is emitted, switch off or unplug the appliance
20.
21.
22.

23. Do not let the cord hang over edge of table or counter.
24. Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
25. The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
26. Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
27. The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
28. Children should be supervised to ensure that they do
not play with the appliance.
29. The appliance is not intended to be operated by
means of an external timer or separate remote-control
system.
Accessible parts may become hot during use. Young
children should be kept away.
Steam cleaner is not to be used.
be used during microwave cooking.
surfaces, and do not cover any vents on the oven.
5
30.
31.
32. Metallic containers for food and beverages should not

6

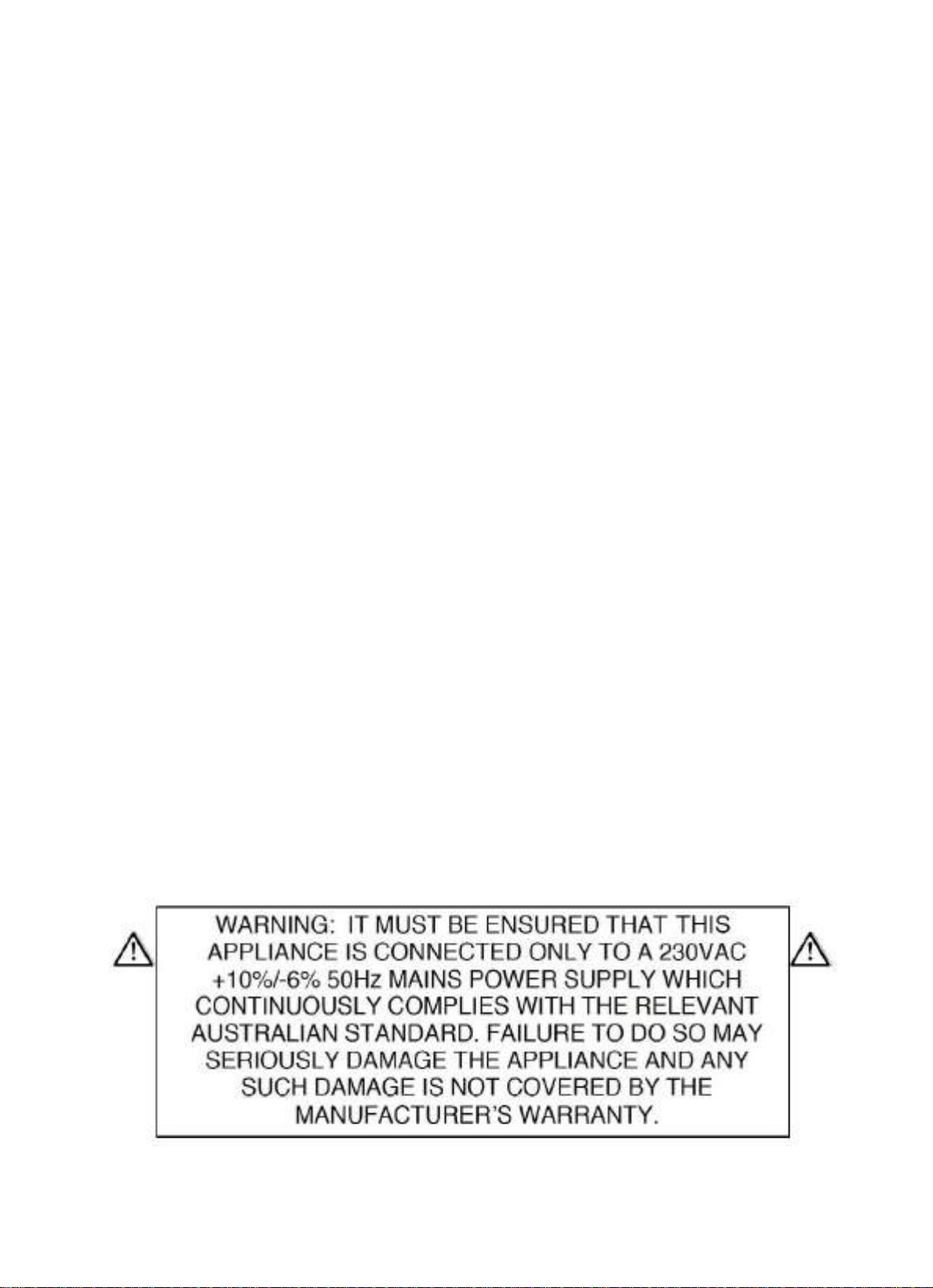

WARNING: IT MUST BE ENSURED THAT EACH
APPLIANCE IS CONNECTED ONLY TO A 230VAC
~
+10 %/ -6 °/o 50Hz MAINS POWER SUPPLY WHICH
CONTINUOUSLY COMPLIES WITH THE RELEVANT
AUSTRALIAN STANDARD. FAILURE TO DO
SO MAY
SERIOUSLY DAMAGE THE APPLIANCE AND ANY
SUCH DAMAGE IS NOT COVERED
BY THE
MANUFACTURER'S WARRANTY.
33: The appliance and its accessible parts become
hot during use. Care should be taken to avoid
touching heating elements.
34.Surface of a storage cabinet can get hot.
35.The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
items may lead to risk of injury,ignition or fire.
36.WARNING: When the appliance is operated in the
combination mode, children should only use the oven
under adult supervision due to the temperatures
generated.
37. Warning: DO NOT use this microwave oven when
empty as this can be dangerous to the user and damage
the microwave oven. Always place food, or liquid in a
suitable container, in the microwave oven whilst any
microwave function is operating.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

EARTHING INSTALLATION TO REDUCE
THE RISK OF INJURY
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard Improper
use of the earthing can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and earthed.
This appliance must be
earthed. In the event of an
electrical short circuit,
earthing reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a earthing
wire with an earthed plug.
The plug must be plugged
into an outlet that is properly
installed and earthed.
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
cord is used:
1)The marked electrical rating of
the cord setor extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord mustbe an
earthed-type 3-wire cord.
3)The long cord should be
arranged sothat itwill notdrape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
Consult a qualified electrician
or serviceman if the earthing
instructions are not
completely understood or if
doubt exists as to whether
the appliance is properly
earthed.
If it is necessary to use an
extension cord, use only
a 3-wire extension cord.
2. If a long cord set or extension
7

CLEANING
Be suretounplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they aredirty.
4. Do notuse harsh abrasive cleaners or sharpmetal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
of water and heat on 100% microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
Personal Injury Hazard It is hazardous for anyone other
than a TXDOLILHG person to carry out any service or repair
operation that involves the removal of a cover which gives
protection against exposure to microwaveenergy.
UTENSILS
1. Fill a microwave-safe container with 1 cup of cold water
(250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do
not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on page "Materials you can use in
microwave oven or to be avoided in microwave oven." There
may be certain non-metallic utensils that are not safe to use
for microwaving. If in doubt, you can test the utensil in
question following the procedure below.
Utensil Test:
8
9

Materials you can use in microwave oven
Utensils Remarks
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 5mm above the turntable. Incorrect usage may cause the
turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
CB
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
1
1
Glass tray
Turntable ring assembly
User Manual
Grill Rack
1
Grill Rack (Only to be used in grill function
and to be placed on the glass tray )
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and
turntable ring assembly must
always be used during cooking.
c. All food and containers of food should always be
placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
10
1

INSTALLATION AND CONNECTION
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only. It is not intended
for counter-top use or for use inside a closed cupboard.
3.Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-
mounted cupboard.
5.The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
6.The mains voltage must correspond to the voltage
specified on the rating plate.
7.The socket must be installed and connecting cable must
only be replaced by a qualified electrician. If the plug is no
longer accessible following installation, an all-pole
disconnecting device must be present on the installation
side with a contact gap of at least 3mm.
8.Adapters, multi-way strips and extension leads must not be
used. Overloading can result in a risk of fire.
The accessible surface may
be hot during operation.
11

12
Micro./Grill/Combi.
--- Weight/Time Defrost
Up & down selection buttons
START/+30Sec./Confirm
Kitchen Timer/Clock
STOP /Clear
Button for opening door
CONTROL PANEL
Up and down Selection Buttons

13
OPERATION INSTRUCTION
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
1. Clock Setting
When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.
1)
Press" Kitchen Timer/Clock " twice, the hourfigures flash.
2)Press "+or-" to adjust the hour figures, the input time should be within 0--23.
3)
Press" Kitchen Timer/Clock ", the minute figures will flash.
4) Press
"+or-" to adjust the minute figures, the input time should be within 0--59.
5)
Press" Kitchen Timer/Clock " to finish clock setting. ":" will flash,
the clock setting has been finished.
Note: 1)
If the clock is not set, the clock would not function when powered.
2) During the process of clock setting, if you press" STOP /Clear ", the oven
will go back to the previous status automatically.
2. Microwave Cooking
1) Press the" Micro./Grill/Combi. "key once, and "P100" will display.
2) Press"
Micro./Grill/Combi. "for times orpress "+or - " to select the microwave
power from 100% to %. "P100", "P80", "P50", "P30", "P10" will display
in order.
3) Press "
START1+30Sec./Confirm "to confirm.
4)
Press"+ or-" to select the cooking time. (The time setting should be 0:05- 95:00.)
5)
Press" START1+30Sec./Confirm " to start cooking.
NOTE: the step quantities for the adjustment time ofthe coding switch are as follow:
0---1 min 5 seconds
1---5 min 10 seconds
5---10 min 30 seconds
10---30 min 1 minute
30---95 min 5 minutes
Microwave Power Chart
Microwave Power 100% 80% 50% 30% 10%
Display P100 P80 P50 P30 P10
to better meet your cooking needs.
OPERATING INSTRUCTIONS

 
 nation
  until shows"##$! 

&"&' !(  )$!%
#*#+,+*## !!!

-.! */%!%++0!1 !+0 2&"3
"#%$%! !1using :
"3  $ !-4"
'3  (!"##&'###
3  !


"##0
+0
50
6!1
!  ! 
 #0
" ++0
' 50
"3   $
  
 !  "##
3  )
3  !7%  



%  1  ! "#*##
+3  !
'3 %  % !&"
!

&"
&'
%*
8*Halfway through 1%$!!For a
$!  %
/ !$1%
result$%%%1 at this time$



 


"to %!$!


- display
14
Micro./GriII/Combi.
Micro./GriII/Combi. +
START/+30Sec./Confirm
START/+30Sec./Confirm
Micro./G ri II/Combi.
Micro./GriII/Combi.
START/+30Sec./Confirm
+
START/+30Sec./Confirm
Weight/Time Defrost
+
START/+30Sec./Confirm
STARTt+30Sec./Confirm
or

+ (
"3  $ !-4'
3 

!
'3 

   ( !.%   ,+ %
< =(
2"3
   $- !##*##
2'3 
 
23 )$!
   
23setKitchen t!$the !%(%::
sound+ /! 2'&%3$ the LED display will show the
current time. 
8*(K(r to the '&% clockThe =(!

56%&9!
(!! for a cooking process. /!$% set
as) stage. The buzzer will sound once after each stage and the next stage will
begin. 8*;%%!!stages in %&! cooking
-.! *Y%!+%$>#0
!1 <%( !!s:
"3  $  !-4'
'3  !7%+%?
3  $  "##
3  !1 ># !?
+3  )$  !>#
53  !7%     < %?
<3  !

2(!.%,+% 3

 







-
-
-
!
15
Weight/Time Defrost
+
START!+30Sec./Confirm
Weight/Time Defrost
+
Micro./Grill/Combi.
+
START /+30Sec./Confirm
+
START /+30Sec./Confirm
Kitchen Timer/Clock
+
START /+30Sec./Confirm

> ;%6%
6%   !
;'
6!
;
@!
;
!!
;>
 
'##
##
'+#
+#
+#
'##
##
##
+#2+#
"% 2"'#3
'% 2'#3
% 25#3

;"
::!
!3
"##2>##!3
+#
"##
;<
1!
(%!*
'##
##
'+#
+#
+#
'##
##
##
+#
"##
"
'

+#
"##
"3 /!!$ ;";> 
'3  )%%
3       
3  !
+3 ;)$%::%)1
 
'## '##
;+ ## ##
! 5## 5##
%
'+# '+#
;5 +# +#
4 +# +#

 
  
16
+
START /+30Sec./Confirm
+
START /+30Sec./Confirm

,Quick Start
"3 /!!$  "##0 1
#-! !will!cooking time by
#(!.% ,+%
%
/ !'&
"# Child 
*/!!$  $! 
&!!% !!$
$- !
0:00
. T! 
7R8QO*/!$ 
!!
"' Other Functions
2"3 % % 
%.
2'3B !!if  
'3 %!1e$ $ !

! $
 !
While using!%%!$!
!  
3 /!!$ "##0!1 $
8*
 


 




!




"" (QTXLU\4%
"3 While using!1$ or ! press "
T%  !'&
'3 %!$   
 
with %+, t% ! and t!
23(%::%witha firm  on a key. If the pressure exerted is not
enough to operate the key the buzzer won't sound.
13. To open the oven door
Press “ “ button, the oven door will be opened.

17
START/+30Sec./Confirm
START/+30Sec./Confirm
START/+30Sec./Confirm
START/+30Sec./Confirm
STOP /Clear
STOP /Clear
Micro./GriII/Combi.
KitchenTimer/Clock
START/+30Sec./Confirm
START/+30Sec./Confirm
Micro/Grill/Combi".

TROUBLE SHOOTING
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product toWEEE collecting points
where available.
18
ZLWK79UHFHSWLRQ
Normal
Radio and TV reception may be interfered when
Microwave oven interfering microwave oven operating. It is similar to the
interference
of small electrical appliances, like
mixer, vacuum cleaner, and electric fan.
It is normal.
Dim oven light
In low power microwave cooking, oven light may
become dim. It
is normal.
Steam accumulating on
In cooking, steam may come out offood. Most will
get out from vents. But some may accumulate
door, hot air out
of vents
on cool place like oven door. It is normal.
Oven started accidentally
with no food in.
Trouble Possible Cause Remedy
(1) Power cord not Unplug. Then plug again
plugged
in tightly. after 1
Oseconds.
(2) Fuse blowing or Replace fuse or reset circuit
Oven can not breaker (repaired by
circuit breaker
be started. works. professional personnel
of our company)
(3) Trouble with outlet. Test outlet with other
electrical appliances.
Oven does not heat. (4) Door not closed well. Close door well.
Glass turntable Refer to "Maintenance
of
makes noise when (5) Dirty roller rest and Microwave" to clean dirty
microwave oven oven bottom. parts.
operates
-
Oven does not start n or
tripped
(3) Problem with
power outlet
Door not properly closed properly
interfered with when
Refer to Cleaning on page 8
to clean these parts
DO NOT use this microwave oven when empty as this can be
dangerous to the user and damage the microwave oven. Always
place food, or liquid in a suitable container, in the microwave
oven whilst any microwave function is operating.
