MWK100X - Stainless Steel Microwave

ongratulations on the purchase of your new
Cappliance. This appliance has been
designed and manufactured to give you years
of reliable performance.
For best results, carefully read the instructions on
how to install your new appliance. Correct installation
will avoid delays and unnecessary service calls.
Once installation is complete, read this booklet
carefully and get to know the controls and the
features of your new appliance.
We reserve the right to alter the specifications
appliance. This instruction manual cannot be
reason for a claim.

3
Contents
Please read this user manual carefully. It contains important
instructions concerning installation, use and security measures.
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
General description . . . . . . . . . . . . . . . . . . . . . . . . .6
The control panel . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Setting the clock / Microwave power settings . . . . . . . . . . .8
The display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
The selector knobs / Programming . . . . . . . . . . . . . . .10
Microwave programming . . . . . . . . . . . . . . . . . . . . .11
The Duo Function . . . . . . . . . . . . . . . . . . . . . . . . . .12
The grilling racks . . . . . . . . . . . . . . . . . . . . . . . . . .14
The grill function / Programming the grill . . . . . . . . . . .15
The microwave + grill function / Programming . . . . . . . . .16
Security / Recommendations . . . . . . . . . . . . . . . . . . .17
Care & cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . .19
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . .20

4
Installation
Leave sufficient space around the oven :
- 5 cm between the sides of the oven
and any walls or objects
- 14 cm above the oven
- 10 cm behind the oven.
LOCATION
BEFORE CONNECTION
• The oven must be set on a work surface at least 85 cm above floor level.
• Place the oven on a flat and horizontal surface, away from any source of heat or
steam. To ensure the stability of the microwave oven, the front left foot is
adjustable (5 positions). Turn it to raise or lower the appliance.
• Make sure that air can circulate freely around the oven.
• Make sure that nothing obstructs the ventilation louvres at the back of the appliance.
• Some ovens are designed for flush-fitting. To obtain the corresponding kit, consult your dealer.
• Make sure the electrical plug will be accessible after installation.
• Do not use your appliance immediately (wait approx. 1-2 hours) after transfer from a cold
place to a warm place as condensation may cause a malfunction.
• Check whether your oven has suffered any damage during transport (deformed door or
door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Verify the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your
electrical installer.
•
Your installation must be protected by a 15 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with
current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of
separating the appliance from the mains power and whose contact opening is at least 3 mm
at all of the poles.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
ELECTRICAL CONNECTION
5 cm
14 cm
10 cm
5 cm

5
Warning
• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or
cooking foods. The manufacturer bears no responsibility in the case of improper usage.
•Only use utensils that are suitable for use in microwave ovens.
•To avoid deterioration of your microwave oven, never operate it empty or without the
turntable.
•Never tamper with the lock mechanism of your microwave oven; you could cause damage
requiring repair by an authorised technician.
•When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
•It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for
deep-freeze bags.
•The contents of feeding bottles or baby food jars should be stirred or shaken and the
temperature checked before consumption in order to avoid burns.
•Liquids and other foods must not be heated in sealed containers as they are liable to explode.
•Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens
as they may explode, even after microwave heating has ended.
•Microwave heating of beverages can result in delayed eruptive boiling, therefore care
must be taken when handling the container.
•For small amounts (one sausage, a single croissant, etc.), place a glass of water along-
side the food item.
•Time settings that are too long may dry out and burn the food. To avoid such incidents,
never use the same cooking times as those recommended for traditional ovens.
•If smoke is observed, switch off or unplug the appliance and keep the door closed in
order to stifle any flames.
•The appliance is not intended for use by young children or infirm persons without
supervision.
•Young children should be supervised to ensure that they do not play with the appliance.

6
General description
•THE TURNTABLE :
Ensures equal cooking of food throughout with no need to stir or turn the dish.
- It may be used as a cooking platter.
- Rotation is controlled by the drive shaft and the wheel support.
- The turntable revolves in both directions.
- If it does not turn, verify that all components are properly positioned.
- For easy removal, wells are provided on either side.
•TURNTABLE OFF :
Stops the turntable from revolving in order to use platters which require the entire oven
space.
•THE WHEEL SUPPORT :
Do not try to rotate the roller ring manually, as you could damage the drive system. If
it does not turn smoothly, make sure that there is nothing in the well beneath the turn-
table.
TurntableDrive shaft Wheel
support
Identification
label

7

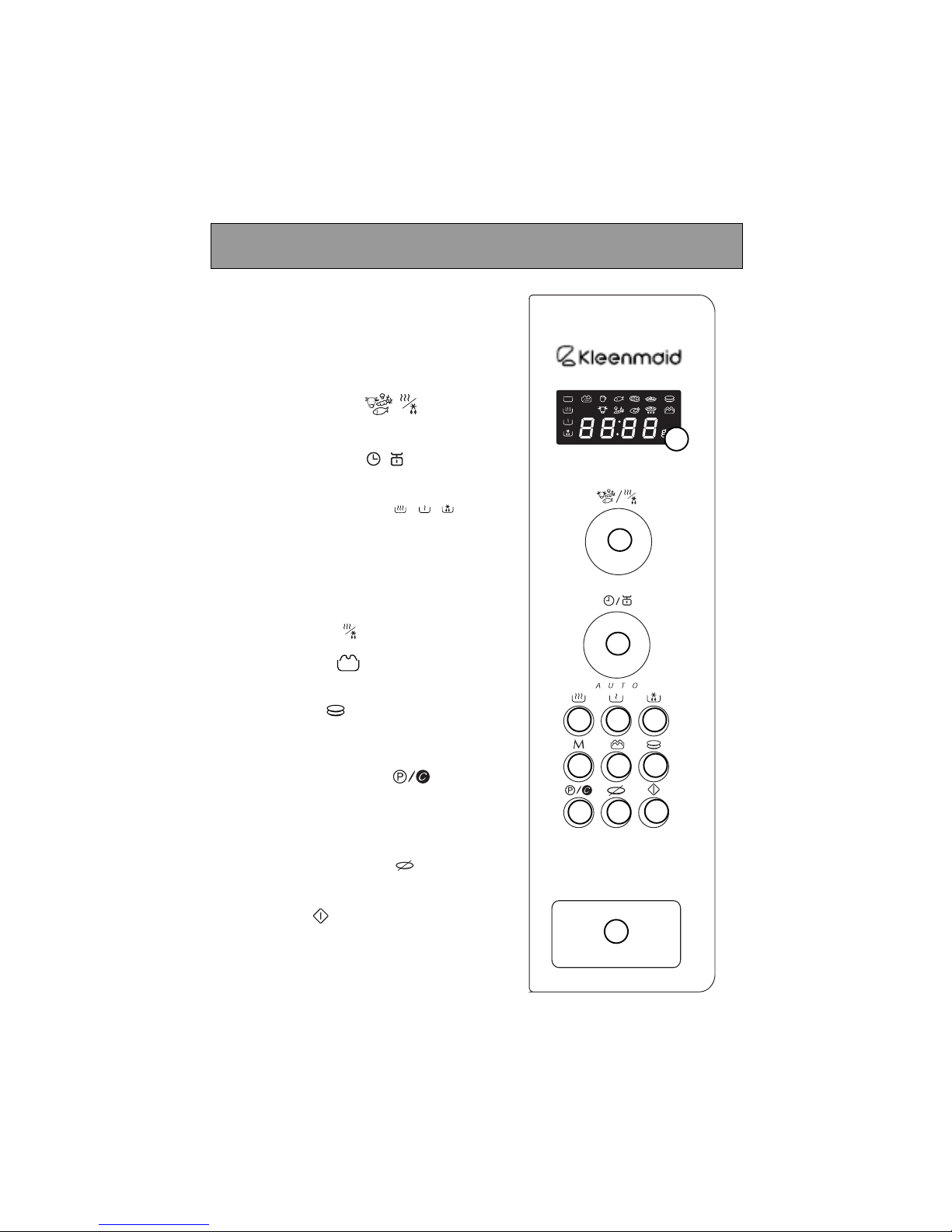

ADisplay window :
To simplify programming, the display indi-
cates : the time of day, the types of food and
functions, the minutes/seconds or weight
programmed .
BThe selector knob :
To choose the food type or function.
CThe selector knob :
To choose the programme time or weight.
D-E-F The “AUTO”keys :
Automatically set the appropriate programme
time according to the weight and the selec-
ted food type.
GThe MODE key M:
To choose the appropriate function, with
the selector knob .
HThe GRILL key :
To directly programme the grill function.
IThe DUO key :
For dual level reheating; to be used with the
steam effect plate stackers.
JThe PAUSE/CANCEL key :
To interrupt (press once) or cancel a pro-
gramme (press twice).
Also used to set the clock.
KSTOP-TURNTABLE key :
To stop the turntable from revolving.
LSTART key :
To start all programmes.
MDOOR OPEN button :
Press this button to open the door or
stop the appliance.
The control panel
B
G
F
A
K
DE
C
H
J
I
/
L
M

8
POWER SETTING APPLICATION
Microwave power settings
DEFROST
To defrost all frozen food or to top off cooking of
delicate dishes or to cook very slowly.
SIMMER
To finish programmes commenced with the HIGH
COOK power setting, for instance beans,
lentils, or dairy products.
(This power setting is available when you program-
me the function using the mode
M key.)
HEAT
To heat up all liquids and all fresh or frozen
pre-cooked dishes.
HIGH COOK
To cook vegetables, fish, poultry and soup.
When you select the type of food, the appropriate
power setting is automatically programmed.
Microwave output power : 900 W
After first plugging in your microwave oven or after a power outage,
the clock reads 00:00and the two dots flash.
To set the clock :
- Press the PAUSE / CANCEL key for 5 seconds.
"00:00"flashes, and a tone sounds requesting the hour be set.
-Turn the selector knob Cto display the correct time.
- Validate by pressing the PAUSE / CANCEL key .
Your clock is set.
00:00
12:00
00:00
Setting the clock

9

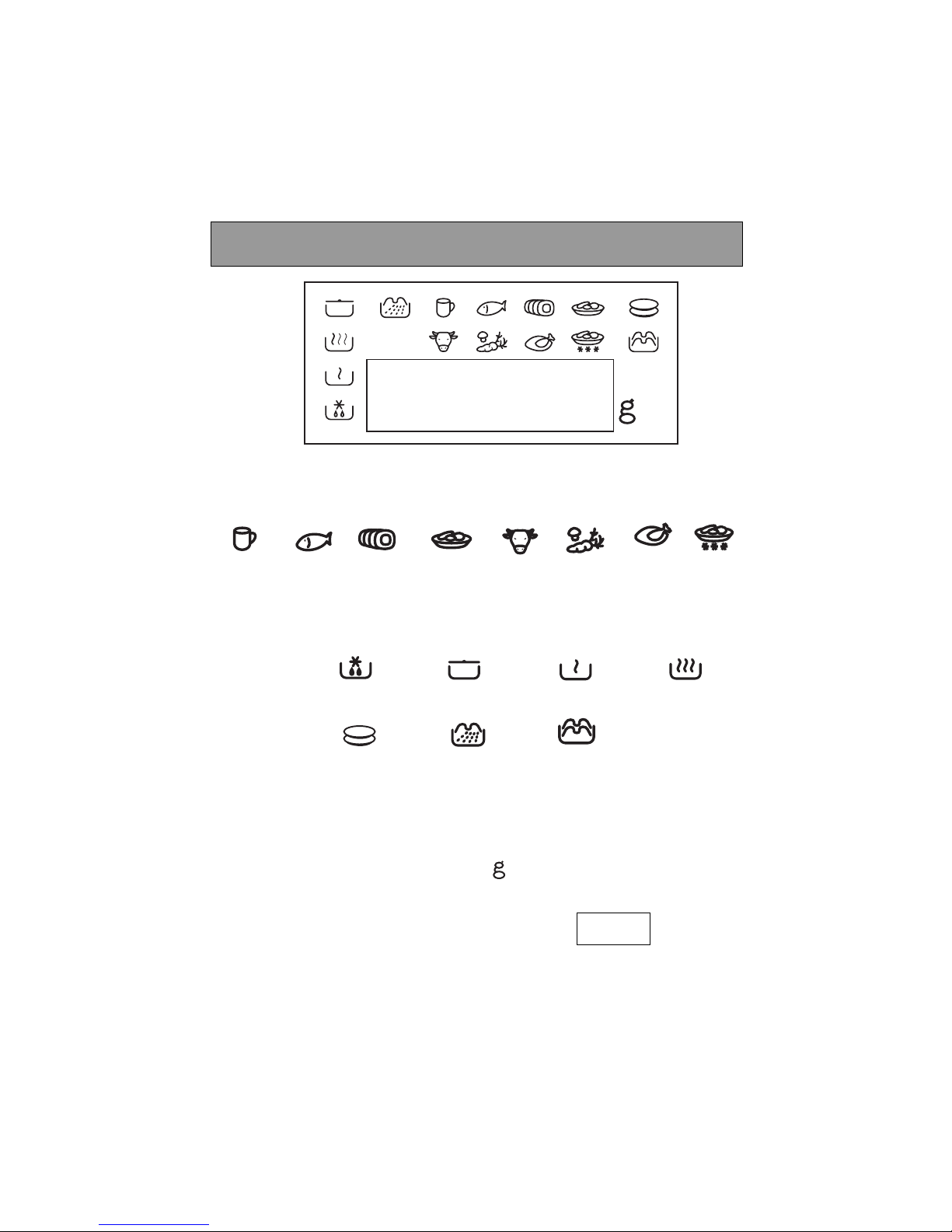

The display and the selector knobs guide you in your choice of :
Food Selection
The functionsDEFROST SIMMER REHEAT COOK
DUO MICROWAVE
GRILL
+GRILL
The weightfor an AUTO programme
The length of the programme(or time of day)
The food type or function being selected will flash in the display.
12:00
beverages beef,
lamb vegetables poultry frozen
ready-
made
dishes
fresh
ready-
made
dishes
pork,
veal
fish
turkey
The display
1 2 : 3 0

10
Programming
Your microwave oven is now plugged in and the clock is set.
Open the door. Place the dish inside and close the door. Ifthe door is not properly shut, the
appliance will not operate.
•
3 beeps announce the end of a programme. The beeps are repeated every minute for 10 minutes
until you open the door.
•
If you think there is insufficient space for the dish to turn freely inside the oven, press the STOP
TURNTABLE key before or during the programme.
PLEASE NOTE: You cannot stop the turntable during a programme using the Duo function.
•
If there is an error in the programming, press the CANCEL key twice.

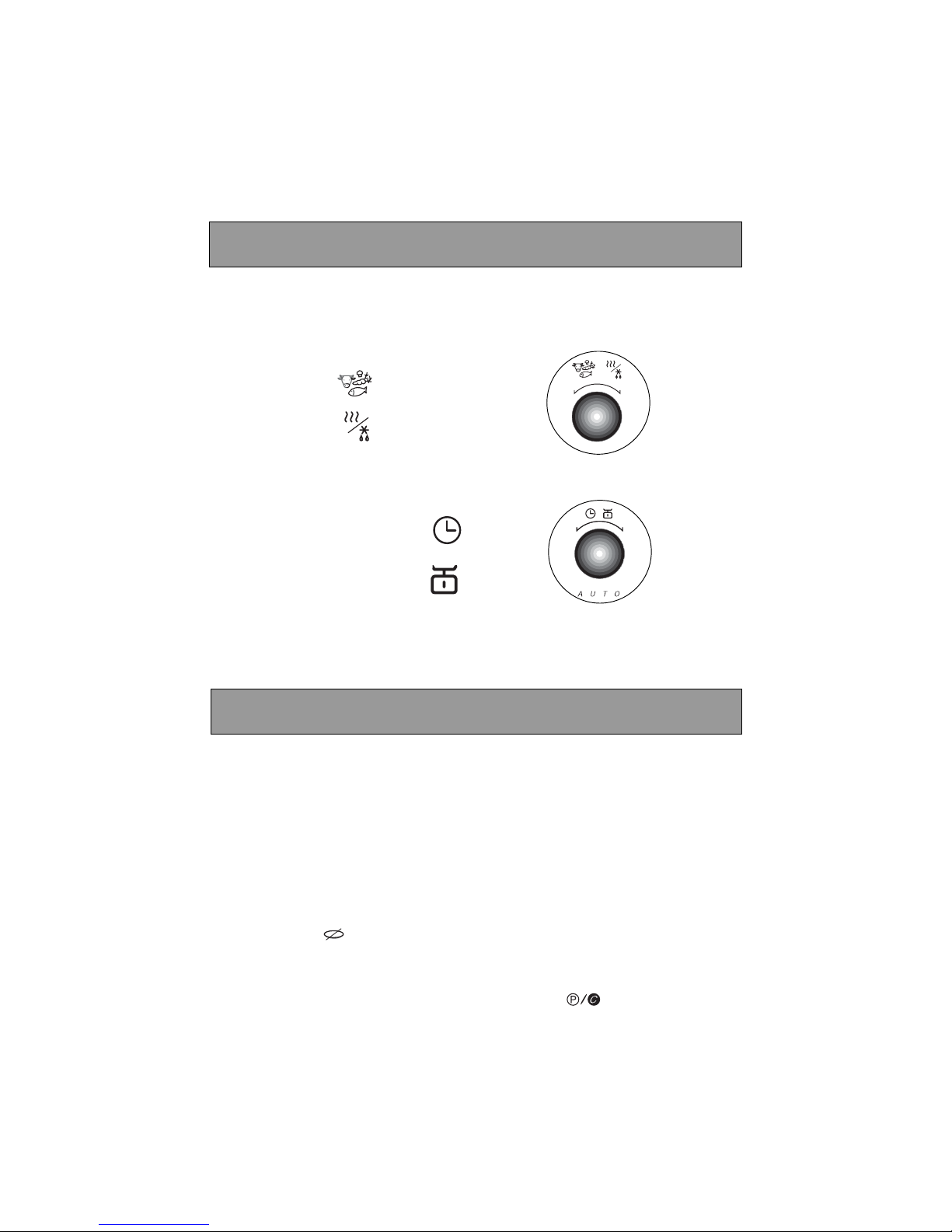

The selector knobs
The 2 selector knobs are used for the various programmes:
The first to select
- the food type
- the function
The second to programme
- the length of the programme
- the weight of the food
FUNCTION
FOOD TYPE
TIME
WEIGHT
/

11
Automatic programming by food type
▼Choose your food type with the selector knob ,
(ex. fresh ready-made dishes ).
▼Press the key, choose your function with the selector knob .
(ex.
HEAT ); the appropriate microwave power setting for that food item
is programmed automatically.
▼Set the desired programme length (ex. 7 min) with the selector knob .
▼Press start .
Automatic programming by function
▼Press the MODE key, choose the desired function with the selector knob
The
SIMMER function is available in this programme.
▼Set the desired programme length (ex. 5 minutes), with the selector knob .
▼Press start .
M
M
Microwave programming
5:00
7:00
Available programmes :
Express programming
▼Set the desired programme length (ex. 2 minutes) with the selector knob .
▼Press start . The maximum power setting is programmed directly
for quick reheating.
2:00
Automatic programming by weight :
with the AUTO keys , the programme length is calculated automatically.
▼Choose the food type with the selector knob (ex. fish).
▼
Press one of the function keys , or (ex.
COOK )
or press the key and choose your function with the selector knob .
Press the key again.
▼
50g blinks;programme the weight of your food item using the selector knob
(ex. 500 g).
▼
Press start . The appropriate power level is programmed. The programme
length is displayed automatically (ex. 7 min) and the programme begins.
M
M
500
7:00

12

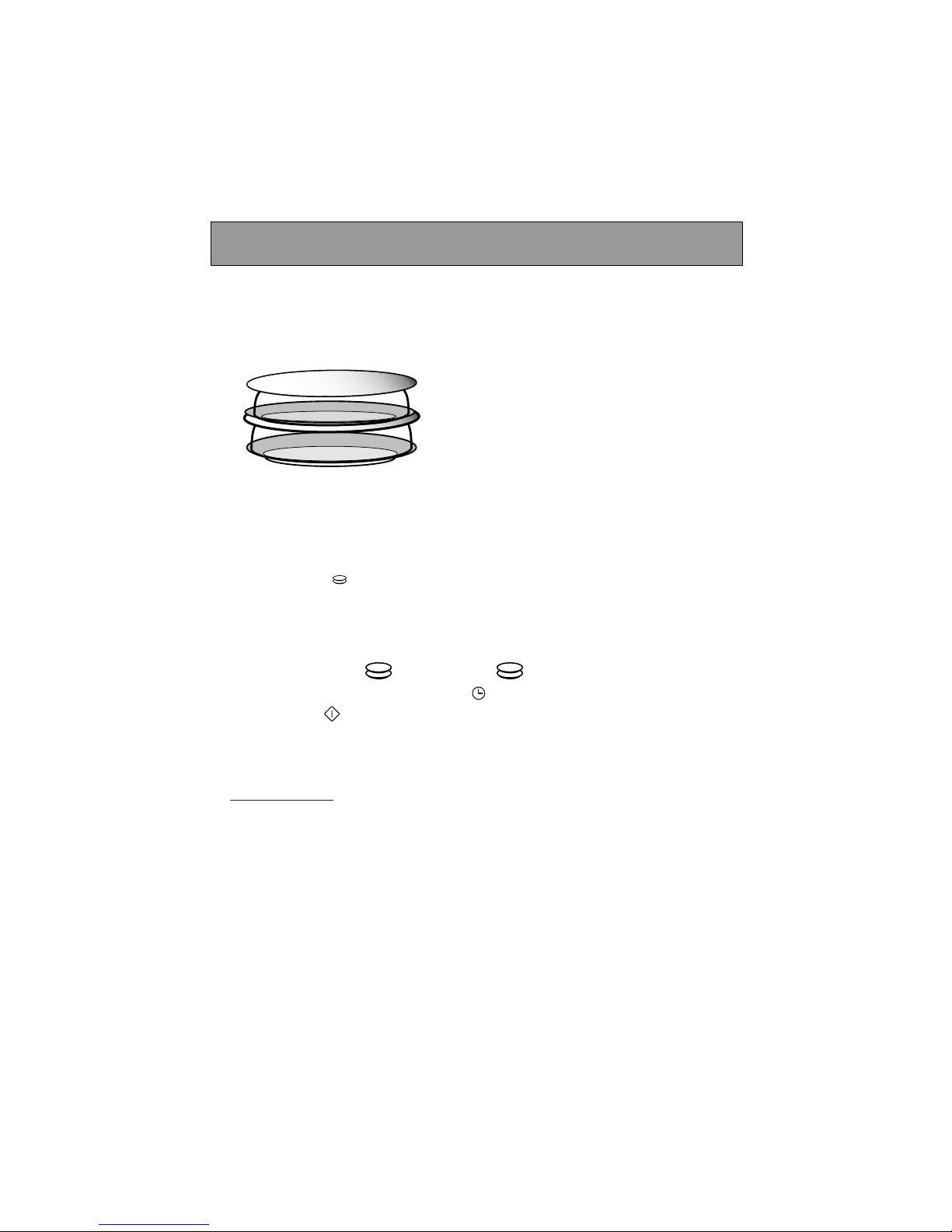

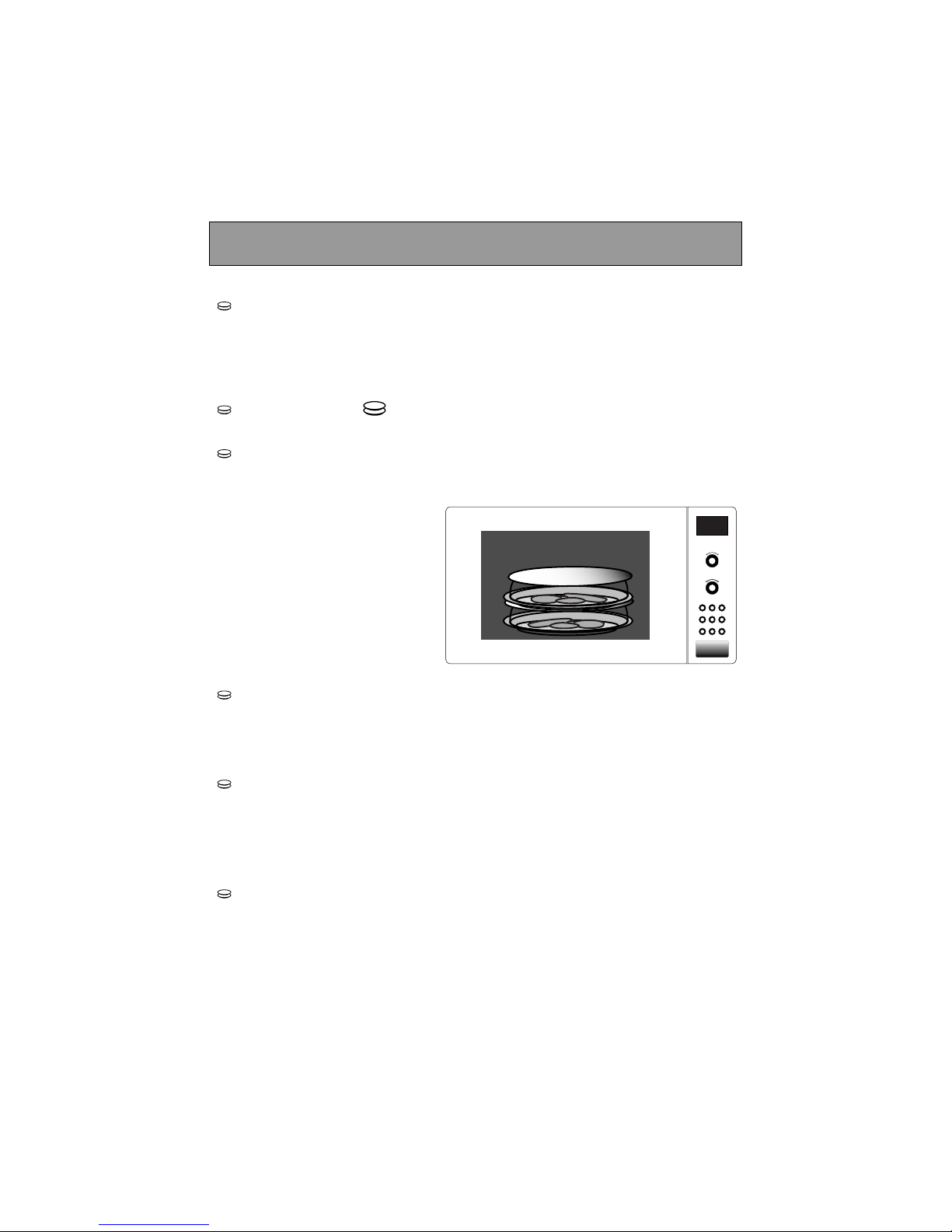

The DUO function enables you to heat up two plates at the same time,, while
retaining full flavour due to the steam effect provided by the Duo plate stackers.
Just cover the plates, stack them one on top of the other, and place together on the centre
of the turntable.
Use the Duo button together with the Duo plate stackers
.
The advantages of the plate stackers :
- Food retains full flavour due
to the steam effect.
- Dishes are heated evenly through-
out.
- Drying out of food is minimised.
- Programme time can de reduced.
- By preventing splattering, they
help to keep your oven clean .
The Duo function can be used to heat up fresh or refrigerated dishes.
Neither the defrosting or heating of frozen products nor the cooking of dishes is
recommended.
Care of your Duo plate stackers :
- A sponge, hot water and liquid detergent are all you need to clean your plate
stackers. Do not use a metal scouring pad or scouring powder.
- The Duo plate stackers are dishwasher-safe.
Do not use the DUO plate stackers with the grill or microwave + grill
functions as this could cause them irreparable damage.
The DUO function : dual level reheating

13
Example : Heating up 2 plates of ravioli = 5 min.
•
Cover the two plates with the Double Decker plate stackers, and place in the
centre of the turntable.
• Press the Duo key ,0 0 : 0 0 flashes, is displayed.
Set the time with the selector knob , ex. 5 minutes : 0 5 : 0 0 is displayed.
Press start
, the Duo reheating function begins.
As a general rule :
• For a homogenous dish such as mashed potatoes, peas, celery etc. :
2 plates of 200 g
3 / 4 min
•
For a mixed consistency dish such as franks and beans, beef bourguignon,
ravioli, etc. :
2 plates of 300 g
5 / 6 min
The times indicated below are based on heating of refrigerated dishes, or room
temperature for canned goods.
The DUO function : dual level reheating
The Duo plate stackers with steam action :
2 plate stackers so that you can heat up 2
fresh or refrigerated dishes at the same time.
The DUO plate stackers

14
The grilling racks
The rack
The rack :
To brown dishes with the grill
or microwave + grill functions.
Make sure that the rack is always well centred on the turntable and does not touch the
Never use any metal dish with the rack with the microwave, grill + microwave or fan +
microwave functions.
Nevertheless, you may heat up food in an aluminium tray if you place a plate between
the tray and the rack.
sides of the microwave wall.

15
Programming the grill
Using the single grill
▼Press the grill key , or press the key, choose the GRILL function with the
selector knob .
▼
Set the desired programme length with the selector knob, and press start .
M
The grill function
This function enables you to brown dishes such as gratin's or meat. It may
be used before or after cooking, as called for in the recipe.
•According to the food item you wish to grill, you may either set the dish on the rack or
directly on the turntable.
•After grilling make sure to use an oven mitt to handle dishes, and remember to use only
ovenproof cookware such as ceramic dishes or heat resistant glass. Always allow the grill
to cool off 25 minutes before touching it.
•WARNING : certain exposed parts may heat up during use of the grill. Be sure to keep
children away.

16
Automatic programming by the weight :
you enter only the weight of the food item and programming is automatic
▼
Choose the desired food type with the selector knob (ex. poultry).
▼
Press the key. Select the microwave + grill function with the selector knob
.The microwave power level and the grill level are automatically adapted to your dish.
▼
Press the key, 50g flashes;programme the weight of your food item
with the selector knob (ex. 1000 g).
▼
Press start ; the suitable time is displayed (ex. 22 min) and the programme
begins.
Automatic programming by the food type :
with the key
▼
Choose your food type among the available categories with the selector
knob , (ex. turkey roast).
▼Press the key, and then select the microwave + grill function with the selector
knob . The microwave power level as well as the grill level are automatically
adapted to your dish.
▼
Set the programme length with the selector knob , (ex. 20 min).
▼
Press start .
Programming by function :
with the key
▼
If your food item does not correspond to any of the available categories,
select the microwave + grill function
with the key. An intermediate
microwave power level together with the grill are programmed.
▼
Set the programme length with the selector knob , (ex. 10 min).
▼
Press start .
M
M
M
M
M
M
This function enables you to use the microwaves and grill simultaneously, for rapid
cooking.
The microwave + grill function
20:00
10:00
22:00
1000

17
Recommendations
WHILE THE OVEN IS OPERATING :
•You may stop or start the turntable revolving during a programme by pressing the
TURNTABLE STOP key (except with the Duo function).
•To change the food type or function selection, press the
CANCEL key twice and
programme again.
•If you open the door before the end of the programme, shut the door and press the
START key to continue the programme.
•When using the defrost function , a beep indicates the mid-point of the pro-
gramme (the oven continues to operate); to obtain the best results, turn the food at
this time, close the door and press the START key to continue the second half of the
programme.
•If you remove a dish before the end of the programme, press the
CANCEL key
twice to erase the programme
.
REMARKS :
•If you wait longer than 3 minutes to press the START key after having entered a
programme, it will be cancelled (the time of day will be displayed).
Security
If after having entered a programme and closed the door you wait longer than 30 seconds befo-
re pressing the START key ,the oven will not operate and the message SECU will appear
in the display window, to prevent start-up of an empty oven.
In order for the oven to operate, open and then close the door and press the START key.
Otherwise, press the CANCEL key and reprogram.

18

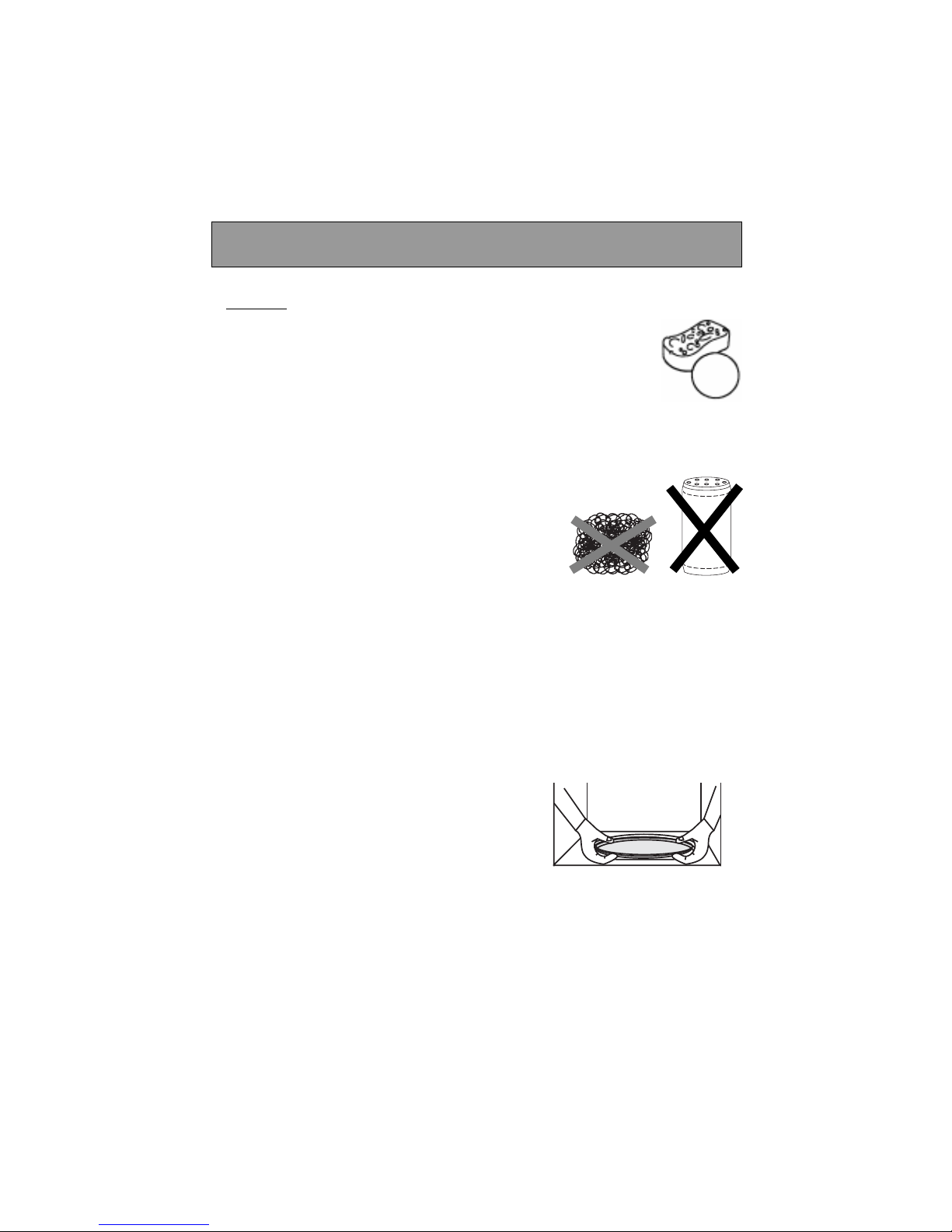

Care & cleaning
•WARNING : It is recomended to clean the oven regularly and to take
any food deposit inside and outside the appliance. Use a sponge or
wet cloth and a mild detergent. If the appliance is not kept clean, its
surface could deteriorate and adversely affect its life and possibly result
in a hazardous situation. If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a competent person.
•A steam cleaner is not to be used.
•Do not use abrasives, alcohol or solvents as they are
liable to damage the oven.
•In the event of unsavoury odours or baked-on dirt, boil water containing lemon juice or
vinegar in a cup for 2 minutes and clean the walls with a little dishwashing liquid.
•For those ovens with grill or convection heat functions, the top and rear air vents become
very hot. Donot touch these parts after use. Wait until the appliance has cooled down
in order to clean it.
•The turntable can be removed for cleaning. Wells are
provided on both sides for easy access.
If you remove the drive shaft, do not allow water
to enter the motor shaft hole.
Be sure to put the turntable, the drive shaft and the wheel support back in their proper place.
SOAP
+
WATER

19
Troubleshooting guide
Problem
▼The message “ SECU” is displayed.
▼The time counts down, but the appliance
does not function (
the turntable does not
rotate, the light does not come on and the
food is not heated).
▼The microwave oven is noisy when
operating.
▼Condensation forms on the door glass.
▼The grill element smokes when heating
up.
▼The turntable does not revolve correctly.
▼The microwave programmes do not pro-
duce the desired results.
▼The appliance produces sparks.
Suggestion
▲Cancel the security : open then shut
the door and press the
START key .
▲Press the TURNTABLE OFF key for
5 seconds.
▲Adjust the front left foot.
Clean the wheels and the well area
beneath the turntable.
▲Wipe the water off with an absorbent
▲Clean all cooking residue from the
grill element.
▲Clean the wheels and the well beneath
the turntable.
▲Clean the vents under the appliance.
Make sure that you use only containers
which are suitable for microwave cooking.
▲Check whether the wheel support is
correctly positioned.
Thoroughly clean the appliance :
remove any greasy deposits, cooking
residue, etc...
Move any metal objects away from
the oven walls.
Never use metallic containers with a
rack.
cloth.
