Kleenmaid VC700O User manual

INSTRUCTION
MANUAL
VC700O
VC700B

1
A Attachments
1 Power Head 31 cm
2 Parquet Nozzle
3 Attachments Clip
4 Crevice Nozzle
5 Upholstery Nozzle
A
3
2
5
4
1
L
R

2
B Optional Attachments
8 1329 dg Dusting Brush
9 1090 dg Upholstery Nozzle
10 6179 dg Turbo Nozzle PT-C
11 1496 dg Radiator Brush
C Service
12 7029 ER Filter Bag
13 7012 ER Motor Protection Filter
14 5010 ER Brush Roller 31 cm
15 7095 ER Exhaust Filter
8
B
C
9
10
11
12
13
14
15

3
Please read all the instructions before using this machine.
Thank you for choosing Kleenmaid. We are sure you will enjoy owning this machine. Your new Kleenmaid vacuum is a high quality, reliable,
innovative product that was developed in Germany with the most modern technology. The S-Class filtration and the effective cleaning power offer
the highest standards of cleaning efficiency.
Why Kleenmaid is The Best You Can Own
The Best Products We Can Find.
Kleenmaid has built its reputation on product innovation and service excellence and we scour the globe to find the best products to include in our
range. Today, we deliver the Australian market outstanding appliances from all over the world, including USA, Germany, France, the United
Kingdom and Italy. Our customers can be sure each product, be it an oven, cooktop, rangehood, dishwasher, refrigerator, washing machine,
dryer, vacuum, sink or tap is at the very top of its class.
We’re so sure of their quality, we back each product with a 5 year parts and labour warranty.
The Best Standard of Service.
Free delivery and installation, product comparisons, dedicated customer service and after-sales service teams and free kitchen planning seminars
are just a few of the ways we are setting new benchmarks for customer service in Australia.
The Best Environment You Can Be In.
Kleenmaid appliances are sold exclusively throughout our own network of stores designed to let our customers experience the Kleenmaid
difference. In-store trials are available, and we have a range of our competitor products on hand so our customers can see the difference for
themselves. Our innovative, customer focused operations also include fully qualified kitchen designers offering complimentary design services and
dedicated cooking consultants in each store, to deliver exceptional experiences for our customers.
The Best Value Available.
Kleenmaid ensures every appliance is hand picked for value for money and 100% performance guaranteed. Our aim is to find and install the
perfect appliance for our customers lifestyle, what ever their budget.

4
➔Do not use in the presence of flammable gases.
➔Do not pick up hot material, such as fire ash.
➔Do not touch the brush roller while the machine is plugged in.
➔Do not use the machine without a bag.
➔Do not re-use the bag.
➔Do not wash filters.
➔Always turn off the machine, and then unplug it, before you service the machine.
➔The appliance is not intended for use by young children or infirm persons unless they are adequately supervised by a responsible person
to ensure that they can use the appliance safely.
➔Young children should be supervised to ensure that they do not play with the appliance.
All repairs should be performed by an authorised Kleenmaid service representative.
➔If the machine shuts down, be sure to turn off the machine and unplug it before troubleshooting.
➔For safety, the machine contains electronic overload protection. The power head could shut itself off if used on certain carpets. If that
should occur, turn off the machine, unplug it, and look for a blockage. If there is no blockage, reduce the load on the brush roller by
adjusting the brush height to a higher level (up to 4).
➔Always turn off and unplug the machine when it is not in use.
➔If the power supply cable fitted to this machine is damaged, it must be replaced by a Kleenmaid Service Agent, or other qualified person,
to avoid the risk of injury.
➔Before using the power head please read the safety instructions that are included throughout the Operating Instructions (section 4).
1. Safety Instructions
Save these instructions. If you pass this vacuum to a third party, please give them the instructions as well. The use of this machine is at your own
risk. The manufacturer/supplier is not liable for any injury or damage caused by incorrect usage of the machine.
This machine should only be operated with genuine Kleenmaid filter bags, filters and replacement parts. The use of
non-genuine parts will waive the warranty for this product and could mean a serious security risk.
➔Do not use with a damaged cable.
➔Do not run over the cable.
➔Do not expose to liquid or moisture.
➔Do not use outdoors or on inappropriate surfaces, e.g. stone or concrete.

5
1 Handle
2 On/Off Switch
3 Handle Tube
4 Power Supply Cord
5 Dust Bag Housing
6 Filter Cover
7 Power Cord Hook
8 Hose
9 Hose Handle
10 Carrying Handle
11 Exhaust Filter
12 Filter Retaining Rings
13 Release Button
14 Swivel Neck
15 Power Head
16 Foot Pedal
17 Handle-catch
18 Parquet Brush
2. Machine Description
1
4
3
8
6
17
10
11
12
13
16
15
2
1
4
5
6
12
7
9
10
12
18
14
16
5
L
R

6

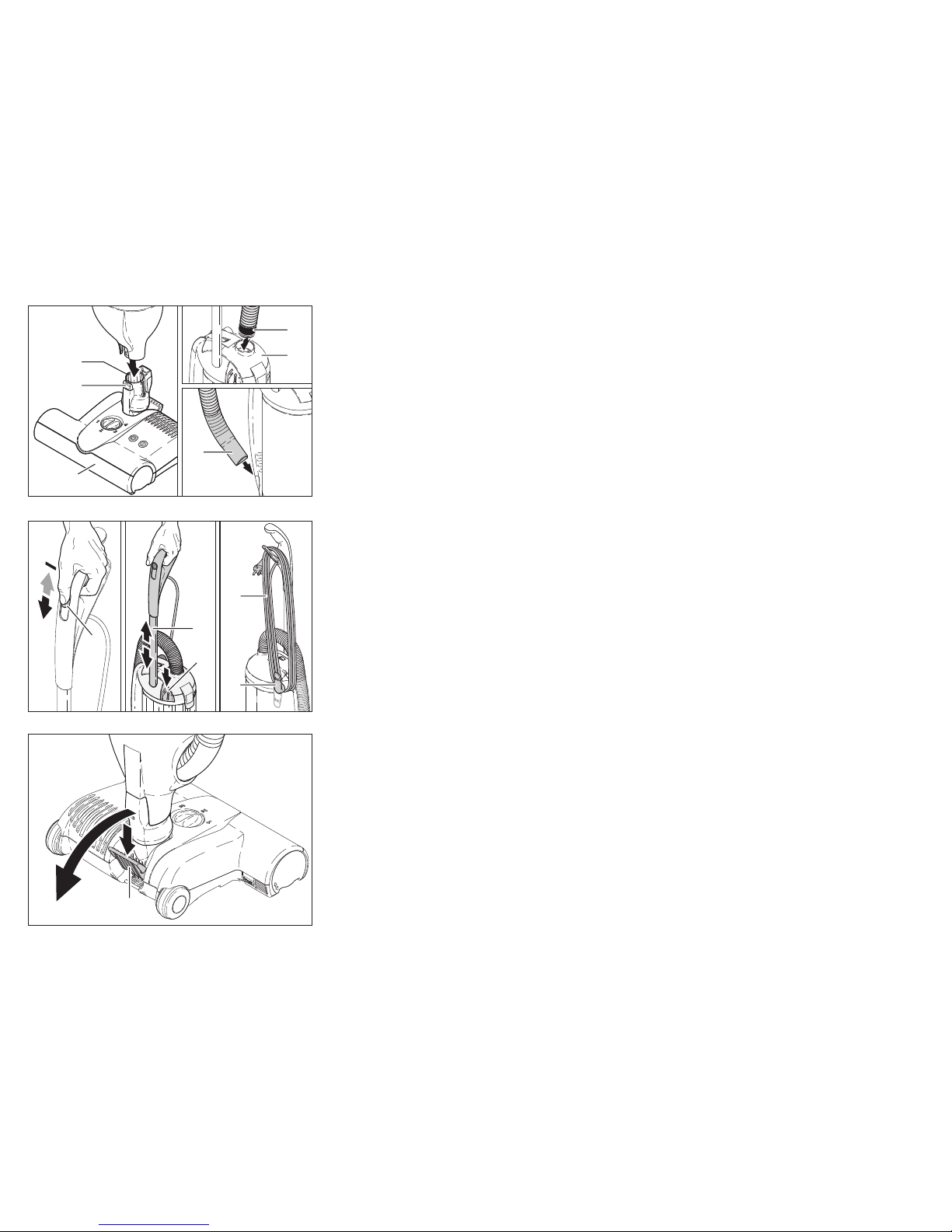

3. Assembly
Your Kleenmaid vacuum can be operated with an electric power brush (15) or parquet brush
(18). To assemble, carefully attach the brush nozzle to the vacuum cleaner through the
fitting at the bottom of the vacuum, until it locks.
The machine can be placed in an upright position when used with the electric power brush.
When locking the vacuum in the upright position, please ensure the bag housing is clicked in
place, facing forward to the centre or the unit could overturn.
Push the black end of the hose (8) into the connection on the filter cover (6). Finally, insert
the hose handle (9) into the suction opening on the side and press the hose into its place on
the side of the machine.
4. Operating Instructions
Please ensure that the on/off switch (2) is in the off position. Then turn the power cord hook
(7), release the cord (4) and plug it into the wall mains outlet. Before you start working
adjust the telescopic handle tube (3). Use the handle-catch (17) to adjust the height of the
telescopic handle tube (3). Now you can start the machine by moving the on/off switch to
the on position. Your machine is also equipped with electronic suction control.
To use the power head, press the foot pedal (16) on the rear of the power head and lower
the machine handle to an angled position. The brush motor will then turn on.
16
13
14
15
6
8
9
3
17
4
7
2
+

When using the hose (8) and attachments (9), keep the machine in an upright position.
The hose handle (9) can be removed from the side of the vacuum and can be used with or without
attachments. Also maintain a grasp on the machine when using the hose as it could tip if the hose
is pulled too far.
The machine can also be used without a power head or other floor tool. You can easily carry the
machine by using the carrying handle (10).
When you have finished using the machine, turn it off by moving the on/off switch (2) into the off
position. Then unplug the cord (4) and wind it onto the power cord hook (7) and handle (1).
Caution: Important instructions for the use of a power head
➔ The brush roller is off and stopped only when the machine is in an upright position (A)
and the handle is completely locked in place, or when the hose handle (9) is removed
from the side of the vacuum. If you have the machine handle at an angle, the brush
roller will spin. Leaving the machine in a stationary position for an extended period of
time while the brush roller is spinning may cause damage to your floor or carpet.
➔ Be sure not to allow carpet edges or fringing into the brush.
➔ As with any vacuum with a rotating brush, this machine could cause damage to loosely
woven carpets or rugs, wool loop carpets, long-piled carpets, or very soft, sensitive floor
coverings. Please use the Parquet Brush on these types of flooring or floor coverings.
➔ We do not recommend the use of the power head for cleaning old and valuable
hand-crafted carpets.
➔ If you have uneven flooring, the metal part underneath the machine may come in
contact with the floor, causing scratches.
➔ Please carry the machine across high thresholds.
7
2
4
1
7
9
8
1
10

8
5. Power Head
Please pay attention to the safety instructions for the power head in the operating
instructions.
The use of a power head is recommended for the optimal cleaning of carpets.
The rotating design of the swivel neck (14) allows the power head to move in any direction,
making it easily manoeuvrable around obstacles. The power head also has an adjustable
brush height and to-the-edge brush action for effective all round cleaning.
By pushing the foot pedal (16) and lowering the handle, you activate the power head and
the brush begins spinning. Failure to use the foot pedal will cause lasting damage to the
machine.
A
9
15
14 16

9
6. Selecting the Correct Brush Height
Start at setting 4 on the height adjuster (22) and adjust according to the indicator light (20 +
21). The electronic brush control constantly monitors the status of the brush, communicating
the status through the lights on top.
Green and red – The brush is not fully engaged in the carpet. The height adjustment should
be lowered. If the height adjustment is at its lowest setting, the brush is worn and needs to
be replaced.
Green light only – Brush is working well. We strongly recommend selecting a brush height
that is only one level beneath that at which both the green and red lights are on. For
maximum cleaning performance, the brush height adjustment can be lowered to its lowest
setting.
Red light only – The brush is blocked. Turn off the machine, unplug it, and then remove the
blockage (Refer to section 12 “Removing Blockages”).
To clean delicate floor surfaces the power head is equipped with an on/off switch [20].
When this switch is used to turn off the brush roller the indicator lights are also turned off.
16
21 20
22
14 16

10

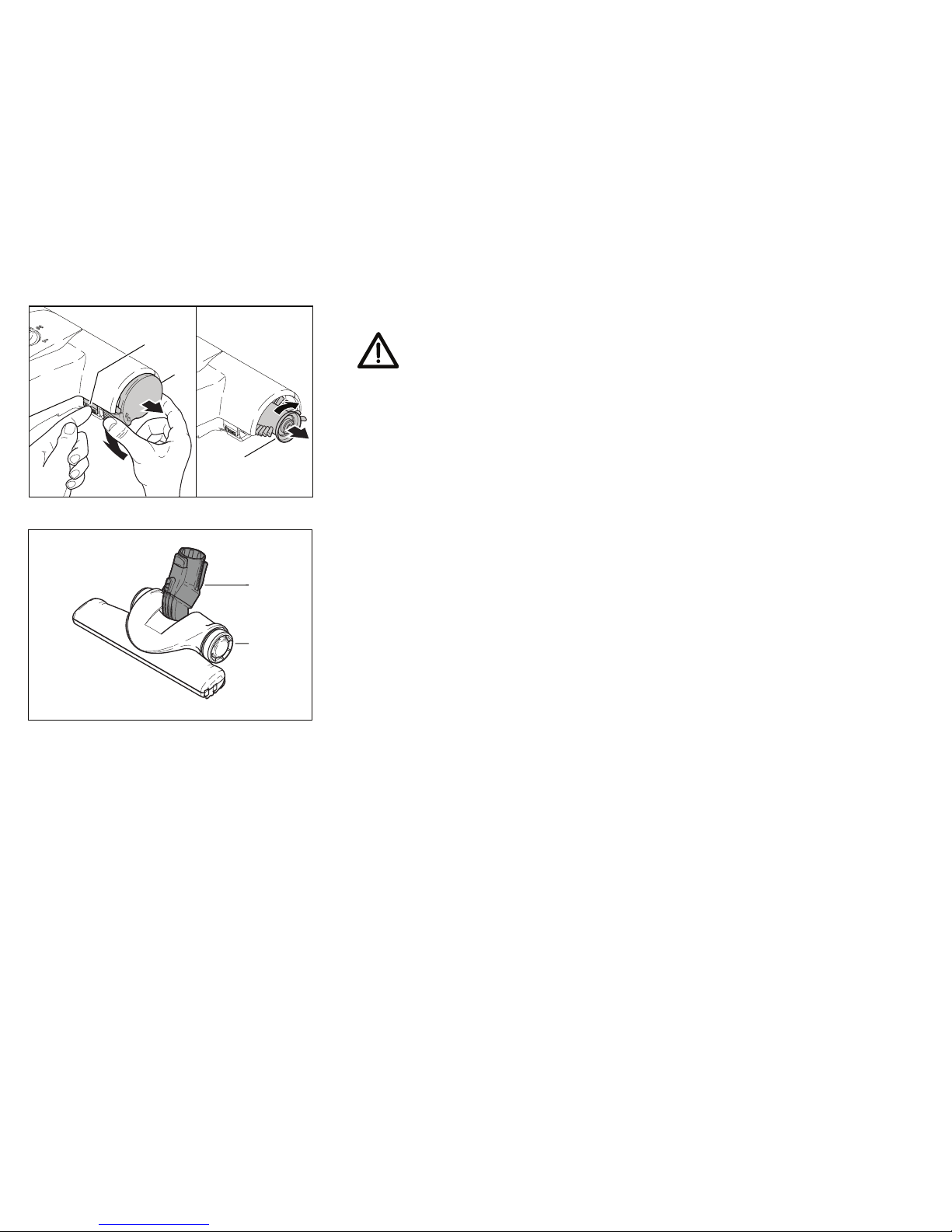

7. Removing the Brush Roller
Always unplug the vacuum from the mains outlet before dismantling any part
of the machine.
To remove the brush roller, press the button marked "PRESS" (23) and turn the bearing (24)
downward. Turn the brush (25) slightly to the right and pull it out. We recommend to
regularly remove threads and hair, which have been wound around the brush roller.
8. Parquet Brush
The Parquet Brush (18) is equipped with a turnable swivel neck, and offers a full range of
manoeuvrability for ease-of-use and comfort. The nozzle has natural bristles that can be
easily replaced if worn.
14
18
24
23
25
L
R

11
9. Filters
When the orange bag full indicator (27) is showing, airflow is reduced. This could be because
the filter bag is full, the filters are clogged, or there may be a blockage (refer to section 12
“Removing Blockages”).
10. Changing the Filter Bag
To remove the filter bag (28), open the latch on the side of the bag housing (29). Close the
filter bag with the sealing cap (30) and lift it out. The procedure to replace the bag is
illustrated on the front of each bag. You cannot close the bag housing if the bag is fitted
incorrectly.
11. Motor Protection Filter and Exhaust Filter
The motor protection filter (31) is only accessible by removing the filter bag. Lift the motor
protection filter up by the bracket. When replacing the motor protection filter make sure that
it is pressed in position tightly. The motor protection filter should be changed when it is dirty
or at the latest, when you have used 20 filter bags.
Change the exhaust filter (11) at the same time as the motor protection filter. To do this,
carefully remove the filter retaining rings (12) and put them to the side. Next pull the
enforcement strips of the exhaust filter out of the housing slot (5) and remove the exhaust
filter from the housing.
When reassembling, please ensure the exhaust filter is fitted correctly in the housing slots and
the filter retaining rings are installed correctly.
Use only genuine Kleenmaid replacement bags and filters to ensure effectiveness
and safety. Do not wash any filters.
12
12
11
28
31
27
30
28
6
29

12
12. Removing Blockages
If the orange bag full indicator (27) is showing after the filter bag has been changed and the
filters are in good condition, there is possibly a blockage in the system. First, check for
suction at the end of the hose (8). If you can only feel a small amount of suction, the
blockage is in the hose.
To unblock, loosen the safety ring (32) on the lid. Remove the hose from the machine and
reverse the airflow through the hose by putting the hose handle (9) in the connecting tube of
the filter cover (6). Stretch the hose in the spot where the blockage is and open and close the
end of the hose.
Also check the suction opening, which the hose handle (9) fits into.
Note – Never clean down the hose with a stick or pointed object.
Other places to check for a blockage include the suction neck (14) of the power head and
the orange trap-door (34) on the bottom of the power head. Also check between these two
openings in the power head.
32
1111
5
6
9
8
8
6
27
33
9
8
34

13
For service please contact Kleenmaid Customer Service on 1300 652 100.
Vacuum Cleaner:
Vacuum Motor.................................... 1000 Watt
max...................................... 1300 Watt
Suction.............................................. 225 mbar
(2300 mm WS)
Air Flow.............................................. 50 L p/second
Filter Bag............................................ 3.5 litres, 3-layer
Weight ...................................... 4.5kg - 7.2 kg
Protection........................................... Double insulated
Cable................................................. 9.5 metres
Power head
Brush Motor, FELIX 1.......................... 31 cm, 175 Watt
Working width Power Head.................. 31 cm
Brush Drive......................................... tooth belt
Brush Speed........................................ 2700 rpm
13. Technical Details

14
DOMESTIC WARRANTY - FULL FIVE YEAR WARRANTY
In addition to all statutory rights which you, the Consumer, have under
the relevant laws in respect of this appliance, during the first five years
of ownership as the original purchaser of this Kleenmaid appliance,
we guarantee that any fault caused by faulty material or workmanship
becoming apparent will be rectified free of charge for parts and
labour, provided that all service is performed during normal working
hours by Kleenmaid or their designated Agents. Where the appliance
is installed outside the normal servicing area of the above, the
Purchaser must pay for the cost of transporting the appliance to and
from the Agent or the Agent’s travelling cost to and from the
Purchaser’s home.
COMMERCIAL WARRANTY - ONE YEAR WARRANTY
When this appliance is installed in a commercial application, you, the
Consumer, have under the relevant laws in respect of this appliance,
during your first one year of ownership as the original purchaser of this
Kleenmaid appliance, we guarantee that any fault caused by faulty
material or workmanship becoming apparent, will be rectified free of
charge for parts and labour, provided that all service is performed
during normal working hours by Kleenmaid or their designated
Agents. Where the appliance is installed outside the normal servicing
area of the above, the Purchaser must pay for the cost of transporting
the appliance to and from the Agent or the Agent’s traveling cost to
and from the Purchaser’s home.
WHAT THESE WARRANTIES DO NOT COVER
We are not responsible for any damage or malfunction unless caused
by a defect in material or workmanship. This includes but is not
limited to abuse, misuse, improper installation and transportation
damage. We are not responsible for any consequential damages from
any malfunction. The Consumer must make the appliance available
for servicing and shall bear any costs incurred for any de-installation
and/or re-installation required to make the appliance available for
servicing.Kleenmaid is not liable for any consequential damage
incurred during de-installation or re-installation.
WARRANTY DOES NOT COVER REPLACEMENT OF
FILTERS, BAGS OR BRUSH ROLLERS
SERVICE ASSISTANCE
To assist you when phoning our After Sales Service number to arrange
a service call please complete the following details and have them
ready when you call.
Model Number
Date of purchase
Kleenmaid Store purchased from
Date of installation
KLEENMAID CUSTOMER SERVICE
CONTACT NUMBER
1300 652 100
WARRANTY AND SERVICE

Kleenmaid Head Office
PO Box 5560
Maroochydore BC
QLD 4558
For your nearest store call 13 13 08 or visit www.kleenmaid.com
©2005 SEBO Stein&Co. GmbH ®Registered Trademark. Subject to change.
