Klever Desk User manual

Release Version 1.0 2021

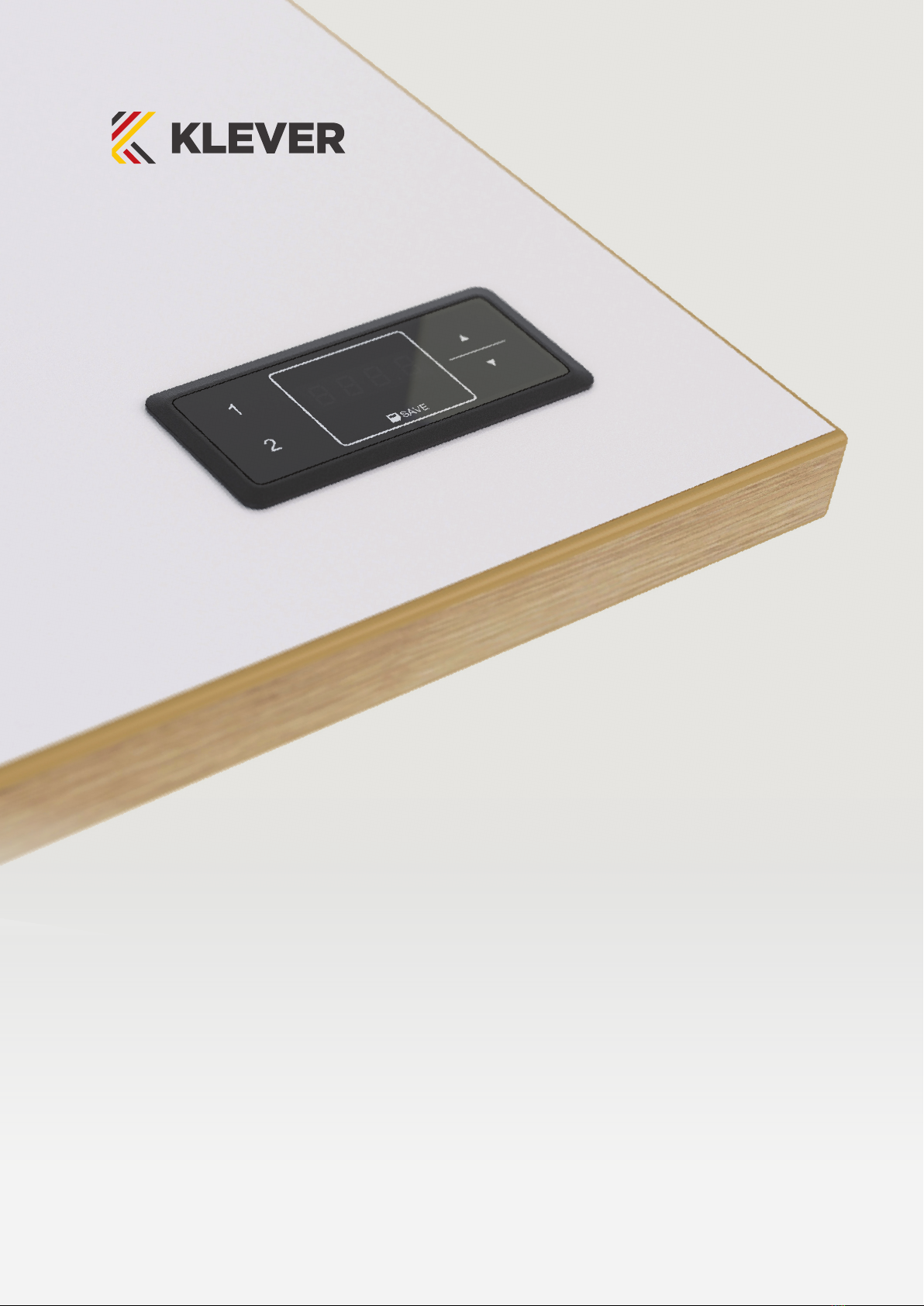

Designed in Europe, but built for corporate New Zealand workplaces, Klever Desk™hand control
complements the function with its four-digit display, and space for up to two saved memory positions.
Klever Desk™Flush Mount Handset (Upgrade)
Operating Instructions
kleverdesk.co.nz

kleverdesk.co.nz
Initial Setup Procedure & Manual Reset
Risk of minor or moderate injury through crushing.
Collision Detection (ISP) is inactive during start-up and reset processes. This may lead to minor or moderate injury through crushing.
Ensure that no persons or objects are in the table’s range of motion.
NOTICE
Operating the table system when it is not properly connected can damage the product.
• Ensure all Cables are properly connected
• Ensure that all required Actuators are ready to be operated
• Do not operate the Table System until it is properly connected
The Position Reset Procedure is used to align the position of the Actuators within the Table System. You must perform a Position Reset
Procedure before using the SMARTneo-2G for the first time.
It is possible to perform a Position Reset Procedure with all types of compatible User Interface. However, this section describes
performing a Position Reset Procedure for Table Systems controlled by a Hand Control with an UP Key and DOWN Key (Comfort or Basic
Hand Controls).
If your SMARTneo-2G is operated by a different User Interface, consult that product’s operating Manual for instructions on performing a
Position Reset Procedure.
1. Press and hold the DOWN Key until the table stops at the lower position limit
2. Release the DOWN Key
3. Press and hold the DOWN Key again
> The table will move down slightly, then up again
4. Release the DOWN Key
> The Position Reset Procedure is complete.
INFO
If your SMARTneo-2G has been parameterised with additional stopping points (e.g. a Container Stop Position), repeat Step 3 until the
table has moved upwards again.

kleverdesk.co.nz
Adjusting the Table Top Height
Risk of minor or moderate injury through crushing
Your fingers may be crushed when you attempt to change the height of the table.
• Keep fingers away from moving parts
• Ensure that no persons or objects are in the table’s range of motion
INFO
The Table Top will move up or down until the UP or DOWN Key is released, or if a predefined stopping point has been reached.
To move the Table Top UP:
Press and hold the UP Key until the desired height has been reached
To move the Table Top DOWN:
Press and hold the DOWN Key until the desired height has been reached
Saving a Memory Position
This function saves a set Table Top position. One Memory Position can be saved per Memory Position Key.
1. Move the table to the desired height
> The display shows the Table Top height (e.g. 73 cm)
2. Press the SAVE Key.
3. Press the Memory Position Key (e.g. 2)
The display shows S 2
> After about two seconds, the Table Top height is displayed again

kleverdesk.co.nz
Adjusting the Table to a Memory Position
1.
Press and hold the required Memory Position Key (e.g. 2).
> The Table Top will move until the saved Table Top height has been reached. If you release the Key before the
Memory Position is reached, the table will stop.
2. Release the Memory Position Key
> The display shows the Table Top height (e.g. 73 cm)
Factory Reset
1 2
Press and hold the following Keys for 3 seconds:
• Memory Position Keys 1 and 2
• UP Key
The display shows S and a number (e.g. S 4)
Press the DOWN Key until the display shows S 0.
The display shows S 0.
SAVE Press the SAVE Key.
The SMARTneo-2G has now been reset to its factory settings. It is now in the same state as it was during the first start-up.
Note - E70 will be displayed:
* Then power off and on control box from mains
* Display will show 000
* Then follow initial setup procedure

kleverdesk.co.nz
Container and Shelf Stop Positions
These features can limit the movement area of the Table Top (if e.g. a container is below the table or a shelf is above it). Container Stop
Positions become the new lowest end position, Shelf Stop Positions the highest.
INFO
Container Stop Positions can only be saved in the lower half of the movement area, Shelf Stop Positions in the upper half.
You must set each position separately.
To Save a Container Stop or Shelf Stop Position:
1. Press the UP or DOWN Key to move the Table Top to the desired position.
SAV E 2.
Press and hold the SAVE Key for 10 seconds.
> The Container Stop / Shelf Stop Position is saved (Container Stop if you are in the bottom half of the
movement area, Shelf Stop if you are in the top half).
To Delete a Container or Shelf Stop Position:
1. Press the UP or DOWN Key to move the Table Top to the top half (to delete a Shelf Stop Position) or
bottom half (Container Stop Position) of the movement area.
SAV E 2.
Press and hold the SAVE Key for 10 seconds.
> The Container Stop / Shelf Stop Position is deleted (Container Stop if you are in the bottom half of the
movement area, Shelf Stop if you are in the top half).

kleverdesk.co.nz
Error Messages on Display
Signal Message Required Actions
The display shows “Hot”.
Overheating protection has been
activated. Duty cycle possibly exceed. Wait for the overheated components to cool.
The display shows an error number.
An internal error has occurred. Read the table below to find the correct
response to the error code shown.
Code Message Required Actions
E00 Internal Error Channel 1 Disconnect the Control Box from the Mains. Contact KLEVER for further information.
E01 Internal Error Channel 2 Disconnect the Control Box from the Mains. Contact KLEVER for further information.
E12 Defect Channel 1 Disconnect the Control Box from the Mains. Fix the external short circuit. Ensure all
cables are connected correctly. Reconnect the system, then operate as normal.
E13 Defect Channel 2 Disconnect the Control Box from the Mains. Fix the external short circuit. Ensure all
cables are connected correctly. Reconnect the system, then operate as normal.
E24 Over current Motor M1 Check that nothing is blocking the table’s range of movement. Remove excess load
from the table. Contact KLEVER for further information.
E25 Over current Motor M2 Check that nothing is blocking the table’s range of movement. Remove excess load
from the table. Contact KLEVER for further information.
E48 Over current Motor Group Check that nothing is blocking the table’s range of movement. Remove excess load
from the table. Contact KLEVER for further information.
E36 Plug detected in M1 Plug in the correct motor. Ensure all cables are connected correctly. Perform a Factory
Reset. Perform a Position Reset Procedure.
E37 Plug detected in M2 Plug in the correct motor. Ensure all cables are connected correctly. Perform a Factory
Reset. Perform a Position Reset Procedure.
E55 Sync Error, Motor Group Remove excess load from the table. Perform a Factory Reset. Contact KLEVER.
E62 Stop due to power output
control
Check that nothing is blocking the table’s range of movement. Remove excess load
from the table. Contact KLEVER for further information.
E60 ISP Activated Release all Keys and wait for the Drive Back function to be completed.
E61 Motor Replaced Plug in the correct motor. Ensure all cables are connected correctly. Perform a Factory
Reset. Perform a Position Reset Procedure.
E65 Over current while driving Check that nothing is blocking the table’s range of movement. Remove excess load
from the table. Contact KLEVER for further information.
When a comfort hand control is installed, error messages are displayed on the digital panel.

kleverdesk.co.nz
E67 High Voltage Detected Disconnect the Control Box from the Mains. Contact KLEVER for further information.
E70 Motor Configuration Changed
Disconnect the Control Box from the Mains. Connect the Actuators in the desired
setup. Perform a Factory Reset. Perform a Position Reset Procedure. Read Chapter 9,
“Actuator Setup”, for advice on changing Actuator types.
E71 Collision Sensor Defective Perform a Factory Reset. Contact KLEVER if the problem persists.
E72 Position Error (Middle Switch*) Disconnect the Control Box from the Mains. Wait for at least 20 seconds. Reconnect
and perform a Position Reset Procedure.
E73 Middle Switch* Defective Disconnect the Control Box from the Mains. Contact KLEVER for further information.
E81 Internal Error Disconnect the Control Box from the Mains. Restart and per-form a Factory Reset.
Contact KLEVER for further information if the problem persists.
E90
Cascading error (slave)
Check all connections. Attempt a Position Reset Procedure. If this is not possible,
disconnect all Control Boxes from the Mains and try again. Contact KLEVER for further
information if the problem persists.
E91
E91
E93 Connection Error During
Cascading
Check all connections. Attempt a Position Reset Procedure. If this is not possible,
disconnect all Control Boxes from the Mains and try again. Contact KLEVER for further
information if the problem persists.
NOTICE
Do not operate the table system if problems persist. Contact KLEVER for further information.
NOTICE
The Middle Switch is only fitted to certain versions of the SMARTneo-2G. Contact KLEVER if you are unsure which version you have.
