PART - 1. BEFORE USING THE APPLIANCE
General Safety Warnings
Read this user manual carefully.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance,
ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be xed in
accordance with the instructions.
If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the cooler)
you should take care during transportation and
installation to prevent the cooler elements from being
damaged. R600a is an environmentally friendly and
natural gas, but it is explosive. In the event of a leak

EN - 4 -
due to damage of the cooler elements, move your
fridge away from open ames or heat sources and
ventilate the room where the appliance is located for a
few minutes.
• While carrying and positioning the fridge, do not
damage the cooler gas circuit.
• Do not store explosive substances such as aerosol
cans with a ammable propellant in this appliance.
• This appliance is intended to be used in household
and domestic applications such as:
–sta󰀨 kitchen areas in shops, o󰀩ces and other
working environments.
–farm houses and by clients in hotels, motels and
other residential type environments.
–bed and breakfast type environments;
–catering and similar non-retail applications.
• If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, a service
agent or similarly qualied persons in order to avoid
a hazard.
• A specially grounded plug has been connected
to the power cable of your refrigerator. This plug
should be used with a specially grounded socket
of 16 amperes. If there is no such socket in your
house, please have one installed by an authorised
electrician.
• This appliance can be used by children aged from
8 years and above and persons with reduced

EN - 5 -
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
• Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances. Children are not
expected to perform cleaning or user maintenance
of the appliance, very young children (0-3 years old)
are not expected to use appliances, young children
(3-8 years old) are not expected to use appliances
safely unless continuous supervision is given, older
children (8-14 years old) and vulnerable people can
use appliances safely after they have been given
appropriate supervision or instruction concerning
use of the appliance. Very vulnerable people are
not expected to use appliances safely unless
continuous supervision is given.
• If the supply cord is damaged, it must be replaced
by the manufacturer, an authorised service agent or
similar qualied persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes
exceeding 2000 m.

EN - 6 -
To avoid contamination of food, please respect the
following instructions:
• Opening the door for long periods can cause
a signicant increase of the temperature in the
compartments of the appliance.
• Clean regularly surfaces that can come in contact
with food and accessible drainage systems
• Store raw meat and sh in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
• Two-star frozen-food compartments are suitable for
storing pre-frozen food, storing or making ice cream
and making ice cubes.
• One-, two- and three-star compartments are not
suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long
periods, switch o󰀨, defrost, clean, dry, and leave the
door open to prevent mould developing within the
appliance.

EN - 7 -
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain isolation material and refrigerant
with CFC or HFC. Therefore, take care not to harm environment when you
are discarding your old fridges.
• Please ask your municipal authority about the disposal of the WEEE
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in
a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled and
our company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
food. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for losses to be incurred in the contrary
case.

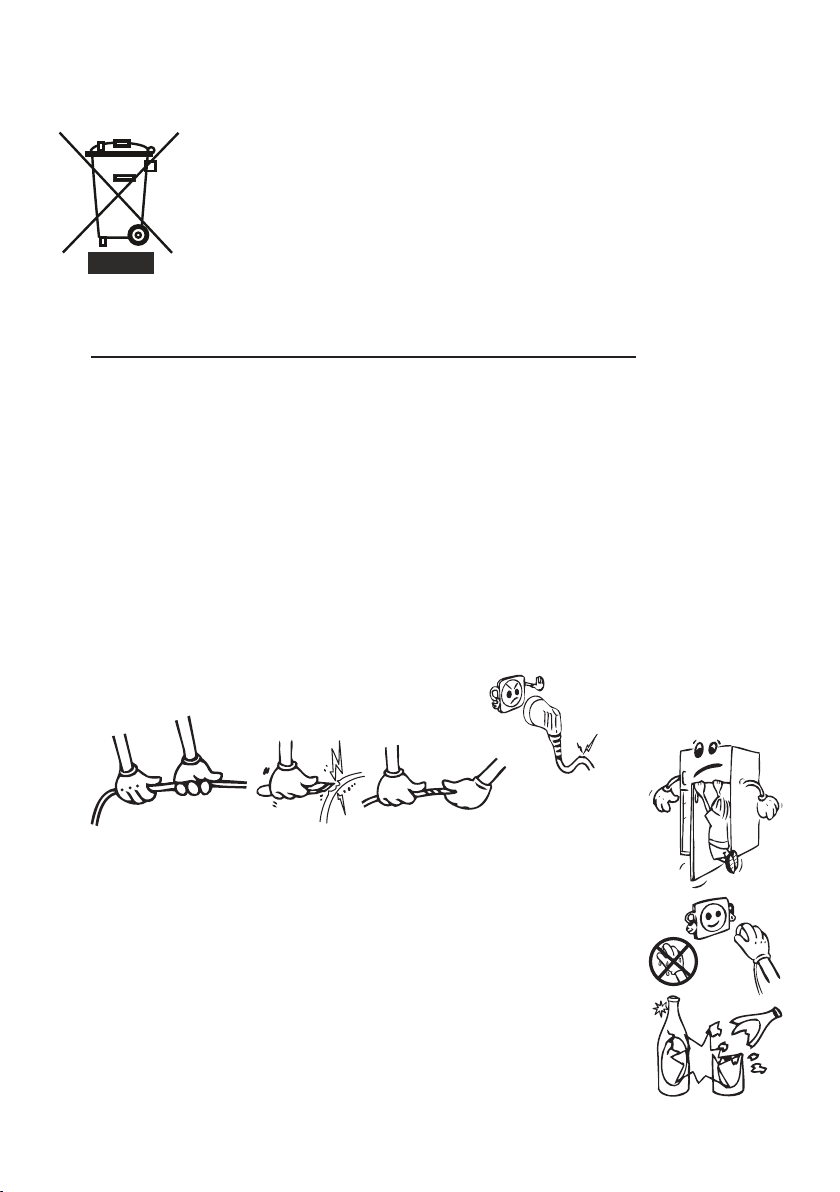

Safety warnings
• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to
play with the appliance or let them hang o󰀨 the door.
• Never touch the power cord/plug with wet hands as this could cause a
short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making
compartment as they can burst as the contents freeze.
• Do not place explosive or ammable material in your fridge freezer.
Place drinks with high alcohol content vertically in the fridge
compartment and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it.
Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream

EN - 8 -
and ice cubes immediately after you have taken them out of the freezer
compartment!
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes
immediately after you have taken them out of the ice-making compartment.
• Do not cover the body or top of fridge with lace. This a󰀨ects the performance
of your fridge freezer.
• Secure any accessories in the fridge freezer during transportation to prevent damage to
the accessories.
• Do not use plug adapter.
Installing and operating your fridge freezer
Before starting to use your fridge freezer, you should pay attention to the following points:
• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have a smell when it is operated for the rst time. This is normal and the
smell will fade away when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate
(voltage and connected load) matches that of the mains electricity supply. If in doubt,
consult a qualied electrician.
• Insert the plug into a socket with an e󰀩cient ground connection. If the socket has no
ground contact or the plug does not match, we recommend that you consult a qualied
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply
(AC) and voltage at the operating point must match with the details on the name plate of
the appliance (name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your fridge freezer should never be used outdoors or exposed to rain.
• Your appliance should be at least 50 cm away from stoves, gas ovens and
heater cores, and at least 5 cm away from electrical ovens.
• When your fridge freezer is placed next to a deep freezer, there should be at
least 2 cm between them to prevent humidity forming on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially the interior, before use (see
Cleaning and Maintenance).
• The installation procedure into the kitchen unit is given in the installation manual. This
product is intended to be used in proper kitchen units only.
• Before using your fridge freezer, wipe all parts with a solution of warm water
and a teaspoon of sodium bicarbonate, then rinse with clean water and dry.
Place all parts in the fridge freezer after cleaning.

EN - 9 -
Before Using your fridge freezer
• When using your fridge freezer for the rst time, or after transportation,
keep it in an upright position for at least 3 hours before plugging into
the mains. This allows e󰀩cient operation and prevents damage to the
compressor.
• Your fridge freezer may have a smell when it is operated for the rst time. This is normal
and the smell will fade away when your fridge freezer starts to cool.

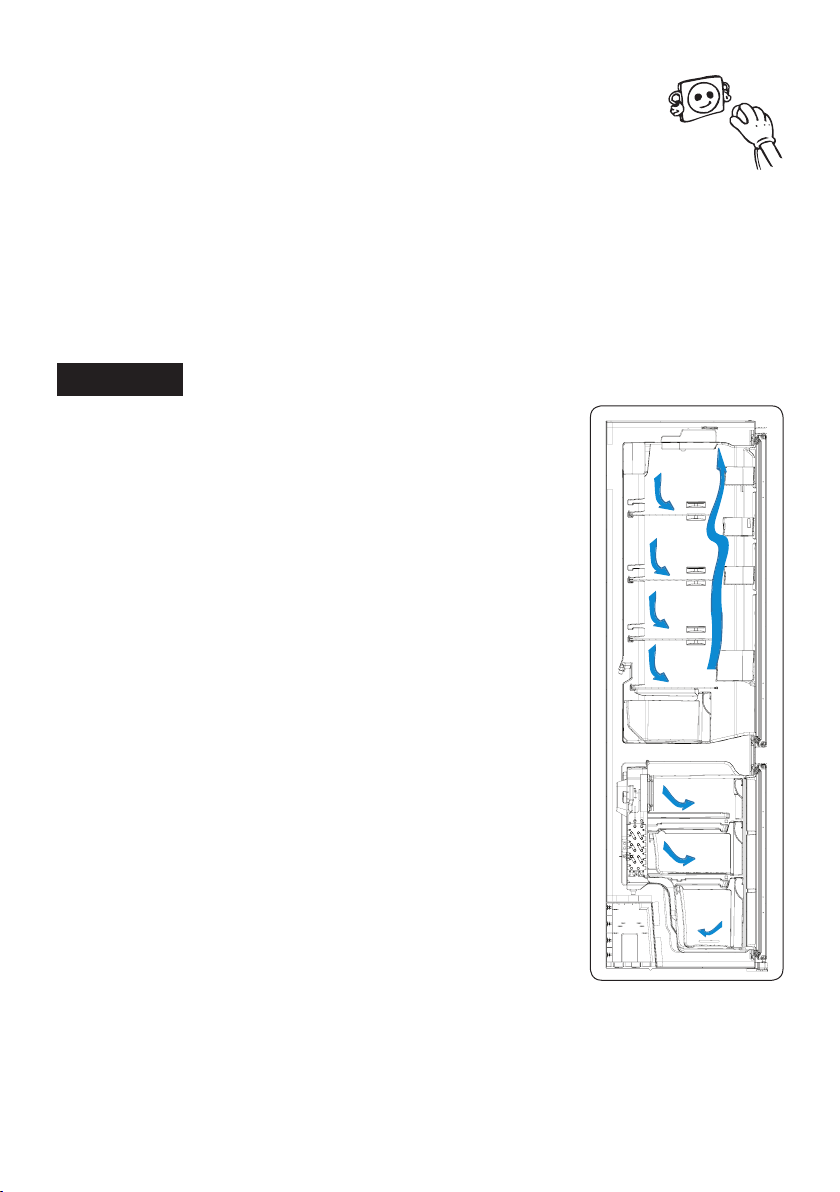

Information on the Frost Free technology
The Frost Free refrigerators are di󰀨erent from the other static
refrigerators in terms of their operational system.
In normal fridge freezers, the humidity entering the fridge freezer
due to opening the door and the humidity inherent in the food
causes freezing in the freezer compartment. To defrost the frost
and ice in the freezer compartment, you are periodically required
to turn o󰀨 the fridge, place the food that needs to be kept frozen in
a separately cooled container and remove the ice gathered in the
freezer compartment.
The situation is completely di󰀨erent in no-frost refrigerators. Dry
and cold air is blown into the fridge and freezer compartments
homogeneously and evenly from several points via a blower
fan. Cold air dispersed homogeneously and evenly between the
shelves cools all of your food equally and uniformly, thus preventing
humidity and freezing.
Therefore your no-frost fridge freezer allows you ease of use, in
addition to its huge capacity and stylish appearance.
HOW TO OPERATE THE APPLIANCEPART - 2.
General notes:
Fresh Food Compartment (Fridge): Most e󰀩cient use of energy is ensured in the
conguration with the drawers in the bottom part of the appliance, and shelves evenly
distributed, position of door bins does not a󰀨ect energy consumption.
Freezer Compartment (Freezer): Most E󰀩cient use of energy is ensured in the
conguration with the drawers and bins are on stock position.

EN - 10 -
Thermostat setting
Cooling compartment
It ensures that the temperature settings in the cooling
and freezing compartments of your refrigerator are
performed automatically. It may be set to any value
ranging from 1 to 5. As you turn the thermostat
setting knob from 1 to 5, the temperature decreases.
To save energy in winter months, operate your
refrigerator in a lower position.
Fridge compartment thermostat knob;
4 - 5 : For further cooling.
2 - 3 : For normal use.
1 : For less cooling.
Warnings for Temperature Settings
• The ambient temperature, temperature of the freshly stored food and how often the door
is opened a󰀨ects the temperature in the refrigerator compartment. If required, change
the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10°C in
terms of its e󰀩ciency.
• The thermostat should be set by taking into consideration how often the fresh food and
freezer doors are opened and closed, how much food is stored in the refrigerator, and
the environment in which the refrigerator is located.
• When you rst switch on the appliance, you should ideally try to run it without any food
in for 24 hours and not open the door. If you need to use it straight away, try not to put a
large quantity of food inside.
• A 5 minute delay function is included to prevent damage to the compressor of your fridge,
when you unplug it and then plug it in again to operate it, or when an energy breakdown
occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. It is not
recommended that your fridge is operated in the environments which are out of the
stated temperature intervals. This will reduce the cooling e󰀩ciency of the fridge.
• This appliance is designed for use at an ambient temperature within the 10°C - 43°C
range.
Thermostat knob
Climate class and meaning:
T (tropical): This refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 43 °C.
ST (subtropical): This refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 38 °C.
N (temperate): This refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 32 °C.
SN (extended temperate): This refrigerating appliance is intended to be used at ambient
temperatures ranging from 10 °C to 32 °C.

EN - 11 -
Accessories

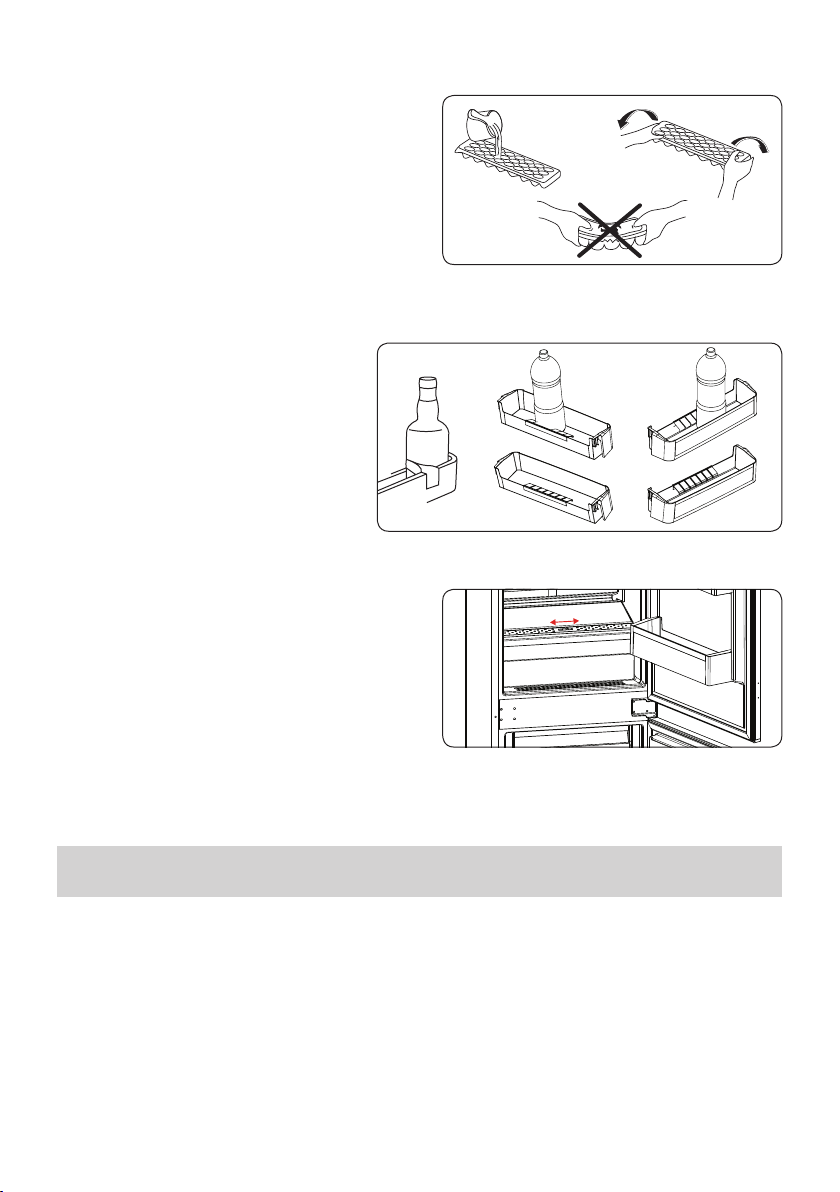

Ice tray
• Fill the ice tray with water and place in the
freezer compartment.
• After the water has completely turned into
ice, you can twist the tray as shown below
to remove the ice cubes.
Bottle holder
In order to prevent bottles from slipping
or falling over, you can use the bottle
holder. This will also help to prevent the
noise made by bottles when opening or
closing the door.
All written and visual descriptions in the accessories may vary according to the
appliance model.
(In some models)
(In some models)
Fresh dial
When the humidity controler in the closed
position, it allows fresh fruit and vegetables to
be stored longer.
In case of the crisper is totally full, the fresh dial
is located in front of crisper, should be opened.
By means of this the air in the crisper and
humidity rate will be controlled and endurance
life will be increased.
If you see any condensation on glass shelf, humidity control should be taken into the open
positions.

EN - 12 -
Refrigerator Compartment
• Always make sure food is wrapped or stored in closed containers.
• Hot food and drinks should be cooled to room temperature before being placed in the
refrigerator.
• Please do not store packaged food and cups against the lamp and cover of the cooling
compartment.
• Store fruit and vegetable items loose in the crisper containers.
• Some recommendations have been specied below for the placement and storage of
your food in the cooling compartment.ainers.
Some recommendations have been specied below for the placement and storage of
your food in the cooling compartment.
Freezer Compartment
FOOD STORAGE IN THE APPLIANCEPART - 3.
• Please use the deep freeze compartment of your refrigerator for storing frozen food for
a long time and producing ice.
• Please place the food you would like to freeze initially in the upper basket of the deep
freeze in such a way that it does not exceed the declared freezing capacity of your
refrigerator. Please do not place the food to be frozen near the already frozen food.
You may place your food next to the other frozen food after it has frozen (for at least 24
hours).
• You should freeze food (meat, minced meat, sh, etc.) by dividing it into portions in such
a way that they can be consumed in one sitting.
• Please do not refreeze frozen food once it has thawed. It may pose a danger for your
health since it might cause food poisoning.
• Do not place hot meals in the deep freeze before they have cooled. You may cause the
other food frozen food in the deep freeze to become putreed.
• When you buy frozen food, make sure they were frozen under appropriate conditions
and that the package is not torn.
• When storing frozen food, the storage conditions on the package should be observed. If
• For normal working conditions, it will be su󰀩cient to adjust the temperature setting of
your refrigerator to +4 °C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods
below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass
outside. Hot foods increase the degree of your refrigerator and cause food poisoning
and unnecessary spoiling of the food.
• Meat, sh, etc. should be store in the chiller compartment of the food, and the vegetable
compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored
together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent
moisture and odors.

EN - 13 -
there are no instructions, the food has to be consumed in the shortest possible period
of time.
• Frozen food has to be transported before it perishes and should be placed in the fast
freezing shelf as soon as possible. Please do not use the door shelves for freezing
purposes.
• If a frozen food package has been humidied and has a foul smell, the food might have
previously been stored under suitable conditions and gone rotten. Please do not buy
such food!
• The storage duration of frozen food changes depending on the environmental
temperature, the frequent opening and closing of the doors, thermostat settings, food
type and the length of time that has elapsed from the time the food was bought to the
time it entered the freezer. Always abide by the instructions on the packaging and never
exceed the storage duration.
Some recommendations have been specied below for the placement and storage of your
food in the cooling compartment.
Dairy Products Preparation Maximum Storing
time (months) Storing Conditions
Packet
(Homogenize) Milk In its own packet 2 - 3 Pure Milk – In its own packet
Cheese-excluding
white cheese In slices 6 - 8
Original package may
be used for short storing
period. It should be
wrapped in foil for longer
periods.
Butter, margarine In its package 6
Maximum Storing
time (months)
Thawing time in
room temperature
(hours)
Thawing time in oven
(minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)

EN - 14 -
Meat and sh Preparation
Maximum
Storing time
(month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be packaged even if it has
membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets 6 - 8
Fresshwater shes (Salmon,
Carp, Crane, Siluroidea) After cleaning the bowels and
scales of the sh, wash and dry
it; and if necessary, cut o󰀨 the tail
and head.
2
Lean sh; bass, turbot,
ounder 4
Fatty shes (Tunny, Mackarel,
bluesh, anchovy) 2 - 4
Shellsh Cleaned and in bags 4 - 6
Caviar In its package, aluminium or
plastic container 2 - 3
Snails In salty water, aluminum or plastic
container 3
Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not
cooked after being thawed, it must not be re-frozen.

EN - 15 -
Vegetables and Fruits Preparation
Maximum
Storing time
(months)
String beans and beans Wash and cut into small pieces and boil in
water 10 - 13
Beans Hull and wash and boil in water 12
Cabbage Cleaned and boil in water 6 - 8
Carrot Clean and cut to slices and boil in water 12
Pepper Cut the stem, cut into two pieces, remove
the core and boil in water 8 - 10
Spinach Washed and boil in water 6 - 9
Cauliower
Take the leaves apart, cut the heart into
pieces, and leave it in water with a little
lemon juice for a while
10 - 12
Eggplant Cut to pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet
corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and
Blackberry Wash and hull 8 - 12
Cooked fruits Adding 10 % of sugar in the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12

EN - 16 -

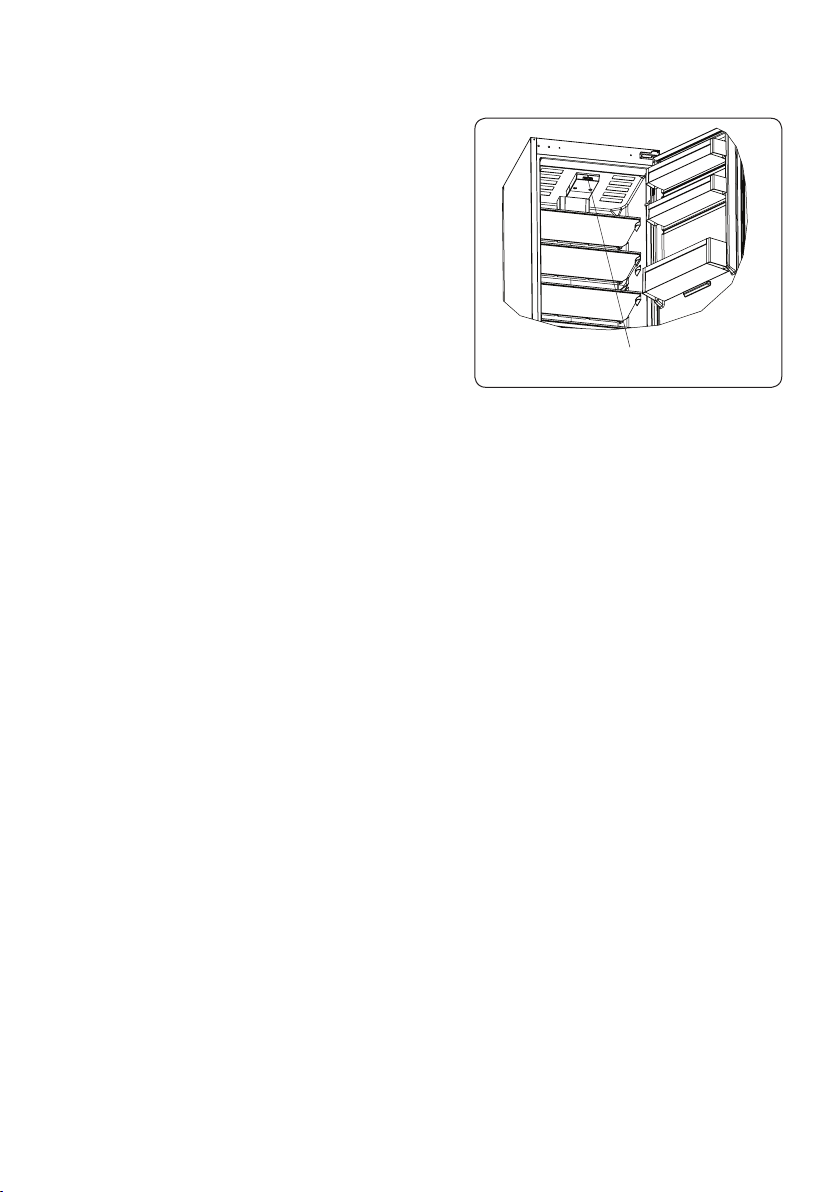

Defrosting
You refrigerator has fully automatic defrosting. The
water formed as a result of defrosting passes through
the water collection spout, ows into the vaporisation
container below the condenser and evaporates there.
Evaporation
container

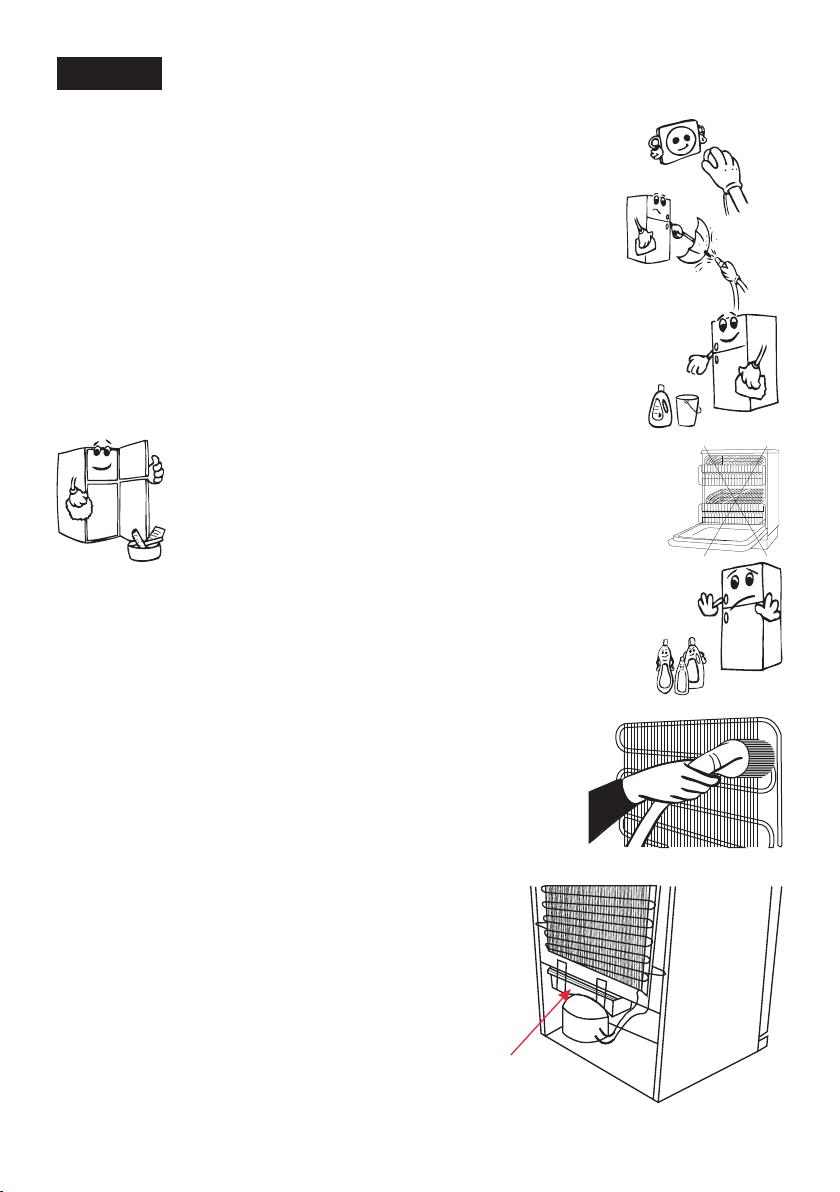

PART 4. CLEANING AND MAINTENANCE
• Disconnect the unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp housing and other electrical
components.
• The refrigerator should be cleaned periodically using a solution of
bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do
not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing, rinse
with clean water and dry carefully. When you have nished cleaning,
reconnect the plugto the mains supply with dry hands.
• Clean the condenser with a broom at least twice a year. This
will help you to save on energy costs and increase productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.

EN - 17 -
PART - 5.
Replacing LED lighting
If your refrigerator has LED lighting contact the help desk as this should be changed by
authorized personnel only.
TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Transportation and changing of installation position
• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong
rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the
installation position, all the moving objects
(ie,shelves,crisper…) should be taken out
or xed with bands in order to prevent them
from getting damaged.
• Carry your fridge freezer in the upright position.
BEFORE CALLING YOUR AFTER SALES SERVICEPART - 6.
If your refrigerator is not working properly, it may be a minor problem, in order to save time
and money, check the following, before calling an electrician.
What to do if your appliance does not operate;
Check that:
• There is no power,
• The general switch in your home is disconnected,
• The socket is not faulty. To check this, plug in another appliance that you know is working
into the same socket.
What to do if your appliance performs poorly,
Check that:
• You have overloaded the appliance ,
• The thermostat setting is in position “1” (if so, set the thermostat dial to a suitable value)
• The doors are closed properly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.
If there is noise:
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If you
hear any other noises, check that:
• The appliance is level
• Nothing is touching the rear of the appliance.
• The objects on the appliance are vibrating.

EN - 18 -
If there is water in the lower part of the refrigerator,
Check that:
The drain hole for the water is not clogged (use the defrost drain plug to clean the drain hole)
Recommendations
• The compressor protection thermal fuse will cutout after sudden power breakdowns or
after unplugging the appliance, because the gas in the cooling system is not stabilised.
This is quite normal and the fridge will restart after 4 or 5 minutes.
• The cooling unit of your refrigerator is hidden in the rear of the appliance. Therefore,
water droplets or icing may occur on the rear surface of your fridge due to the operation
of the compressor at specied intervals. This is normal. There is no need to perform a
defrosting operation unless the icing is excessive.
• To stop the appliance completely, unplug it from main socket (for cleaning and when the
doors are left open).
• If a problem persists after you have followed all the instructions above, please consult the
nearest Authorised Service Centre.
• The appliance you have purchased is designed for domestic use and can only be used
at home and for the stated purposes. It is not suitable for commercial or common use. If
the consumer uses the appliance in a way that does not comply with this, we emphasise
that the manufacturer and the dealer will not be responsible for any repair and failure
within the guarantee period.
• The lifetime of your appliance is stated and declared by the Department of industry. The
period for retaining parts required for the operation of the appliance is 10 years.
Tips for saving energy
1.Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near
a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2.Allow warm food and drinks to cool down outside the appliance.
3.When thawing frozen food, place it in the refrigerator compartment. The low temperature
of the frozen food will help to cool the refrigerator compartment when it is thawing. This
will help to save energy. If the frozen food is put out, it results in a waste of energy.
4.Cover drinks or other liquids when placing them in the appliance Otherwise humidity
increases in the appliance. Therefore, the working time gets longer. Also covering drinks
and other liquids helps to preserve smell and taste.
5.Try to avoid keeping the doors open for long periods or opening the doors too frequently
as warm air will enter the cabinet and cause the compressor to switch on unnecessarily
often.
6.Keep the covers of the di󰀨erent temperature compartments (crisper, chiller ...etc ) closed
7.Door gasket must be clean and pliable. Replace gaskets if worn.

EN - 19 -
PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
PART - 7.
1
2
12
13
A
B
10
11
3
4
5
6
7
8
9
A) Refrigerator compartment
B) Freezer compartment
1) Thermostat knob
2) Refrigerator lamp & cover
3) Refrigerator shelves
4) Crisper cover
5) Crisper
6) Freezer room cover
7) Freezer upper drawer
8) Freezer bottom drawer
9) Freezer glass shelves *
10) Bottle shelf
11) Door shelves
12) Egg holder
13) Ice tray * In some models
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.

EN - 20 -

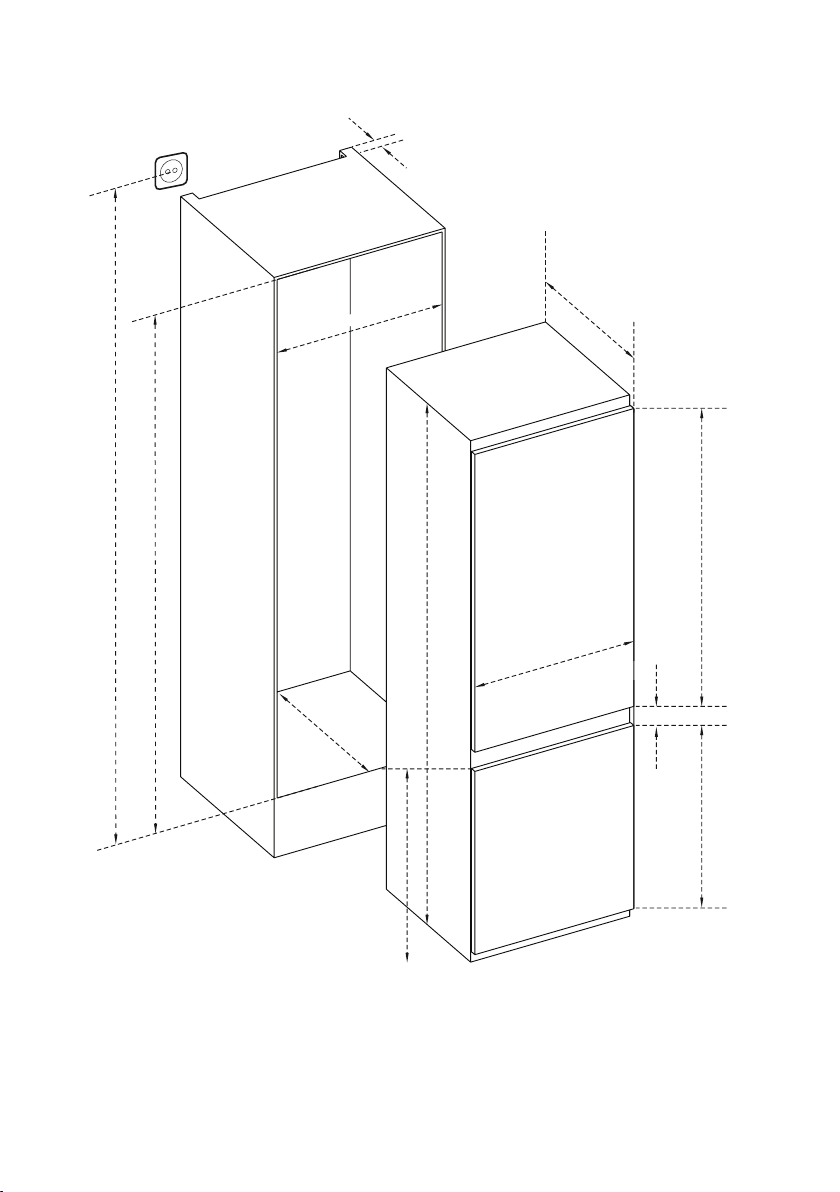

Dimensions
* 1770 - 1778 for metal top cover
min 200 cm2min 40 mm
560 - 570 mm
max 2100 mm
1770 - 1790 mm
560 mm
(recommended)
min. 550 mm
545 mm
540 mm
62 mm
995,5 mm623,5 mm
660,3 mm
1770 mm
